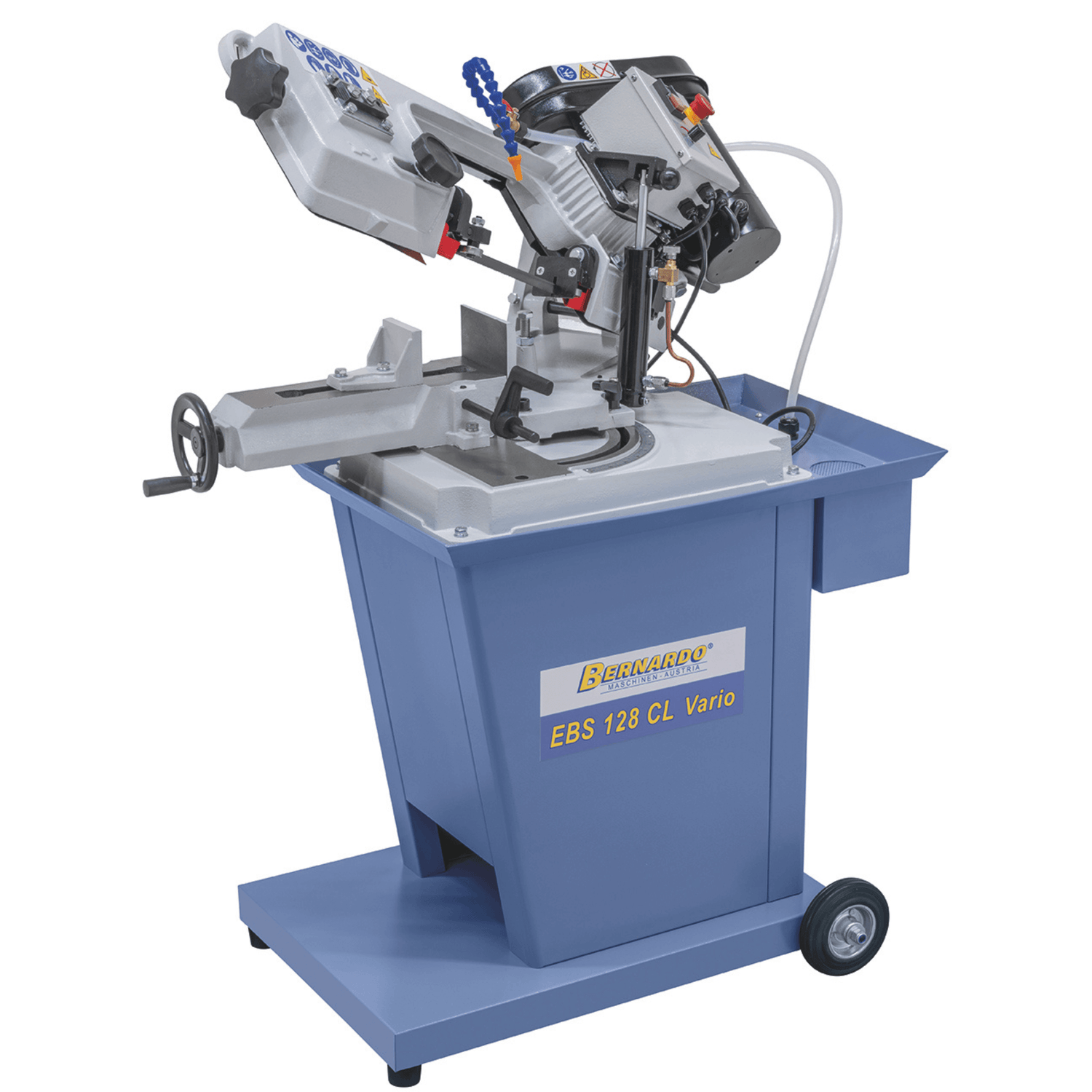

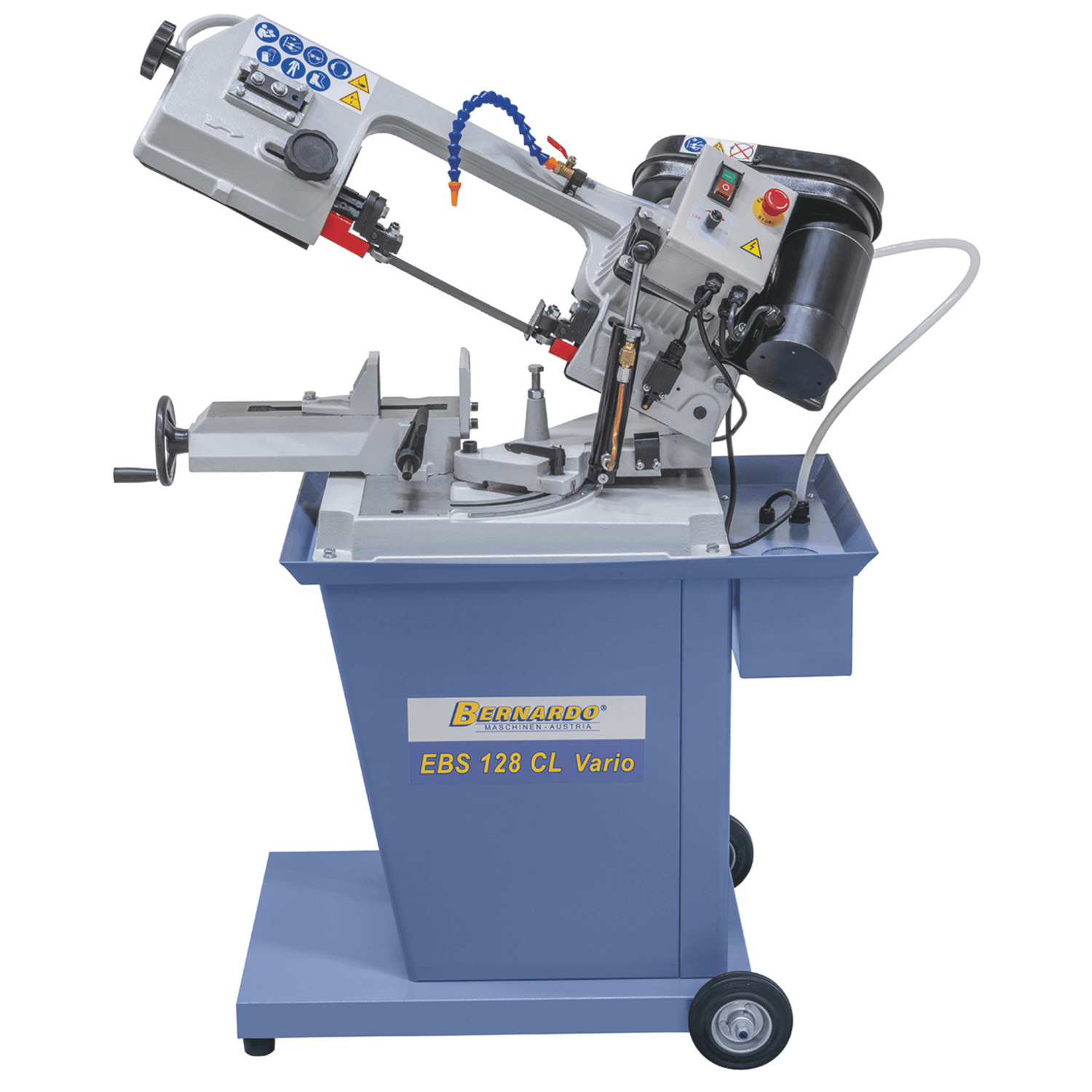

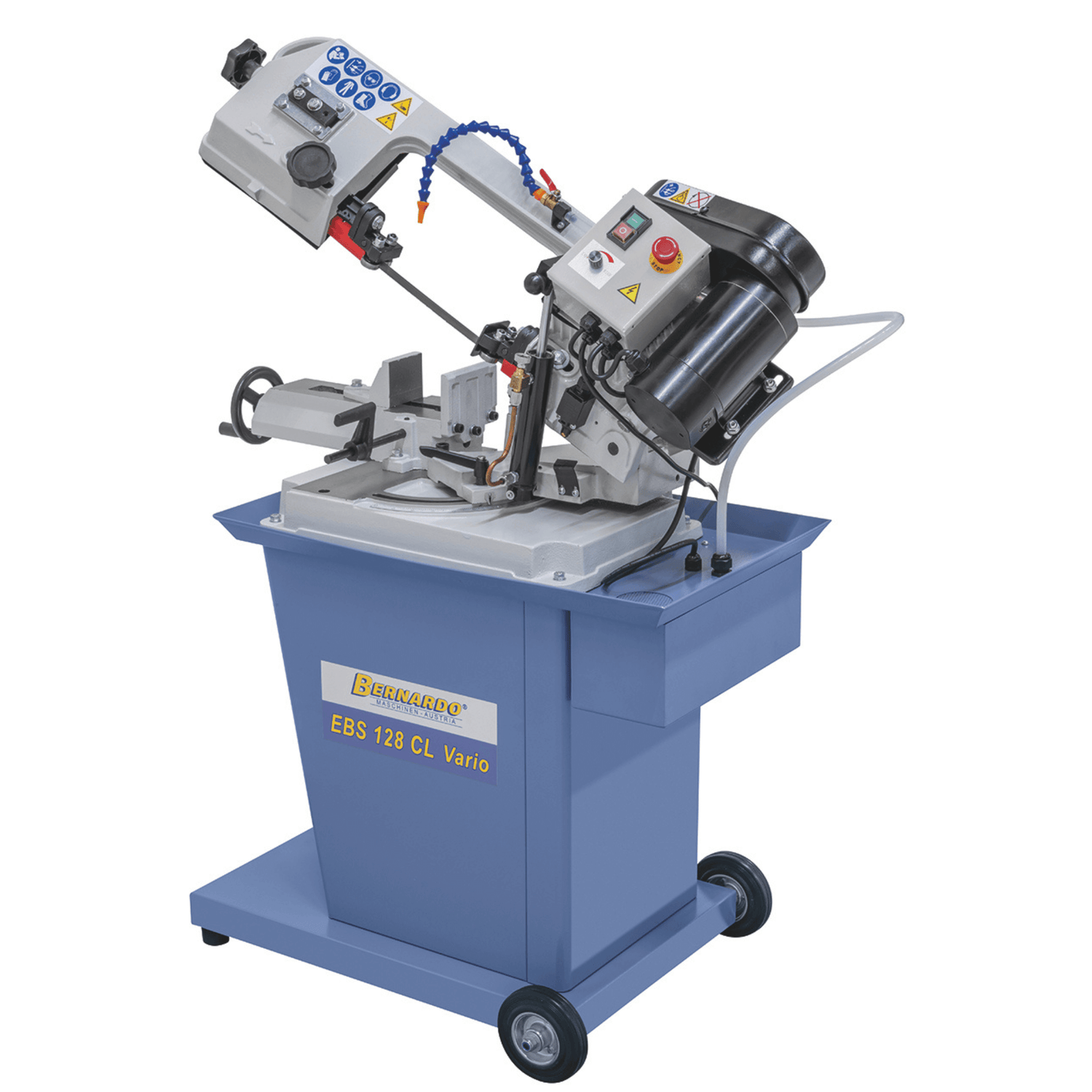

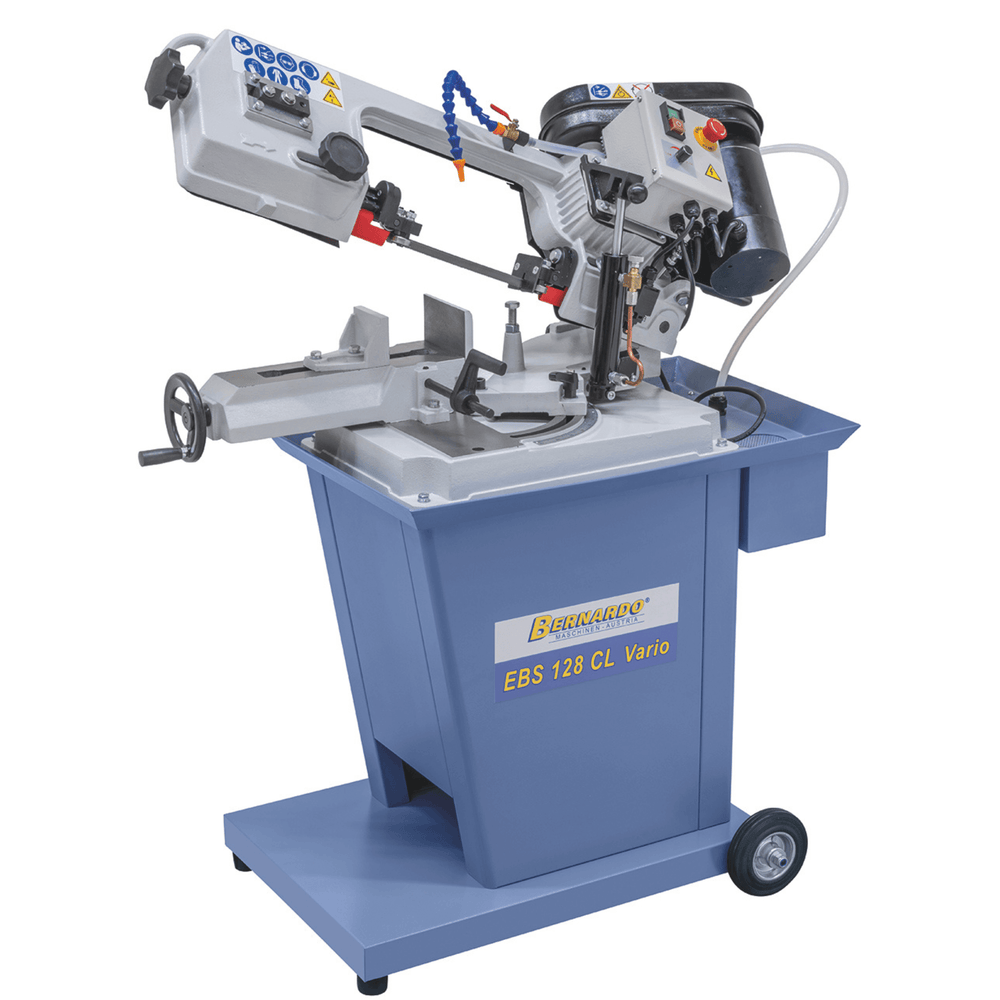

The Bernardo 230 V is a metal-cutting band saw for professional use, with a 125 mm cutting capacity, 0.75 kW motor, and weighing 78 kg. Krollit, official Bernardo distributor since 2007.
- Round cutting capacity 90°: 125 mm
- Flat cutting capacity 90°: 130 x 150 mm
- Round cutting capacity 45°: 85 mm
- Flat cutting capacity 45°: 85 x 145 mm
- Round cutting capacity 60°: 35 mm
- Flat cutting capacity 60°: 35 x 70 mm
Who uses the 230 V and for what
Mechanical workshops and metalworking shops use the 230 V for cutting steel, aluminum, and cast iron profiles and bars, sectioning raw materials before turning or milling.
Its place in the Bernardo range
The Bernardo 230 V is part of the Bernardo range of metal-cutting band saws, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance in selection.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the 230 V for?
The 230 V is recommended for the following professional profiles:
- Mechanical workshops and metalworking shops: cutting steel profiles and bars with acceptable tolerance for subsequent processing.
- Turners and industrial maintainers: sectioning raw materials before turning or milling.
Not suitable for: precision cuts on thin sheets (for thin sheets, consider hydraulic shears or circular metal saws).
Processing capacity
| Round cutting capacity 90° | 125 mm |
| Flat cutting capacity 90° | 130 x 150 mm |
| Round cutting capacity 45° | 85 mm |
| Flat cutting capacity 45° | 85 x 145 mm |
| Round cutting capacity 60° | 35 mm |
| Flat cutting capacity 60° | 35 x 70 mm |
| Cutting speed | 22 – 56 m/min (variable) |
Table, dimensions, and geometry
| Working height | 750 mm |
| Machine dimensions (L x W x H) | 970 x 540 x 1100 mm |
| Weight | 78 kg |
Motor and power supply
| Motor power (S1) | 0.75 kW |
| Motor power (S6) | 1.1 kW |
| Power supply | 230 V |
Other specifications
| Blade (L x H x Th.) | 1638 x 13 x 0.65 mm |
Frequently asked questions
What can the 230 V cut?
Profiles, tubes, solid bars, and rolled steel, aluminum, and cast iron within the indicated section limits.
Cutting capacity is expressed in mm of maximum section for round, square, and rectangular profiles. For extra-hard materials, reduce band speed and use blades with appropriate tooth pitch.
What type of blade does it require?
Bi-metal blade for cutting steel, carbon steel blade for soft metals.
Krollit supplies original Bernardo blades in various tooth pitches to optimize cutting based on material type and thickness.
What cutting speed does it offer?
See "Band speed" data in the technical table: typically adjustable in 2-4 steps or continuously (Vario).
Low speeds (15-30 m/min) for alloy steels, high speeds (50-80 m/min) for light alloys and aluminum. Incorrect selection accelerates blade wear.
Does it have integrated cooling?
Professional models are equipped with a cooling pump with collection tank and drip tray.
Cooling (with cutting oil or emulsion) extends blade life and improves cutting quality on hard materials. For dry cutting, use specific blades.
How much does it weigh and how is it installed?
See "Weight" data in the technical table: industrial models weigh from 150 to over 400 kg.
Saws over 200 kg require adequate flooring and fastening. The machine must be positioned in clear space for managing long profiles.
