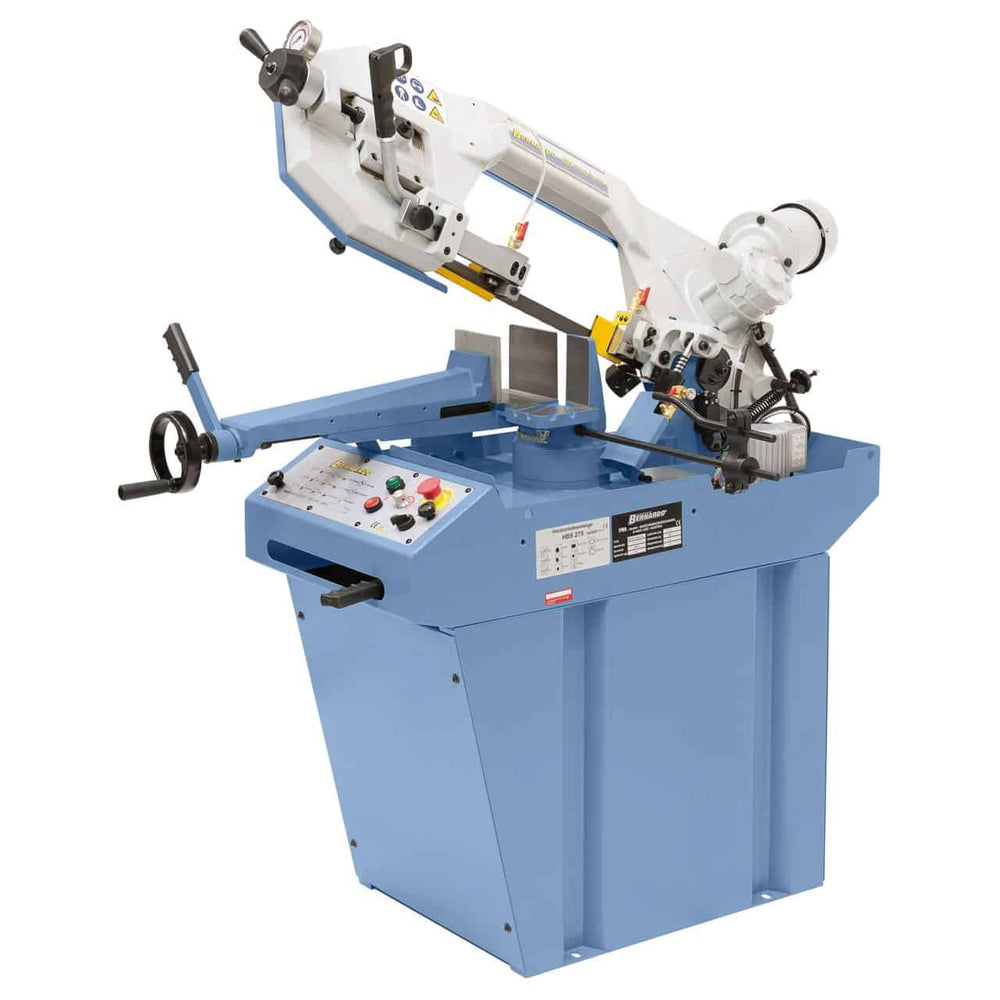

Bernardo HBS 275 Vario PRO / 230 V Horizontal Bandsaw
The Bernardo HBS 275 Vario PRO / 230 V is a professional-grade horizontal bandsaw, designed for workshops, blacksmiths, and carpentry shops that require high performance. The robust spheroidal cast iron frame ensures stability and prevents torsion, while the professional blade guide with carbide inserts reduces wear and improves precision. Thanks to the continuously variable cutting speed (20 – 90 m/min), the machine adapts perfectly to different materials such as solid steels, stainless steel, tool steels, and hollow profiles. The saw arm descent is regulated by a continuous hydraulic cylinder, ensuring smooth and constant feed. Complete with a quick-release vise, a 100 W cooling device, an EMC filter according to CE standards, and automatic shut-off at the end of the cut, it represents a versatile and professional solution with 230 V power supply.
Key features:
Spheroidal cast iron frame, robust and torsion-free
Variable cutting speed 20 – 90 m/min

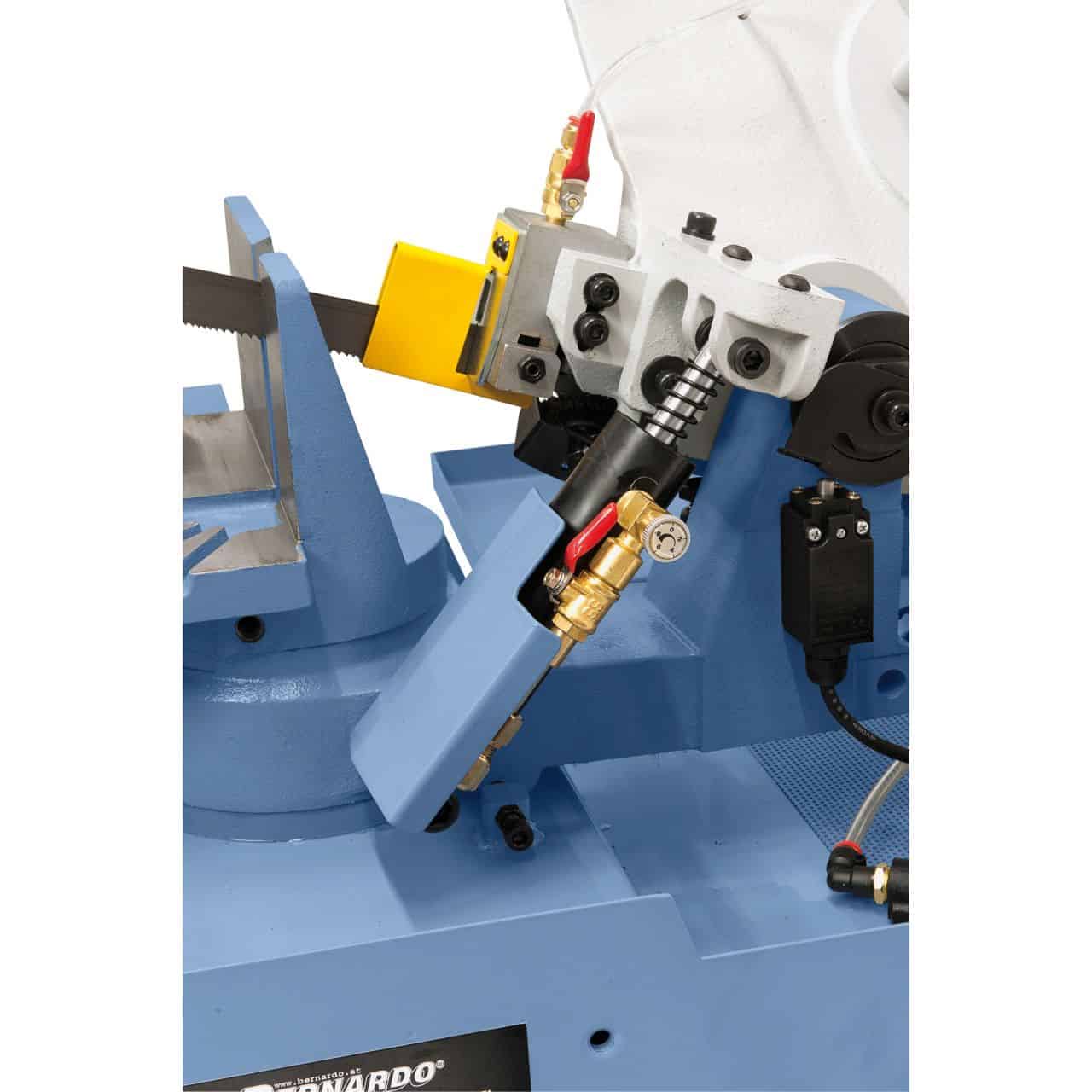

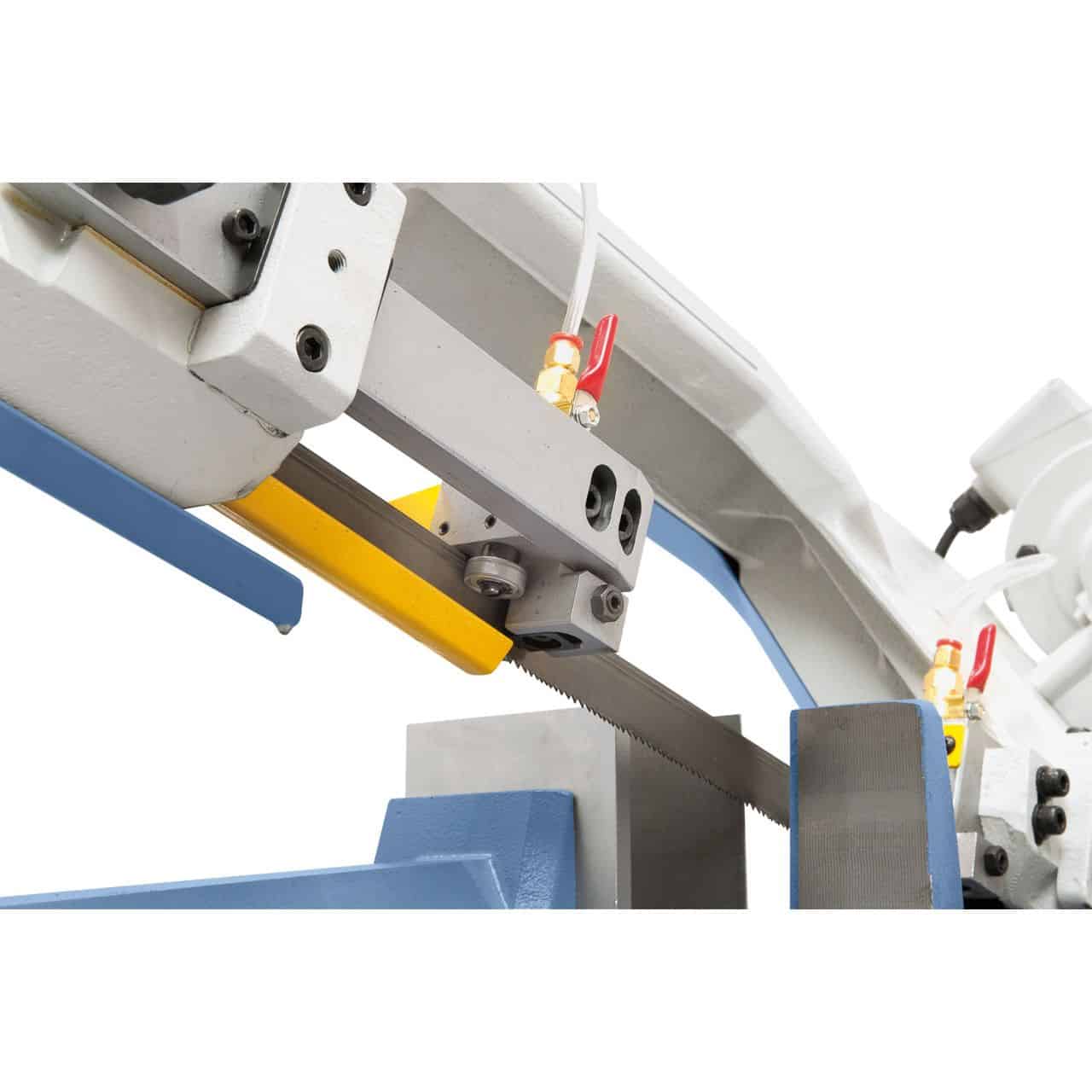

Professional blade guide with carbide inserts
Arm inclinable up to 60° for precise angle cuts
Descent regulated by continuous hydraulic cylinder
Quick-release cast iron vise with solid clamping

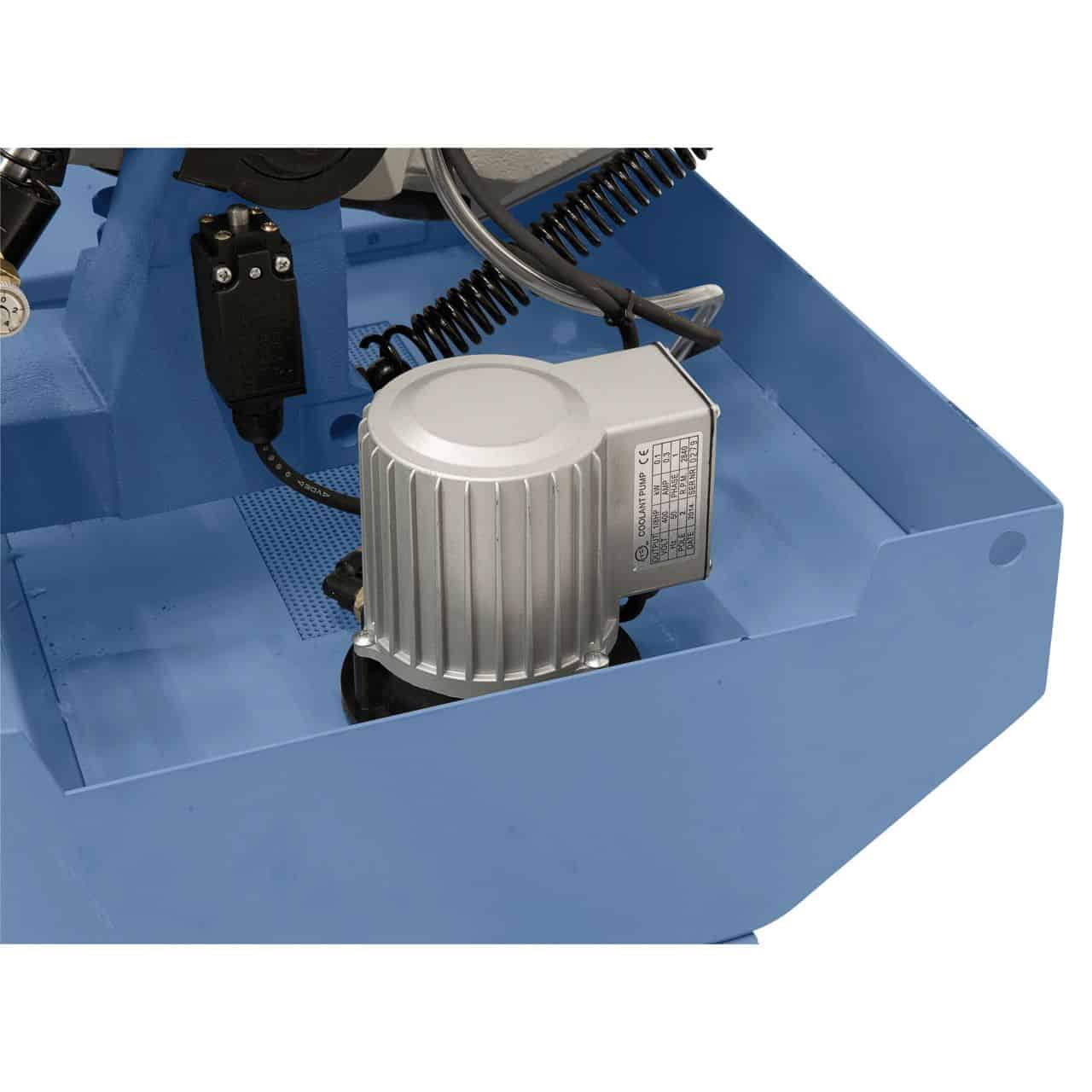

Integrated 100 W cooling device
Automatic shut-off and EMC filter according to CE
Technical specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HBS 275 Vario PRO / 230 V |
| Round cutting capacity 90° |
225 mm |
| Square cutting capacity 90° |
200 x 200 mm |
| Flat cutting capacity 90° |
245 x 150 mm |
| Round cutting capacity 45° |
160 mm |
| Square cutting capacity 45° |
160 x 160 mm |
| Round cutting capacity 60° |
100 mm |
| Square cutting capacity 60° |
100 mm |
| Working height |
910 mm |
| Blade (L x H x Th.) |
2480 x 27 x 0.9 mm |
| Cutting speed |
20 – 90 m/min (variable) |
| Coolant pump |
100 W |
| Motor power (S1 100%) |
1.5 kW |
| Power supply |
230 V |
| Machine dimensions (L x W x H) |
1430 x 720 x 1700 mm |
| Weight |
185 kg |
Standard equipment
Bernardo HBS 275 Vario PRO / 230 V Bandsaw
Mounted bandsaw blade
Quick-release cast iron vise
Blade tension gauge
Blade guide with carbide inserts
Workpiece fence
Steel base
100 W cooling device
Hydraulic cylinder
Motor protection switch
EMC filter according to CE standards
Automatic shut-off at the end of the cut
Logistics
Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between a horizontal and vertical saw?
A horizontal saw lowers the saw band assembly onto the stationary workpiece — ideal for cutting bars and profiles to size repeatedly. A vertical saw (benchtop sawmill type) has the band running vertically and the workpiece is guided manually: suitable for shaped cuts and curves.
What speed should be used for stainless steel with the Bernardo Horizontal Bandsaw?
For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the descent force of the saw band assembly.
Are replacement blades available?
Yes. Original Bernardo bimetal blades for the Bernardo Horizontal Bandsaw are available with 3–5 working days shipping. Available in different tooth configurations for various materials: steel, stainless steel, aluminum, copper, cast iron.
Does the saw include a cooling system?
It depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support available in Italian.
Is assistance and spare parts available in Italian?
Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
