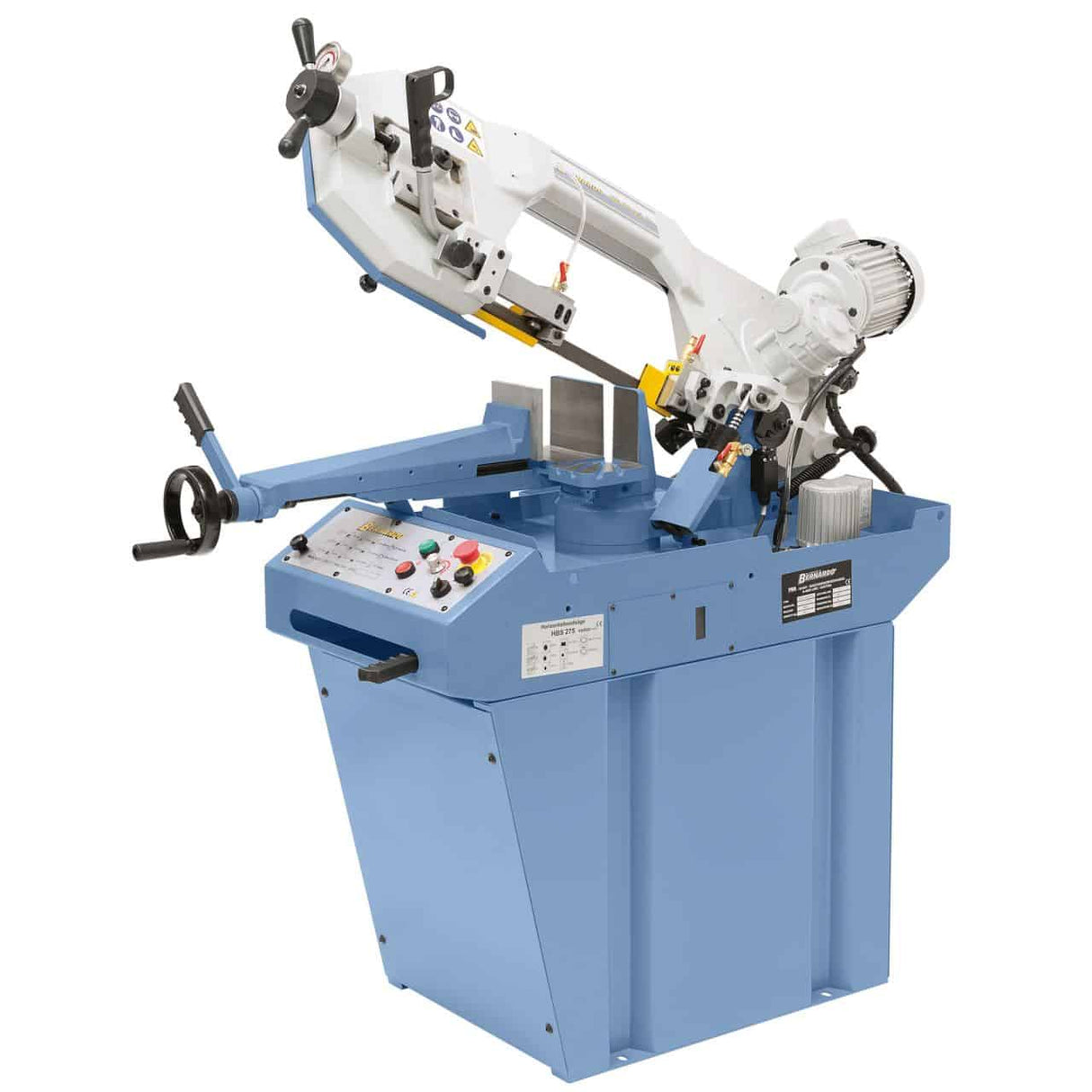

Bernardo Horizontal Bandsaw HBS 275 Vario PRO / 400 V
The Bernardo HBS 275 Vario PRO / 400 V is a professional horizontal bandsaw designed for universal applications in workshops and carpentry. The robust and torsion-free ductile cast iron frame ensures maximum stability. The combined blade guide with carbide inserts reduces wear and improves accuracy. The cutting speed is continuously adjustable from 20 to 90 m/min, allowing it to adapt to various materials, including stainless steel, tool steels, hollow profiles, and solid materials. The arm descent is controlled by a hydraulic cylinder, while the transmission system with a hardened worm screw and bronze wheel guarantees reliability and long life. Equipped with a quick-release vice, coolant device, automatic shut-off at the end of the cut, and a blade tension manometer, it is the ideal choice for professionals seeking precision and robustness.
Key features:
Ductile cast iron frame, robust and torsion-free
Variable cutting speed 20 – 90 m/min

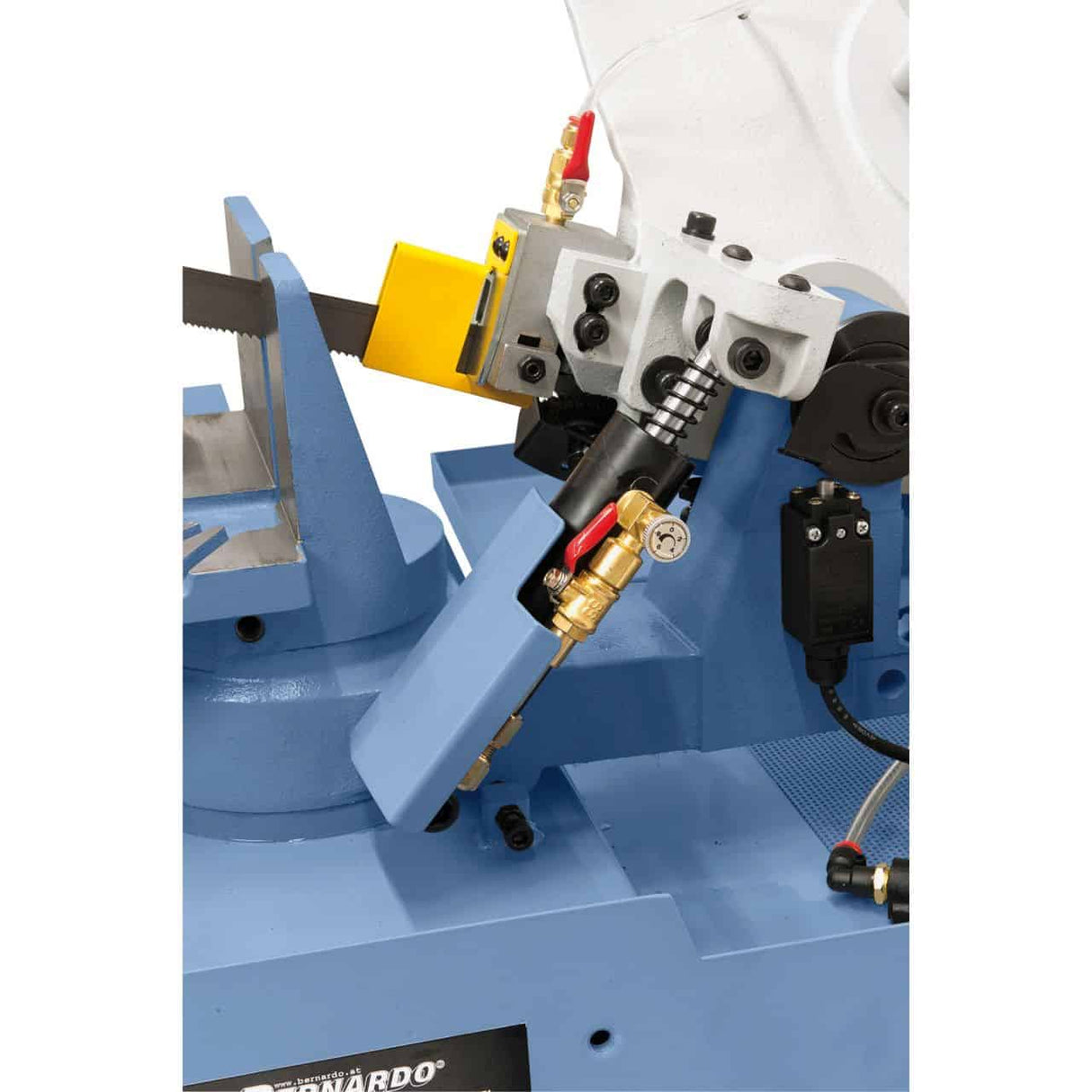

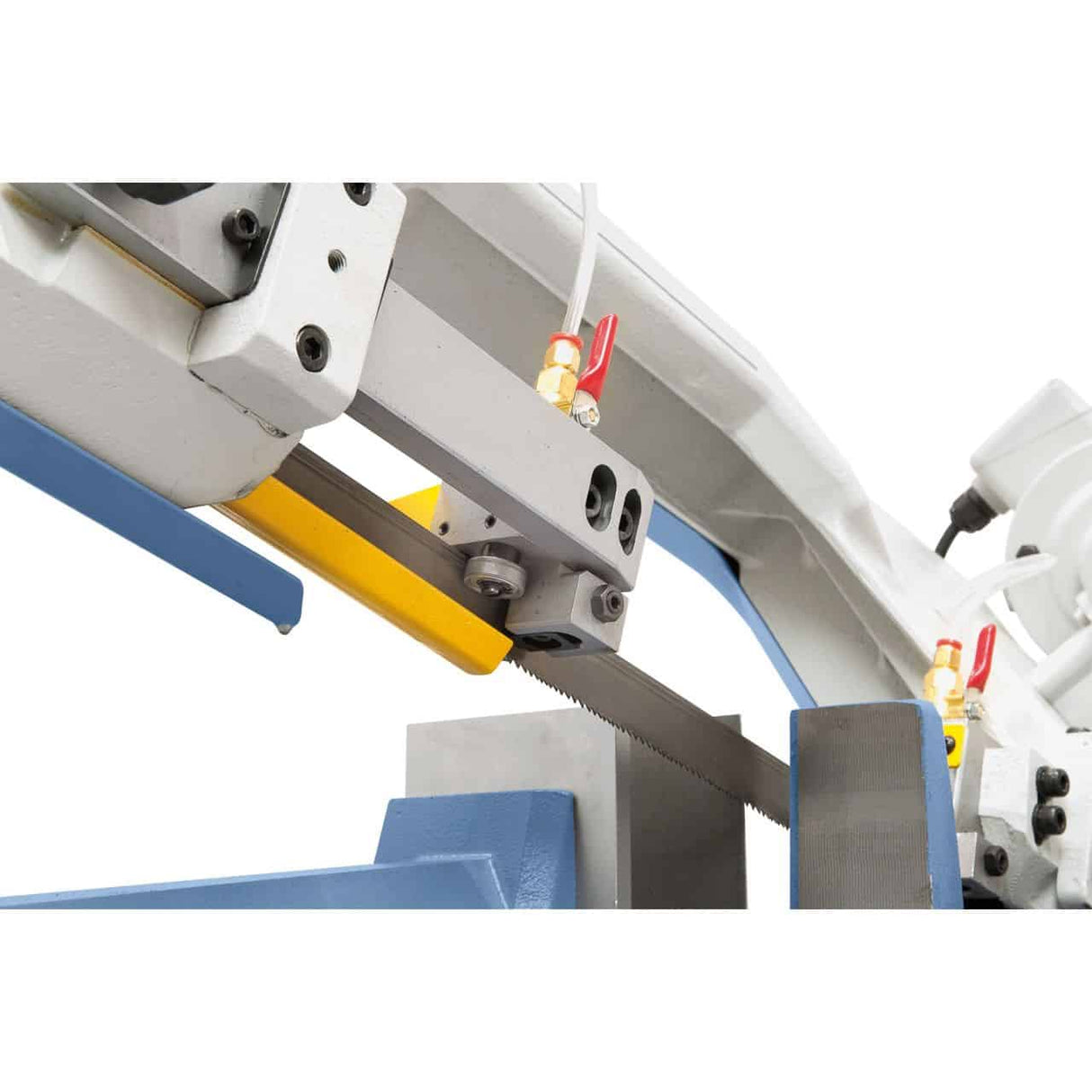

Blade guide with carbide inserts for high precision
Arm tiltable up to 60° for versatile angle cuts
Descent controlled by adjustable hydraulic cylinder
Transmission with hardened worm screw and bronze wheel

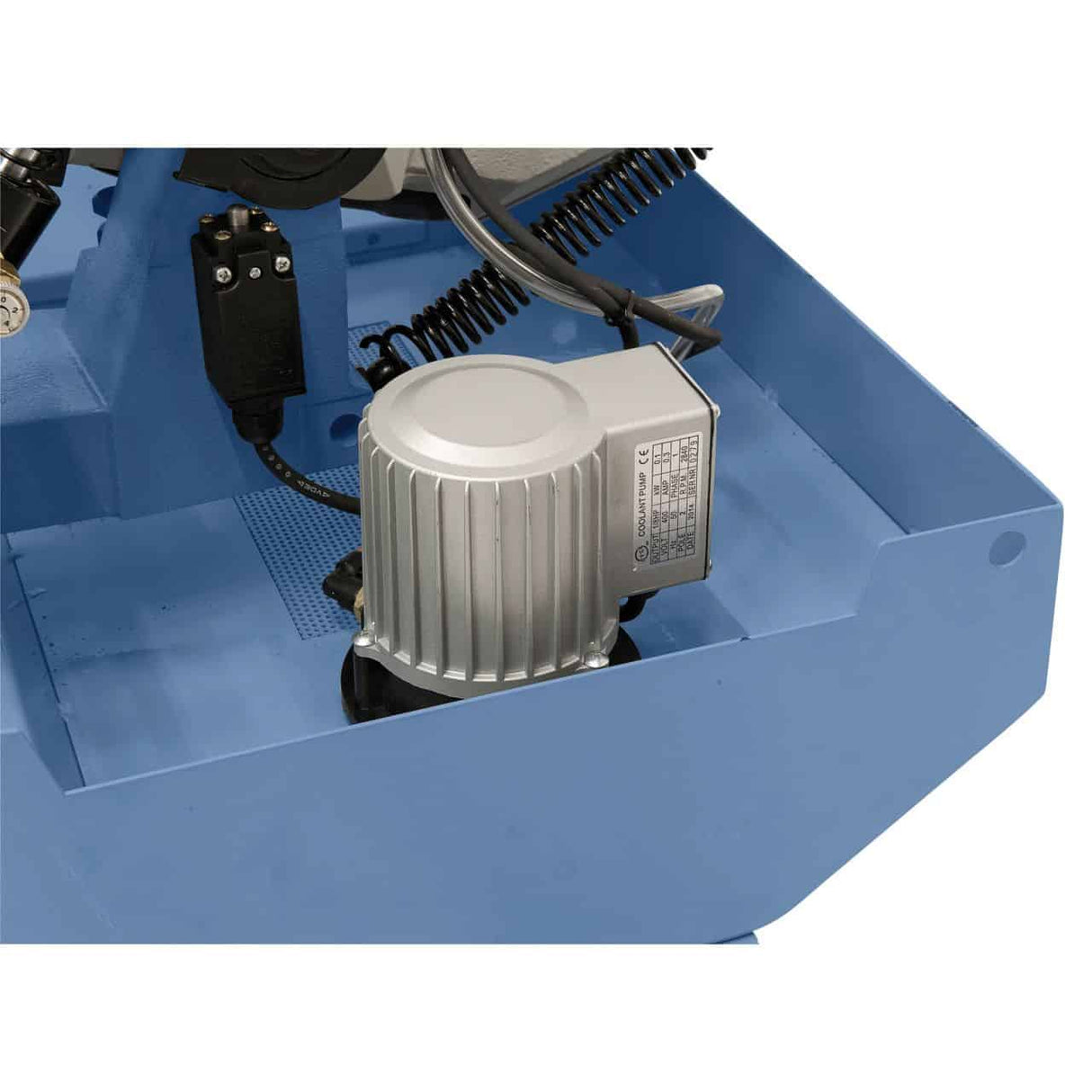

Integrated 100 W coolant device
Automatic shut-off at the end of the cut
Technical specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HBS 275 Vario PRO / 400 V |
| Round cutting capacity 90° |
225 mm |
| Square cutting capacity 90° |
200 x 200 mm |
| Flat cutting capacity 90° |
245 x 150 mm |
| Round cutting capacity 45° |
160 mm |
| Square cutting capacity 45° |
160 x 160 mm |
| Round cutting capacity 60° |
100 mm |
| Square cutting capacity 60° |
100 mm |
| Working height |
910 mm |
| Blade (L x H x Th.) |
2480 x 27 x 0.9 mm |
| Cutting speed |
20 – 90 m/min (variable) |
| Coolant pump |
100 W |
| Motor power (S1 100%) |
1.5 kW |
| Power supply |
400 V |
| Machine dimensions (L x W x H) |
1430 x 720 x 1700 mm |
| Weight |
185 kg |
Standard equipment
Bernardo Horizontal Bandsaw HBS 275 Vario PRO / 400 V
Mounted bandsaw blade
Quick-release cast iron vice

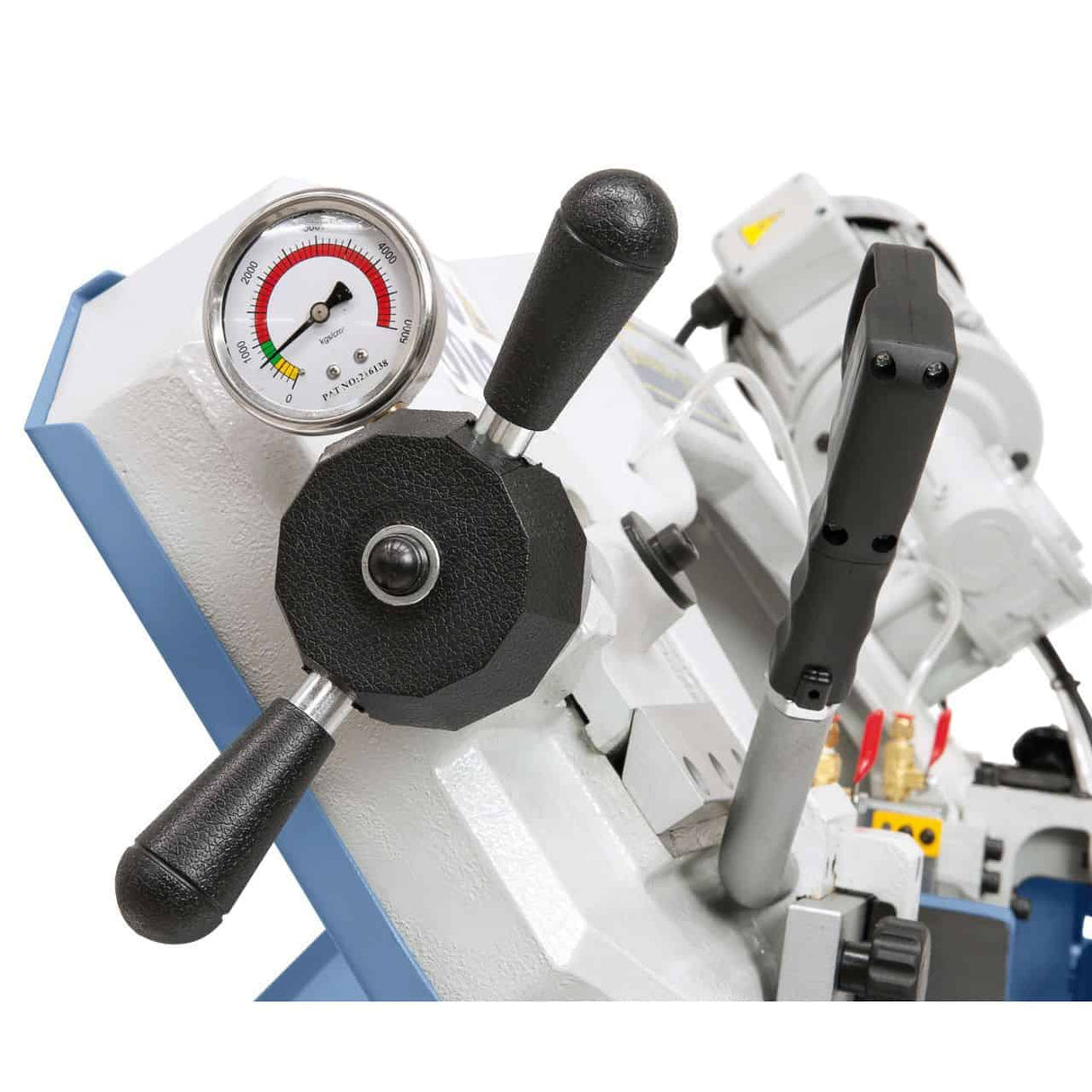

Manometer for blade tension
Blade guide with carbide inserts
Workpiece fence
Steel base
100 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shut-off at the end of the cut
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently asked questions
What is the difference between horizontal and vertical saws?
The horizontal saw lowers the blade assembly onto the stationary workpiece — ideal for repeatedly cutting bars and profiles to size. The vertical saw (bandsaw type) has a vertically running blade and the workpiece is guided manually: suitable for shaped cuts and curves.
What speed should I use for stainless steel with the Bernardo Horizontal Bandsaw?
For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the descent force of the blade assembly.
Are replacement blades available?
Yes. Original Bernardo bi-metal blades for the Bernardo Horizontal Bandsaw available with 3–5 working days shipping. Available in different tooth configurations for various materials: steel, stainless steel, aluminum, copper, cast iron.
Does the saw include a cooling system?
It depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support in Italian available.
Are assistance and spare parts available in Italian?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
