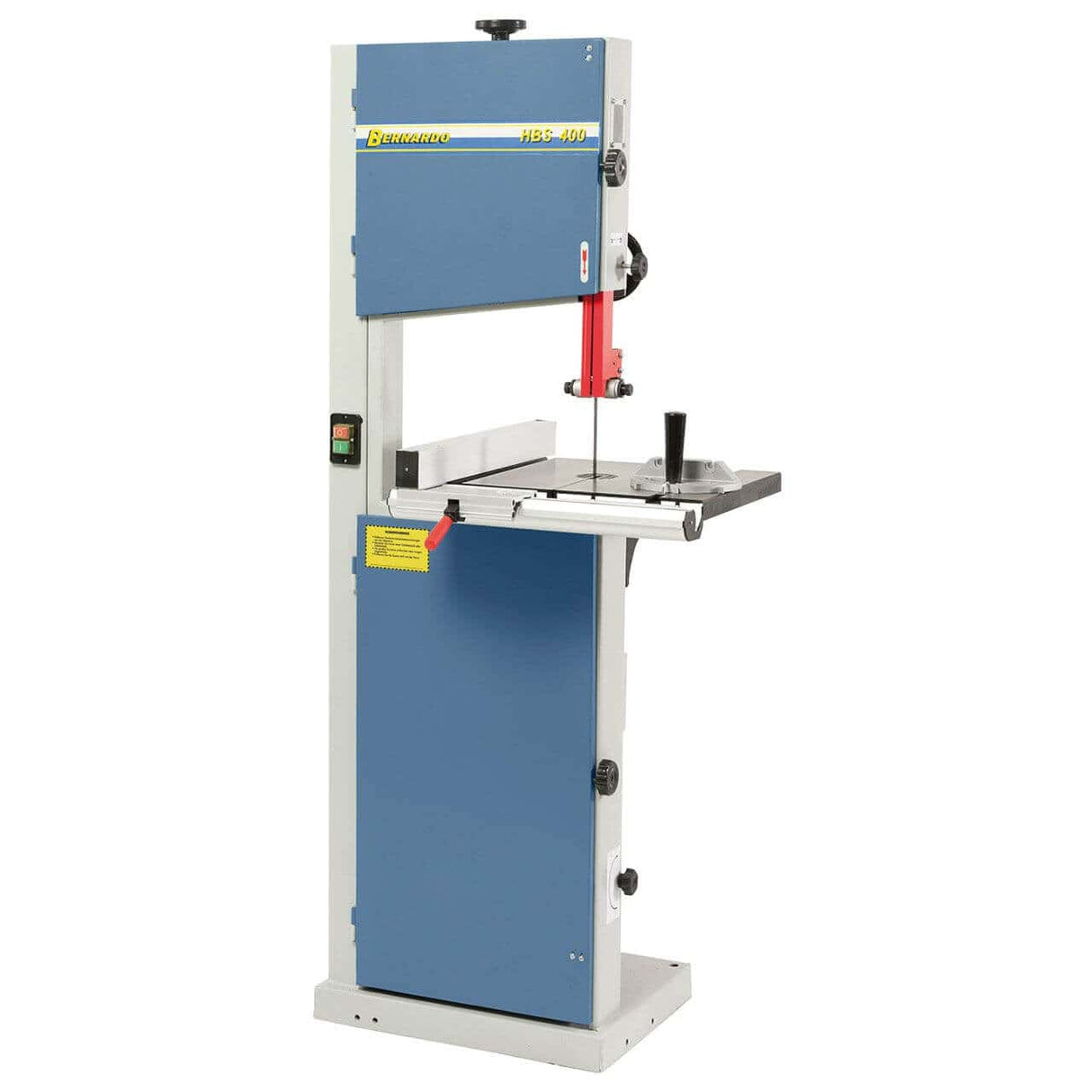

Bernardo HBS 400 Bandsaw – 380 mm cutting, robust and precise

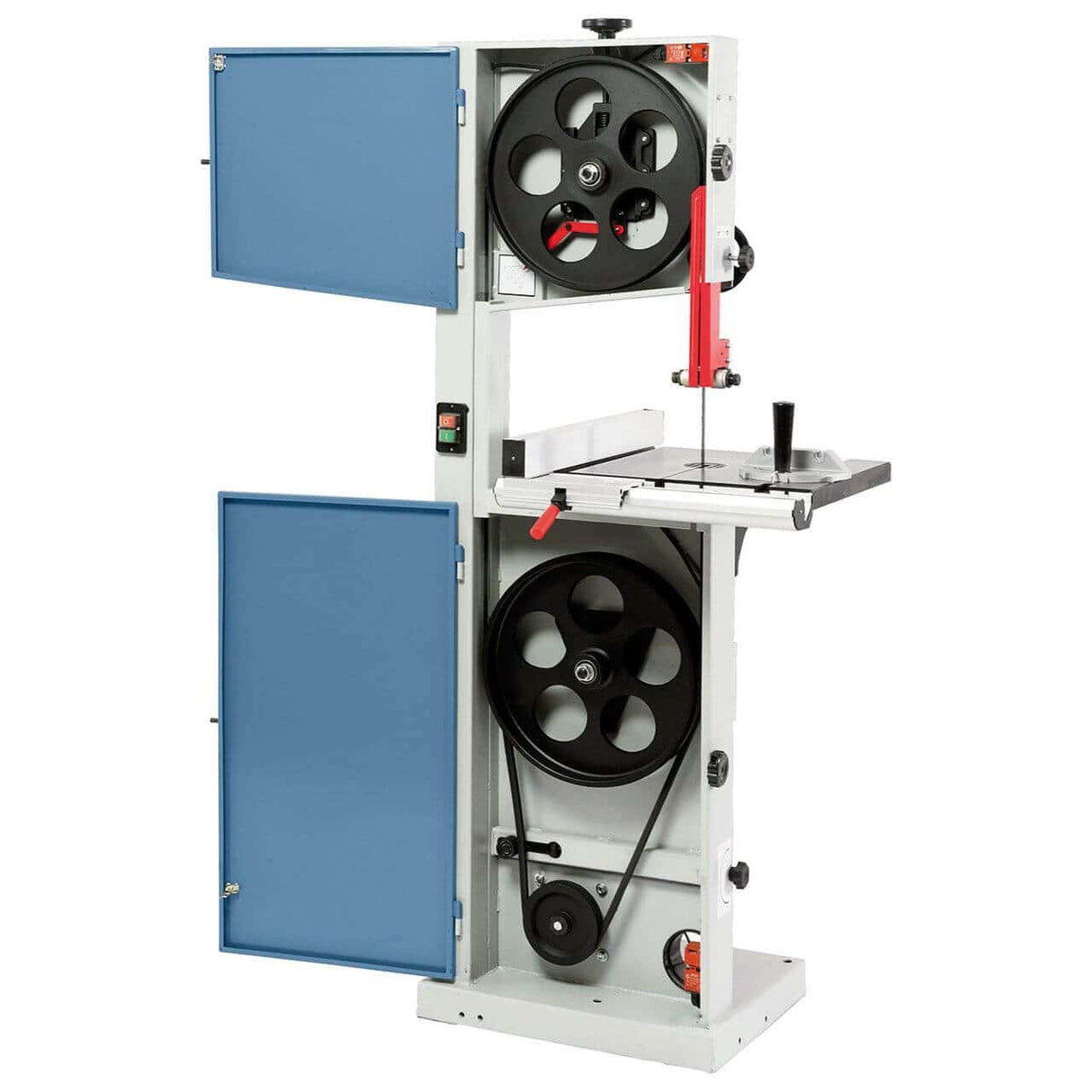

The Bernardo HBS 400 is a wood bandsaw designed for joinery workshops and labs seeking precision and robustness. With a cutting width of 380 mm and a working height of 220 mm, it is suitable for processing medium-sized panels and solid wood. The 410 × 500 mm worktable, inclinable up to 45°, allows for straight and angled cuts with maximum stability. Equipped with cast iron drive wheels and a 3-roller blade guide, it ensures precision and long-lasting durability. Also included are the rip fence with magnifying glass, miter fence, and push stick for safe operation. The 1.5 kW (S1) motor with selectable voltage 230 V / 400 V provides constant power, with a blade speed of 600 m/min. With a weight of 140 kg and a Ø100 mm dust extraction port, it is a solid and reliable machine for professional use.
Main specifications
• Cutting capacity: 380 × 220 mm
• Blade: 2950 × 16 × 0.52 mm – 4 TPI
• Supports widths from 6 to 20 mm
• Blade speed: 600 m/min

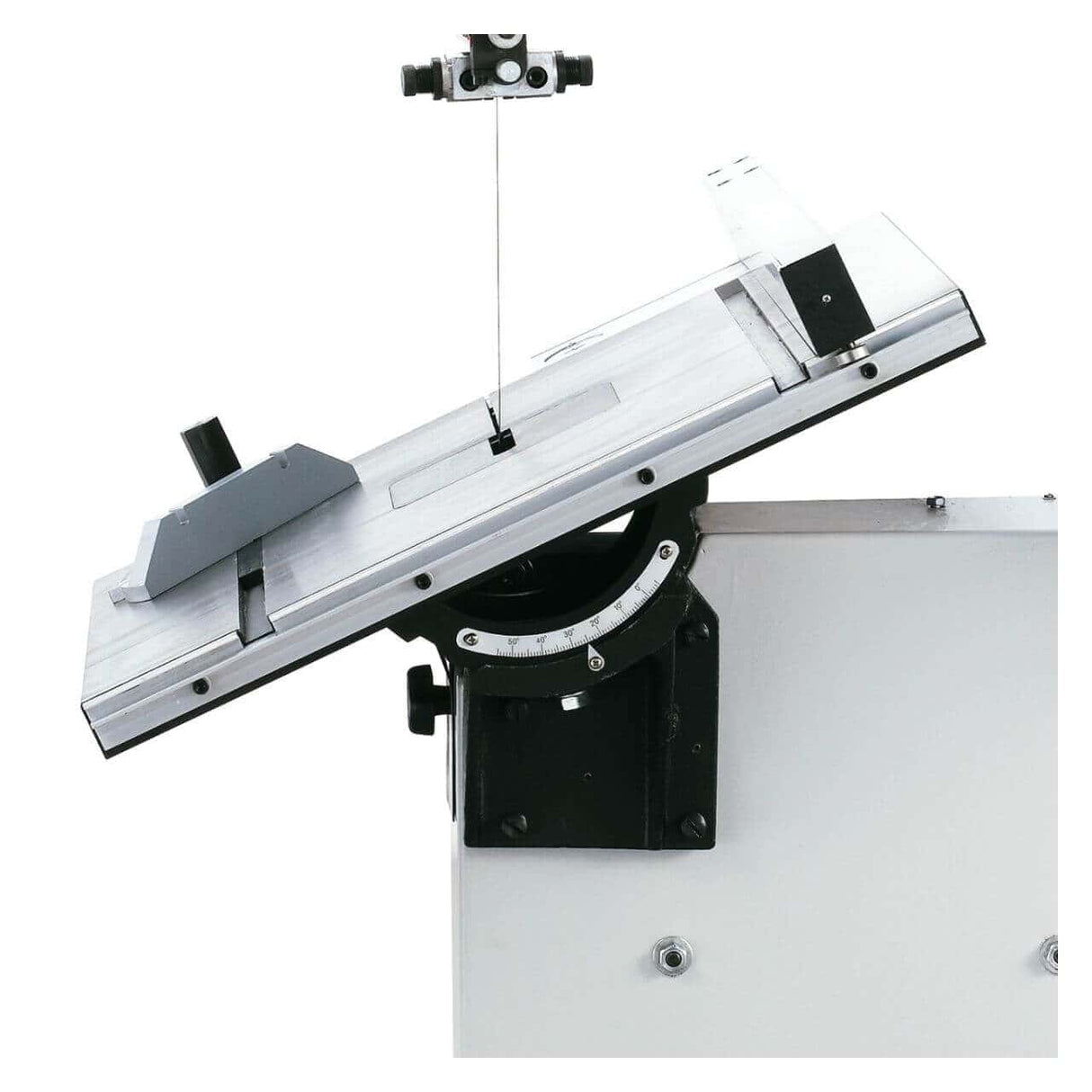

• Table 410 × 500 mm, inclinable 0°–45°
• Table height from floor: 940 mm

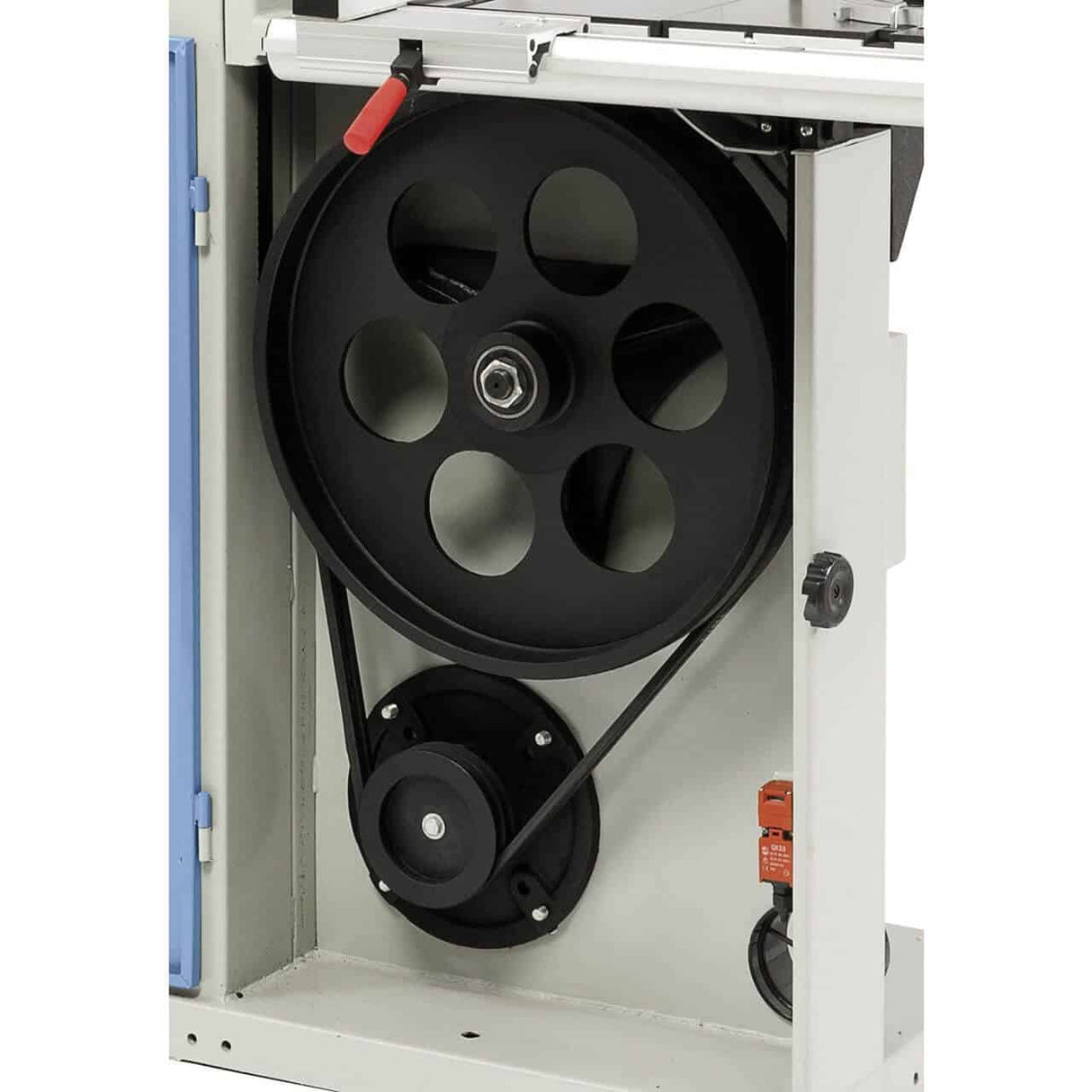

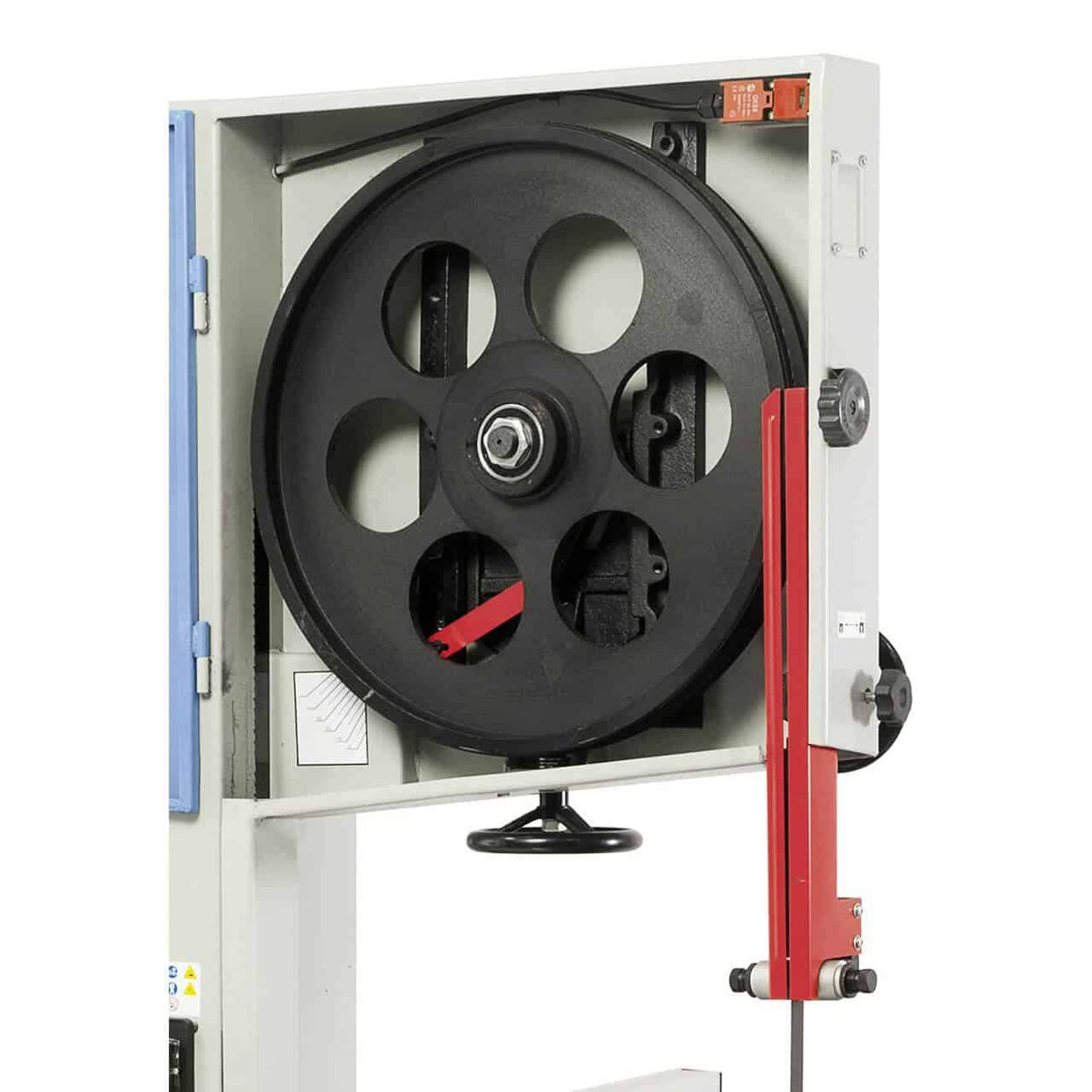

• Cast iron drive wheels

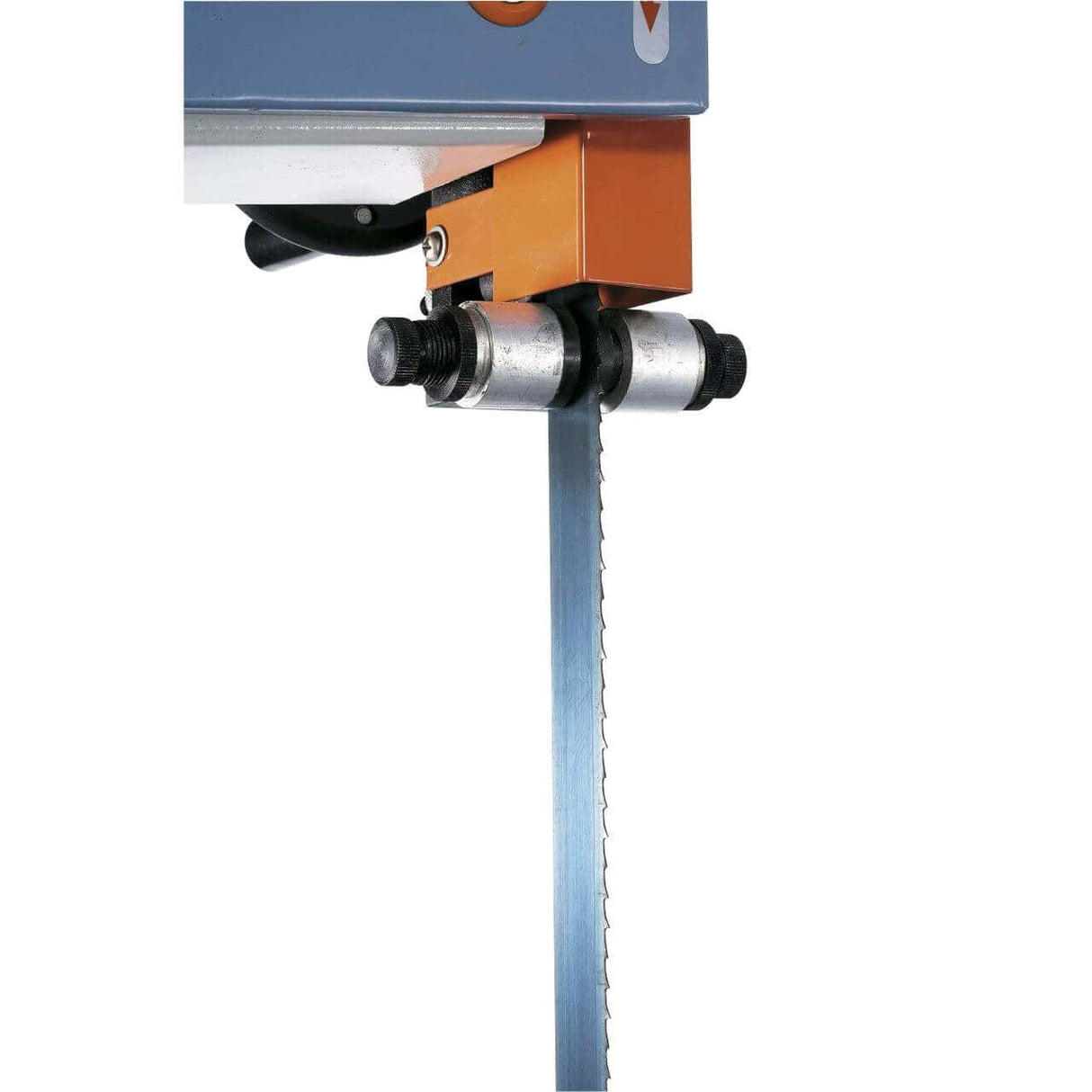

• 3-roller blade guide
• Motor 1.5 kW (S1) / 2.1 kW (S6) – 230 V / 400 V
• Dust extraction port Ø100 mm
• Weight: 140 kg
Technical table:
| Specification |
Detail |
| Brand |
Bernardo |
| Model |
HBS 400 |
| Cutting width |
380 mm |
| Cutting height |
220 mm |
| Blade dimensions |
2950 × 16 × 0.52 mm – 4 TPI |
| Supported blade width |
6 – 20 mm |
| Cutting speed |
600 m/min |
| Table dimensions |
410 × 500 mm |
| Table height |
940 mm |
| Table inclination |
0° – 45° |
| Dust extraction port |
Ø100 mm |
| Motor power S1 (100%) |
1.5 kW (2.0 HP) |
| Motor power S6 (40%) |
2.1 kW (2.8 HP) |
| Voltage |
230 V / 400 V |
| Machine dimensions (L × W × H) |
760 × 880 × 1705 mm |
| Weight |
140 kg |
Package contents:

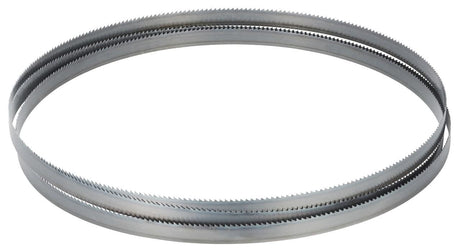

• Bandsaw blade 2950 mm

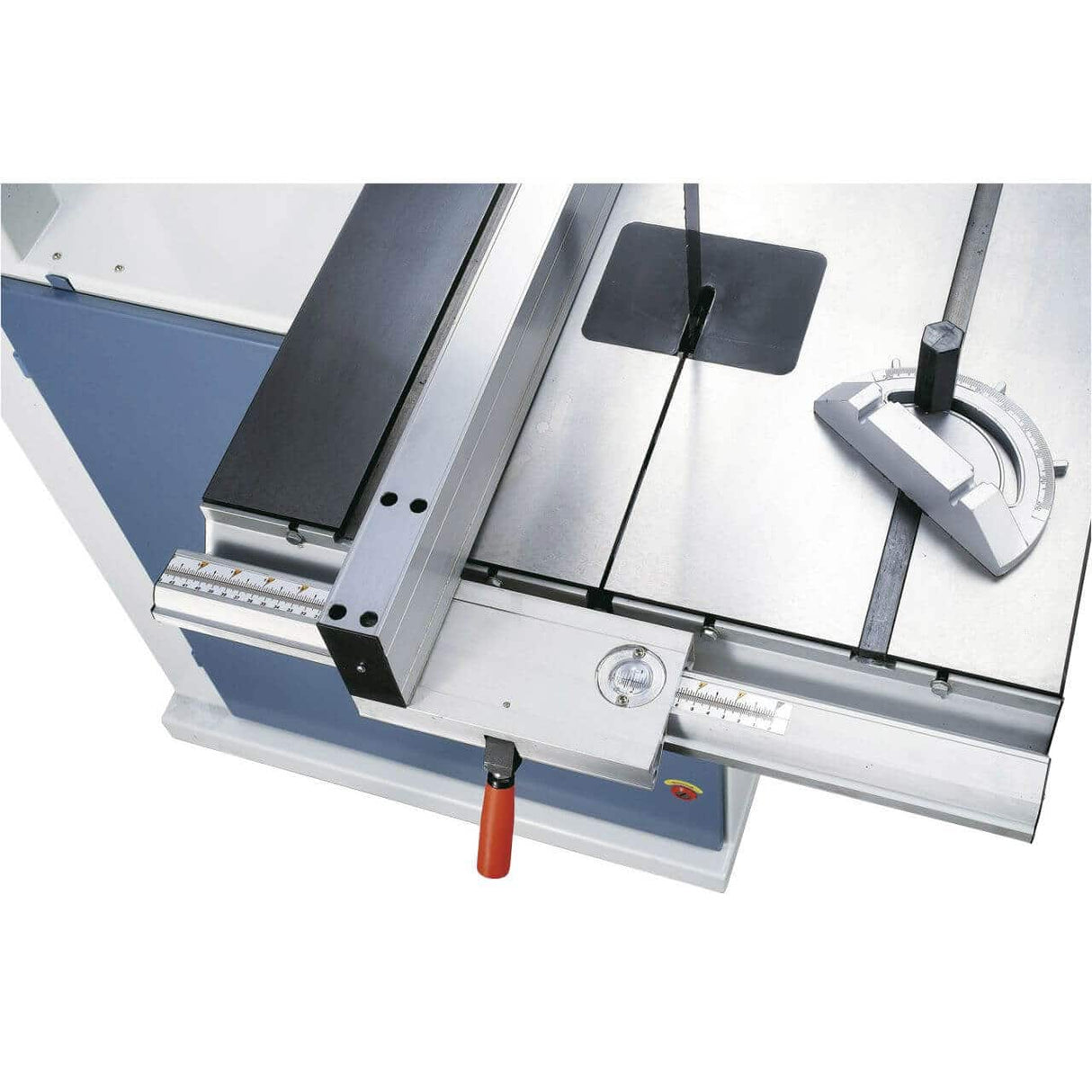

• Rip fence with magnifying glass
• Miter fence
• Cast iron drive wheels
• 3-roller blade guide
• Push stick

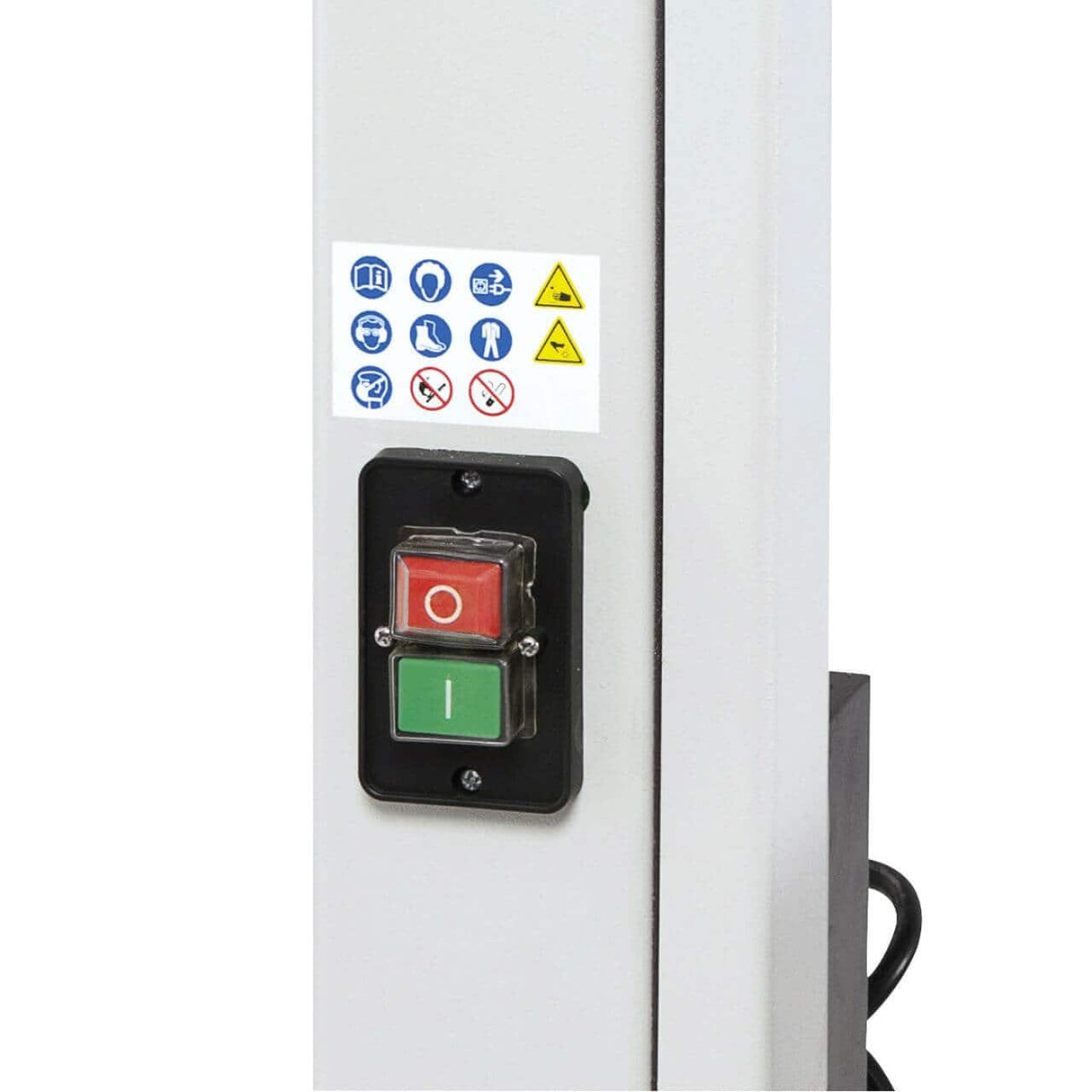

• Control device
Why purchase Bernardo HBS 400 wood bandsaw on Krollit
Purchasing the Bernardo HBS 400 wood bandsaw on Krollit means choosing not only a machine for woodworking hobbyists but also concrete support before and after the purchase. Krollit assists professionals, craftsmen, and workshops in selecting the most suitable machine, offering assistance, technical support, and spare parts management.
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer service available in Italian.
Frequently Asked Questions
What is the difference between HBS 400 and HBS 800 E?
HBS 400: benchtop wood bandsaw, compact size, suitable for workshops and advanced hobbyists with pieces up to the table's capacity. HBS 800 E: larger version with extended worktable and higher power, for joinery workshops that work with large section panels and battens. The suffix E indicates standard electrical power.
What blades are used for curved cuts vs. straight cuts?
For tight curved cuts: narrow blade 6–8 mm with fine pitch (10–14 TPI). For wide curved cuts: 10–13 mm blade. For straight cuts on timber: wide blade 13–20 mm with 3–6 TPI for thick wood. For MDF and panels: blade with fine teeth to reduce splintering.
Does the saw include a parallel guide and miter gauge?
Yes — Bernardo HBS series bandsaws include a rip fence for longitudinal cuts and an angular fence for repeatable transverse cuts as standard equipment. Check the complete equipment in the specific model's table.
Is a dedicated dust extractor needed?
Yes. Bandsaws produce a significant amount of sawdust. Connect a dust extractor with a minimum flow rate of 400–600 m³/h to the integrated Ø 100 mm port. Customer service available in Italian.
Are replacement blades available?
Original spare parts available with 3–5 working day shipping. Customer service available in Italian.
