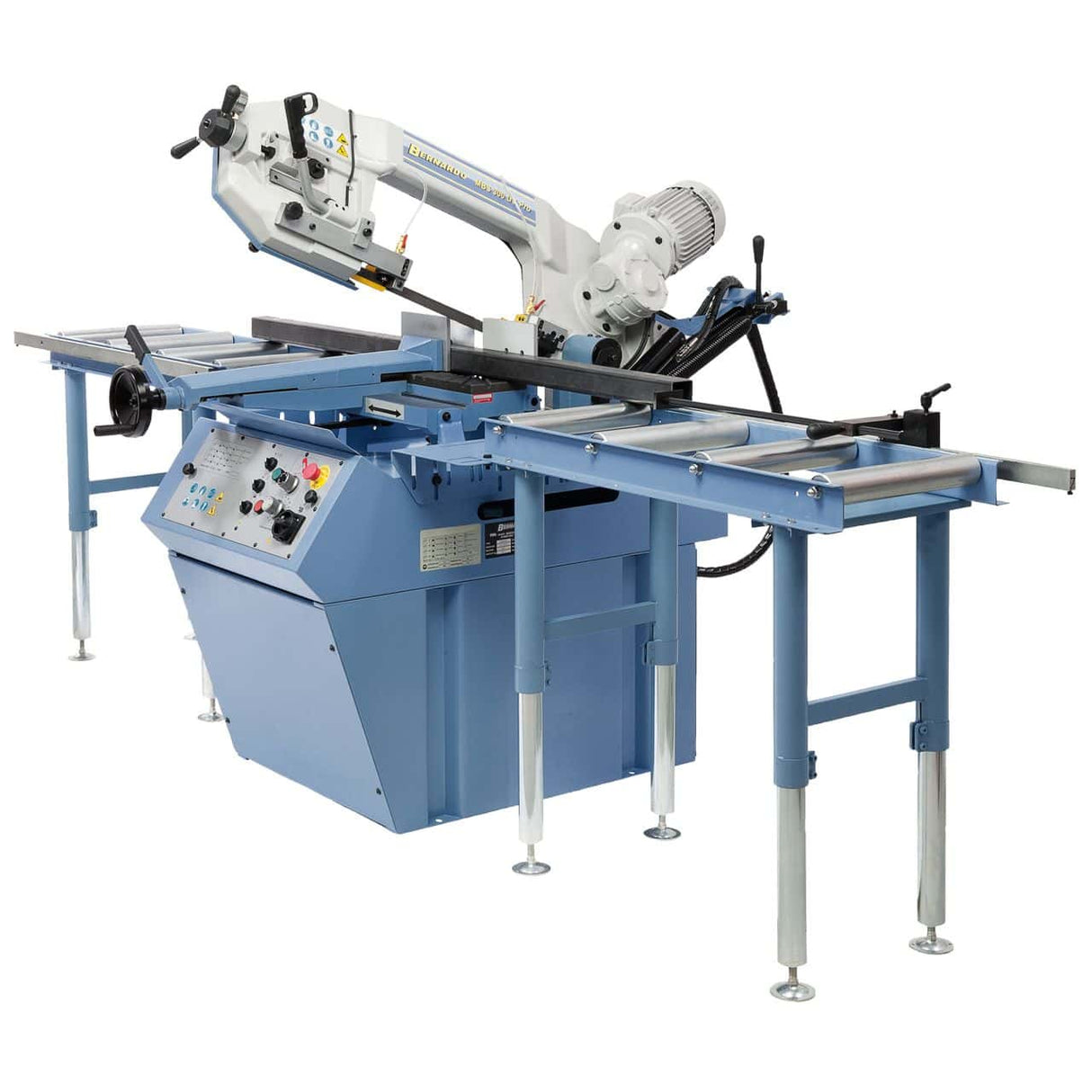

Bernardo Bandsaw with double miter cut MBS 300 DG PRO / 400 V
The Bernardo MBS 300 DG PRO / 400 V is a professional bandsaw with double miter capability, designed for precise and reliable cuts on steel, stainless steel, tool steel, profiles, and solid materials. The ductile cast iron frame ensures stability and durability, while the quick-release grey cast iron vise guarantees solid and fast clamping. The arm, inclinable to the left up to 45° and to the right up to 60°, allows for highly versatile double miter cuts. Equipped with two cutting speeds (35 / 70 m/min), hydraulic cylinder controlled descent, blade guide with ball bearings and carbide inserts, it offers precise cuts and extended blade life. Complete with a 100 W coolant device, a manometer for blade tension, and automatic shut-off at the end of the cut, it is a robust and professional solution for workshops and metalworking shops.
Main Specifications
Torsion-free ductile cast iron frame for maximum stability
Arm inclinable to the left -45° and to the right +60° for double miter cuts
Two cutting speeds: 35 / 70 m/min

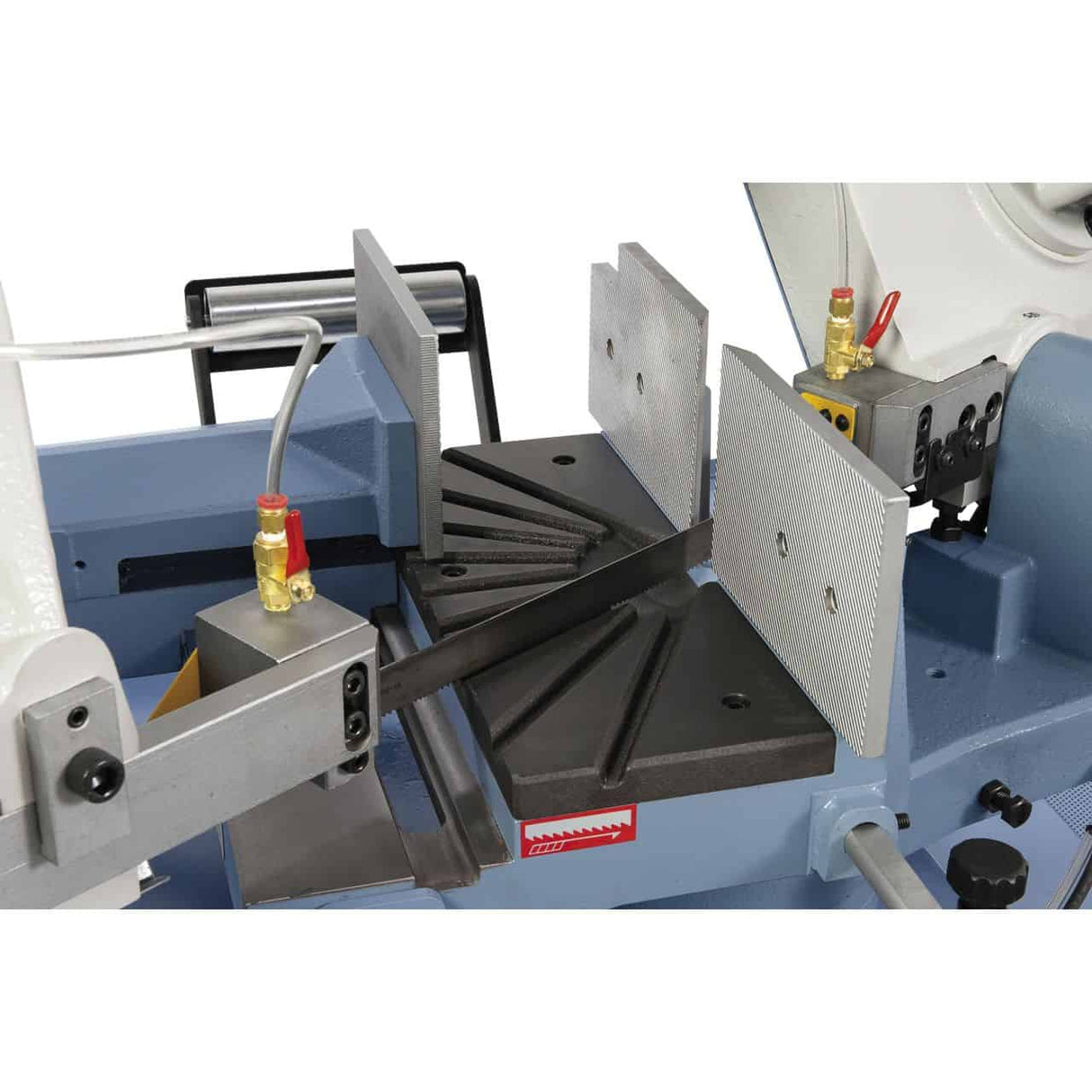

Blade guide with ball bearings and carbide inserts

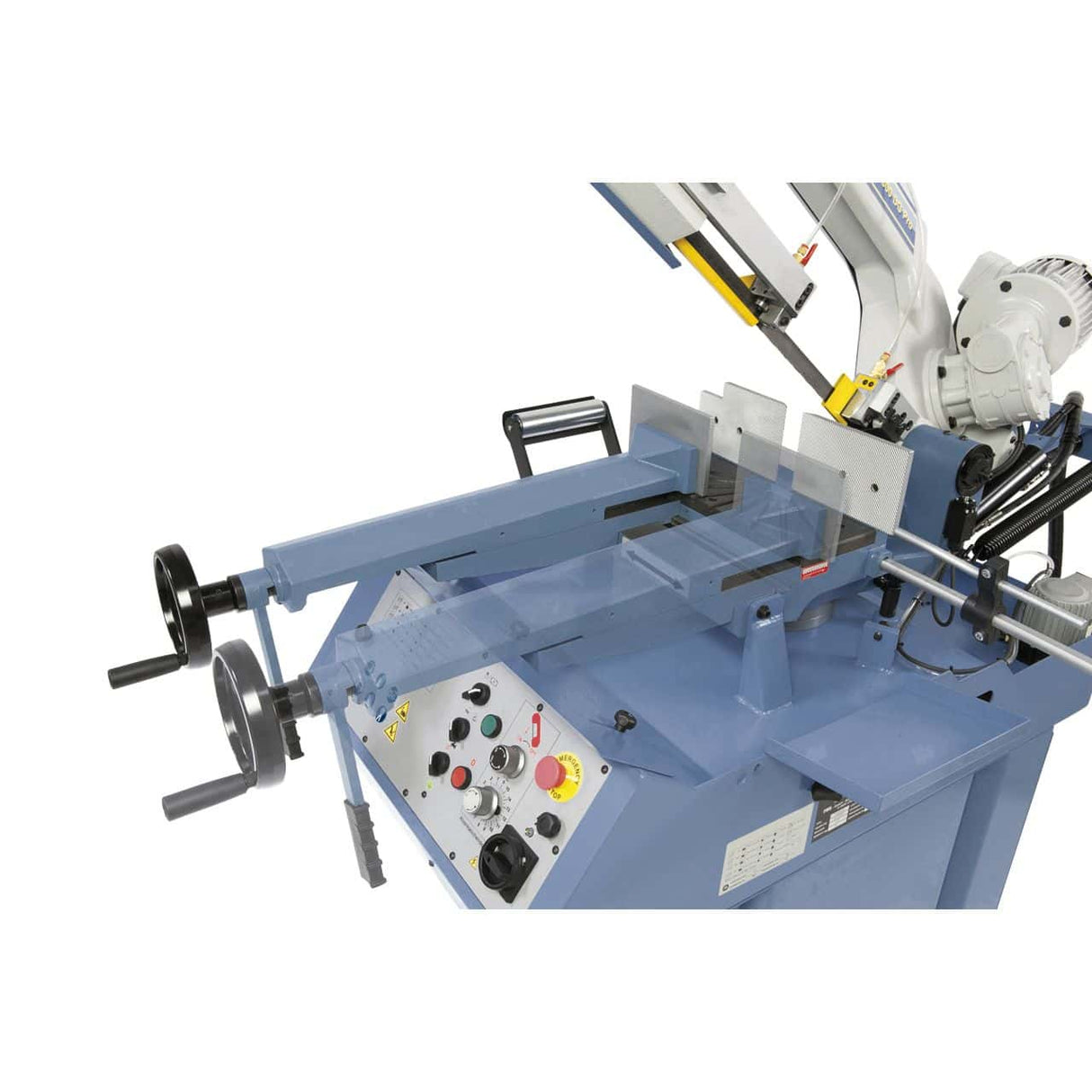

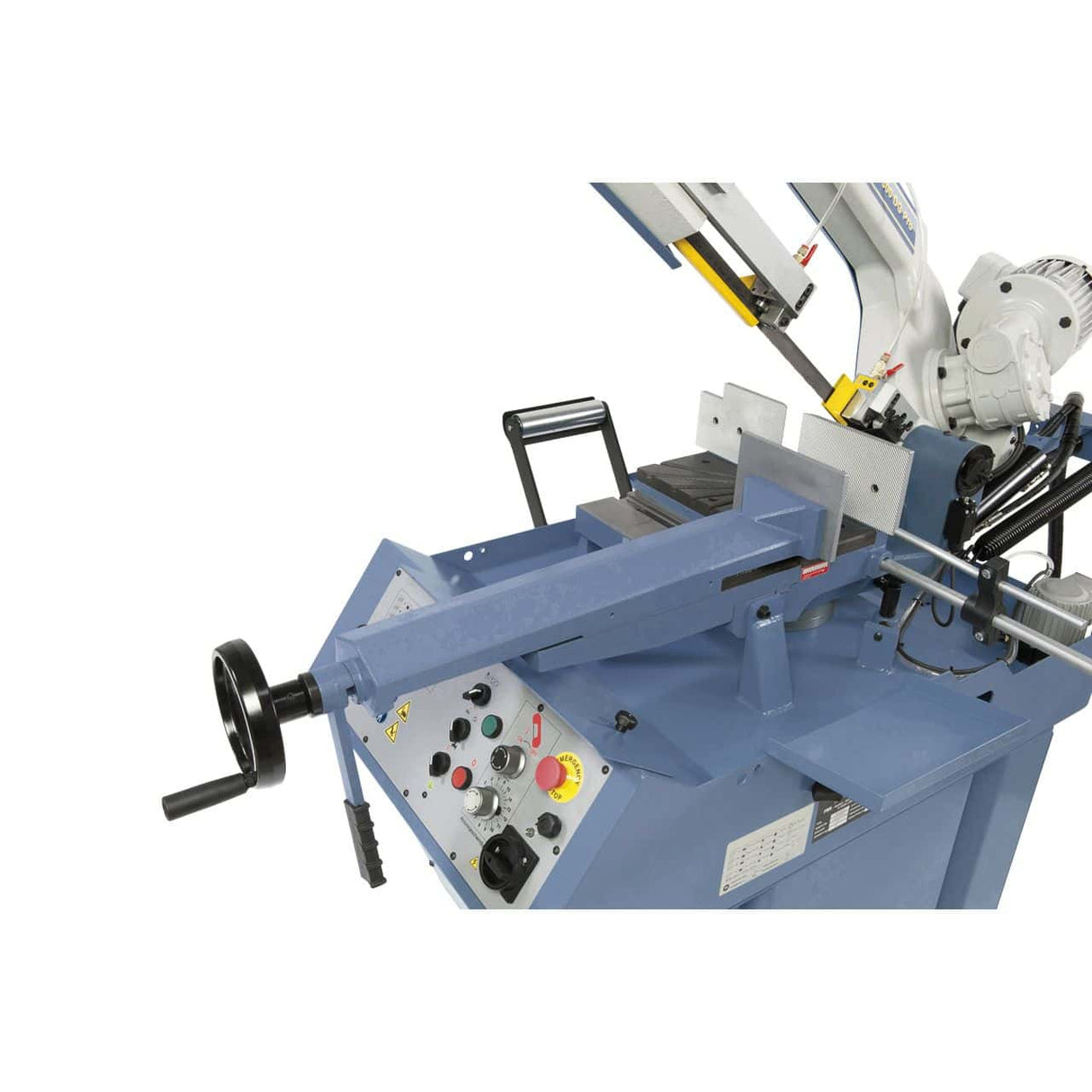

Robust, quick-release grey cast iron vise

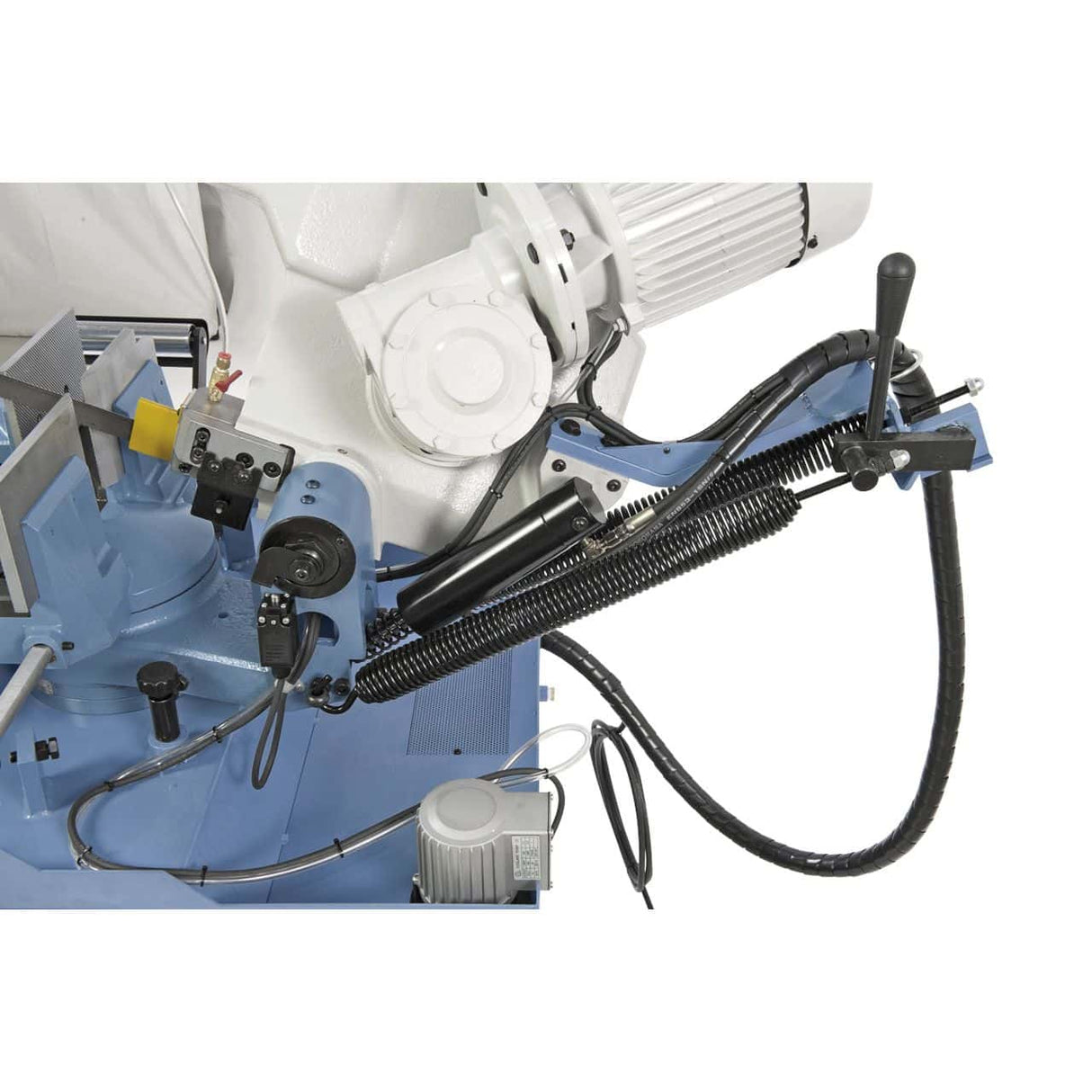

Descent regulated by continuous hydraulic cylinder
Integrated 100 W coolant device
Automatic shut-off at end of cut
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MBS 300 DG PRO / 400 V |
| Cutting capacity round / square 90° |
255 mm / 210 x 210 mm |
| Cutting capacity flat 90° |
310 x 210 mm |
| Cutting capacity round / square 45° Right |
220 mm / 210 x 210 mm |
| Cutting capacity flat 45° Right |
220 x 200 mm |
| Cutting capacity round / square 45° Left |
230 mm / 200 x 200 mm |
| Cutting capacity flat 45° Left |
230 x 200 mm |
| Cutting capacity round / square 60° Right |
135 mm / 135 x 135 mm |
| Cutting capacity flat 60° Right |
135 x 135 mm |
| Working height |
930 mm |
| Blade (L x H x Th.) |
2750 x 27 x 0.9 mm |
| Cutting speed |
35 / 70 m/min |
| Coolant pump |
100 W |
| Motor power (S1 100%) |
1.5 kW |
| Motor power (S6 40%) |
2.2 kW |
| Power supply |
400 V |
| Machine dimensions (L x W x H) |
2000 x 1250 x 1900 mm |
| Weight |
350 kg |
Package contents:
Bernardo MBS 300 DG PRO / 400 V Bandsaw
Mounted bandsaw blade
Quick-release cast iron vise

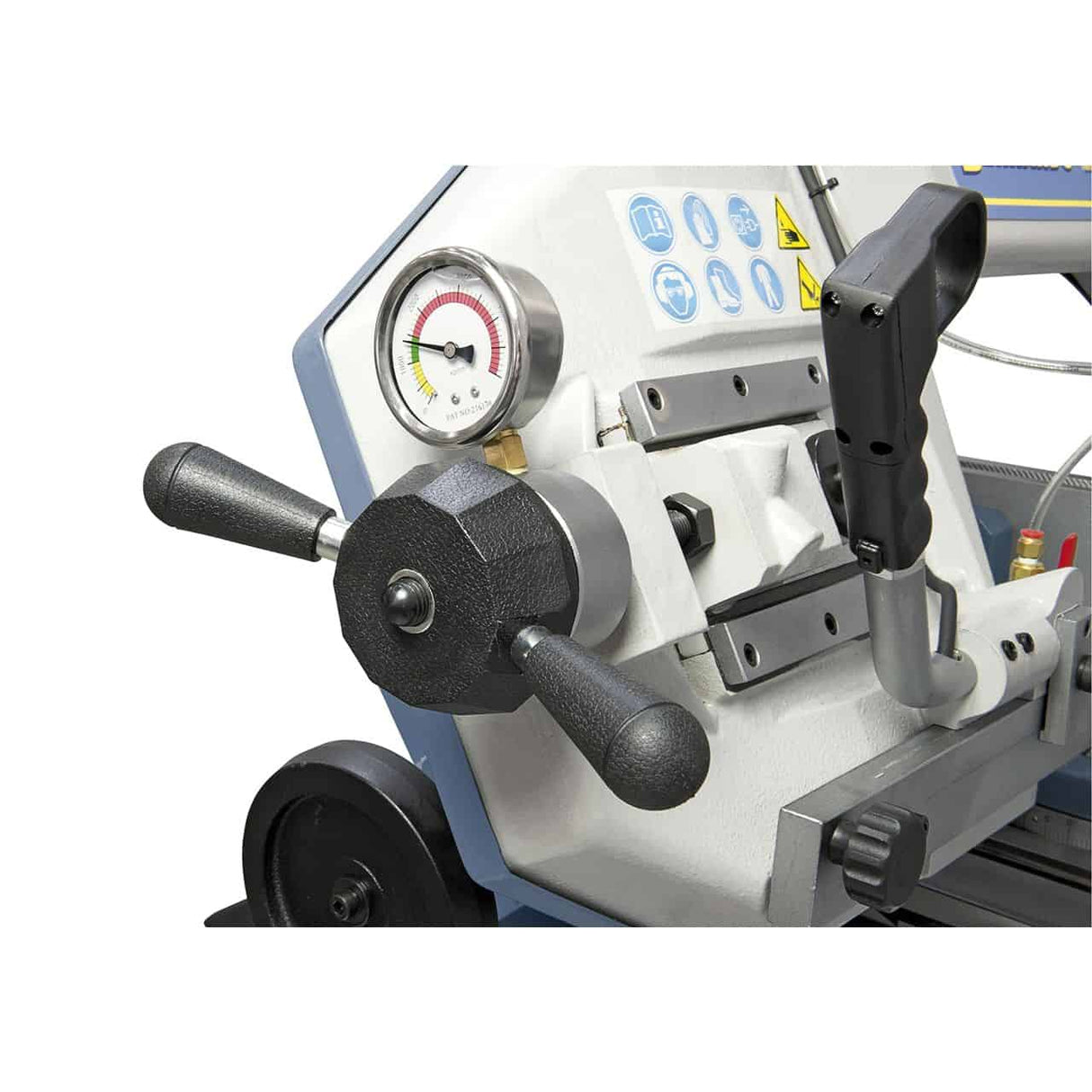

Blade tension manometer
Blade guide with carbide inserts
Material fence
Steel base
100 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shut-off at end of cut
Logistics
Bernardo Shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
Frequently Asked Questions
What does "DG" (double miter) mean in the MBS saw?
DG (Double Miter) indicates that the blade assembly can tilt in both directions: 45° right and 45° left, in addition to the standard 90°. For producing frames, triangular structures, and mirror-angled joints, the two opposite 45° cuts are essential — one piece is cut at 45° right and the mirror piece at 45° left without manually rotating the workpiece, reducing positioning errors.
What is the maximum cutting capacity at 45°?
The capacity at 45° is lower than the nominal capacity at 90°: typically 65–70% of the maximum diameter at 90°. Refer to the angled capacity table in the supplied manual for the specific model.

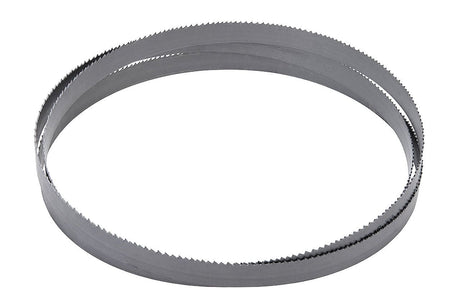

Are replacement blades available?
Yes. Bimetal blades in various tooth configurations for all MBS models are available with 3–5 working day shipping. Specify the model for the correct length.
Is the coolant pump integrated?
It depends on the model — models with an integrated coolant pump indicate it in the technical specifications. For stainless steel, coolant is always necessary. Customer support in Italian available.
Is assistance available?
Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
