Bernardo semi-automatic band saw with double miter cut MBS 350 DGA
The Bernardo MBS 350 DGA is a professional band saw with double miter cutting, suitable for mechanical workshops, carpentry, and industrial applications. Thanks to its semi-automatic function, with hydraulic vise, hydraulically controlled arm lowering and raising, it significantly increases productivity and reduces operating times. It can also operate in manual mode for maximum flexibility. The torsion-free spheroidal cast iron frame ensures stability and precision, while the transmission with hardened worm gear and bronze wheel is built for durability and excellent performance. With cutting capacities up to 350 x 240 mm at 90°, two speeds (36/72 m/min), a 100 W coolant pump, and a 1.9 kW motor, the machine offers excellent value for money. A weight of 600 kg and blade guide with carbide inserts complete a robust and precise solution for reliable and continuous cutting.
Main Specifications
Band saw with double miter cut up to 60° right and 45° left
Manual or semi-automatic mode for maximum flexibility

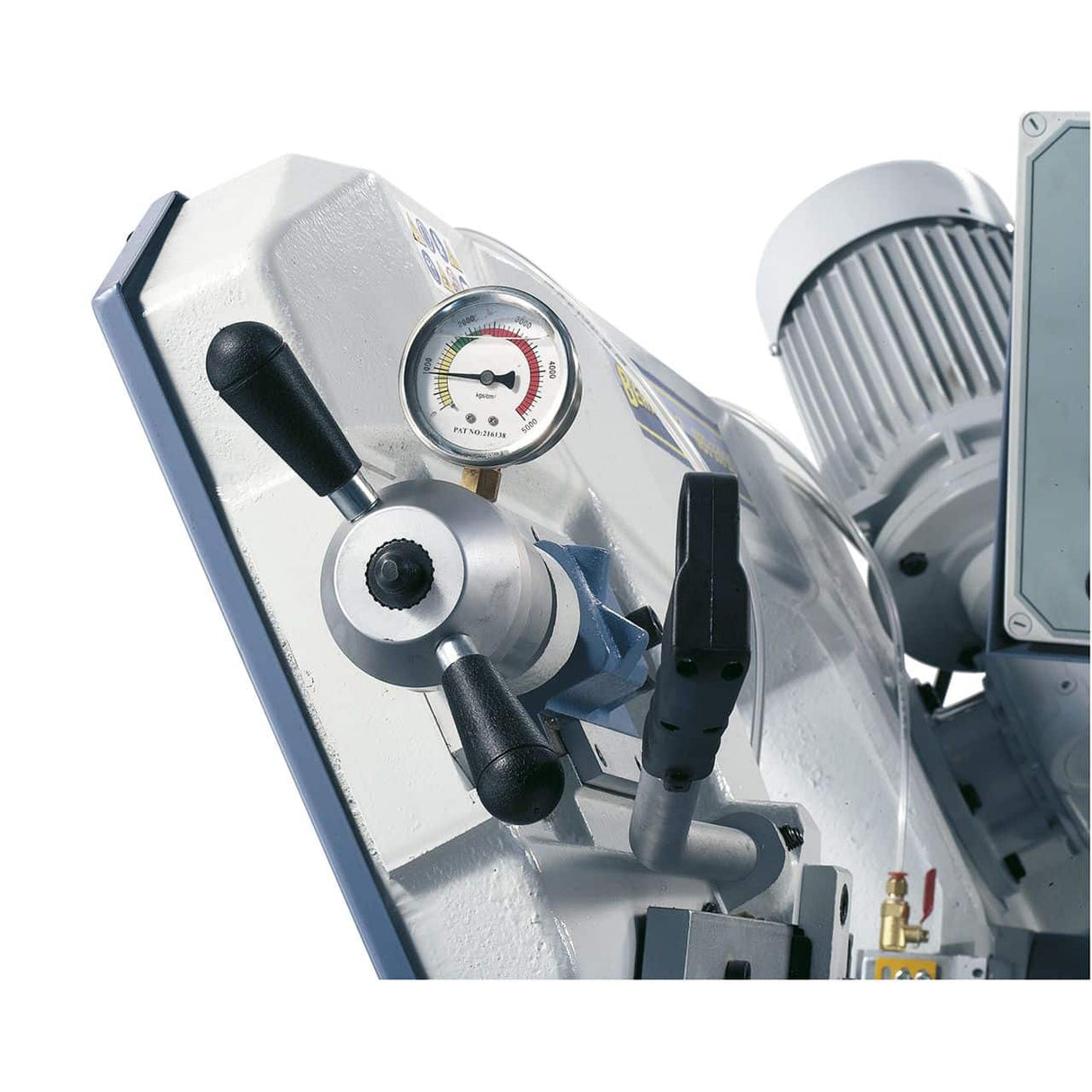

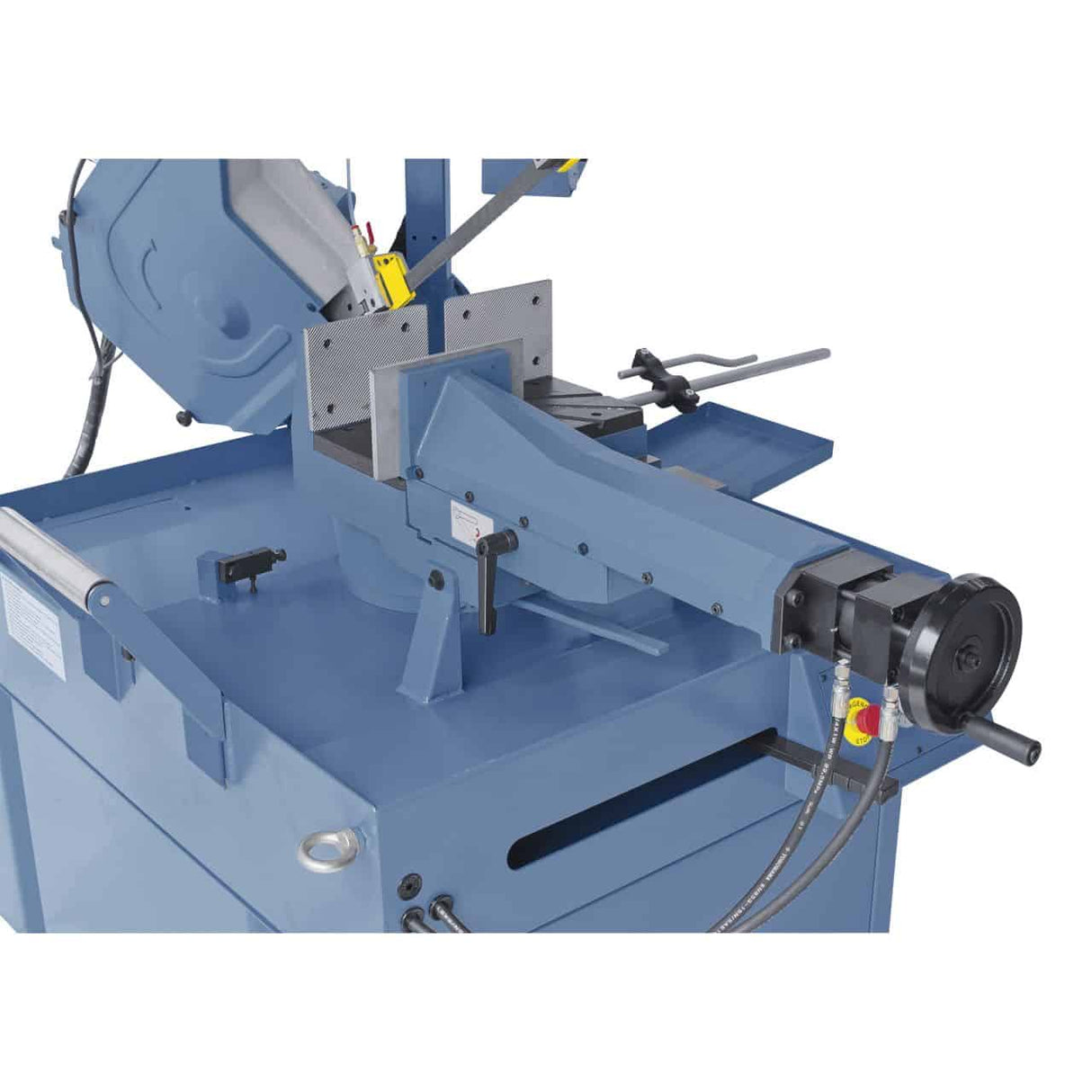

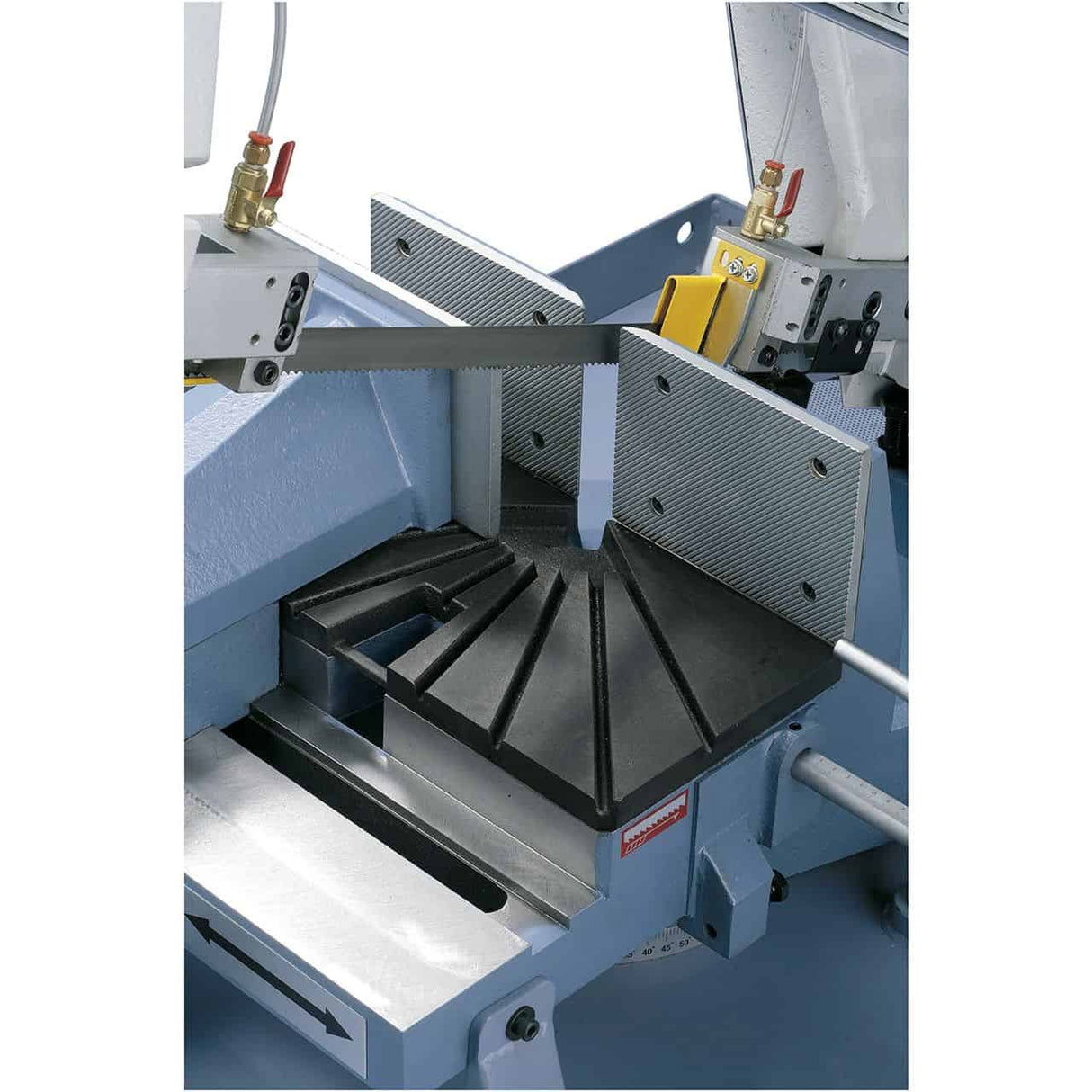

Hydraulic quick-release vise

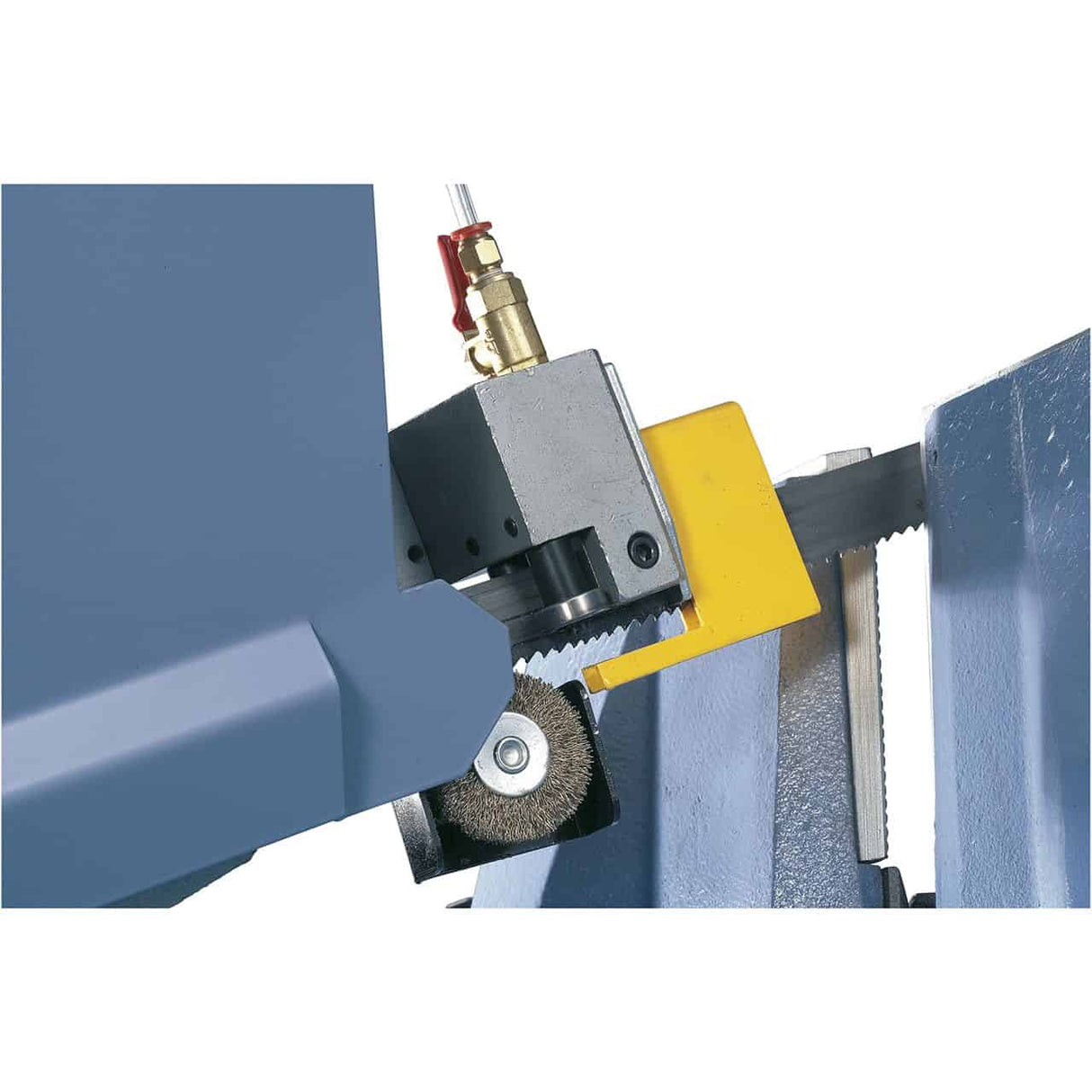

Blade guide with carbide inserts for precision cuts
Two cutting speeds: 36 / 72 m/min
Torsion-free spheroidal cast iron arm for absolute stability
Table slot that follows the arm, protecting the surface
100 W coolant pump included
1.9 kW motor with robust transmission
600 kg structure for heavy-duty and precise work
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MBS 350 DGA |
| Round / square cutting capacity 90° |
270 mm / 260 x 260 mm |
| Flat cutting capacity 90° |
350 x 240 mm |
| Round / square cutting capacity 45° Right |
230 mm / 210 x 210 mm |
| Flat cutting capacity 45° Right |
230 x 150 mm |
| Round / square cutting capacity 45° Left |
200 mm / 170 x 170 mm |
| Flat cutting capacity 45° Left |
200 x 140 mm |
| Round / square cutting capacity 60° Right |
140 mm / 140 x 140 mm |
| Working height |
950 mm |
| Blade (L x H x Th.) |
2925 x 27 x 0.9 mm |
| Cutting speed |
36 / 72 m/min |
| Coolant pump |
100 W |
| Motor power |
1.9 kW (S1) / 2.8 kW (S6) |
| Power supply |
400 V |
| Machine dimensions (L x D x H) |
2010 x 1230 x 1820 mm |
| Weight |
600 kg |
Package contents:
Bernardo MBS 350 DGA band saw
Mounted band saw blade
Workpiece fence
Quick hydraulic vise
Blade tension gauge
Blade guide with carbide inserts
100 W coolant device

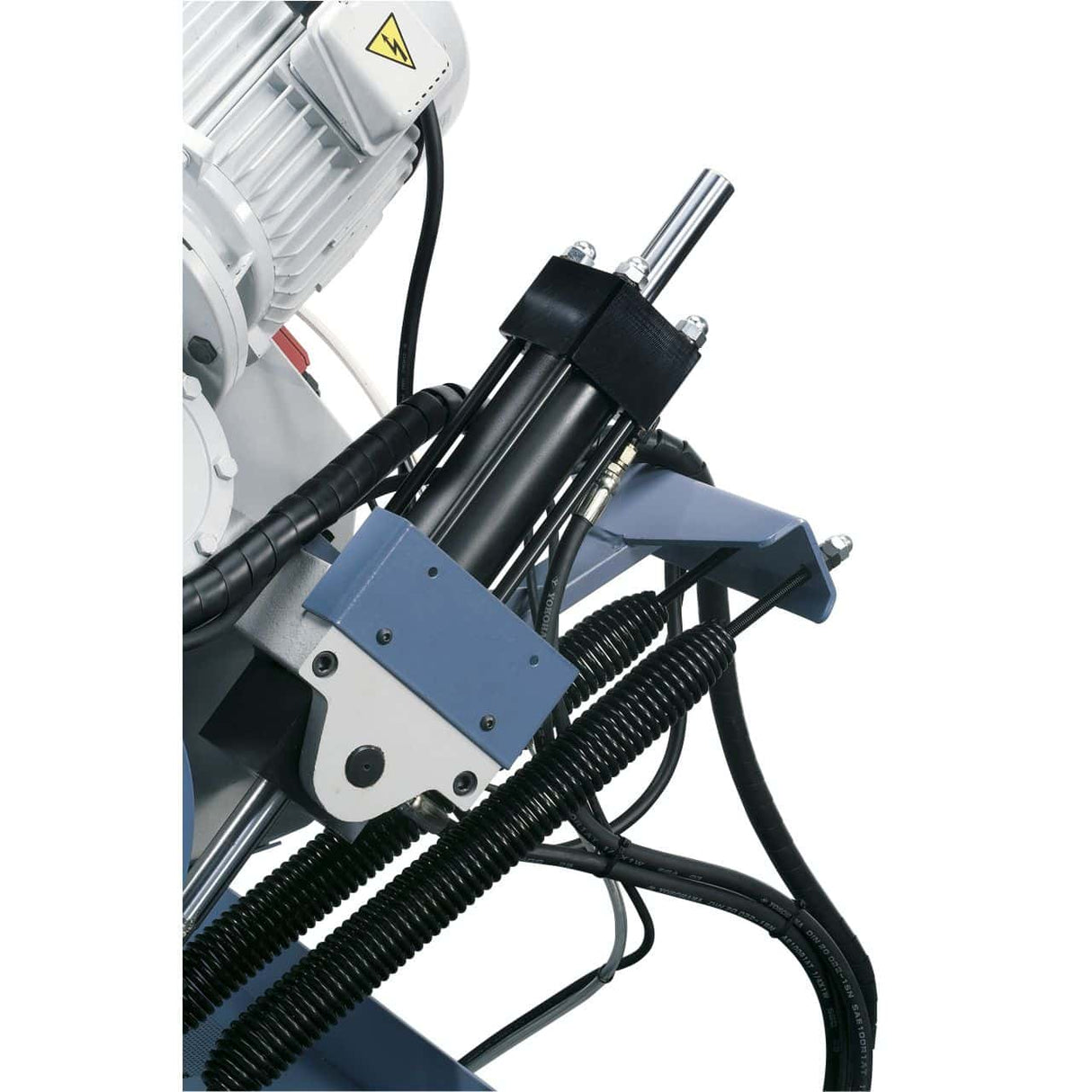

Hydraulic cylinder
Motor protection switch
Automatic shutdown
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
Frequently Asked Questions
What does "DG" (Doppia Ghiera - double ring) mean in the MBS saw?
DG (Doppia Ghiera) indicates that the saw head tilts in both directions: 45° right and 45° left, in addition to the standard 90°. For producing frames, triangular structures, and mirrored angled joints, the two opposite 45° cuts are essential — you cut one piece at 45° right and the mirrored piece at 45° left without manually rotating the workpiece, reducing positioning errors.
What is the maximum cutting capacity at 45°?
The 45° capacity is less than the nominal 90° capacity: typically 65–70% of the maximum diameter at 90°. Please refer to the angled capacity table in the supplied manual for the specific model.
Are replacement blades available?
Yes. Bi-metal blades in various tooth configurations for all MBS models are available with 3–5 business day shipping. Please specify the model for the correct length.
Is the coolant pump integrated?
It depends on the model — models with an integrated coolant pump indicate this in the technical specifications. For stainless steel, coolant is always necessary. Customer support in Italian available.
Is assistance available?
Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
