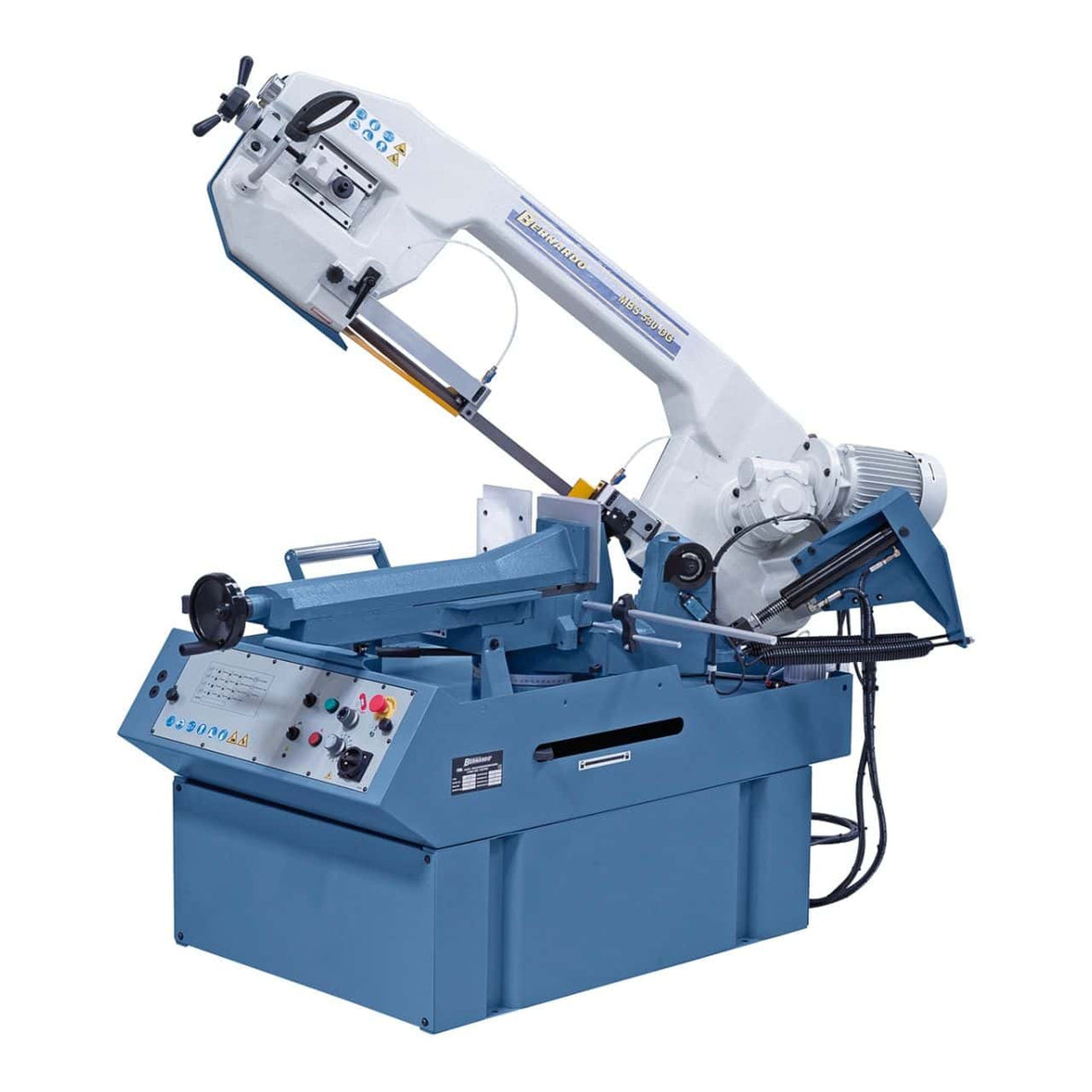

Bernardo Bandsaw with Double Miter Cut MBS 530 DG / 400 V
The Bernardo MBS 530 DG / 400 V is a professional bandsaw designed for carpentry, mechanical workshops, and large-scale processing. The robust cast iron frame and blade guide with carbide inserts ensure precision, stability, and long life. Thanks to the arm that can be tilted up to -45° to the left and +60° to the right, it allows for quick and versatile double miter cuts. It features two cutting speeds (35 / 70 m/min) to adapt to different materials, while the hardened worm gear transmission with a bronze wheel ensures reliability over time. It is equipped with a quick-release cast iron vise, an adjustable hydraulic cylinder, a 100 W coolant device, and automatic shutdown at the end of the cut. With a cutting capacity of up to 490 x 280 mm at 90°, it is the choice for those seeking professional performance and power for heavy-duty work.
Key Specifications
Robust, torsion-free cast iron frame
Tilting arm at -45° and +60° for double miter cuts
Two cutting speeds: 35 / 70 m/min

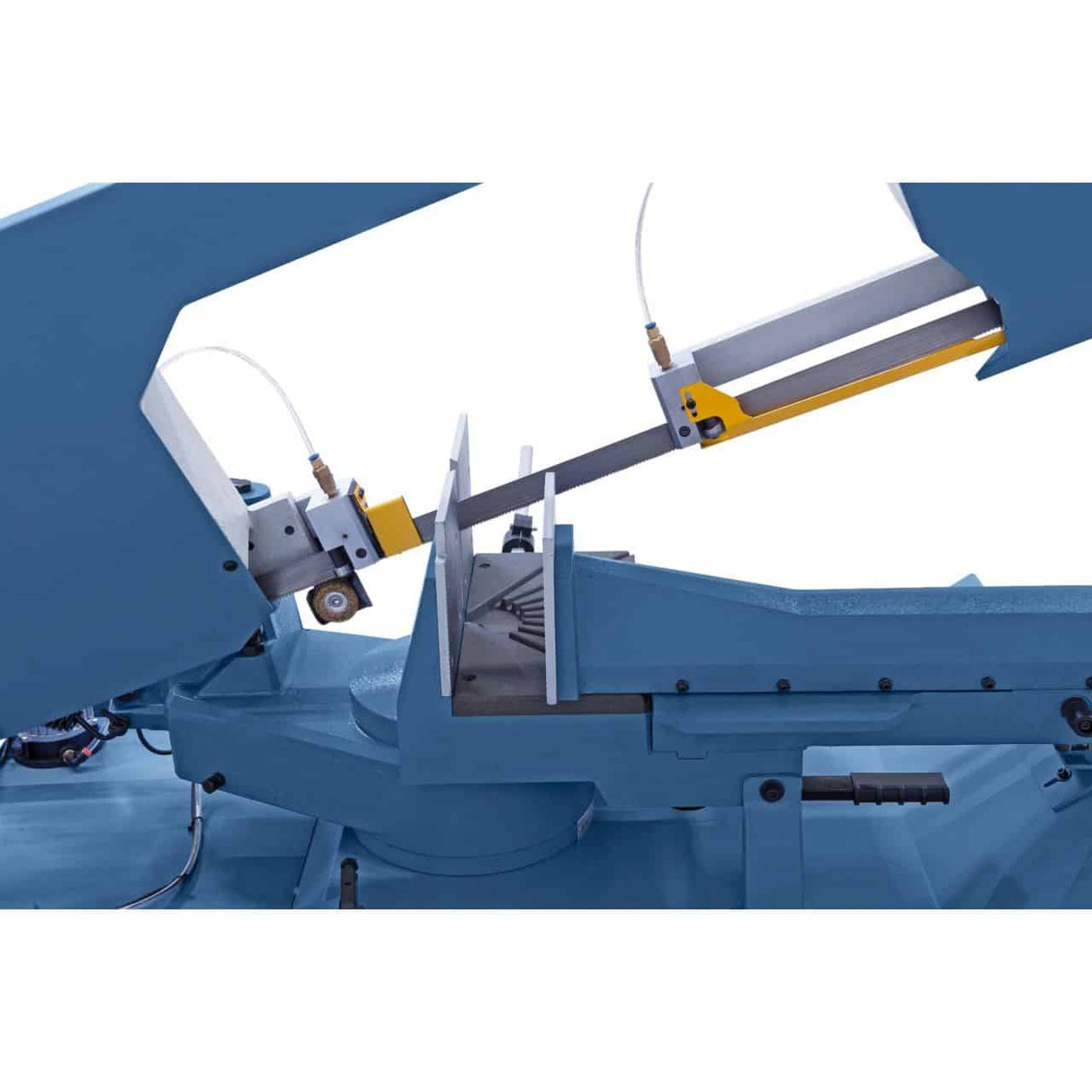

Blade guide with carbide inserts for increased precision
Cutting capacity up to 490 x 280 mm at 90°

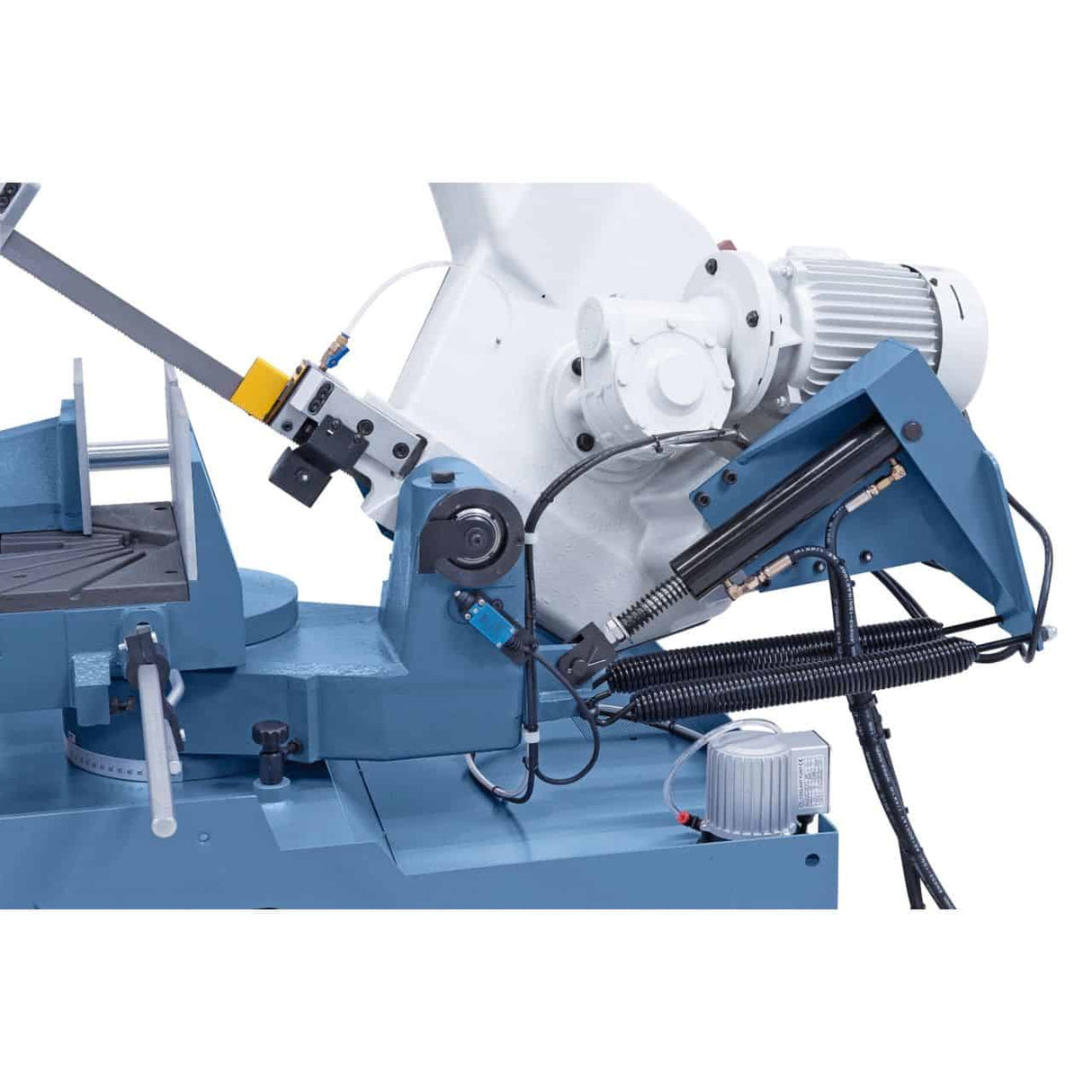

Hardened worm gear transmission with bronze wheel
Integrated 100 W coolant device
Automatic shutdown at the end of the cut

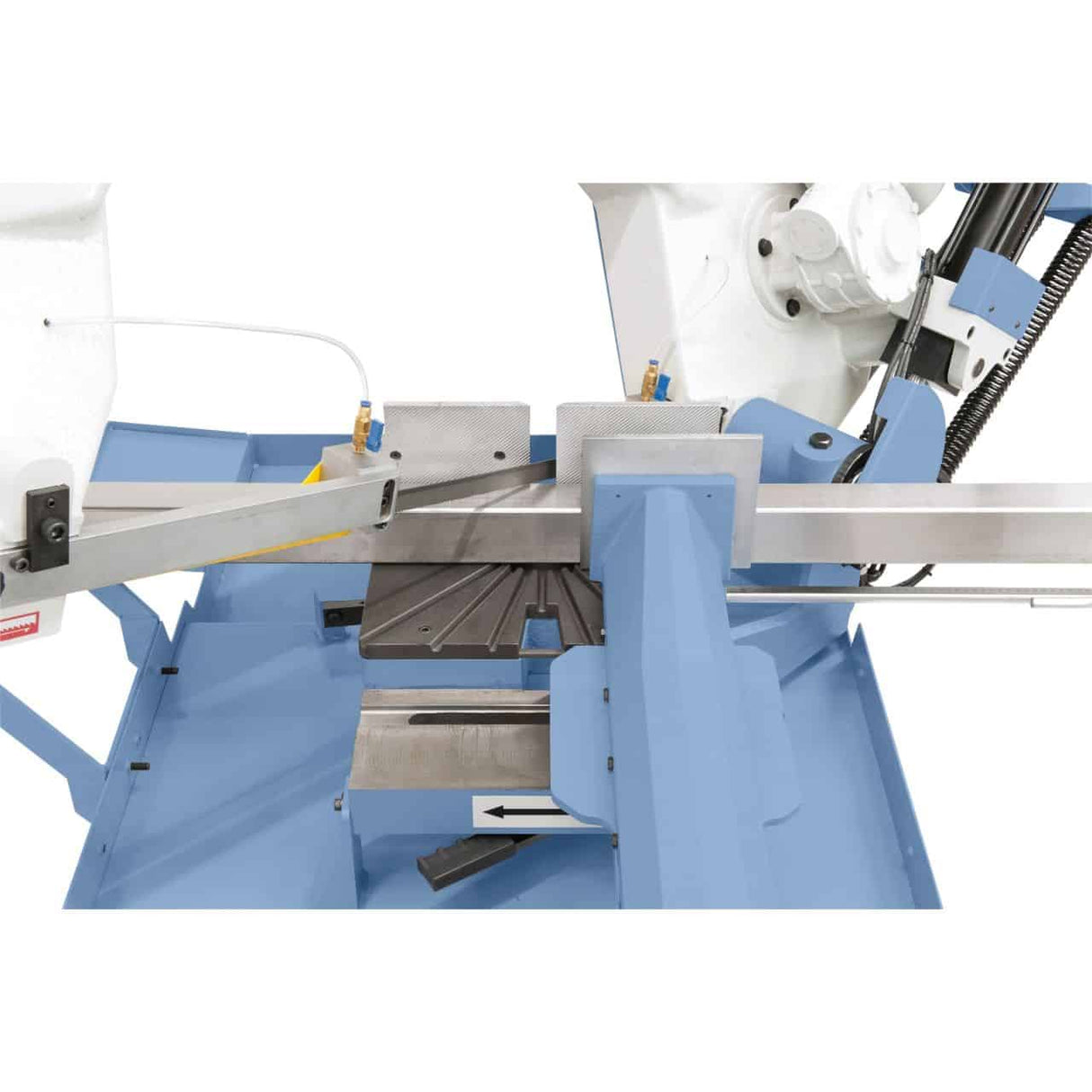

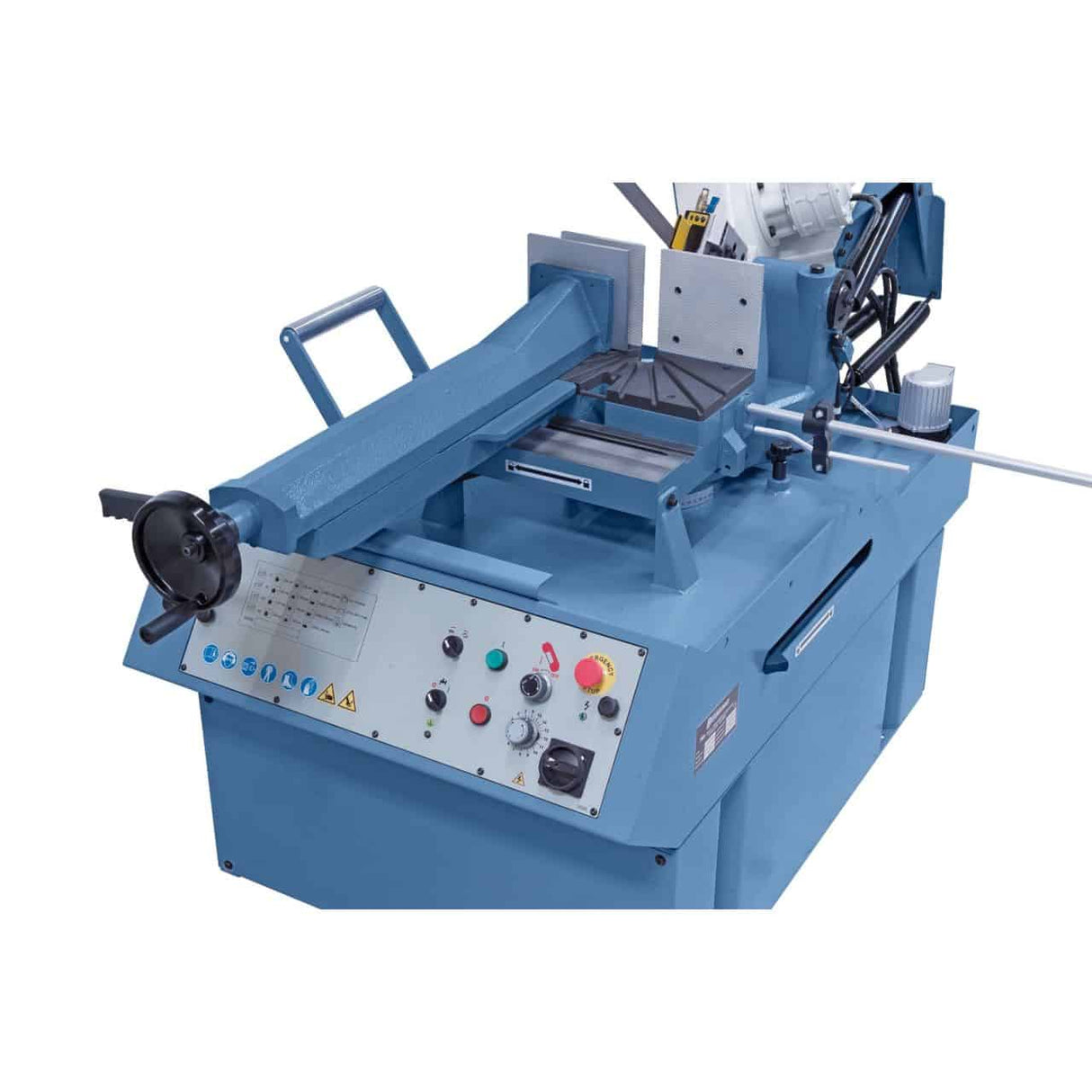

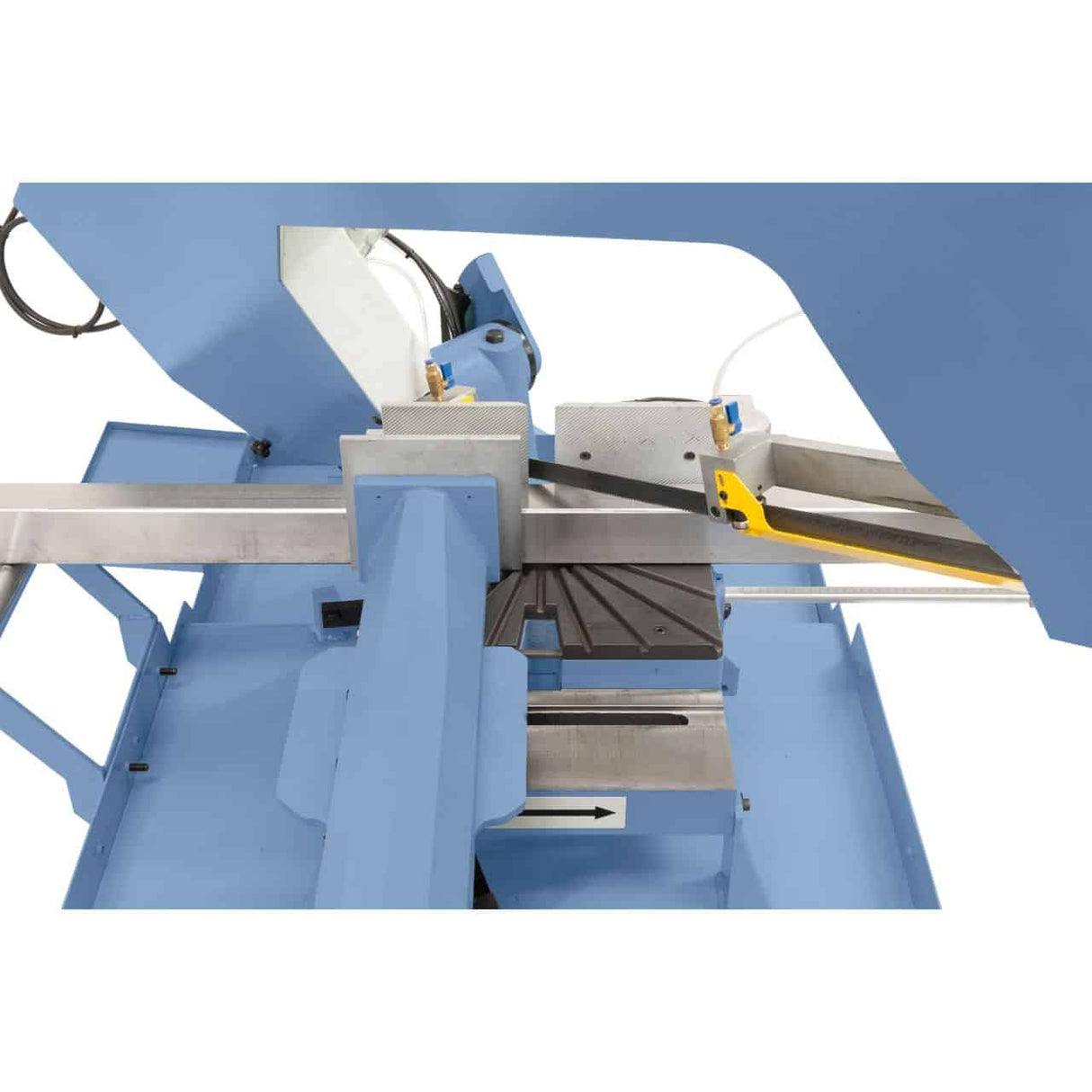

Quick-release cast iron vise with workpiece fence
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MBS 530 DG / 400 V |
| Cutting capacity round / square 90° |
355 mm / 280 x 280 mm |
| Cutting capacity flat 90° |
490 x 280 mm |
| Cutting capacity round / square 45° Rh |
355 mm / 280 x 280 mm |
| Cutting capacity flat 45° Rh |
340 x 280 mm |
| Cutting capacity round / square 45° Lh |
300 mm / 270 x 270 mm |
| Cutting capacity flat 45° Lh |
250 x 250 mm |
| Cutting capacity round / square 60° Rh |
230 mm / 180 x 180 mm |
| Working height |
870 mm |

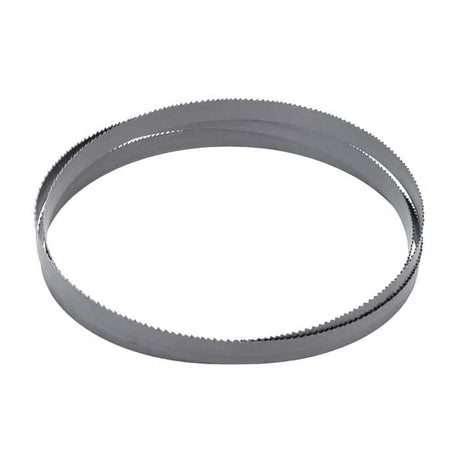

| Blade (L x W x Th.) |
3770 x 34 x 1.1 mm |
| Cutting speed |
35 / 70 m/min |
| Coolant pump |
100 W |
| Motor power (S1 100%) |
1.9 kW |
| Motor power (S6 40%) |
2.8 kW |
| Power supply |
400 V |
| Machine dimensions (L x D x H) |
2200 x 1400 x 1500 mm |
| Weight |
555 kg |
Package contents:
Bernardo MBS 530 DG / 400 V bandsaw
Mounted bandsaw blade
Quick-release cast iron vise

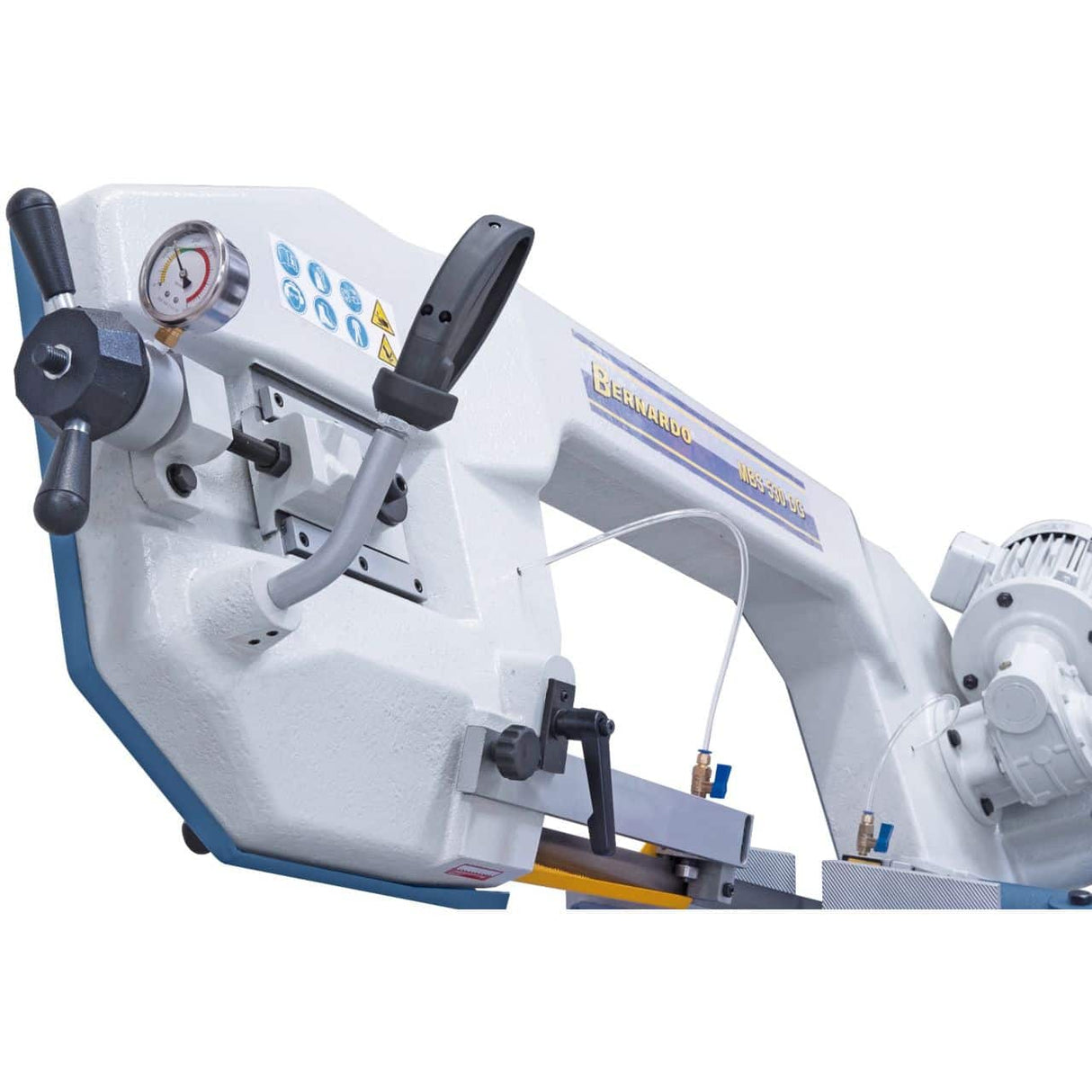

Blade tension gauge
Blade guide with carbide inserts
Workpiece fence
Steel base
100 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shutdown at the end of the cut
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
What does "DG" (doppia ghiera - double miter) mean in the MBS saw?
DG (Doppia Ghiera) indicates that the saw head tilts in both directions: both 45° right and 45° left, in addition to the standard 90°. For producing frames, triangular structures, and mirrored angled joints, the two opposite 45° cuts are essential — you cut one piece at 45° right and the mirrored piece at 45° left without manually rotating the workpiece, reducing positioning errors.
What is the maximum cutting capacity at 45°?
The capacity at 45° is lower than the nominal capacity at 90°: typically 65–70% of the maximum diameter at 90°. Check the angled capacity table in the supplied manual for the specific model.
Are replacement blades available?
Yes. Bi-metal blades in various tooth configurations for all MBS models are available with 3–5 working days shipping. Specify the model for the correct length.
Is the coolant pump integrated?
It depends on the model — models with an integrated coolant pump indicate it in the technical specifications. For stainless steel, coolant is always necessary. Customer support in Italian available.
Is assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
