Bernardo MBS 530 DGA-V Double Mitre Bandsaw

Bernardo semi-automatic band saw with double miter cutting MBS 530 DGA-V

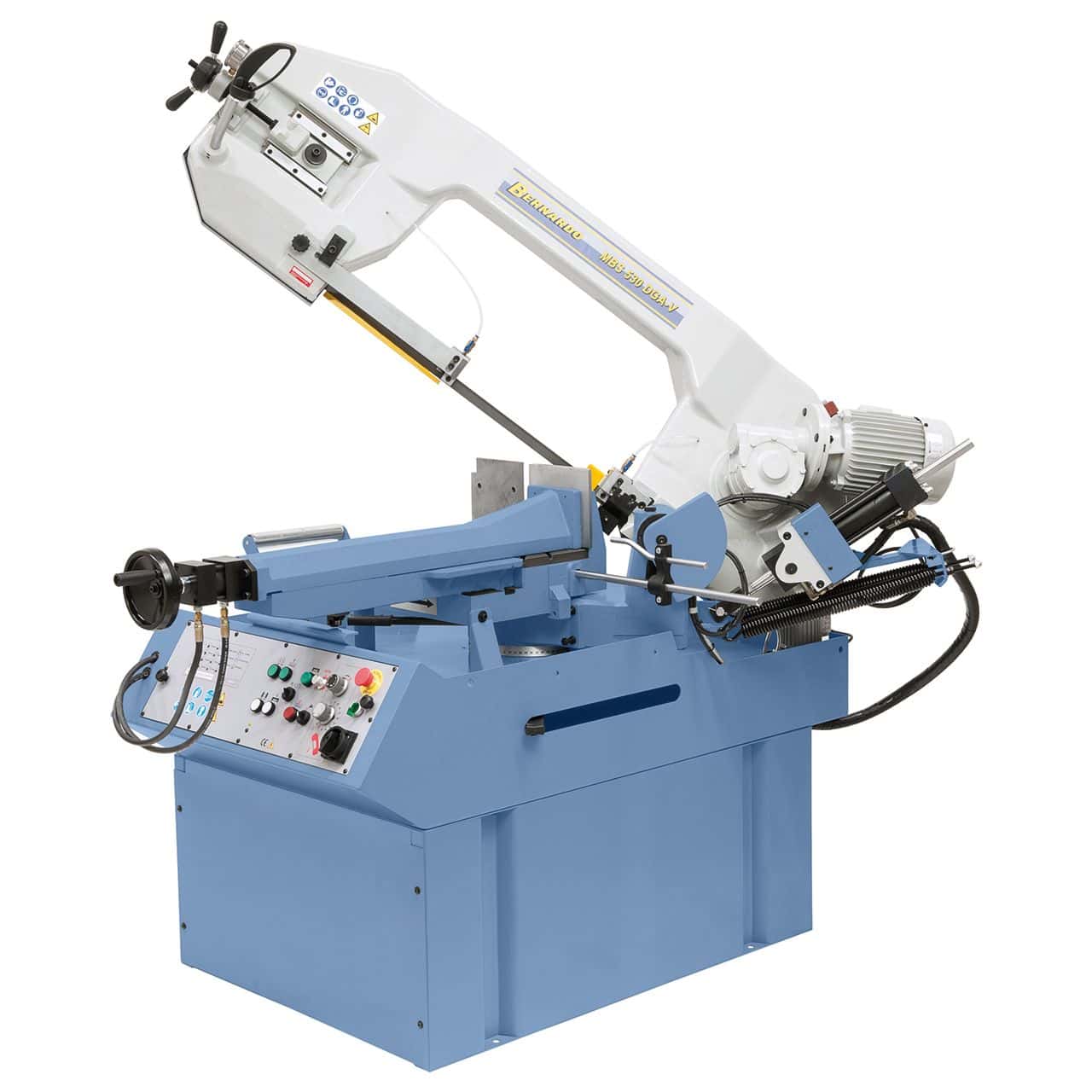

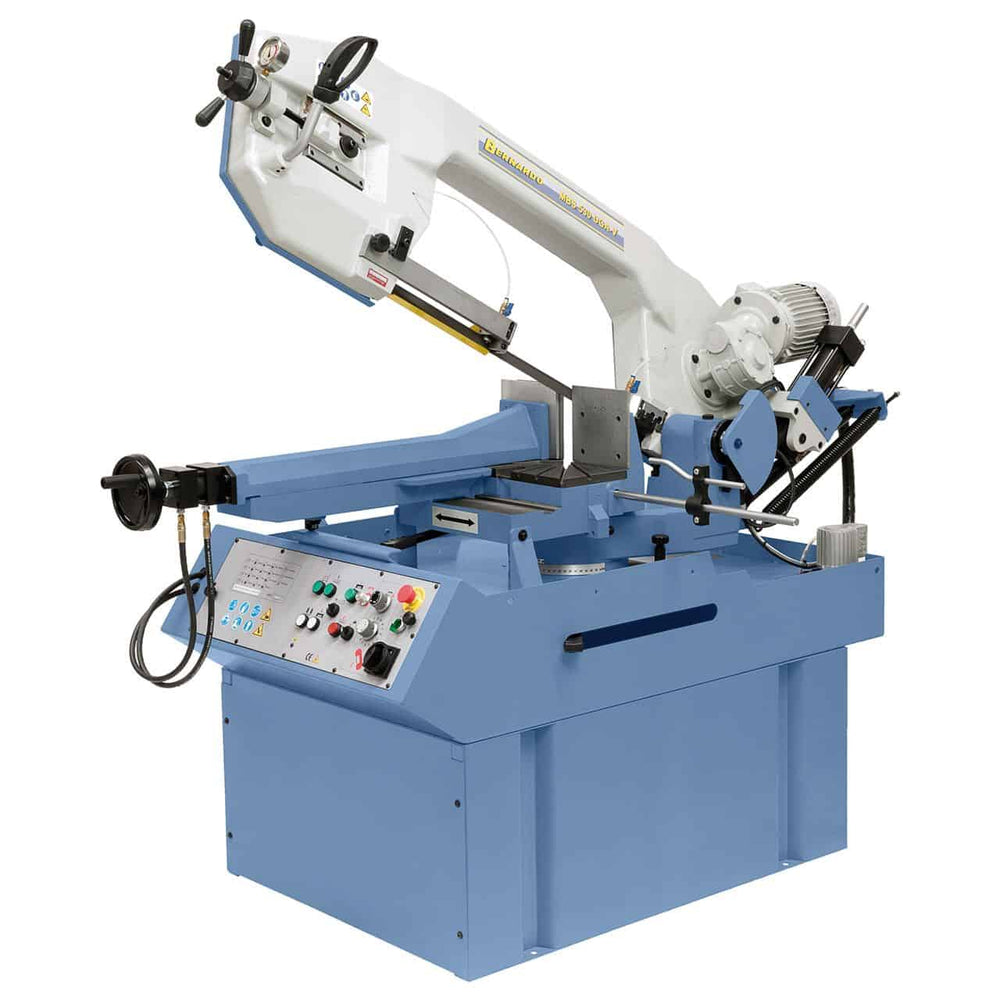

The Bernardo MBS 530 DGA-V is a professional band saw with double miter cutting and variable speed, designed for precision machining of pipes, profiles, solid steels, and non-ferrous materials. Thanks to its semi-automatic function with hydraulic vice and hydraulically controlled arm movement, productivity is significantly increased. The robust, torsion-free spheroidal cast iron frame, combined with the blade guide featuring rollers and carbide inserts, ensures precise and durable cuts. The possibility of tilting the arm up to +60° to the right and -45° to the left makes it extremely versatile. With a cutting capacity of up to 530 x 300 mm at 90°, variable speed from 20 to 70 m/min, a 2.2 kW motor, and a 100 W coolant pump, it is a solid and high-performing choice. Weighing 640 kg, it is a stable, reliable machine suitable for professional carpentry and workshops.

---

Key Specifications

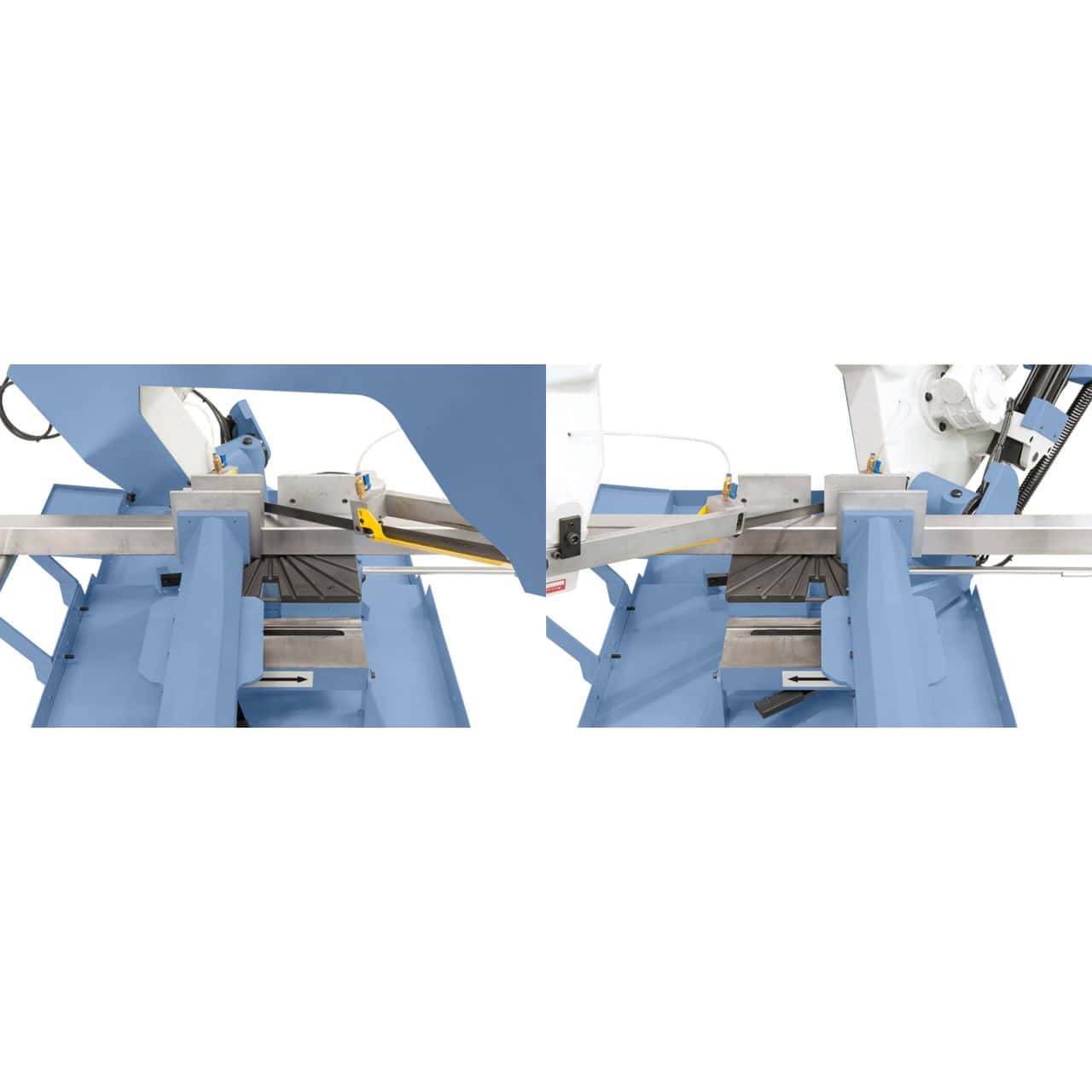

Band saw with double miter cutting up to +60° right and -45° left
Semi-automatic function to increase productivity
Variable cutting speed 20 – 70 m/min to adapt to various materials

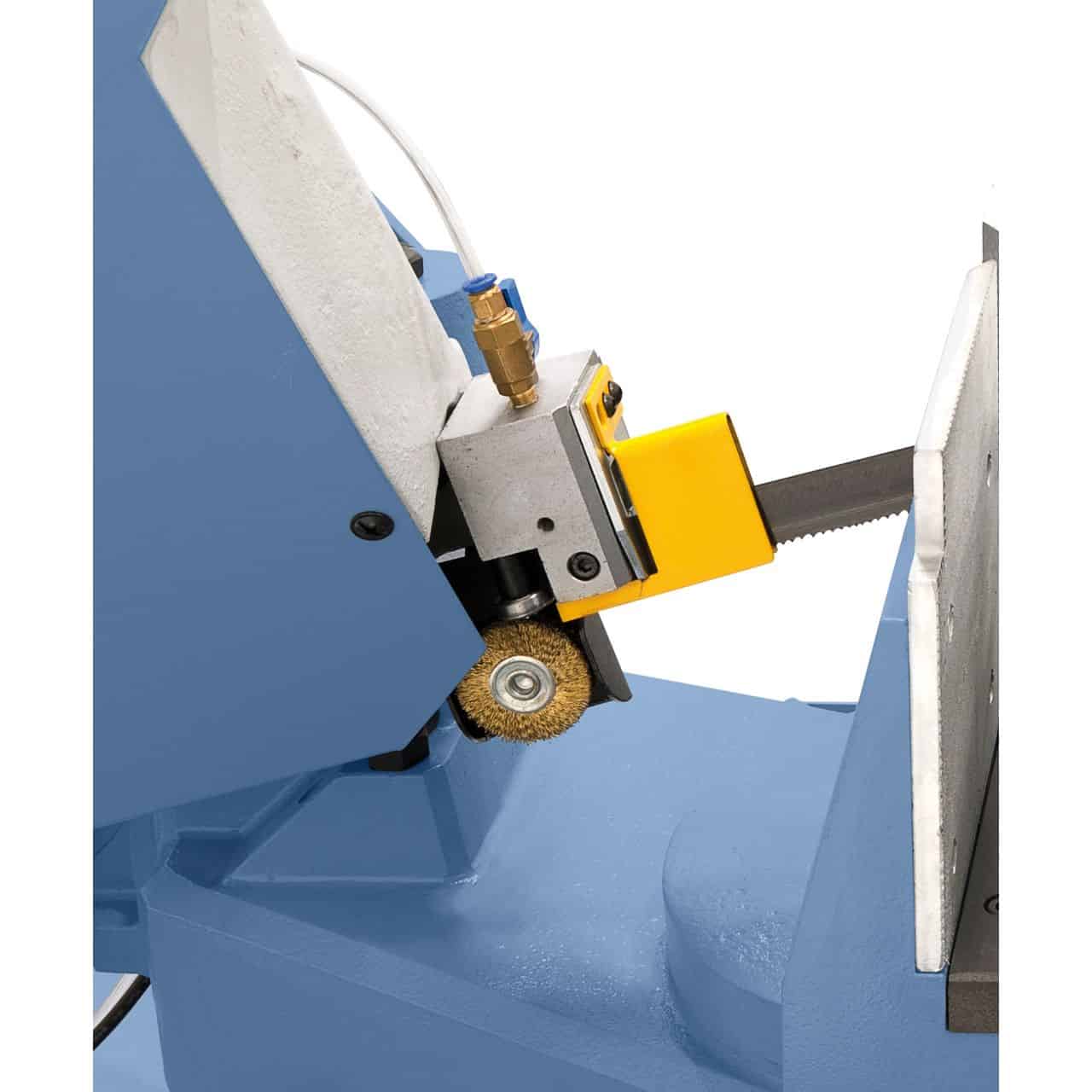

Blade guide with rollers and carbide inserts for precise cuts

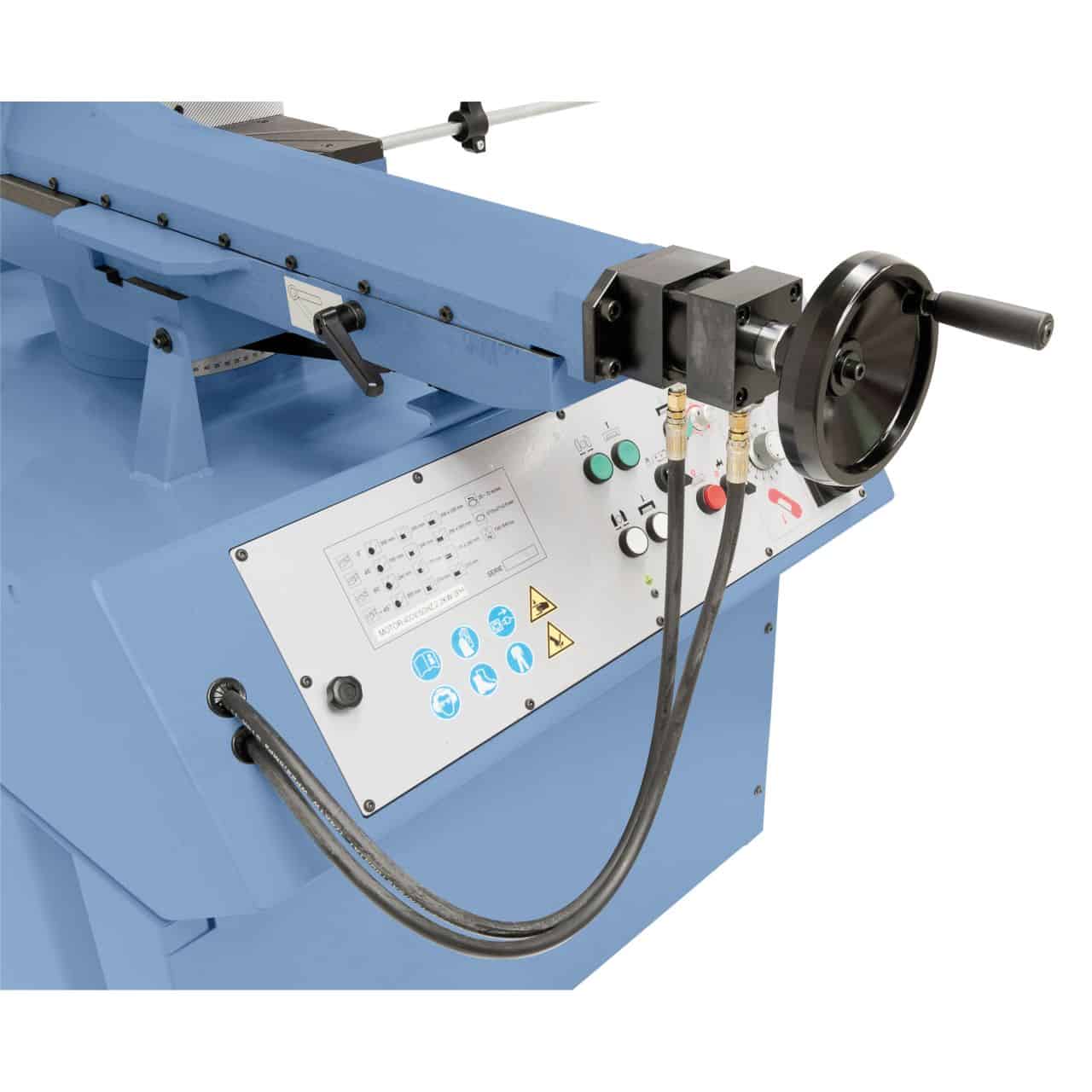

Quick and movable hydraulic vice
Torsion-free spheroidal cast iron structure weighing 640 kg
Cutting capacity up to 530 x 300 mm at 90°

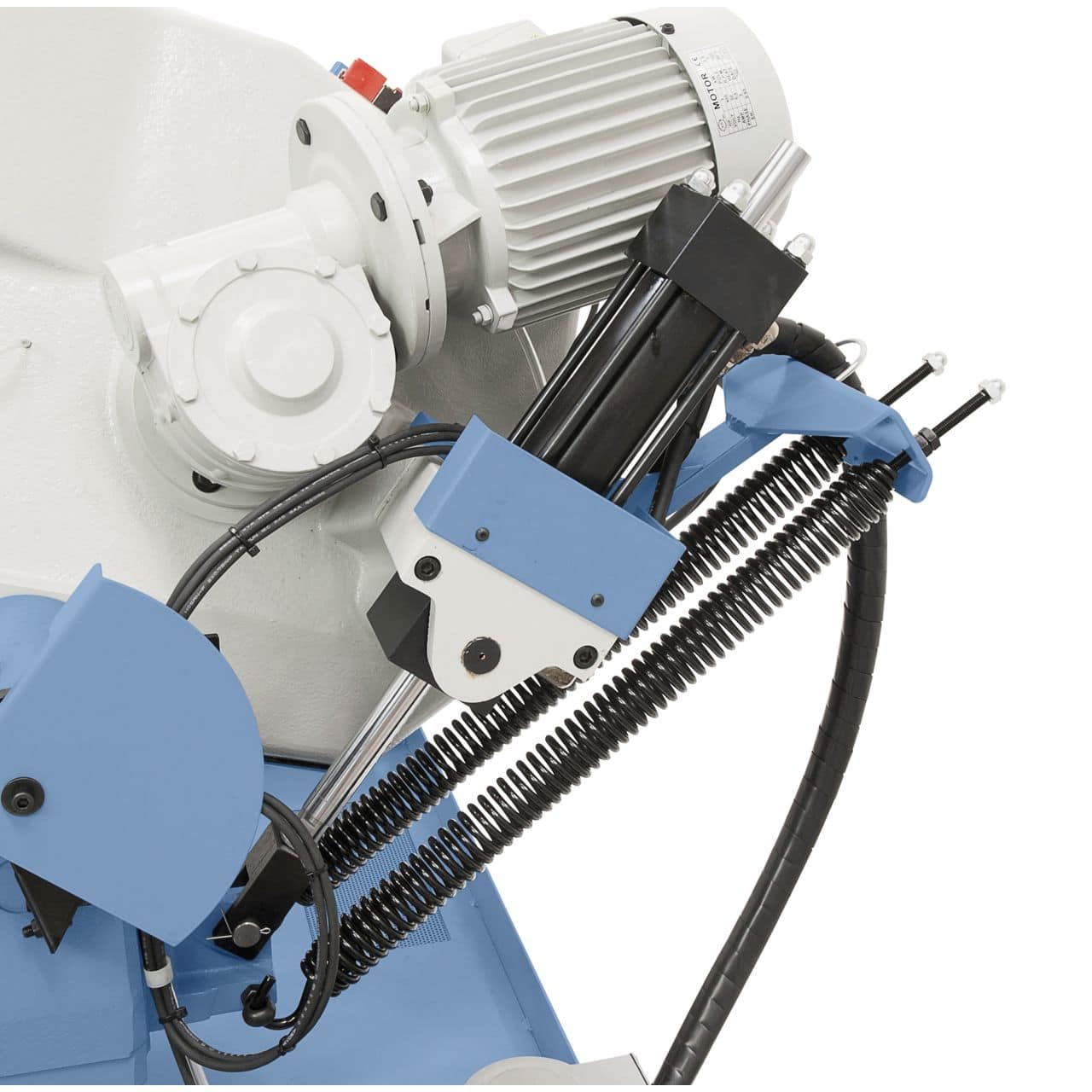

Robust transmission with hardened worm screw and bronze wheel
Integrated 100 W coolant pump
Suitable for pipes, profiles, solid and non-ferrous materials

---

Technical Table:

Specification	Value
Brand	Bernardo
Model	MBS 530 DGA-V
Round / square cutting capacity 90°	355 mm / 300 x 300 mm
Flat cutting capacity 90°	530 x 300 mm
Round / square cutting capacity 45° Right	355 mm / 290 x 290 mm
Flat cutting capacity 45° Right	360 x 290 mm
Round / square cutting capacity 45° Left	300 mm / 270 x 270 mm
Flat cutting capacity 45° Left	270 x 270 mm
Round / square cutting capacity 60° Right	240 mm / 170 x 170 mm
Working height	965 mm
Blade (L x W x Th.)	3770 x 34 x 1.1 mm
Cutting speed	20 – 70 m/min (variable)
Coolant pump	100 W
Motor power (S1)	2.2 kW
Motor power (S6)	3.0 kW
Power supply	400 V
Machine dimensions (L x W x H)	2200 x 1400 x 2050 mm
Weight	640 kg

---

Package contents:
Bernardo MBS 530 DGA-V band saw
Mounted band blade
Workpiece fence
Quick hydraulic vice

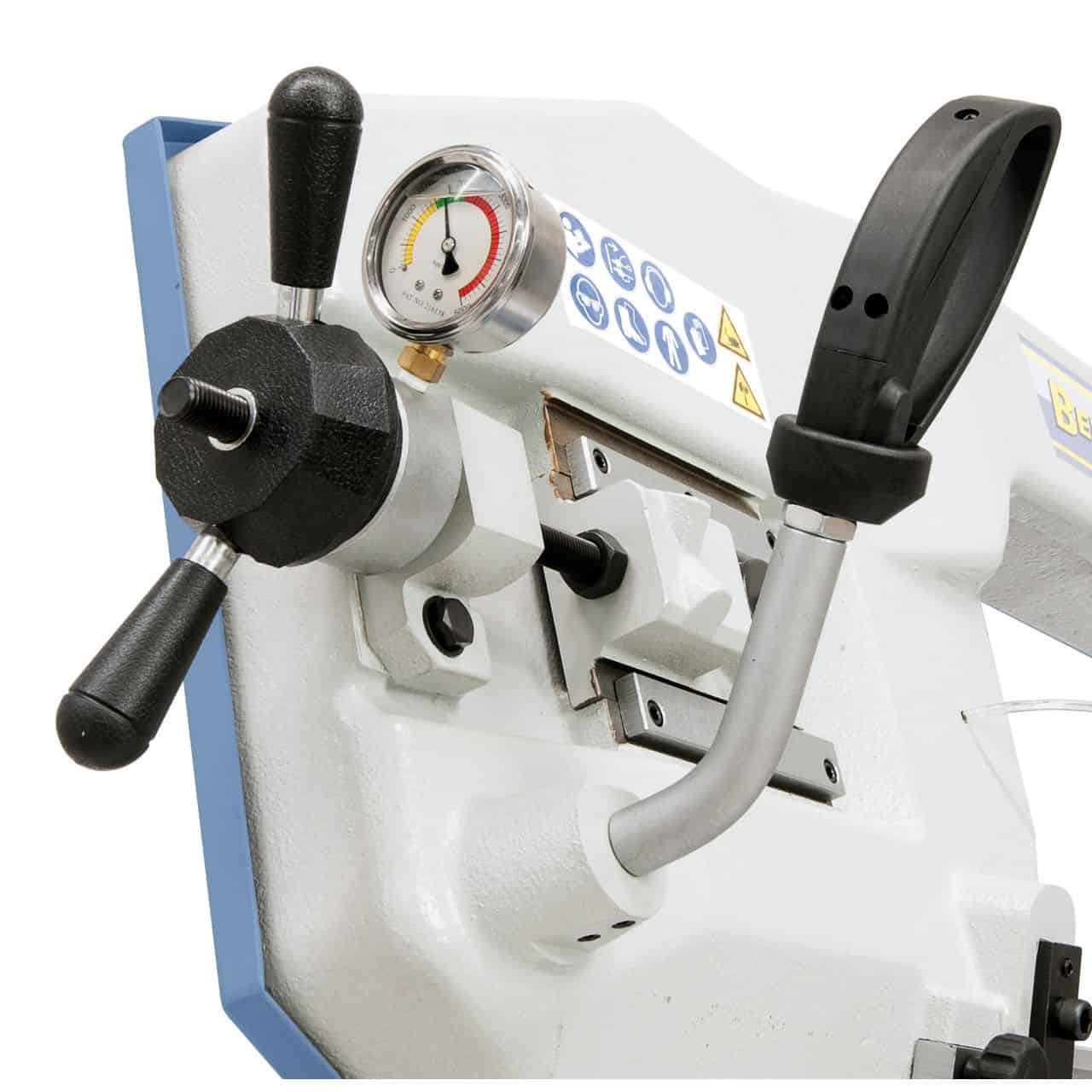

Blade tension gauge
Blade guide with carbide inserts
100 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shutdown

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.

Frequently Asked Questions

What does "DG" (double miter) mean in the MBS saw?

DG (Double Miter) indicates that the saw head tilts in both directions: both 45° right and 45° left, in addition to the standard 90°. For producing frames, triangular structures, and mirrored angled joints, two opposing 45° cuts are essential — one piece is cut at 45° right and the mirrored piece at 45° left without manually rotating the workpiece, reducing positioning errors.

What is the maximum cutting capacity at 45°?

The capacity at 45° is lower than the nominal capacity at 90°: typically 65–70% of the maximum diameter at 90°. Check the angled capacity table in the supplied manual for the specific model.

Are spare blades available?

Yes. Bi-metal blades in various tooth configurations for all MBS models are available with 3–5 working days shipping. Specify the model for the correct length.

Is the coolant pump integrated?

It depends on the model — models with an integrated coolant pump indicate it in the technical specifications. Coolant is always necessary for stainless steel. Customer support in Italian available.

Is assistance available?

Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
