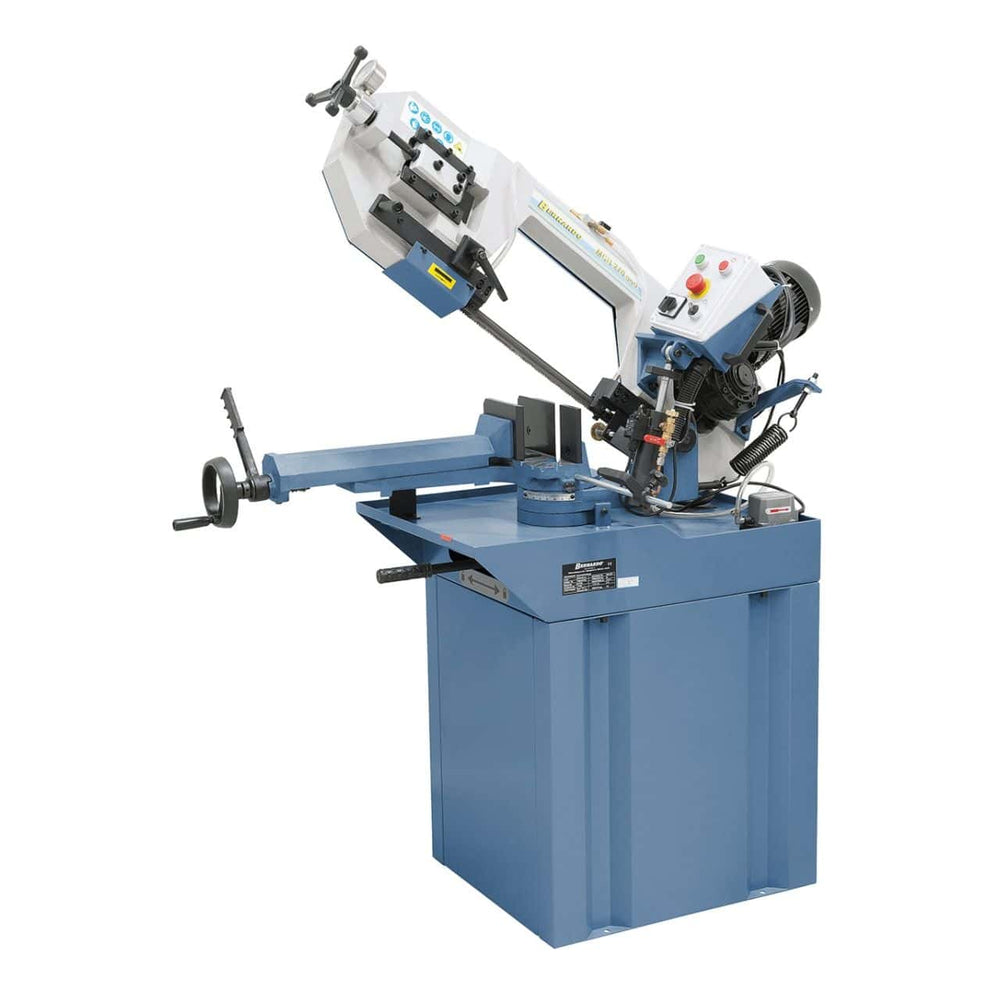

Bernardo Horizontal Bandsaw MCB 270 Eco

Bernardo Horizontal Bandsaw MCB 270 Eco

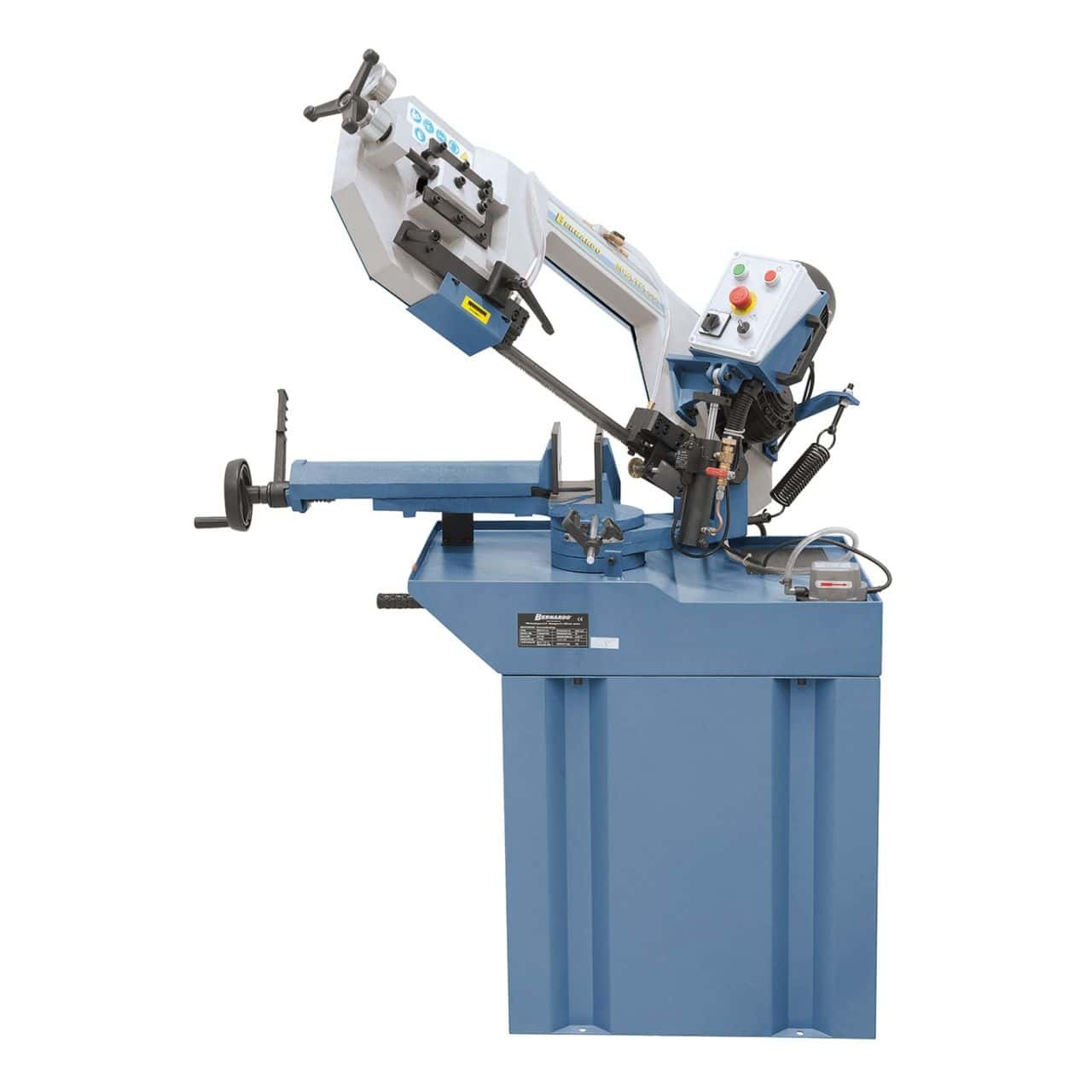

The Bernardo MCB 270 Eco is a professional-grade horizontal bandsaw, designed for maximum stability and precision in metal cutting. Thanks to its torsion-free gray cast iron frame and robust cast iron vise with quick adjustment, it offers reliable and long-lasting performance. With two cutting speeds (37.5 / 75 m/min) and an arm that swivels up to 60°, it allows for versatile angled cuts. The arm's descent is regulated by a continuously variable hydraulic cylinder, ensuring smooth and vibration-free operation. Complete with a coolant device, blade tension gauge, and automatic shut-off at the end of the cut, it represents the ideal choice for workshops, carpentry, and users who demand high quality.

---

Main features:
Torsion-free gray cast iron arm for precise and stable cuts
Two cutting speeds: 37.5 / 75 m/min

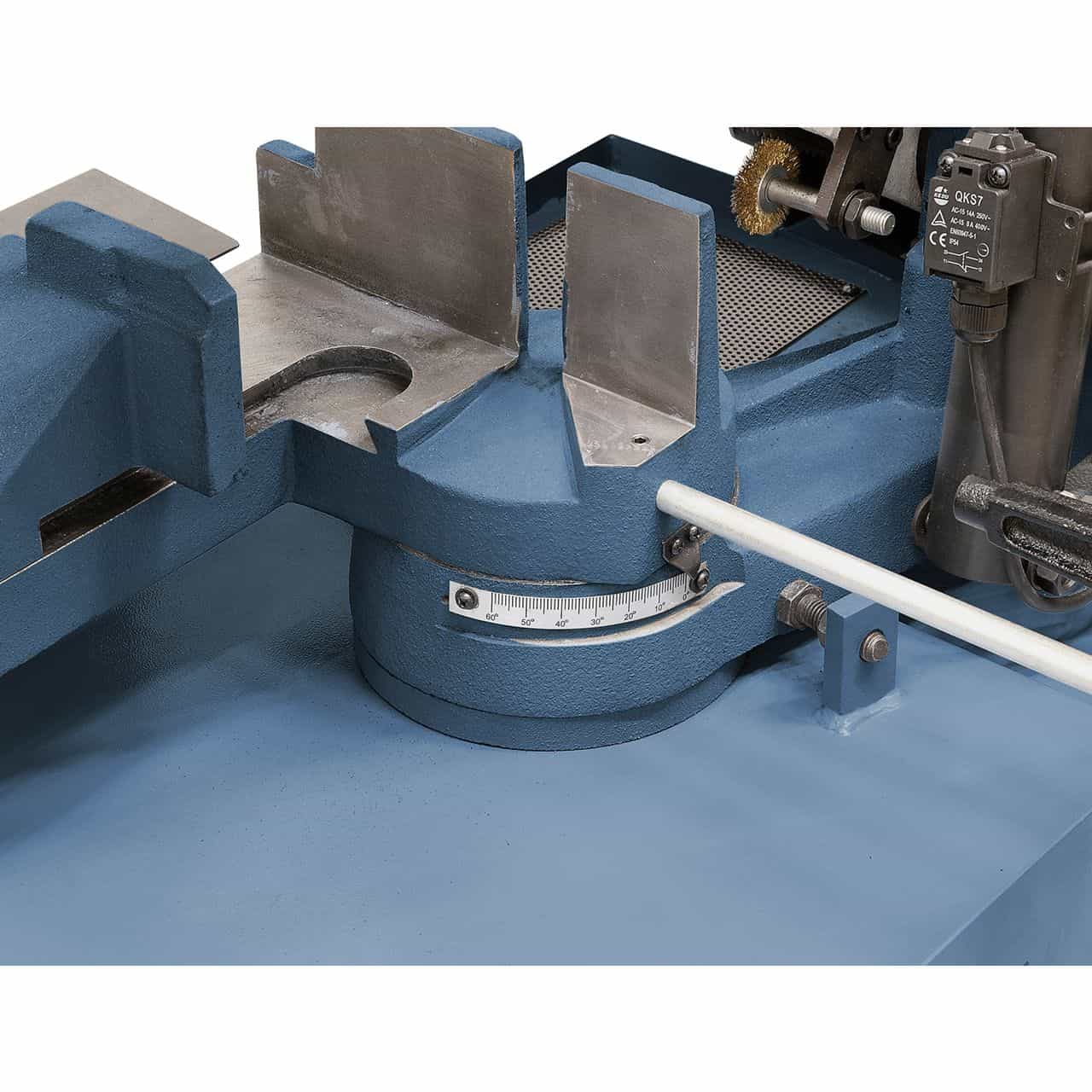

Arm swivels up to 60° for versatile angled cuts

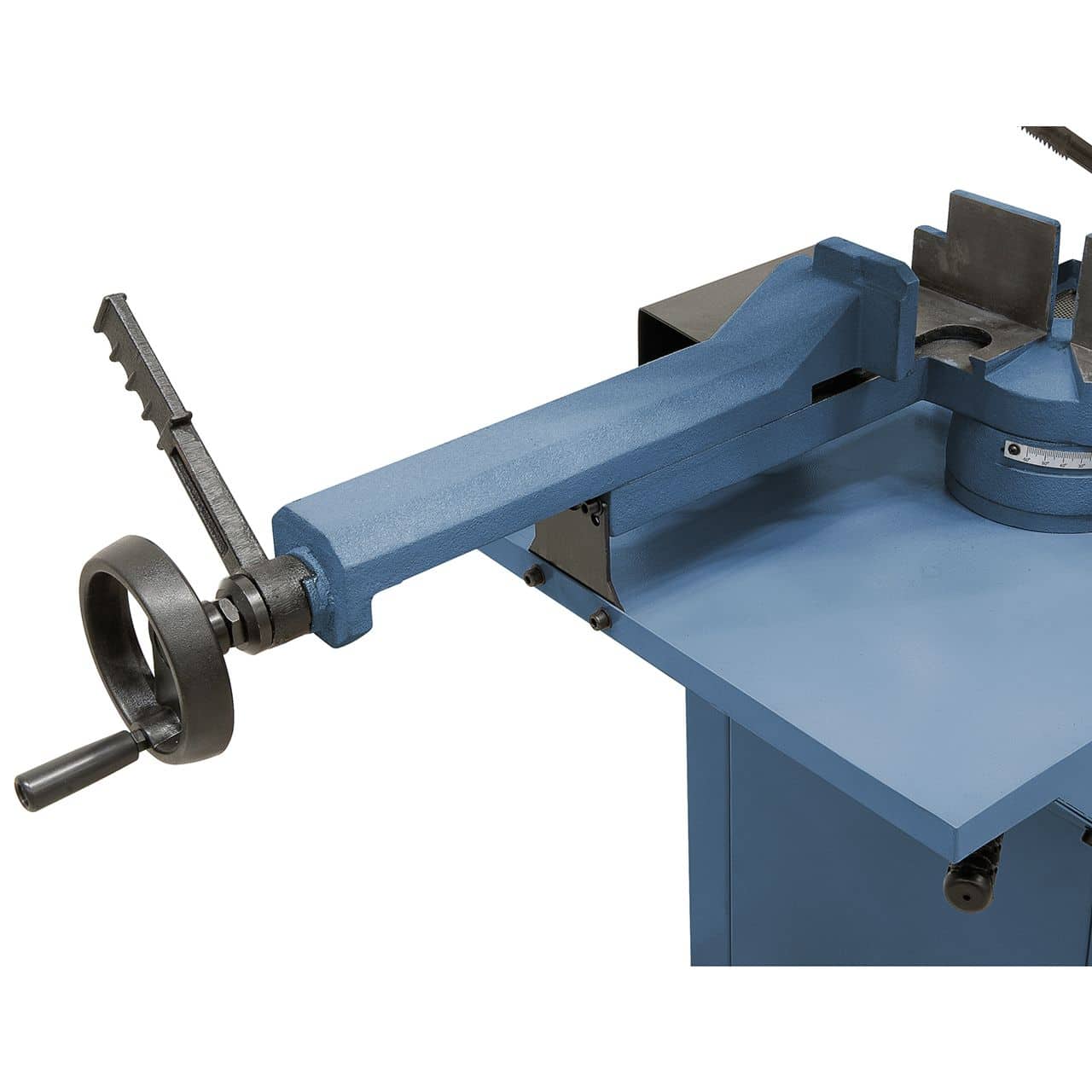

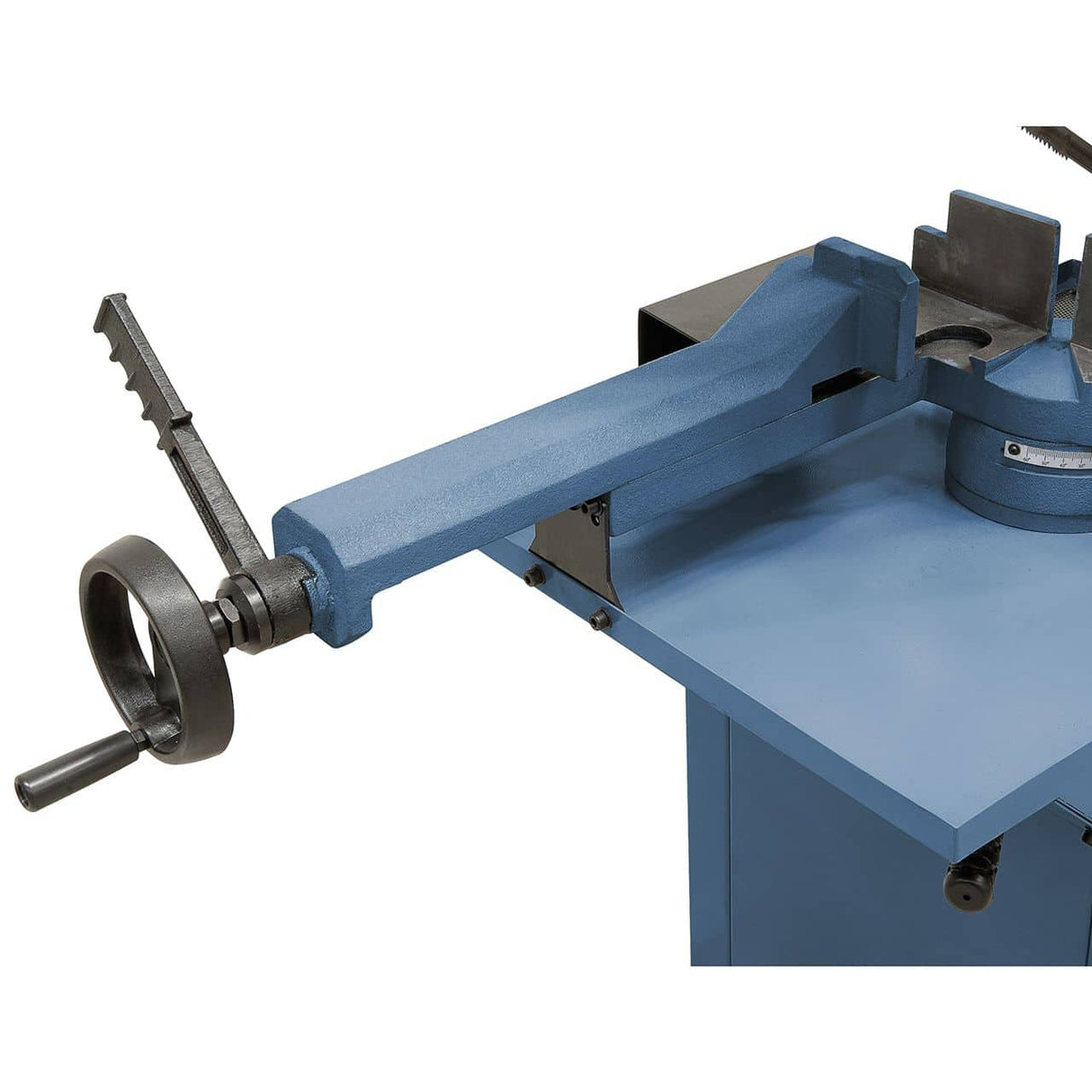

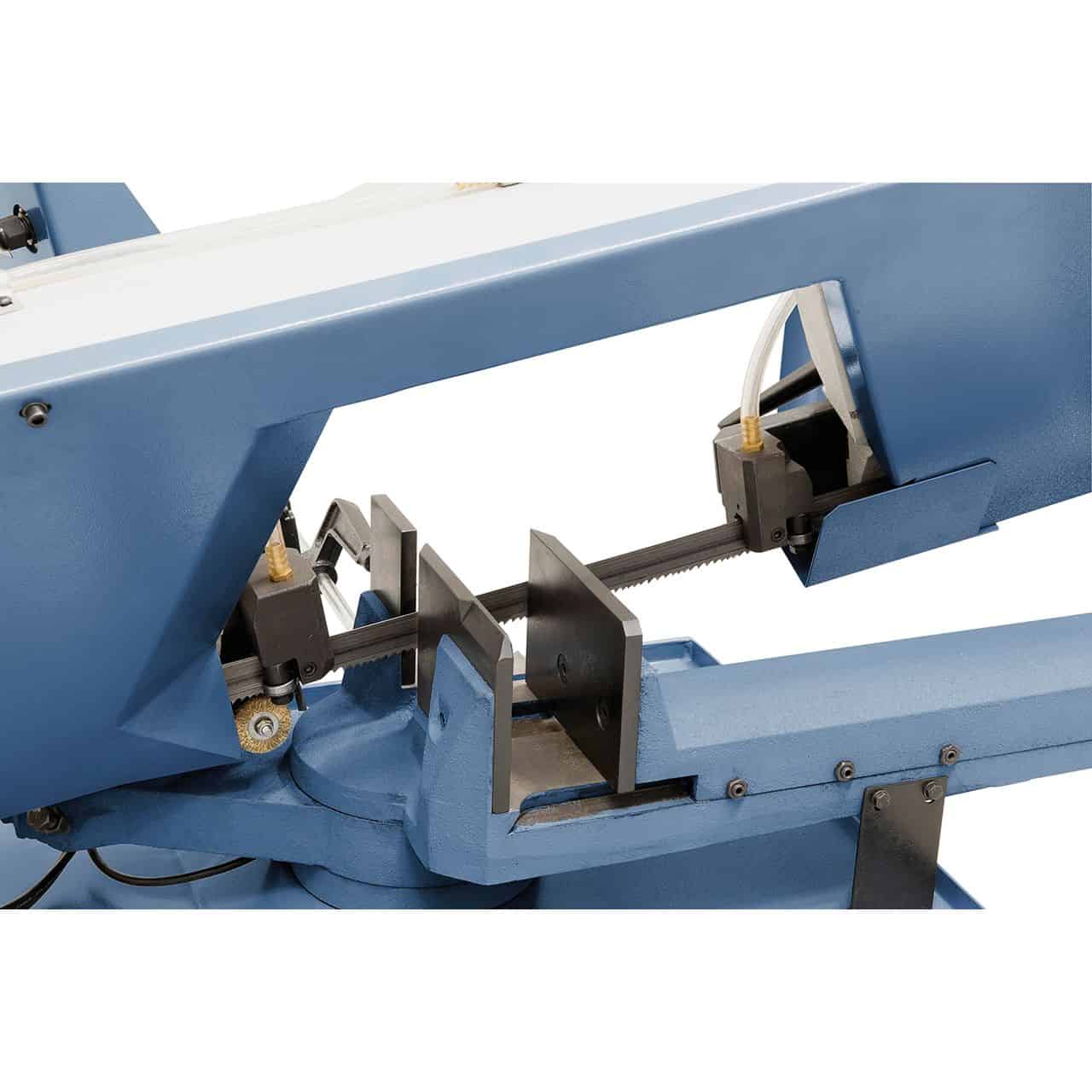

Cast iron vise with quick adjustment

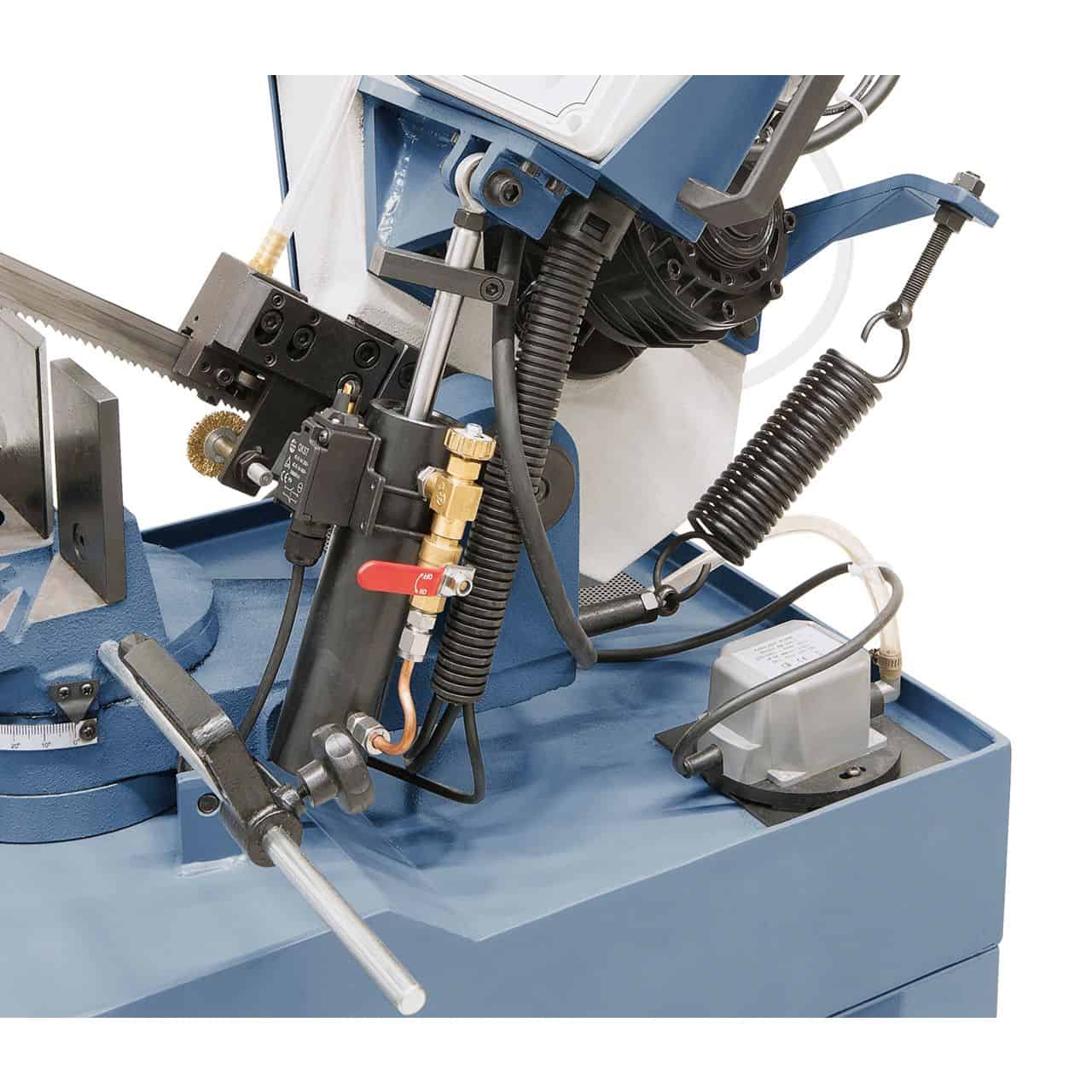

Adjustable descent with continuous hydraulic cylinder
Robust construction for smooth and vibration-free operation
Automatic shut-off at end of cut

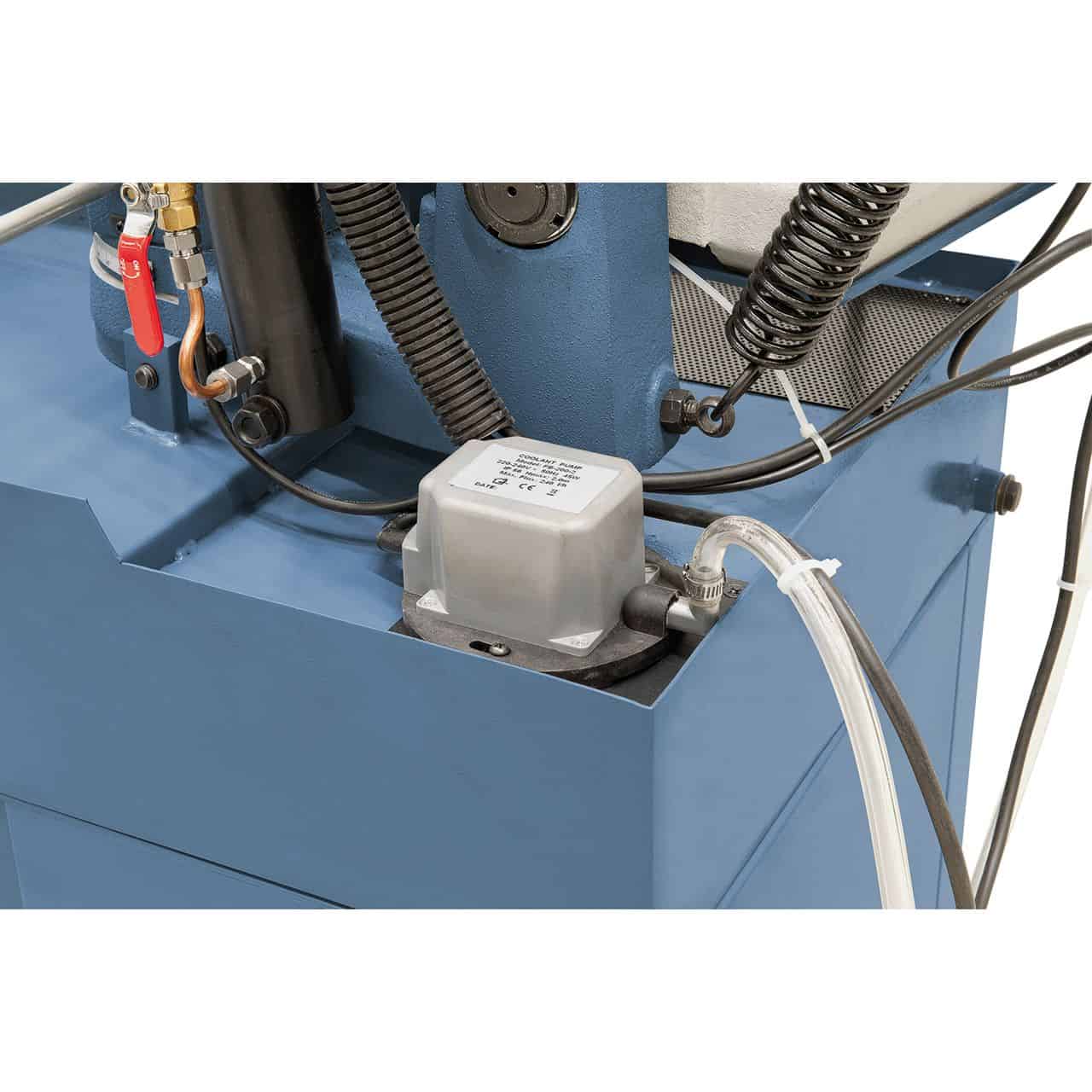

Equipped with 45 W coolant device

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MCB 270 Eco
Round cutting capacity 90°	225 mm
Square cutting capacity 90°	180 x 180 mm
Flat cutting capacity 90°	265 x 120 mm
Round cutting capacity 45°	160 mm
Square cutting capacity 45°	160 x 160 mm
Round cutting capacity 60°	100 mm
Square cutting capacity 60°	100 x 100 mm
Working height	920 mm
Blade (L x W x Th.)	2450 x 27 x 0.9 mm
Cutting speed	37.5 / 75 m/min
Coolant pump	45 W
Motor power (S1 100%)	1.1 / 1.5 kW
Motor power (S6 40%)	1.5 / 2.2 kW
Power supply	400 V
Machine dimensions (L x D x H)	1200 x 710 x 1490 mm
Weight	219 kg

---

Standard equipment

Bernardo MCB 270 Eco bandsaw
Mounted bandsaw blade
Quick-release cast iron vise

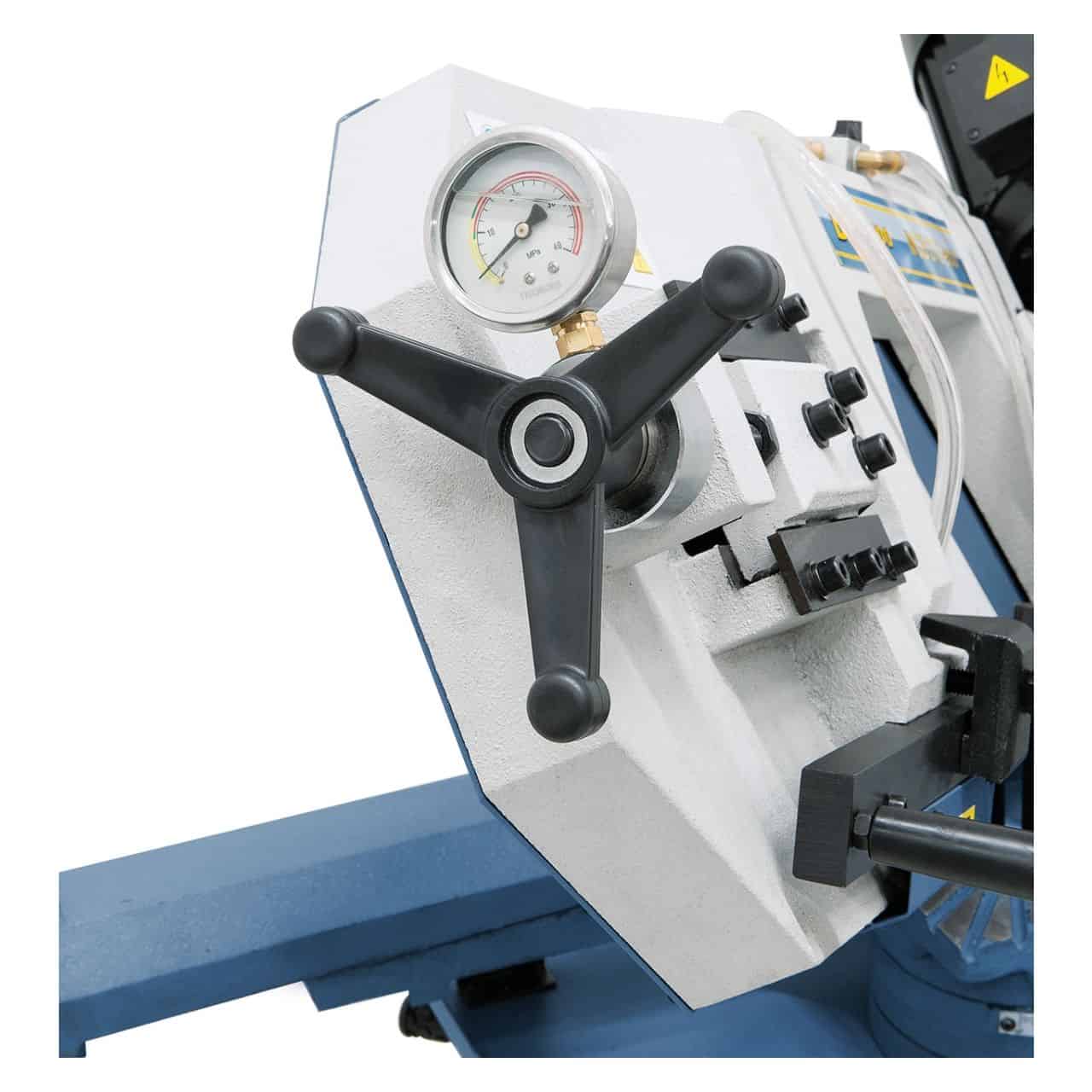

Blade tension gauge
Workpiece fence
Steel base
Coolant device with 45 W pump
Hydraulic cylinder

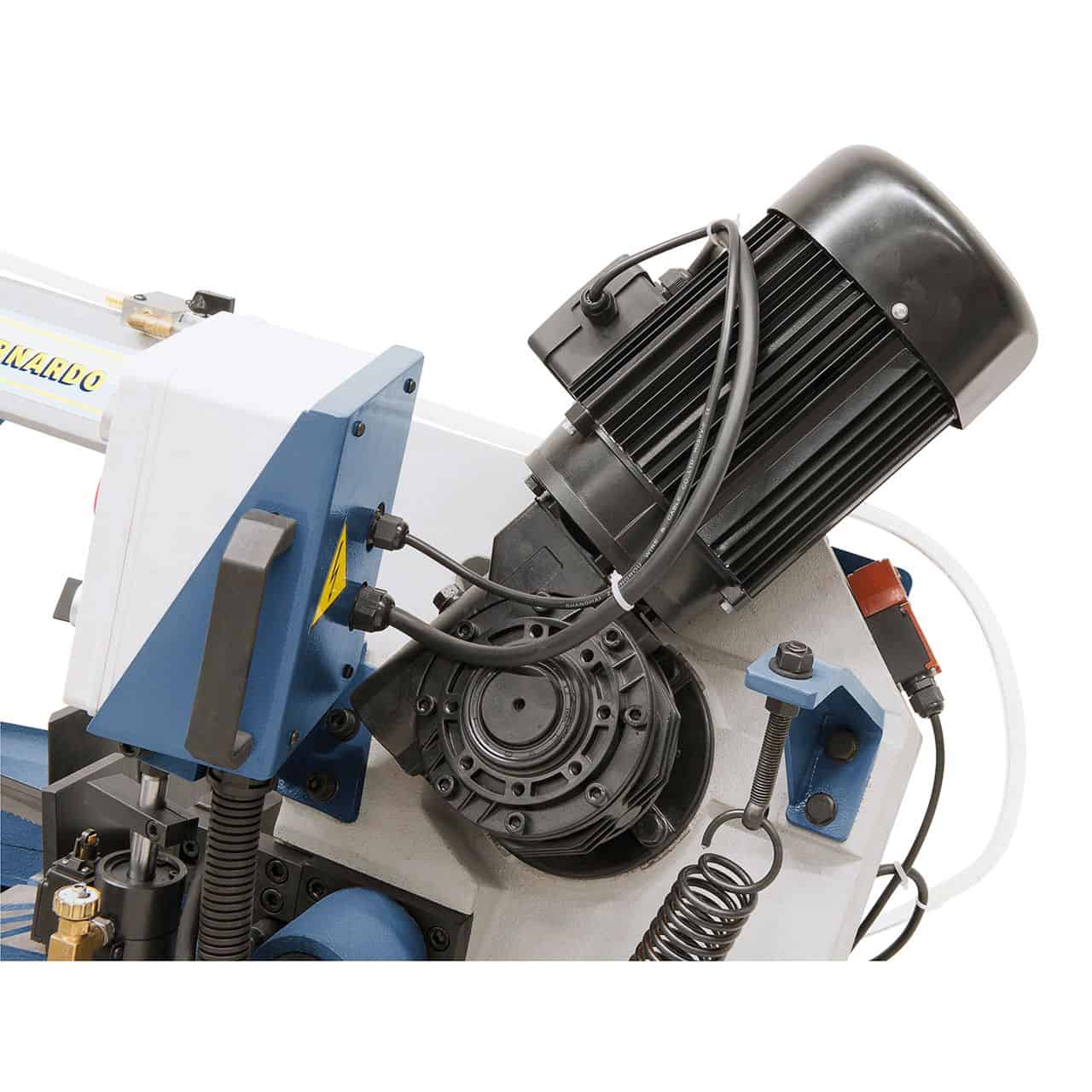

Motor with thermal protection
Automatic shut-off at end of cut

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

Frequently asked questions

What is the difference between a horizontal and a vertical saw?

A horizontal saw lowers the blade assembly onto the stationary workpiece—ideal for repeatedly cutting bars and profiles to size. A vertical saw (bench saw type) has the blade running vertically and the workpiece is guided manually: suitable for shaped cuts and curves.

What speed should I use for stainless steel with the Bernardo Horizontal Bandsaw?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the descent force of the blade assembly.

Are replacement blades available?

Yes. Original Bernardo bi-metal blades for the Bernardo Horizontal Bandsaw are available with 3–5 working day shipping. Available in different tooth configurations for various materials: steel, stainless steel, aluminum, copper, cast iron.

Does the saw include a cooling system?

It depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support available in Italian.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
