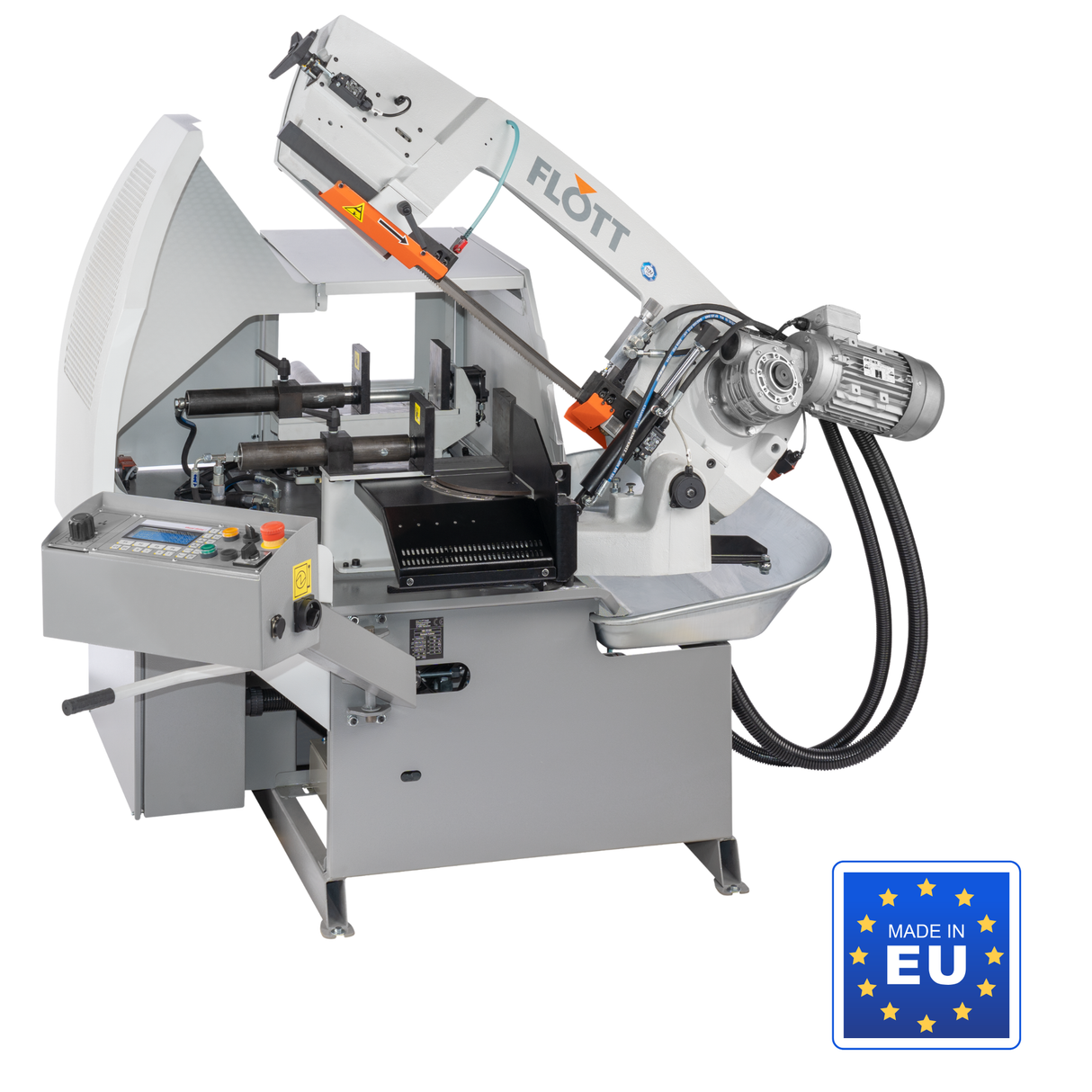

The Flott HBS 230 ANC is a metal bandsaw for professional use, weighing 495 kg. Krollit has been the official Flott distributor since 2007.
- Motor: Three-phase 400 V, 1.1/1.5 kW
- Blade dimensions: 2720 x 27 x 0.9 mm
- Cutting speed: 40–80 m/min
- Flywheels: Ø 300 mm
- Opening (span): 275 mm / 10.83"
- Working height: 768 mm
Who uses the HBS 230 ANC and for what
Mechanical workshops and metalworking shops use the HBS 230 ANC for cutting steel, aluminum, and cast iron profiles and bars, sectioning raw materials before turning or milling.
Its place in the Flott range
The Flott HBS 230 ANC is part of the Flott metal bandsaw range, distributed in Italy by Krollit since 2007. The Flott range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Flott catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the HBS 230 ANC for?
The HBS 230 ANC is recommended for the following professional profiles:
-
Mechanical workshops and metalworking shops: cutting steel profiles and bars with acceptable tolerance for subsequent processing.
-
Turners and industrial maintenance workers: sectioning raw materials before turning or milling.
Not suitable for: precision cutting on thin sheets (for thin sheets, consider hydraulic shears or circular saws for metal).
Processing capacity
| Cutting speed |
40–80 m/min |
| Minimum diameter |
5 mm |
| Cutting mode |
Fully automatic up to 45°, semi-automatic up to 60° |
Table, dimensions and geometry
| Working height |
768 mm |
| Machine dimensions |
2220 x 1650 x 1730 mm |
| Weight |
495 kg |
Other specifications
| Flywheels |
Ø 300 mm |
| Opening (span) |
275 mm / 10.83" |
| Feed |
Integrated, 0.2 mm precision |
| Min. residual piece |
180 mm |
| Colors |
RAL 7035 / RAL 7005 |
| Warranty |
12 months (single shift) |
| Cooling |
Electric pump |
| Blade dimensions |
2720 x 27 x 0.9 mm |
| Motor |
Three-phase 400 V, 1.1/1.5 kW |
Frequently Asked Questions
What can the HBS 230 ANC cut?
Profiles, tubes, solid bars, and laminates in steel, aluminum, and cast iron within the indicated section limits.
Cutting capacity is expressed in mm of maximum section for round, square, and rectangular profiles. For extra-hard materials, reduce the band speed and use blades with appropriate tooth pitch.
What type of blade does it require?
Bimetal blade for cutting steel, carbon steel blade for soft metals.
Krollit supplies original Bernardo blades with various tooth pitches to optimize cutting based on material type and thickness.
What cutting speed does it offer?
See "Band speed" in the technical table: typically adjustable in 2-4 steps or continuously (Vario).
Low speeds (15-30 m/min) for alloy steels, high speeds (50-80 m/min) for light alloys and aluminum. Incorrect selection accelerates blade wear.
Does it have integrated cooling?
Professional models are equipped with a cooling pump with a collection tank and drip tray.
Cooling (with cutting oil or emulsion) extends blade life and improves cutting quality on hard materials. For dry cutting, use specific blades.
How much does it weigh and how is it installed?
See "Weight" in the technical table: industrial models weigh from 150 to over 400 kg.
Saws over 200 kg require adequate flooring and anchoring. The machine must be positioned in clear space for handling long profiles.
