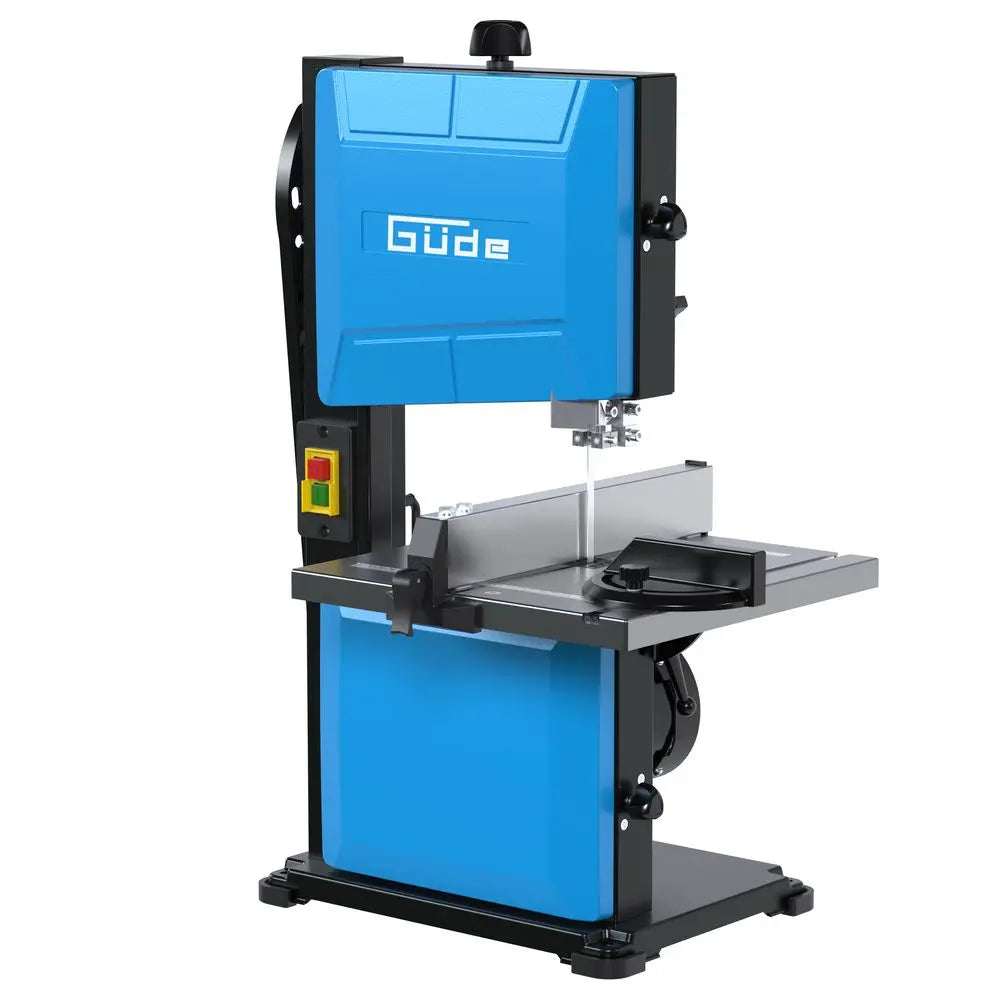

Guede GBS 200S is a woodworking bandsaw for professional use, with a cutting width of 200 mm, cutting height of 80 mm, speed of 1500 rpm, and a 350 W motor. Krollit, official Guede distributor since 2007.
- Mains voltage: 230 V
- Frequency: 50 Hz
- Operating mode: S2 30 min
- Motor power (P1): 350 W
- Motor speed: 1500 rpm
- Band speed: 900 m/min
Who uses the GBS 200S and for what
Professional carpenters and furniture makers use the GBS 200S for straight, curved, and resawing cuts on solid wood, plywood, and panels, with adjustable speed and an inclinable table.
Its place in the Guede range
The Guede GBS 200S is part of the Guede range of woodworking bandsaws, distributed in Italy by Krollit since 2007. The Guede range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Guede catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days for the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product data sheets, and spare part order management. Krollit has been an official distributor since 2007.
Who the GBS 200S is for
The GBS 200S is recommended for the following professional profiles:
-
Professional carpenters and furniture makers: straight, curved, and resawing cuts on solid wood, plywood, and panels.
-
Advanced hobbyists and artisanal workshops: precision work on single pieces and small series, model making, and inlay.
Not suitable for: processing metals or hard industrial materials (machine dedicated to wood: for metals, use metal bandsaws with reduced speed).
Processing capacity
| Max cutting height (90°) |
80 mm |
| Max cutting height (45°) |
50 mm |
| Max cutting width |
200 mm |
| Band thickness |
0.73 mm |
Table, dimensions and geometry
| Band length |
1400 mm |
| Band width |
6.79 mm |
| Table dimensions (L x D) |
300 × 300 mm |
| Table inclination |
0–45° |
| Cable length |
2.1 m |
| Overall dimensions (L x D x H) |
485 × 420 × 575 mm |
| Weight |
approx. 20 kg |
Motor and power supply
| Mains voltage |
230 V |
| Frequency |
50 Hz |
| Motor power (P1) |
350 W |
Other specifications
| Operating mode |
S2 30 min |
| Flywheel diameter |
200 mm |
| Noise level LWA |
90 dB |
| Motor speed |
1500 rpm |
| Band speed |
900 m/min |
Frequently Asked Questions
What cutting capacity does the GBS 200S offer?
See "Cutting width" and "Cutting height" in the technical table: typically 225-305 mm in width and 95-170 mm in height for benchtop/semi-pro models.
Cutting width is the distance between the blade and the machine throat. Cutting height determines the maximum thickness of the workpiece. For resawing large pieces (250+ mm), professional models with Ø 500+ mm flywheels are needed.
Does it have multiple cutting speeds?
Professional models offer 2 speeds (e.g., 370/800 m/min) to adapt to materials: low for hardwoods, high for softwoods.
Lower speeds reduce the risk of burning on hard essences (oak, beech). High speeds optimize performance on pine and particle boards.
Is the table inclinable?
Yes, professional models have an inclinable table up to 45° for angled cuts.
Inclination allows for miter cuts for joints and furniture details. Check for a stop for 0° inclination for repeatability on straight cuts.
What power supply does it require?
Benchtop and compact models are 230 V single-phase (0.3-0.75 kW motor). Professional models with 500+ mm flywheels require 400 V three-phase.
For workshops without a three-phase line, choose HBS 320, HBS 360, or HBS 400 models (single-phase). HBS 500 N and HBS 600 N models require mandatory three-phase.
Does it have an integrated dust extraction port?
Yes, professional models have a Ø 50-100 mm dust extraction port for connection to a chip extraction system.
Extraction is essential for air quality in the workshop. Krollit supplies compatible Bernardo DC series extractors and dedicated connection hoses.
