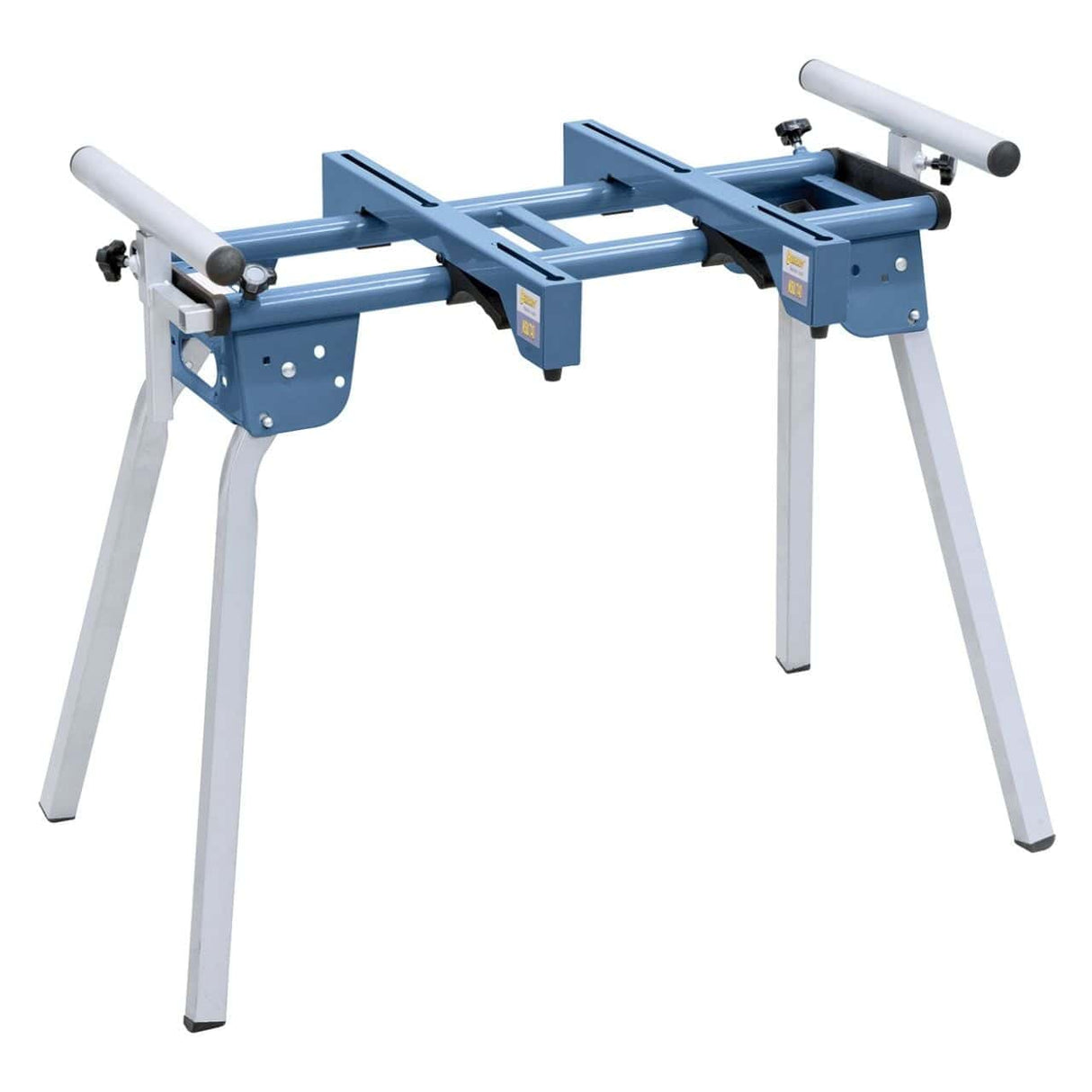

Bernardo KSU 740 Universal Base – Adjustable and compact
The Bernardo KSU 740 Universal Base is suitable for supporting woodworking machines and bench tools in workshops and for DIY projects. Thanks to its adjustable working length from 820 to 2000 mm and variable height from 710 to 850 mm, it guarantees maximum versatility according to operational needs. With a load capacity of up to 120 kg, it offers stability and safety during use. The robust yet lightweight structure (only 10 kg) makes it easy to transport and store: once closed, it occupies just 900 x 500 x 210 mm. Compact, adjustable, and durable, it represents a practical universal support for saws, miter saws, drills, and other bench tools.
Key Specifications
Adjustable working length from 820 to 2000 mm
Adjustable height from 710 to 850 mm
Maximum load capacity 120 kg

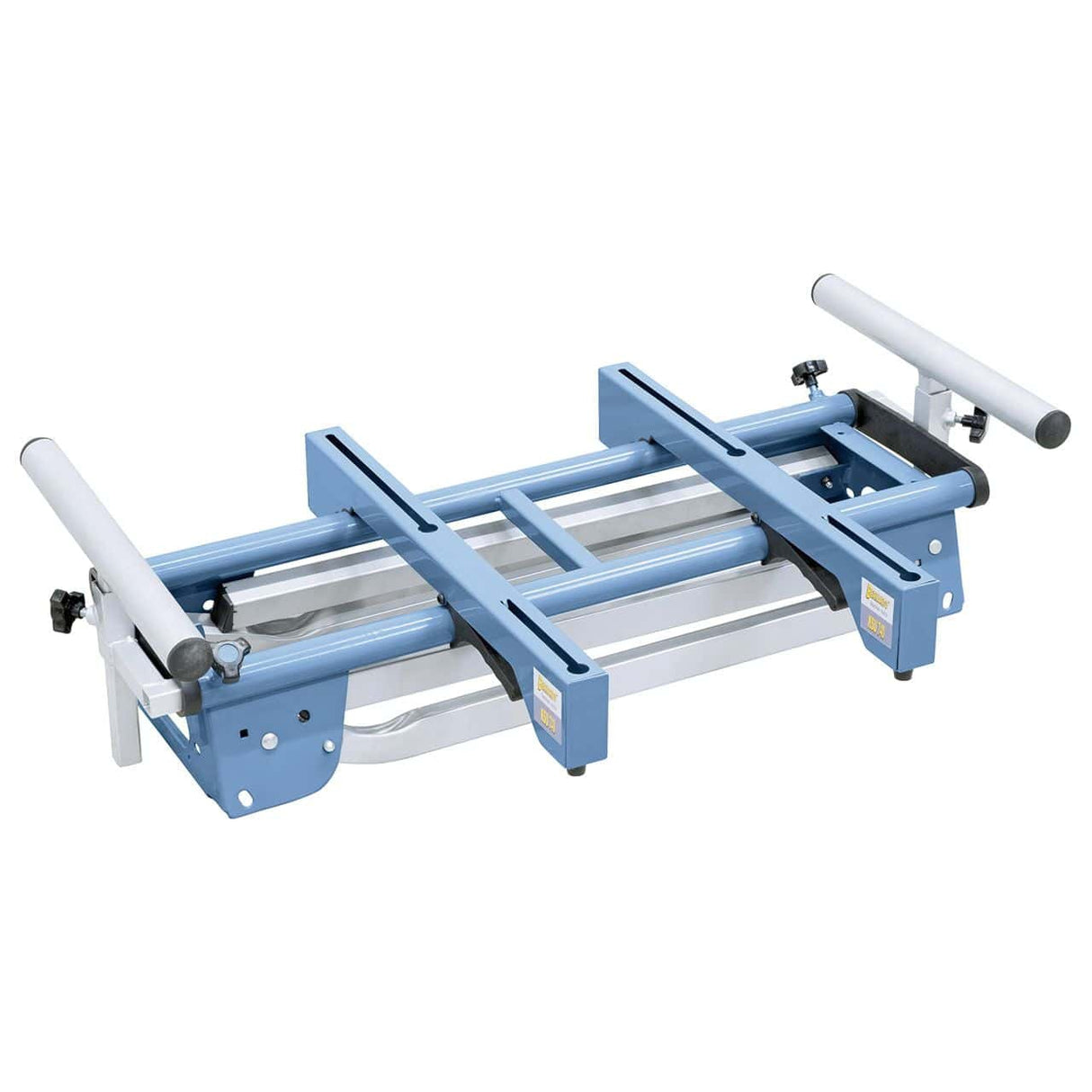

Foldable and compact structure
Folded dimensions: 900 x 500 x 210 mm
Lightweight: 10 kg for easy transport

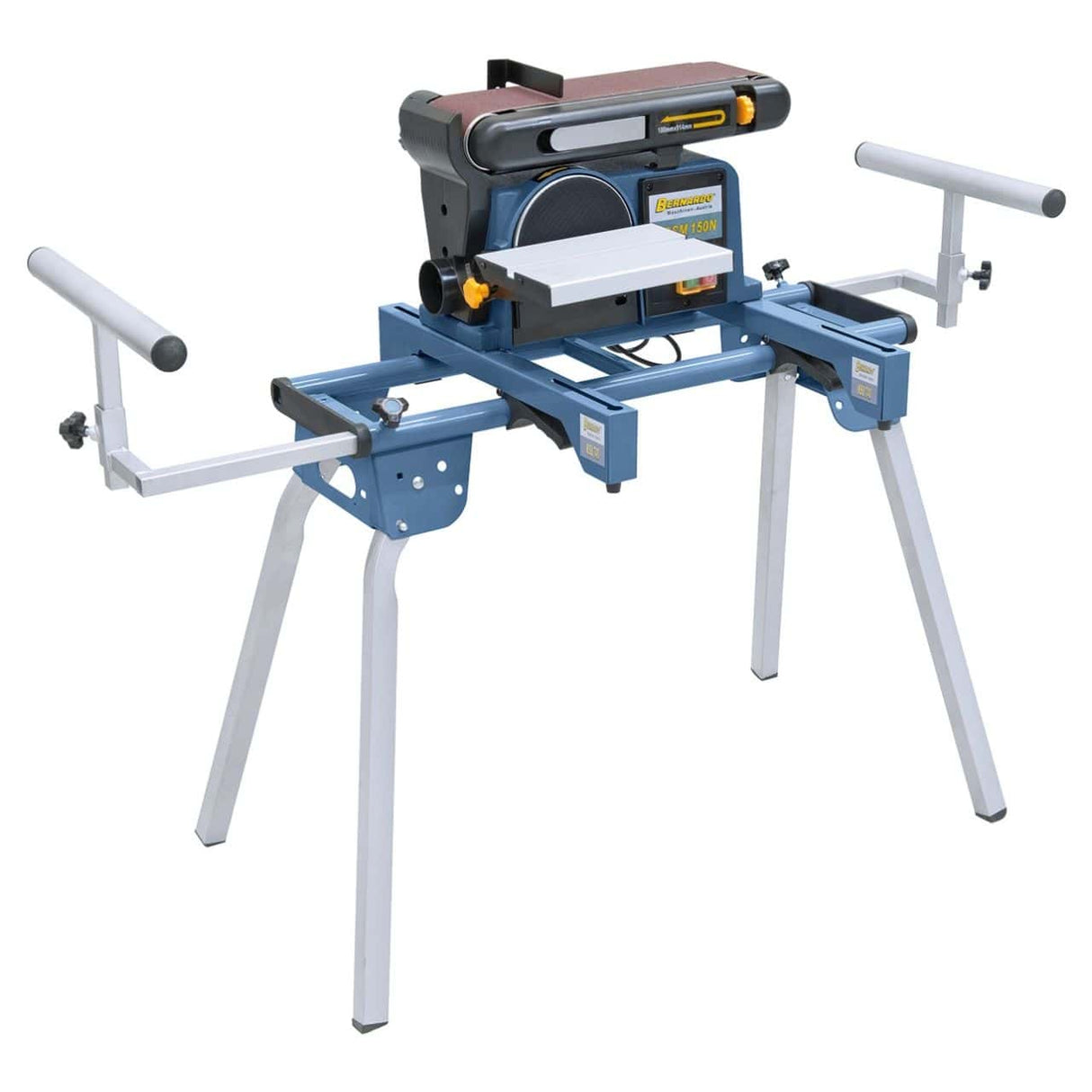

Compatible with various bench tools
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
KSU 740 |
| Working length |
820 – 2000 mm |
| Working height |
710 – 850 mm |
| Max. resistance |
120 kg |
| Machine dimensions (L x W x H) |
910 x 540 x 710 mm |
| Folded dimensions |
900 x 500 x 210 mm |
| Weight |
approx. 10 kg |
Package contents:
Bernardo KSU 740 universal base
Adjustable support arms
Base fixing kit
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days for Southern Italy). Original spare parts available with 3–5 business days shipping. Italian customer support available.
Frequently Asked Questions
The KSU 740 universal base – with which machines is it compatible?

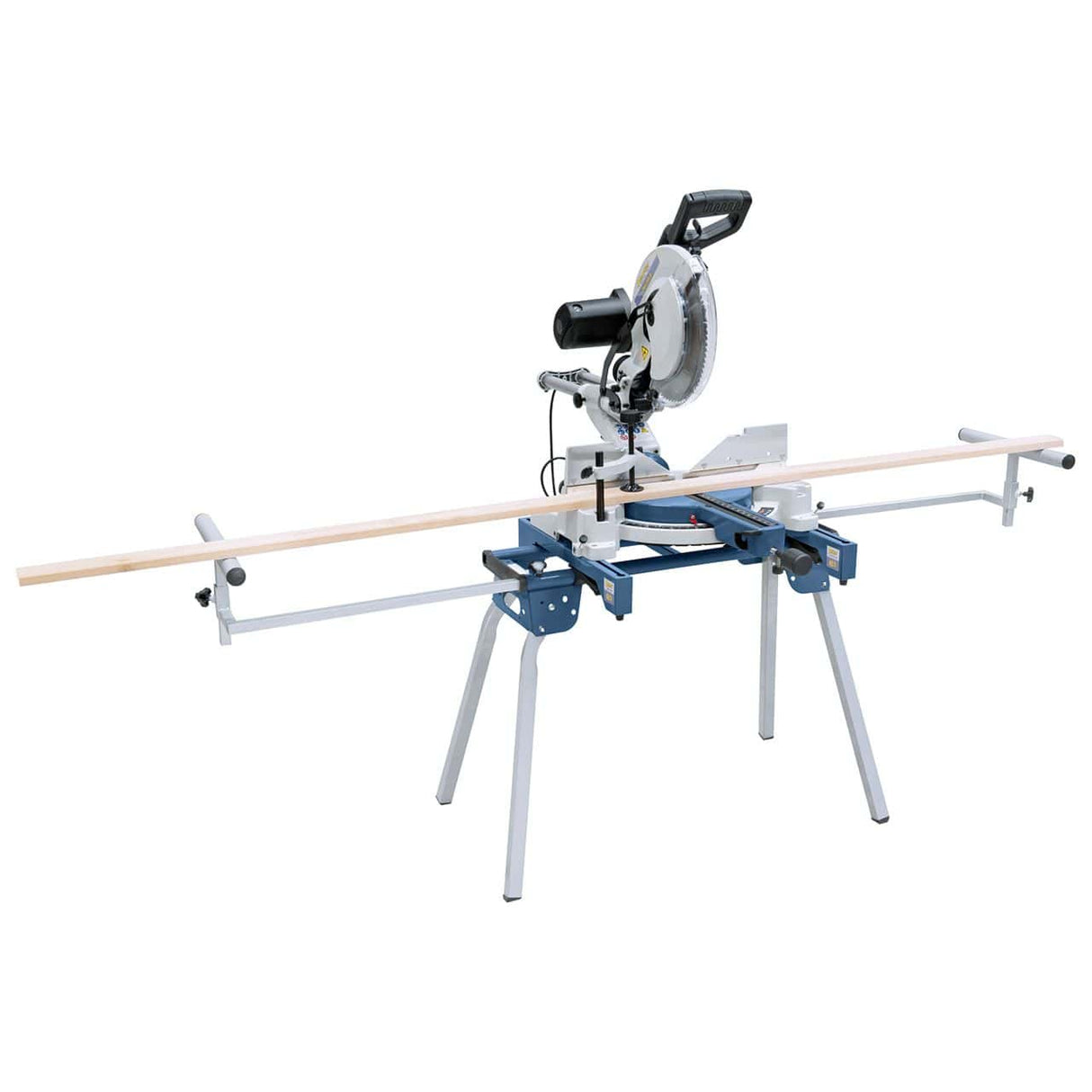

The KSU is designed to support miter saws, saws, bench angle grinders, and other light tools up to the maximum indicated weight. The adjustable working length of 420–800 mm allows the base to be adapted to the machine and to the ergonomic working height for the operator. It is not a specific base for heavy machines – for lathes and milling machines, use the dedicated bases from the D and Deluxe series.
How is the height of the work surface adjusted?
Height adjustment is done via telescopic legs or side adjustment screws (depending on the model). Adjust all 4 legs to the same height and check the flatness of the surface with a spirit level before fixing the machine. An unleveled surface causes cuts with unwanted angles on saws and miter saws.
Does the base include the stop fence?
Check the standard equipment for the specific model. Some KSU models include an adjustable stop fence for repeatable cuts of the same length; others have it as an optional accessory. Italian customer support available.
Delivery times?
Original spare parts available with 3–5 business days shipping. Italian customer support available.
