Güde V 621 C 12/24 V battery charger with jump-start function
Description
Güde V 621 C 12/24 V Battery Charger with Jump-Start Function
The Güde V 621 C is a professional battery charger and jump starter designed for charging, fast charging and starting vehicle batteries from 20 to 800 Ah.

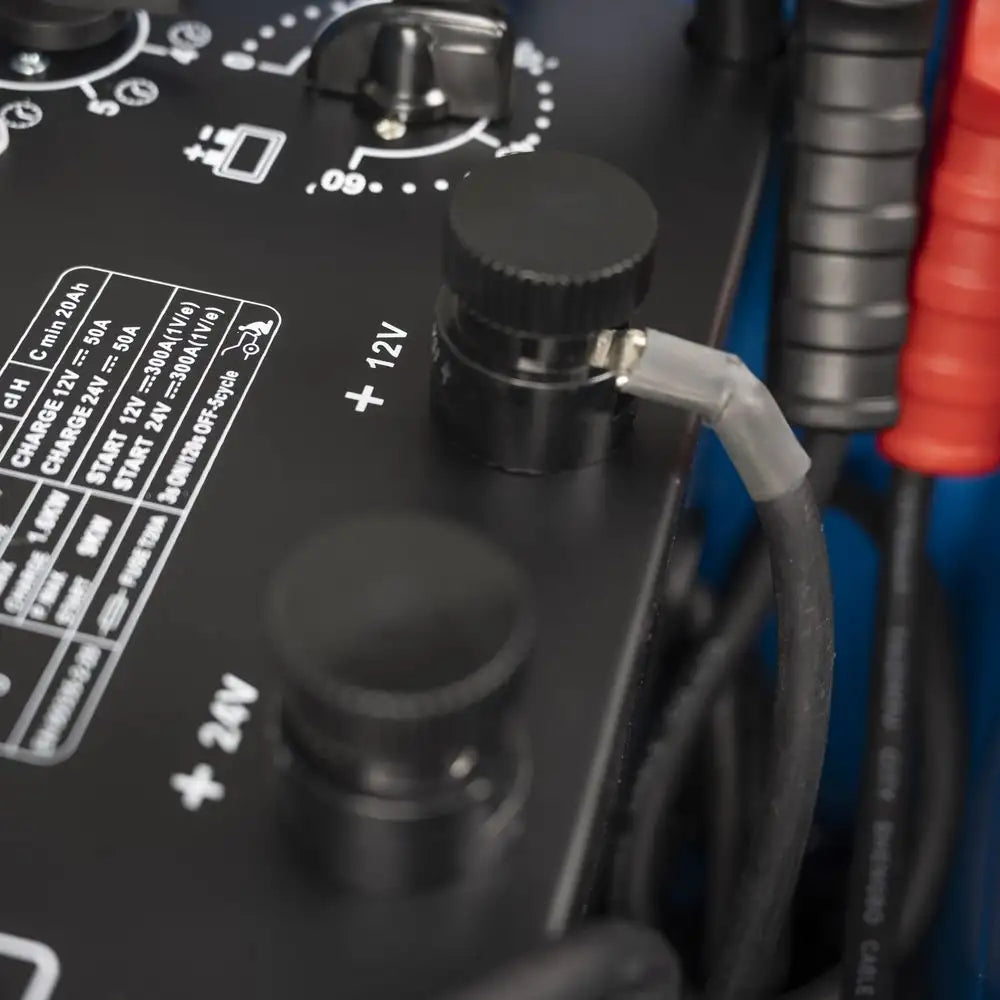

The Güde V 621 C is suitable for professional workshop use and is compatible with lead-acid batteries (PB) and wet batteries (WET) with selectable 12 V and 24 V output. It delivers an effective charging current of 70 A, an arithmetic charging current of 50 A and jump-start assistance up to 500 A at 0 V.

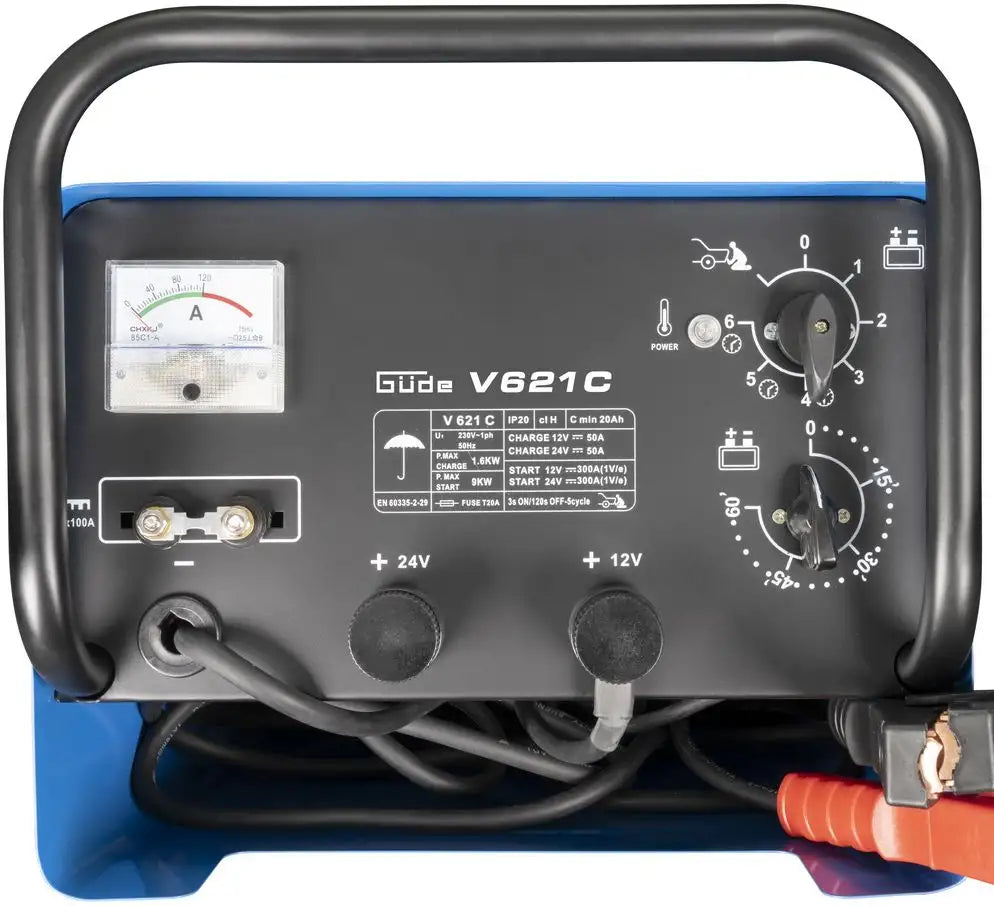

Equipped with an interference-free analogue ammeter, integrated timer, thermal protection and reverse polarity protection, this model is ideal for intensive use in mechanical workshops, body shops, dealerships and professional environments.
Manufactured in Germany by Güde, a company founded in 1970. Distributed in Italy by Krollit, official Güde distributor since 2007.
✅ Main Features
- Professional charger and jump starter for 12 V and 24 V batteries
- Suitable for batteries from 20 to 800 Ah
- Compatible with PB lead-acid and WET batteries
- Effective charging current: 70 A
- Jump-start assistance up to 500 A at 0 V
- Integrated mechanical timer for automatic charging cycles

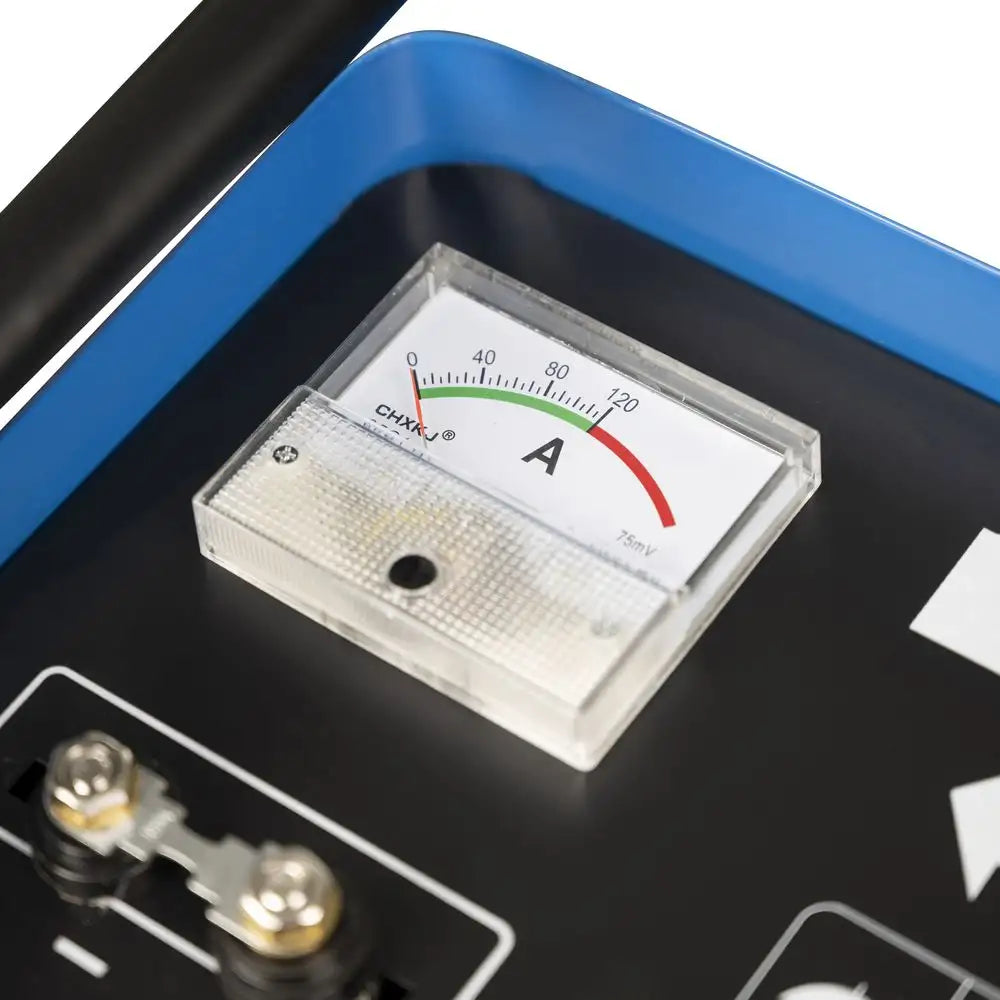

- Interference-free analogue ammeter
- Thermal protection and reverse polarity protection
- Fully insulated battery clamps

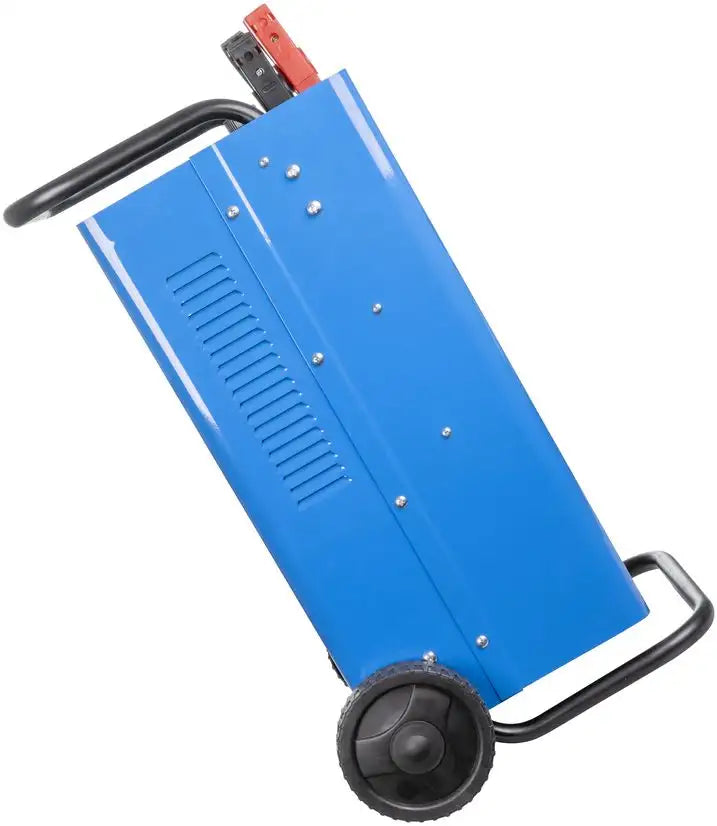

- Easy to move thanks to large transport wheels
- Includes 10 spare 100 A fuses
Who Uses the V 621 C and What It Is Used For
The Güde V 621 C is used by mechanical workshops, body shops and dealerships that need to charge, fast charge and start vehicles with 12 V batteries, such as cars and vans, and 24 V batteries, such as trucks, buses and construction machinery.
With 500 A jump-start assistance at 0 V, it offers higher performance than the V 421 C model, making it suitable for more demanding situations, including starting heavy vehicles with completely discharged batteries.
The integrated timer allows the operator to set the charging time and leave the device running independently without constant supervision. Despite its 23 kg weight, the two large transport wheels make it easy to move around the workshop.
Its Position in the Güde Range
The V 621 C is the higher model compared to the V 421 C in the professional Güde battery charger range. Compared with the V 421 C, it offers a 70 A charging current instead of 60 A, 500 A jump-start assistance instead of 390 A, a 100 A fuse instead of 50 A and an integrated timer, which is not available on the V 421 C.
It is recommended for workshops with higher workloads or heavy vehicles that require greater starting current.
Krollit Logistics and Support
- Shipping time: 5–9 working days
- 7 working days for Southern Italian regions
- Ground-floor delivery with tail lift included
- Technical support in Italian available for the entire life of the product
- Original Güde spare parts available from the Krollit warehouse in Monteforte Irpino, AV
Recommended Use
| Profile | Compatibility | Reason |
|---|---|---|
| Mechanical workshop with heavy 24 V vehicles and intensive work cycles | Suitable | The 500 A jump-start assistance at 0 V and 70 A charging current are suitable even for demanding vehicles. The timer allows overnight charging without supervision. |
| Dealership or auto workshop with mixed 12 V and 24 V fleet | Suitable | The 12 V / 24 V selector, 800 Ah capacity, 500 A jump-start assistance and automatic timer make it suitable for managing several vehicles during the working day. |
| Domestic use or workshop with standard charging needs | Not recommended | With a weight of 23 kg, 9,000 W mains power and 16 A fuse requirement, the V 621 C is oversized for domestic use or small standard workshops. The V 421 C is more suitable in these cases. |
Not suitable for: lithium batteries such as LiFePO4 and Li-Ion. The V 621 C is compatible only with lead-acid PB and WET batteries. It is also not recommended for domestic use where size and power are excessive, or in environments without a 230 V / 16 A power socket.
Original Güde Spare Parts
| Code | Description | Note |
|---|---|---|
| 85074-01002 | Wheel | 2 pcs — replace in pairs |
| 85075-01002 | Axle | 1 pc |
| 85075-01003 | Ammeter | 1 pc — analogue type |
| 85075-01004 | Fuse cover | 1 pc |
| 85074-02018 | Black clamp | 1 pc |
| 85074-02017 | Red clamp | 1 pc |
| 85075-01007 | Clamping screw with support | 2 pcs |
| 85075-01008 | Thermal protection | 1 pc |
| 85075-01010 | Timer knob | 2 pcs |
| 85075-01011 | Timer, Zeitschalter | 1 pc — main timer component |
| 85075-01012 | Step switch, Stufenschalter | 1 pc — charging mode selection |
| 85074-01007 | Fuse holder | 1 pc |
| 85074-01023 | 12 V / 24 V pole cable | 1 pc |
| 85074-01024 | Earth cable | 1 pc |
| 85074-01026 | Body screw | 1 pc |
| 85075-01013 | 100 A fuse, 2 pcs | Main fuse replacement |
📸 Image Title

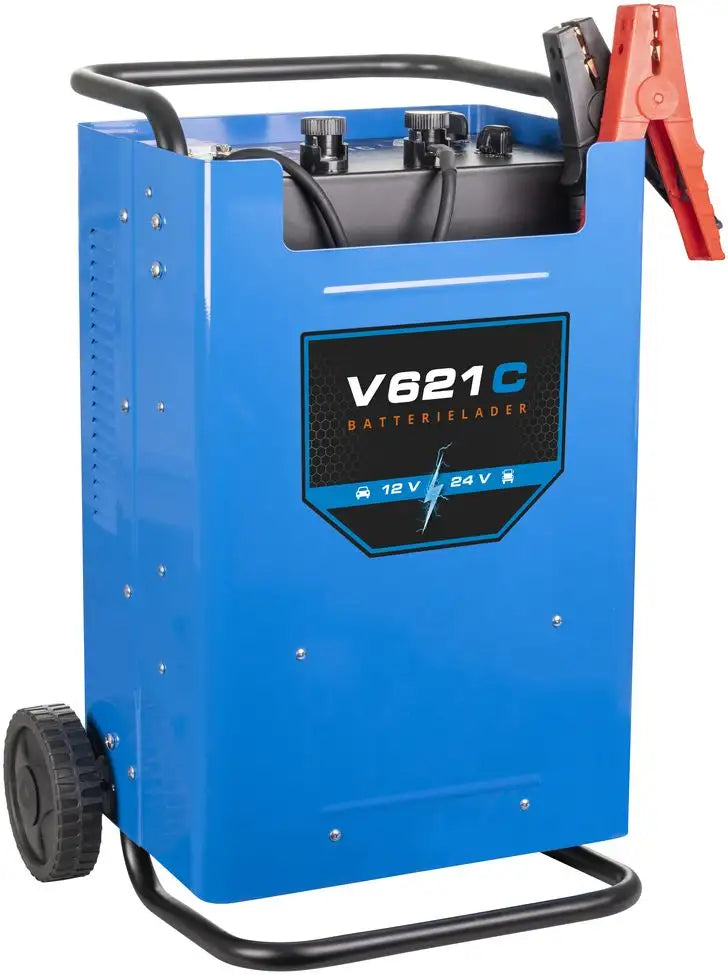

Güde V 621 C 12/24 V Battery Charger and Jump Starter
🖼️ Image Description
Professional wheeled Güde V 621 C battery charger and jump starter with 12 V / 24 V output, insulated clamps, analogue ammeter and integrated timer for workshop use.
🔎 SEO Tags
Güde battery charger, Güde V 621 C, 12V 24V battery charger, professional battery charger, workshop battery charger, jump starter battery charger, vehicle battery charger, lead acid battery charger, WET battery charger, 20 800 Ah battery charger, Güde 85075, charger with timer, charger with wheels, professional jump starter, truck battery charger
Technical specifications
📊 Technical Specifications
| Item code | 85075 |
| Output voltage | 12 V / 24 V selectable |
| Effective charging current | 70 A |
| Arithmetic charging current | 50 A |
| Compatible battery capacity | 20–800 Ah |
| Jump-start at 1.5 V | 300 A |
| Jump-start at 0 V | 500 A |
| Battery start without pre-charge | 50–70 Ah |
| Battery start with pre-charge | 85–120 Ah |
| Mains power | 9,000 W |
| Power supply | 230 V / 50 Hz |
| Mains fuse | 16 A slow-blow |
| Main fuse | 100 A, 1 piece |
| Spare fuses included | 10 pieces, 100 A |
| Integrated timer | Yes, Zeitschalter |
| Connection cable | 2 m |
| Net weight | 23 kg |
| Dimensions L x W x H | 425 x 340 x 640 mm |
| Certifications | CE |
| GTIN | 4015671850751 |
Comparison with the V 421 C Model
| Parameter | V 421 C, 85074 | V 621 C, 85075 | When to Choose the V 621 C |
|---|---|---|---|
| Effective charging current | 60 A | 70 A | For more intensive charging cycles or large-capacity batteries |
| Jump-start at 0 V | 390 A | 500 A | For heavy vehicles with completely discharged or heavily deteriorated batteries |
| Main fuse | 50 A | 100 A | Greater protection with high currents |
| Integrated timer | No | Yes, Zeitschalter | For automatic charging without supervision |
| Mains power | 8,000 W | 9,000 W | For higher-performance professional use |
| Net weight | 15.9 kg | 23 kg | The V 421 C is more manageable when mobility is the priority |
Included equipment
📦 Standard Equipment
- Güde V 621 C battery charger, item code 85075
- 2 m connection cable with fully insulated clamps
- 10 spare 100 A fuses
- 1 main 100 A fuse installed
- User manual and safety instructions
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
The V 621 C offers a 70 A effective charging current compared with 60 A on the V 421 C, 500 A jump-start assistance at 0 V compared with 390 A, a 100 A main fuse instead of 50 A and an integrated timer, which is not available on the V 421 C.
The V 621 C is recommended for workshops with higher workloads, heavy 24 V vehicles and situations where automatic timed charging is required. The V 421 C remains a better choice for standard workshop needs and when easier handling is a priority.
No. The V 621 C is compatible only with lead-acid batteries, including PB and WET batteries. Lithium batteries such as LiFePO4 and Li-Ion require a charger with a dedicated charging profile.
Using the V 621 C on lithium batteries may cause irreversible damage and create a safety risk. Before connecting any charger to a hybrid or electric vehicle, always check the chemistry of the 12 V service battery.
The Zeitschalter is an integrated mechanical timer that allows the charging time to be set. Once the selected time has elapsed, the charger automatically stops the charging process.
This makes it useful for overnight charging or charging without constant operator supervision. The timer is also one of the main features that differentiates the V 621 C from the V 421 C.

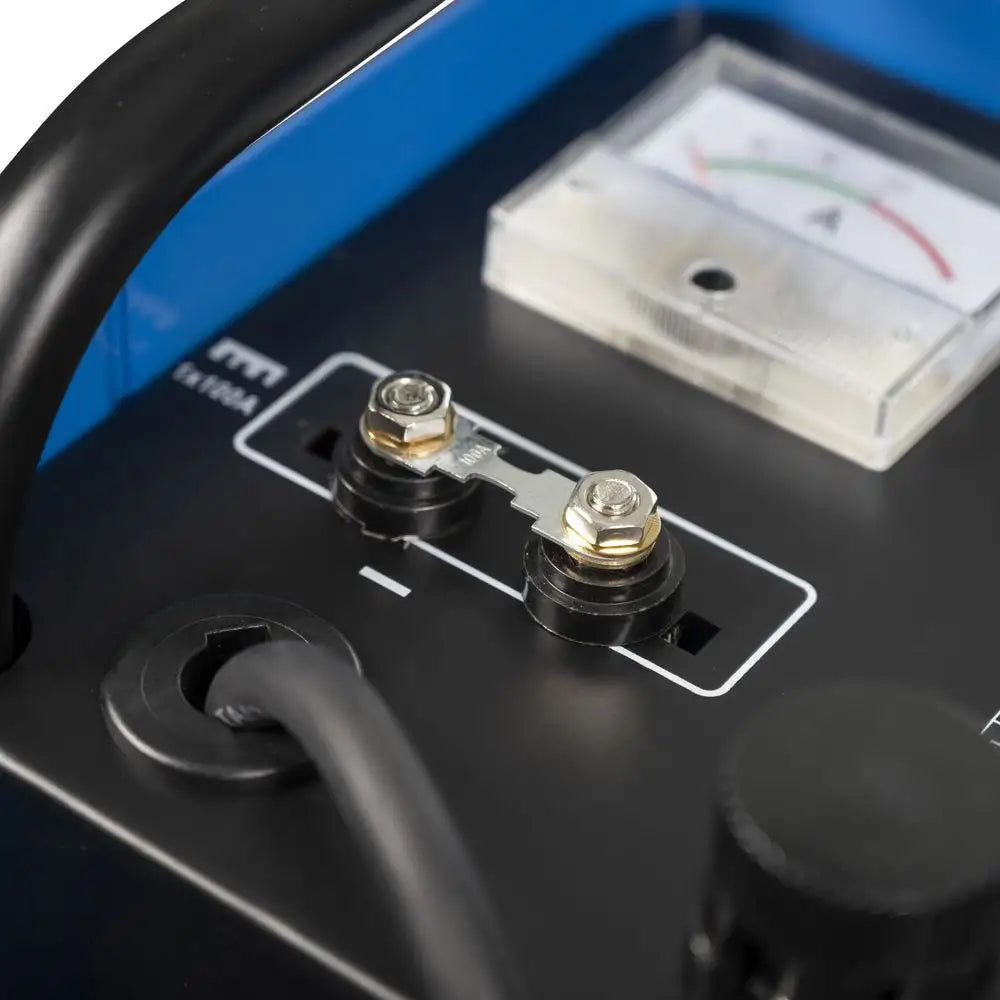

The V 621 C uses a 100 A main fuse. The 10 spare 100 A fuses supplied with the machine are intended for replacement whenever the main fuse blows.
The fuse must always be replaced with an original 100 A fuse. Using a fuse with a different rating may compromise the protection of the main circuit.
Yes. Krollit supplies original Güde spare parts for the V 621 C, including the timer, step switch, analogue ammeter, clamps, cables and fuses.
When ordering spare parts, it is recommended to provide the serial number in order to verify the correct FSL version.
-
