Bernardo HWP 200 – Hydraulic press with sliding cylinder

Bernardo HWP 200 – Hydraulic press with sliding cylinder

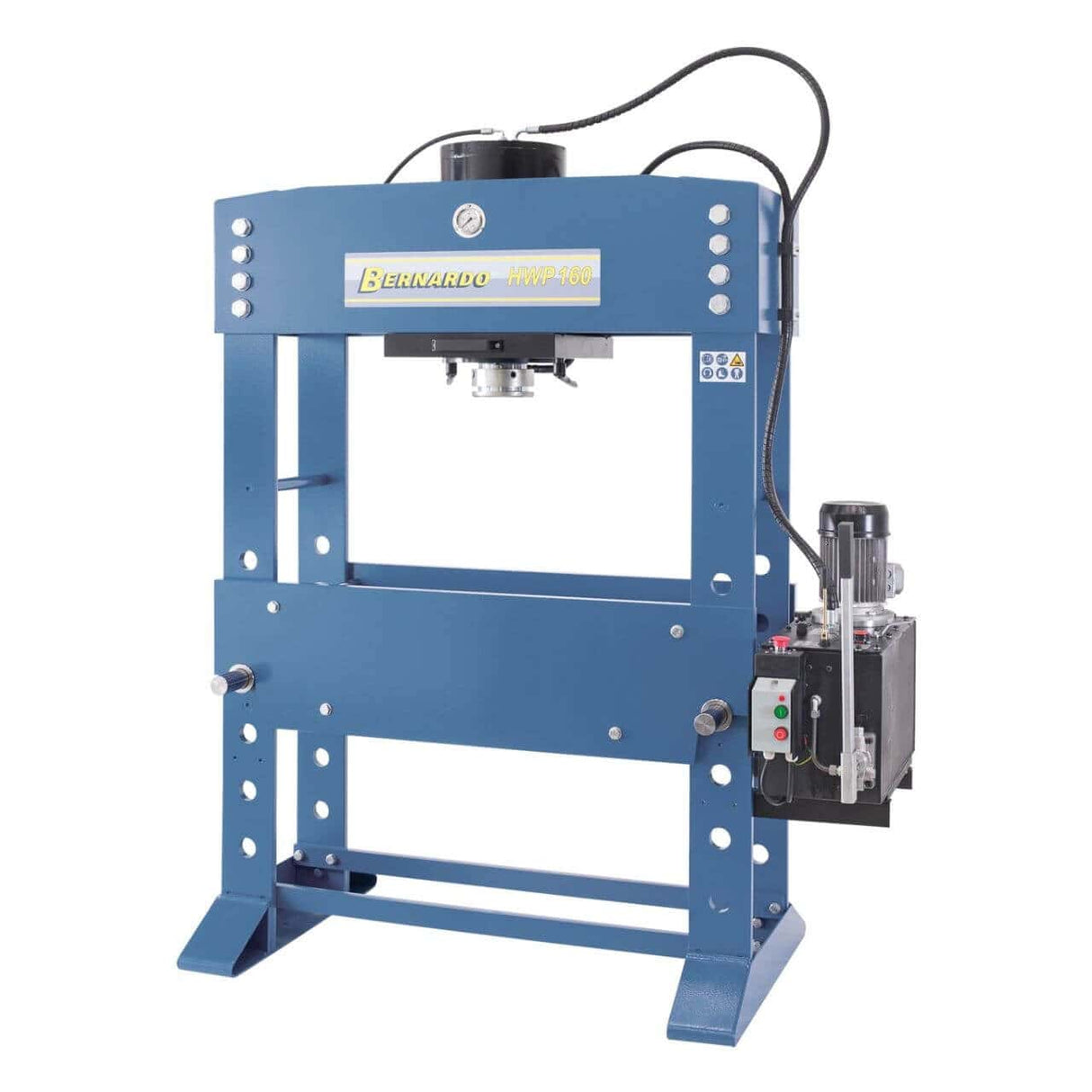

The Bernardo HWP 200 hydraulic press is a powerful and professional machine, designed for industrial applications and heavy-duty work. With a pressing force of 200 tons and a piston with a 400 mm stroke, it guarantees precision and reliability in straightening, assembly, load testing, and part inspection operations. The 1300 mm clearance between uprights allows for processing large components, while the laterally sliding cylinder and the height-adjustable bed via chain and hydraulic cylinder ensure maximum versatility. The piston can be operated manually with a lever or via a sensitive hydraulic pump, allowing it to stop in any position. The advance and return speeds (5.73 mm/sec and 7.08 mm/sec respectively) make the HWP 200 efficient and functional. With a 3.0 kW motor, robust structure, and a weight of 1690 kg, this press is suitable for workshops and industries that require a robust and high-performance hydraulic press.

---

Main specifications

200 ton pressing force for heavy-duty work
1300 mm clearance between uprights for large workpieces
Piston with 400 mm stroke and 140 mm diameter

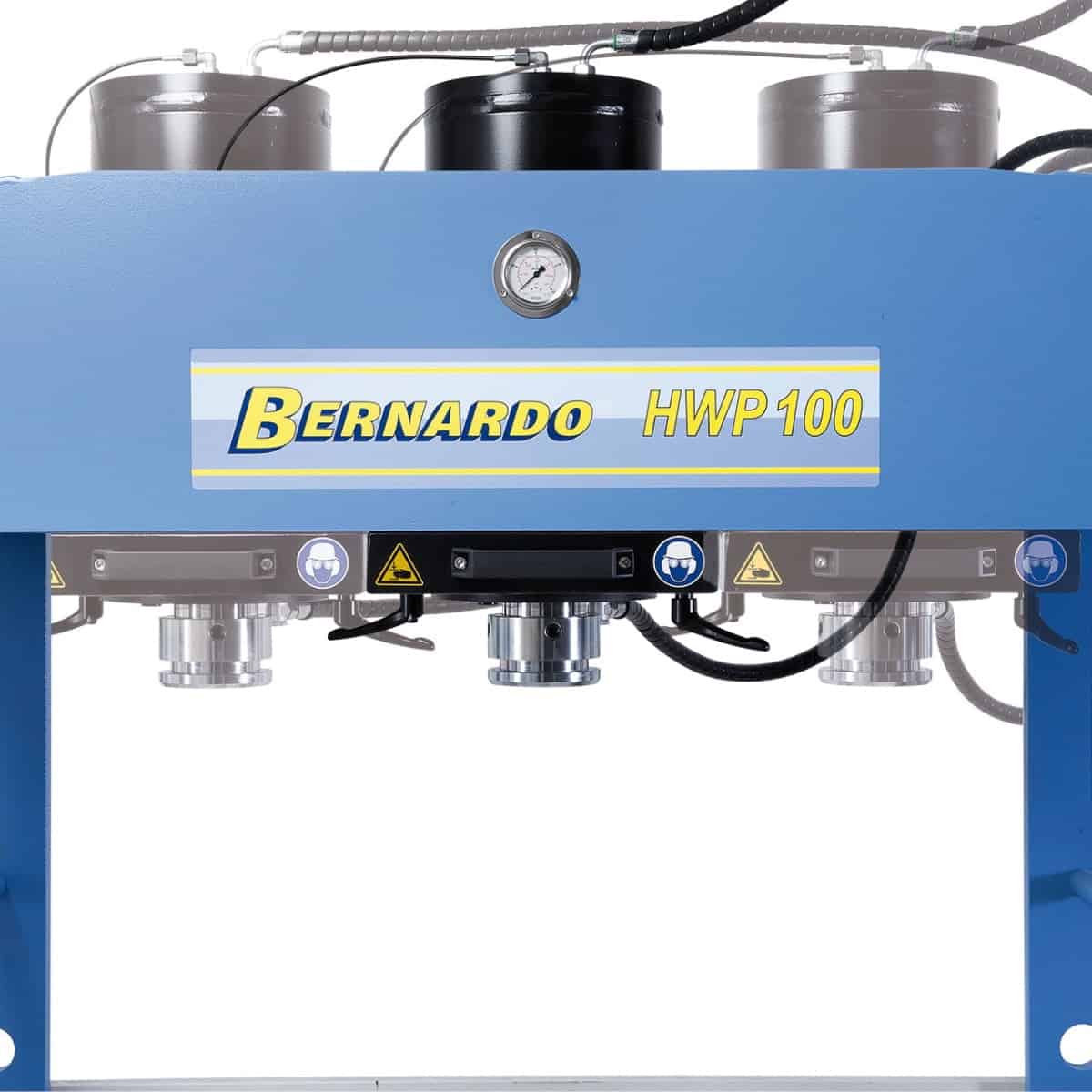

Laterally sliding cylinder for maximum operational convenience

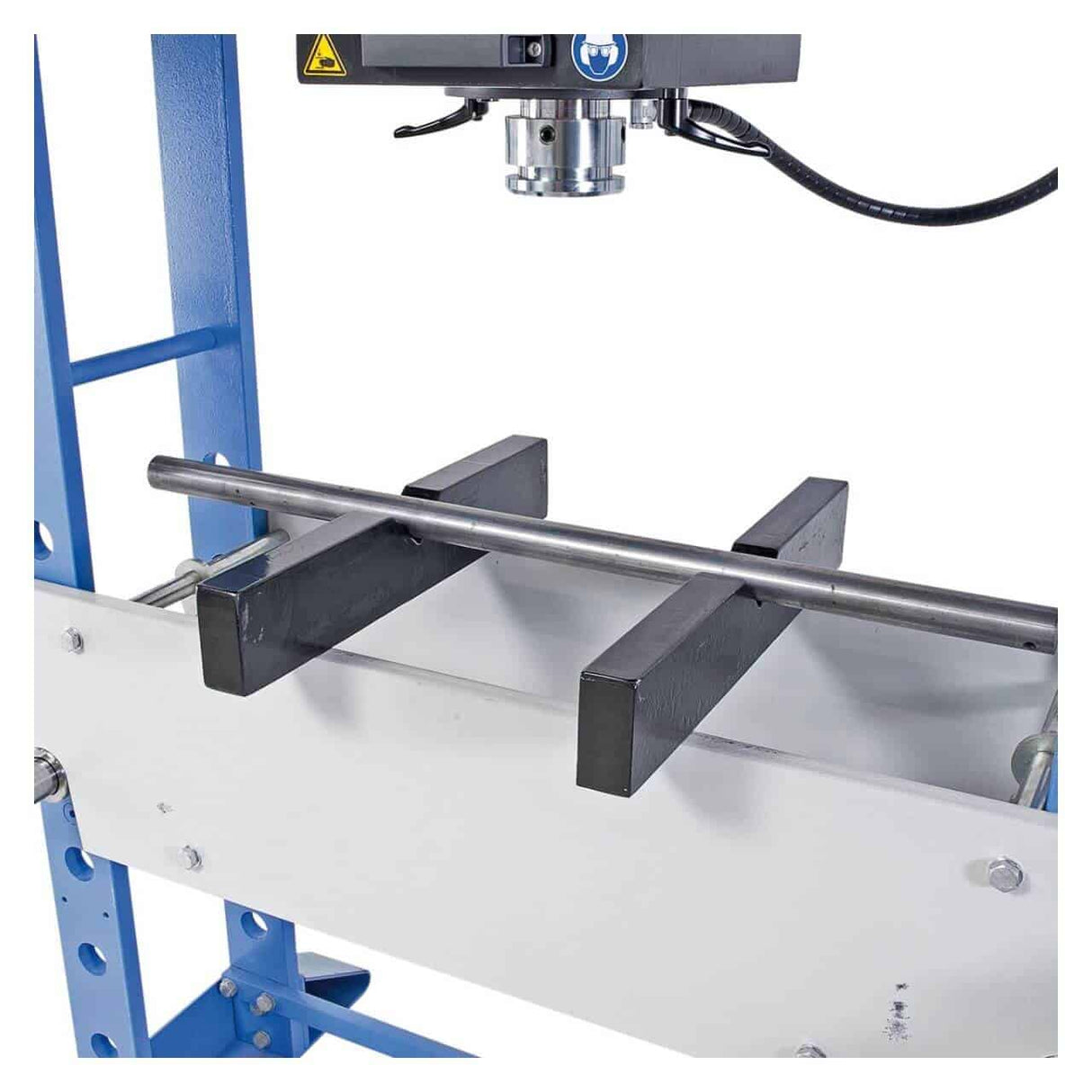

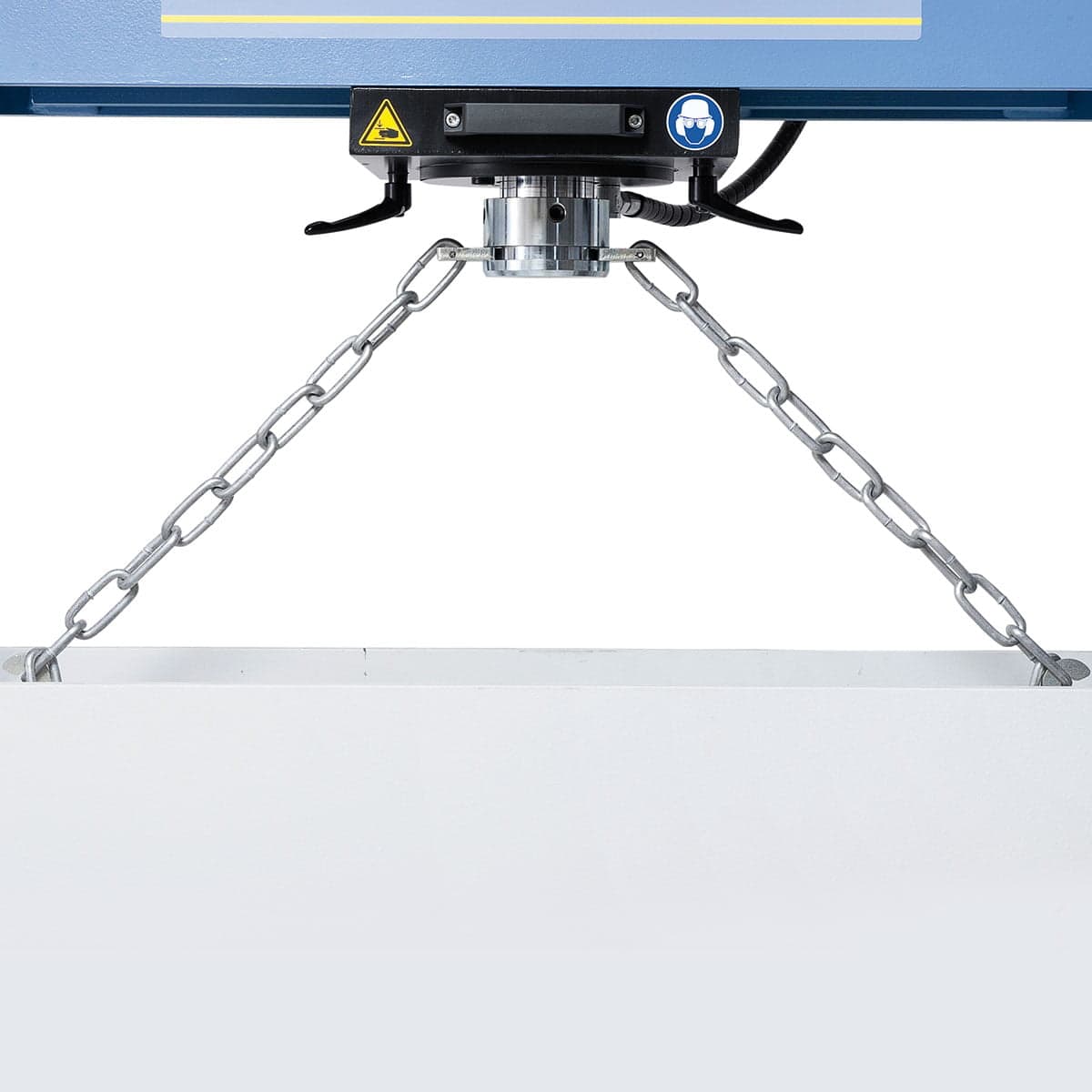

Height-adjustable work table with chain and hydraulic cylinder

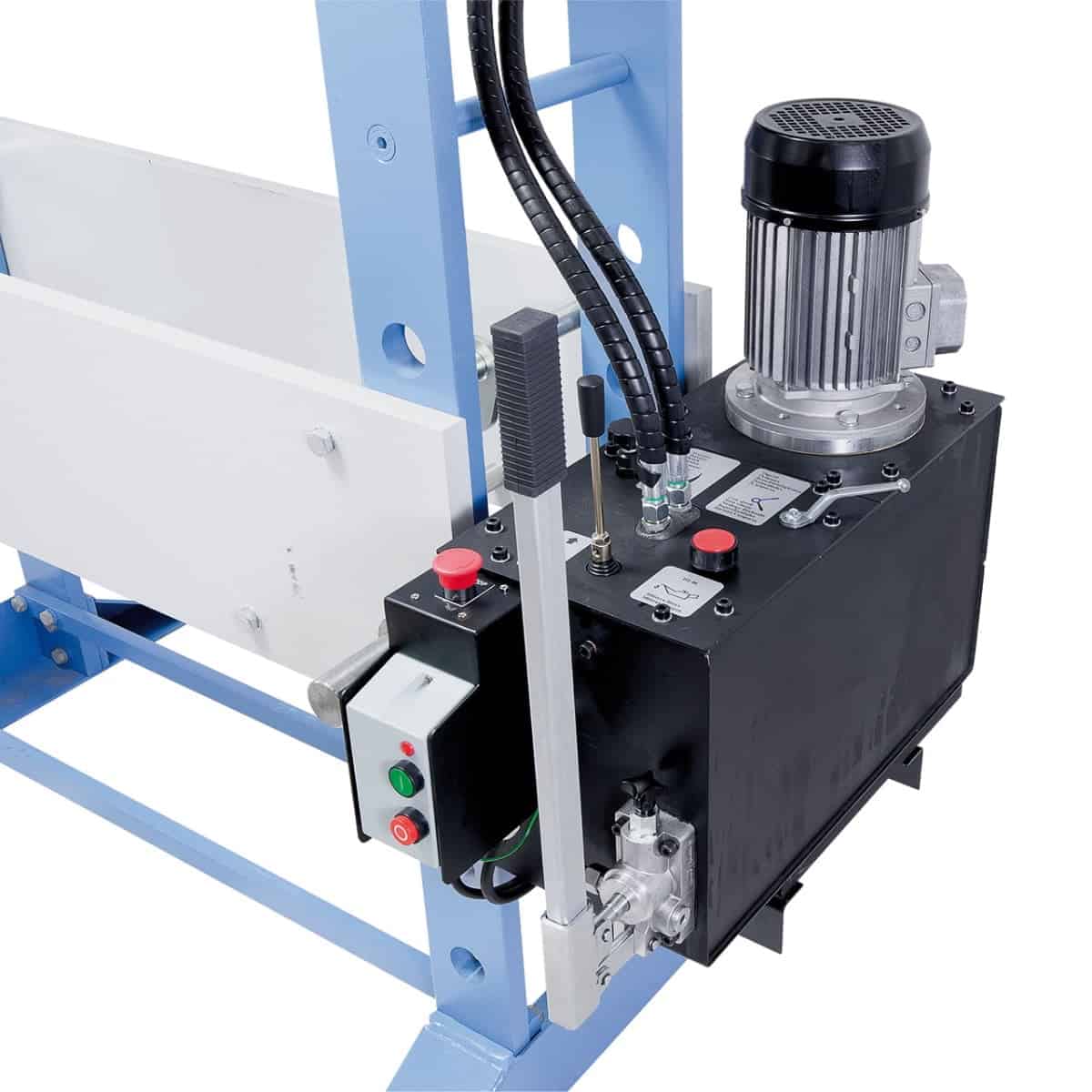

Manual lever operation or via sensitive hydraulic pump
Advance speed 5.73 mm/sec and return speed 7.08 mm/sec
3.0 kW motor and 1690 kg weight for stability and reliability
Robust structure with pressure gauge and overload valve included

---

Technical table:

Specification	Value
Brand	Bernardo
Model	HWP 200
Type	Hydraulic press with sliding cylinder
Pressing force	200 ton
Clearance between uprights	1300 mm
Piston stroke	400 mm
Piston diameter	140 mm
Max pressure	243 bar
Bed width	525 mm
Max working height	930 mm
Advance speed	5.73 mm/sec
Working speed	1.84 mm/sec
Return speed	7.08 mm/sec
Motor power	3.0 kW
Dimensions (L x W x H)	1925 x 975 x 2270 mm
Weight	1690 kg

---

Package contents:
Bernardo HWP 200 hydraulic press
Integrated pressure gauge
Height-adjustable bed
Overload valve
Sliding cylinder

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Frequently asked questions

What is the difference between the BHP, HWP, and BRHP QZ series in the Bernardo press range?

The HWP series is the workshop hydraulic column press: compact steel structure, top-sliding cylinder. With the HWP 30t, it is suitable for bearing assembly/disassembly, shaft straightening, and crimping operations in mechanical workshops and industrial maintenance.

Does the HWP 30t force apply even at the minimum piston stroke?

The nominal force of the HWP 30t is the maximum force developed at the maximum pressure of the hydraulic system. At the beginning of the stroke (piston at the top end of the stroke) the force is the same – it is constant throughout the useful stroke. The included pressure gauge shows the pressure in bar: multiplying by the piston area gives the effective force in kN or tons.

Is the pressure gauge included as standard?

Yes – all BHP, HWP, and BRHP Bernardo presses include a pressure gauge for direct reading of the applied force. Essential for not exceeding the resistance of pressed components (e.g., maximum interference of a bearing on the shaft) and for operations requiring a specific assembly force.

What foundation does it require?

Presses up to 100t are secured to the floor with M12/M16 bolts on standard concrete (15–20 cm). For presses over 100t, check the floor's load-bearing capacity with a structural engineer based on the base footprint. Customer support available in Italian.

Are spare parts and assistance available?

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
