The Bernardo AD 260 S – 230V planer-thicknesser offers a planing width of 250 mm, a jointer table of 1,090 mm, a spiral cutterblock Ø 75 mm with 24 HM inserts at 4,000 rpm, a maximum thicknessing height of 185 mm, a feed rate of 4.8 m/min, and a 2.0 kW single-phase 230V motor. Noise reduction up to 50%. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
-
Planing width (jointer): 250 mm
-
Jointer table (length): 1,090 mm
-
Thicknessing height: 5 – 185 mm
-
Cutterblock: spiral Ø 75 mm – 24 HM inserts – 4,000 rpm
-
Thicknessing feed rate: 4.8 m/min
-
Motor: 2.0 kW S1 / 2.8 kW S6 – 230V single-phase
-
Noise reduction: approx. 50% vs HSS knives
-
Weight: approx. 173 kg
Who uses this machine and for what

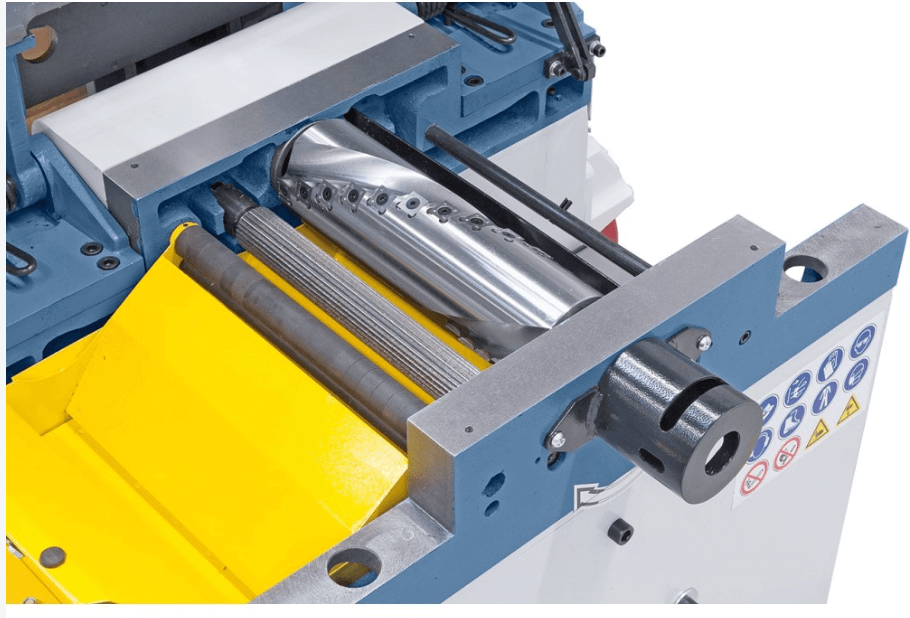

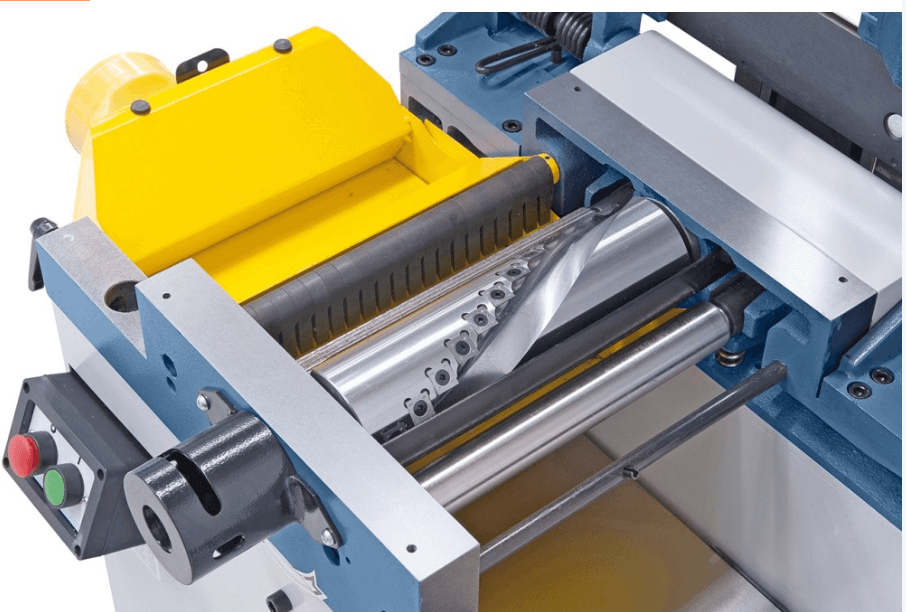

The Bernardo AD 260 S – 230V with TCT spiral cutterblock is the 250 mm combination planer with HM technology in single-phase: same structure as the standard AD 260 S, same cutterblock with 24 reversible HM inserts, 230V single-phase power supply. For workshops without three-phase power looking for the advantages of TCT cutting edges, reduced noise, minimal maintenance, and consistent quality, at 250 mm width. The 24 HM inserts, each with 4 cutting edges, can be rotated when dull without disassembling the cutterblock. In Krollit customers' workshops, it is used by artisans and restorers who work in noise-sensitive environments or who want to eliminate sharpening from their maintenance routine.
Krollit Logistics and Support
Bernardo shipping in 5-9 business days (7 days to Southern Italy). Original Bernardo spare parts available from stock with 3-5 business day shipping. Customer support available in Italian.
Who is this machine for
| Profile |
Compatibility |
Reason |
| Passionate hobbyist |
Recommended |
Single-phase 230V, reduced noise, minimal maintenance: the quietest and lowest-maintenance 250 mm combination planer in single-phase. |
| Small joinery / artisan (1-5 employees) |
Recommended |
For workshops without three-phase power that want to eliminate sharpening from their routine. Reduced noise is a concrete advantage in shared work environments. |
| Continuous / industrial production |
Not indicated |
The 2.0 kW single-phase motor is not sized for intensive industrial cycles. Consider the AD 260 S – 400V three-phase. |
Not indicated for: those with three-phase power available (consider AD 260 S – 400V); pieces over 250 mm wide; intensive production on hard woods for more than 4 hours/day.
Jointer
| Specification |
Value |
| Planing width |
250 mm |
| Table length |
1,090 mm |
| Table height |
835 mm |
| Cutterblock – diameter |
Ø 75 mm |
| HM inserts |
24 pcs reversible (4 cutting edges/insert) |
| Cutterblock speed |
4,000 rpm |
| Fence |
715 × 130 mm |
| Fence tilt |
90° – 45° |
| Max. depth of cut |
3 mm |
Thicknesser
| Specification |
Value |
| Working width |
250 mm |
| Working height (min–max) |
5 – 185 mm |
| Thicknessing table length |
600 mm |
| Max. depth of cut |
2.5 mm |
| Feed rate |
4.8 m/min |
Motor and Power Supply
| Specification |
Value |
| Motor power S1 (100%) |
2.0 kW (2.7 HP) |
| Motor power S6 (40%) |
2.8 kW (3.8 HP) |
| Power supply |
230V – single-phase |
| Extraction port |
Ø 100 mm |
Dimensions and weight
| Specification |
Value |
| Machine dimensions (L × W × H) |
1,150 × 800 × 1,000 mm |
| Net weight |
approx. 173 kg |
Compliance and safety
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery 2006/42/EC |
| Safety devices |
ON/OFF switch with undervoltage release, anti-kickback rollers, cutterblock guard |
Standard equipment
- Spiral cutterblock with 24 mounted HM inserts

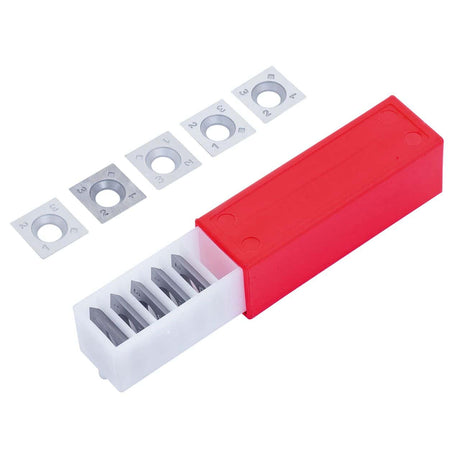

- Spare HM inserts
- Push handle
Frequently Asked Questions
What is the difference between HM inserts and TCT inserts?
HM (Hartmetall in German) and TCT (Tungsten Carbide Tipped) both refer to tungsten carbide inserts; they are the same technology described with different terminologies (German vs English). The operational characteristics are identical: 4 cutting edges per insert, rotation when worn, 10-20 times longer lifespan than HSS knives, approximately 50% noise reduction.
Is this machine different from the AD 260 S already in the catalog?
Yes. In the Krollit catalog, the AD 260 S – 230V is listed with two different handles (URLs), this page and the standard one. The technical specifications are identical. If you are considering purchasing, contact Krollit to check which version is available and updated delivery times.
How do you replace a worn HM insert?
With the supplied hex key, 2 minutes per insert, without disassembling the cutterblock. Unscrew the screw, rotate the insert 90° to expose the fresh cutting edge, then screw it back in. When all 4 cutting edges are worn, replace the entire insert. Spare inserts are available from Krollit stock with 3-5 business day shipping.
How much space is needed in the workshop?
The machine dimensions are 1,150 × 800 × 1,000 mm. For moving workpieces, a clear space of at least 1.8 m in front and behind is needed. At 173 kg, it can be moved with a manual pallet truck.
How often are the 24 HM inserts rotated?
In professional use (4-6 hours/day) on medium woods, one rotation per insert is needed every 4-8 weeks. With 24 inserts, the rotation is progressive; you never work on all of them at once. Maintenance is spread over several months.
