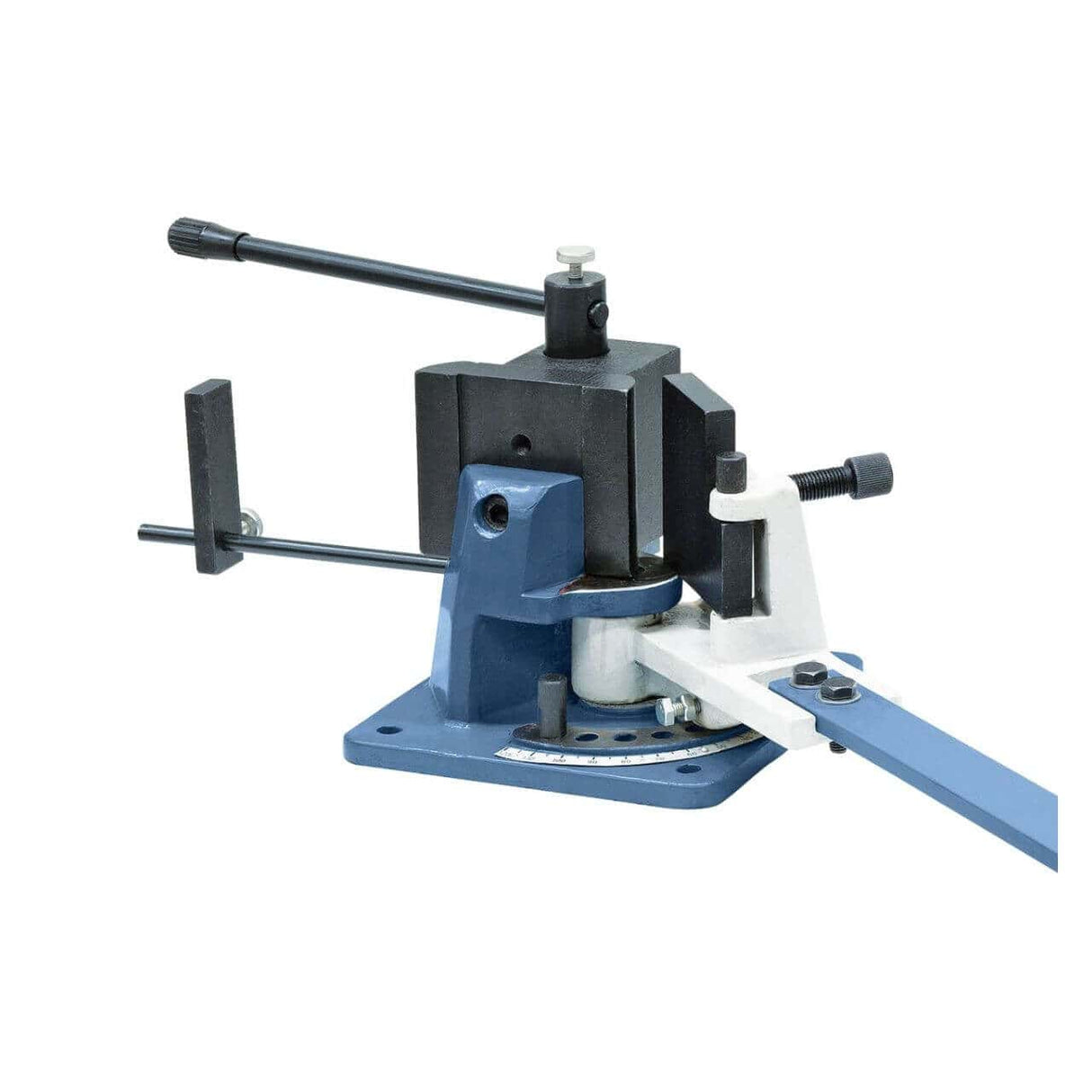

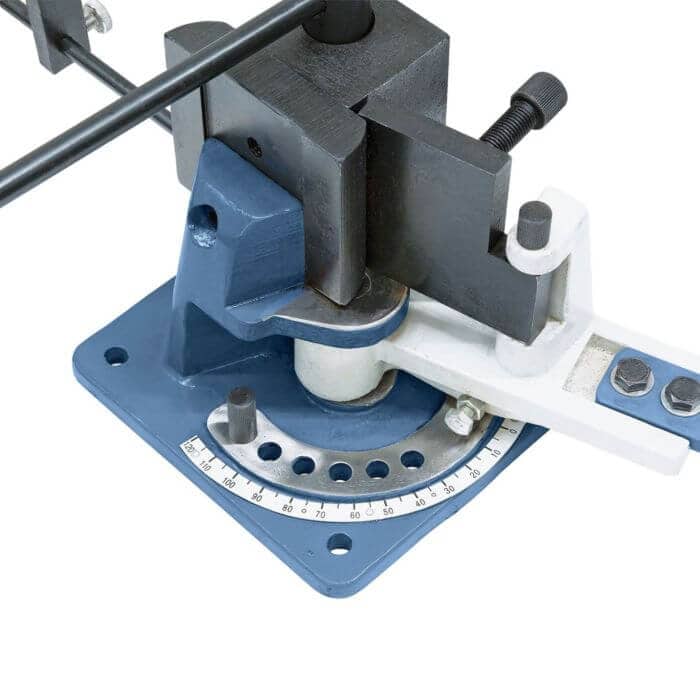

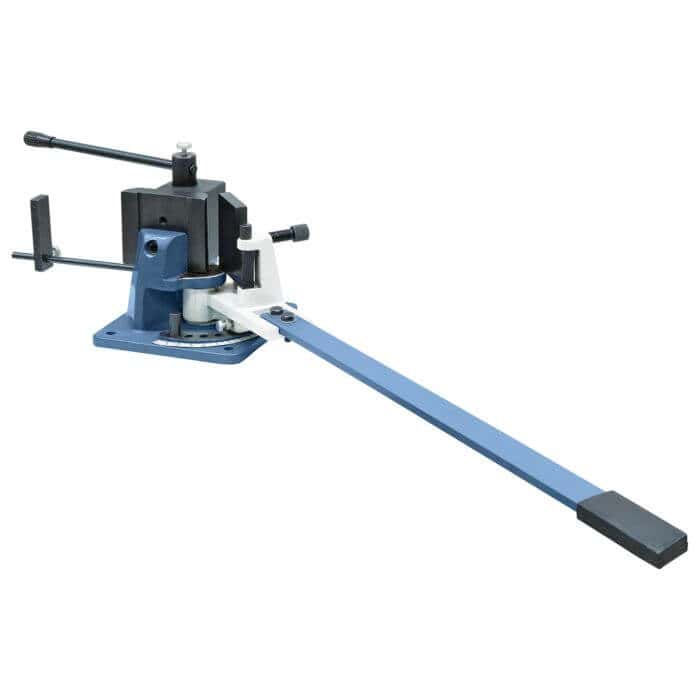

Bernardo WB 100 S Angle Bender
The Bernardo WB 100 S Angle Bender is a versatile and compact machine, suitable for bending steel, copper, and aluminum both cold and hot. With a bending capacity of up to 100 x 5 mm cold and 100 x 15 mm hot for steel flats, it allows for flexible and precise processing. It is also suitable for round bars (Ø 18 mm cold, Ø 27 mm hot), square bars (16 x 16 mm cold, 25 x 25 mm hot), and angle profiles. The machine comes with a complete set of accessories, including plates for variable radius bends, an eccentric block, and an angle stop. Thanks to its low weight (23 kg) and compact dimensions, it can be easily positioned in a workshop or on a construction site. An economical and practical solution for metalworking workshops, blacksmiths, and craft enthusiasts.
Key Specifications
Cold bending up to 100 x 5 mm and hot bending up to 100 x 15 mm (steel)
Suitable for steel, copper, and aluminum
Capacity for round bars Ø 18 mm (cold) / Ø 27 mm (hot)
Capacity for square bars 16 x 16 mm (cold) / 25 x 25 mm (hot)
Capacity for angle profiles 60 x 8 mm (cold) / 100 x 12 mm (hot)
Compact and robust design (23 kg)
Complete with accessories for radius and angle bends
Technical Table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
WB 100 S |
| Steel flat capacity (cold) |
100 x 5 mm / 65 x 10 mm |
| Steel flat capacity (hot) |
100 x 15 mm / 75 x 20 mm |
| Steel round bar capacity |
Ø 18 mm (cold) / Ø 27 mm (hot) |
| Steel square bar capacity |
16 x 16 mm (cold) / 25 x 25 mm (hot) |
| Steel angle capacity |
60 x 8 mm (cold) / 100 x 12 mm (hot) |
| Copper capacity |
100 x 10 mm |
| Aluminum capacity |
100 x 15 mm |
| Machine dimensions (L x W x H) |
800 x 250 x 230 mm |
| Weight |
approx. 23 kg |

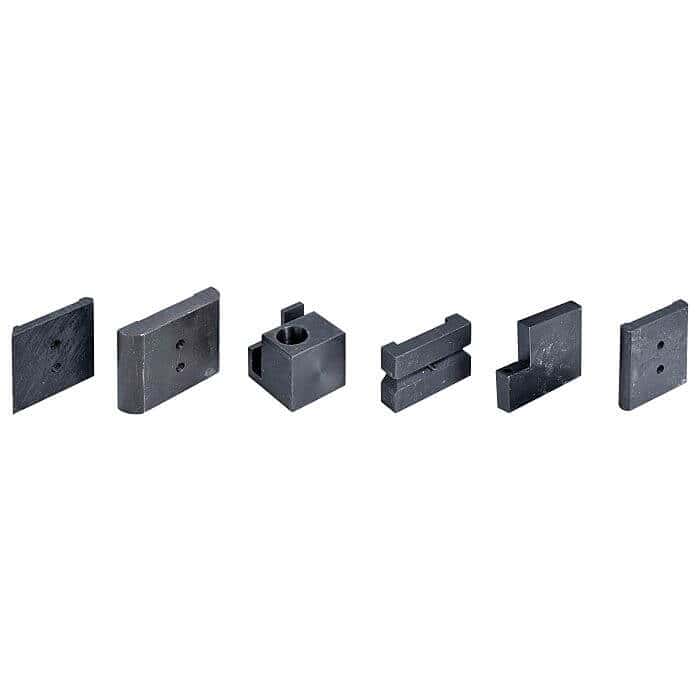

Package contents:
Sharp/rounded bending plate
Radius bending plate R20 / R25
Radius bending plate R10 / R15
Bending plate for round bars
Eccentric clamping block
Offset plate

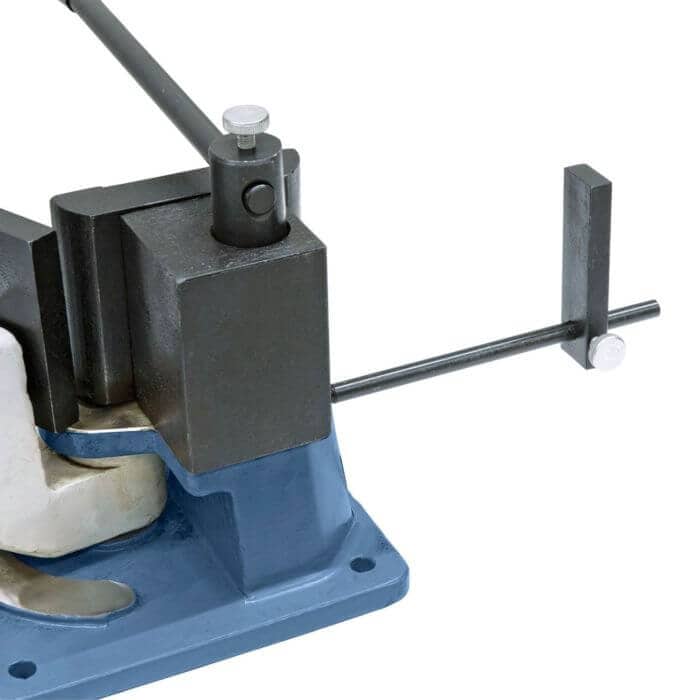

Angle stop
Material stop
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Frequently Asked Questions
What is a WB angle bender and how is it used?
The Bernardo WB angle bender is a benchtop tool for cold bending bars, flats, rounds, and profiles in steel, aluminum, and copper. It is secured in a bench vise or on a workbench. By operating the lever, the punch presses the material into the die, creating the bend. Compared to hydraulic benders, it is manual, economical, and requires no power — suitable for blacksmiths, artisans, and occasional work.
What is the difference between WB 100 S and models WB 70 S / WB 200 S?
The numbers indicate capacity: WB 70 S (flats up to 70×5 mm, rounds Ø18 mm), WB 100 S (flats up to 100×7 mm, rounds Ø20 mm), WB 200 S (flats up to 100×7 mm, rounds Ø22 mm). The WB 100 S is the intermediate model — sufficient for standard decorative carpentry.
Does it also work with hot bending?
Yes. The hot bending capacity is greater than the cold bending capacity: the WB 100 S allows for flats up to 100×15 mm and rounds Ø25 mm when hot bending. Heating the material with a torch reduces bending effort and springback — necessary for large sections or high-strength steels.
Are replacement dies available?
Yes. Original Bernardo dies and spare parts are available with 3–5 business day shipping.
Is support available?
Original Bernardo spare parts available with 3–5 business day shipping. Customer support available in Italian.
