Bernardo AHK 4100 - 13.0 Plate Bending Machine
-
Description
-
Sicurezza del prodotto
-
Reviews
Description

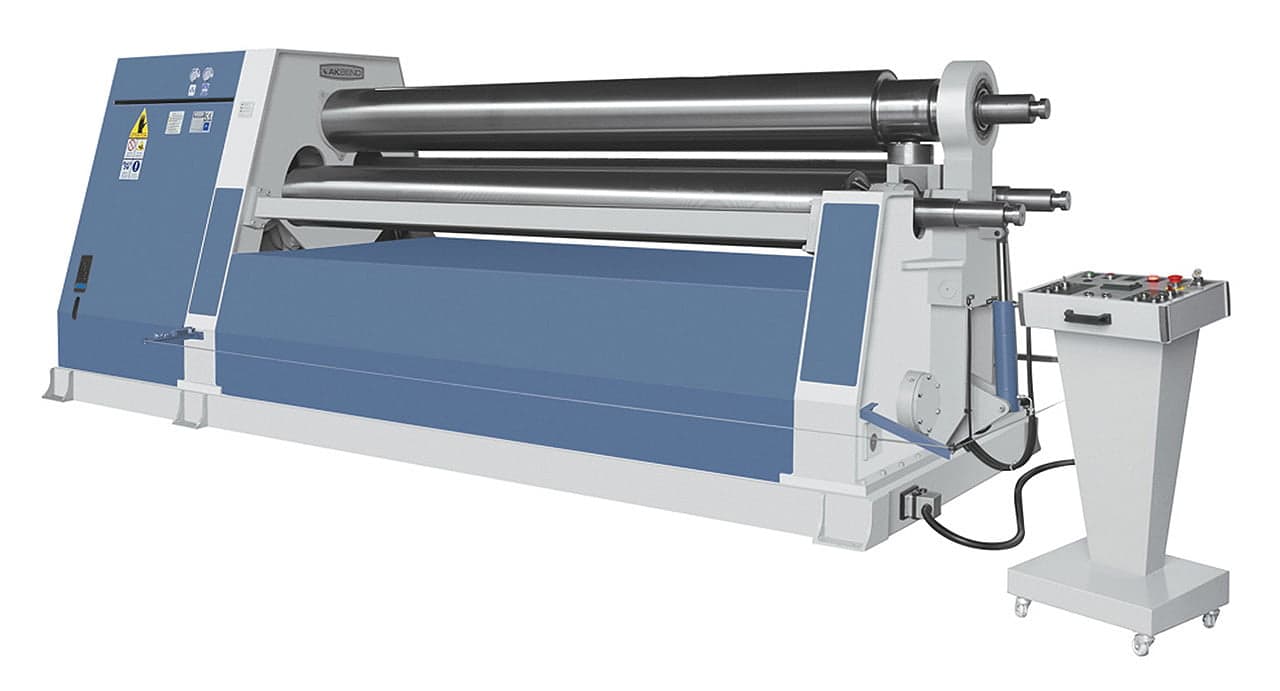

The Bernardo AHK 4100 - 13.0 is a sheet metal bending roll for professional use, with a maximum thickness of 16.0 mm and weighing 18,750 kg. Krollit has been an official Bernardo distributor since 2007.
- Roll length: 4100 mm
- Max sheet thickness: 16.0 mm
- Pre-bending: 13.0 mm
- Upper roll diameter: 390 mm
- Lower roll diameter: 360 mm
- Motor: 15.0 kW
Who uses the AHK 4100 - 13.0 and for what
Metal fabrication shops and sheet metal workshops use the AHK 4100 - 13.0 for rolling sheet metal to create pipes, cylinders, ducts, and curved profiles.
Its place in the Bernardo range
The Bernardo AHK 4100 - 13.0 is part of the Bernardo range of sheet metal bending rolls, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian customer service available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the AHK 4100 - 13.0 for
The AHK 4100 - 13.0 is recommended for the following professional profiles:
- Metal fabrication shops and sheet metal workshops: rolling sheet metal for the production of pipes, cylinders, ducts, and curved profiles.
- Artisanal sheet metal processing: precise bending of sheet metal for single pieces or small series.
Not suitable for: rolling sheet metal beyond the stated thickness (for greater thicknesses, consider industrial motorized bending rolls).
Technical specifications
| Roll length | 4100 mm |
| Max sheet thickness | 16.0 mm |
| Pre-bending | 13.0 mm |
| Upper roll diameter | 390 mm |
| Lower roll diameter | 360 mm |
| Motor | 15.0 kW |
| Dimensions (L x W x H) | 6853 x 1974 x 2130 mm |
| Weight | 18,750 kg |
| Optional accessories | Adjustable speed, central/side supports, feeding table |
Frequently Asked Questions
What sheet thickness can it roll?
See "Max thickness" in the technical table: typically 1-3 mm on mild steel.
Capacity refers to S235JR steel. For stainless steel or high-strength materials, the actual capacity may decrease by 60-70%.
What is the minimum rollable diameter?
See "Minimum rollable diameter" in the technical table.
The minimum diameter depends on the diameter of the rolls. Very narrow cylinders require specific machines.
What useful length does it offer?
The working length is indicated in the technical table.
For sheets longer than the nominal value, multiple passes with recalibration are required.
Is it manual or motorized?
Bench models are typically manual, while professional models are motorized with electric feed.
Manual bending rolls are suitable for small volumes and prototypes; for series production, motorized models are needed.
How much does the machine weigh?
See "Weight" in the technical table.
Bench models are installed on a sturdy workbench, while floor-standing models require a level floor.
