Bernardo Milling Machine WFM 750 Servo β 755 mm table, ISO 40, servo feeds
Bernardo Milling Machine WFM 750 Servo β 755 mm table, ISO 40, servo feeds is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

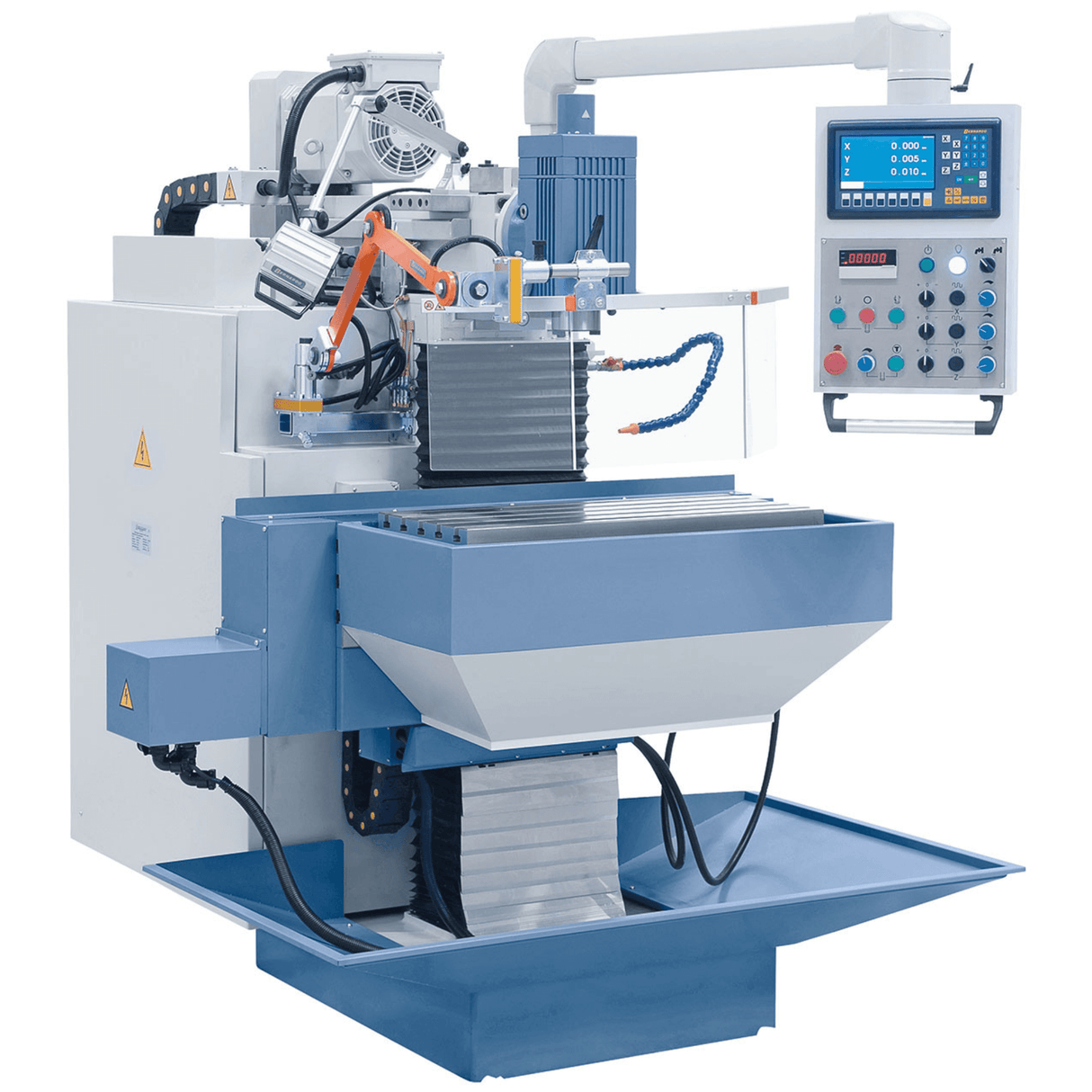

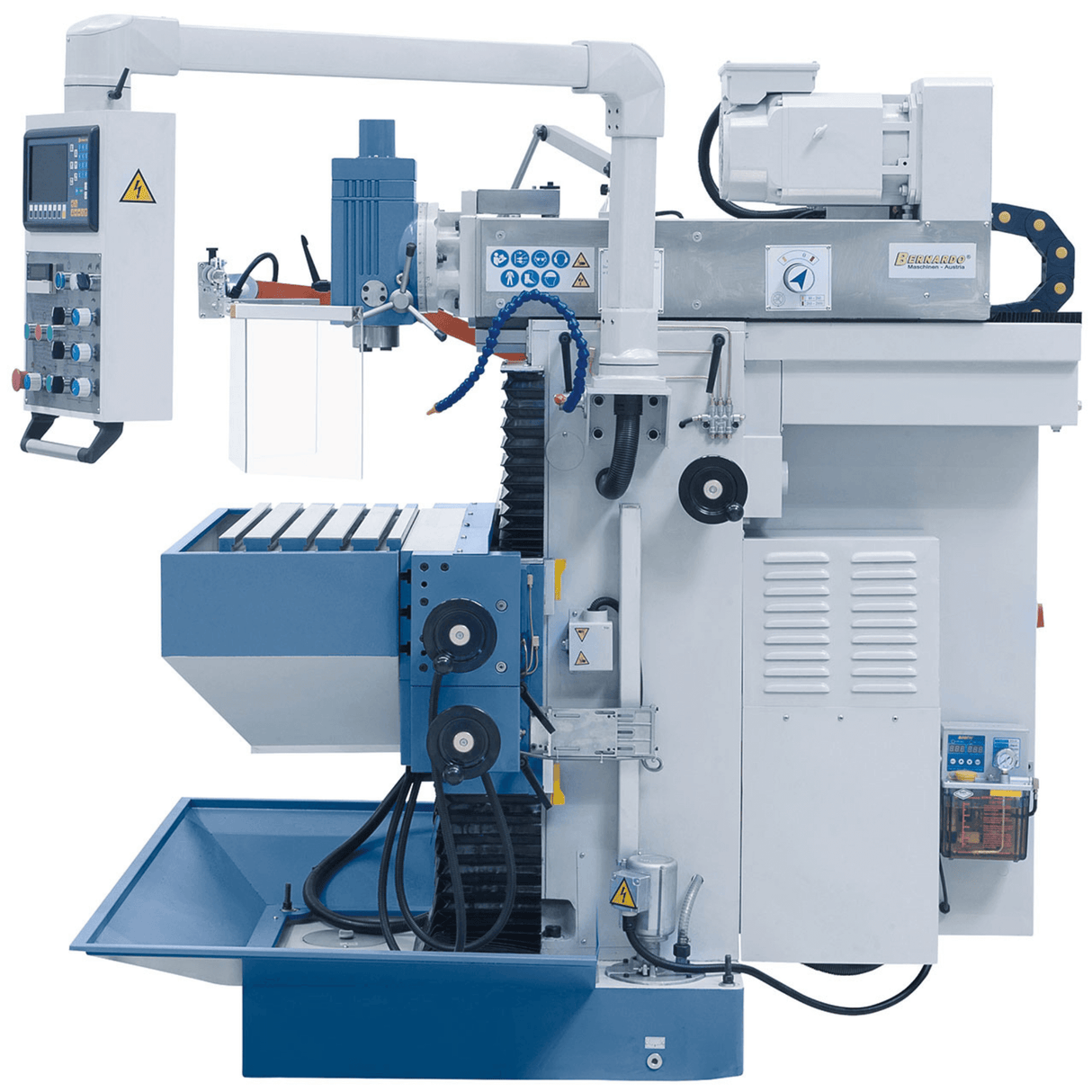

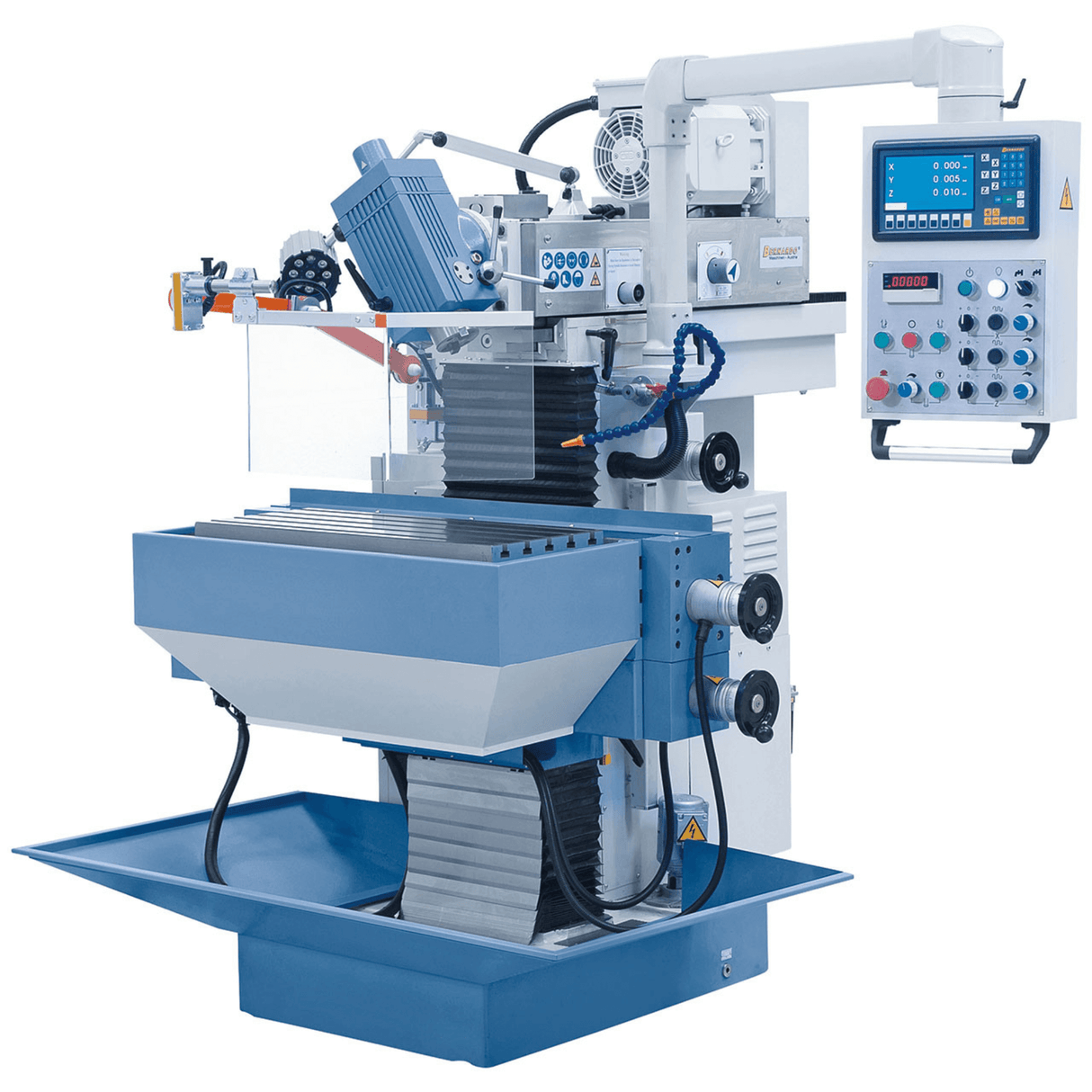

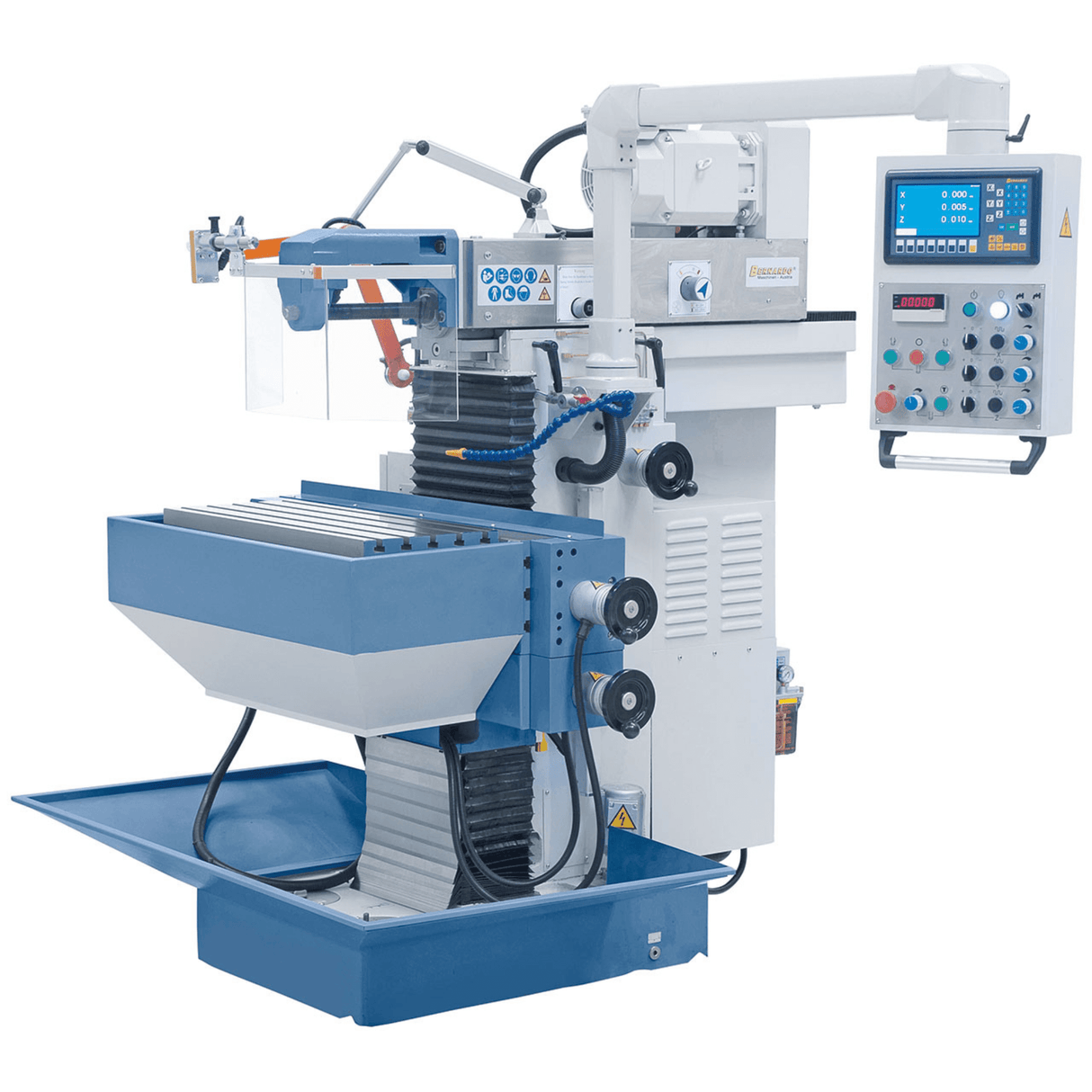

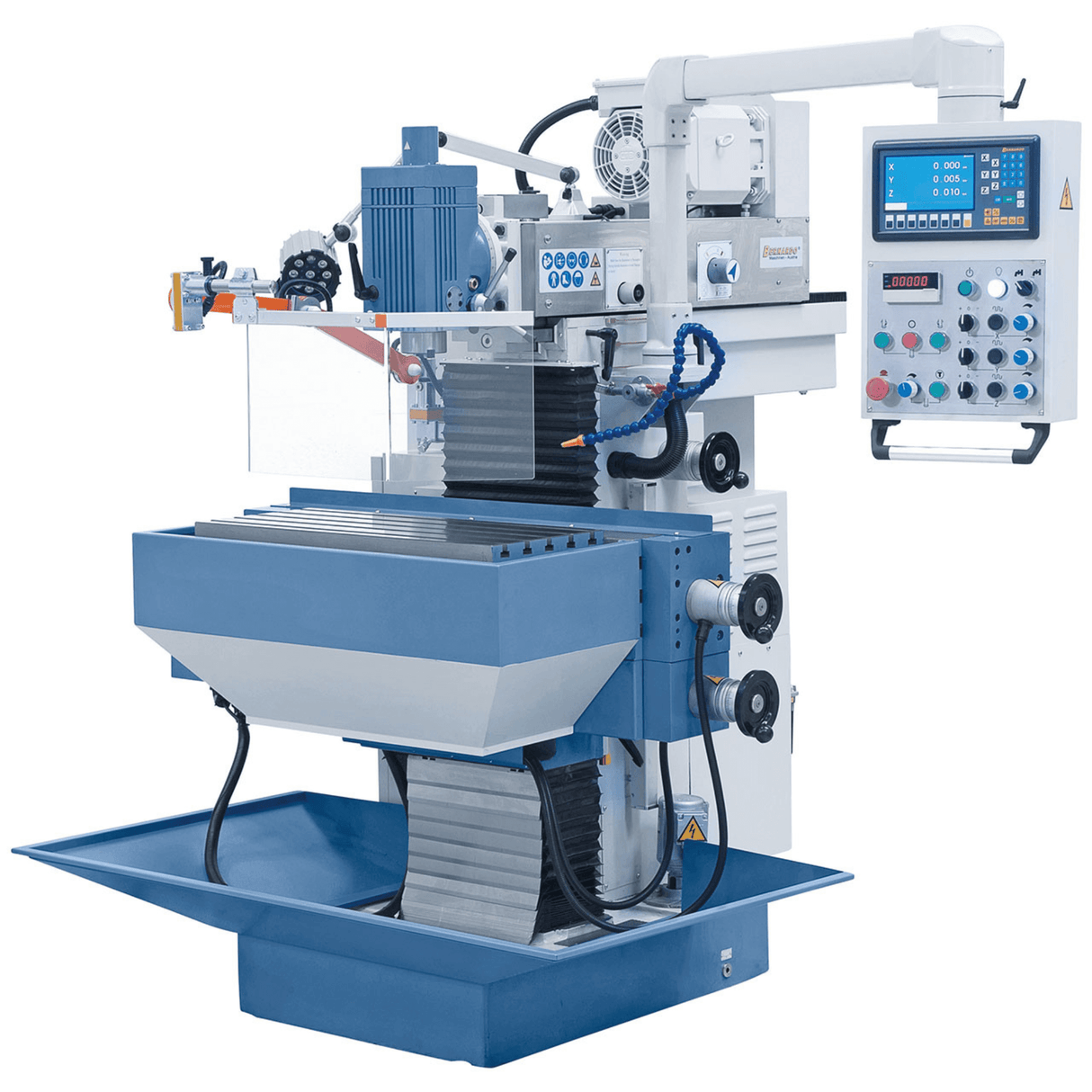

The Bernardo WFM 750 Servo milling machine offers a table size of 755 Γ 320 mm, spindle taper ISO 40, spindle speed (continuous) 40β260 / 260β2,000 rpm, X-axis travel 405 mm / Y-axis travel 315 mm / Z-axis travel 405 mm, spindle-column distance max 460 mm, head tilt β90Β°/+90Β°. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.

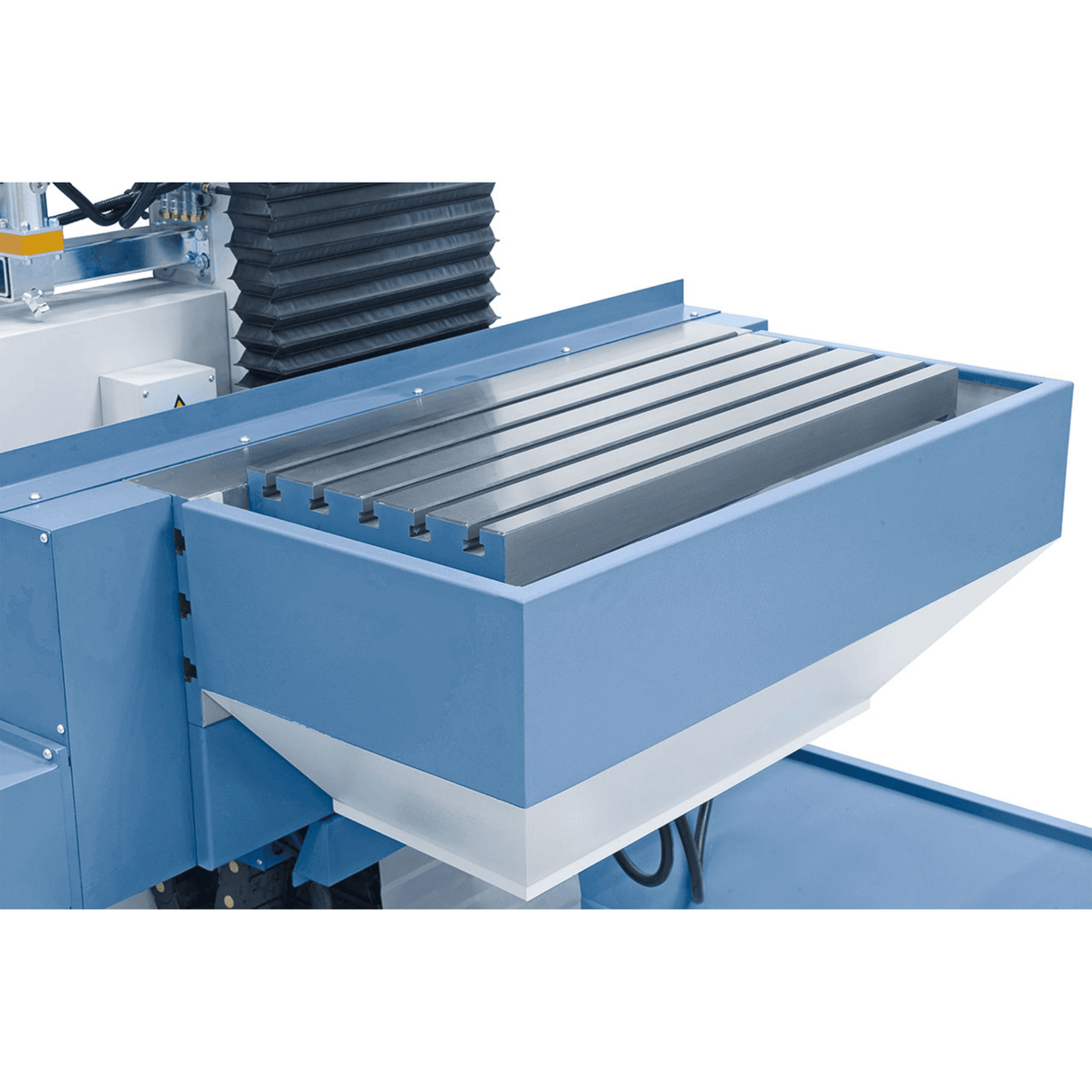

- Table Dimensions: 755 Γ 320 mm
- Spindle Taper: ISO 40
- Spindle Speed: (continuous) 40β260 / 260β2,000 rpm
- Longitudinal Travel (X): 405 mm
- Cross Travel (Y): 315 mm
- Vertical Travel (Z): 405 mm
- Spindle β Column Distance: max 460 mm
- Spindle Head Tilt: β90Β°/+90Β°
Who uses the WFM 750 Servo and for what

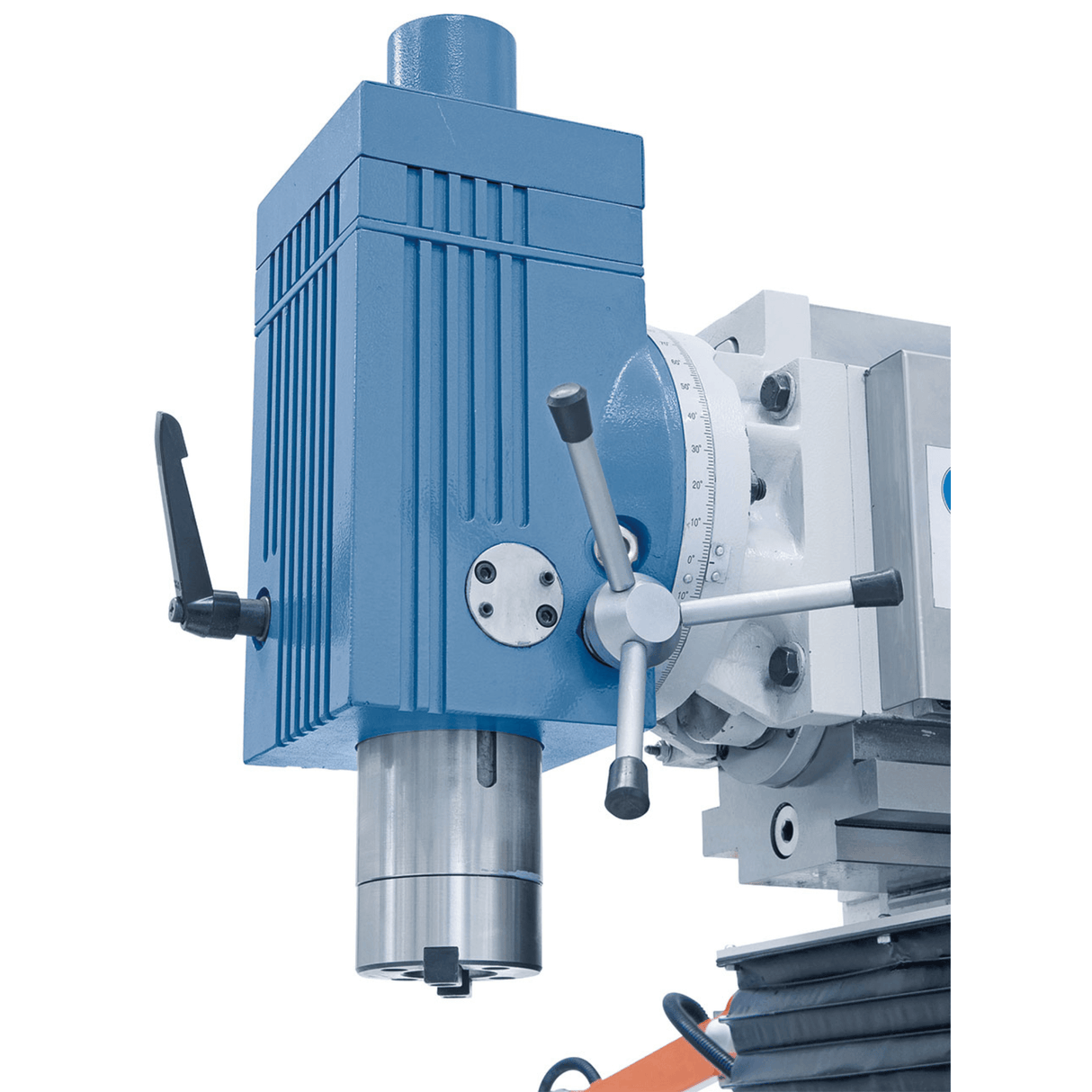

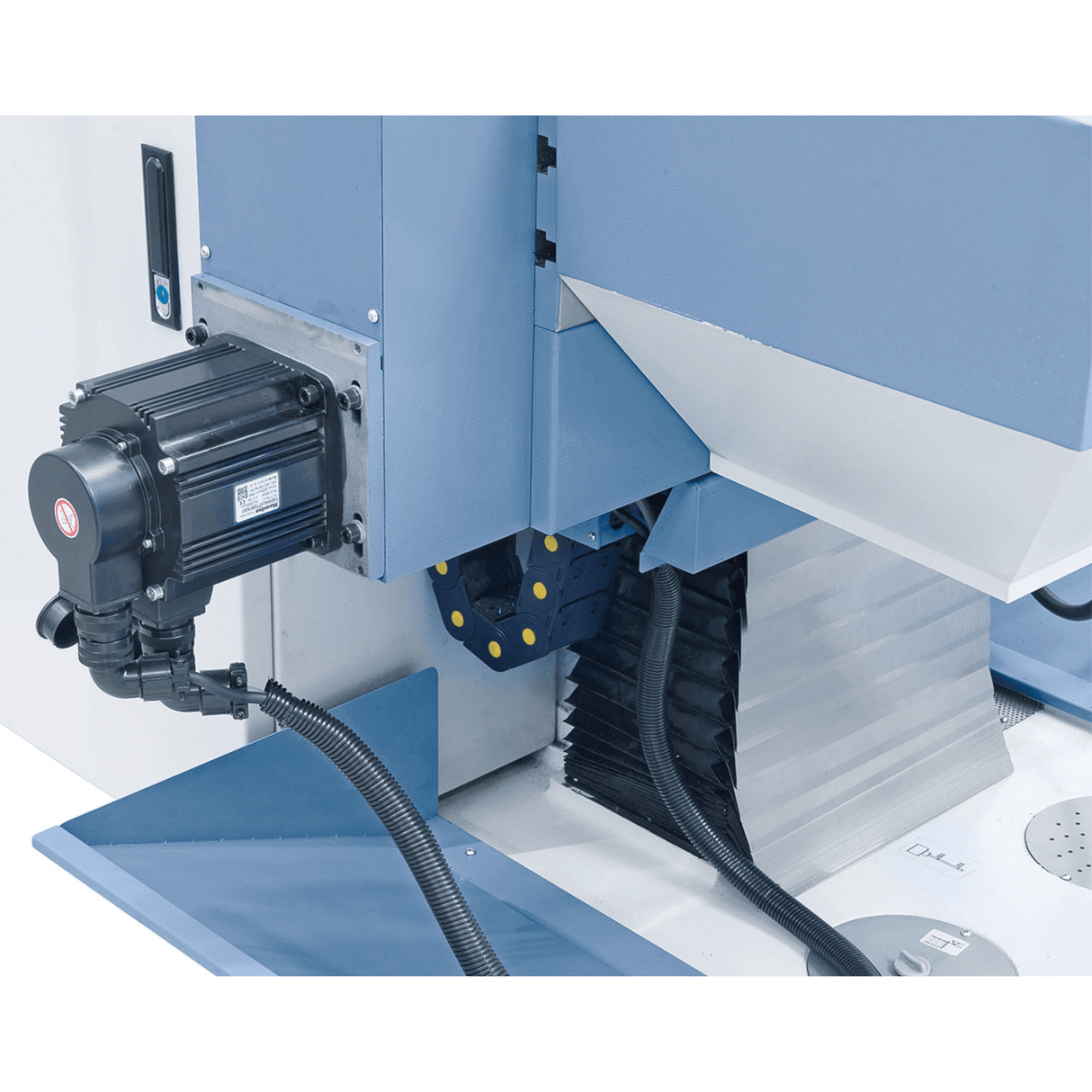

The Bernardo WFM 750 Servo is a universal bench/workshop milling machine for metalworking: peripheral and face milling, drilling, boring, tapping, and surface milling on steel, aluminum, and cast iron. With a 755 Γ 320 mm table, ISO 40 taper, and 405 mm longitudinal travel, it covers the standard professional range. The designation 'Servo' indicates motorized servo feeds on X and Y for repeatable automatic cycles without manual intervention. The β90Β°/+90Β° tilting head allows for bevel milling and angled operations without rotating the workpiece. In Krollit customers' workshops, it is used by mechanical workshops, equipment manufacturers, and machining centers for precision parts.
Who is the Bernardo WFM 750 Servo for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist | Not indicated | Professional milling machine for mechanical workshops. |
| Professional Mechanical Workshop | Ideal | 755 Γ 320 mm table, ISO 40, 405 mm X-axis travel: for precision milling on standard-sized workpieces. |
| Industrial Production | Suitable | For high-volume series production, consider CNC milling centers. |
Technical Specifications
| Specification | Value |
|---|---|
| Table Dimensions | 755 Γ 320 mm |
| Spindle Taper | ISO 40 |
| Spindle Speed | (continuous) 40β260 / 260β2,000 rpm |
| Spindle Travel | 65 mm |
| Longitudinal Travel (X) | 405 mm |
| Cross Travel (Y) | 315 mm |
| Vertical Travel (Z) | 405 mm |
| Spindle β Column Distance | max 460 mm |
| Spindle Head Tilt | β90Β°/+90Β° |
| Dimensions (L Γ W Γ H) | N/D mm |
| Weight | N/D kg |
Compliance and Safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery Directive 2006/42/EC |
Logistics
Bernardo shipping: 5β9 working days (7 days in the South). Original spare parts available with 3β5 working days shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between ISO 40 and ISO 50 taper?
ISO 40 is the standard for medium-sized professional milling machines (BFM 180, WFM 750/800/850, MFM 230). ISO 50 is the heavy industrial standard for large format milling machines (BFM 200, BFM 2100 Servo): larger diameter taper, larger tools, greater rigidity in heavy milling. The WFM 750 Servo uses ISO 40.
Does the WFM 750 Servo have automatic feed?
Yes β the WFM Servo series has servo feeds on all axes.
What cutting fluid is used?
For steel: 5β8% water+soluble oil emulsion. For aluminum: neat cutting oil or kerosene. For cast iron: dry cutting (cast iron produces lubricating graphite). Always check compatibility with the specific material.
Are spare parts and assistance available?
Original Bernardo spare parts available with 3β5 working days shipping. Customer support available in Italian.
How much space is needed in the workshop?
Footprint N/D mm. For workpiece handling, clear space on all sides of the table equal to the longitudinal travel (405 mm) in front and behind is needed.
