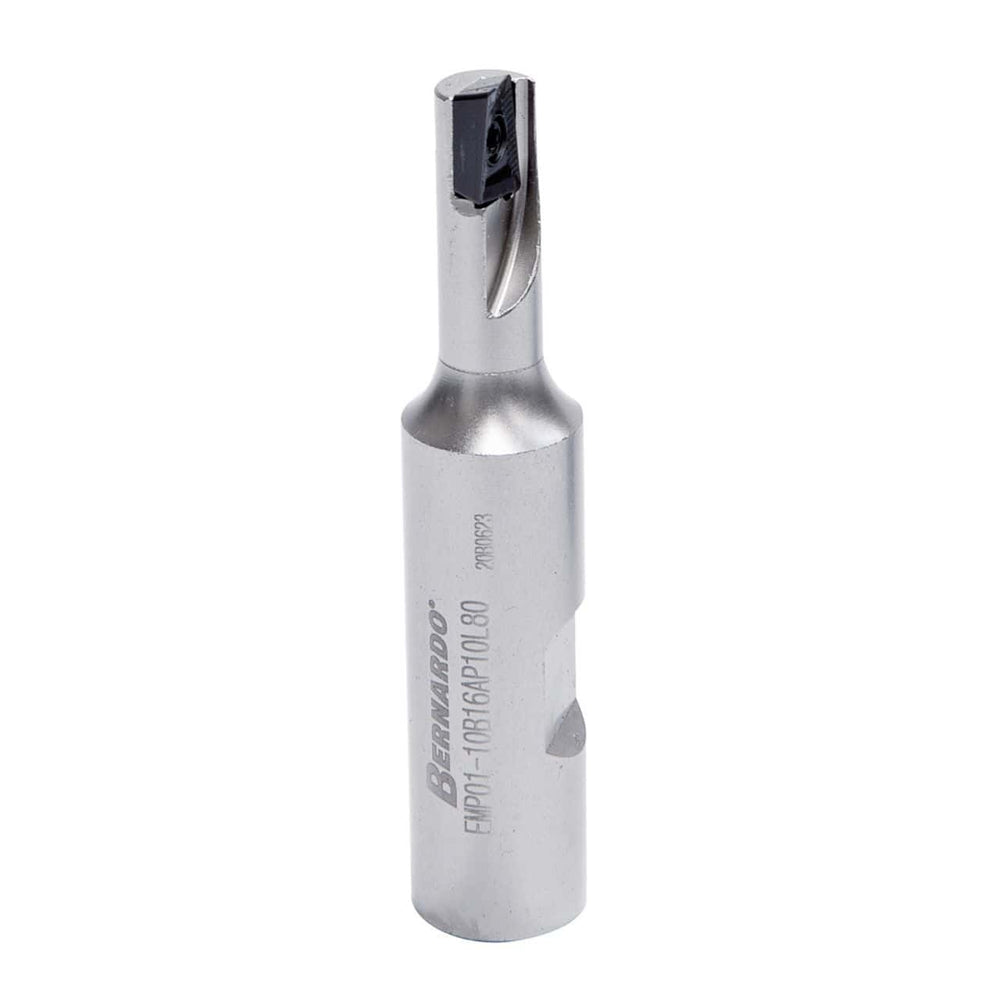

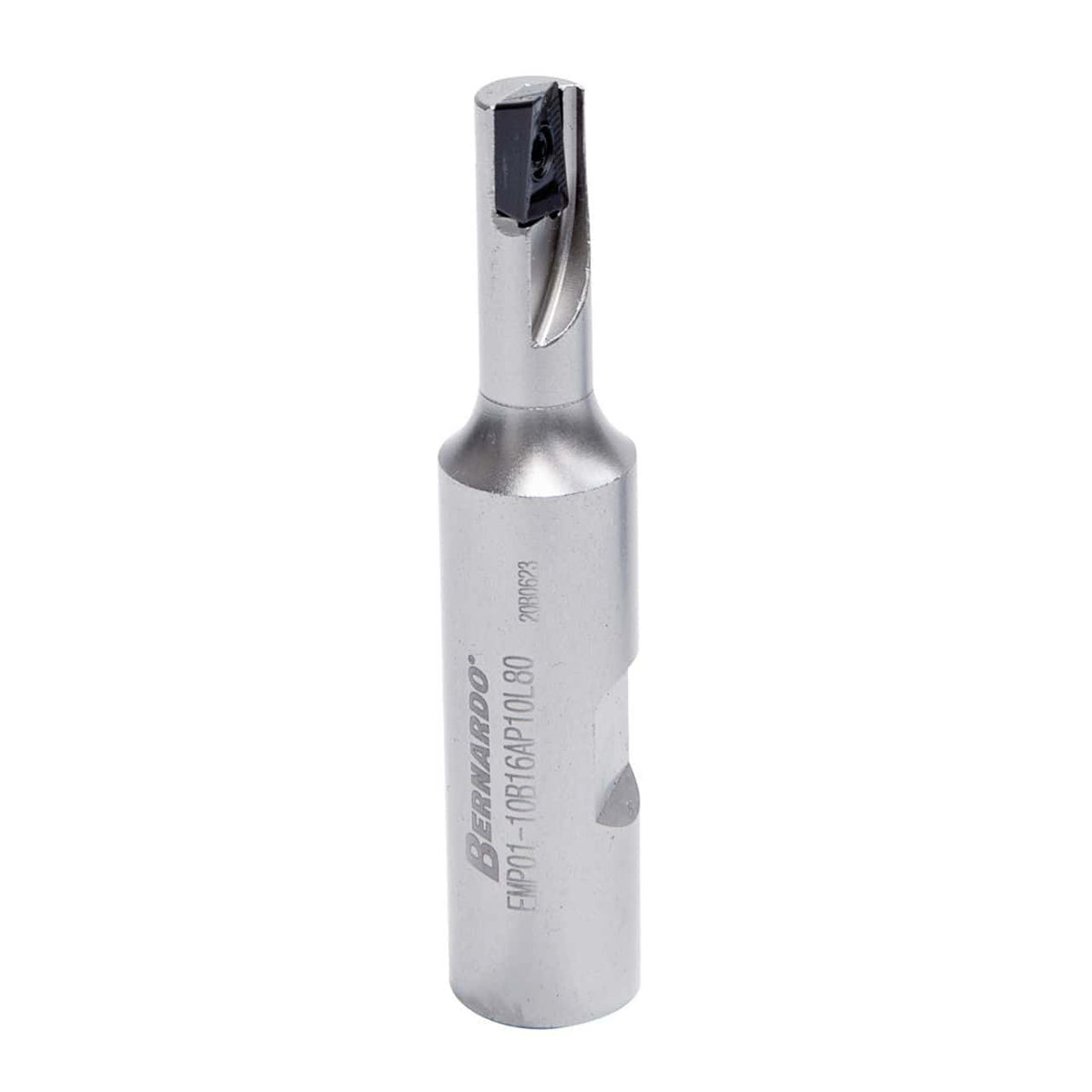

Bernardo Cylindrical cutter with carbide inserts (HM), 10 mm diameter is a cutting tool for professional use available on Krollit, official Bernardo distributor since 2007.
- Shank: 10 mm
- With replaceable HM inserts
Who uses the Cylindrical cutter with carbide inserts (HM), 10 mm diameter and for what purpose
Mechanical workshops and tool laboratories use the Cylindrical cutter with carbide inserts (HM), 10 mm diameter for cutting, drilling, or sharpening operations on materials compatible with the tool's geometry.
Its place in the Bernardo range
Bernardo Cylindrical cutter with carbide inserts (HM), 10 mm diameter is part of the Bernardo cutting tool range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Shipping 3-5 business days from Krollit warehouse for spare parts and accessories. Customer support in Italian available for technical documentation and compatibility verification with the reference machine. Krollit has been an official distributor since 2007.
Who is the Cylindrical cutter with carbide inserts (HM), 10 mm diameter for?
The cylindrical cutter with carbide inserts (HM), 10 mm diameter is recommended for the following professional profiles:
-
Mechanical workshops and tool laboratories: cutting and sharpening operations on compatible materials.
-
Users with compatible machines: replacement or original tool for the indicated machine.
-
Out-of-specification materials: verify machinable material and tool geometry before use.
Frequently asked questions
What is this shank end mill used for?
It is used with milling machines and metal routers for the operations indicated in the product title.
The choice of the specific model depends on the cutter diameter (Ø 10 mm) and the type of inserts (removable HM). Compatible with milling machines with tool holders suitable for the shank.
Are the inserts carbide?
Yes, the inserts shown are replaceable carbide (HM). When an insert wears out, simply rotate or replace it.
HM inserts have a hardness of 1,500-2,000 HV and can withstand temperatures up to 800 °C. Indexable inserts (with multiple cutting edges) extend service life up to 4 times compared to single inserts.
Which milling machines can it be mounted on?
It can be mounted on universal milling machines with BT, ISO taper or direct attachment. Check the attachment of your machine before purchasing.
For milling machines with Morse taper, an adapter collet chuck is required. Bernardo universal milling machines in the FM series have standard BT 30 or BT 40 attachment.
How much material can it remove per pass?
Typically 0.5-3 mm depth per pass, depending on the machine's power and the material's hardness.
On mild steel with a 2-3 kW milling machine, a depth of 1-2 mm is optimal. On hardened steels, reduce to 0.3-0.8 mm per pass. Cutting speed: 60-120 m/min on steel.
How is it lubricated during machining?
Use cutting oil or cooling emulsion applied directly to the cutting point. Coolant reduces heat and extends service life.
On hard steels or thick materials, lubrication is essential: without coolant, the cutter overheats, loses sharpness, and can break prematurely. Recommended cutting speed: 20-30 m/min on mild steel.
