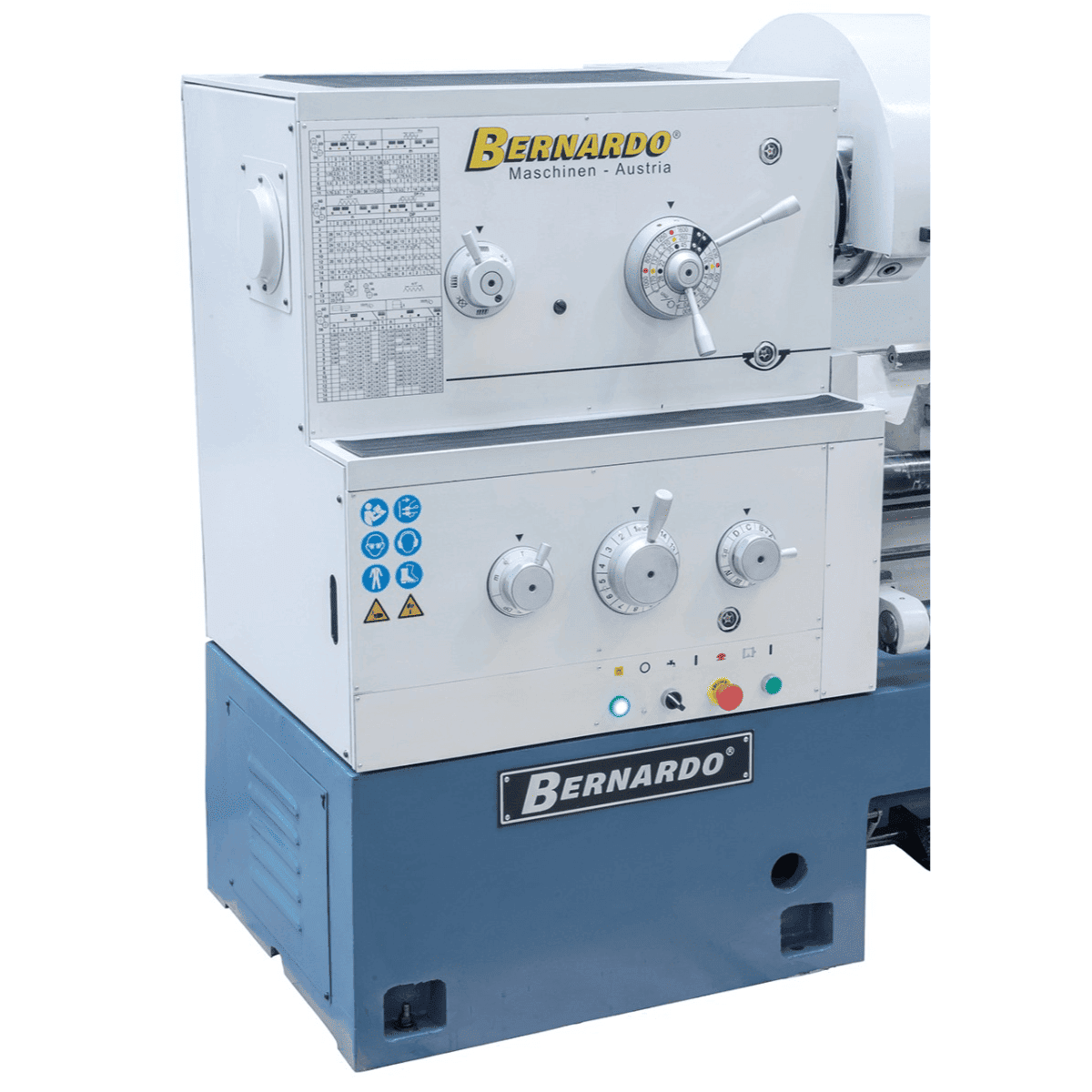

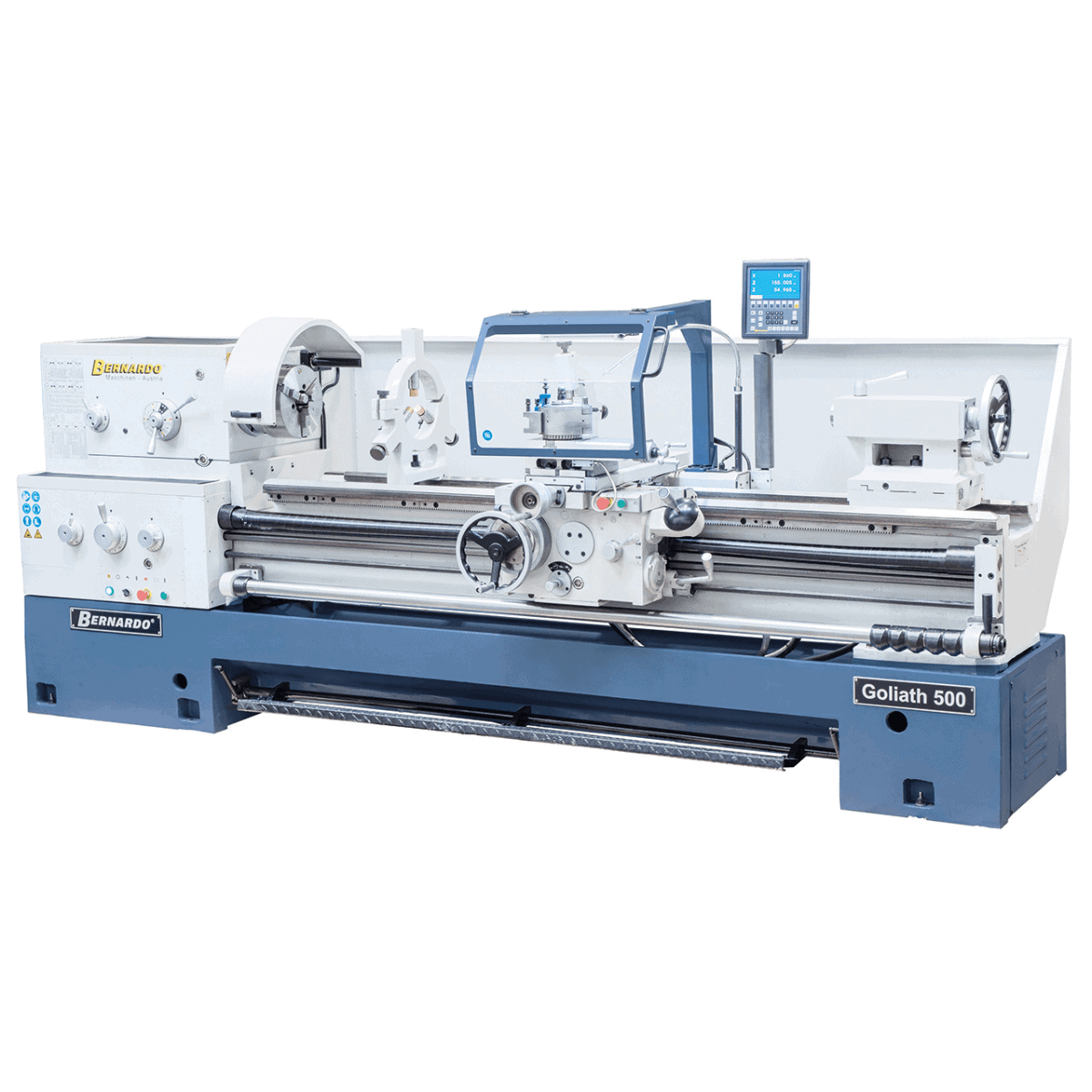

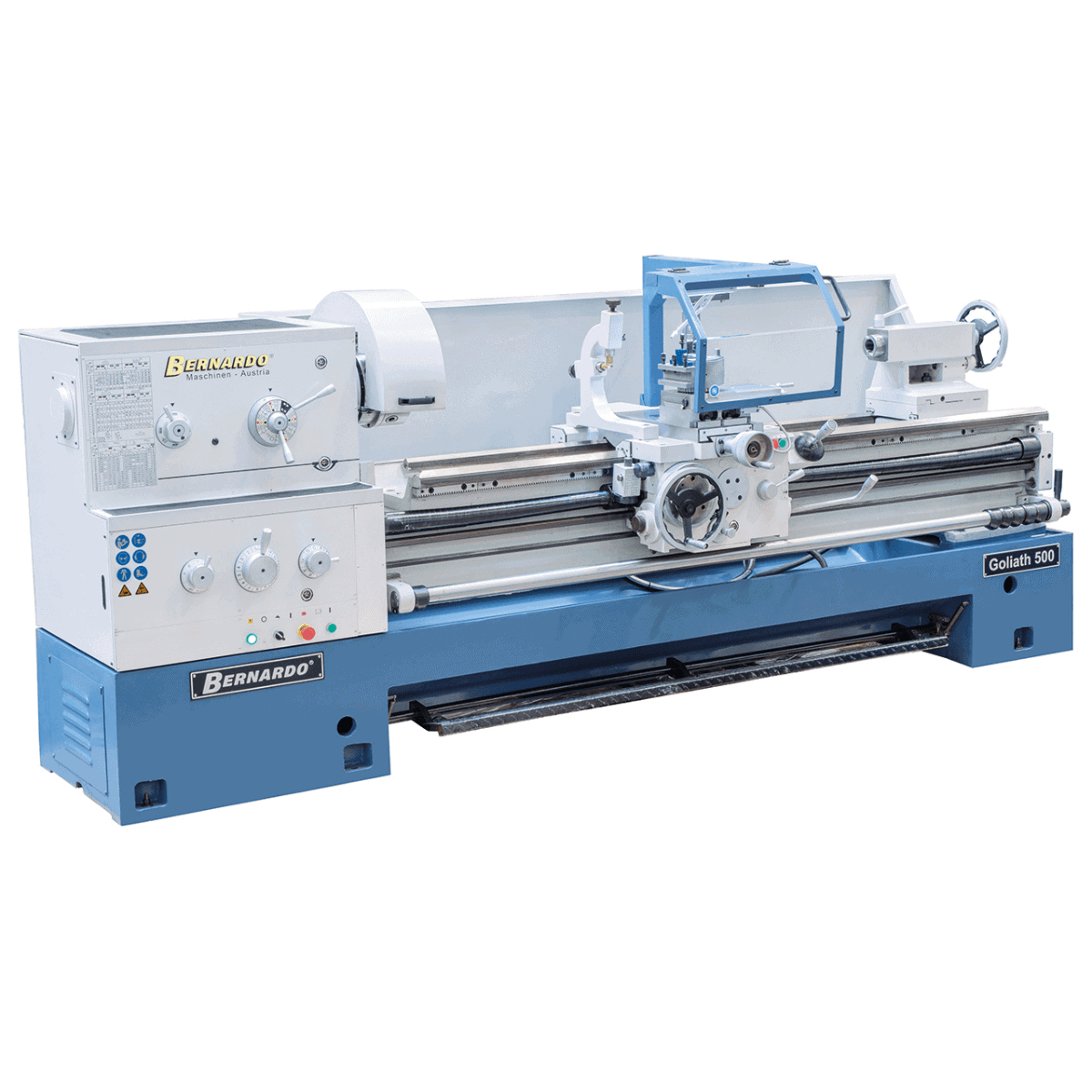

Metal Lathe Bernardo Goliath 500 x 1500
Metal Lathe Bernardo Goliath 500 x 1500 is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

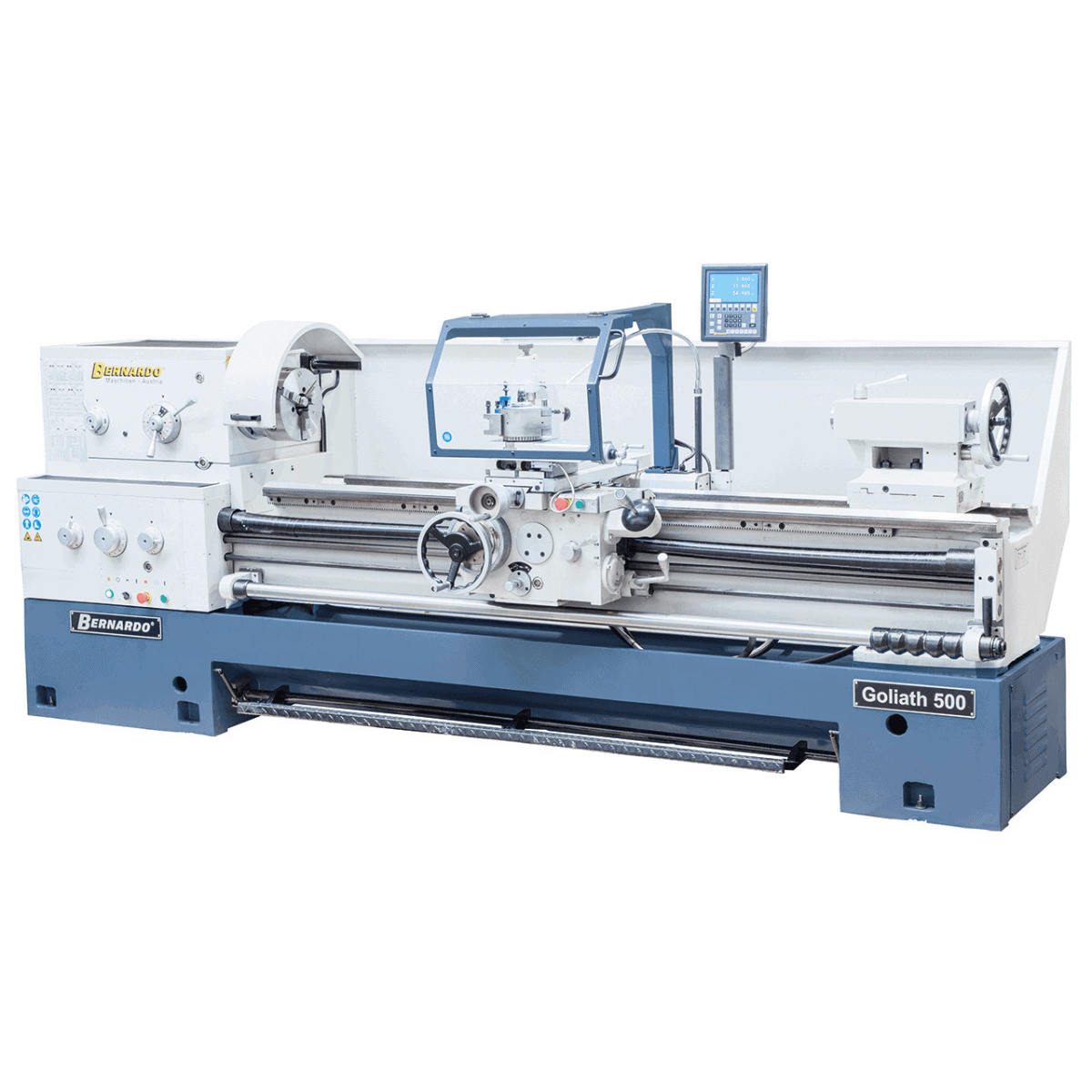

Bernardo Goliath 500 x 1500 is a metal lathe for professional use, with a distance between centers of 1500 mm, center height of 250 mm, a 7.5 kW (10 HP) motor, and a weight of 3285 kg. Krollit, official Bernardo distributor since 2007.
- Distance between centers: 1500 mm
- Center height: 250 mm
- Swing over bed: 500 mm
- Swing over gap: 720 mm
- Swing over cross slide: 310 mm
- Bed width: 400 mm
Who uses the Goliath 500 x 1500 and for what
Mechanical workshops and artisan turners use the Goliath 500 x 1500 for cylindrical, conical, and threading operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.
Its place in the Bernardo range
The Bernardo Goliath 500 x 1500 is part of the Bernardo metal lathe range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.
Logistics and Krollit support
Machine shipping in 5-9 business days (7 days in Southern Italy). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Goliath 500 x 1500 for
The Goliath 500 x 1500 is recommended for the following professional profiles:
- Mechanical workshops and artisan turners: cylindrical turning, conical turning, and threading on steels and alloys.
- Industrial maintenance technicians and repair centers: machining of spare parts, shafts, bushings, and small-scale production.
- Hobbyists and model making: professional machine: for occasional home use, consider smaller benchtop models.
Spindle, tools, and speed
| Distance between centers | 1500 mm |
| Center height | 250 mm |
| Spindle bore | 80 mm |
| Spindle nose | DIN 55029, D1-8 |
| Spindle speed | 9 – 1600 rpm (24 ranges) |

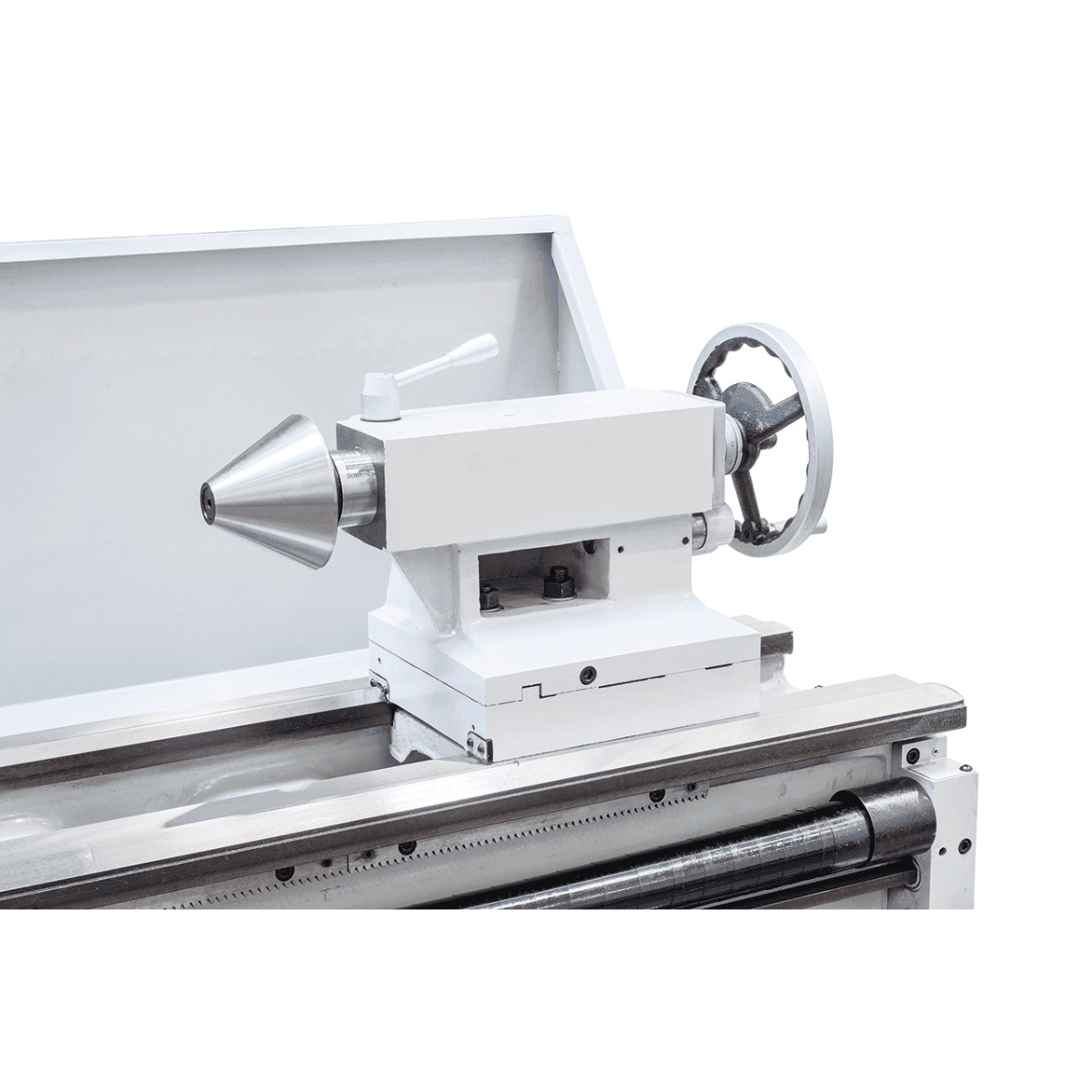

| Tailstock taper | CM5 |
Table, dimensions, and geometry
| Bed width | 400 mm |
| Dimensions (L x W x H) | 3020 × 1240 × 1550 mm |
| Weight | 3285 kg |
Other specifications
| Swing over bed | 500 mm |
| Swing over gap | 720 mm |
| Swing over cross slide | 310 mm |
| Longitudinal feeds | 0.063 – 6.43 mm/rev (80 values) |
| Cross feeds | 0.027 – 2.73 mm/rev (80 values) |
| Metric threads | 1 – 224 mm (46 pitches) |
| Inch threads | 1/8 – 28 TPI (44 pitches) |
| Tailstock quill diameter | 75 mm |
| Tailstock quill travel | 150 mm |
| Motor power | 7.5 kW (10 HP) |
Frequently asked questions
What materials can the Goliath 500 x 1500 work on?
Mild steels, alloy steels, cast iron, brass, and aluminum within the cutting limits indicated in the technical specifications.
For hardened or high-strength alloy steels, it is advisable to reduce cutting speed and depth of cut. The machine is sized for general mechanical production; for special alloys, check the compatibility of the spindle and tailstock Morse taper.
What is included in the standard equipment?

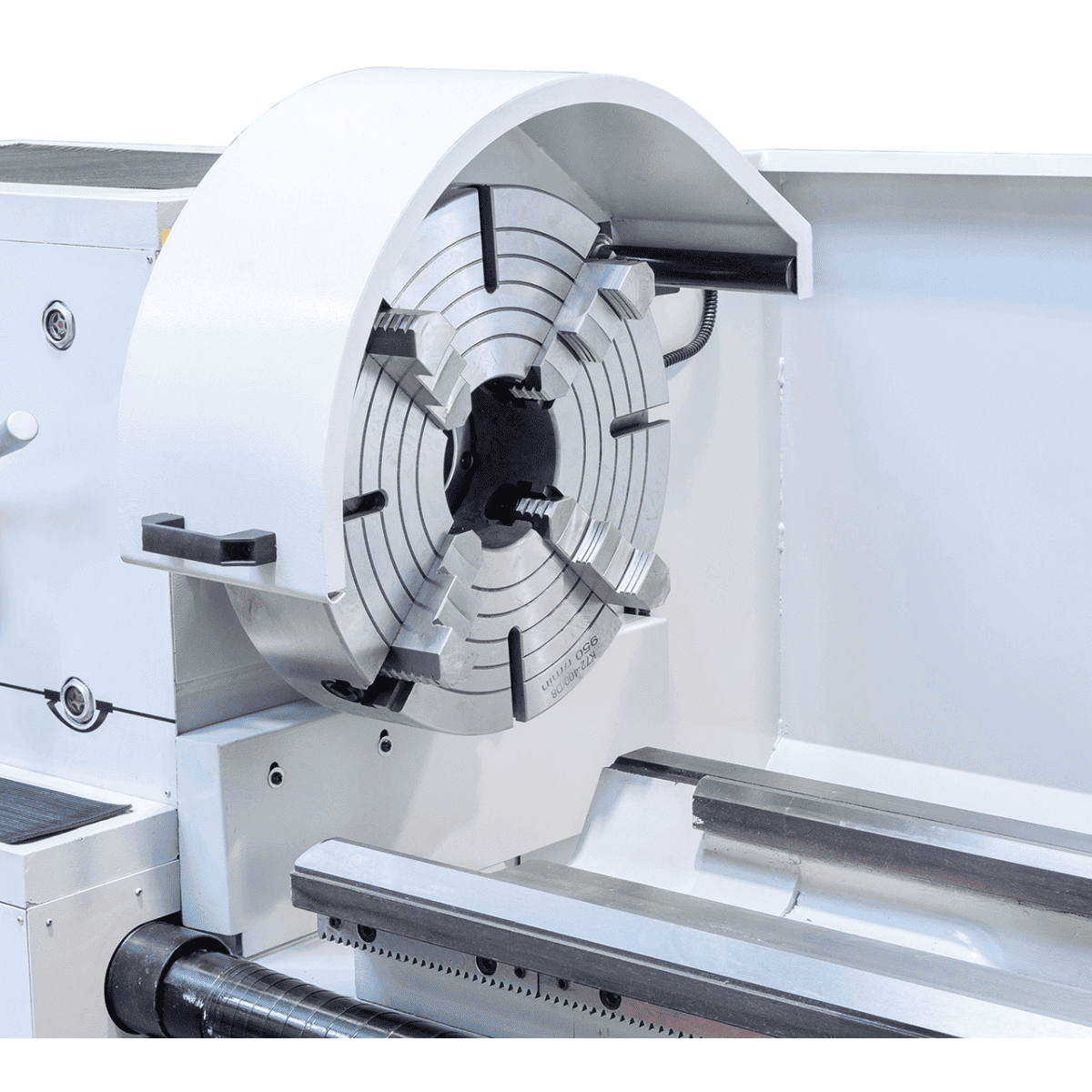

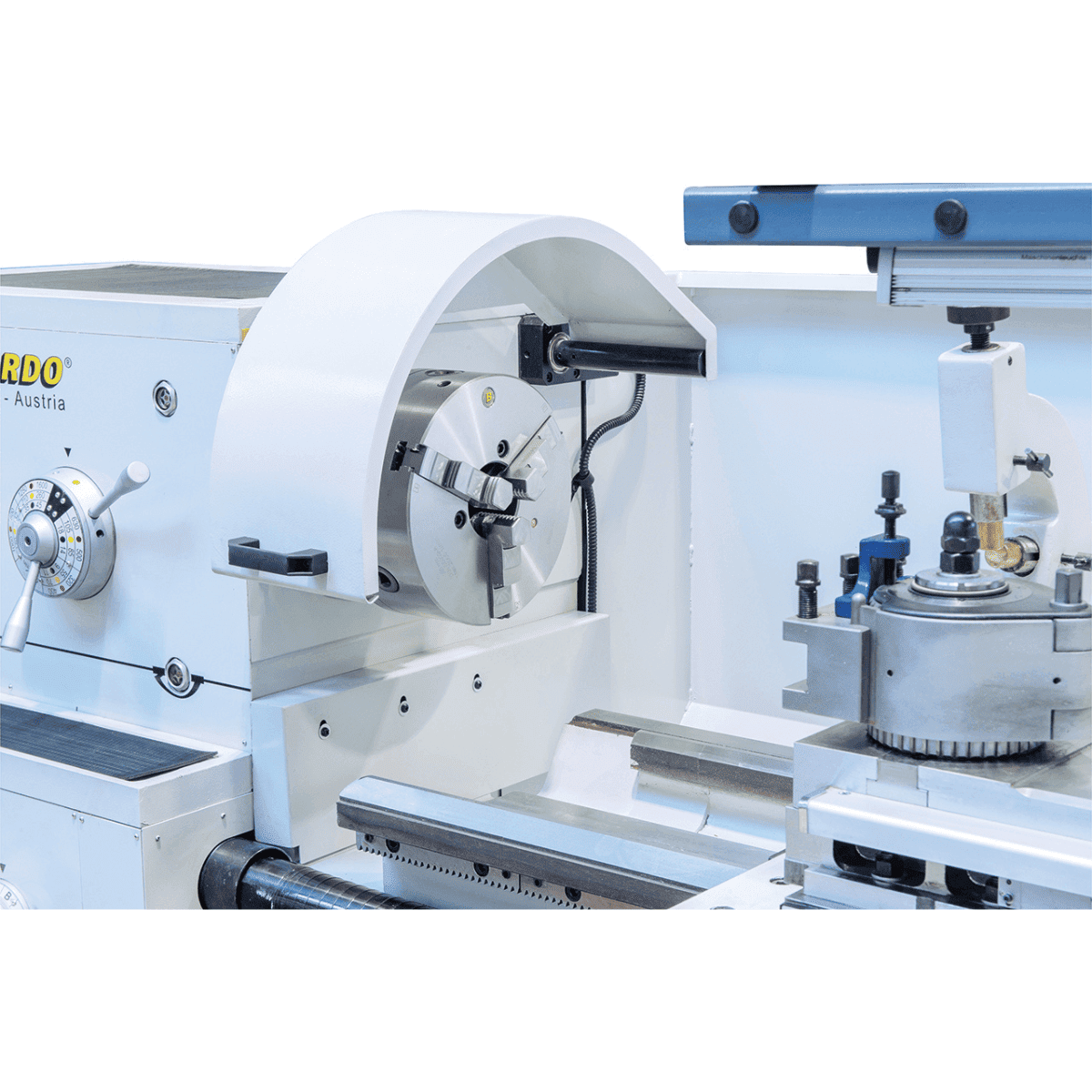

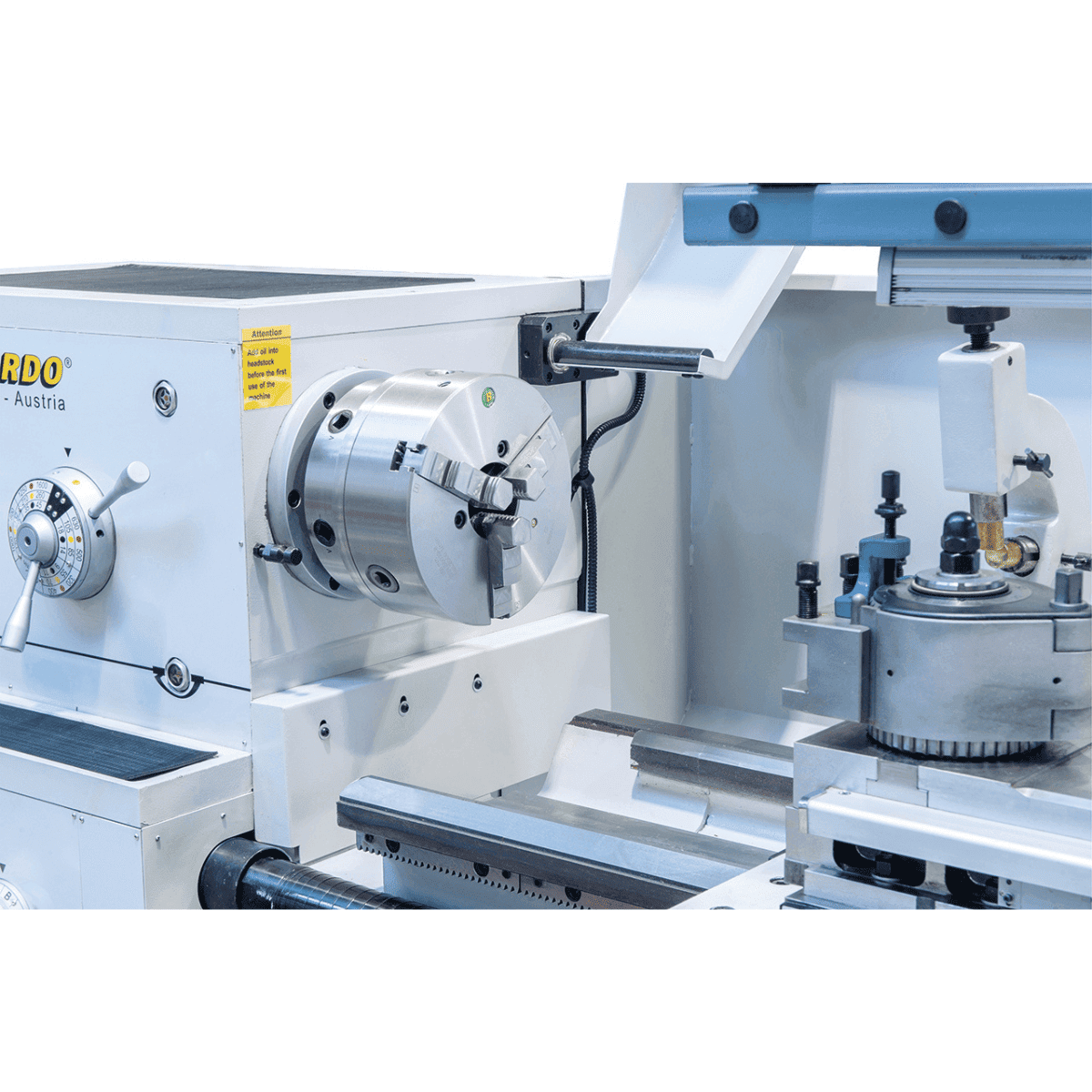

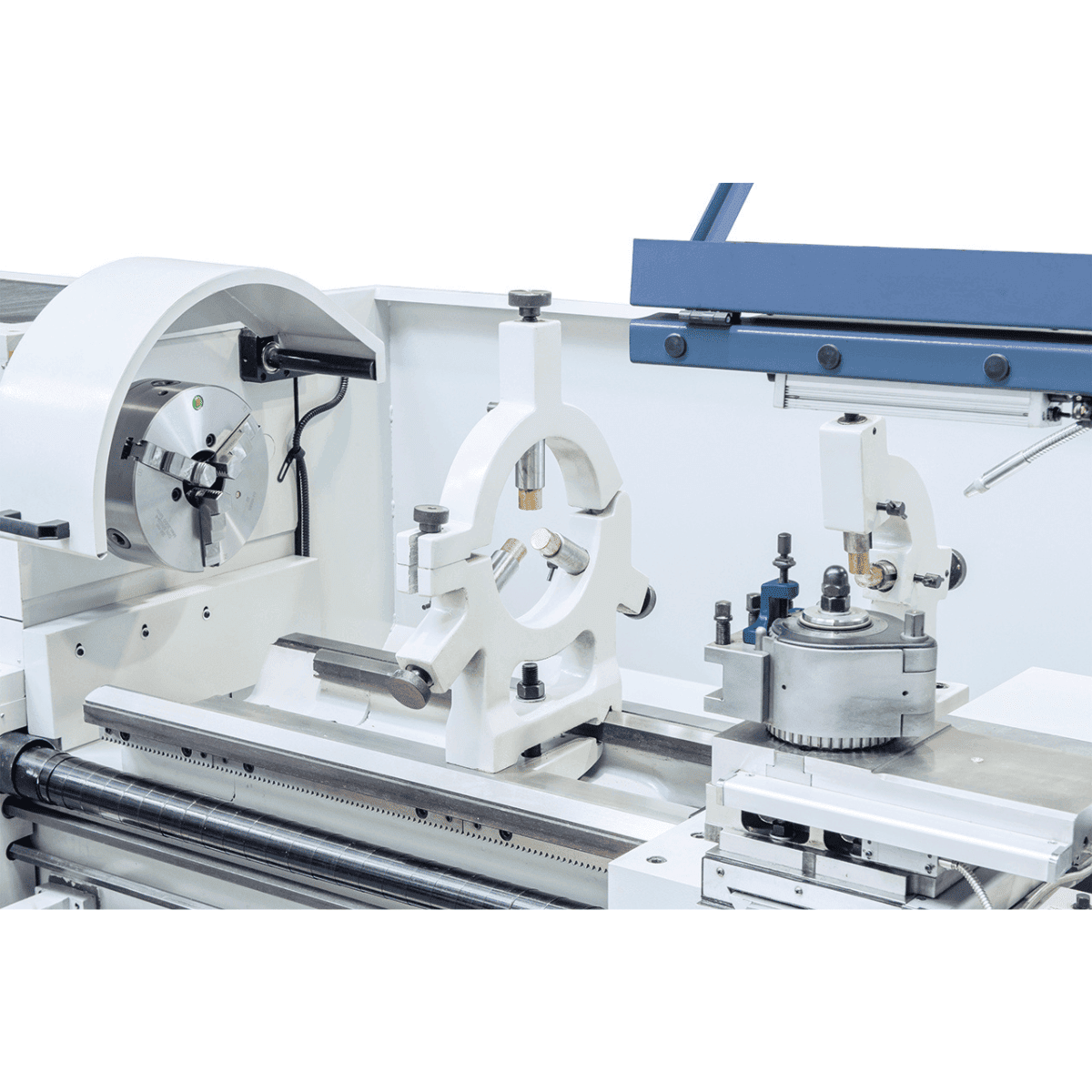

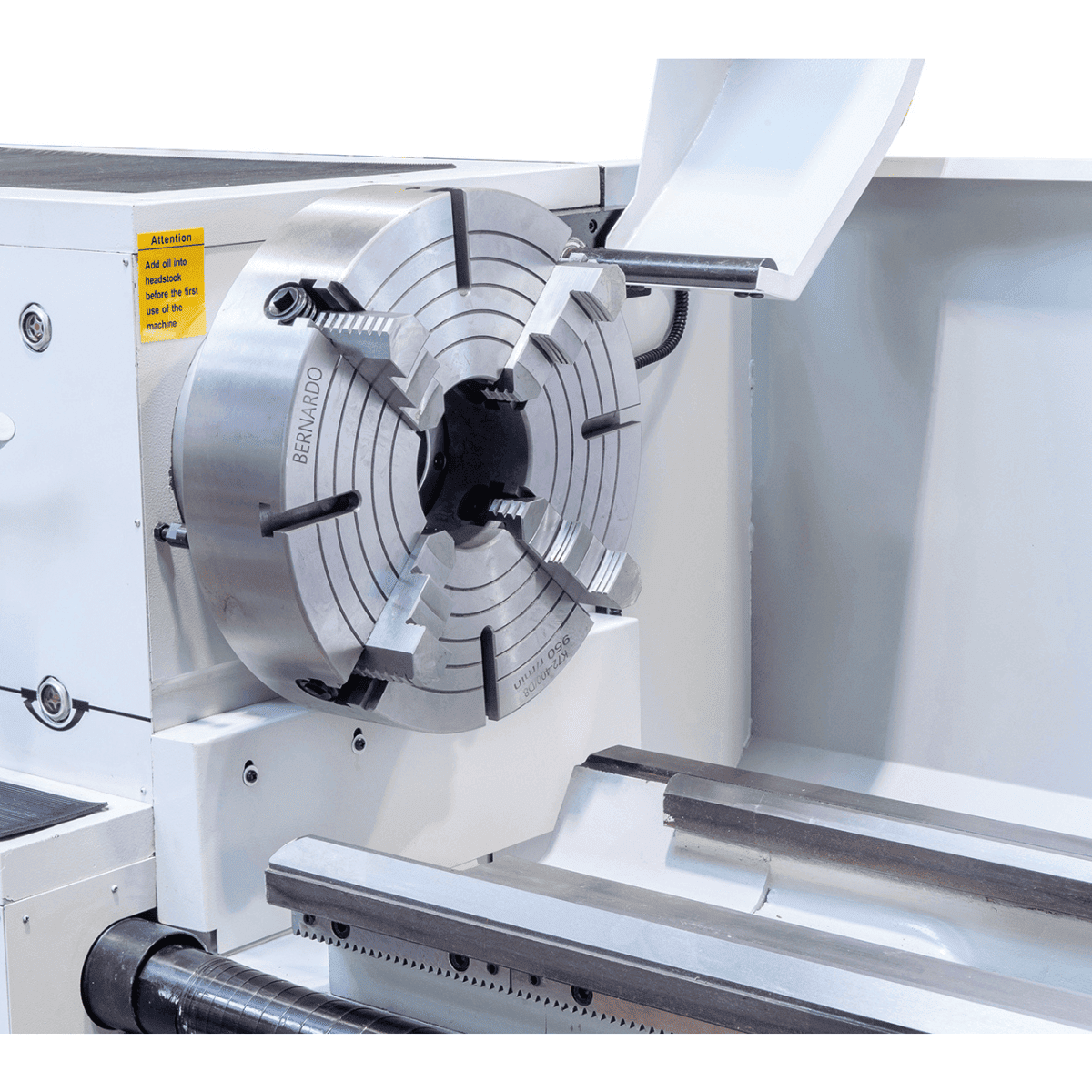

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a set of wrenches.
For the exact list of accessories and spare parts supplied, consult the manufacturer's technical data sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 business days.
What type of power supply does it require?
See the voltage data in the technical table. Compact benchtop machines are often 230 V single-phase, professional models are 400 V three-phase.
For 400 V three-phase models, an industrial power line is required. Verify the availability of adequate power supply in the workshop before purchase.
Is the machine suitable for series production?
It depends on the model class: professional Bernardo lathes handle continuous cycles, while benchtop models are suitable for medium use.
The Profi and Apollo models are designed for intensive multi-shift use; the Hobby and Goliath series are for occasional use or small workshops.
How much does it weigh and what installation does it require?
The weight varies significantly by model: see the "Weight" entry in the technical table.
Machines over 500 kg require industrial flooring and fastening with anchors. Benchtop models up to 100 kg can be installed on a sturdy workbench with an adequately sized top.
