Bernardo Flat Grinder FSM 2040

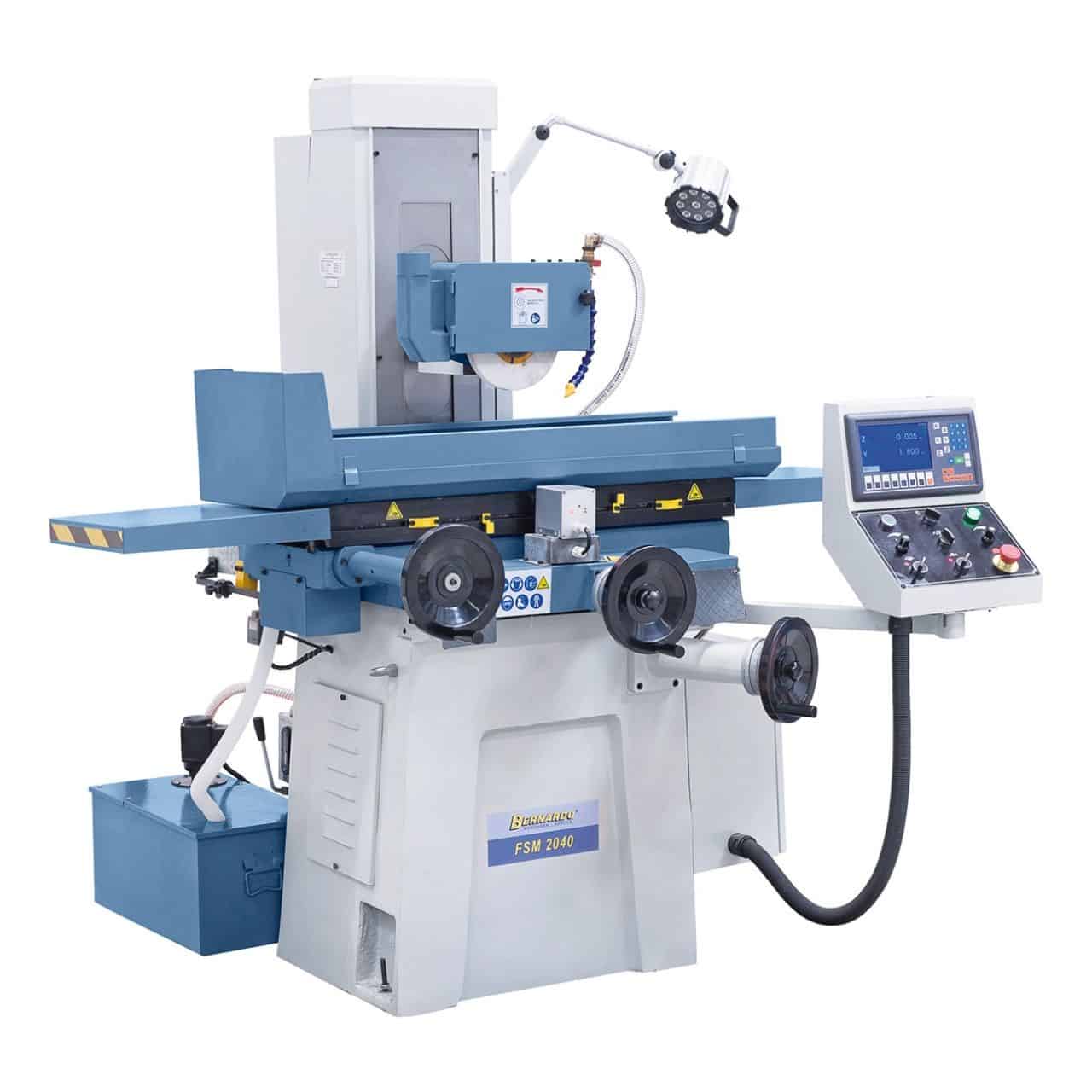

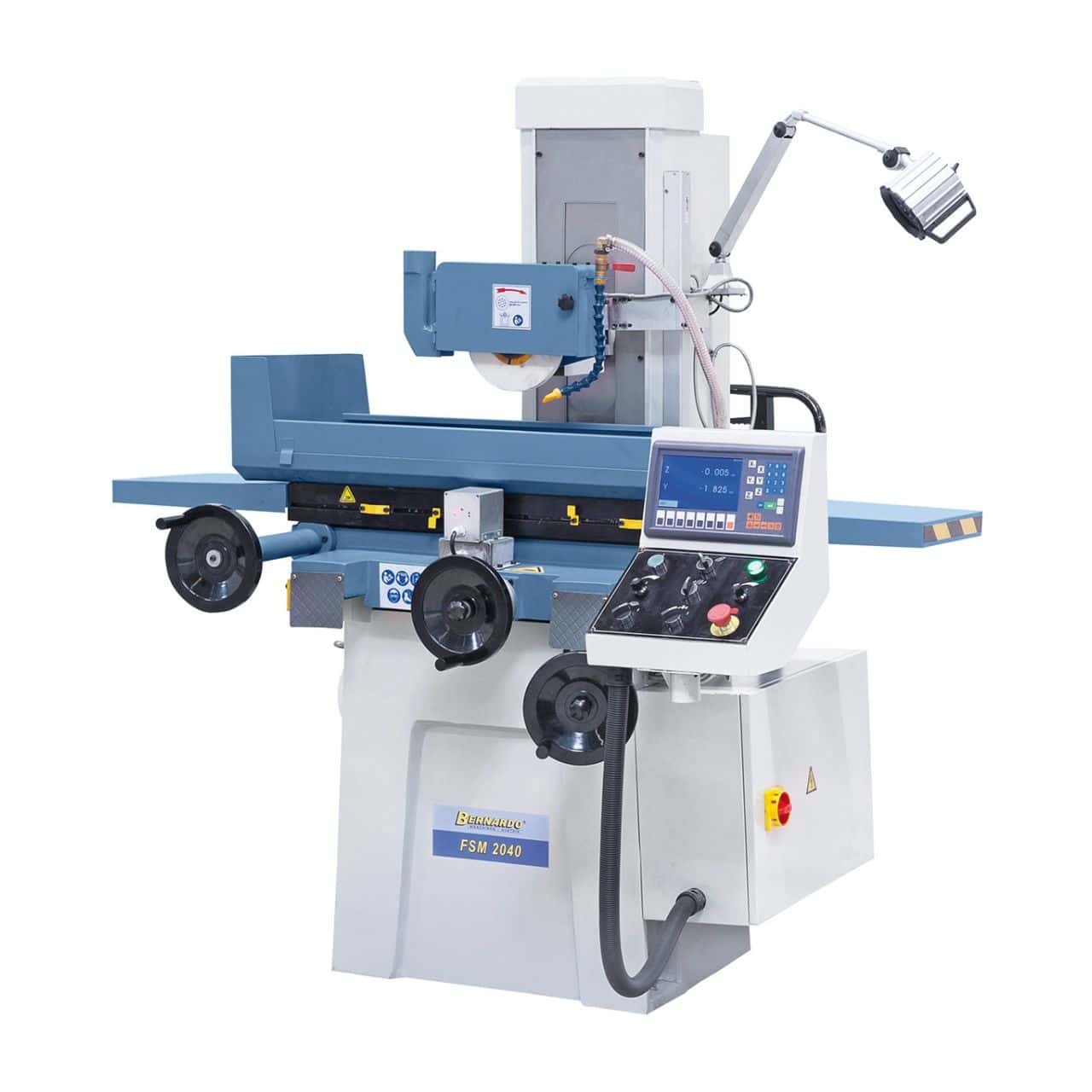

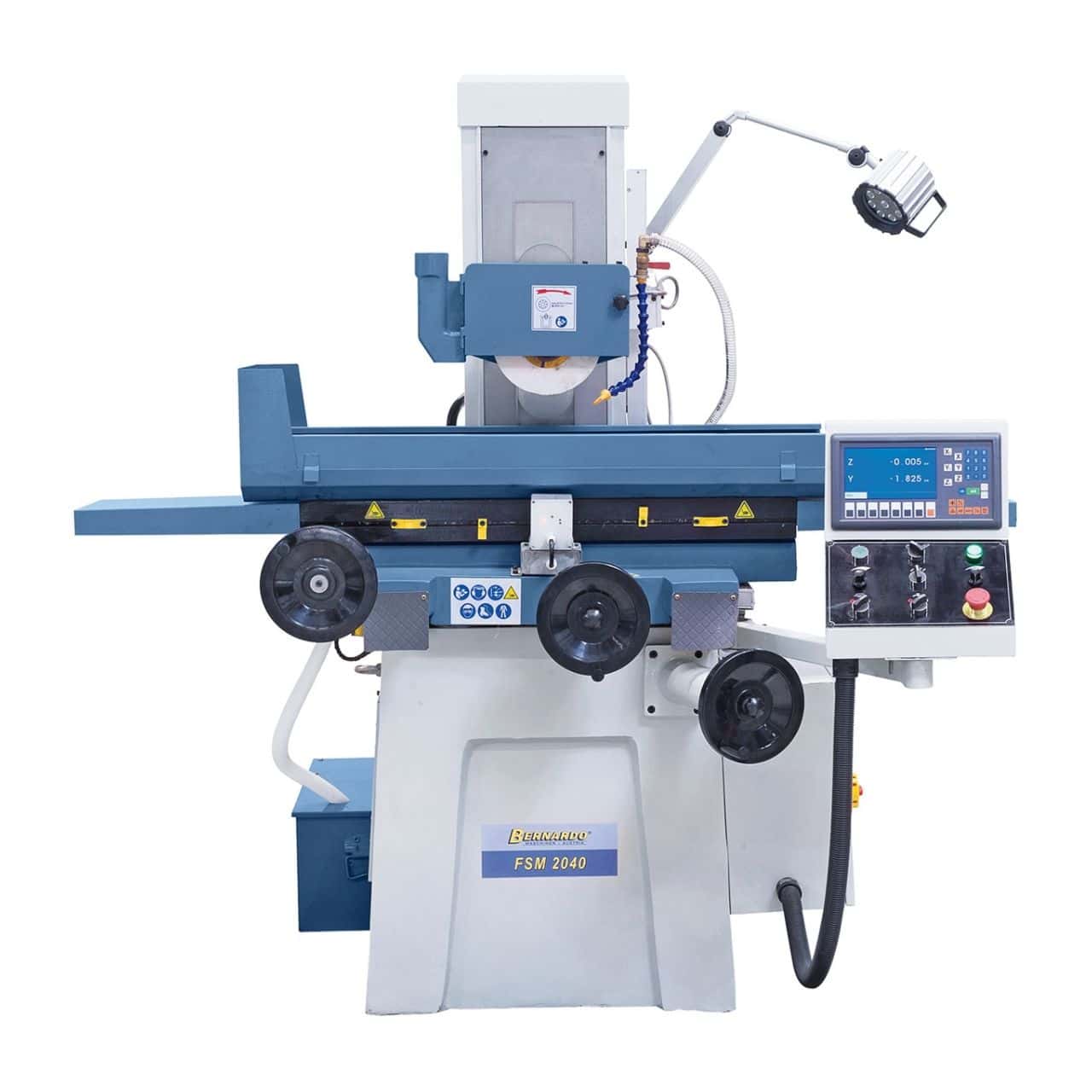

Bernardo FSM 2040 Surface Grinder

The Bernardo FSM 2040 Surface Grinder is a professional machine designed for grinding flat surfaces of small components, ideal for machine shops and precision departments. Made with professional-grade components, such as hardened and ground guides, it ensures smooth and vibration-free movement. The longitudinal table is equipped with polished linear guides, while the transverse movement occurs on double V-guides for maximum stability. It comes standard with a 2-axis digital readout, a 200 x 400 mm permanent magnetic chuck, and a centralized lubrication system for the guides. The Ø 200 mm grinding wheel, powered by a 1.5 kW motor, reaches 2800 rpm, ensuring high-precision finishes. Complete with a demagnetizer, coolant device, and accessories, it represents a reliable and efficient solution for quick and precise grinding.

---

Key Features:
Professional surface grinder for small to medium surfaces
Hardened, ground, and polished guides for smooth movements
Longitudinal movement on hardened and polished linear guides
Transverse movement with double V-guides for high stability
Equipped with a 200 x 400 mm permanent magnetic chuck
ES-12 H 2-axis digital readout included

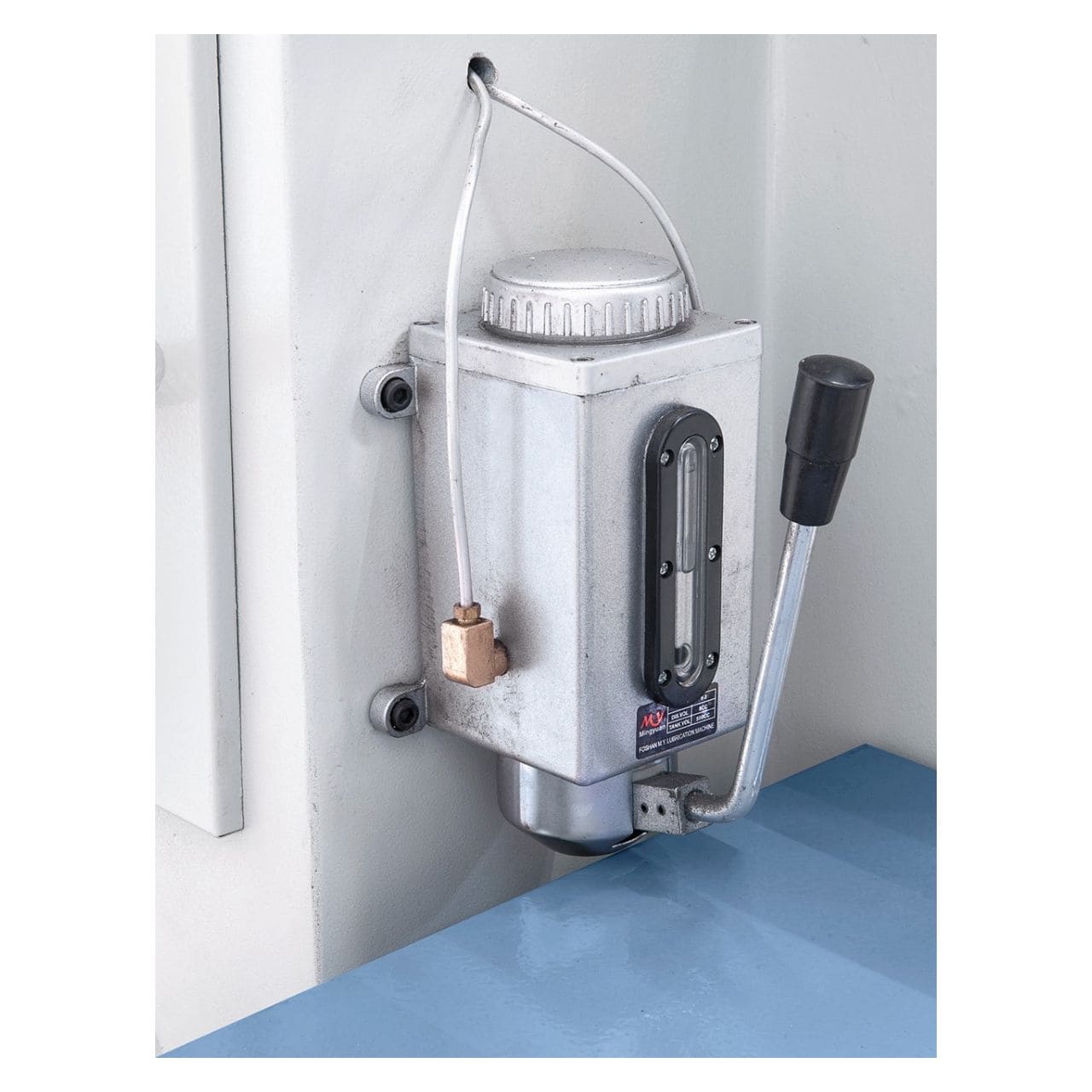

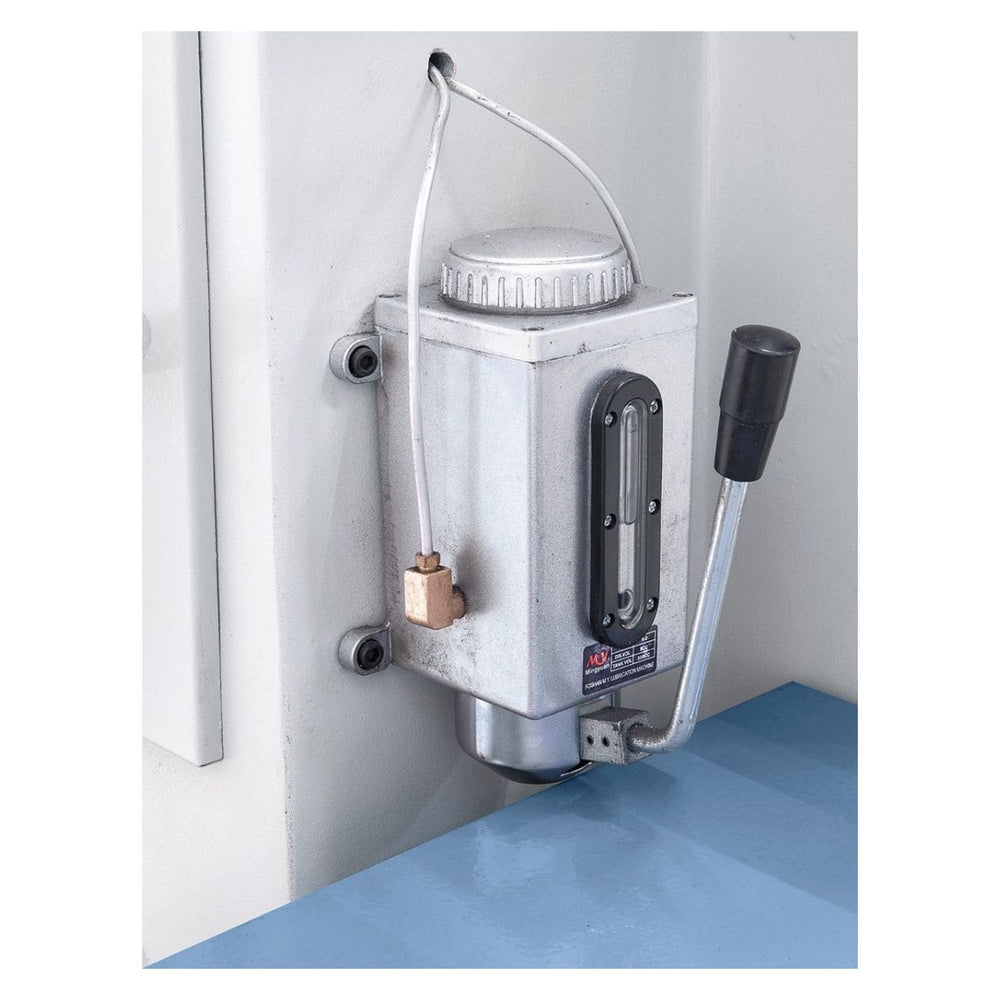

Centralized lubrication of the guides

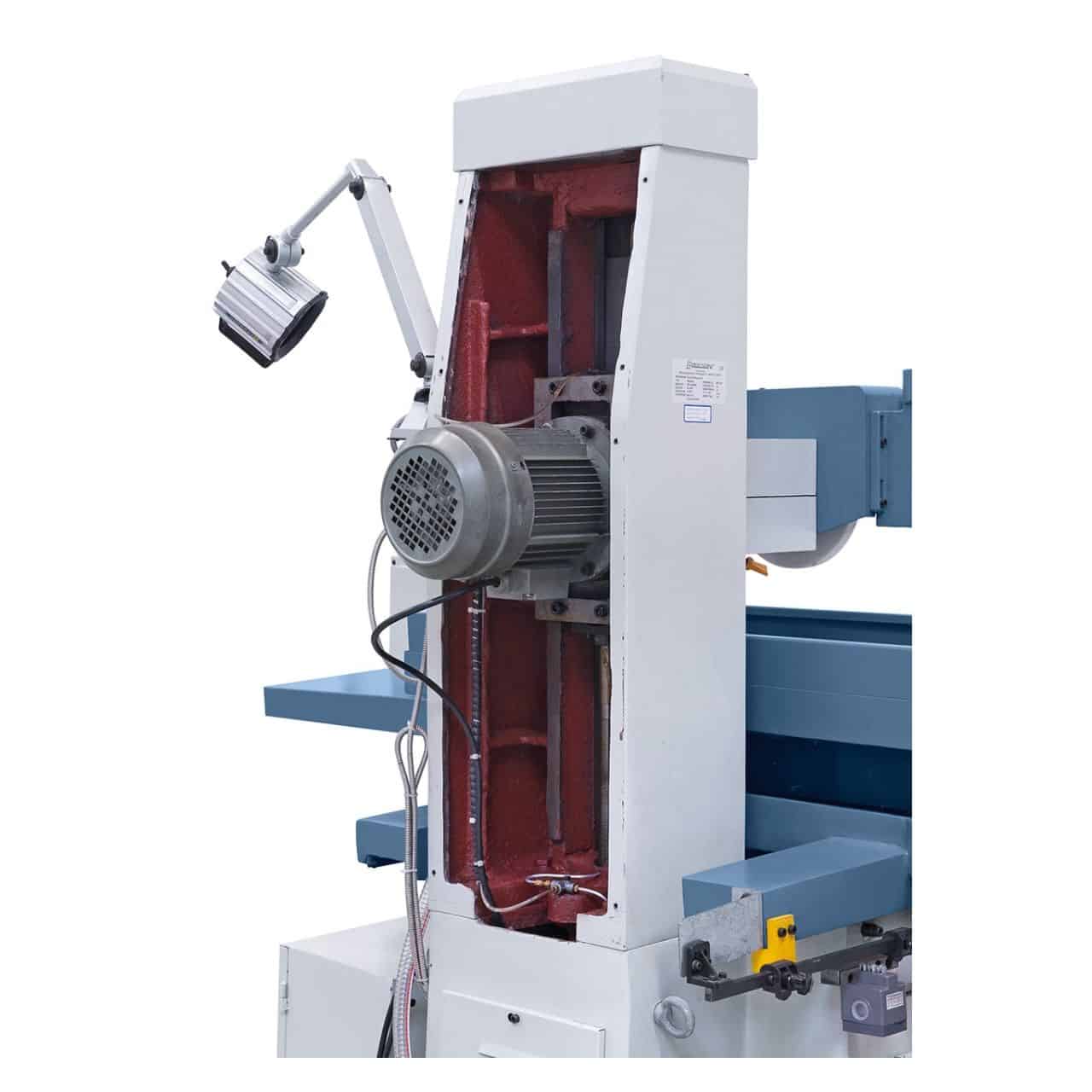

1.5 kW grinding wheel motor with 2800 rpm speed
Demagnetizer and cooling system included
Robust cast iron construction for stability and durability

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	FSM 2040
Table Dimensions	500 x 210 mm
No. T-slots / Width	1 / 14 mm
Permanent Magnetic Chuck	200 x 400 mm
Max. Longitudinal Travel	530 mm
Max. Transverse Travel	220 mm
Max. Distance Grinding Wheel – Table	420 mm

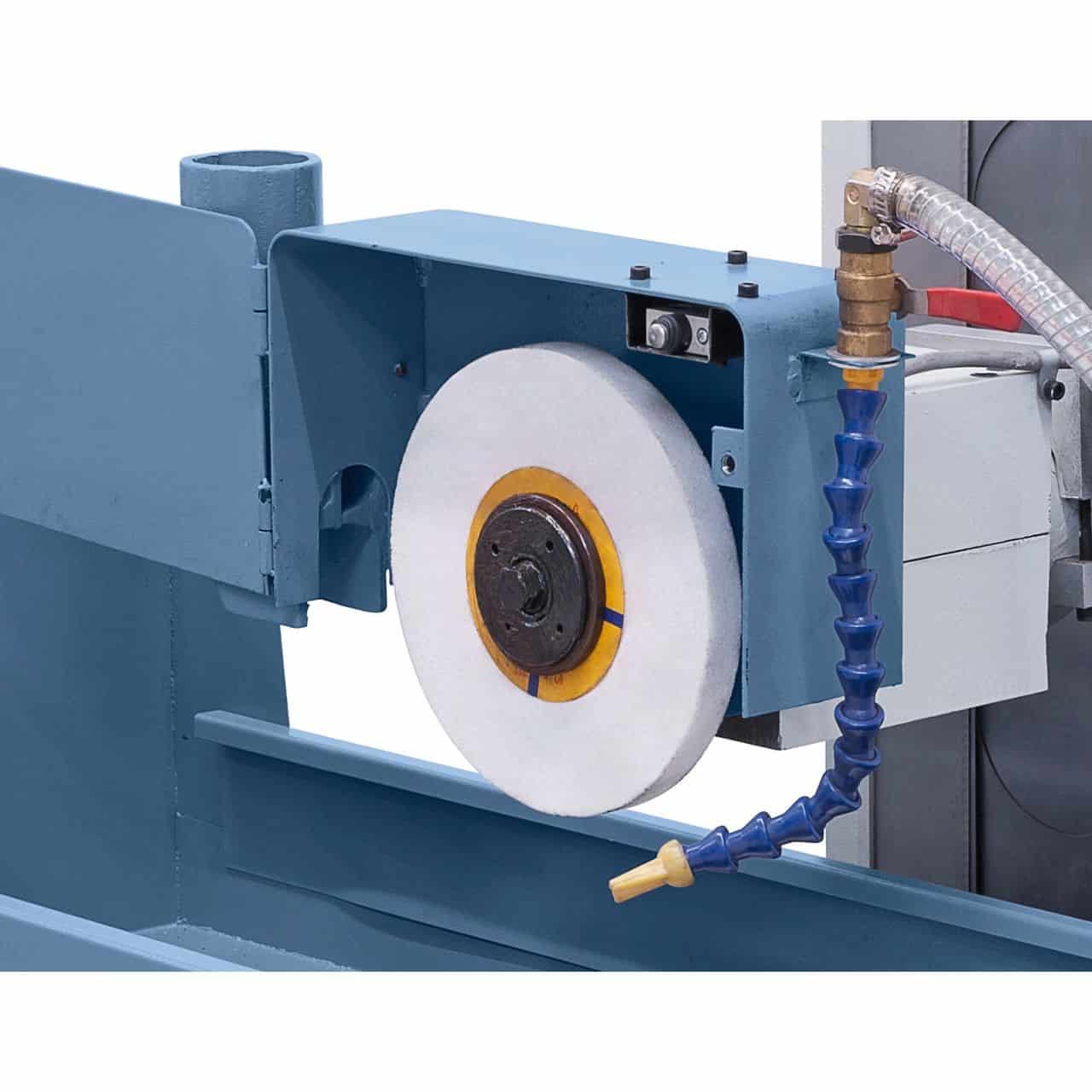

Grinding Wheel	Ø 200 x 20 x 31.75 mm
Table Speed (Longitudinal)	3 – 20 m/min (electric)
Table Speed (Transverse)	0.1 – 2 m/min (electric)
Transverse Adjustment	2.5 mm/revolution – scale 0.02 mm
Vertical Adjustment	1.25 mm/revolution – scale 0.01 mm
Grinding Wheel Motor Power	1.5 kW
Spindle Speed	2800 rpm
Machine Dimensions (L x W x H)	1250 x 1400 x 1730 mm
Weight	approx. 750 kg

---

Standard Equipment

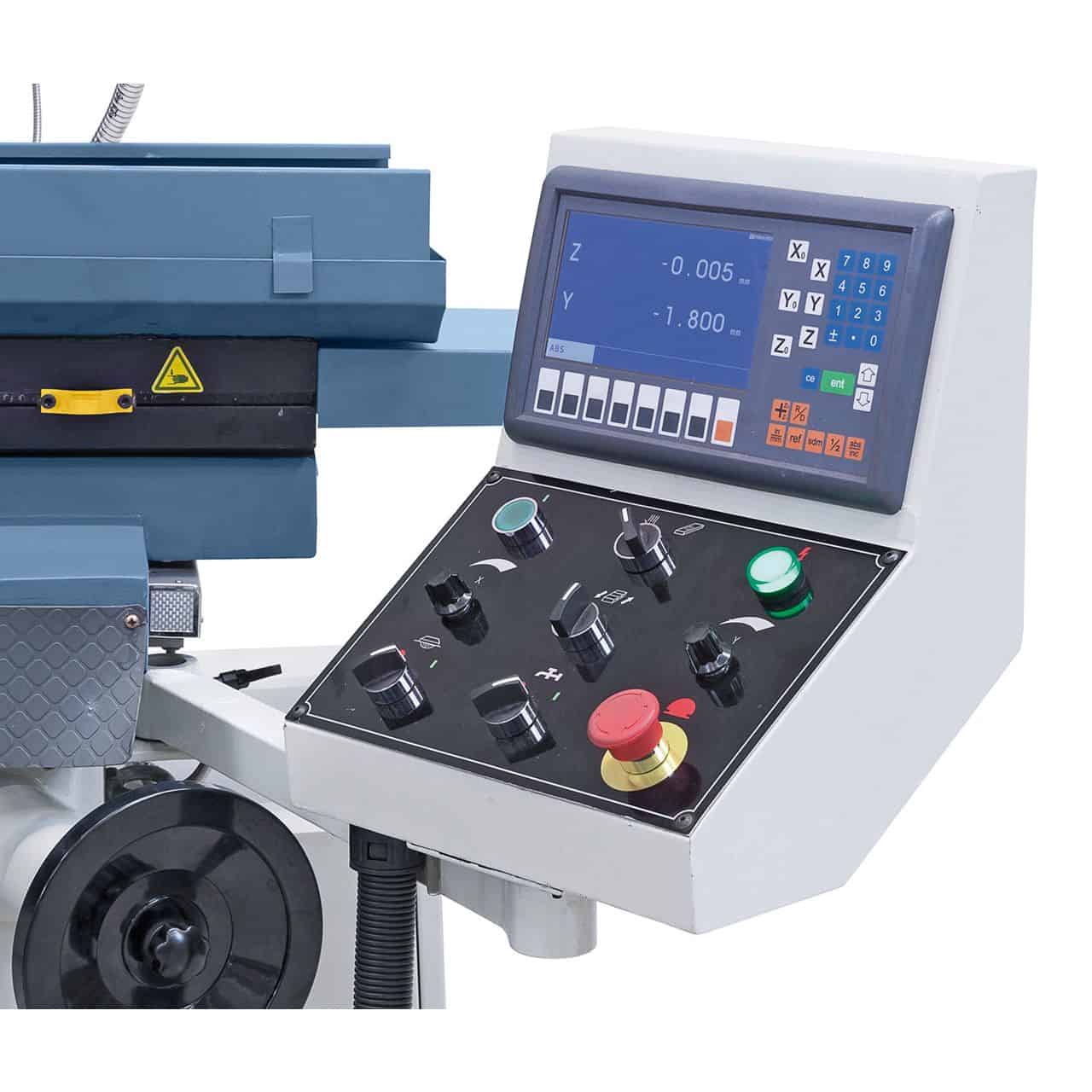

ES-12 H 2-axis digital readout with LCD display
Grinding wheel Ø 200 mm
Grinding wheel flange
LED work lamp
Permanent magnetic chuck 200 x 400 mm
Balancing stand
Balancing arbor
Protective cover
Demagnetizing device

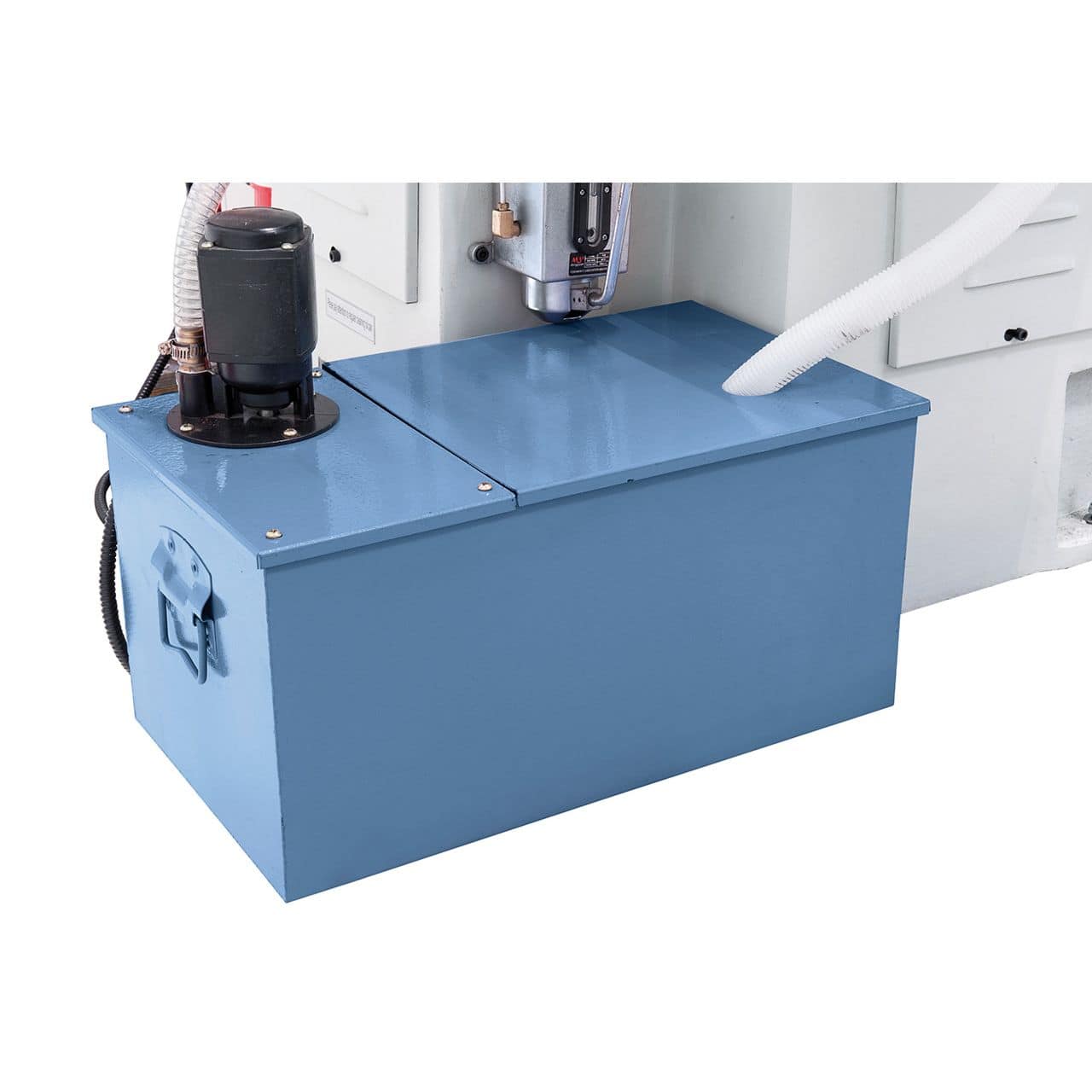

Cooling system
Diamond dresser
Machine feet
Centralized lubrication
Tool kit

Logistics

Bernardo shipping: 5–9 working days (7 days in Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What grinding precision can be achieved with the Bernardo FSM 2 Surface Grinder?

Bernardo surface grinders achieve dimensional tolerances of IT5–IT6 and roughness Ra 0.4–0.8 µm under optimal conditions. The actual precision depends on the condition of the grinding wheel (periodic dressing), the workpiece material, the coolant, and the operator's experience.

What does the "PLC" suffix in the Bernardo FSM 2 Surface Grinder model mean?

The PLC suffix indicates that the grinder is equipped with a programmable PLC control – it allows setting automatic grinding cycles (number of passes, depth per pass, feed) without manual intervention during the cycle. Compared to the manual version, it reduces cycle times and produces more repeatable results on batches of identical parts.

What abrasive wheel should be used for steel vs. cast iron vs. aluminum?

Steel: Alumina (Al₂O₃) wheel A46K–A60K. Cast iron: Silicon carbide (SiC) wheel C46K–C60K. Aluminum: Silicon carbide C46J–C60J wheel with abundant lubrication. Do not mix different materials on the same wheel – metal residues contaminate the ground surface.

Does the Bernardo FSM 2 Surface Grinder require integrated coolant?

Bernardo BSG and FSM surface grinders are equipped with an integrated cooling system – essential for precision grinding on hardened steel to avoid surface burns that alter the material's structure. Always use the appropriate type of coolant for the material being processed.

Are spare parts and grinding wheels available?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
