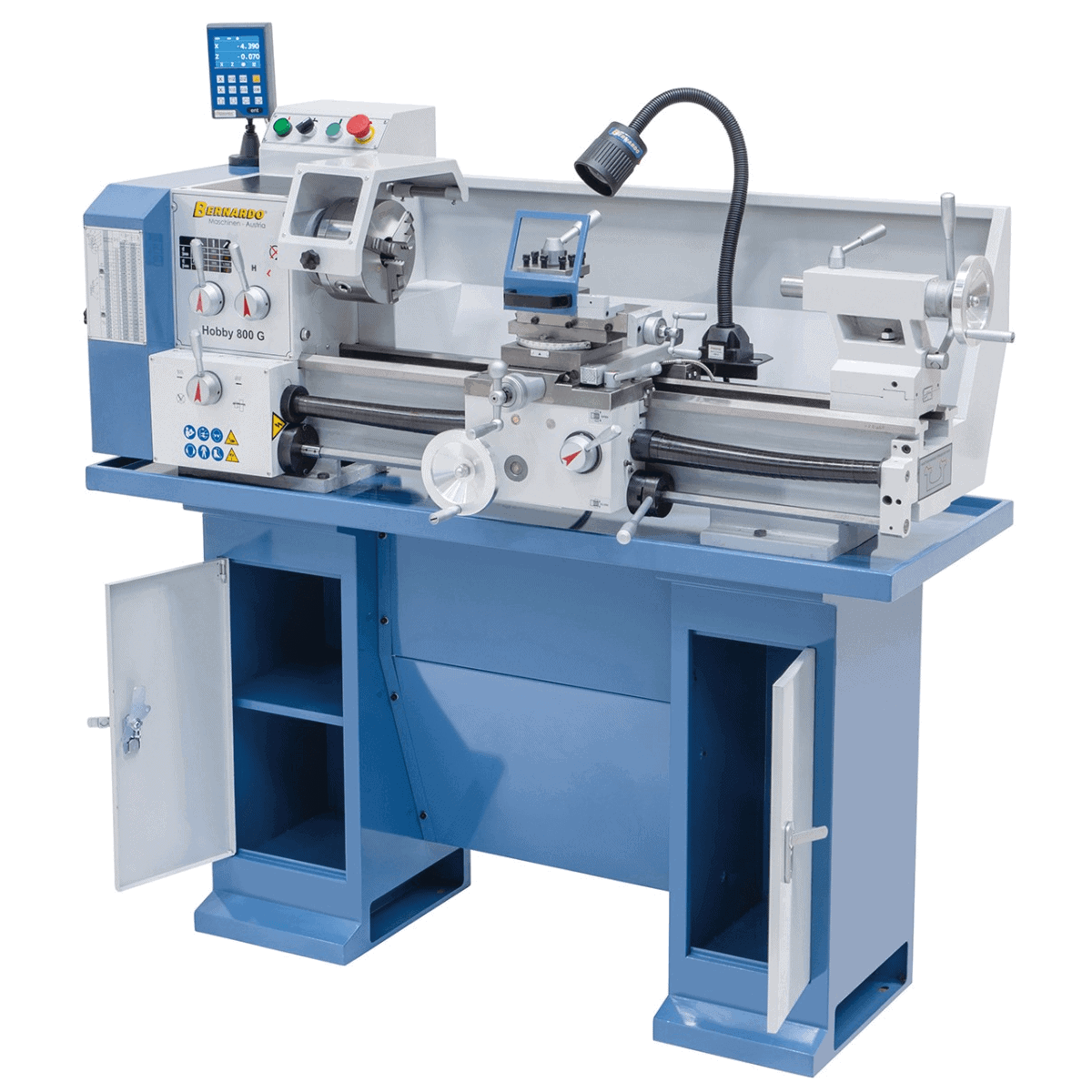

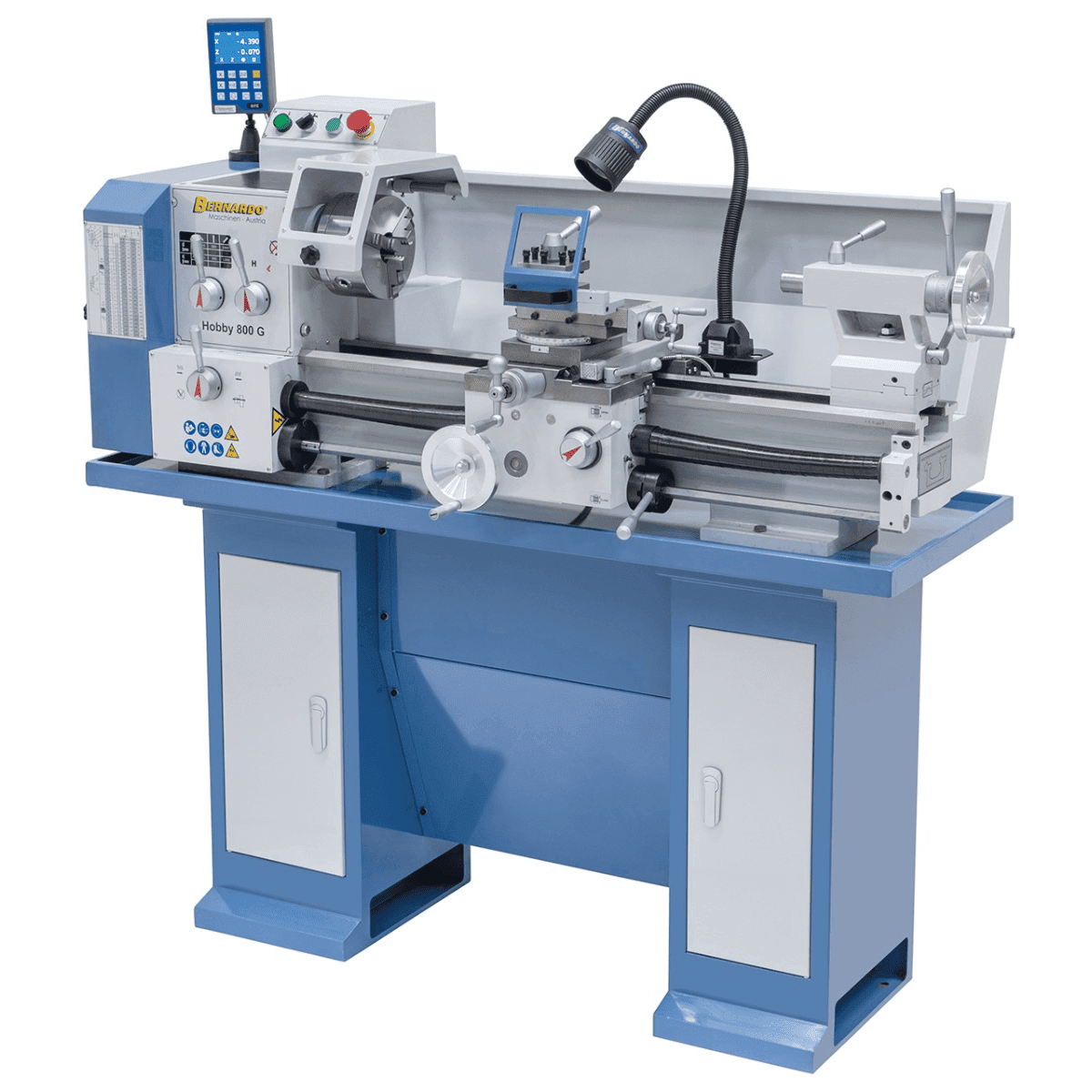

The Bernardo Hobby 800 G 230 V is a metal lathe for professional use, with a distance between centers of 750 mm, center height of 165 mm, 1.1 kW motor (230 V or 400 V), and a weight of 268 kg. Krollit, official Bernardo distributor since 2007.
- Distance between centers: 750 mm
- Center height: 165 mm
- Swing over bed: 330 mm
- Bed width: 160 mm
- Spindle bore: 38 mm
- Spindle taper: CM5
Who uses the Hobby 800 G 230 V and for what
Mechanical workshops and artisan turners use the Hobby 800 G 230 V for cylindrical, conical turning and threading operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.
Its place in the Bernardo range
The Bernardo Hobby 800 G 230 V is part of the Bernardo metal lathe range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days to the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Hobby 800 G 230 V for?
The Hobby 800 G 230 V is recommended for the following professional profiles:
-
Mechanical workshops and artisan turners: cylindrical, conical turning and threading on steels and alloys.
-
Industrial maintenance technicians and repair centers: processing of spare parts, shafts, bushings, and small-scale production.
-
Hobbyists and model making: professional machine: for occasional home use, consider smaller benchtop models.
Spindle, tools, and speed
| Distance between centers |
750 mm |
| Center height |
165 mm |
| Spindle bore |
38 mm |
| Spindle taper |
CM5 |
| Spindle speed |
70 – 1800 rpm (12 ranges) |
Table, dimensions, and geometry
| Bed width |
160 mm |
| Machine dimensions |
1370 × 680 × 1320 mm (without stand) |
| Weight |
268 kg |
Other specifications
| Swing over bed |
330 mm |
| Longitudinal feeds |
0.0087 – 1.395 mm/rev (45) |
| Cross feeds |
0.018 – 0.296 mm/rev (48) |
| Metric threads |
0.5 – 4 mm (17 pitches) |
| Inch threads |
8 – 40 TPI (26 pitches) |

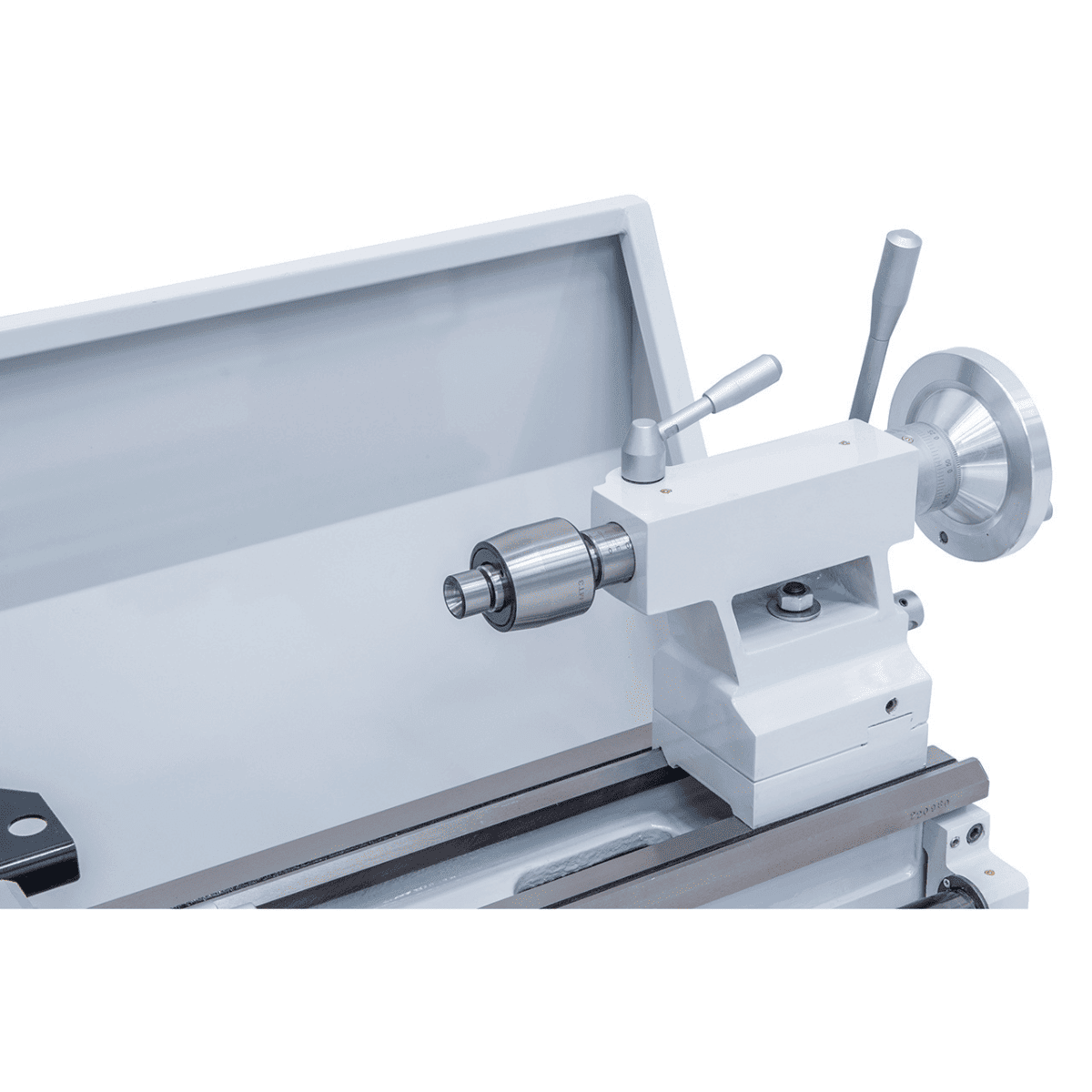

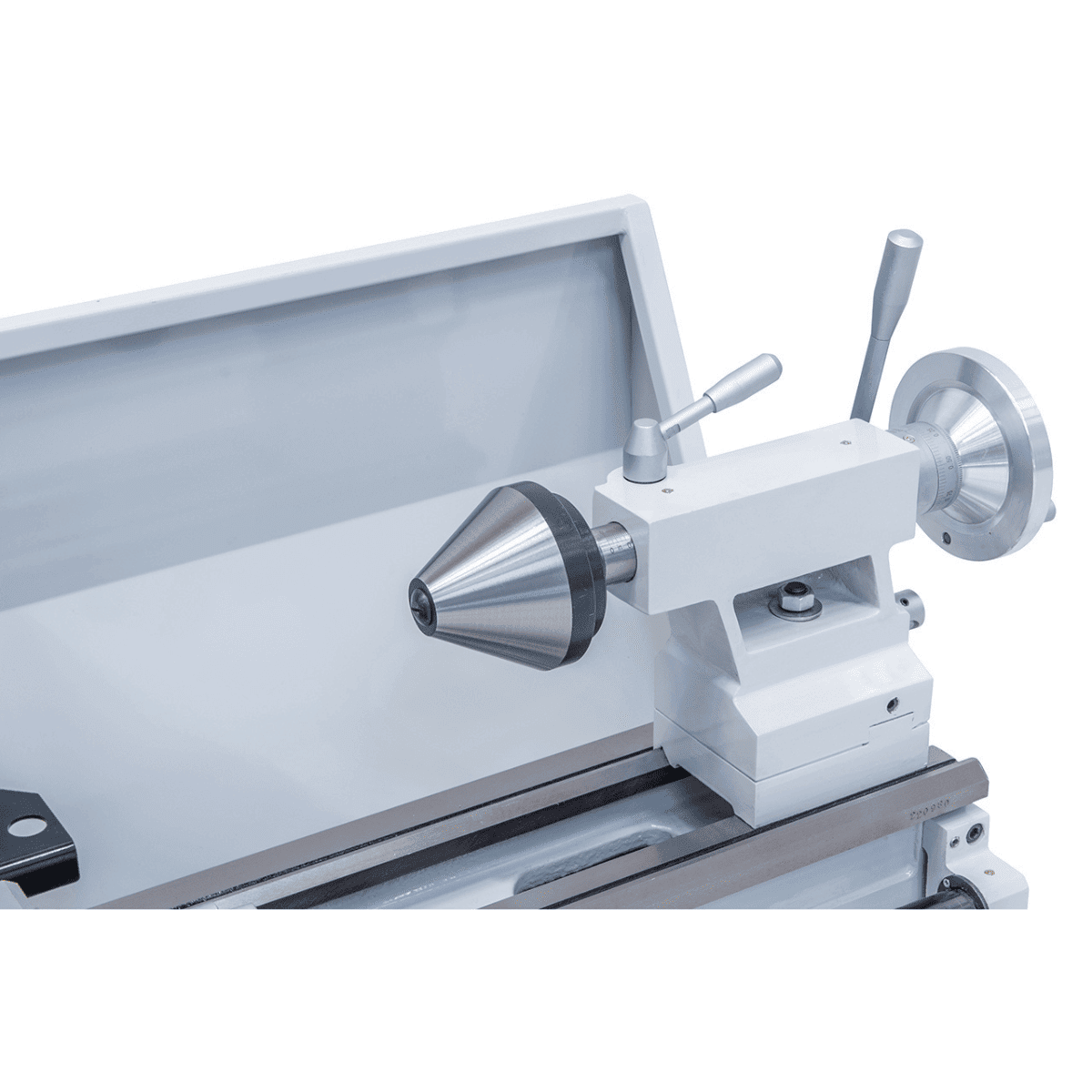

| Tailstock taper |
CM3 |
| Tailstock quill travel |
75 mm |
| Motor power (S1) |
1.1 kW (230 V or 400 V) |
| Motor power (S6) |
1.5 kW (230 V or 400 V) |
Frequently asked questions
What materials can the Hobby 800 G 230 V work on?
Mild steels, alloy steels, cast iron, brass, and aluminum within the cutting depth limits indicated in the technical specifications.
For hardened or high-strength alloy steels, it is advisable to reduce cutting speed and depth of cut. The machine is dimensioned for general mechanical production; for special alloys, check the compatibility of the spindle and tailstock Morse taper.
What is included in the standard equipment?

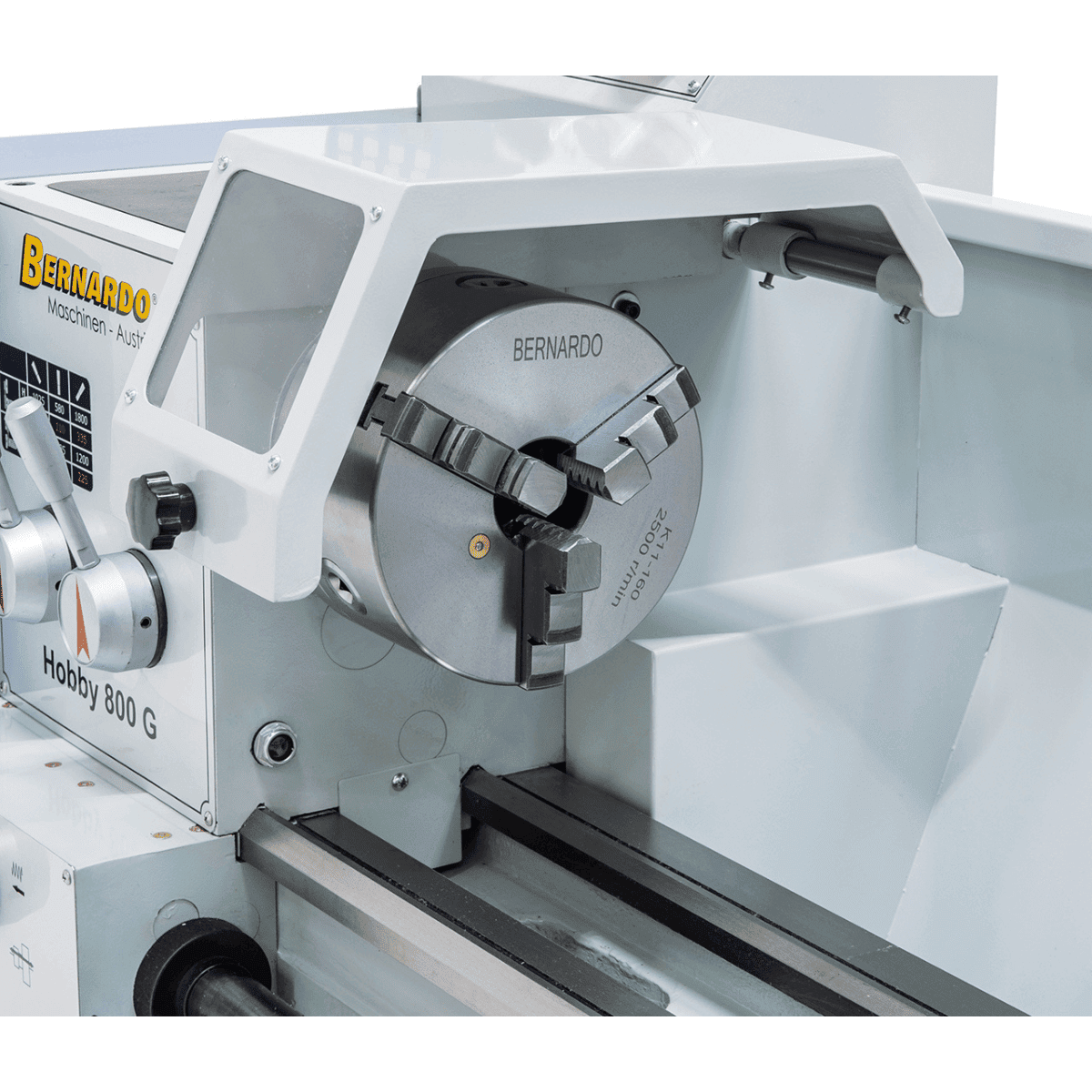

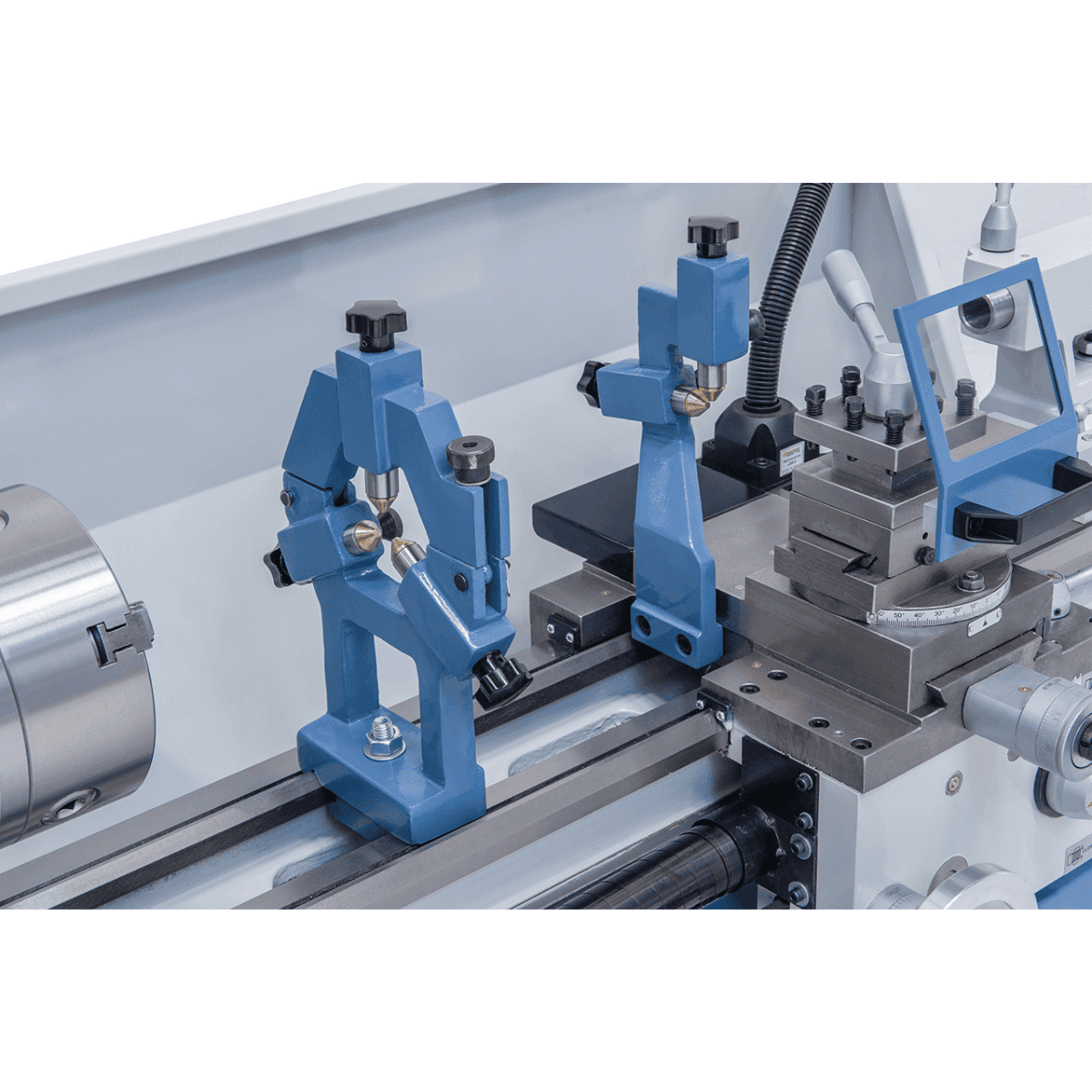

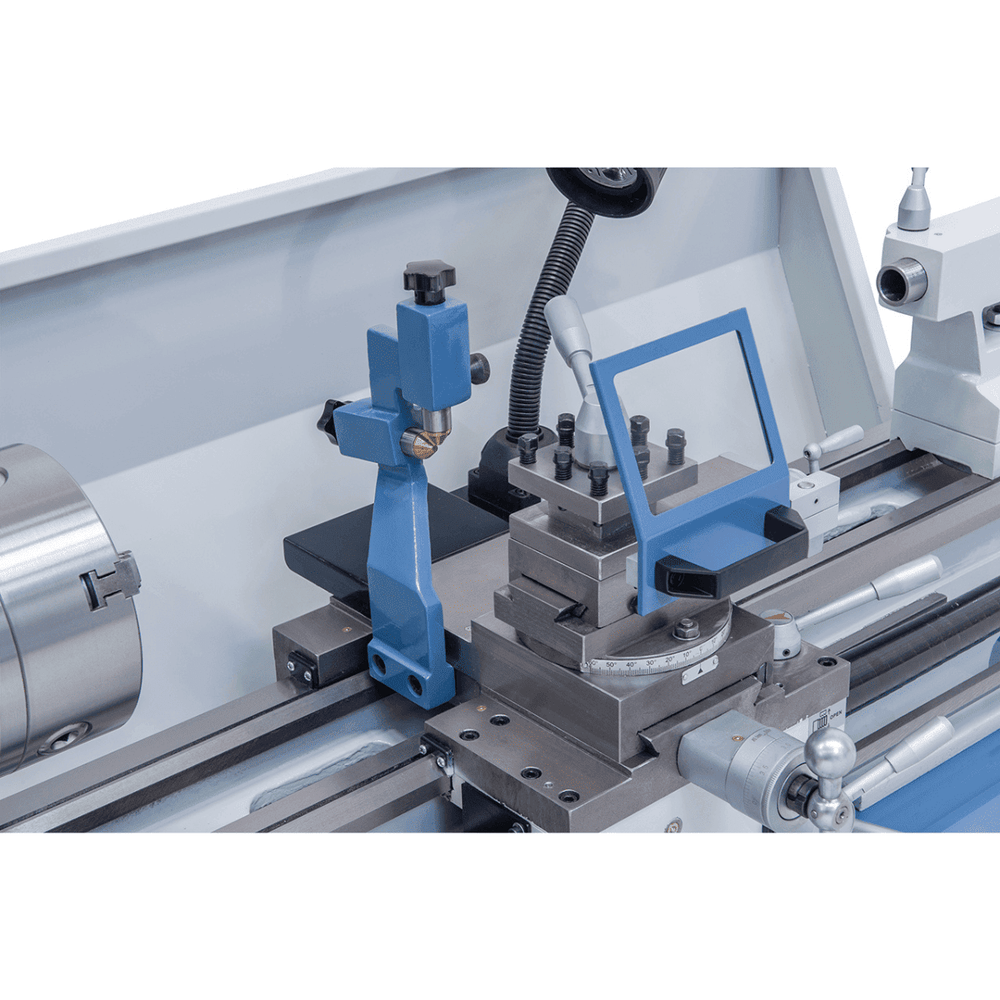

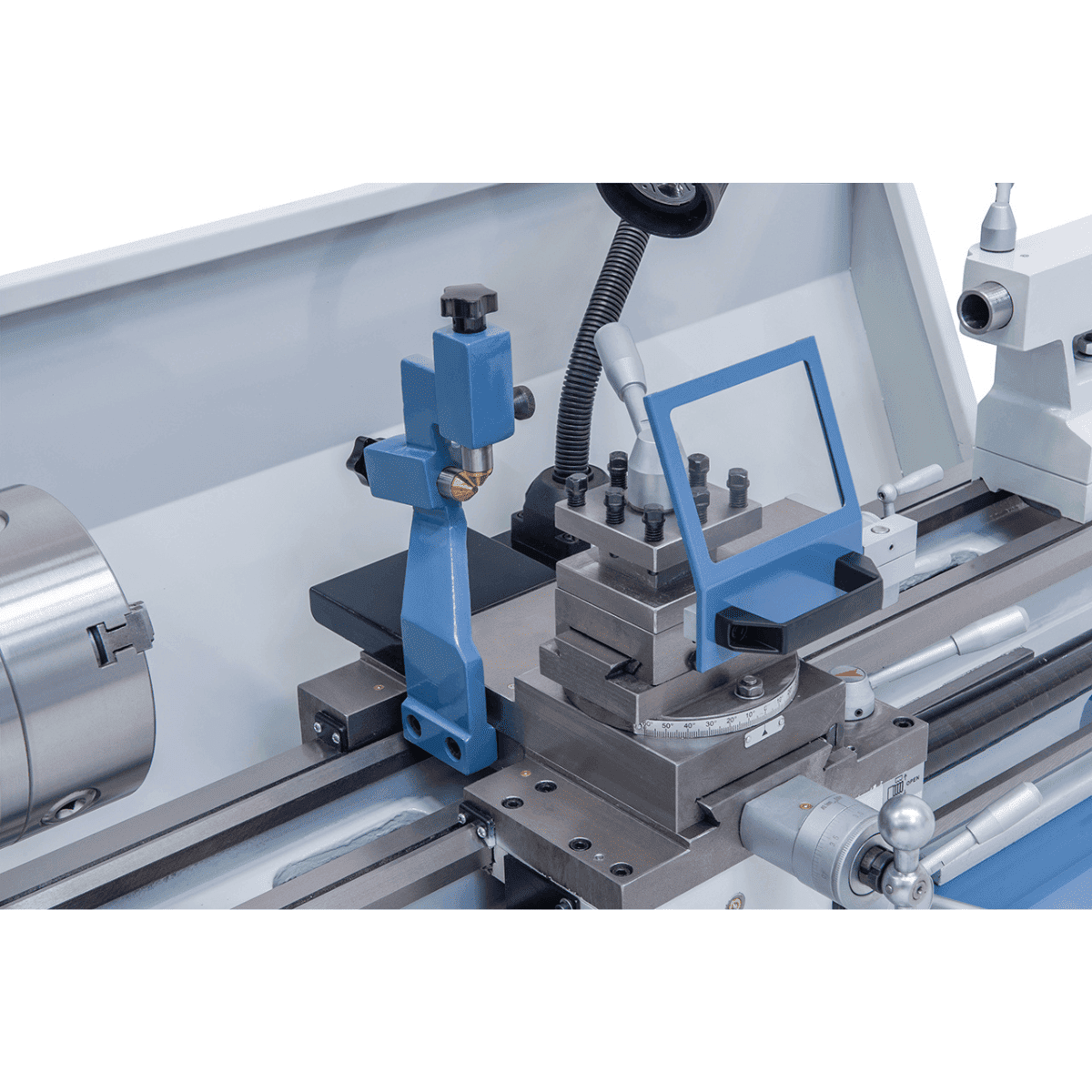

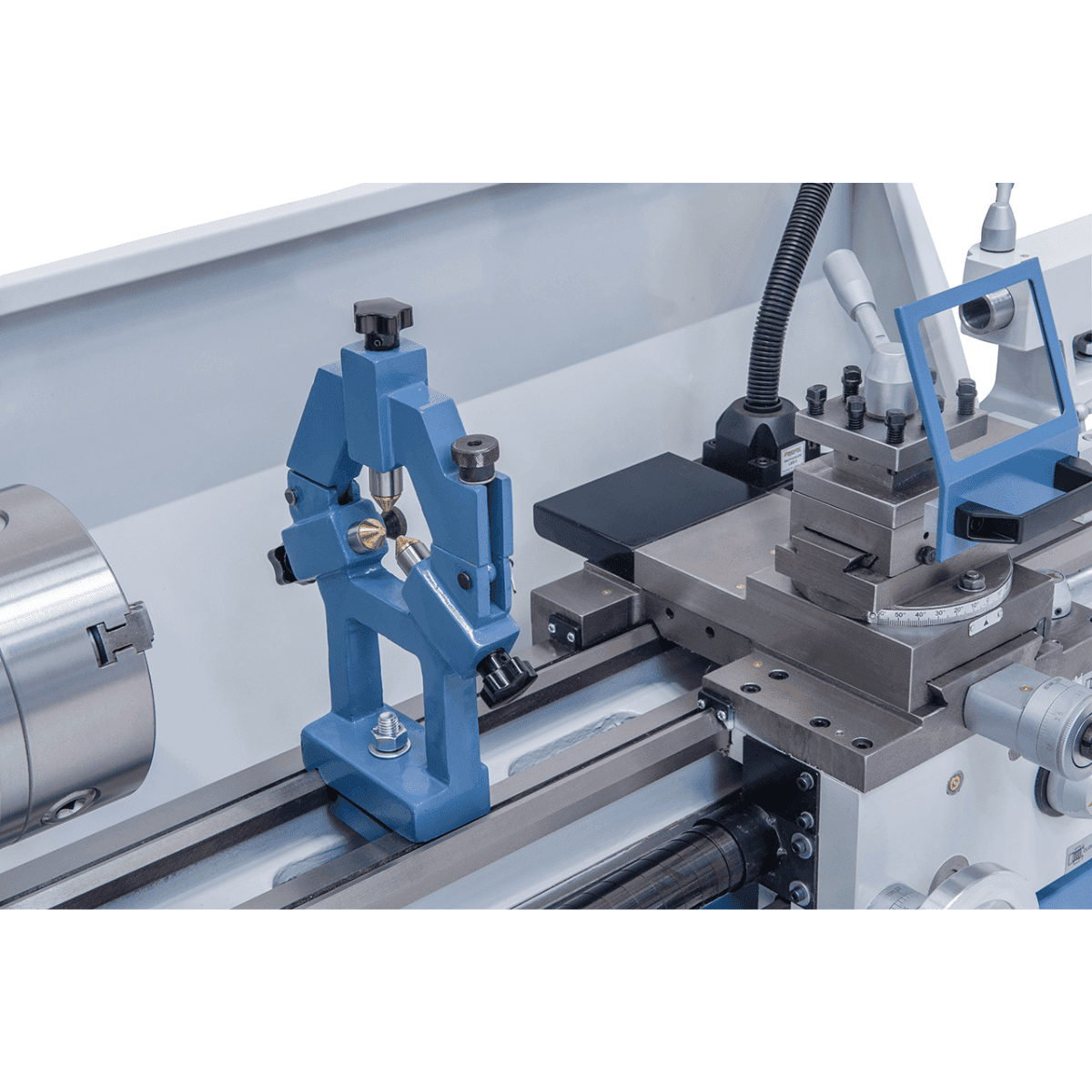

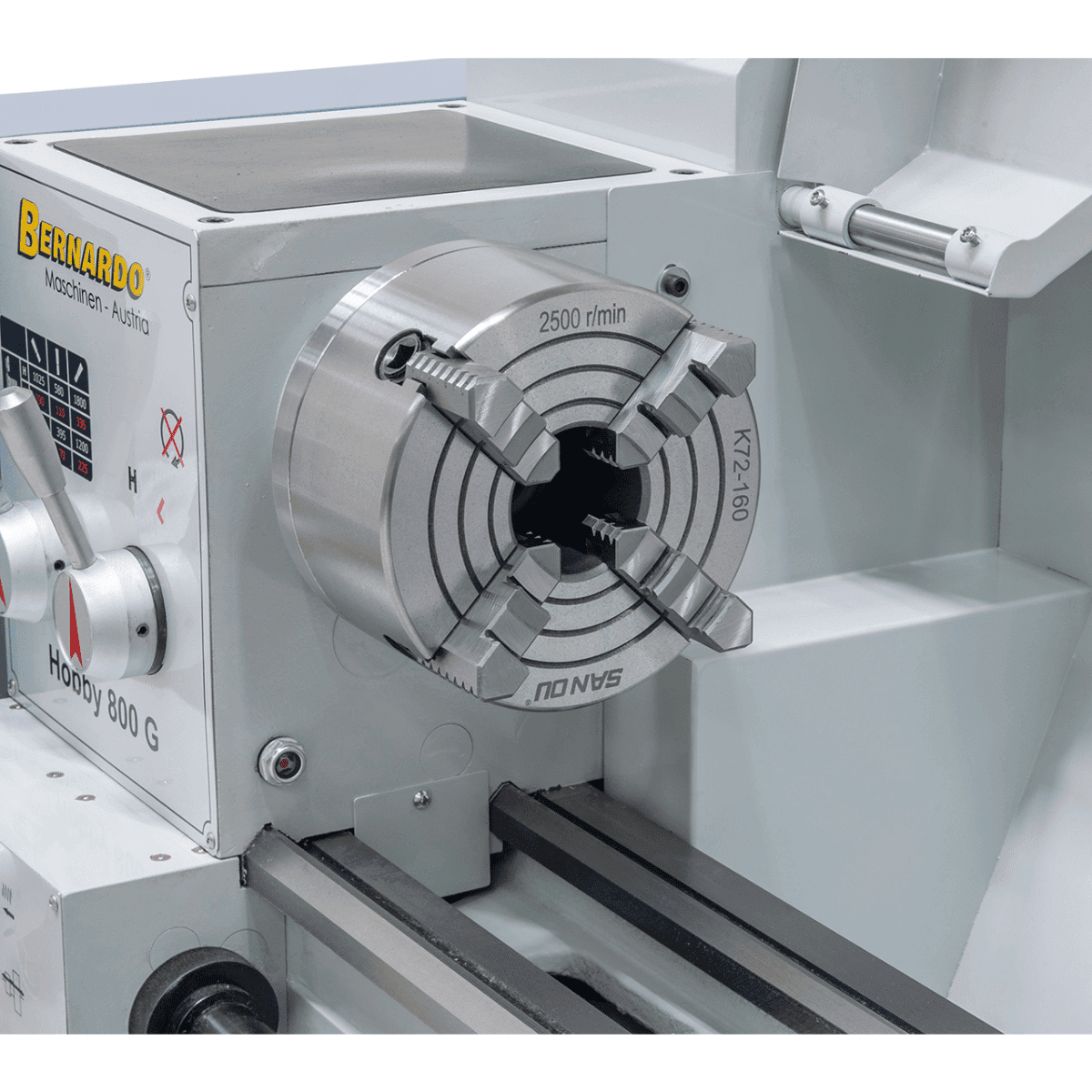

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a set of wrenches.
For the exact list of accessories and spare parts supplied, consult the manufacturer's technical sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 business days.
What type of power supply does it require?
See the voltage data in the technical table. Compact benchtop machines are often 230 V single-phase, professional models 400 V three-phase.
For 400 V three-phase models, an industrial electrical line is required. Verify the presence of adequate power supply in the workshop before purchase.
Is the machine suitable for series production?
It depends on the model class: professional Bernardo lathes handle continuous cycles, while benchtop models are suitable for medium use.
Profi and Apollo models are designed for intensive multi-shift use; the Hobby and Goliath series for occasional use or small workshops.
How much does it weigh and what installation does it require?
Weight varies significantly by model: see "Weight" in the technical table.
Machines over 500 kg require industrial flooring and fastening with anchors. Benchtop models up to 100 kg are installed on a sturdy workbench with an adequately sized top.
