Description

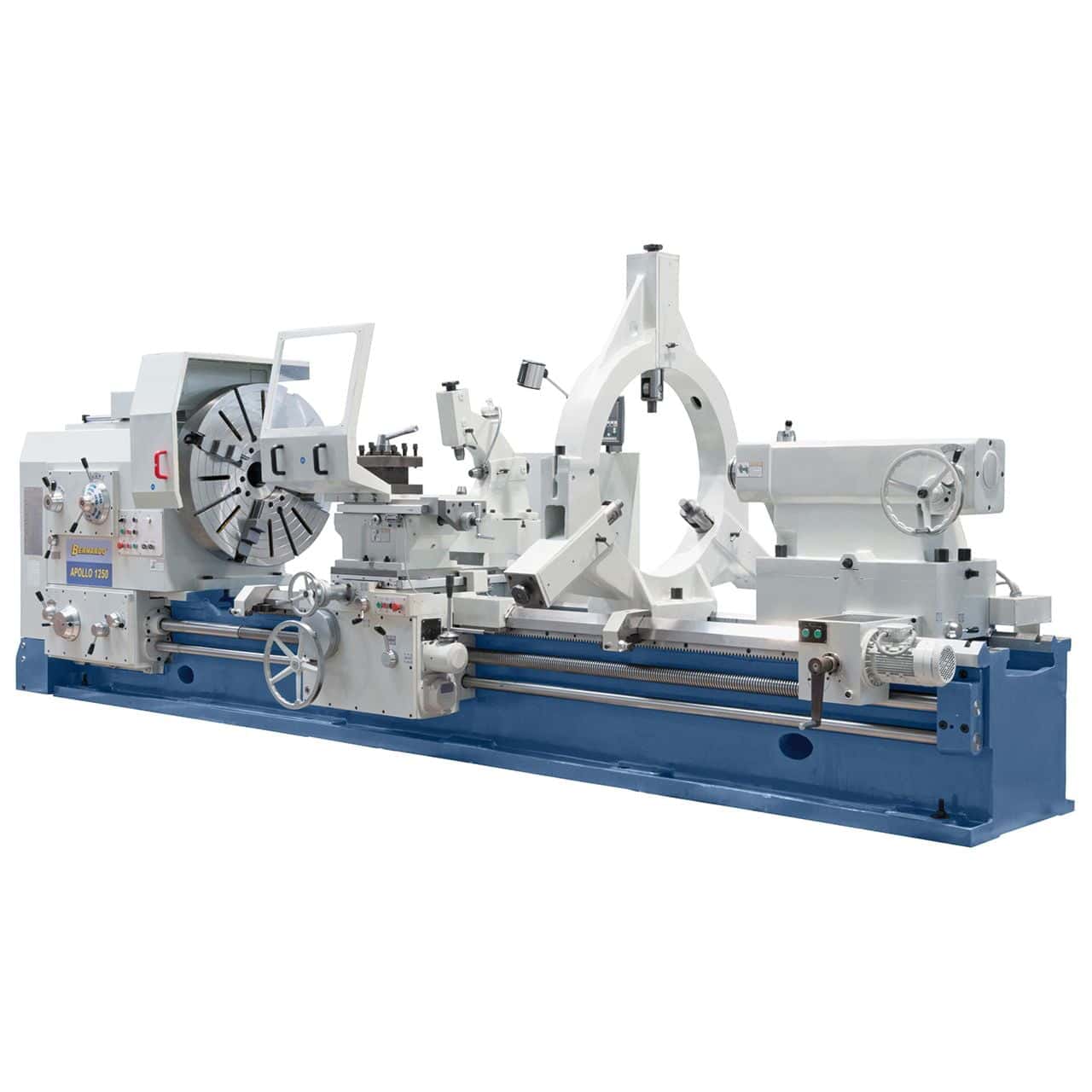

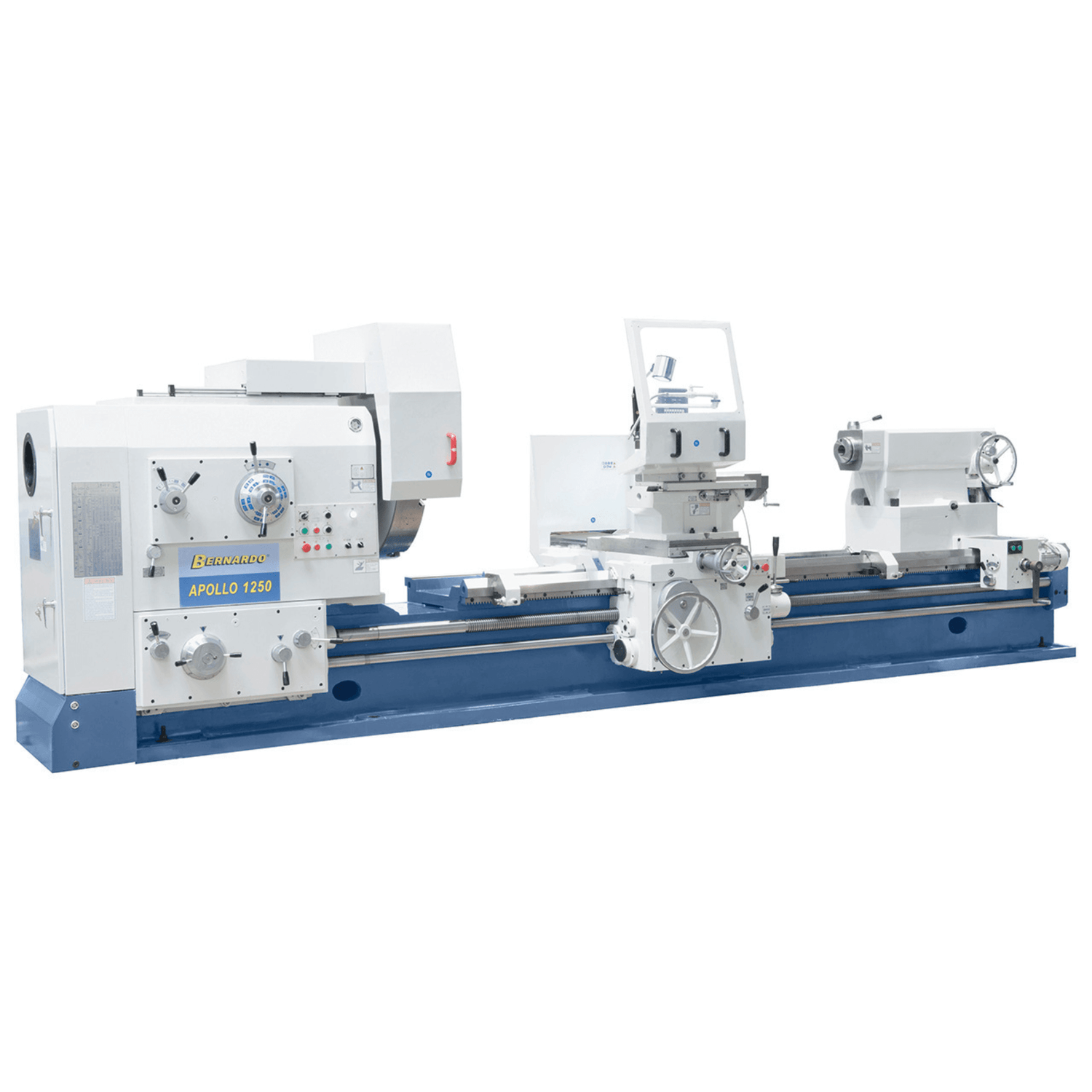

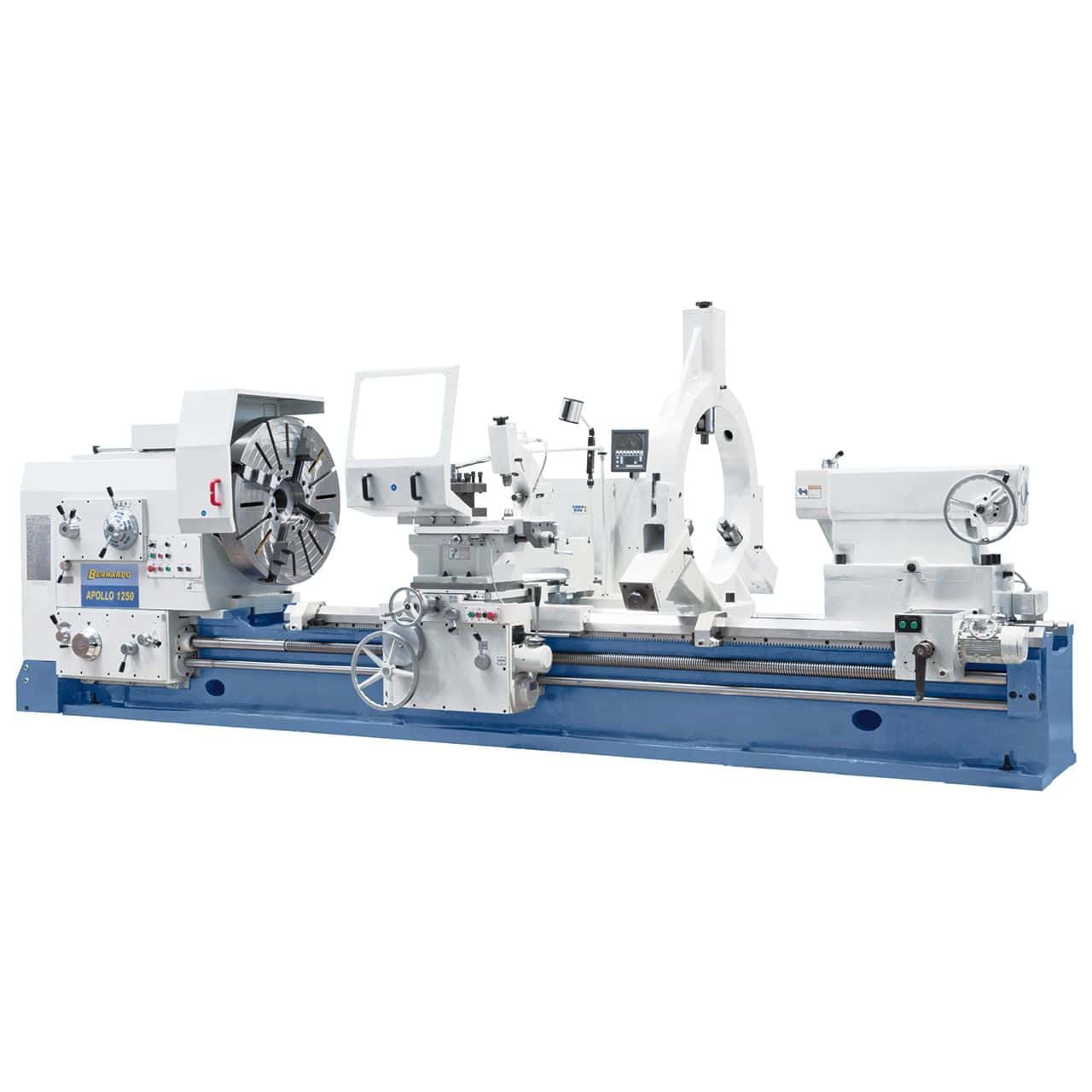

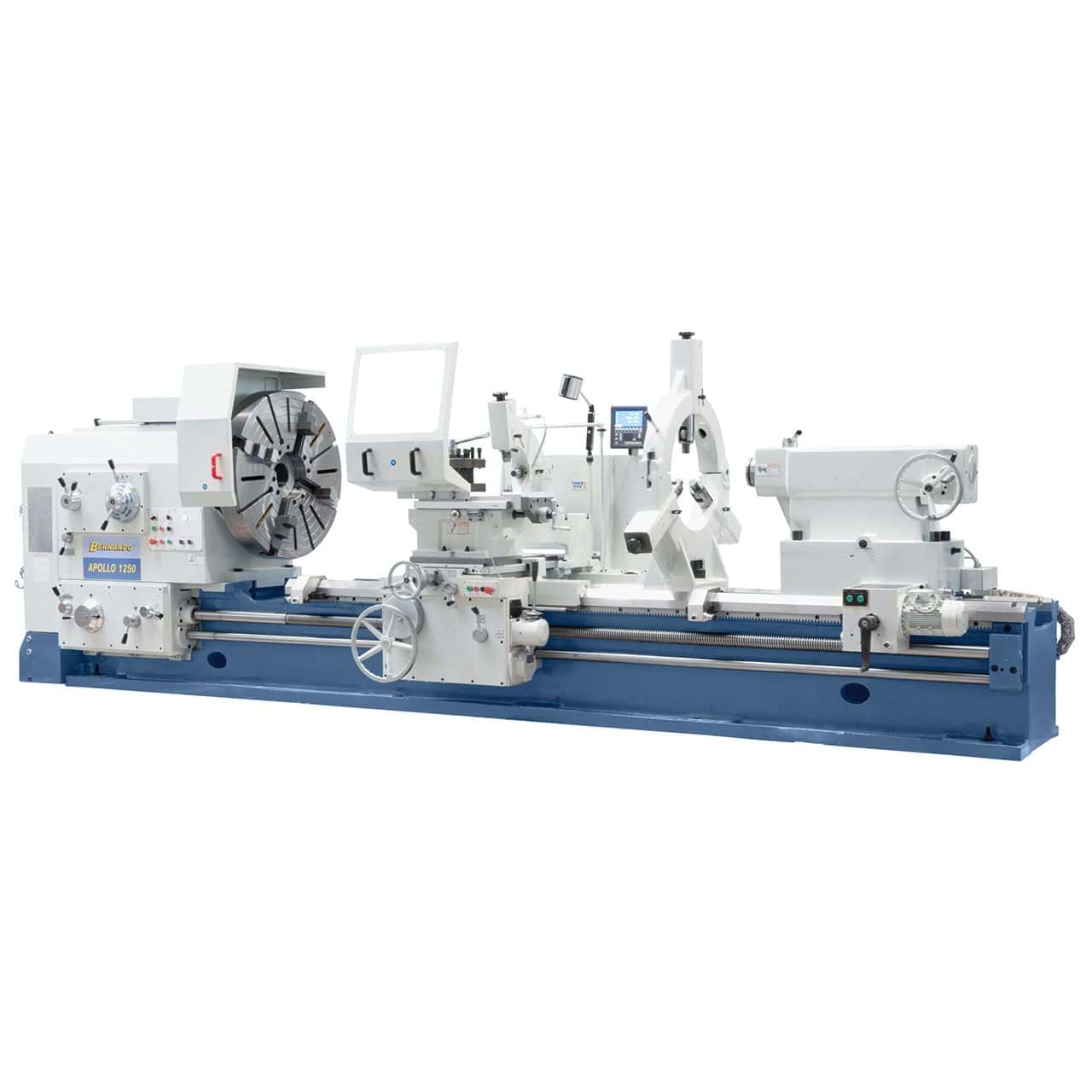

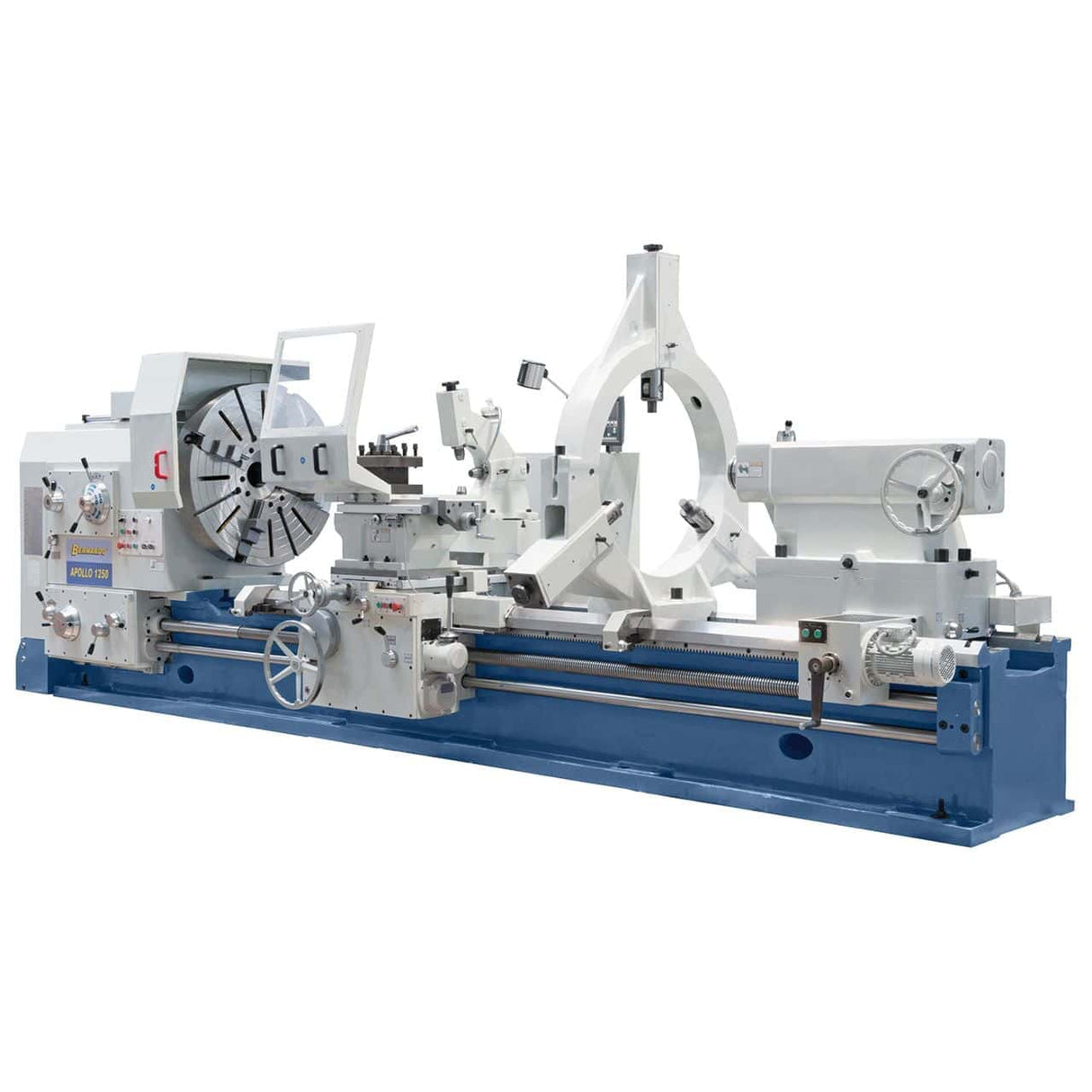

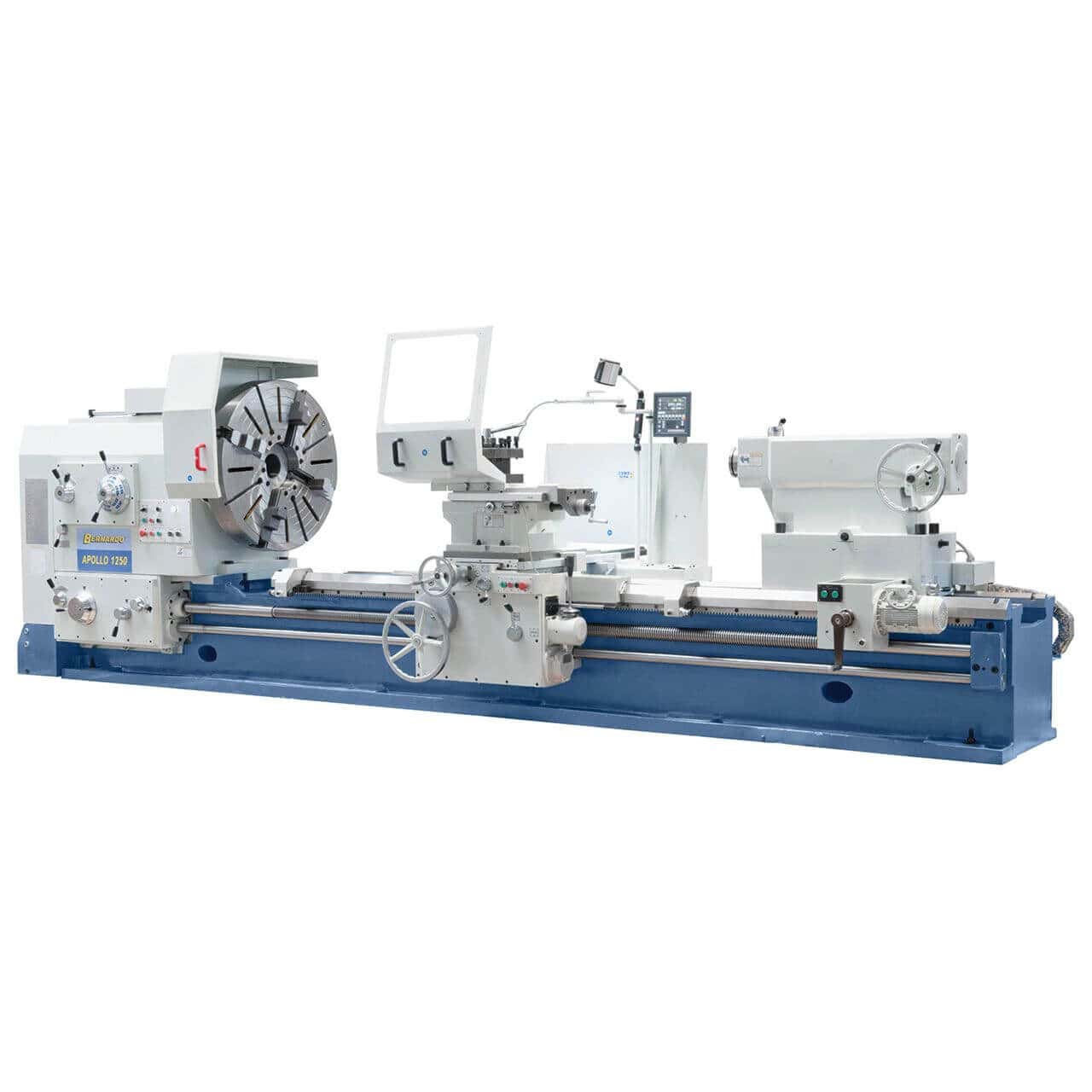

The Bernardo APOLLO 1000 × 1500 bed lathe turns diameters up to Ø 1,000 mm on the bed (Ø 650 mm over the carriage), distance between centers 1500 mm, spindle bore 130 mm, ISO A2-15 spindle nose, 24 forward speeds (3.15–315 rpm) + 12 reverse, X/Z feeds from 0.064–12 / 0.032–6 mm/rev, 3-axis digital readout included as standard. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Distance between centers: 1500 mm
- Swing over bed: Ø 1,000 mm
- Swing over carriage: Ø 650 mm
- Spindle bore: 130 mm
- Spindle nose: ISO A2-15
- Spindle speeds: (24) 3.15–315 rpm / (12) 5–400 rpm
- Max workpiece weight: 6,000 kg
- Z-axis travel: 1300 mm
- Digital readout: 3-axis as standard
Who uses the APOLLO 1000 × 1500 and for what
The Bernardo APOLLO 1000 × 1500 is a parallel workshop lathe for machining large workpieces: with Ø 1,000 mm over the bed and a distance between centers of 1500 mm, it handles shafts, rollers, flanges, and structural components that do not fit into standard 500–600 mm lathes. The 130 mm spindle bore allows large diameter bars to pass through. The 3-axis digital readout included as standard eliminates reading times and improves repeatability of dimensions. The speed range from 3.15 to 400 rpm covers everything from heavy turning with large tools to precision finishing. In Krollit customers' workshops, it is used by industrial repair shops, equipment manufacturers, and machining centers for large components.
Who is the Bernardo APOLLO 1000 × 1500 for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist | Not suitable | Large industrial lathe not suitable for hobby use. |
| Professional machine shop | Ideal | Ø 1,000 mm, 1500 mm between centers, workpiece weight up to 6,000 kg: for machining large components that standard lathes cannot handle. |
| Industrial production | Ideal | 3-axis digital readout, 24 speeds, full threading range: the lathe for repair and production workshops for large components. |
Not suitable for: pieces over Ø 1,000 mm; hobby use; workshops without experience in turning large machines.
Working capacity
| Specification | Value |
|---|---|
| Distance between centers | 1500 mm |
| Swing over bed | Ø 1,000 mm |
| Swing over carriage | Ø 650 mm |
| Bed width | 755 mm |
| Max workpiece weight | 6,000 kg |
Spindle and speeds
| Specification | Value |
|---|---|
| Spindle bore | 130 mm |
| Spindle nose | ISO A2-15 |
| Top slide inclination | ±180° |
| Spindle speeds (forward) | (24) 3.15–315 rpm |
| Spindle speeds (reverse) | (12) 5–400 rpm |
Feeds and threads
| Specification | Value |
|---|---|
| X-axis travel | 510 mm |
| Z-axis travel | 1300 mm |
| Z1-axis travel | 300 mm |
| X / Z / Z1 feeds | 0.064–12 / 0.032–6 / 0.016–3 mm/rev |
| X / Z rapid feeds | 1,870 / 3,740 mm/min |
| Metric threads | (45) 1–120 mm |
| Diametral threads | (42) 30–1/4 DP |
| Module threads | (46) 0.5–60 mm |
| Whitworth threads | (48) 0.5–60 GPZ |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). Large machine and heavy weight: coordinate with Krollit for unloading equipment and foundation before delivery. Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions

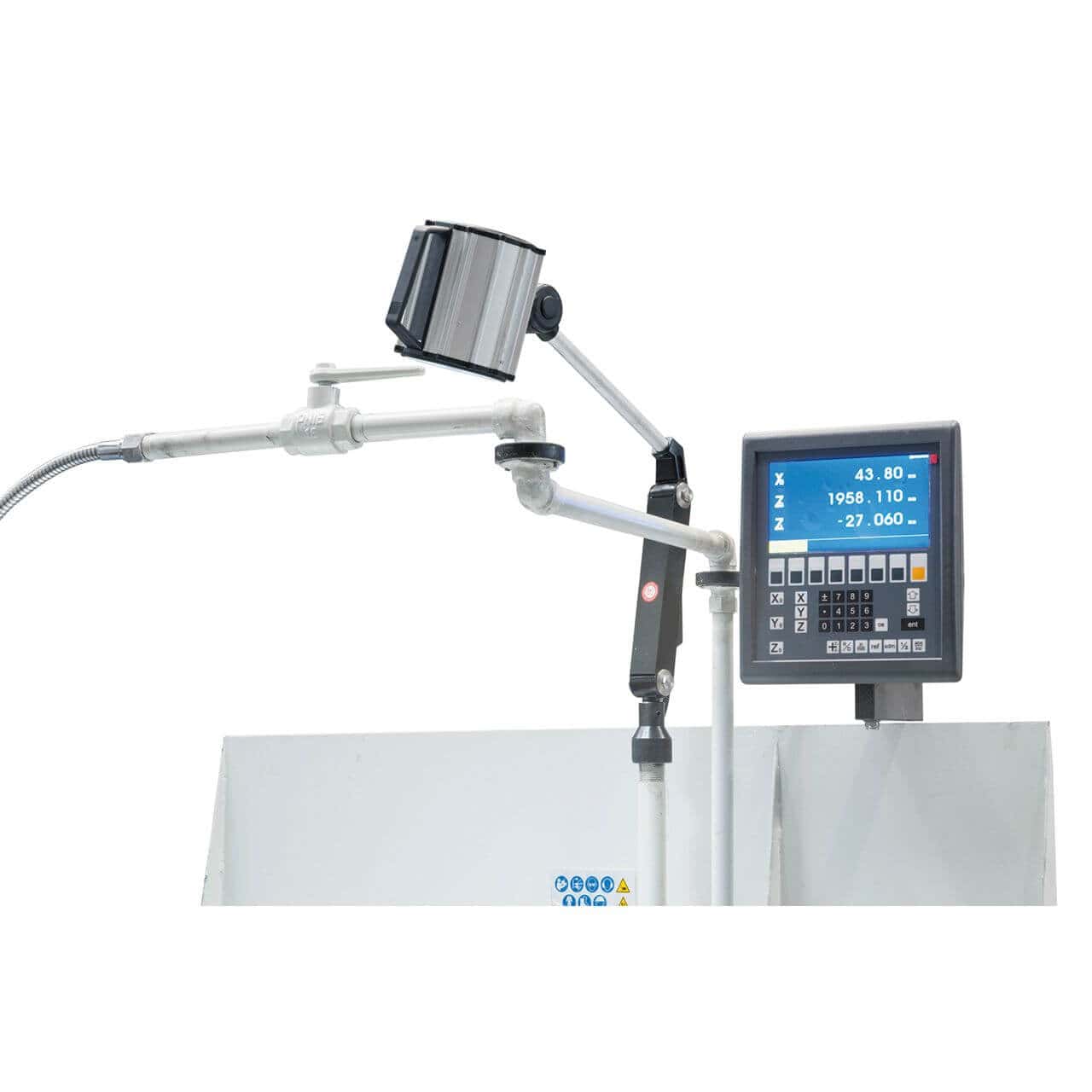

What does the standard 3-axis digital readout include?
The digital readout measures and displays the positions of the X (transverse), Z (longitudinal), and Z1 (top slide) axes in real time with a resolution of 0.001 mm. It allows you to zero the position at any reference point and directly read the target dimension without manual calculations. It significantly reduces reading errors and setup times compared to traditional nonius scales.
What is the difference between APOLLO 1000 × 1500, × 3000, and × 5000?
The three models have the same specifications for Ø (1,000 mm), spindle (ISO A2-15, 130 mm bore), speeds, and feeds. They differ only in the distance between centers (1,500, 3,000, 5,000 mm) and consequently in the Z-axis travel (1,300, 2,800, 4,800 mm). The choice depends on the maximum length of the workpieces to be turned.
What diameter bars can the 130 mm spindle bore accommodate?
The 130 mm spindle bore allows bars up to approximately Ø 125–127 mm to pass through (with clearance tolerance). For large section bars, this feature is essential for working long pieces without having to cut them beforehand.
Is assistance and spare parts available in Italian?
Customer support in Italian is available. Original Bernardo spare parts with 3–5 working days shipping.
What kind of foundation does a lathe of this size require?
A lathe with a workpiece weight of up to 6,000 kg and a 1500 mm bed requires a reinforced concrete foundation designed by a structural engineer for the specific site. Coordinate with Krollit for machine weight specifications and anchoring guidelines before ordering.
