Description

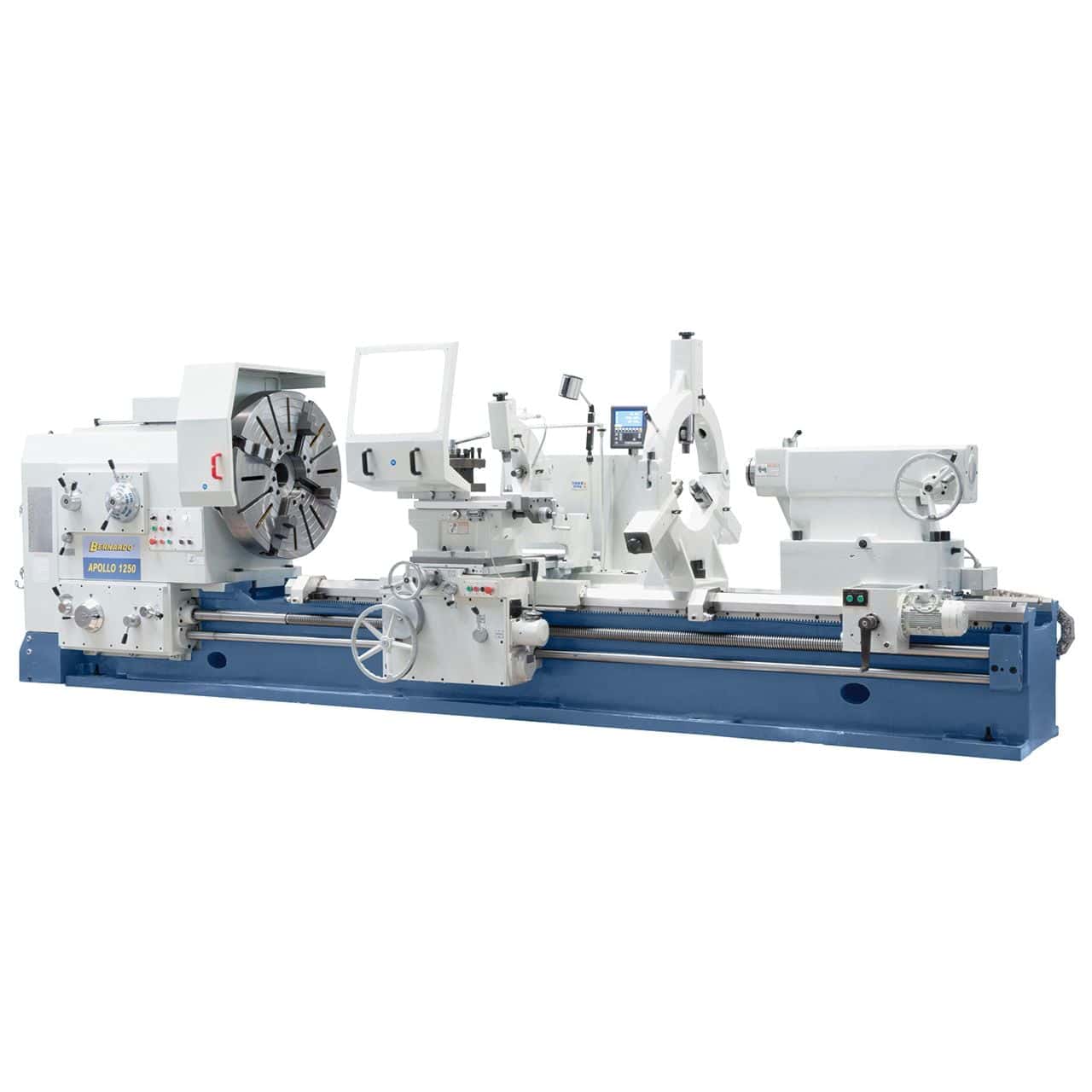

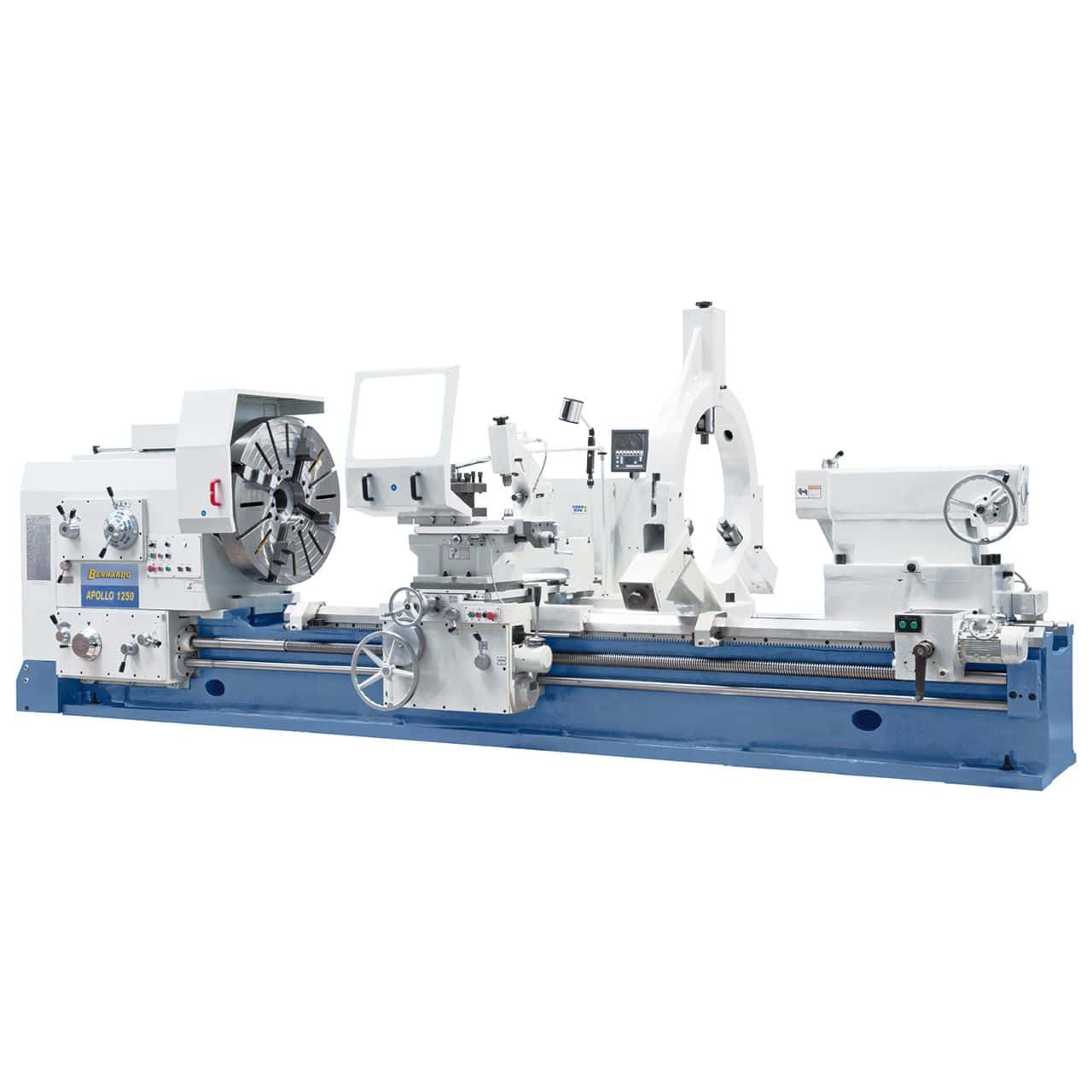

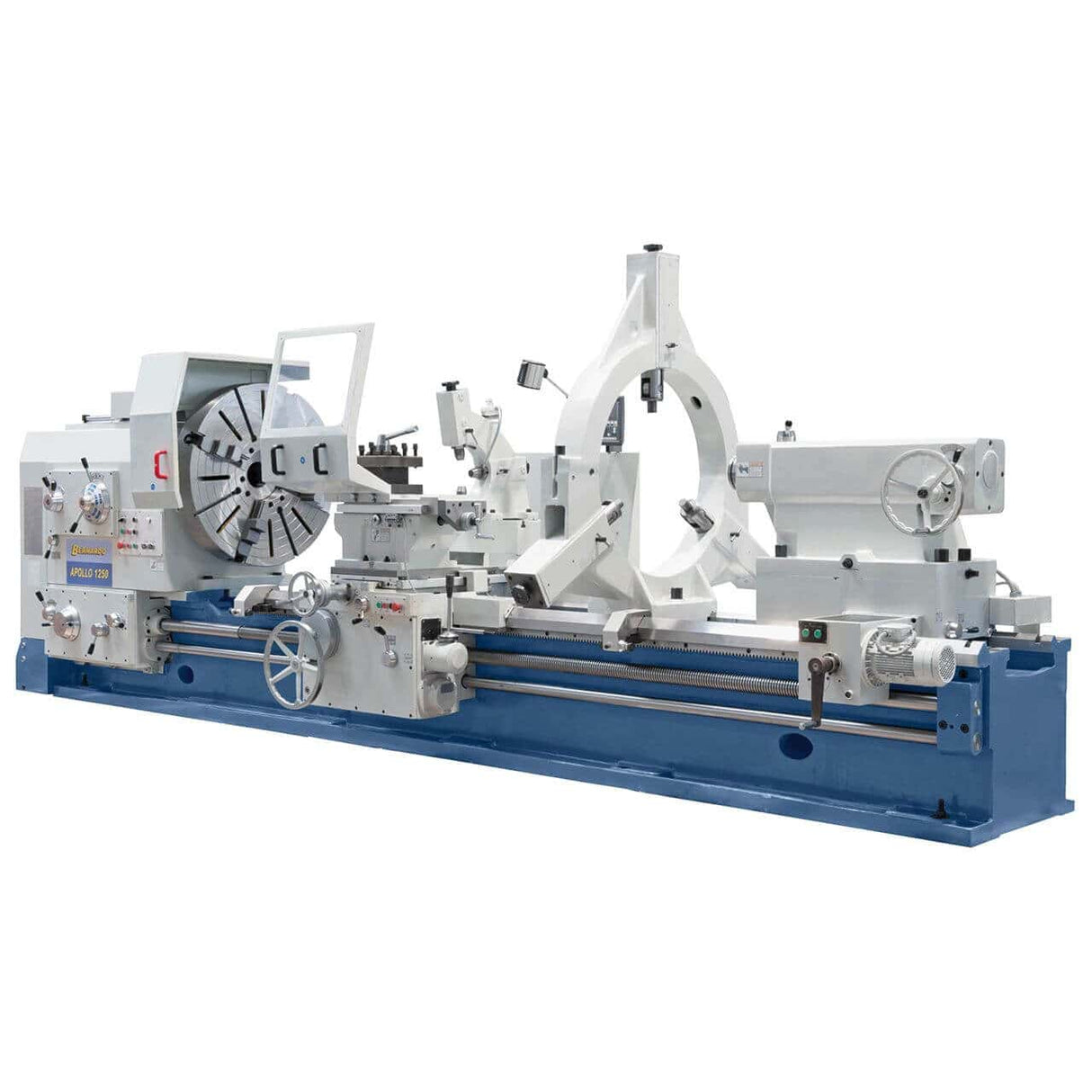

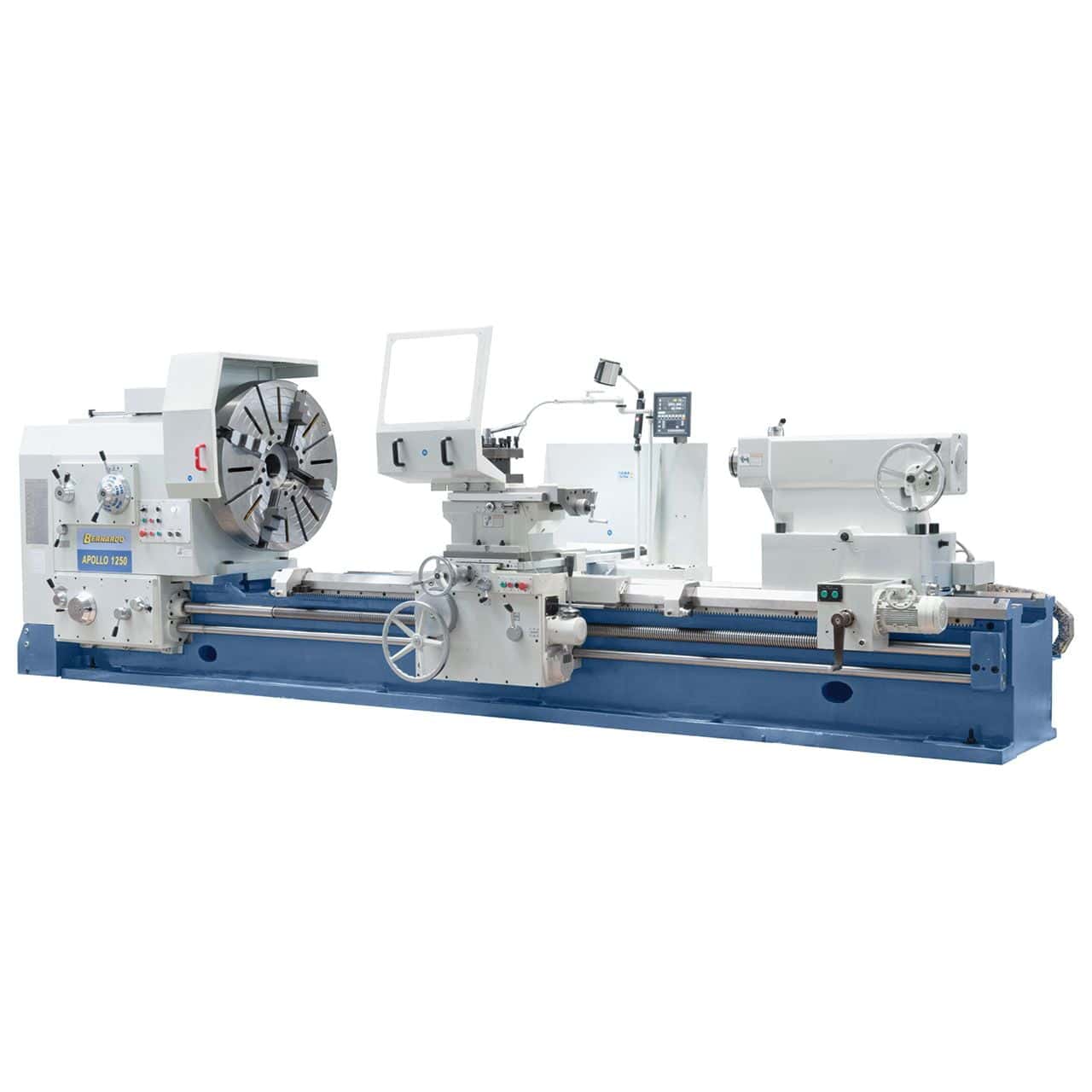

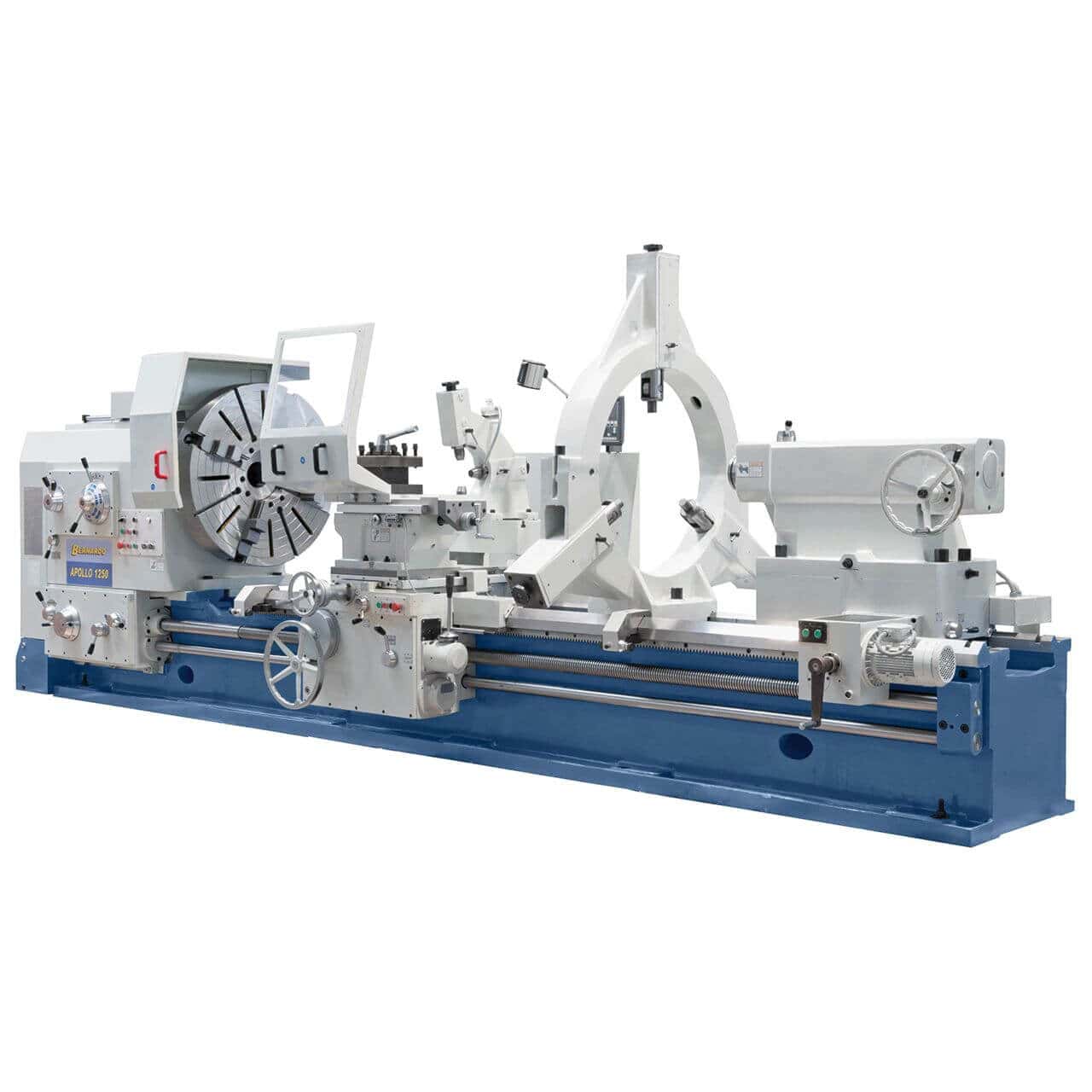

The Bernardo Apollo 2000 x 3000 heavy-duty lathe is the heavy industrial model in the Apollo family. It offers a distance between centers of 3000 mm, a swing over bed of 2000 mm, a swing over cross slide of 1500 mm, a maximum swing in gap of 2300 mm, a bed width of 1100 mm, an MT 7 spindle taper with a 130 mm bore, spindle speeds of 2-400 rpm with gear change, and a 22-30 kW 400V three-phase motor (depending on configuration). An ES-12 V 3-axis digital readout is included, and it features a solid cast iron construction. Machine weight approx. 23,500 kg. Suitable for the shipbuilding, energy, and heavy mechanical sectors. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Distance between centers: 3000 mm
- Swing over bed: 2000 mm
- Swing over cross slide: 1500 mm
- Maximum swing in gap: 2300 mm
- Bed width: 1100 mm
- Spindle taper: MT 7 with 130 mm bore
- Motor: 22-30 kW – 400V three-phase (configuration)
- Machine weight: approx. 23,500 kg
Who uses the Apollo 2000 x 3000 and for what
The Bernardo Apollo 2000 x 3000 is one of the heavy-duty industrial lathes in the Apollo range, featuring 3,000 mm between centers with a 2,000 mm swing over bed and a 2,300 mm gap. The reinforced bed with a width of 1100 mm and the MT 7 spindle taper define its operating range: machining shafts, profiles, and cylindrical parts for heavy industrial workshops with large workpieces. The configuration with 2-400 rpm gear change, MT 7 taper, and 22-30 kW motor (selectable in configuration) represents the top of the Apollo range for heavy industrial applications. The maximum swing in gap of 2,300 mm handles industrial flanges, large discs, and heavy machinery gears. In Krollit's customer workshops, the Apollo 2000 x 3000 is chosen by industrial mechanical workshops, shipyards for shaft repair and reconstruction, manufacturers of turbine and generator components, and specialized workshops for precision turning of heavy parts.
Its place in the Bernardo range
The Bernardo Apollo family is a line of heavy-duty lathes for industrial applications. It comprises 12 models organized by swing over bed (1000, 1250, 1600, 2000 mm) and distance between centers (1,500, 2,000, 3,000, 5,000, 8,000 mm). The heavy-duty industrial 2000 family (this model, top of the range): MT 7 taper, 1,100 mm bed, 22-30 kW motor (selectable), 2-400 rpm spindle speed with gear change, 2,000 mm swing over bed, 2,300 mm maximum swing in gap. The absolute top of the Bernardo Apollo range for industrial applications. Alongside the 2000 x 3000 in the same family: Apollo 2000 x 2000, Apollo 2000 x 5000, Apollo 2000 x 8000. The choice in the 2000 family depends exclusively on the length of typical workpieces: 2,000 mm distance between centers for short pieces, 3,000 mm for intermediate, 5,000-8,000 mm for long industrial pieces (nautical shafts, energy profiles).
Logistics and Krollit support

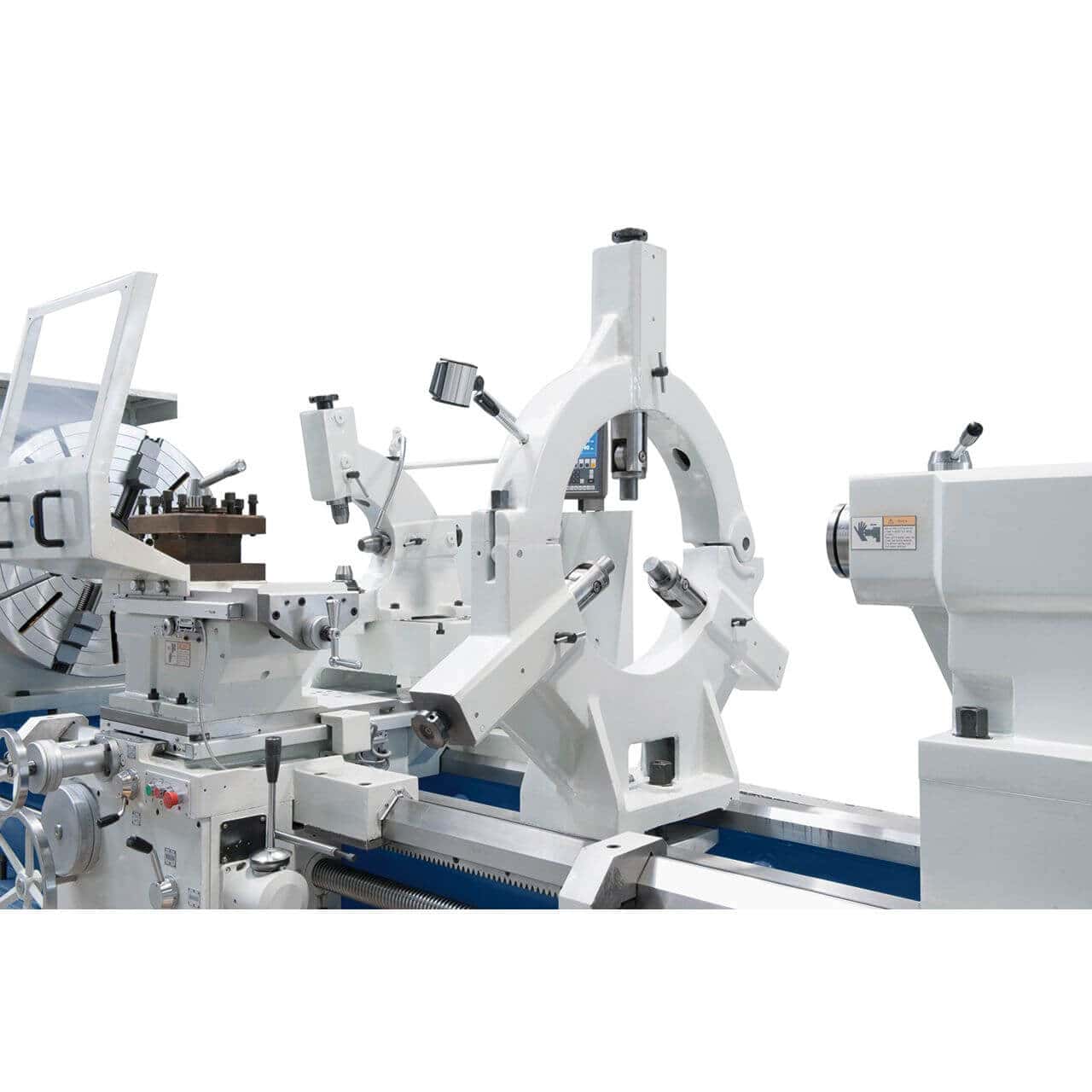

Bernardo shipping in 5-9 business days (7 days to the South of Italy). With a weight of approx. 23,500 kg, it requires a crane of adequate capacity, dimensioned industrial flooring, and a reinforced concrete foundation. Dimensions approx. 6.0 × 3.0 × 2.8 m: check workshop access, ceiling height, and transport routes in advance. Lunettes, tailstocks, self-centering chucks, and original Bernardo spare accessories available from stock with 3-5 business days shipping. Customer assistance available in Italian.
Who the Apollo 2000 x 3000 is for
| Profile | Compatibility | Reason |
|---|---|---|
| Passionate hobbyist | Not suitable | Heavy industrial machine with a weight of approx. 23,500 kg and industrial 400V three-phase line required. Exclusively high-level professional application. |
| Heavy industrial workshop | Recommended | 2000 mm swing over bed and 2300 mm swing in gap handle bulky workpieces. 1,100 mm bed, MT 7 taper, gear change dedicated to industrial torque. |
| Shipyard / heavy energy production | Recommended | Top-of-the-range configuration for large industrial workpieces: large diameter flanges, nautical shafts, heavy machinery drive wheels. 22-30 kW motor and gear change dedicated to high continuous torque. |
Not suitable for: workshops requiring workpieces within 1,600 mm diameter (the 1600 family is significantly less expensive with professional features); workshops without dimensioned industrial flooring and reinforced concrete foundation; high-cadence CNC series production; laboratories with limited access (machine weight requires cranes and dedicated routes).
Turning capacity
| Specification | Value |
|---|---|
| Distance between centers | 3000 mm |
| Swing over bed | 2000 mm |
| Swing over cross slide | 1500 mm |
| Maximum swing in gap | 2300 mm |
| Bed width | 1100 mm |
Spindle and speed
| Specification | Value |
|---|---|
| Spindle taper | MT 7 |
| Spindle bore | 130 mm |
| Spindle speed | 2-400 rpm with gear change |
Motor and power supply
| Specification | Value |
|---|---|
| Motor power | 22-30 kW (depending on configuration) |
| Power supply | 400V – 50Hz – three-phase |
Dimensions and weight
| Specification | Value |
|---|---|
| Machine dimensions (L × W × H) | approx. 6.0 × 3.0 × 2.8 m |
| Machine weight | approx. 23,500 kg |
Compliance
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Standard equipment
- Bernardo Apollo 2000 x 3000 Lathe
- 3-axis digital readout

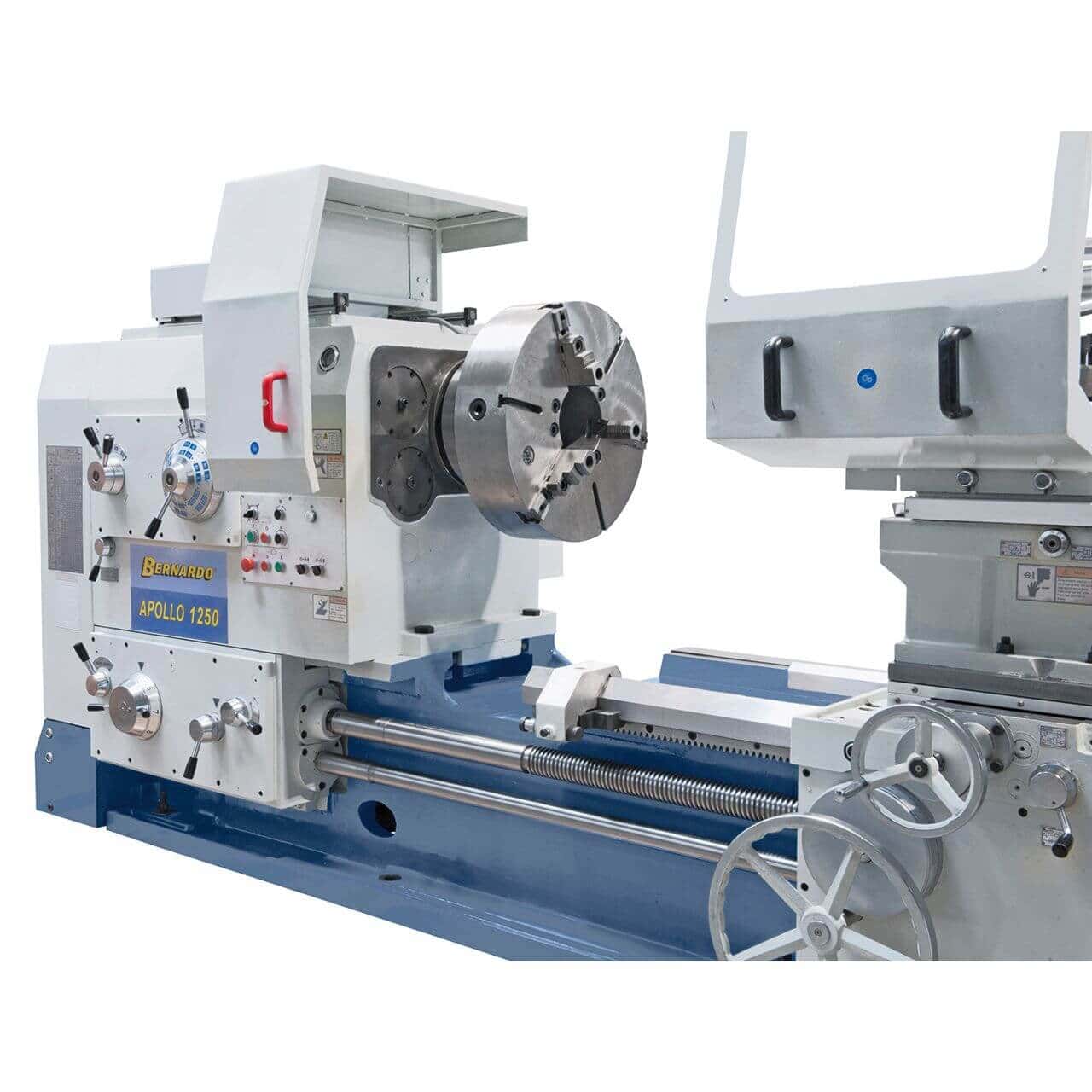

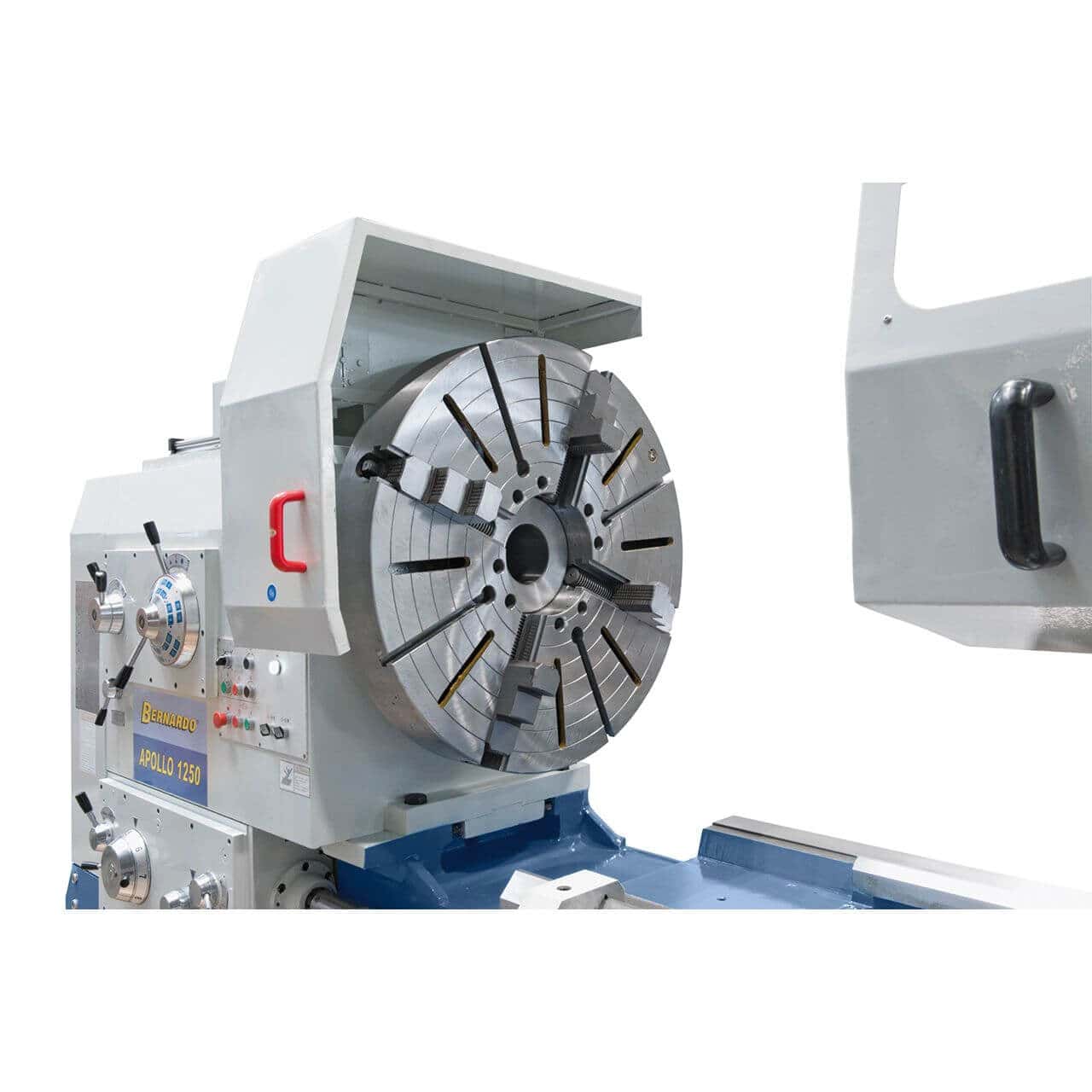

- 3-jaw self-centering chuck

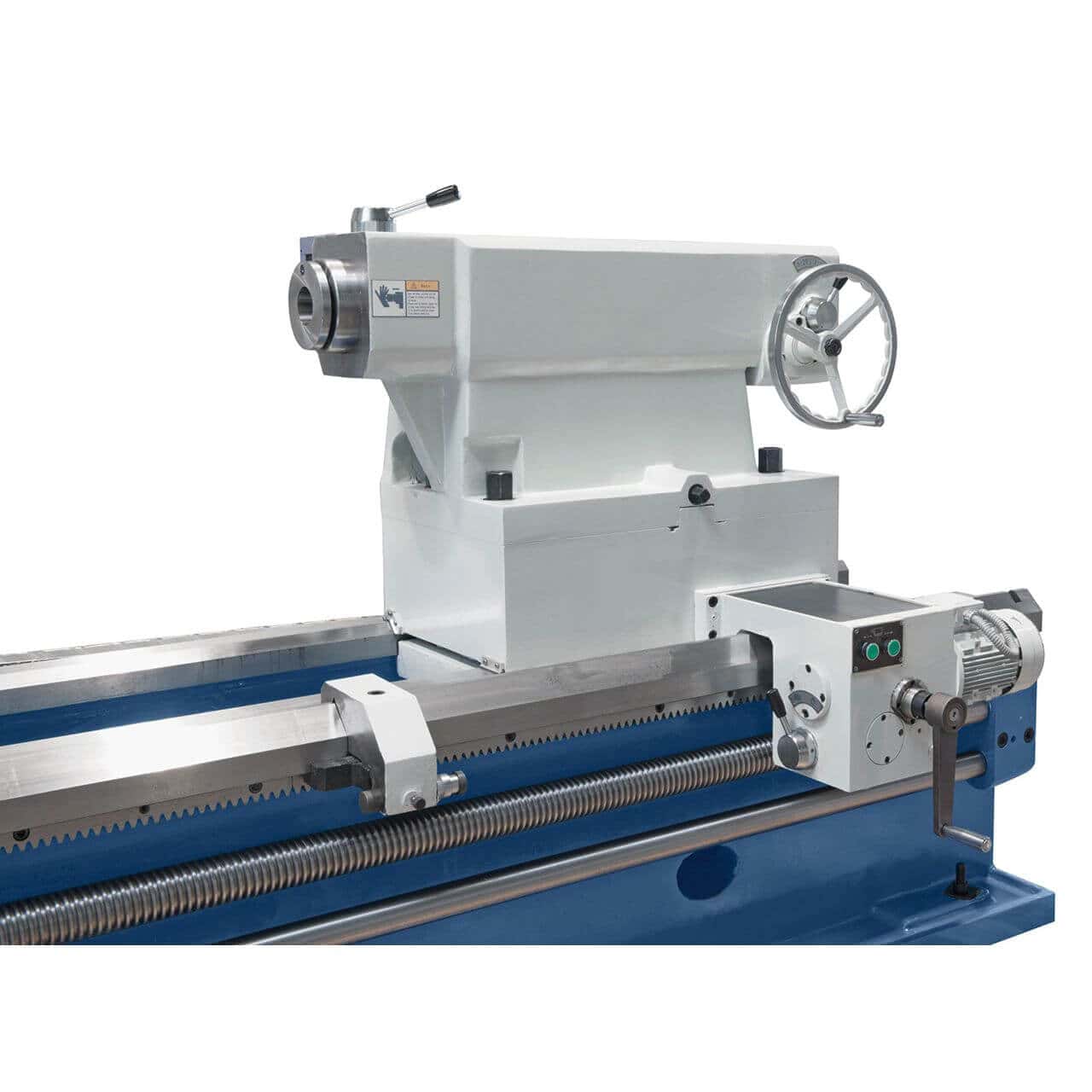

- Tailstock with CM 7 taper
- Set of gears for threading
- Service tools
Frequently Asked Questions
What are the typical areas of use for the Apollo 2000 x 3000?
Shipbuilding (nautical shafts, propellers, gearboxes), energy (turbine shafts, generators), heavy mechanical (cylinders, pulleys, gears). The 3000 mm distance between centers and 2000 mm swing over bed define the operating range.
Examples of typical workpieces: long transmission shafts (components for marine engines), large cylindrical profiles (components for industrial machinery), industrial pipe flanges. For specific workpieces, check the maximum diameter, length, and weight of the workpiece in relation to the machine's capabilities in advance.
What operating space does it require in the workshop?
Machine dimensions approx. 6.0 × 3.0 × 2.8 m. For operational use (loading/unloading workpieces, handling, maintenance access), a total area at least 1.5x the machine's dimensions is needed, with adequate ceiling height.
Installation requires industrial flooring or a reinforced concrete foundation sized for the machine's weight plus typical workpieces. For initial installation, it is recommended to consult a qualified installer for structural and site compliance assessment.

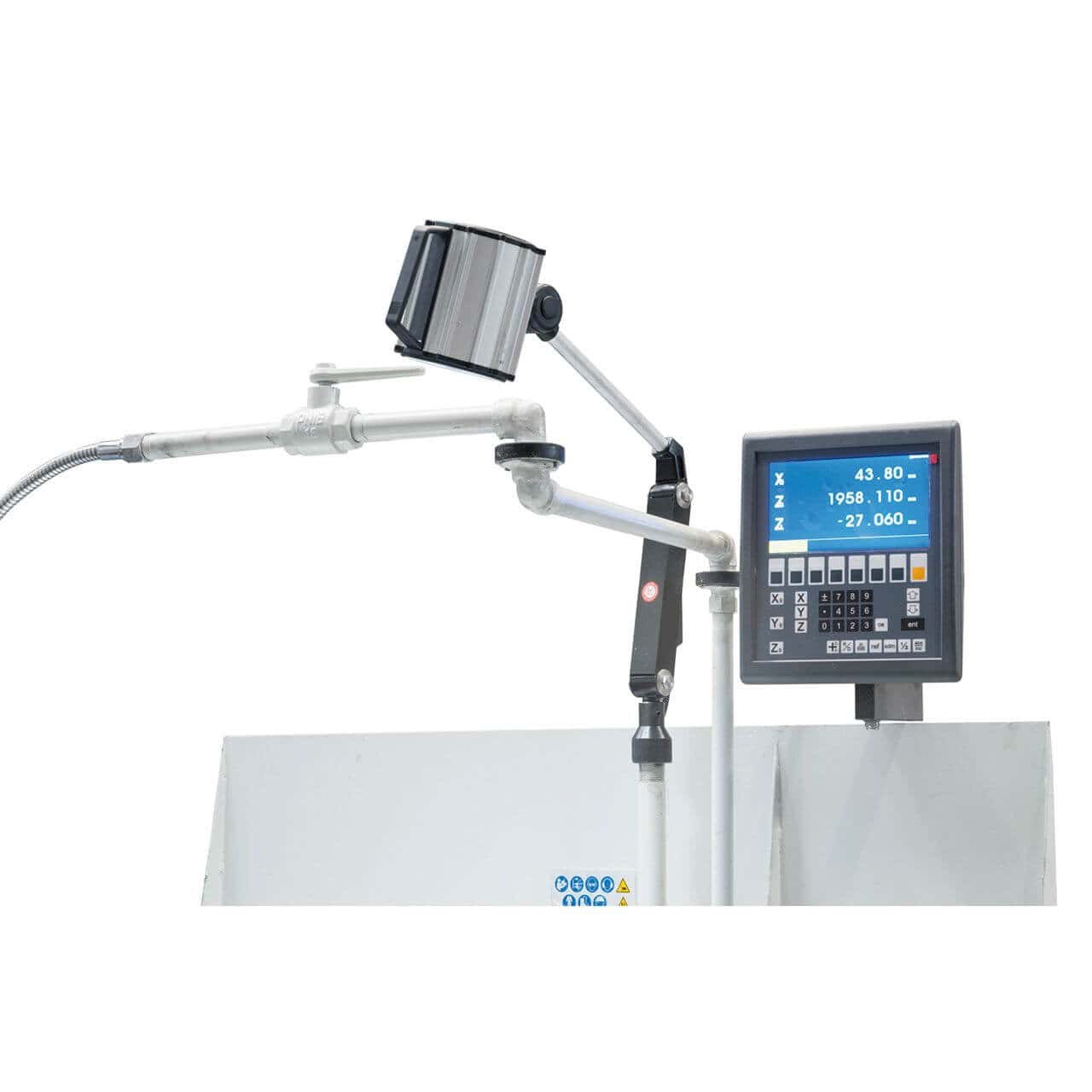

Is the ES-12 V 3-axis digital readout really necessary?
Yes, for precision production. The DRO shows the exact position of the axes in real-time to the hundredth of a millimeter, eliminating reading errors from graduated handwheels. On a heavy-duty lathe of this size, positioning accuracy is crucial for machining quality.
Without a DRO, positioning accuracy depends on visual reading of handwheels and compensation for screw play: errors of 0.1-0.2 mm are typical. With a DRO, positioning accuracy easily reaches 0.01 mm. On the Apollo, it is included as standard, unlike many entry-level industrial lathes from other brands where the DRO is an expensive optional accessory.

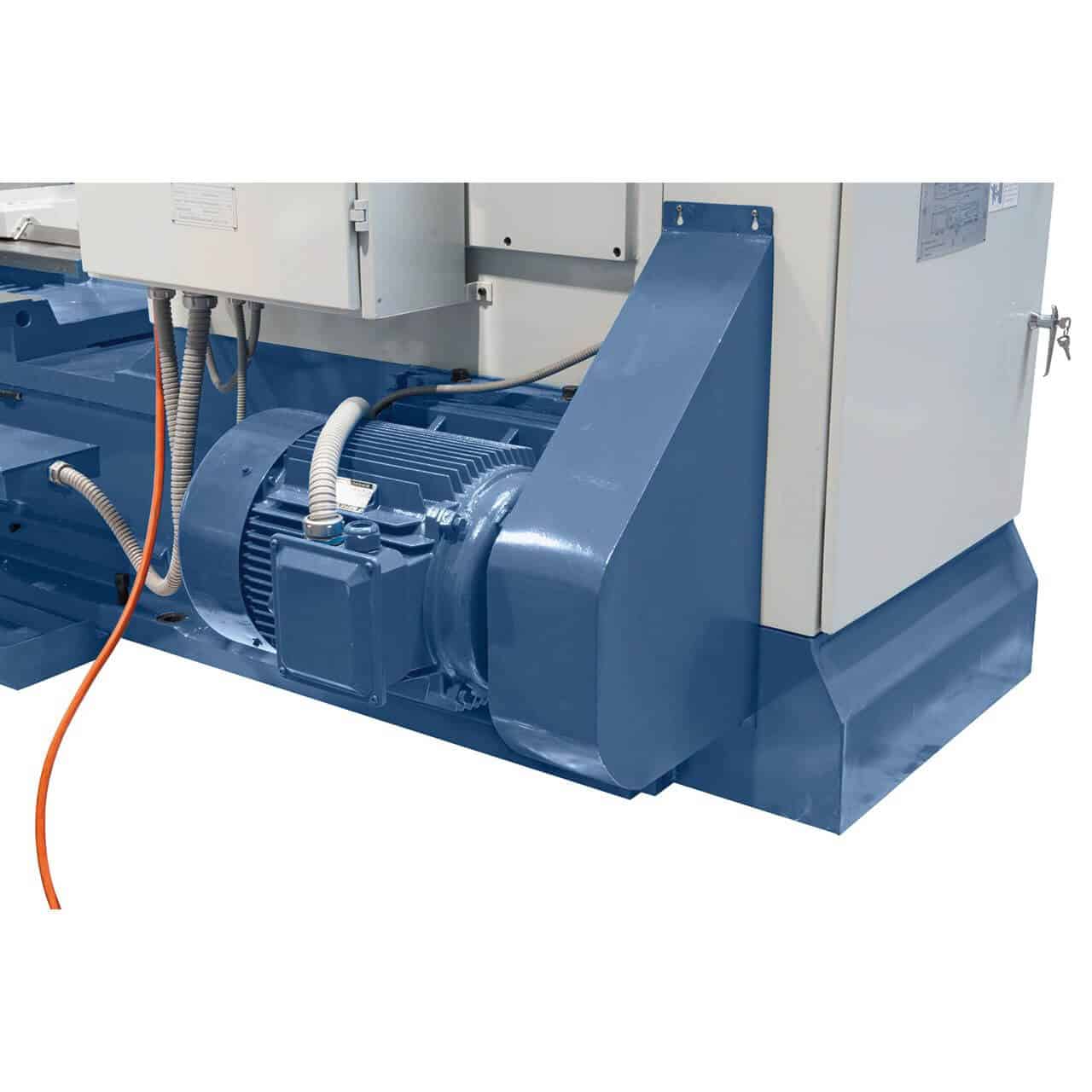

What is the difference between the Apollo 2000 with a 22 kW and 30 kW motor?
The 30 kW motor handles higher torque in continuous heavy machining (large workpieces on hard steels, significant material removal). The 22 kW motor is sized for standard machining, even on large workpieces but with controlled removal.
The choice of motor in configuration depends on the typical type of work. For precision production with moderate material removal, the 22 kW motor is sufficient. For heavy industrial production with large material removal, the 30 kW motor prevents motor fatigue and maintains constant machining speed. Krollit provides support in choosing the correct configuration based on typical workpieces.
What is the expected service life of an Apollo lathe?
For standard industrial use, the Apollo range is designed for an operating life of over 25-30 years with regular maintenance. Wear parts (bearings, guides, lubrication system, clutches) can be replaced with original Bernardo spare parts.
The stabilized, hardened, and ground cast iron structure (a feature of Apollo lathes) does not wear significantly: the bed and headstock maintain precision for decades with correct maintenance. Mechanical components in contact are sized for continuous industrial use and are replaced periodically. Original Bernardo spare parts are available from stock with 3-5 business days shipping. For intensive use, a semi-annual preventive maintenance plan is recommended.
