Description

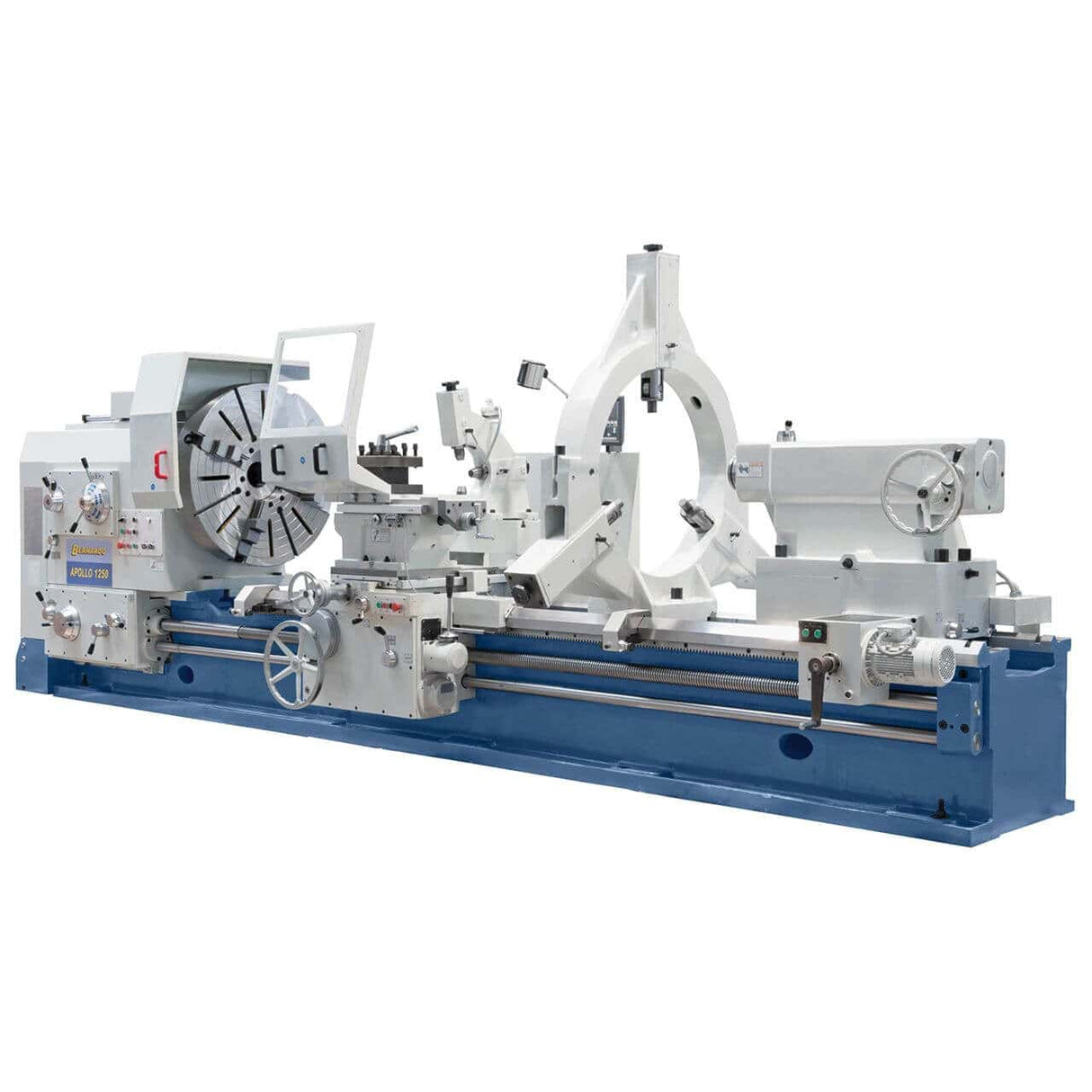

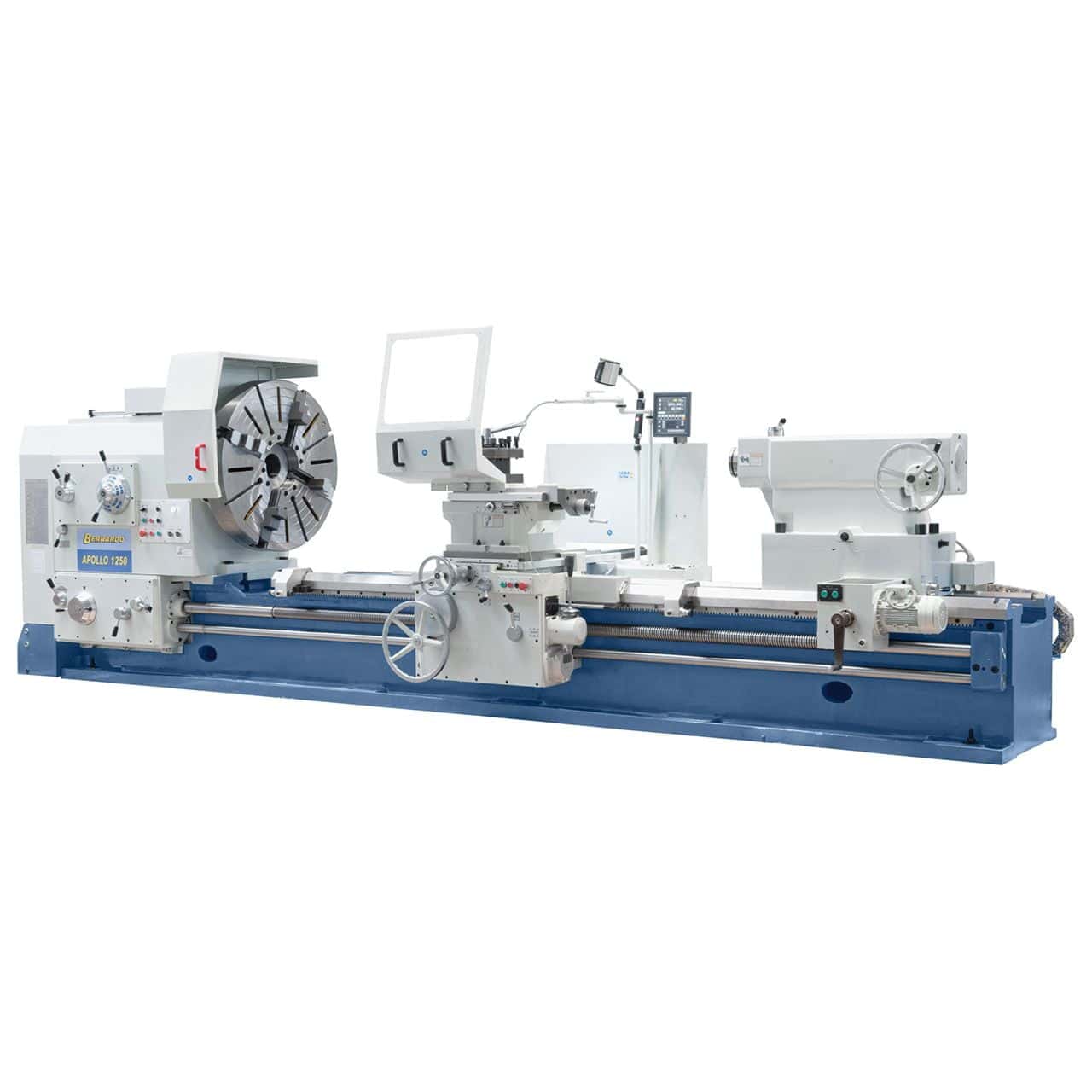

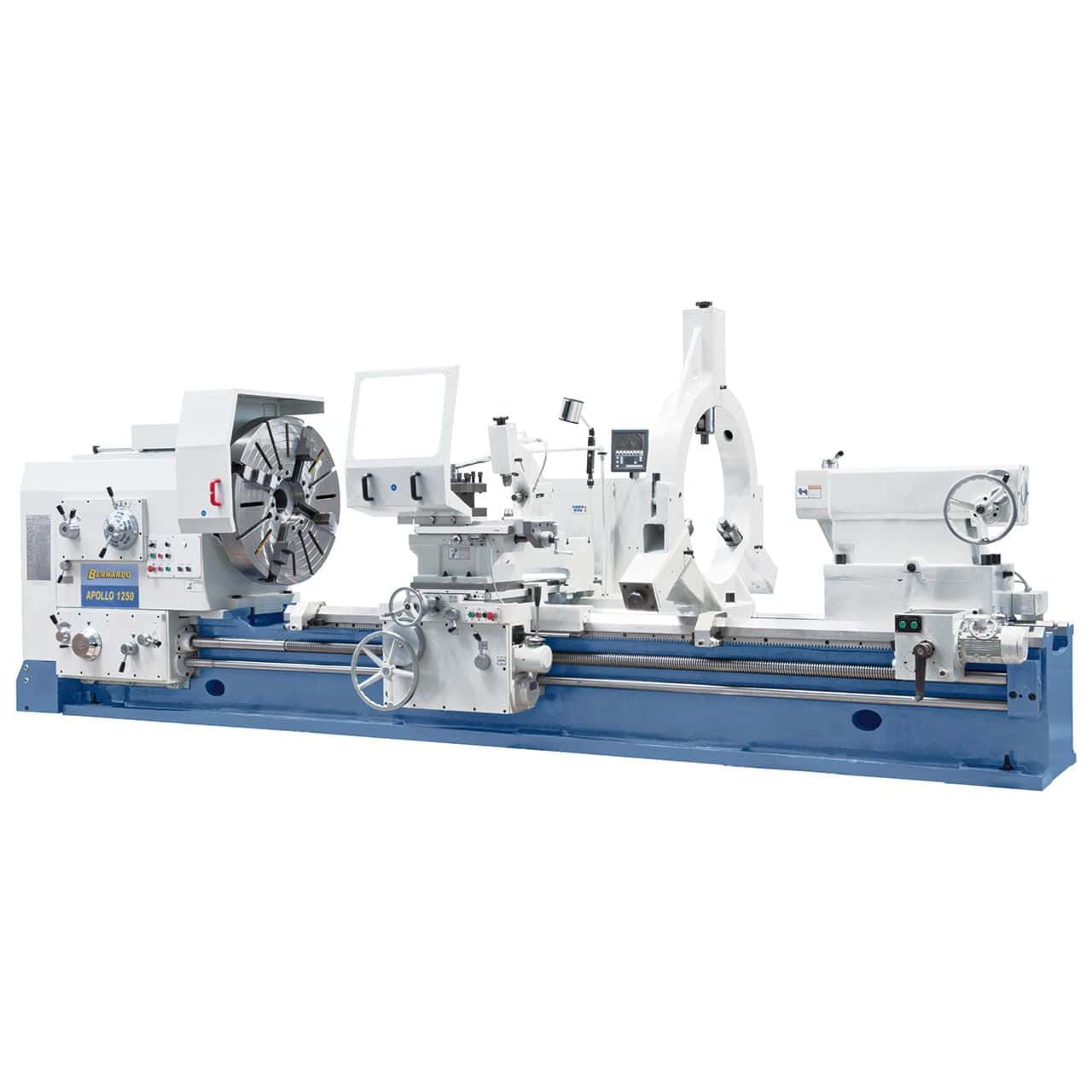

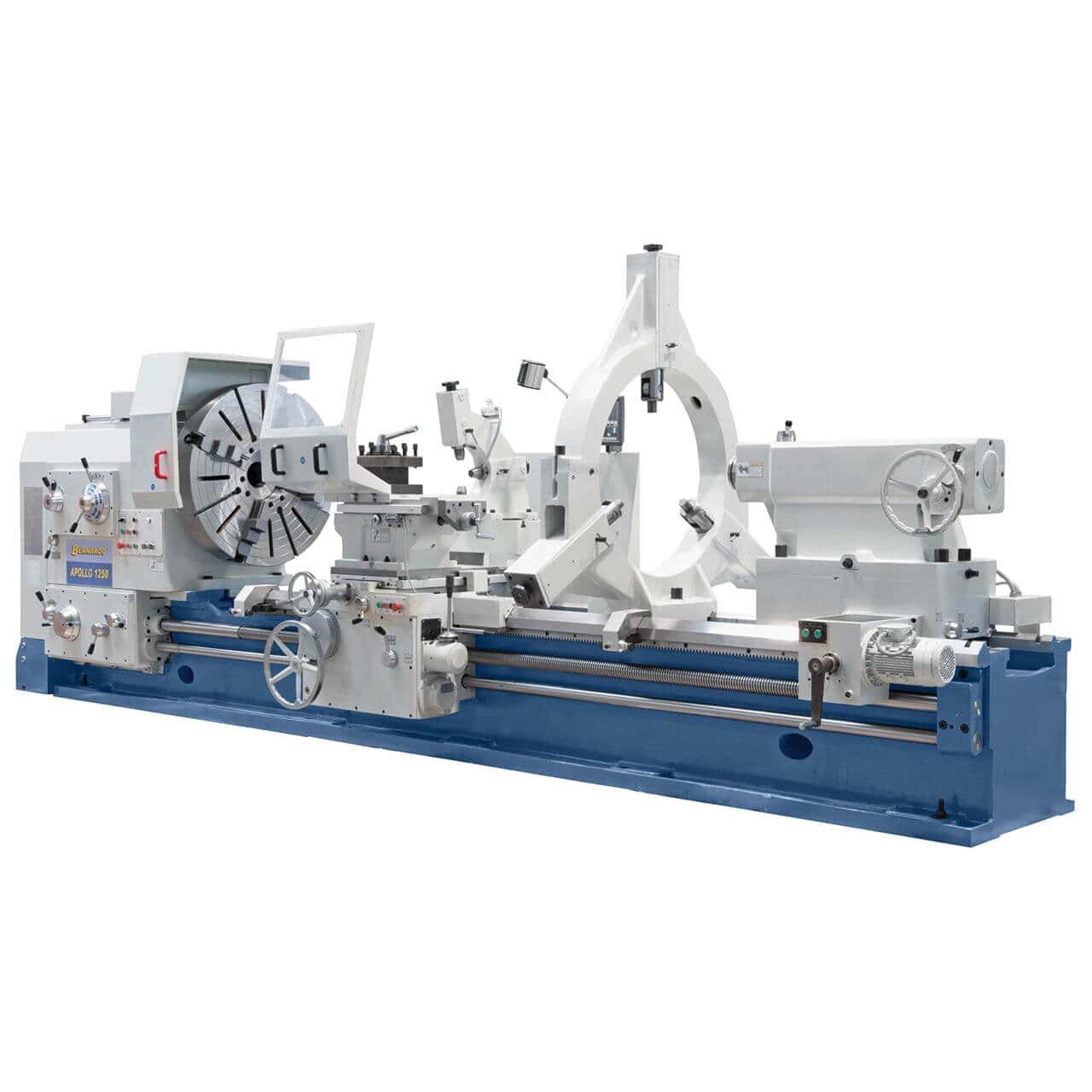

The Bernardo Apollo 2000 x 5000 heavy-duty parallel lathe is the heavy industrial model in the Apollo family. It offers a 5000 mm distance between centers, 2000 mm swing over bed, 1500 mm swing over cross slide, 2300 mm maximum swing in gap, 1100 mm bed width, MT 7 spindle taper with 130 mm bore, 2-400 rpm spindle speed with gear change, 22-30 kW 400V three-phase motor (depending on configuration). ES-12 V 3-axis digital readout included, solid cast iron structure. Machine weight approx. 30,000 kg. Suitable for marine, energy, and heavy machinery sectors. Made in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Distance between centers: 5000 mm
- Swing over bed: 2000 mm
- Swing over cross slide: 1500 mm
- Maximum swing in gap: 2300 mm
- Bed width: 1100 mm
- Spindle taper: MT 7 with 130 mm bore
- Motor: 22-30 kW – 400V three-phase (configuration)
- Machine weight: approx. 30,000 kg
Who uses the Apollo 2000 x 5000 and for what purpose
The Bernardo Apollo 2000 x 5000 is one of the heavy industrial parallel lathes in the Apollo range, featuring a 5,000 mm distance between centers and a 2,000 mm swing over bed: a configuration for heavy industrial workpieces of significant length. The reinforced bed with a width of 1100 mm and the MT 7 spindle taper define the operating range: machining of shafts, profiles, and cylindrical parts in heavy industrial workshops with large workpieces. The configuration with a 2-400 rpm gear change, MT 7 taper, and 22-30 kW motor (selectable in configuration) represents the top of the Apollo range for heavy industrial applications. The 2,300 mm maximum swing in gap handles industrial flanges, large discs, and gears for heavy machinery. In Krollit customers' workshops, the Apollo 2000 x 5000 is chosen by industrial mechanical workshops, shipyards for shaft repair and reconstruction, manufacturers of turbine and generator components, and workshops specialized in precision turning of heavy workpieces.
Its place in the Bernardo range
The Bernardo Apollo family is the line of heavy parallel lathes for industrial applications. It consists of 12 models organized by swing over bed (1000, 1250, 1600, 2000 mm) and distance between centers (1,500, 2,000, 3,000, 5,000, 8,000 mm). Heavy industrial 2000 family (this model, top of the range): MT 7 taper, 1,100 mm bed, 22-30 kW motor (selectable), 2-400 rpm spindle speed with gear change, 2,000 mm swing over bed, 2,300 mm maximum swing in gap. The absolute top of the Apollo Bernardo range for industrial applications. Alongside the 2000 x 5000 in the same family: Apollo 2000 x 2000, Apollo 2000 x 3000, Apollo 2000 x 8000. The choice in the 2000 family depends exclusively on the typical length of workpieces: 2,000 mm distance between centers for short workpieces, 3,000 mm intermediate, 5,000-8,000 mm for long industrial workpieces (marine shafts, energy profiles).
Krollit Logistics and Support

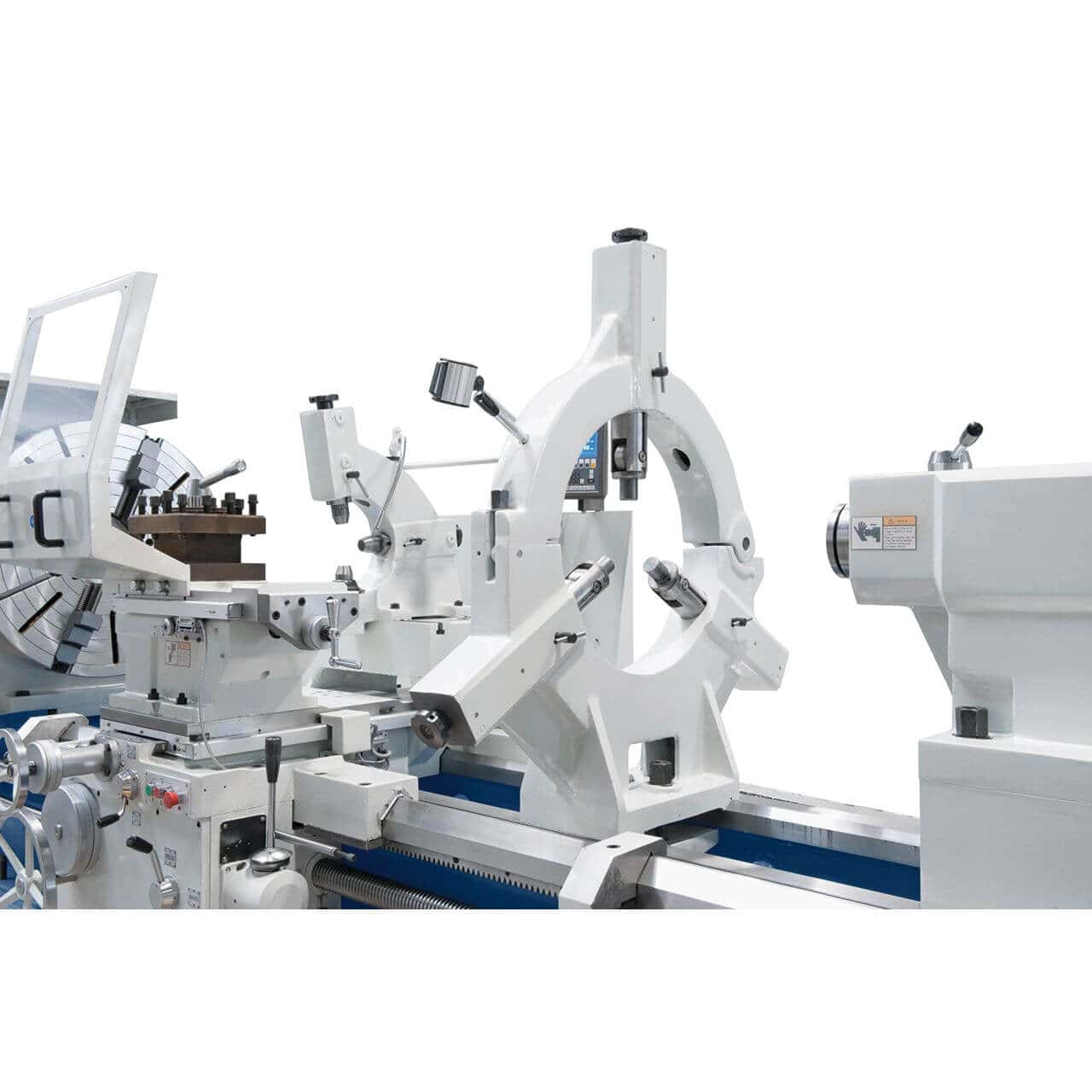

Bernardo shipping in 5-9 working days (7 days to the South of Italy). With a weight of approx. 30,000 kg, it requires a crane of adequate capacity, industrial flooring, and a reinforced concrete foundation. Dimensions approx. 8.0 × 3.0 × 2.8 m: check workshop access, ceiling height, and transport routes in advance. Steady rests, tailstocks, self-centering chucks, and original Bernardo spare accessories are available from stock with 3-5 working day shipping. Customer support available in Italian.
Who the Apollo 2000 x 5000 is for
| Profile | Compatibility | Reason |
|---|---|---|
| Passionate hobbyist | Not suitable | Heavy industrial machine weighing approx. 30,000 kg and requiring a 400V three-phase industrial power line. Exclusively high-level professional application. |
| Heavy industrial workshop | Recommended | 2000 mm swing over bed and 2300 mm swing in gap handle bulky workpieces. 1,100 mm bed, MT 7 taper, dedicated gear change for industrial torque. |
| Shipyard / heavy energy production | Recommended | Top-of-the-range configuration for large industrial parts: large diameter flanges, marine shafts, transmission wheels for heavy machinery. 22-30 kW motor and dedicated gear change for high continuous torque. |
Not suitable for: workshops requiring parts within 1,600 mm in diameter (the 1600 family is significantly less expensive with professional features); workshops without industrial flooring and a reinforced concrete foundation; high-volume CNC series production; laboratories with limited access (machine weight requires cranes and dedicated routes).
Turning capacity
| Specification | Value |
|---|---|
| Distance between centers | 5000 mm |
| Swing over bed | 2000 mm |
| Swing over cross slide | 1500 mm |
| Maximum swing in gap | 2300 mm |
| Bed width | 1100 mm |
Spindle and speed
| Specification | Value |
|---|---|
| Spindle taper | MT 7 |
| Spindle bore | 130 mm |

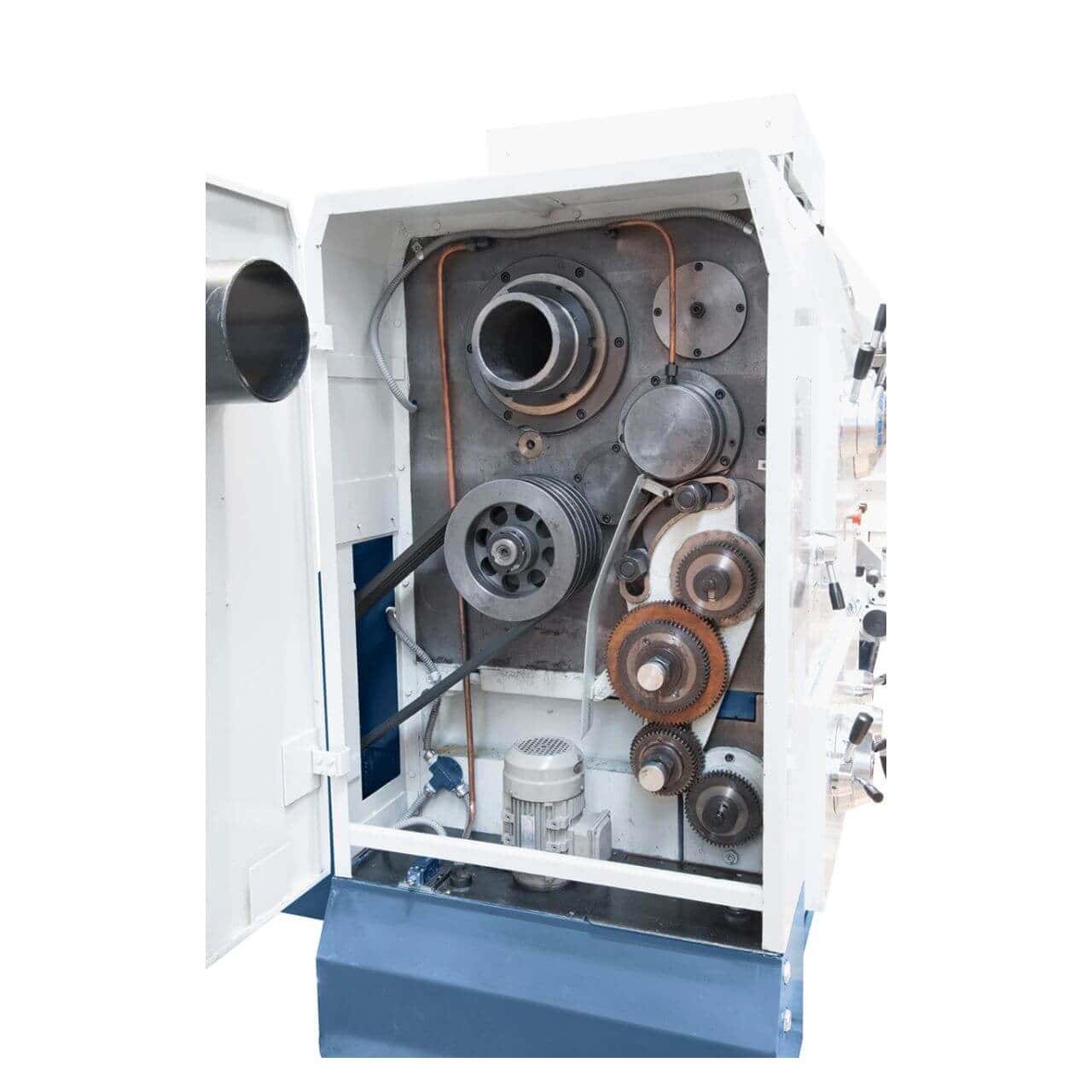

| Spindle speed | 2-400 rpm with gear change |
Motor and power supply
| Specification | Value |
|---|---|
| Motor power | 22-30 kW (depending on configuration) |
| Power supply | 400V – 50Hz – three-phase |
Dimensions and weight
| Specification | Value |
|---|---|
| Machine dimensions (L × D × H) | approx. 8.0 × 3.0 × 2.8 m |
| Machine weight | approx. 30,000 kg |
Compliance
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery Directive 2006/42/EC |
Standard equipment
- Bernardo Apollo 2000 x 5000 Lathe
- 3-axis digital readout

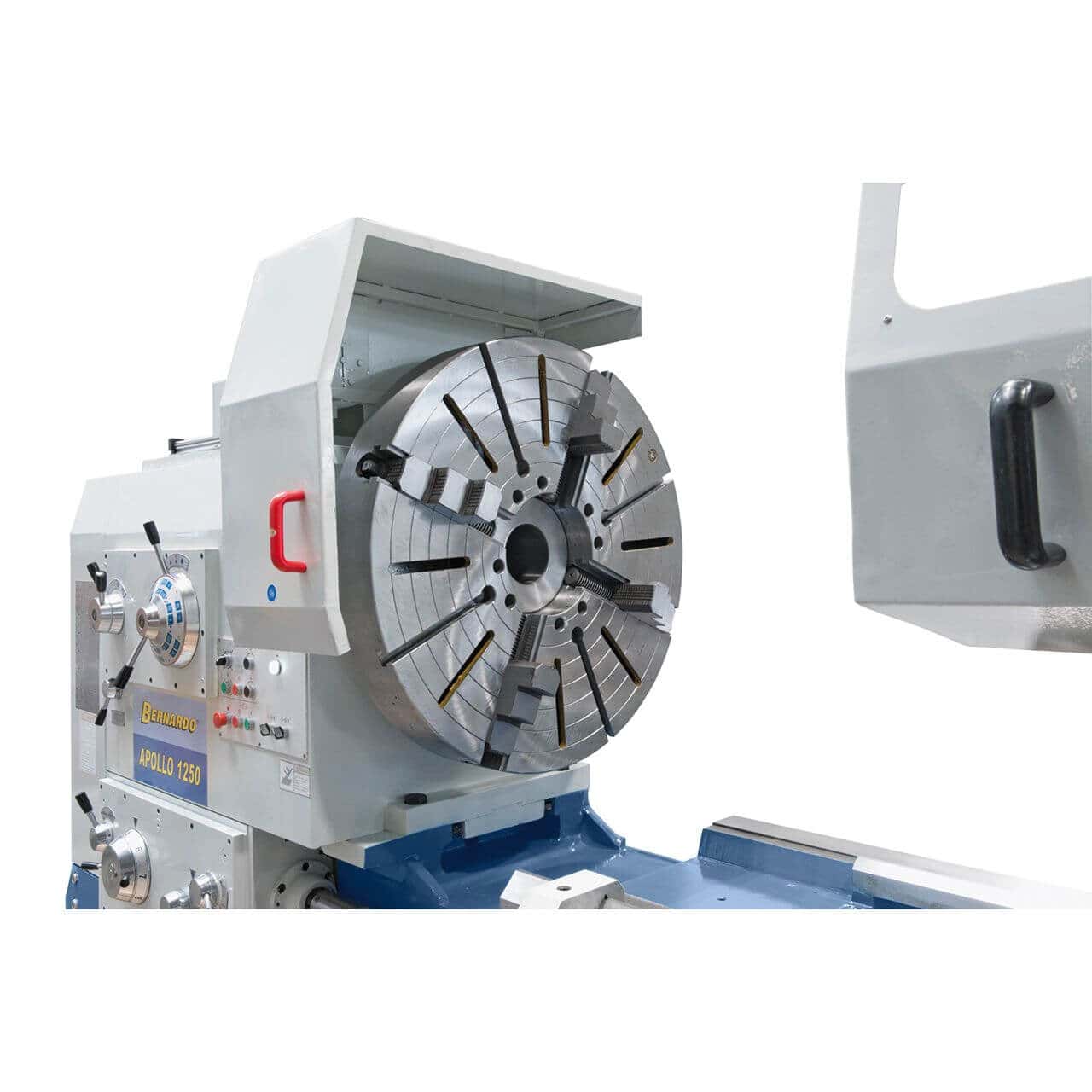

- 3-jaw self-centering chuck

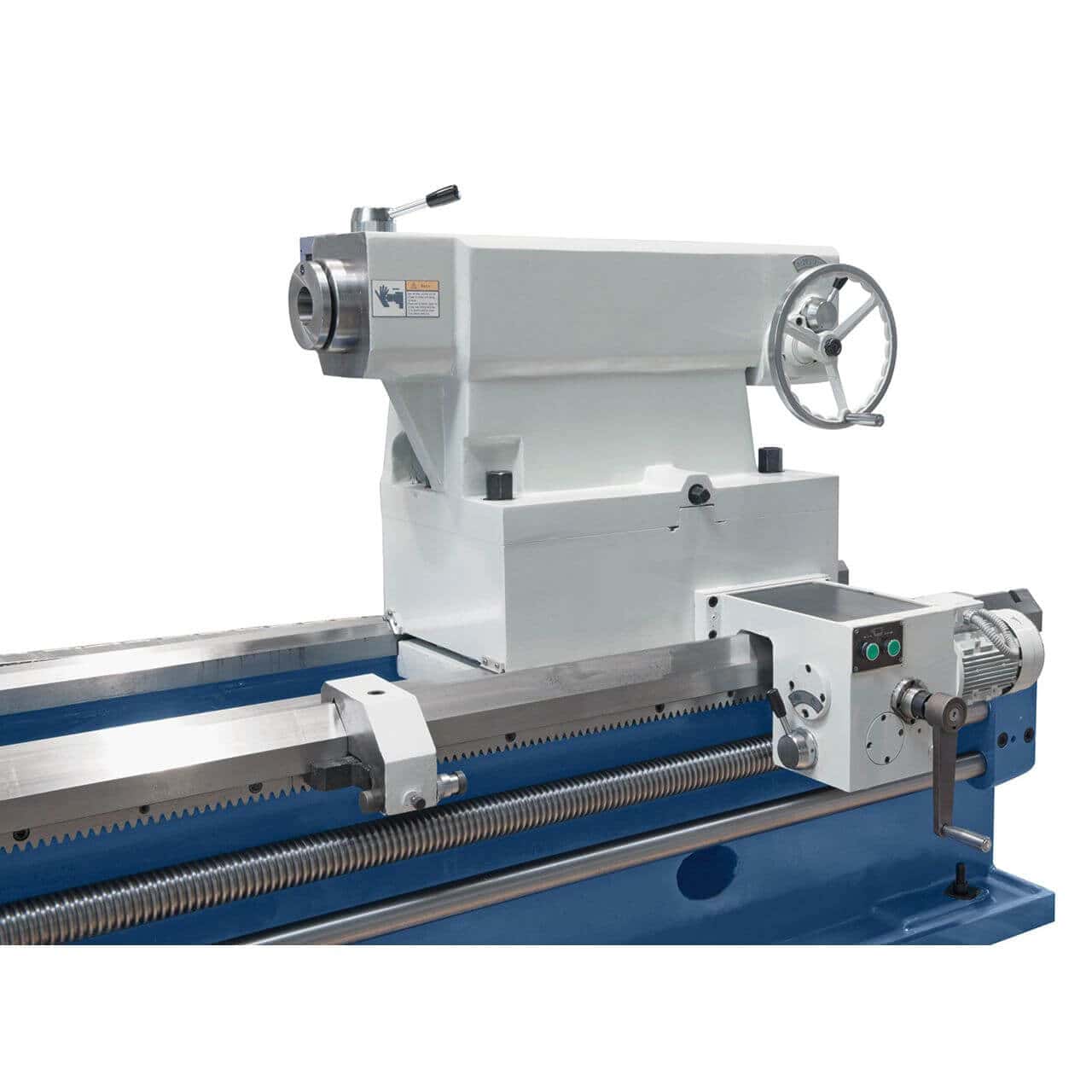

- Tailstock with CM 7 taper
- Set of threading gears
- Service tools
Frequently asked questions
What are the typical application sectors for the Apollo 2000 x 5000?
Marine (marine shafts, propellers, gearboxes), energy (turbine shafts, generators), heavy machinery (cylinders, pulleys, gears). The 5000 mm distance between centers and the 2000 mm swing over bed define the operating range.
Examples of typical workpieces: long transmission shafts (components for marine engines), large cylindrical profiles (components for industrial machinery), industrial pipe flanges. For specific parts, check the maximum diameter, length, and weight of the workpiece in relation to the machine's capabilities in advance.
What operating space does it require in the workshop?
Machine dimensions approx. 8.0 × 3.0 × 2.8 m. For operational use (loading/unloading workpieces, handling, maintenance access), an overall area at least 1.5 times the machine dimensions is needed, with adequate ceiling height.
Installation requires industrial flooring or a reinforced concrete foundation sized for the weight of the machine plus typical workpieces. For the initial installation, it is recommended to consult a qualified installer for structural and site compliance assessment.

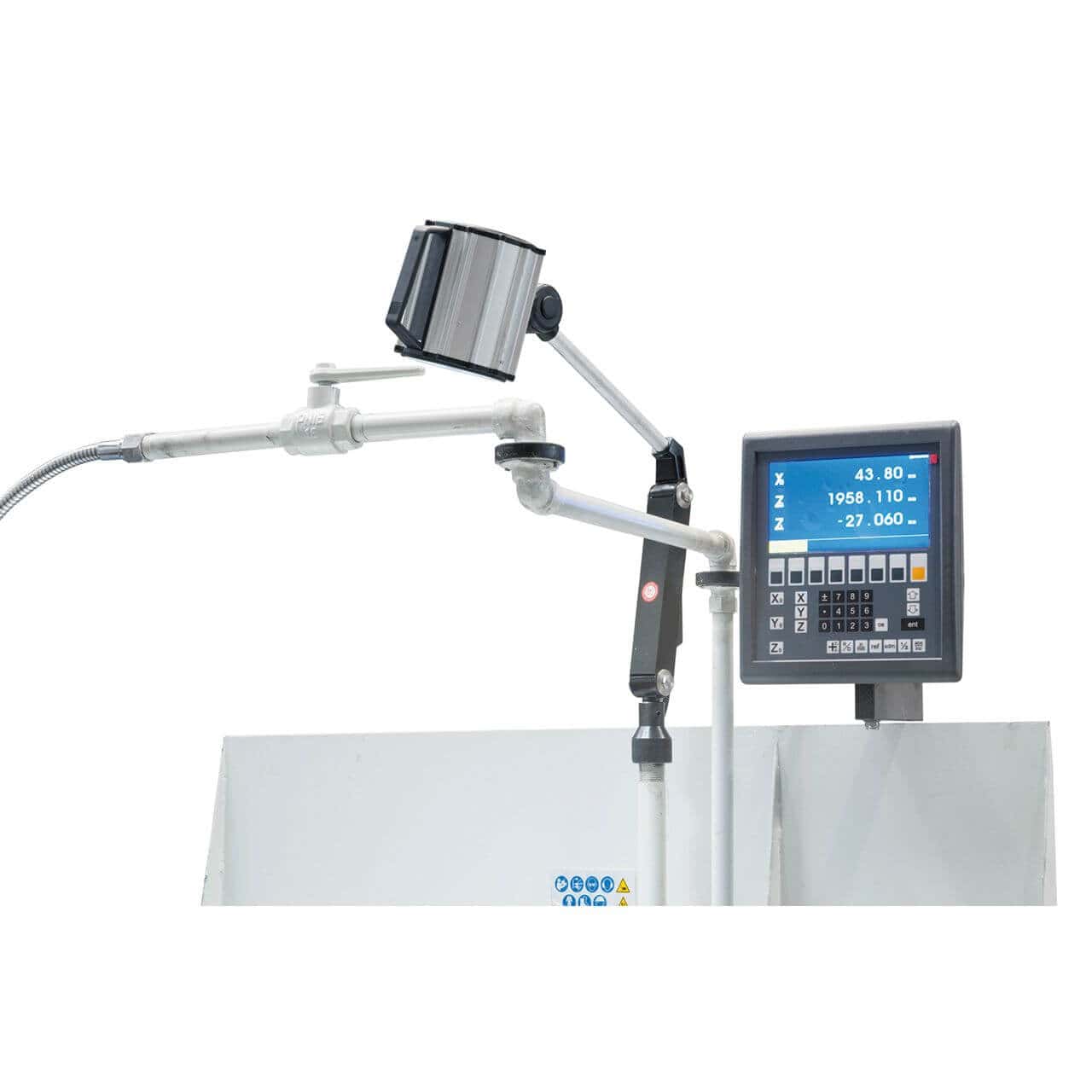

Is the ES-12 V 3-axis digital readout really necessary?
Yes, for precision manufacturing. The DRO shows the exact position of the axes in real-time to the hundredth of a millimeter, eliminating reading errors from graduated handwheels. On a heavy-duty lathe of this size, positioning accuracy is crucial for the quality of machining operations.
Without a DRO, positioning accuracy depends on visual reading of the handwheels and compensation for screw backlash: errors of 0.1-0.2 mm are typical. With a DRO, positioning accuracy easily reaches 0.01 mm. On the Apollo, it is included as standard, unlike many entry-level industrial lathes from other brands where the DRO is an expensive optional accessory.
What is the difference between the Apollo 2000 with a 22 kW motor and a 30 kW motor?

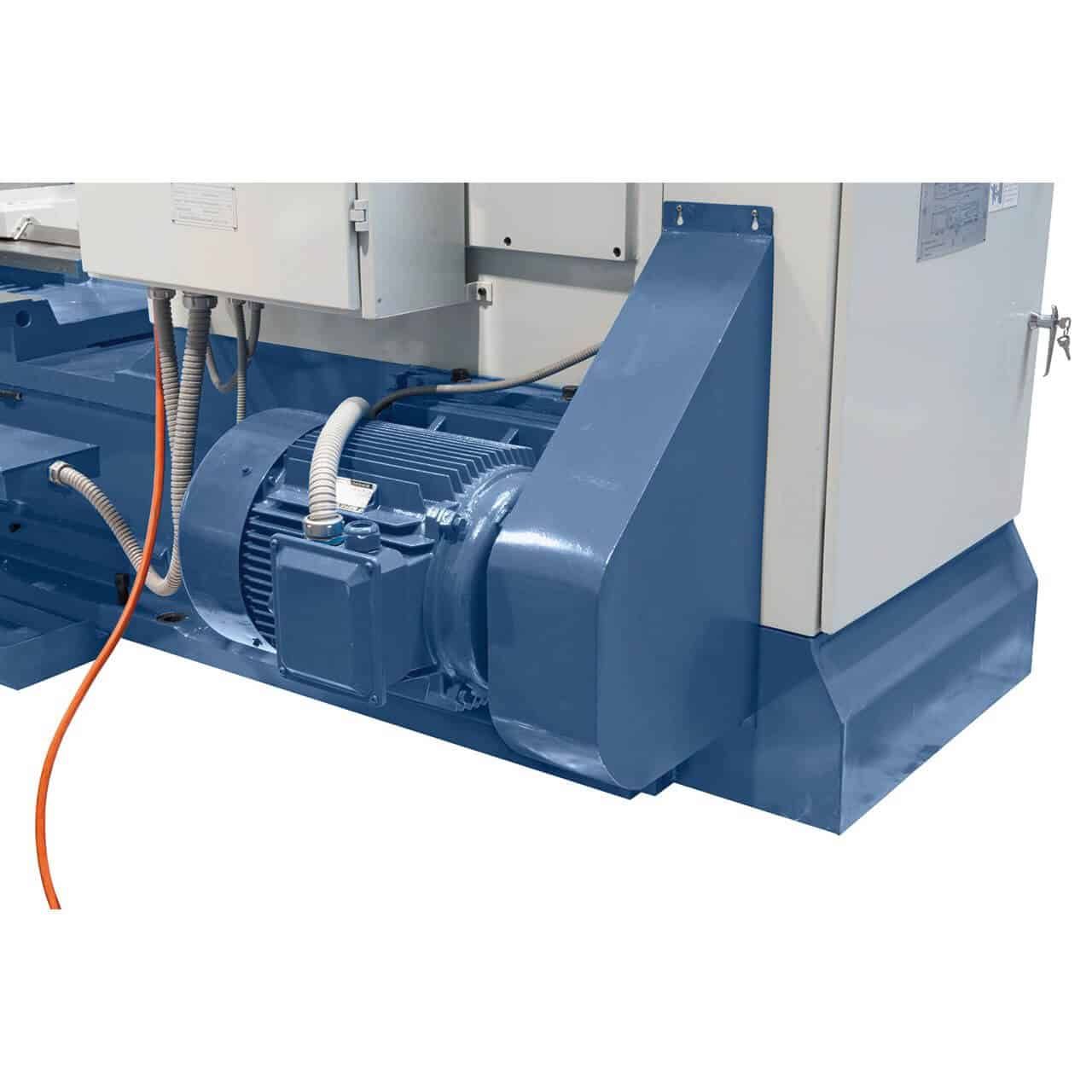

The 30 kW motor handles higher torque in heavy continuous machining (large workpieces on hard steels, significant material removal). The 22 kW motor is sized for standard machining, even on large workpieces but with controlled removal rates.
The choice of motor in the configuration depends on the typical type of work. For precision manufacturing with moderate removal rates, the 22 kW motor is sufficient. For heavy industrial manufacturing with large removal rates, the 30 kW motor avoids motor fatigue and maintains constant machining speed. Krollit provides support in choosing the correct configuration based on typical workpieces.
What is the expected useful life of an Apollo lathe?
For standard industrial use, the Apollo range is designed for an operational life of over 25-30 years with regular maintenance. Wear components (bearings, guides, lubrication system, clutches) are replaceable with original Bernardo spare parts.
The stabilized, hardened, and ground cast iron structure (a characteristic of Apollo lathes) does not wear significantly: the bed and headstock maintain precision for decades with correct maintenance. Mechanical contact components are sized for continuous industrial use and are replaced periodically. Original Bernardo spare parts are available from stock with 3-5 working day shipping. For intensive use, a semi-annual preventive maintenance plan is recommended.
