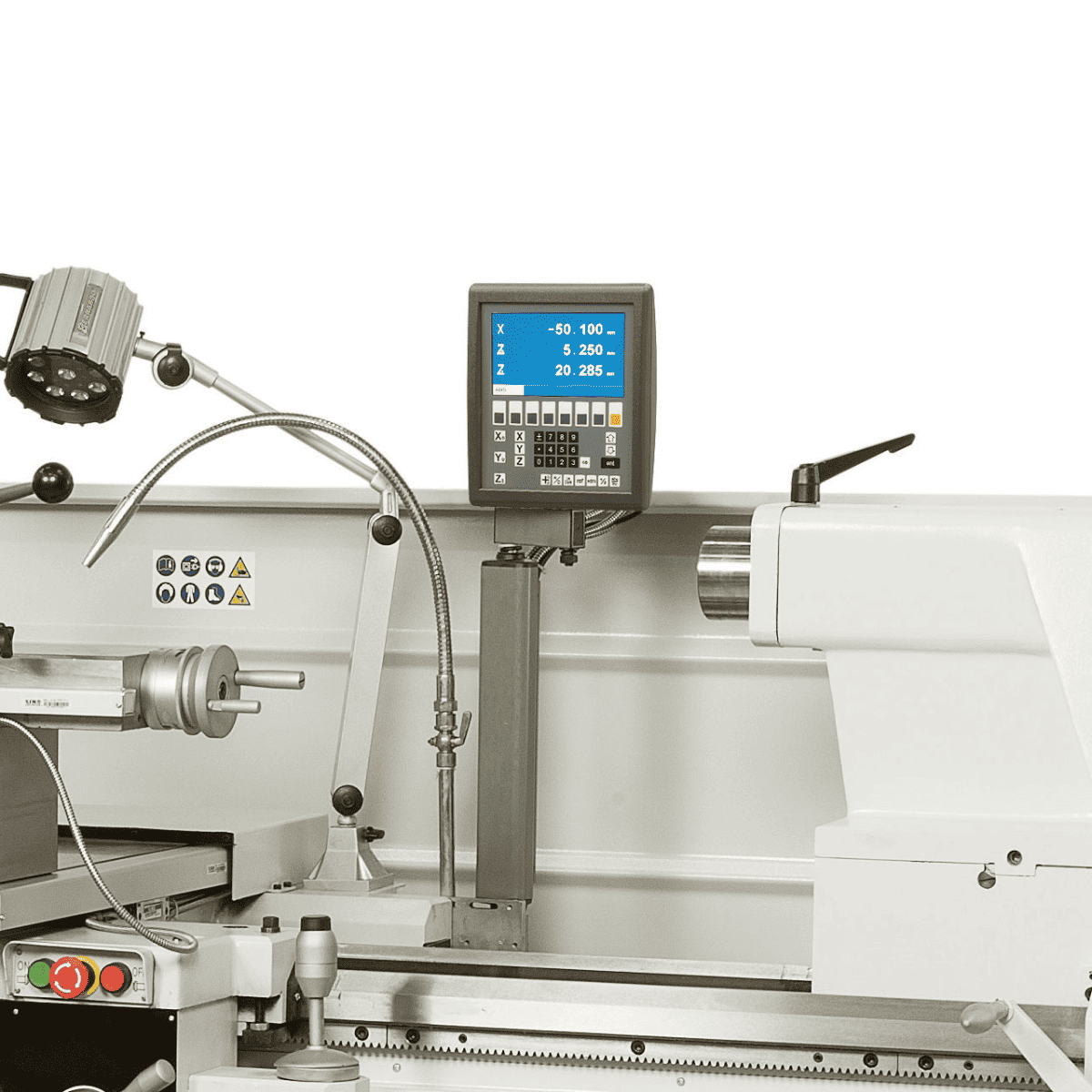

Bernardo Titan 800 x 2000 metal lathe with 3-axis digital readout
Bernardo Titan 800 x 2000 metal lathe with 3-axis digital readout is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

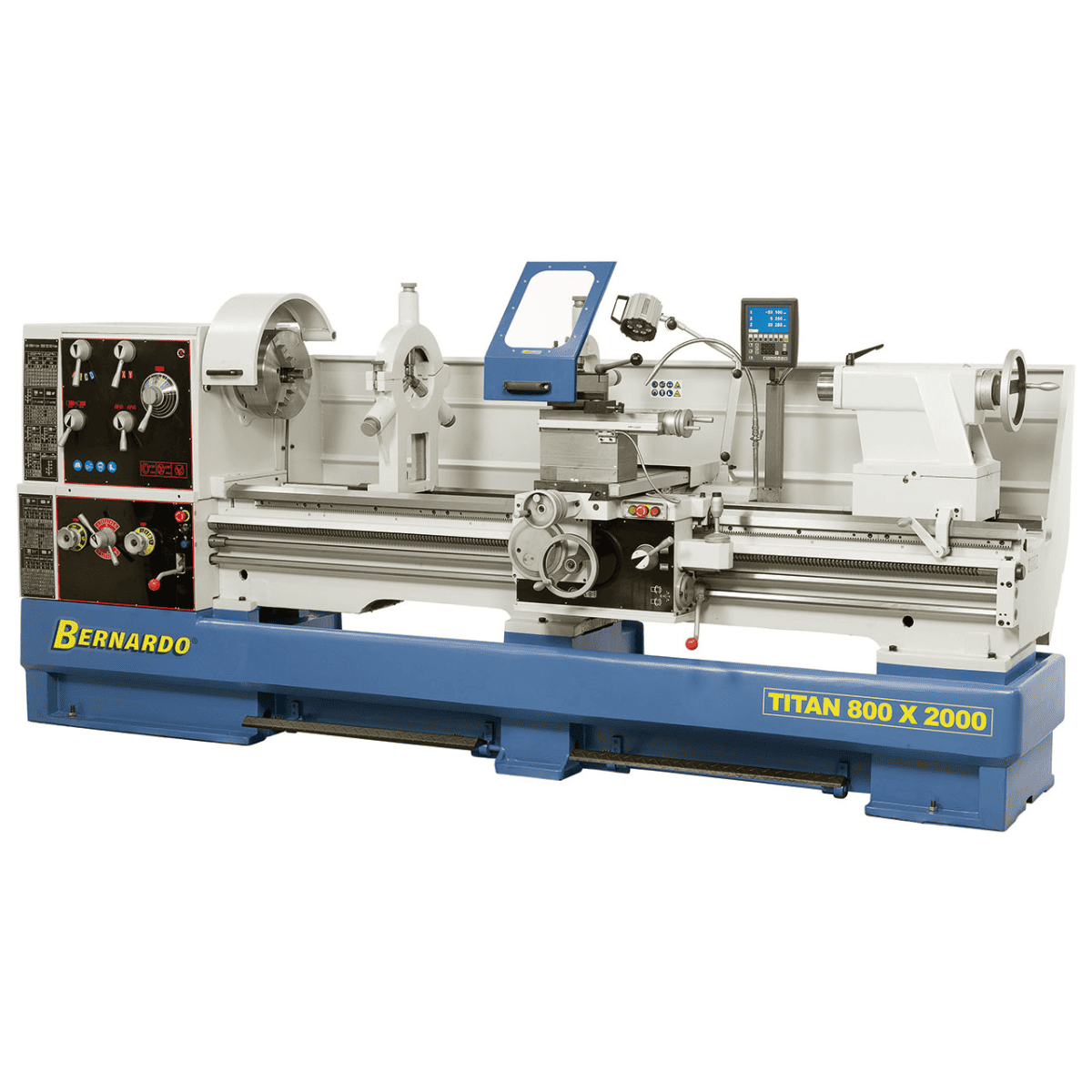

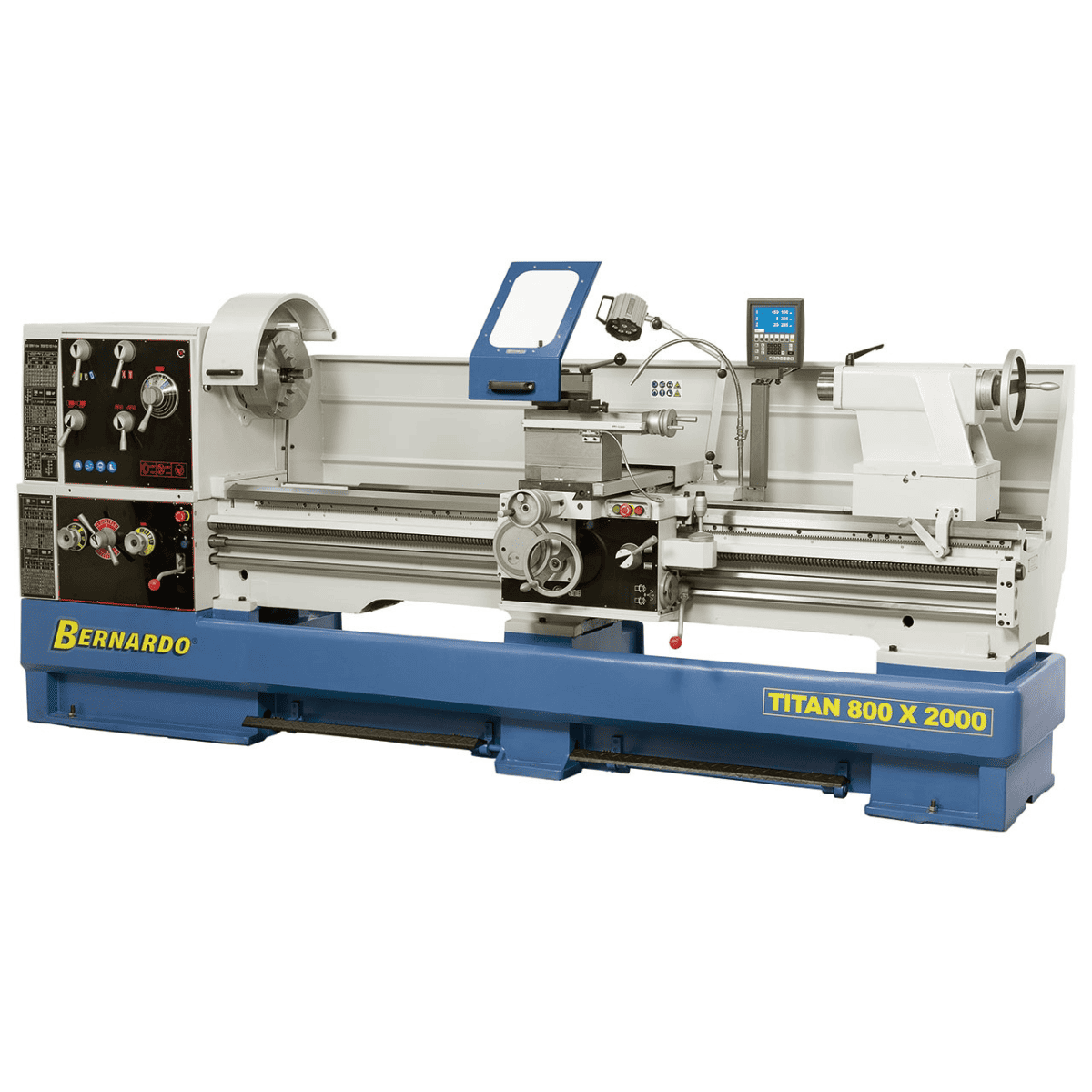

The Bernardo Titan 800 x 2000 with 3-axis digital readout is a metal lathe for professional use, with a distance between centers of 2000 mm, center height of 400 mm, 7.5 kW (10 HP) motor, and a weight of 3455 kg. Krollit, official Bernardo distributor since 2007.
- Brand / Model: Bernardo Titan 800 x 2000
- Distance between centers: 2000 mm
- Center height: 400 mm
- Swing over bed: 800 mm
- Swing in gap: 1000 mm
- Swing over cross slide: 540 mm
Who uses the Titan 800 x 2000 with 3-axis digital readout and for what
Machine shops and artisan turners use the Titan 800 x 2000 with 3-axis digital readout for cylindrical and conical turning, and threading operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.
Its place in the Bernardo range
The Bernardo Titan 800 x 2000 with 3-axis digital readout is part of the Bernardo metal lathe range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian-speaking customer assistance available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Titan 800 x 2000 with 3-axis digital readout for
The Titan 800 x 2000 with 3-axis digital readout is recommended for the following professional profiles:
- Machine shops and artisan turners: cylindrical and conical turning, and threading on steels and alloys.
- Industrial maintenance technicians and repair centers: machining of spare parts, shafts, bushings, and small production runs.
- Hobbyists and model making: professional machine: for occasional home use, consider smaller bench models.
Spindle, tools and speed
| Distance between centers | 2000 mm |
| Center height | 400 mm |
| Spindle bore | 105 mm |
| Spindle nose | DIN 55029, D1-8 |
| Spindle speed | (16) 25 – 1600 rpm |
Bed, dimensions and geometry
| Bed width | 400 mm |
| Machine dimensions (L x W x H) | 3800 x 1320 x 1580 mm |
| Machine weight | 3455 kg |
Other specifications
| Brand / Model | Bernardo Titan 800 x 2000 |
| Swing over bed | 800 mm |
| Swing in gap | 1000 mm |
| Swing over cross slide | 540 mm |
| Longitudinal feeds | (25) 0.044 – 1.48 mm/rev |
| Cross feeds | (25) 0.022 – 0.74 mm/rev |
| Metric threads | (54) 0.45 – 120 mm |
| Inch threads | (54) 7/16 – 80 TPI |

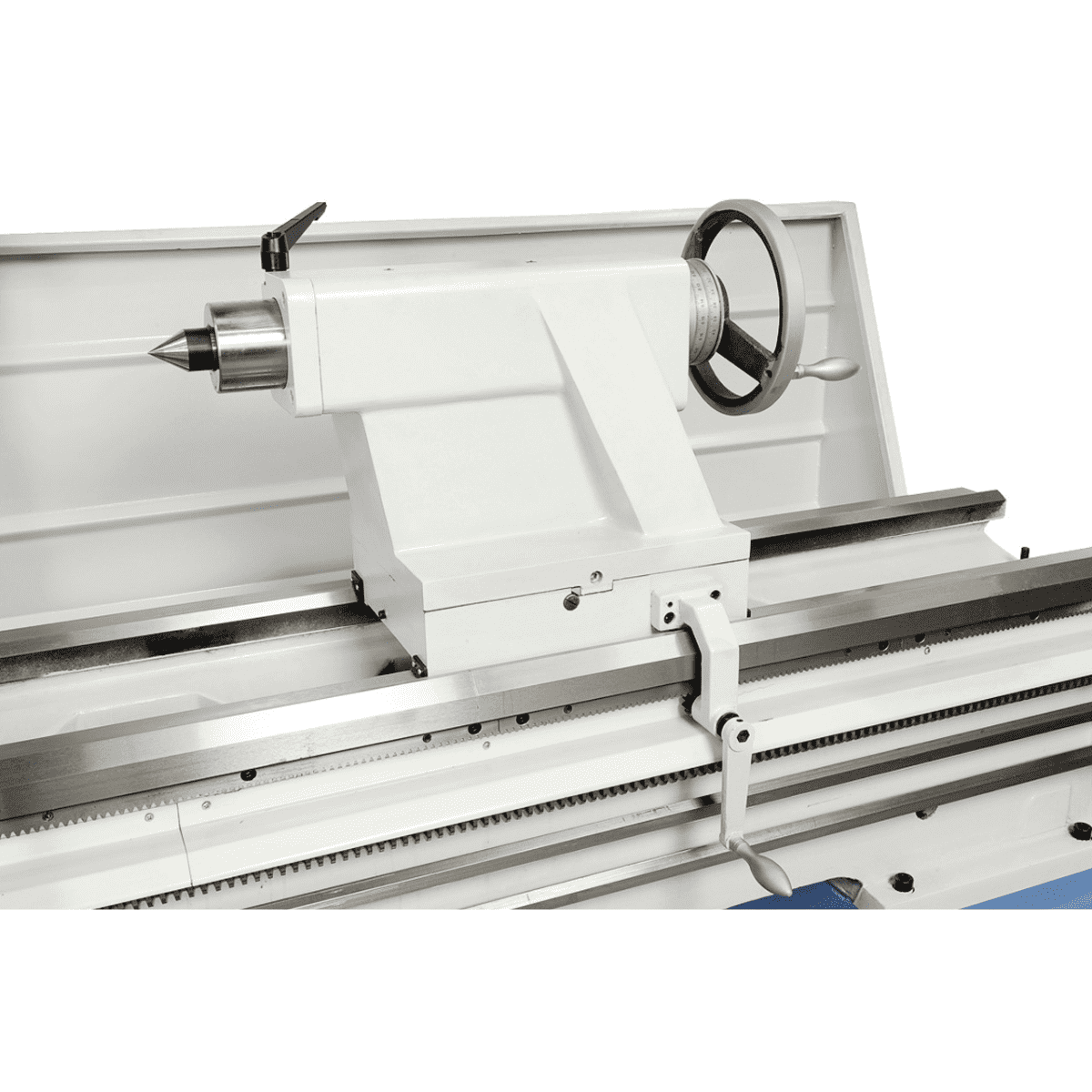

| Tailstock quill diameter | 90 mm |
| Tailstock taper | MT 5 |
| Tailstock quill travel | 235 mm |
| Motor power | 7.5 kW (10 HP) |
Frequently Asked Questions
What materials can the Titan 800 x 2000 with 3-axis digital readout work on?
Mild steel, alloy steel, cast iron, brass, and aluminum within the pass limits indicated in the technical specifications.
For hardened or high-strength alloy steels, it is recommended to reduce cutting speed and depth of cut. The machine is dimensioned for general mechanical production; for special alloys, check the compatibility of the spindle and tailstock Morse taper.
What is included in the standard equipment?

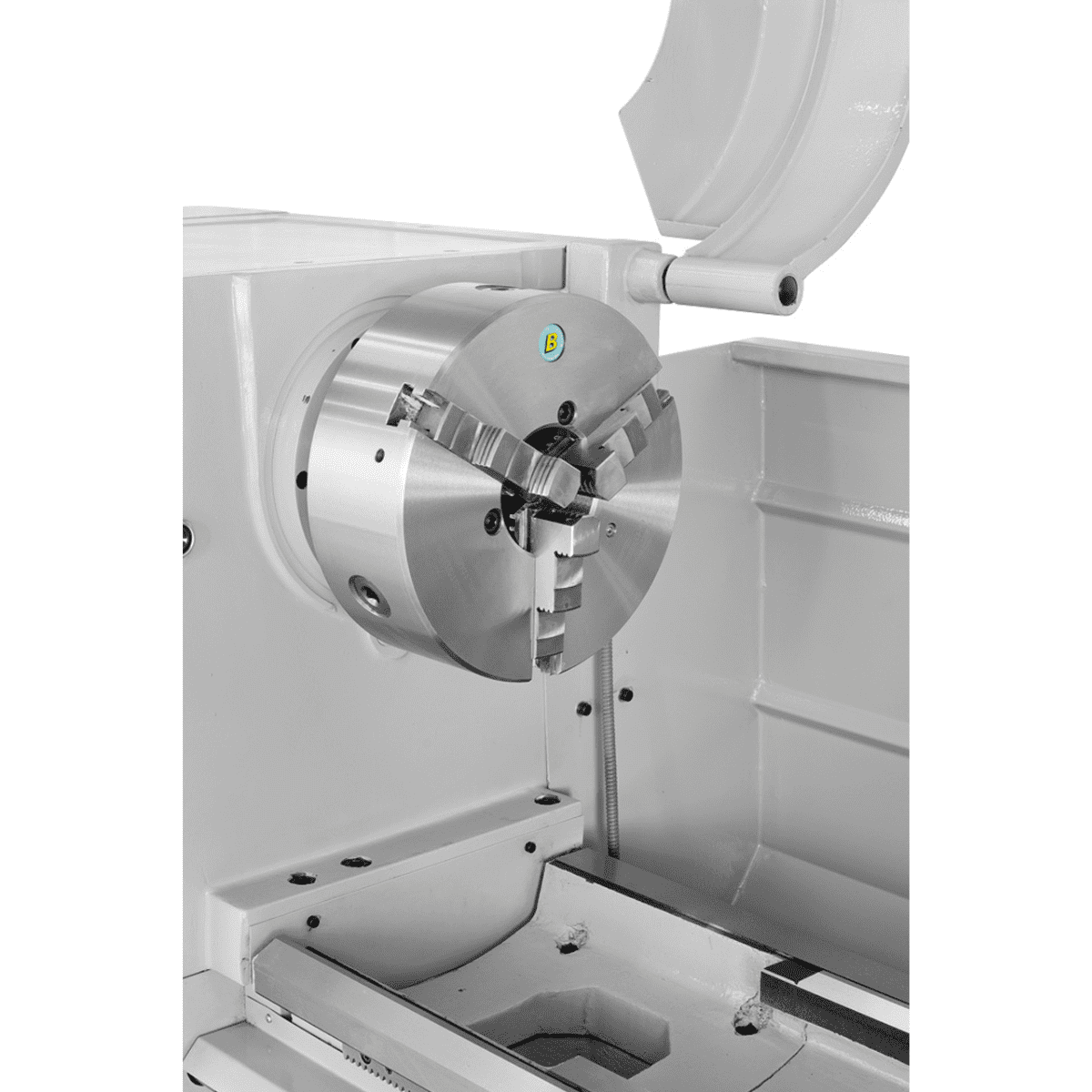

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a set of wrenches.
For the exact list of accessories and spare parts supplied, consult the manufacturer's technical sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 business days.
What kind of power supply does it require?
See the voltage data in the technical table. Compact bench machines are often 230 V single-phase, professional models are 400 V three-phase.
For 400 V three-phase models, an industrial electrical line is required. Verify the presence of adequate power supply in the workshop before purchase.
Is the machine suitable for series production?
It depends on the model class: Bernardo professional lathes handle continuous cycles, while bench models are suitable for medium use.
Profi and Apollo models are designed for intensive multi-shift use; Hobby and Goliath series for occasional use or small workshops.
How much does it weigh and what installation does it require?
Weight varies significantly by model: see the "Weight" entry in the technical table.
Machines over 500 kg require industrial flooring and fastening with anchor bolts. Bench models up to 100 kg can be installed on a sturdy workbench with an adequately sized surface.
