Bernardo BHP 200 – Hydraulic press with sliding cylinder

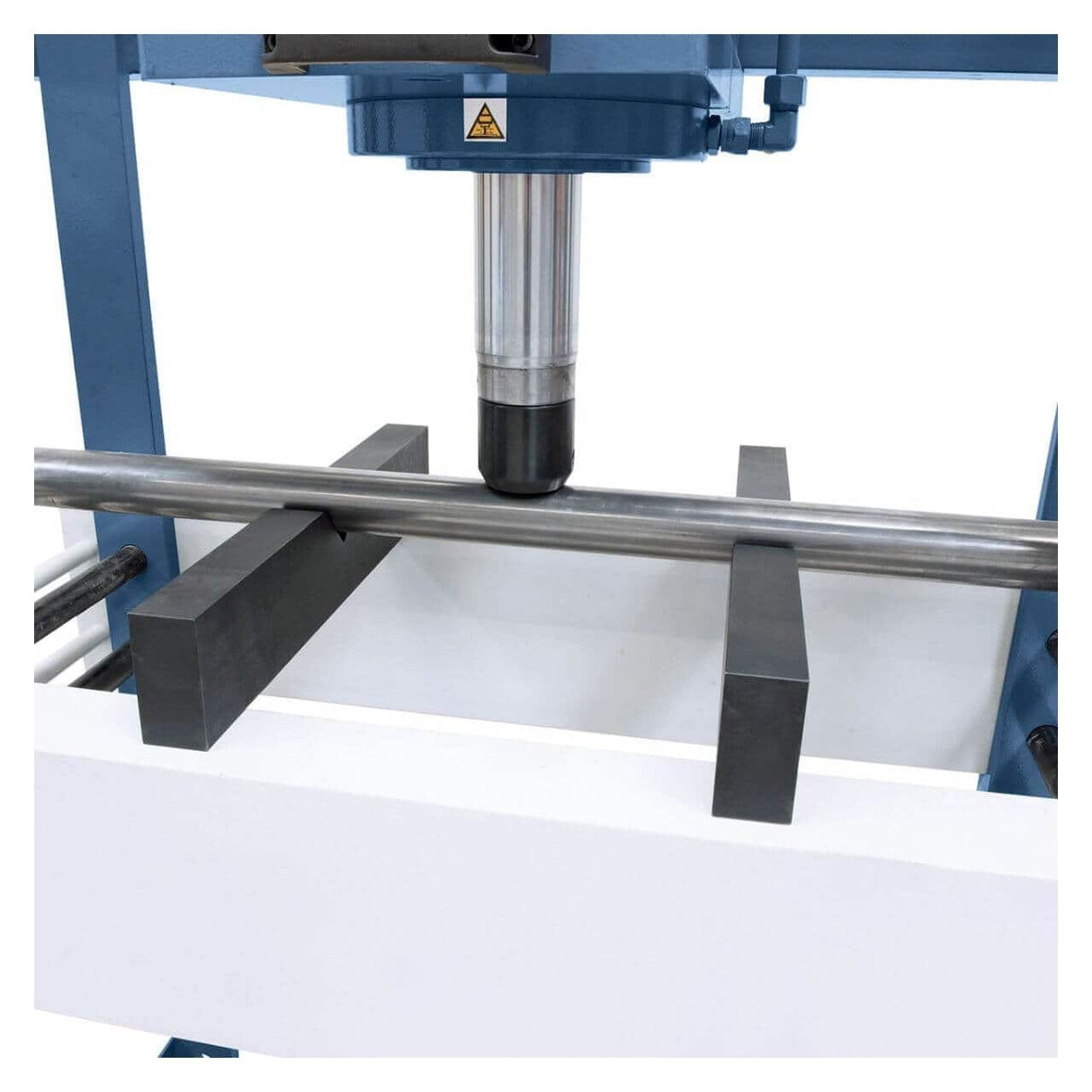

The Bernardo BHP 200 hydraulic press is a high-end machine designed for professional and industrial applications. With a pressing force of 200 tons and a piston stroke of 400 mm, it is suitable for straightening shafts, assembling and disassembling bushings, bearings, and bolts. The 1100 mm upright clearance and 700 mm work surface allow for working on large pieces. The laterally sliding cylinder and height-adjustable table ensure maximum operational versatility. Thanks to advance speeds of 8 mm/sec and return speeds of 9.8 mm/sec, this press guarantees efficiency and speed. The welded box-section steel structure ensures stability and robustness, while the 7.5 kW motor provides continuous power. Complete with integrated pressure gauge, overload valve, and prism supports, the BHP 200 is the reliable choice for workshops and industries requiring maximum performance.
Key Specifications
200-ton pressing force for heavy industrial processing
Piston with 400 mm stroke and 120 mm diameter
1100 mm upright clearance and 700 mm work surface

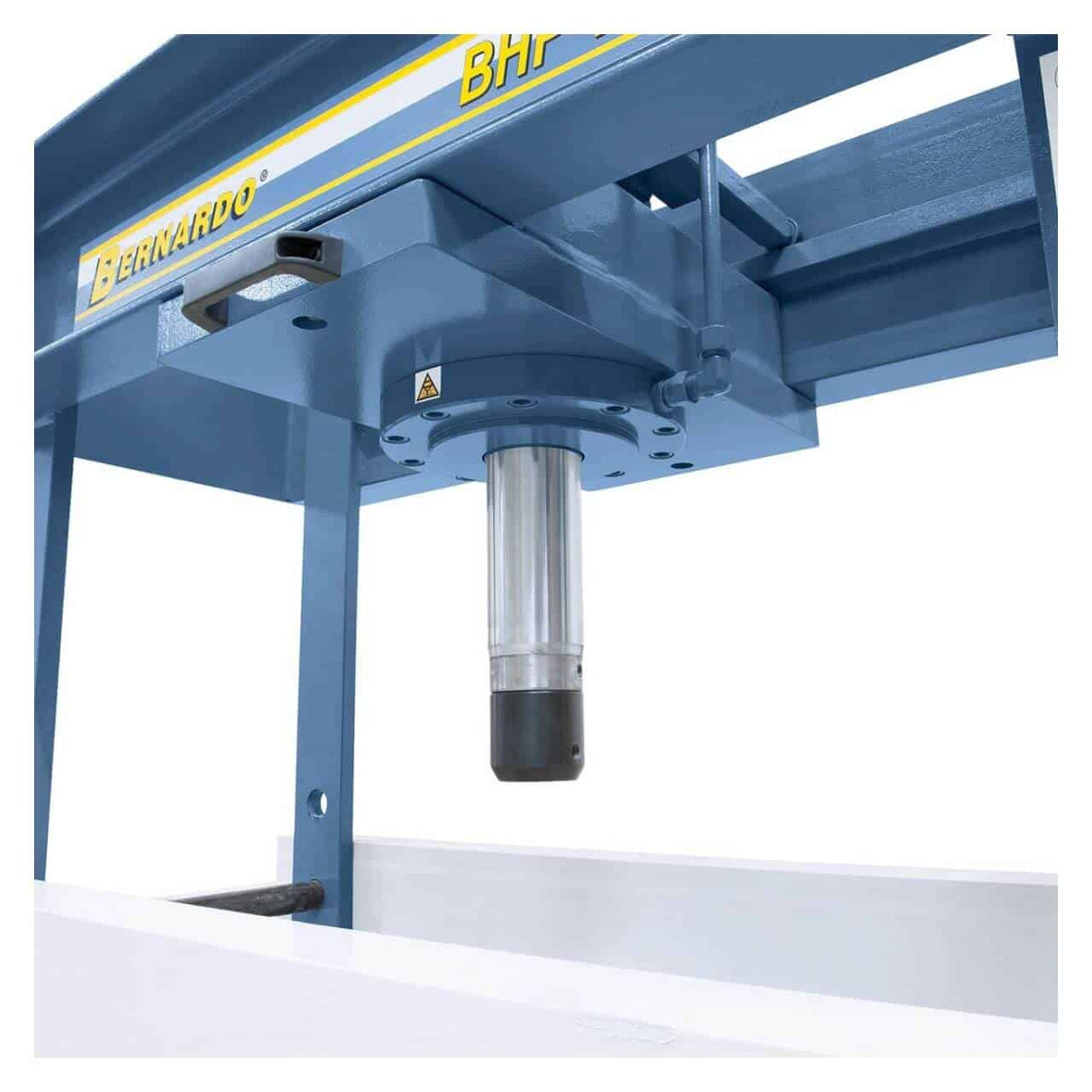

Laterally sliding cylinder for greater convenience

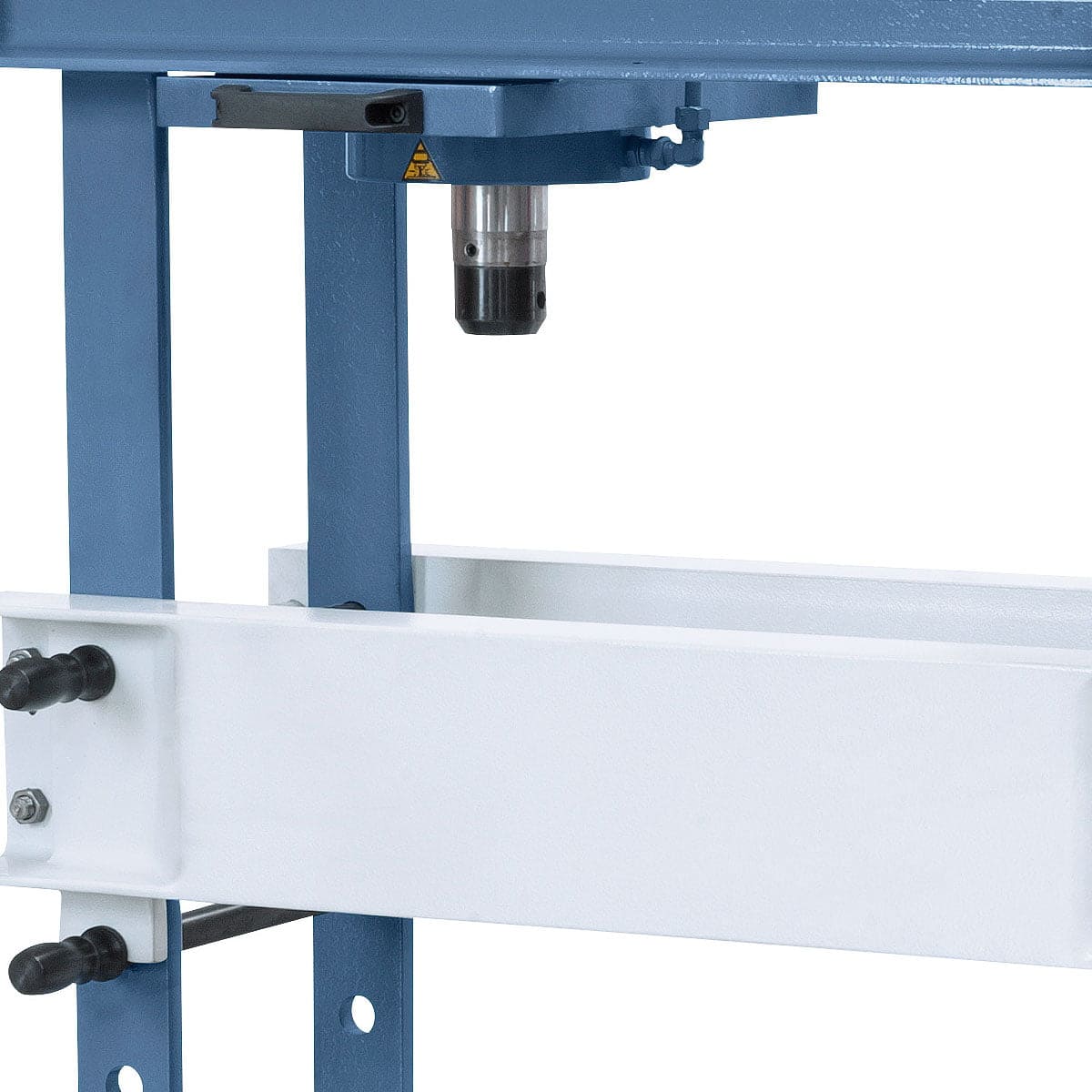

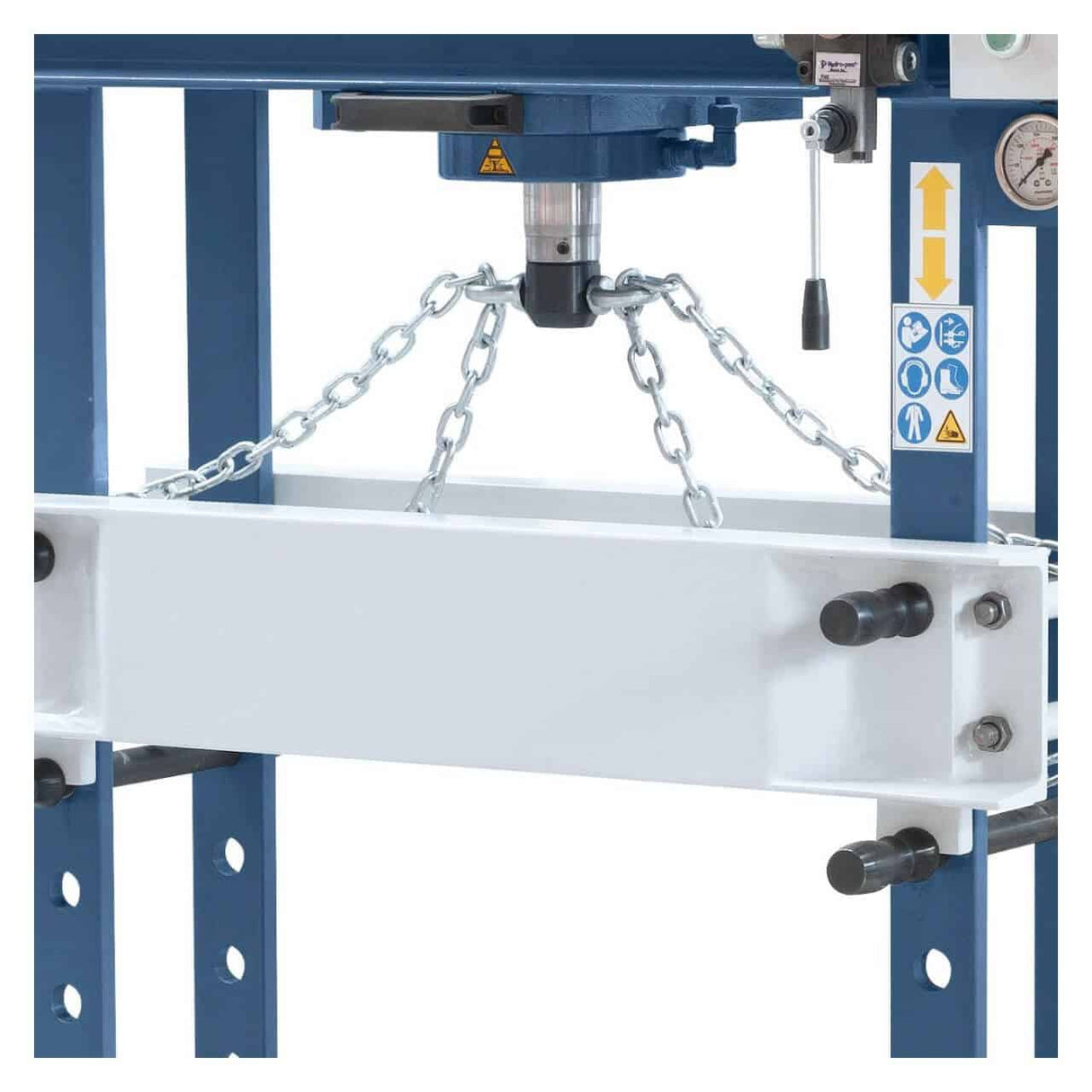

Height-adjustable work table with included device
Advance speed 8 mm/sec and return speed 9.8 mm/sec
7.5 kW motor for high and continuous performance
Welded box-section steel structure, robust and durable

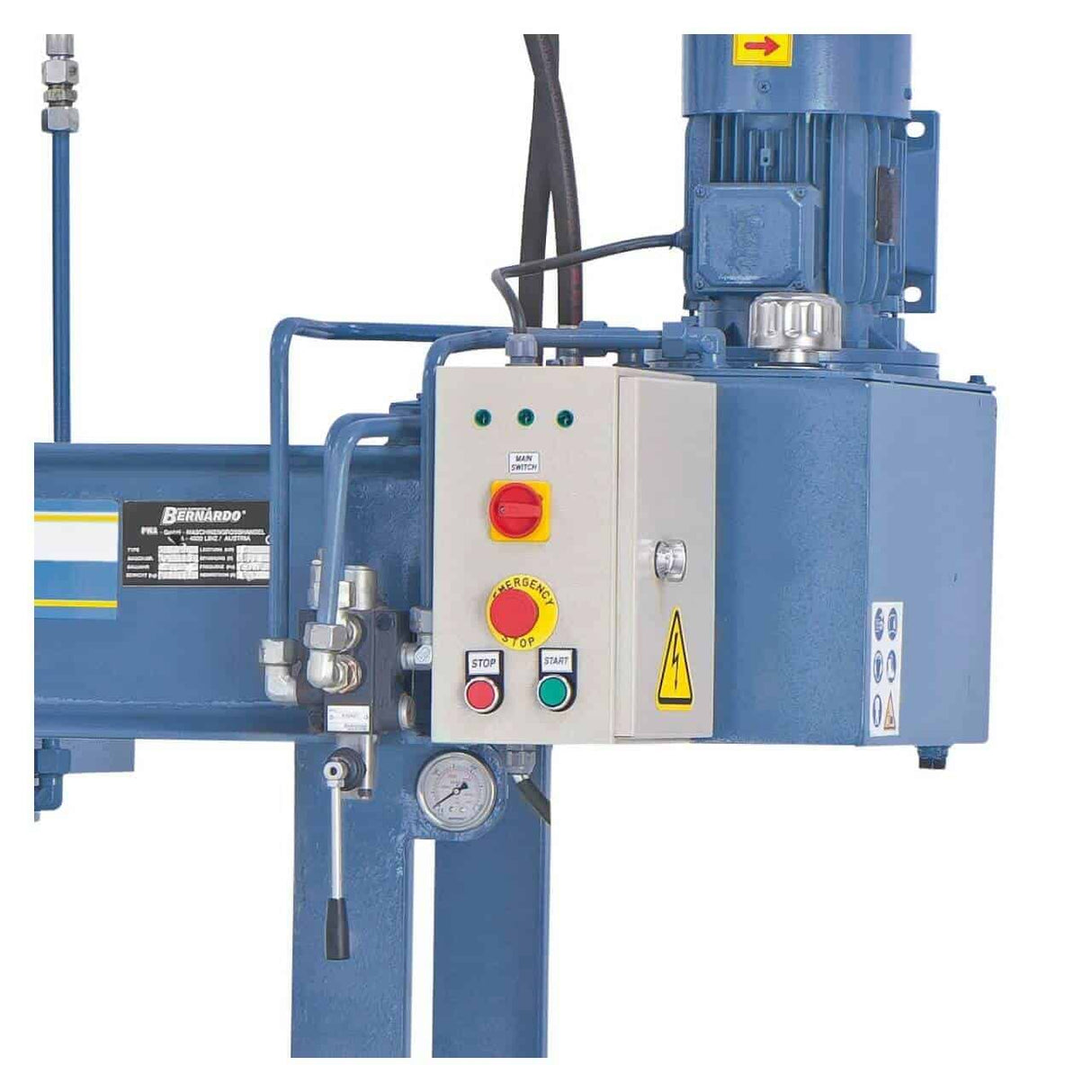

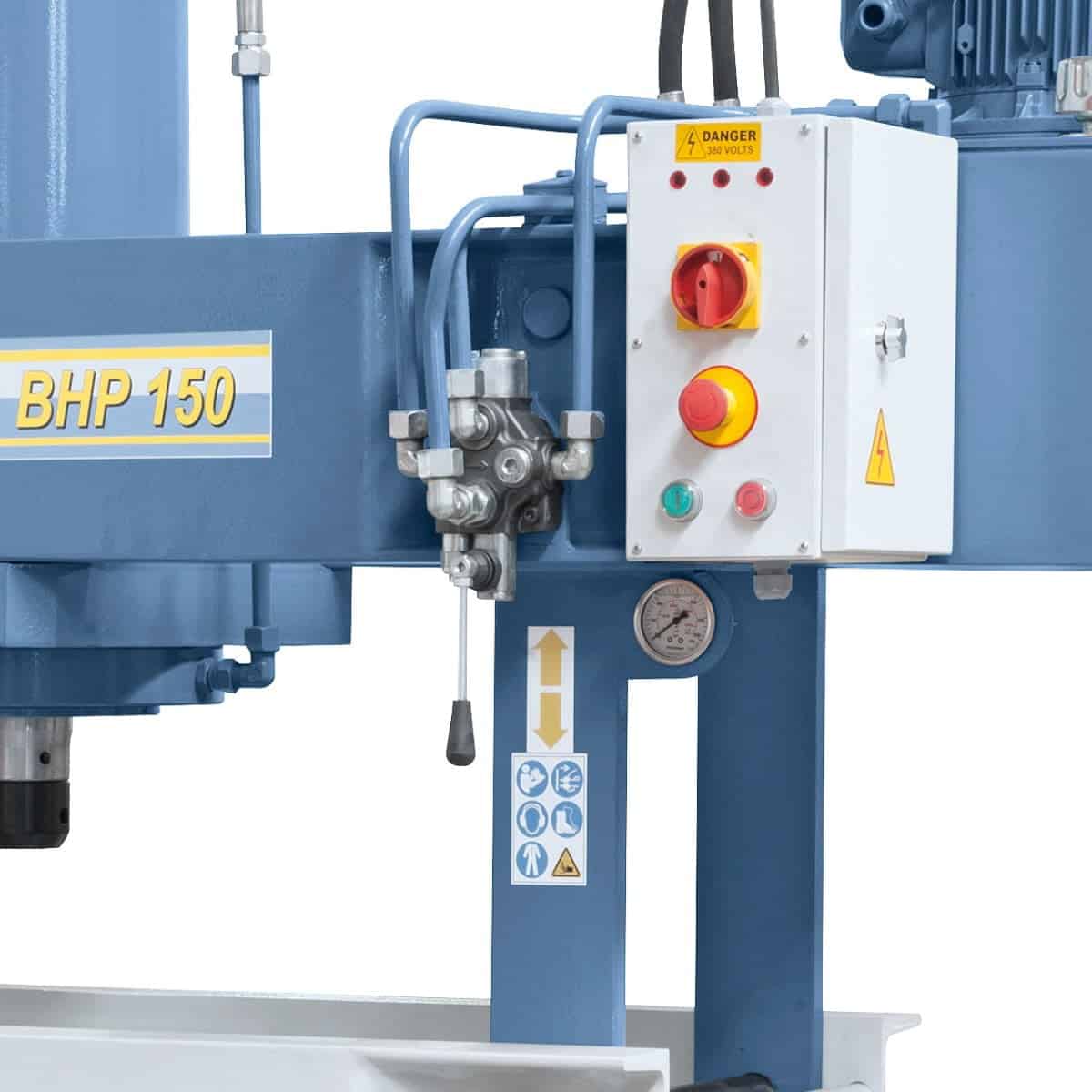

Integrated pressure gauge, overload valve, and prism supports included
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
BHP 200 |
| Type |
Hydraulic press with sliding cylinder |
| Pressing force |
200 ton |
| Upright clearance |
1100 mm |
| Piston stroke |
400 mm |
| Piston diameter |
120 mm |
| Max pressure |
250 bar |
| Table width |
700 mm |
| Max working height |
800 mm |
| Advance speed |
8 mm/sec |
| Return speed |
9.8 mm/sec |
| Motor power |
7.5 kW |
| Dimensions (L x W x H) |
1880 x 900 x 2460 mm |
| Weight |
1370 kg |
Package contents:
Bernardo BHP 200 hydraulic press
Integrated pressure gauge
Height-adjustable work table
Overload valve
Sliding cylinder
Prism supports
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Frequently asked questions
What is the difference between the BHP, HWP, and BRHP QZ series in the Bernardo press range?
The BHP series has a sliding cylinder: the piston moves downwards while the table remains fixed. The BHP 100t force is applied from top to bottom with a large stroke — suitable for pressing bearings onto long shafts, straightening structural elements, and vertical load tests.
Does the BHP 100t force also apply at the minimum piston stroke?
The nominal BHP 100t force is the maximum force developed at the maximum pressure of the hydraulic system. At the beginning of the stroke (piston at the top of its stroke), the force is the same — it is constant throughout the entire useful stroke. The included pressure gauge shows the pressure in bar: multiplying by the piston area gives the effective force in kN or tons.
Is the pressure gauge included as standard?
Yes — all BHP, HWP, and BRHP Bernardo presses include a pressure gauge for direct reading of the applied force. Essential for not exceeding the resistance of the pressed components (e.g., maximum interference of a bearing on the shaft) and for operations requiring a specific assembly force.
What foundation does it require?
Presses up to 100t are fixed to the floor with M12/M16 bolts on standard concrete (15–20 cm). For presses over 100t, consult a structural engineer to verify the floor's load capacity based on the base footprint. Customer support available in Italian.
Are spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
