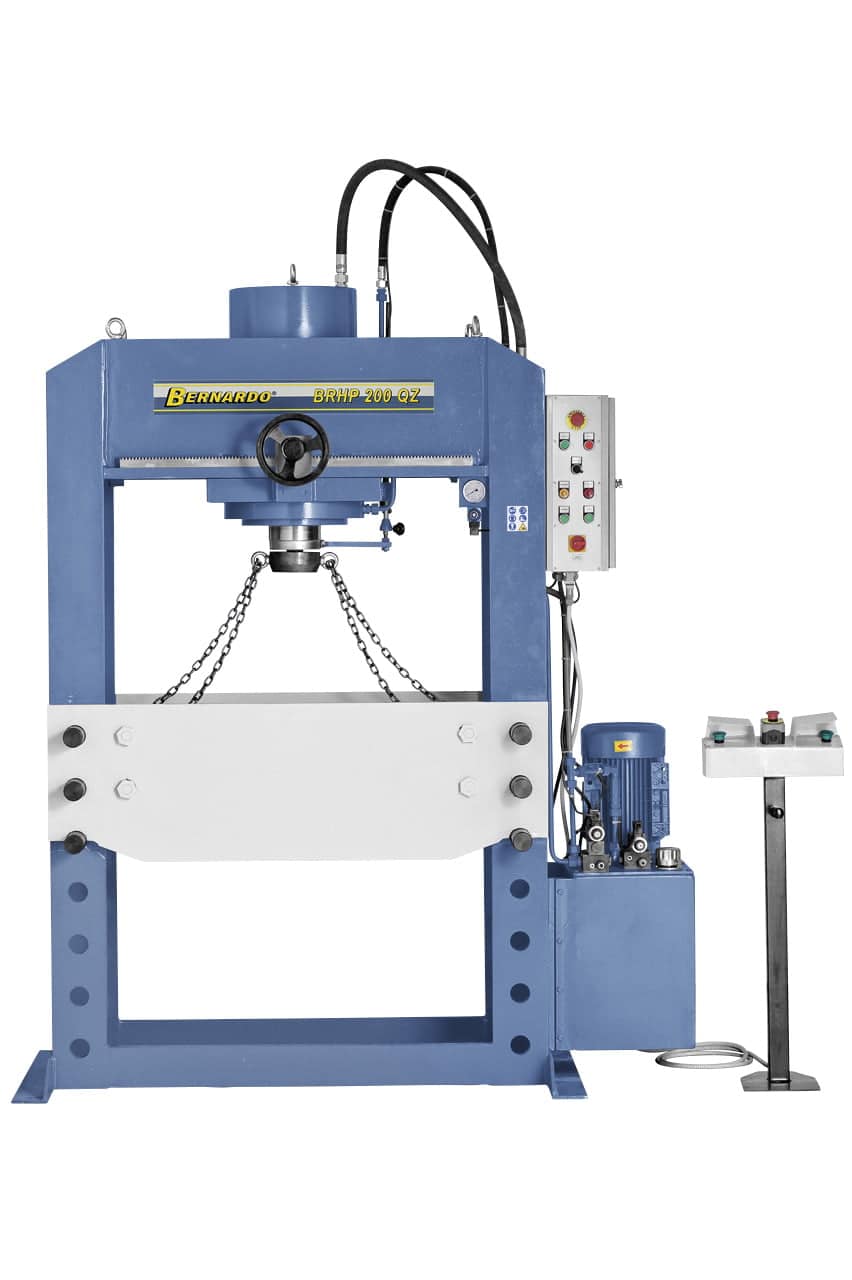

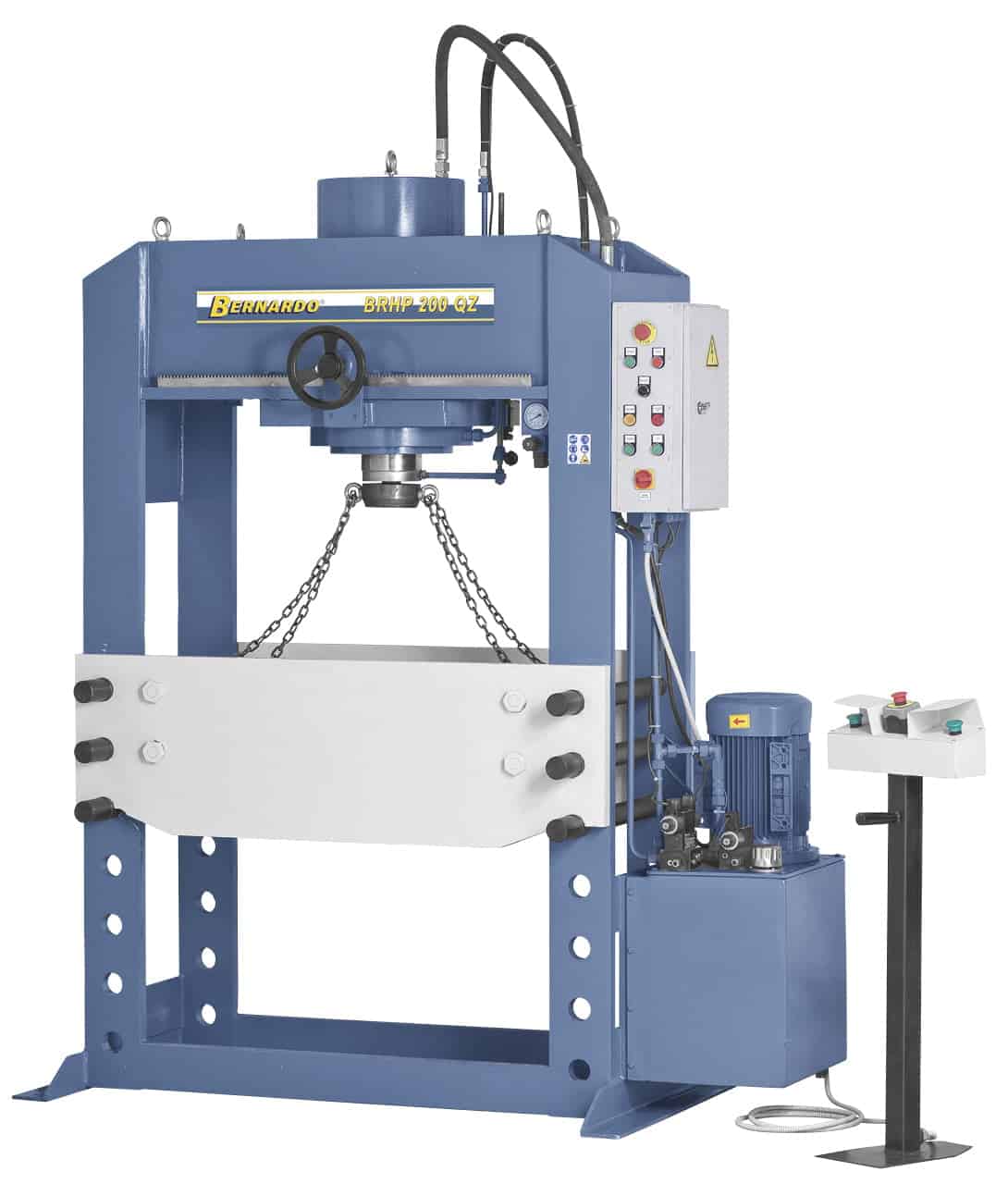

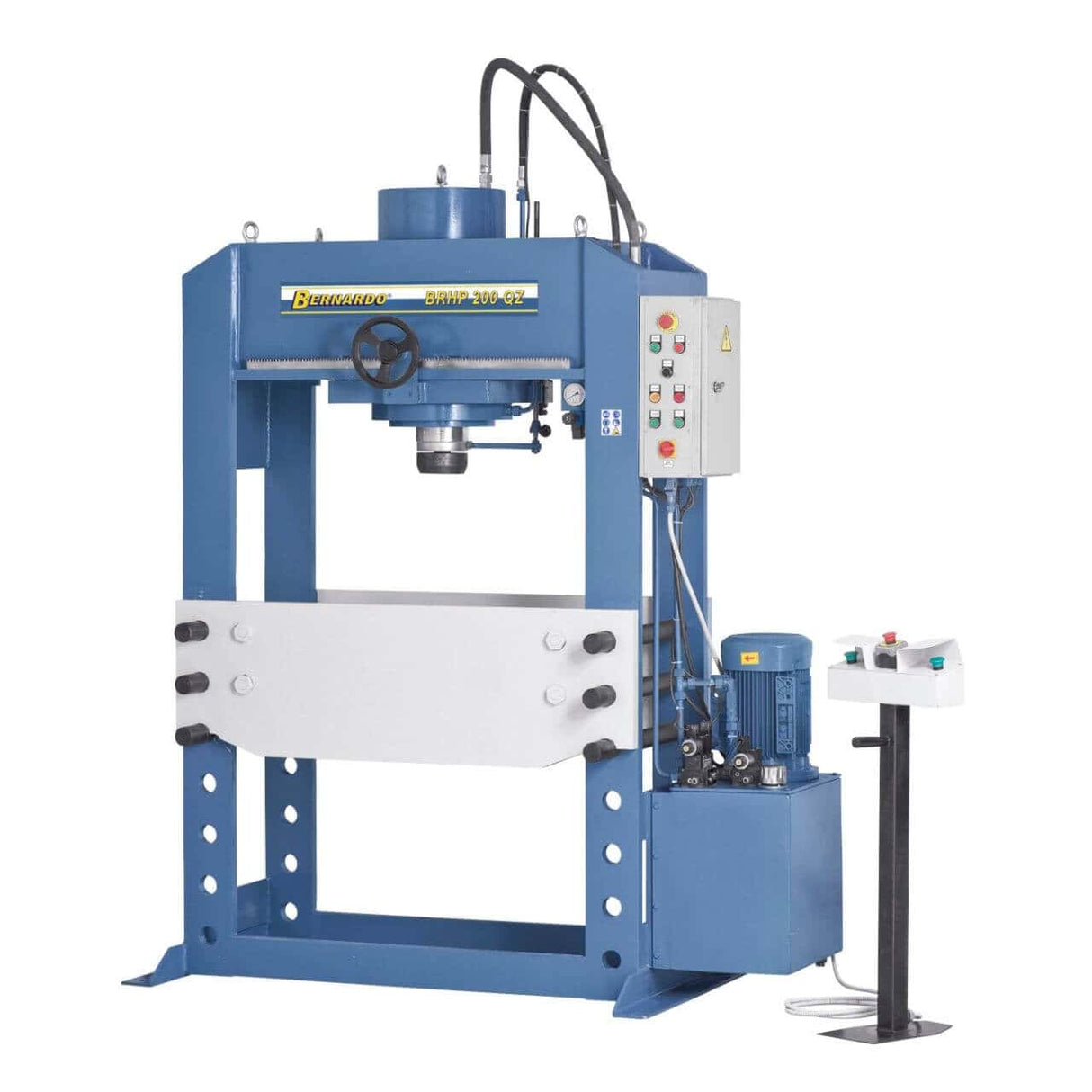

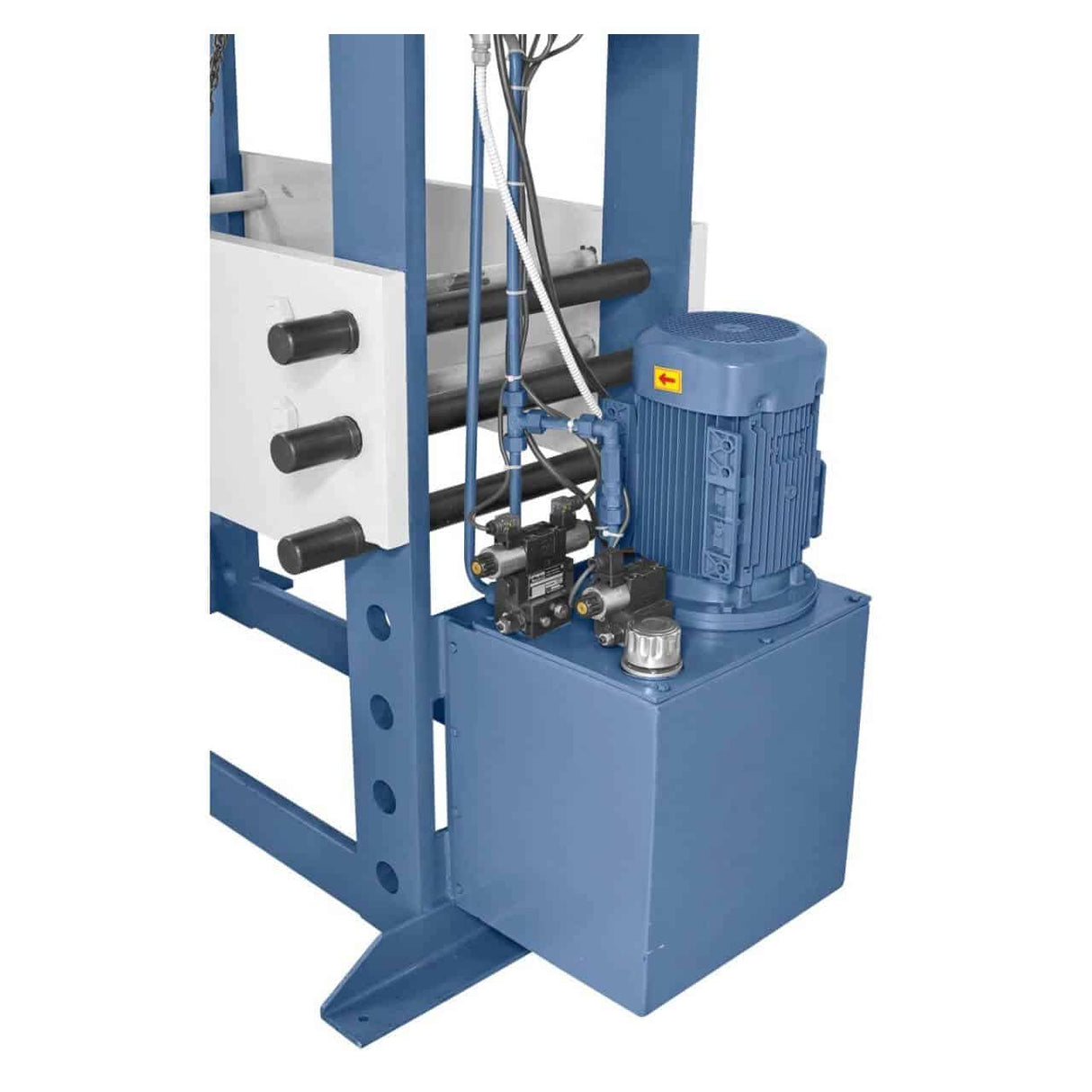

Bernardo BRHP 150 QZ – Hydraulic press with movable head
The Bernardo BRHP 150 QZ hydraulic press is a powerful and reliable industrial machine, designed for heavy-duty professional applications. With a pressing force of 150 tons and a ram stroke of 400 mm, it is suitable for straightening shafts, mounting or dismounting bushings, bearings, and bolts, as well as for load testing large components. The movable head and sliding cylinder ensure maximum versatility, allowing for precise and safe operations. The welded steel structure ensures stability, while the advance (8 mm/sec) and return (10.5 mm/sec) speeds guarantee efficiency and rapidity. With a 7.5 kW motor and a weight of 1800 kg, the BRHP 150 QZ is designed for continuous industrial use. Supplied as standard with a manometer, adjustable table, and prism supports, it is the right choice for workshops and industries requiring a professional-quality hydraulic press.
Key Specifications
150 tons pressing force for heavy-duty industrial applications

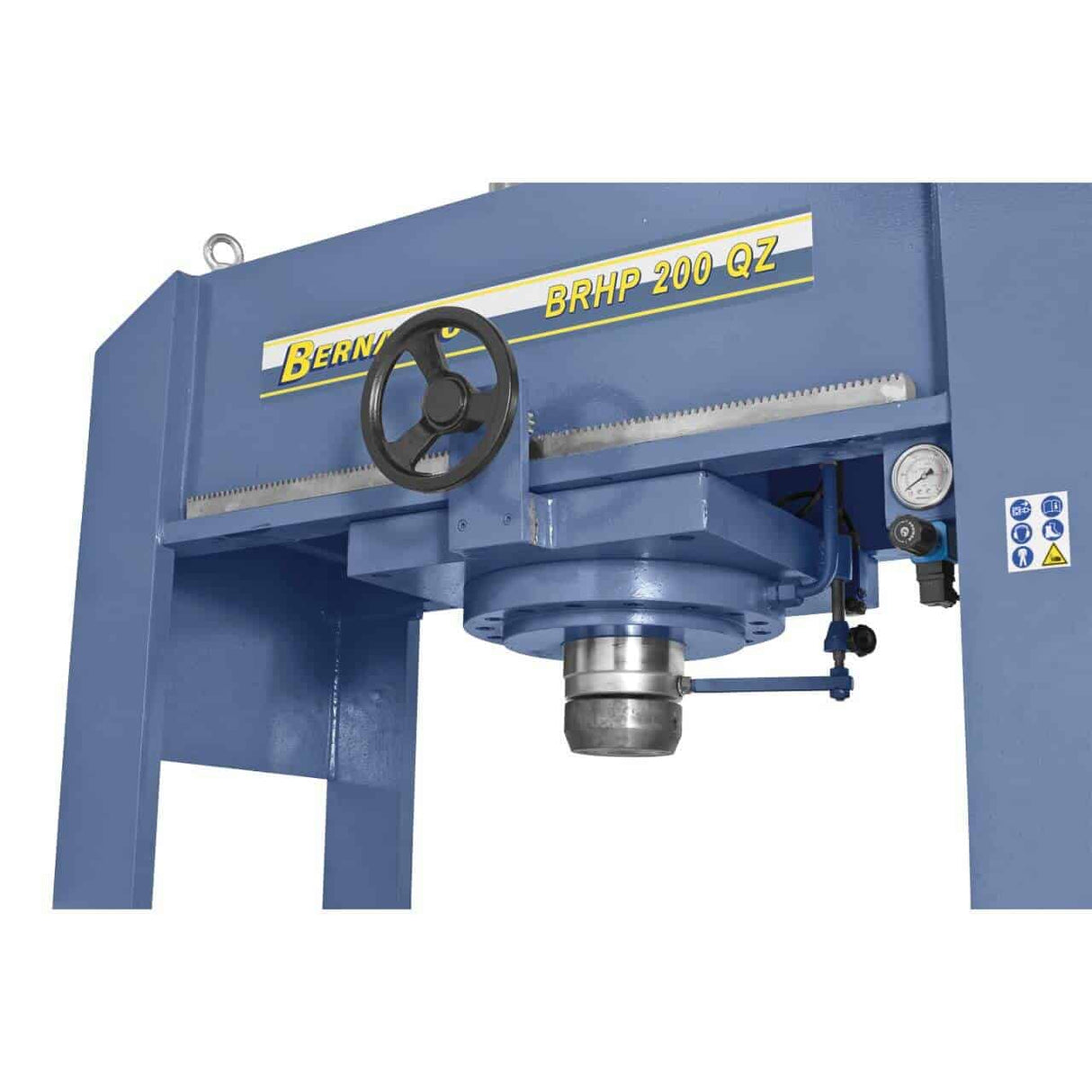

Movable head and sliding cylinder for maximum versatility

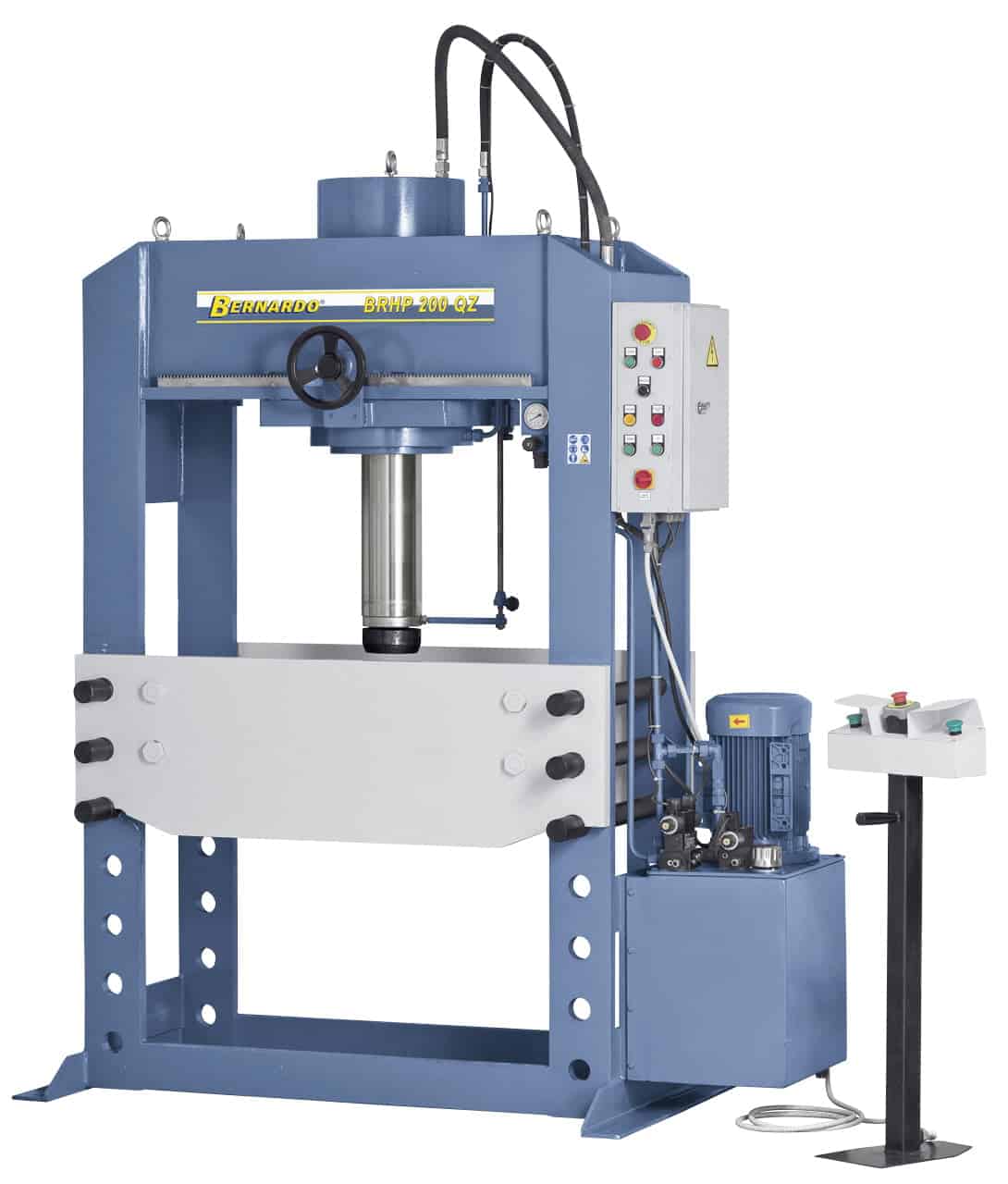

Ram with 400 mm stroke and 280 mm diameter

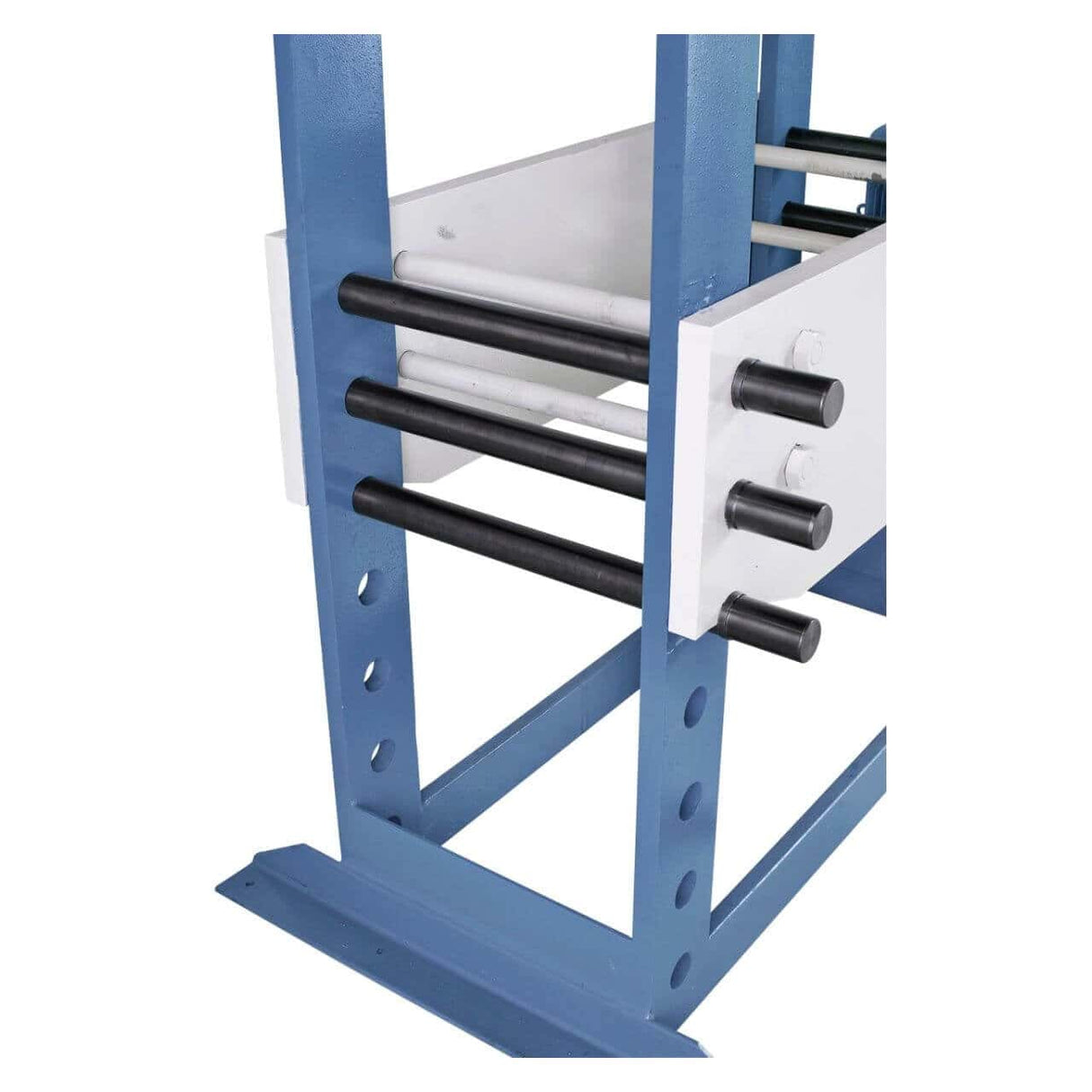

Height-adjustable work table with included device
Robust welded steel structure for stability and long life
Advance speed 8 mm/sec and return speed 10.5 mm/sec

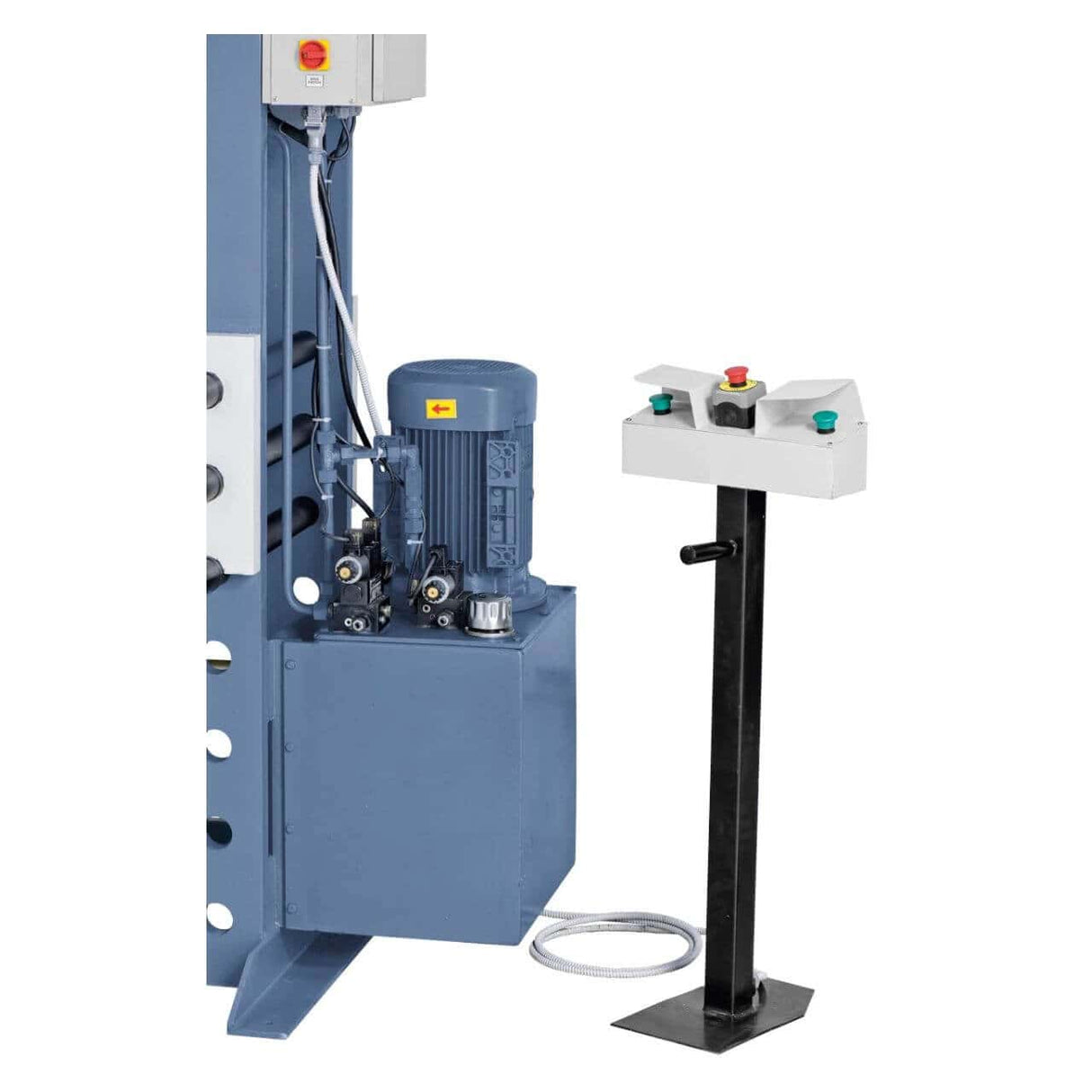

7.5 kW motor for high and reliable performance

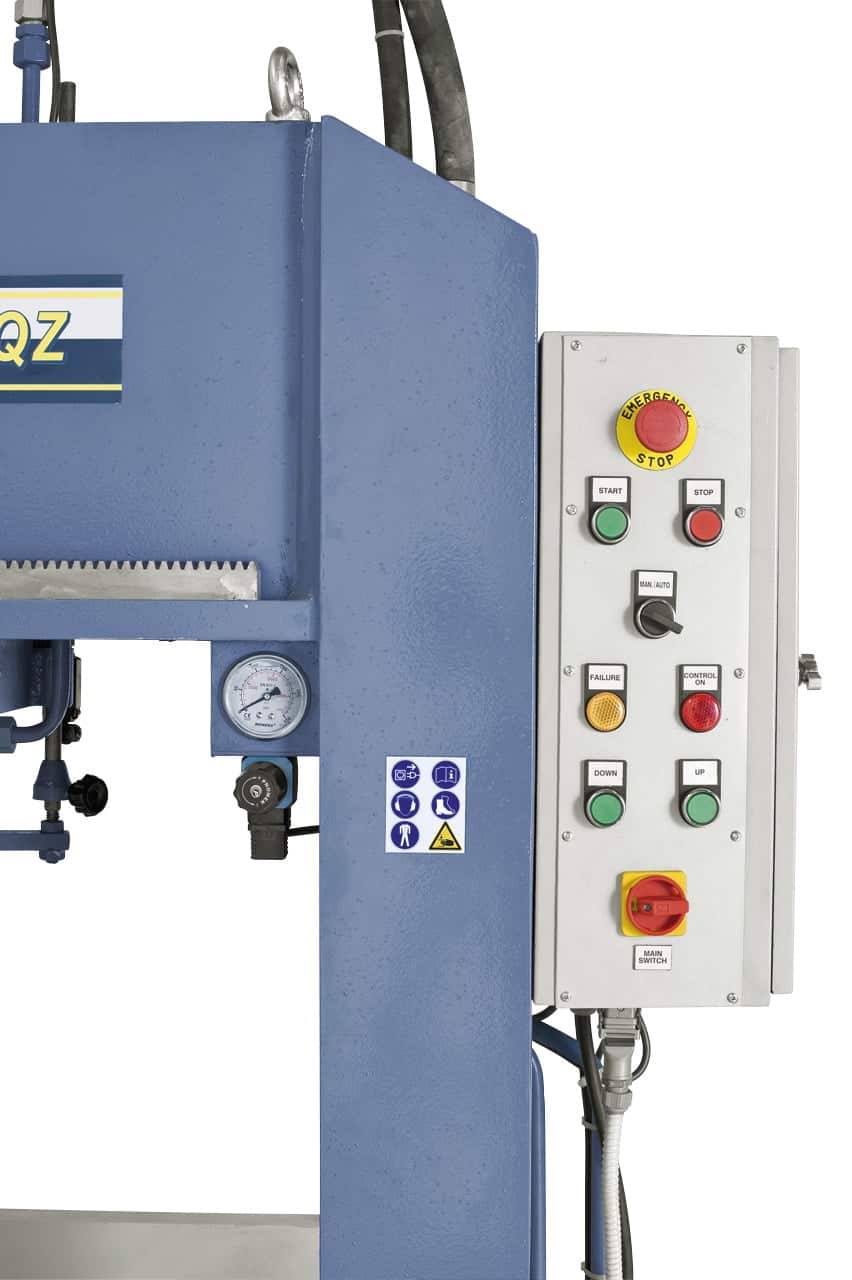

Equipped with manometer, overload valve, and prism supports
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
BRHP 150 QZ |
| Type |
Hydraulic press with movable head |
| Pressing force |
150 ton |
| Distance between uprights |
1000 mm |
| Ram stroke |
400 mm |
| Cylinder diameter |
280 mm |
| Max pressure |
245 bar |
| Max working height |
950 mm |
| Advance speed |
8 mm/sec |
| Return speed |
10.5 mm/sec |
| Motor power |
7.5 kW |
| Dimensions (L x W x H) |
2100 x 850 x 2320 mm |
| Weight |
1800 kg |
Package contents:
Bernardo BRHP 150 QZ hydraulic press
Integrated manometer
Height-adjustable work table
Overload valve
Movable cylinder
Prism supports
Logistics
Bernardo Shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently asked questions
What is the difference between the BHP, HWP and BRHP QZ series in the Bernardo press range?
The BRHP QZ series has a head with a movable cylinder on four columns (Quick Zone): the cylinder moves horizontally to position itself over any point of the table without moving the workpiece. With the BRHP 100t, it is suitable for pressing off-center workpieces, asymmetrical operations, and operations where the workpiece cannot be centered under a fixed cylinder.
Does the BRHP 100t force also apply at the minimum ram stroke?
The nominal BRHP 100t force is the maximum force developed at the maximum pressure of the hydraulic system. At the beginning of the stroke (ram at the upper limit), the force is the same — it is constant throughout the entire useful stroke. The included manometer shows the pressure in bar: multiplying by the piston area gives the effective force in kN or tons.
Is the manometer included as standard?
Yes — all BHP, HWP, and BRHP Bernardo presses include a manometer for direct reading of the applied force. Essential for not exceeding the resistance of the pressed components (e.g., maximum interference of a bearing on the shaft) and for operations requiring a specific assembly force.
What foundation does it require?
Presses up to 100t are fixed to the floor with M12/M16 bolts on standard concrete (15–20 cm). For presses over 100t, check the floor's load-bearing capacity with a structural engineer based on the base footprint. Customer support in Italian available.
Are spare parts and assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
