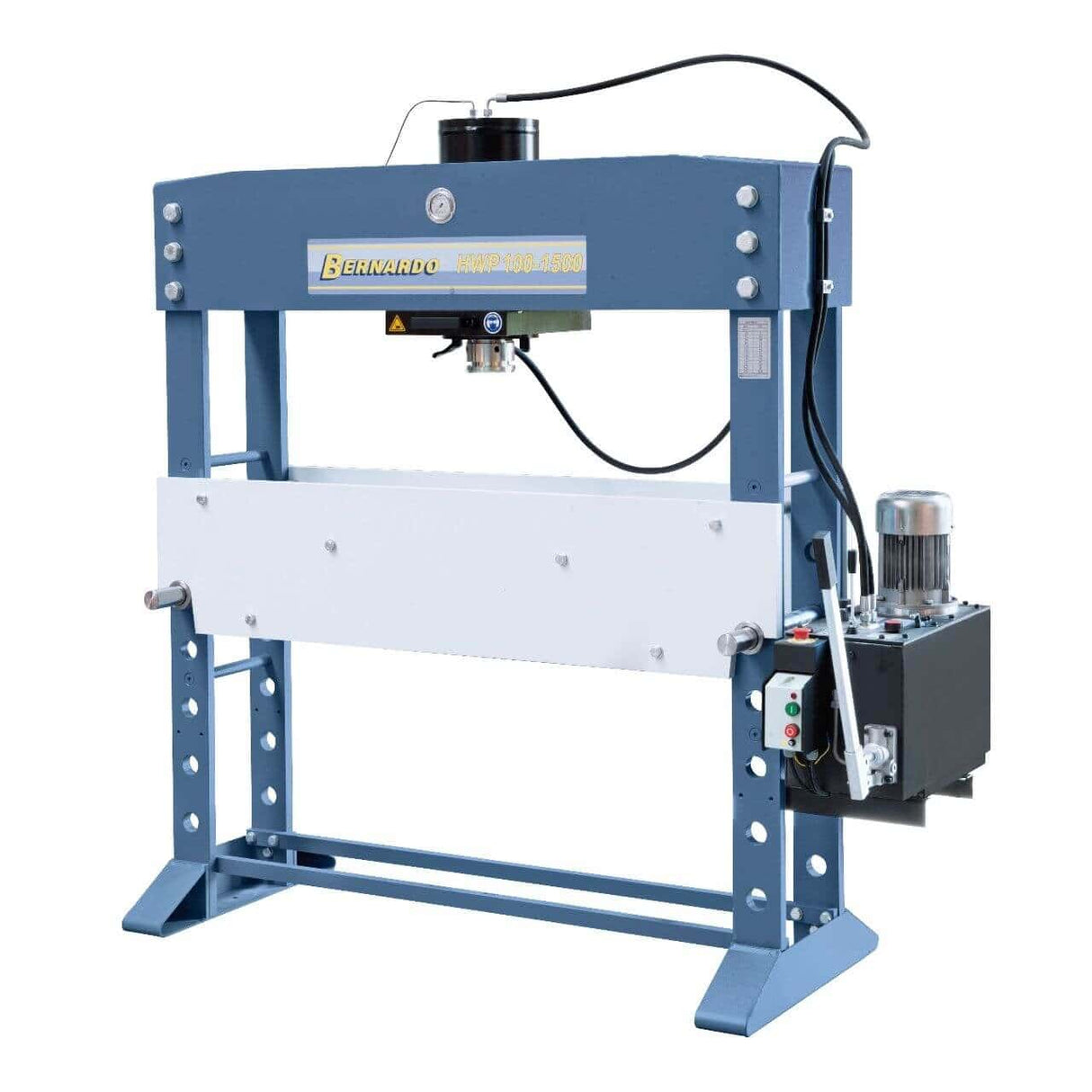

Bernardo HWP 100-1500 – Hydraulic press with sliding cylinder
The Bernardo HWP 100-1500 hydraulic press is a professional, high-performance machine suitable for assembly, straightening, load testing, and part inspection. Thanks to its 100-ton pressing force and 1500 mm clearance between uprights, it is also suitable for large-scale operations. The piston with a 380 mm stroke, 90 mm diameter, and maximum pressure of 258 bar ensures power and precision. The laterally sliding cylinder and height-adjustable work surface, operated by chain and hydraulic cylinder, offer maximum versatility. The piston can be operated either manually via a lever or with a sensitive hydraulic pump, stopping at any position. With fast advance speeds (7.5 mm/sec) and return speeds (9.06 mm/sec), a robust structure, and a 2.2 kW motor, the HWP 100-1500 is the powerful and reliable choice for workshops and industries requiring a large-format hydraulic press.
Main specifications
100-ton pressing force for professional and industrial applications
1500 mm clearance between uprights for large workpieces
Piston with 380 mm stroke and 90 mm diameter

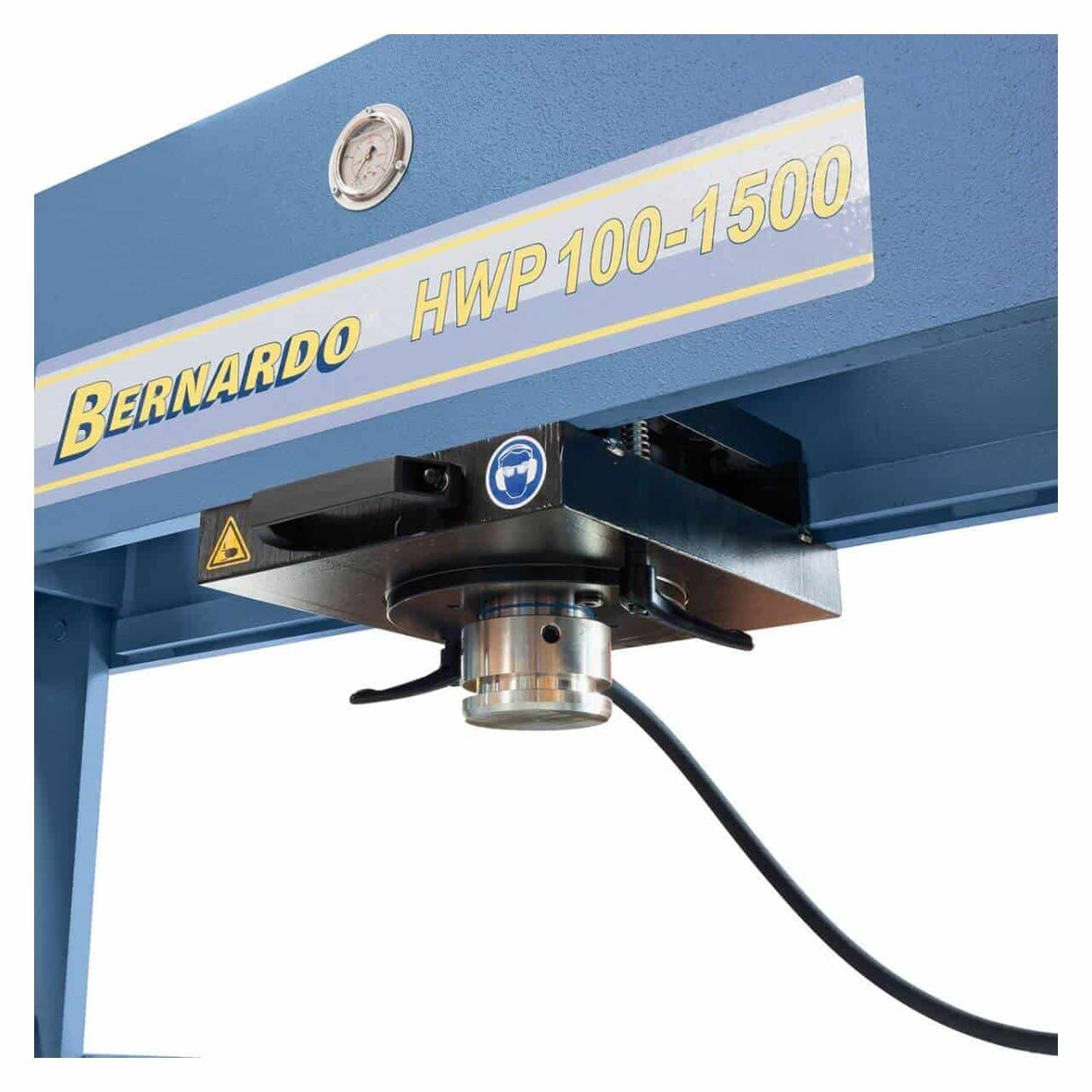

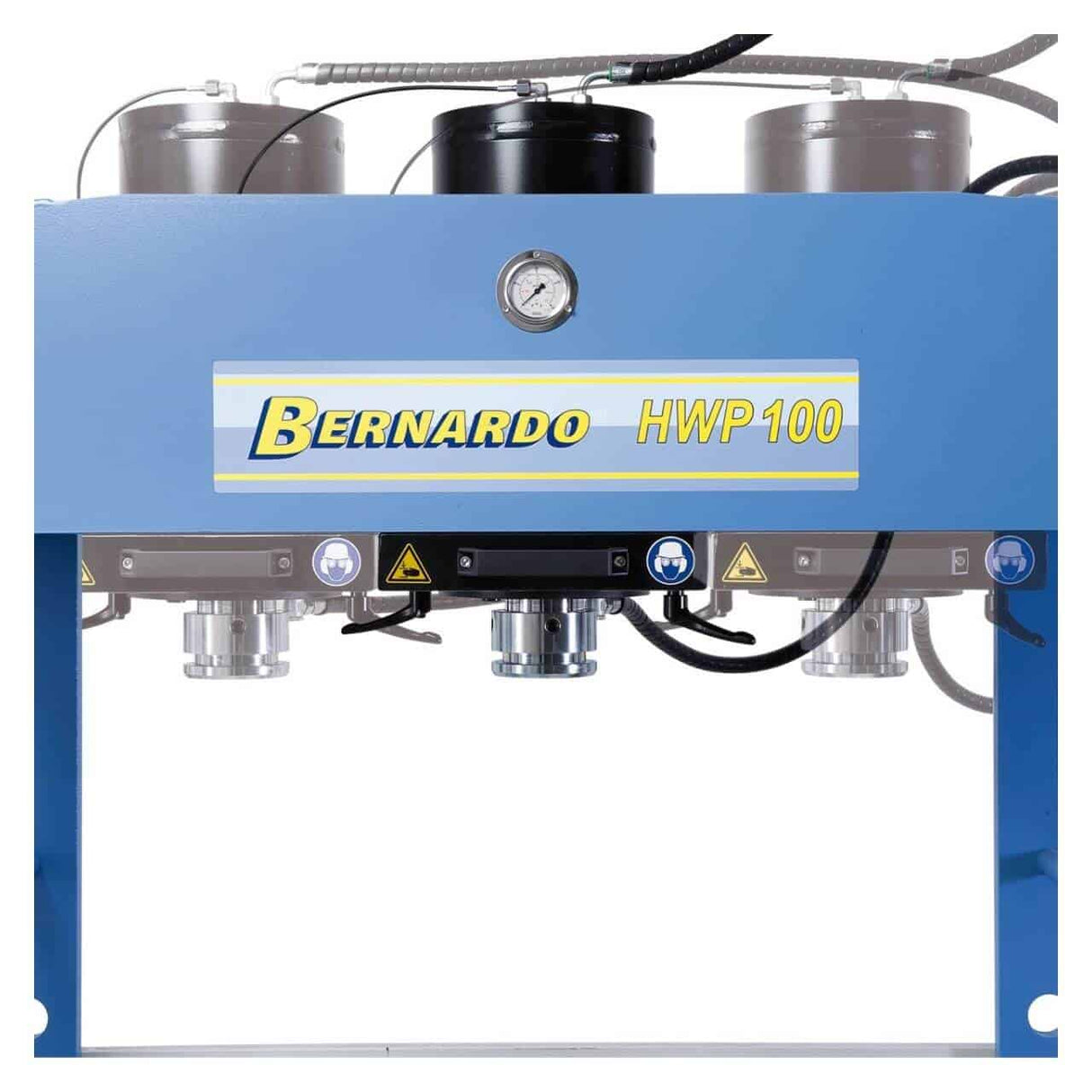

Laterally sliding cylinder for maximum flexibility

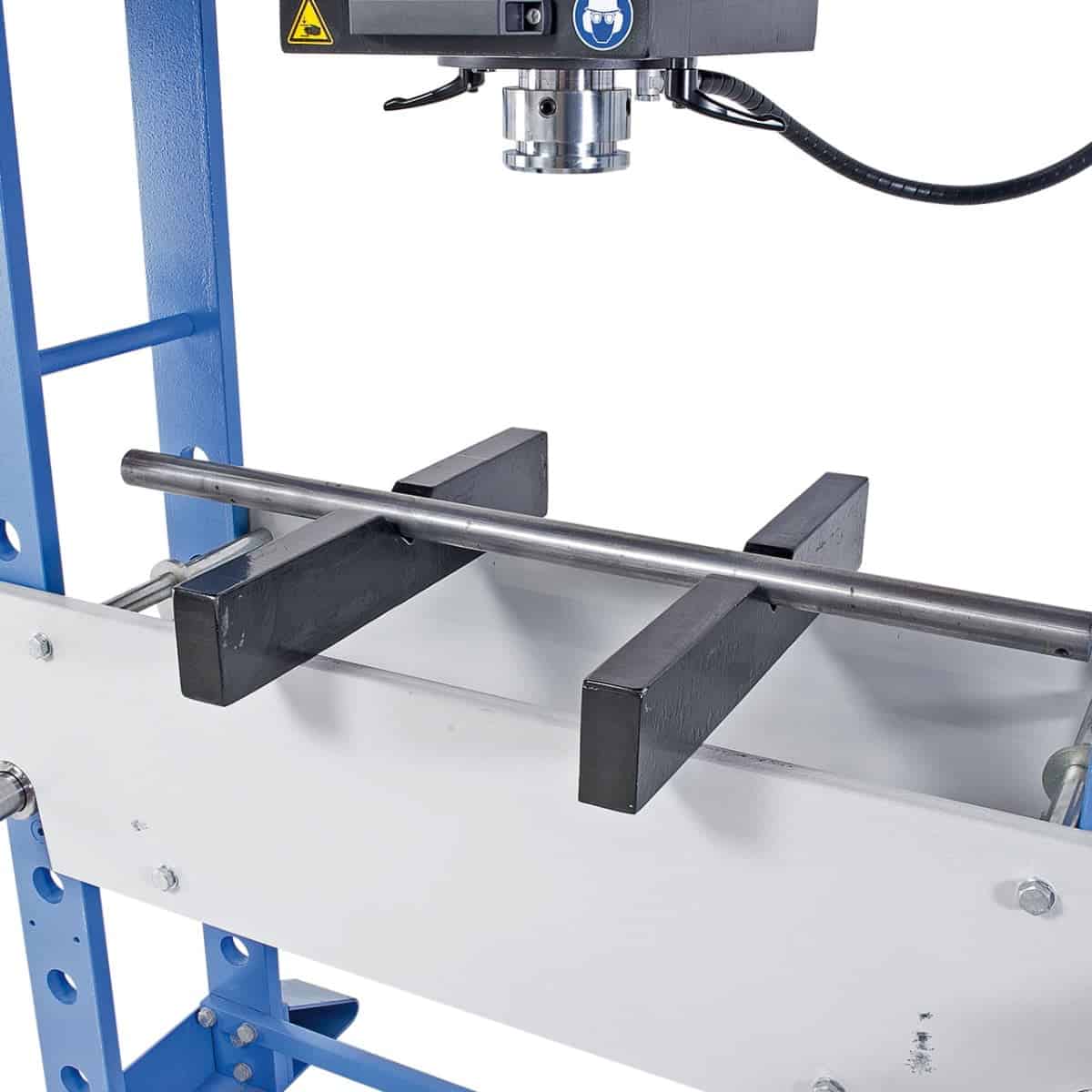

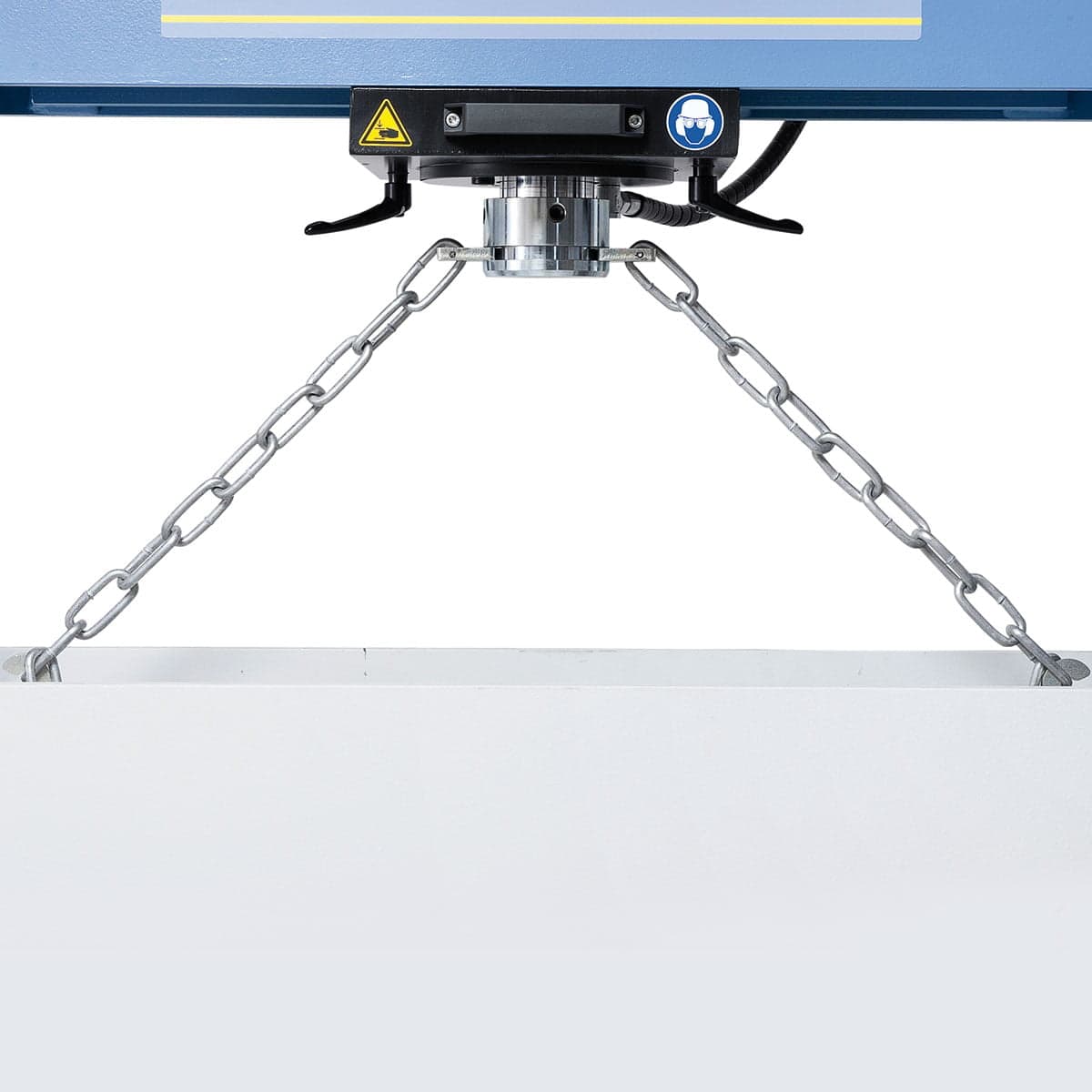

Height-adjustable work surface via chain and hydraulic cylinder

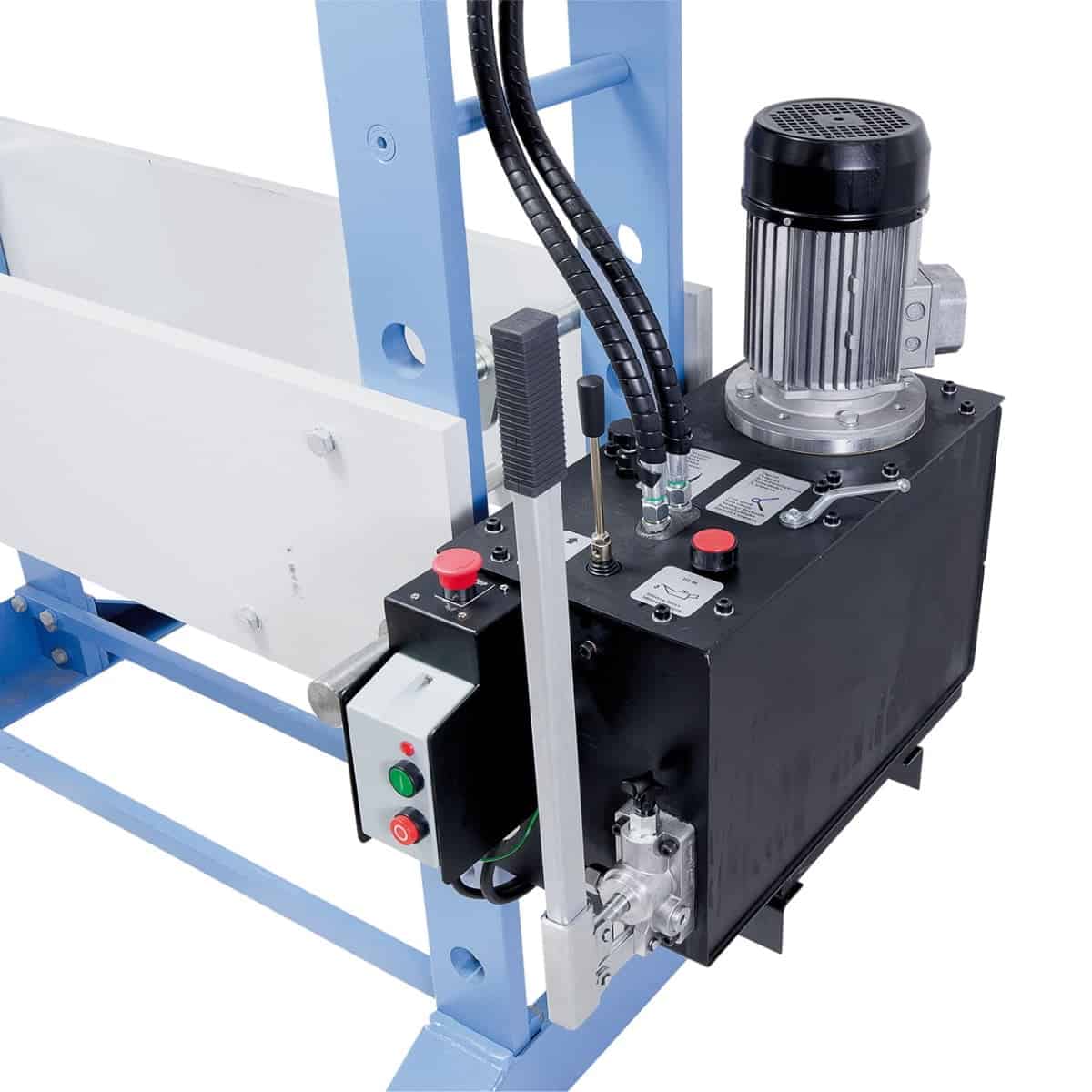

Manual lever operation or sensitive hydraulic pump operation
Advance speed 7.5 mm/sec and return speed 9.06 mm/sec
2.2 kW motor for reliable and continuous performance
Robust structure with integrated pressure gauge and overload valve
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HWP 100-1500 |
| Type |
Hydraulic press with sliding cylinder |
| Pressing force |
100 ton |
| Clearance between uprights |
1500 mm |
| Piston stroke |
380 mm |
| Piston diameter |
90 mm |
| Max pressure |
258 bar |
| Table width |
425 mm |
| Max working height |
890 mm |
| Advance speed |
7.5 mm/sec |
| Working speed |
2.47 mm/sec |
| Return speed |
9.06 mm/sec |
| Motor power |
2.2 kW |
| Dimensions (L x W x H) |
2065 x 865 x 2180 mm |
| Weight |
1145 kg |
Package contents:
Bernardo HWP 100-1500 hydraulic press
Integrated pressure gauge
Adjustable work surface
Overload valve
Sliding cylinder
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between the BHP, HWP and BRHP QZ series in the Bernardo press range?
The HWP series is the hydraulic workshop column press: compact steel structure, top-sliding cylinder. With the HWP 30t, it is suitable for bearing assembly/disassembly, shaft straightening and crimping operations in mechanical workshops and industrial maintenance.
Does the HWP 30t force apply even at the minimum piston stroke?
The nominal HWP 30t force is the maximum force developed at the maximum hydraulic system pressure. At the beginning of the stroke (piston at the top of its stroke), the force is the same – it is constant throughout the entire effective stroke. The included pressure gauge shows the pressure in bar: multiplying by the piston area gives the actual force in kN or tons.
Is the pressure gauge included as standard?
Yes – all Bernardo BHP, HWP and BRHP presses include a pressure gauge for direct reading of the applied force. Essential for not exceeding the resistance of pressed components (e.g. maximum interference of a bearing on the shaft) and for operations requiring a specific assembly force.
What foundation is required?
Presses up to 100t are fastened to the floor with M12/M16 bolts on standard concrete (15–20 cm). For presses over 100t, consult a structural engineer to check the floor's load-bearing capacity based on the base footprint. Customer support available in Italian.
Are spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
