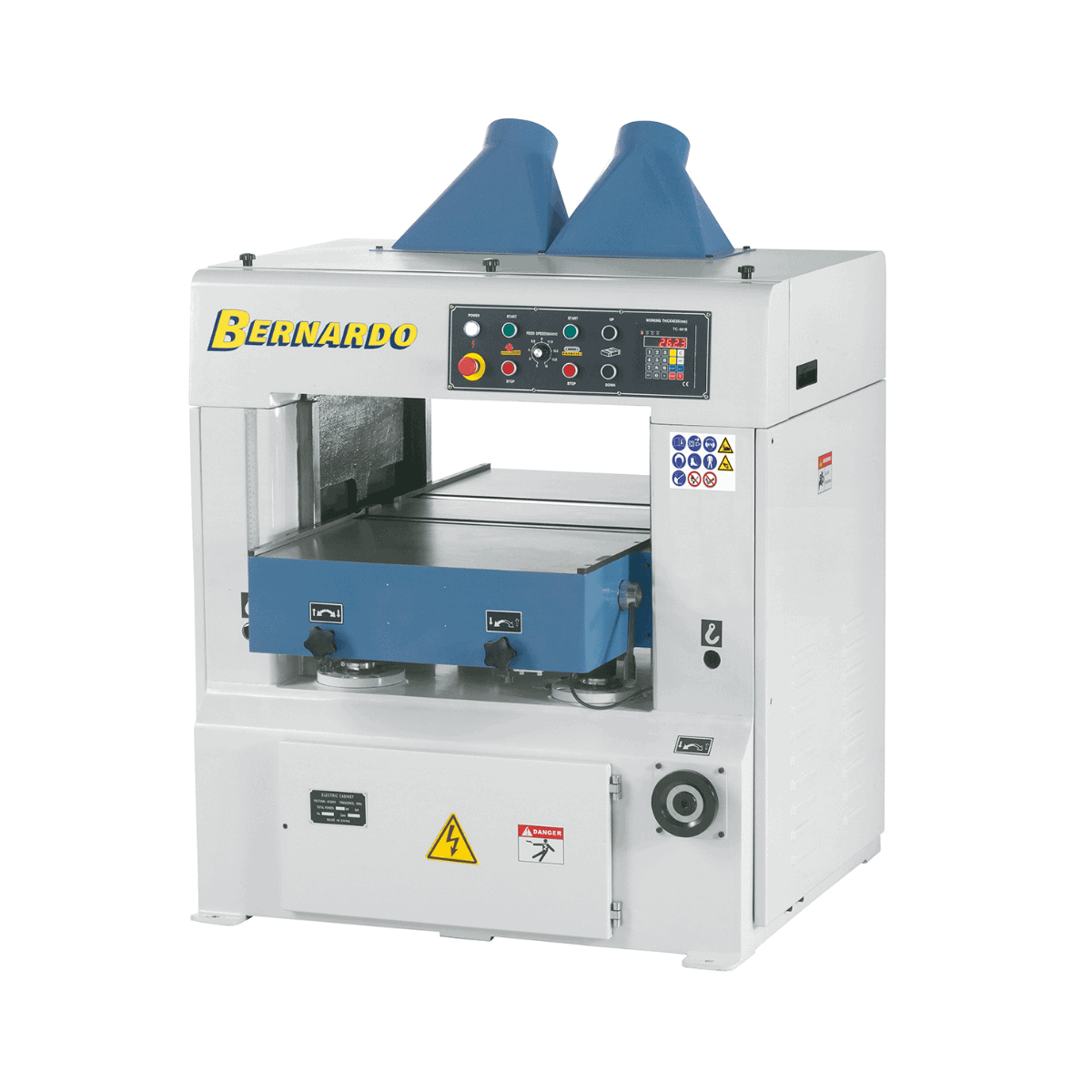

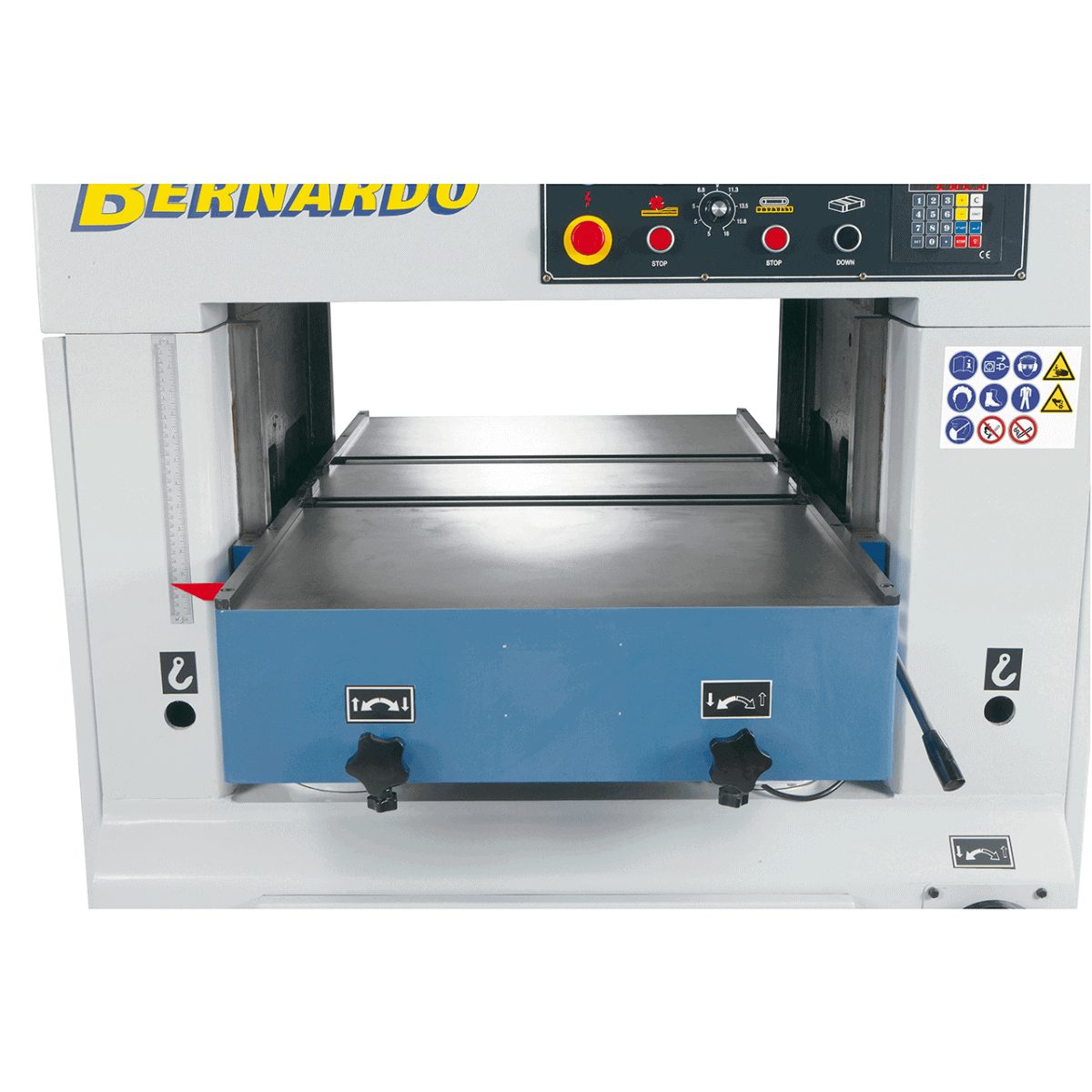

The Bernardo TP 630 D – 400V industrial thickness planer offers a working width of 630 mm, a working height of 4–300 mm, a Ø 120 mm shaft with 4 HSS knives at 5,000 rpm, variable feed speed of 5–18 m/min, a 7.5 kW main motor, a 1.5 kW feed motor, and 2 dust extraction ports of Ø 150 mm. Weight 1,250 kg. This machine is for thickness planing only; it does not have a jointing function. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
-
Function: thickness planing only (industrial)
-
Working width: 630 mm
-
Working height (min–max): 4 – 300 mm
-

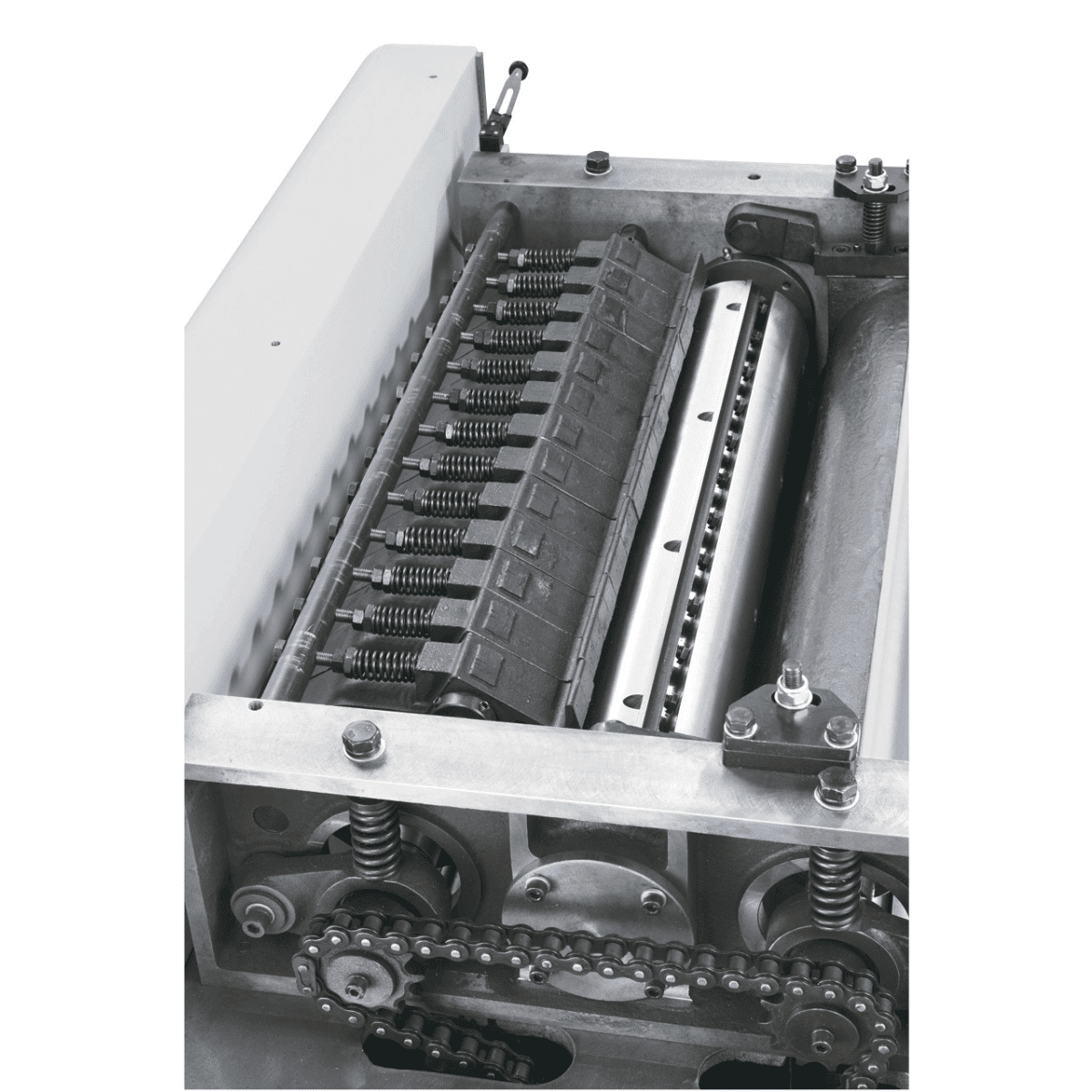

Shaft: Ø 120 mm – 4 HSS knives – 5,000 rpm
-
Variable feed speed: 5 – 18 m/min
-
Main motor: 7.5 kW S1
-
Feed motor: 1.5 kW
-
Dust extraction: 2 × Ø 150 mm
-
Weight: 1,250 kg
Who uses the TP 630 D and for what purpose
The Bernardo TP 630 D is an industrial thickness planer: with a 630 mm width, Ø 120 mm shaft, 7.5 kW motor, and a 1,250 kg structure, it is a completely different category of machine compared to the DH 310/410. It is designed for continuous production on extra-wide boards and panels, industrial joinery, laminated panel manufacturers, and highly automated carpentry workshops. The variable feed speed from 5 to 18 m/min allows for optimizing speed based on wood type and depth of cut. The 2 Ø 150 mm dust extraction ports indicate a volume of chips produced that requires a high-capacity centralized dust extraction system. In Krollit customers' workshops, it is used by manufacturers of structural timber elements and industrial joinery with dedicated production lines.
Krollit Logistics and Support
Bernardo shipping in 5-9 business days (7 days for Southern Italy). Original Bernardo spare parts available from stock with 3-5 business day shipping. Customer support available in Italian.
Who is the Bernardo TP 630 D – 400V for?
| Profile |
Compatibility |
Reason |
| Passionate hobbyist |
Not suitable |
Industrial machine weighing 1,250 kg. Size, cost, and installation requirements are incompatible with hobby use. |
| Small carpentry shop / craftsman |
Not suitable |
The TP 630 D is sized for high-volume industrial production. For artisan carpentry, consider the DH 310 S or DH 410 S. |
| Industrial production / joinery |
Recommended |
630 mm width, 300 mm height, 7.5 kW motor, variable feed speed: the thickness planer for production lines on extra-wide boards and panels in continuous cycles. |
Not suitable for: any non-industrial context; workshops without a centralized Ø 150 mm dust extraction system; sites without access for a crane or forklift; pieces under 300 mm in width (oversized machine).
Thickness planer
| Specification |
Value |
| Working width |
630 mm |
| Working height (min–max) |
4 – 300 mm |

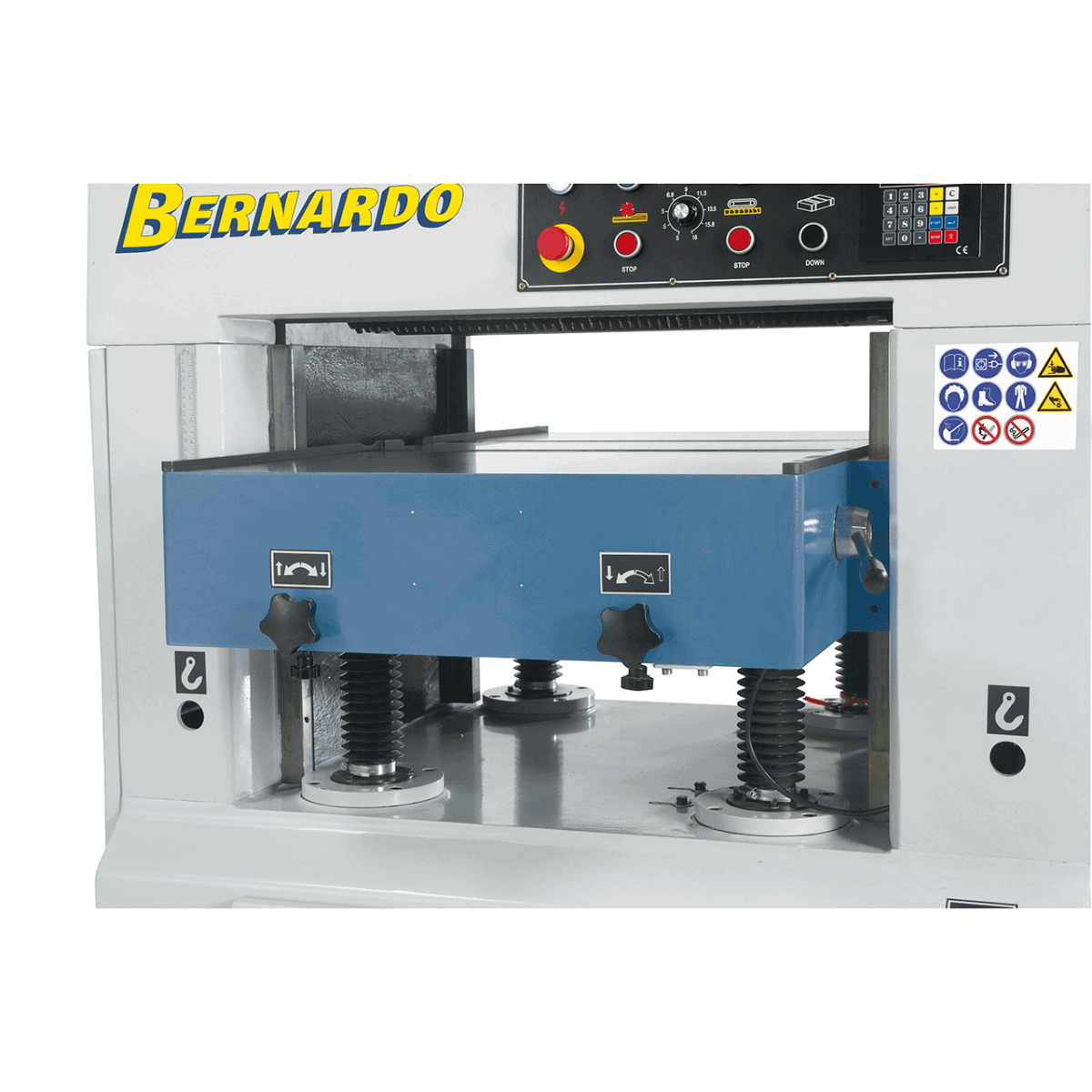

| Table |
1,200 × 630 mm |
| Max. depth of cut |
10 mm |
| Min. workpiece length |
300 mm |

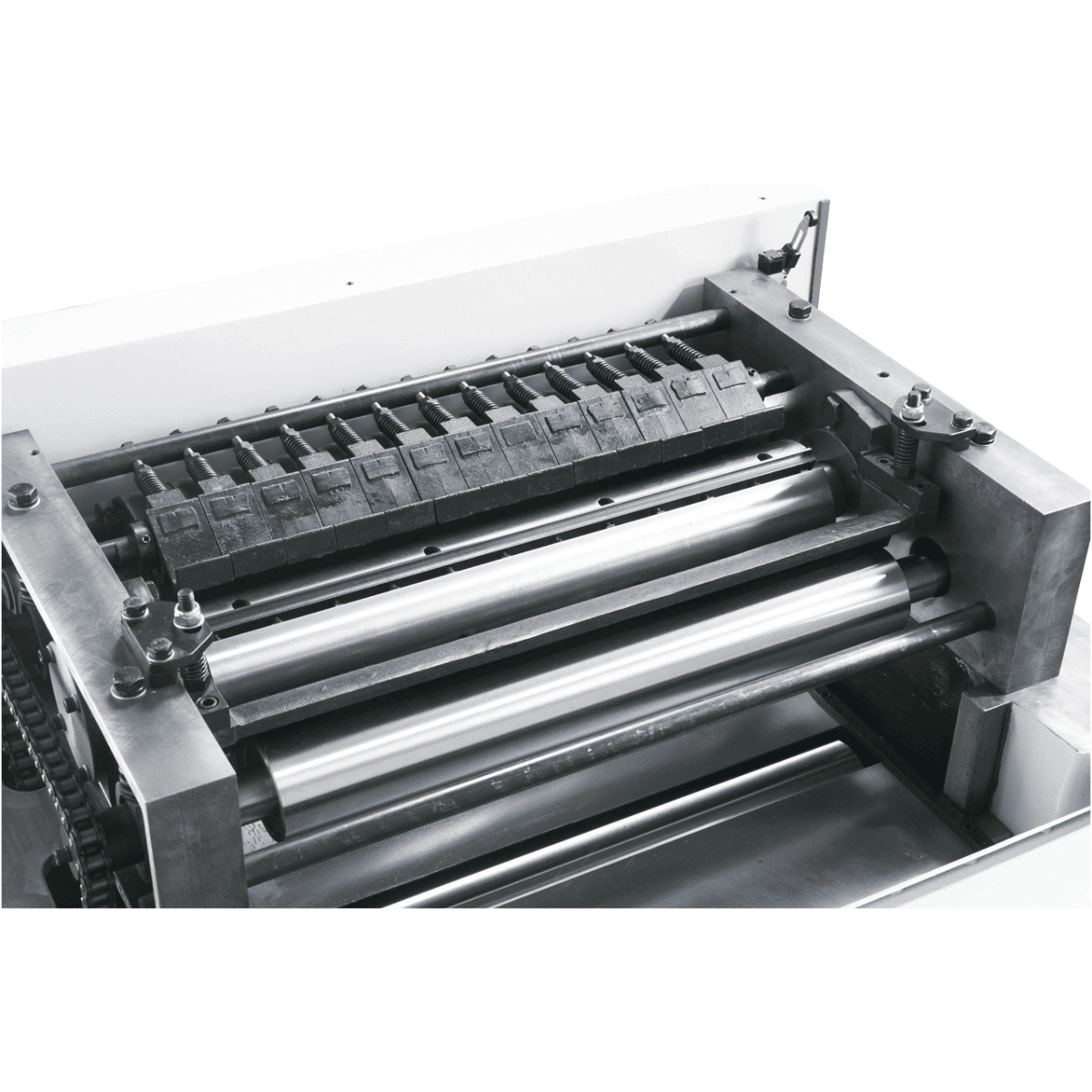

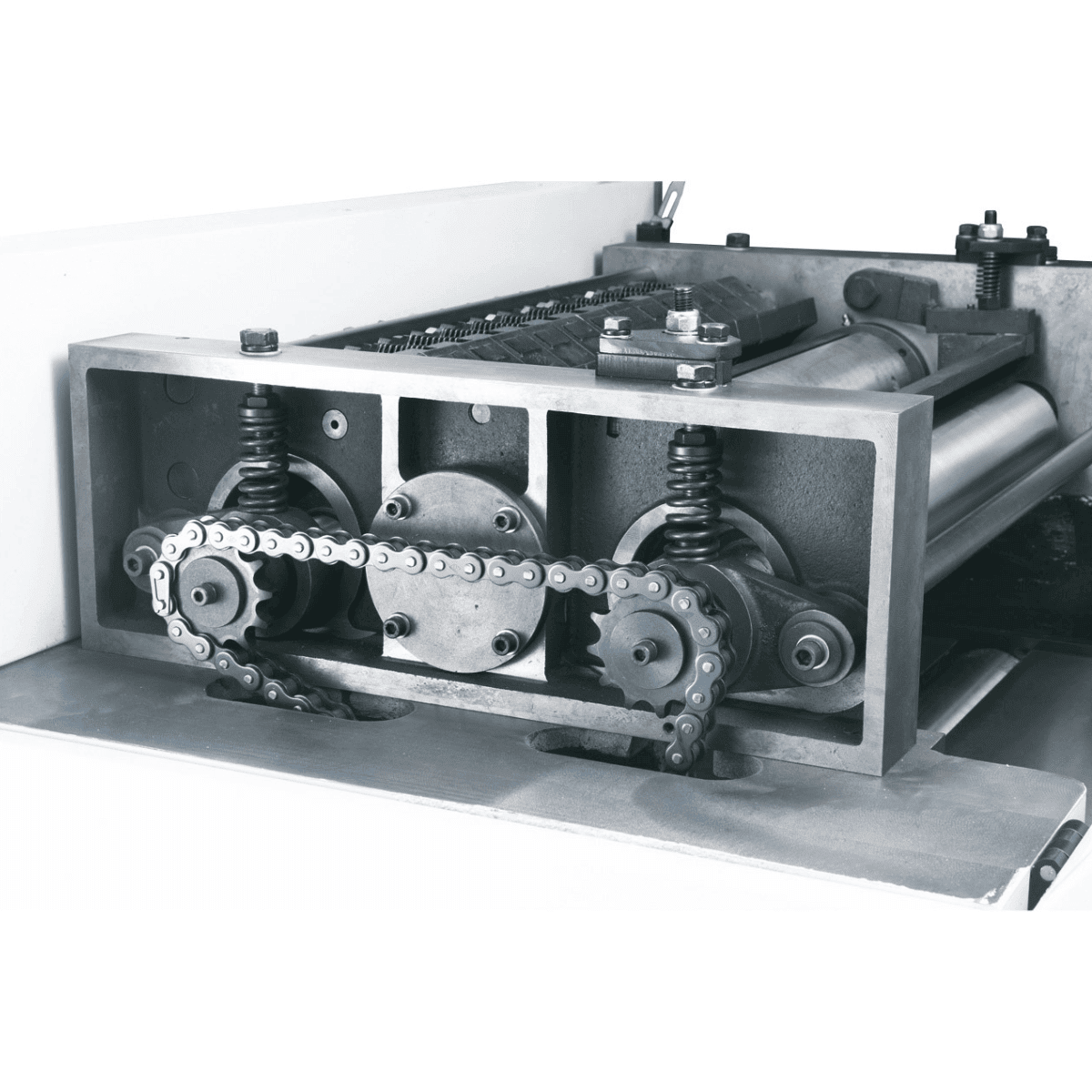

| Feed rollers |
2 pcs |
| Shaft – diameter |
Ø 120 mm |
| Knives |
4 pcs HSS |
| Shaft speed |
5,000 rpm |
| Feed speed (variable) |
5 – 18 m/min |
| Dust extraction ports |
2 × Ø 150 mm |

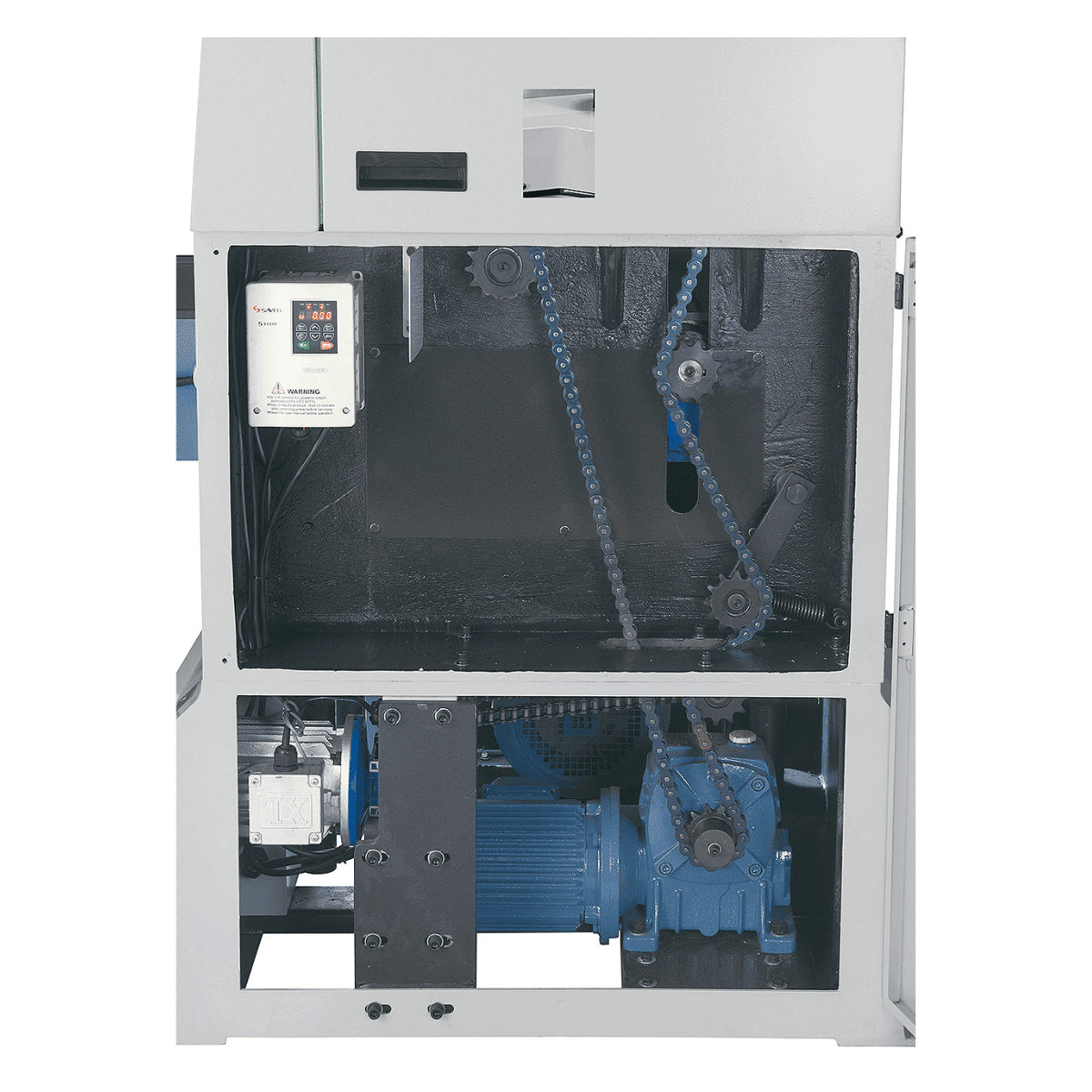

Motor and power supply
| Specification |
Value |
| Main motor S1 (100%) |
7.5 kW (10.0 HP) |
| Feed motor |
1.5 kW (2.0 HP) |
| Table lift motor |
0.37 kW (0.5 HP) |
| Power supply |
400V – three-phase |
Dimensions and weight
| Specification |
Value |
| Machine dimensions (L × W × H) |
1,150 × 1,240 × 1,500 mm |
| Net weight |
1,250 kg |
Compliance and safety
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery 2006/42/CE |
Frequently Asked Questions
What dust extraction system is needed for the TP 630 D?
The TP 630 D has 2 Ø 150 mm dust extraction ports, double the industrial standard of Ø 100 mm. It requires a centralized dust extraction system with a minimum flow rate of 3,000-4,000 m³/h to effectively manage the volume of chips produced by 630 mm width at full power. A standard mobile extractor is not sufficient.
How is the TP 630 D delivered?
At 1,250 kg, delivery requires preliminary coordination with Krollit to plan: heavy vehicle access to the site, availability of a crane or forklift with at least 2 tons capacity for unloading and positioning. Contact Krollit before ordering for a complete logistical assessment of the installation site.

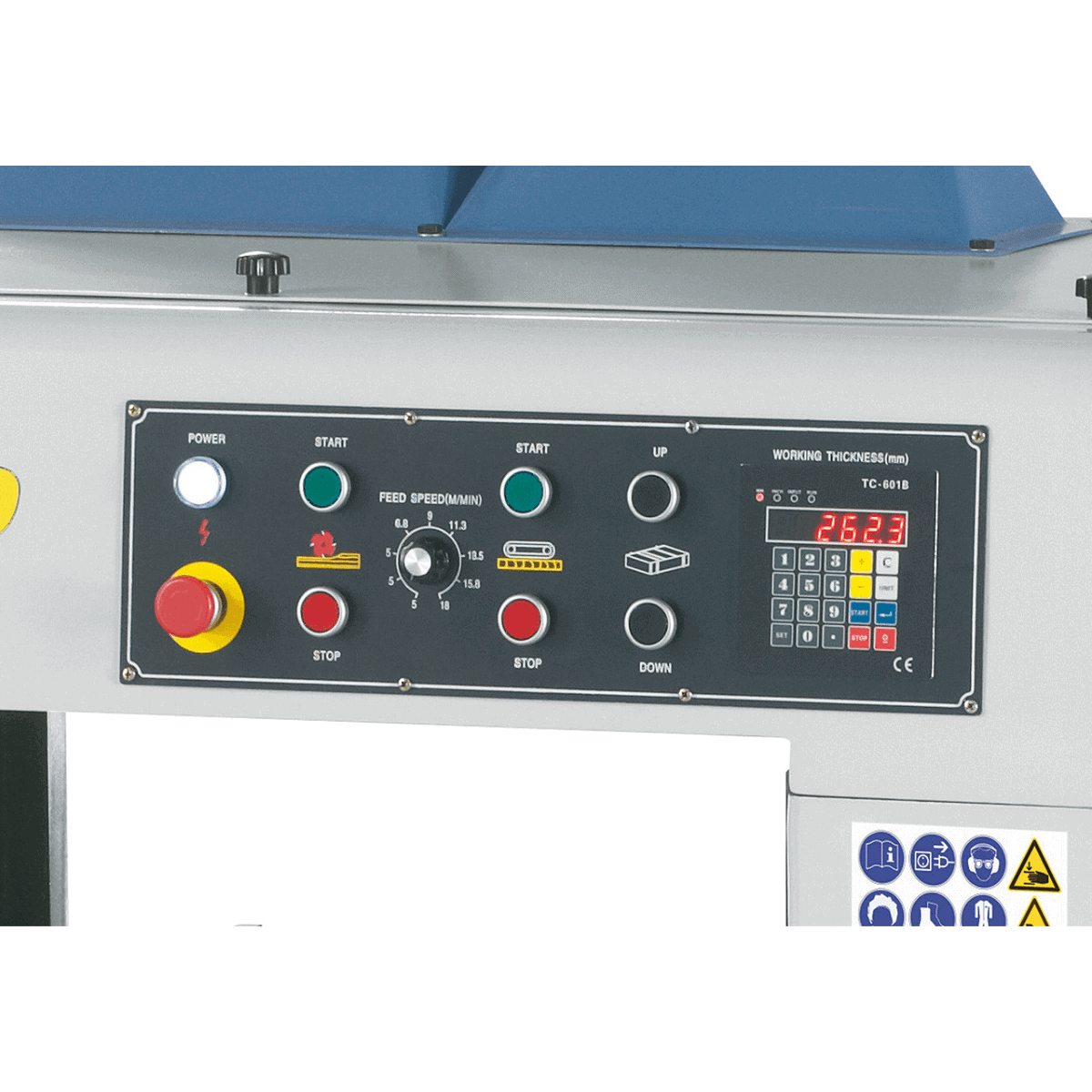

Is the variable feed speed 5–18 m/min really useful in production?
Yes, in industrial production, it is a critical parameter. At 5 m/min, hardwoods are planed for finishing with thin cuts; at 18 m/min, productivity is maximized on softwoods for roughing. The ability to vary the speed based on wood type and depth of cut is essential for optimizing quality and productivity on a line with different materials.
What foundation does the TP 630 D require?
At 1,250 kg, the machine requires a standard reinforced concrete industrial floor (typically 15-20 cm thick for static loads). It does not require a special foundation or bolting to the ground under normal conditions, but it is advisable to check the load-bearing capacity of the specific site's floor with a structural engineer.
Is customer support available in Italian for the TP 630 D?
Yes. Krollit, as an official Bernardo distributor since 2007, provides customer support in Italian for the entire range, including industrial machines like the TP 630 D. Original Bernardo spare parts are available. For routine and extraordinary maintenance, contact Krollit's technical service.
