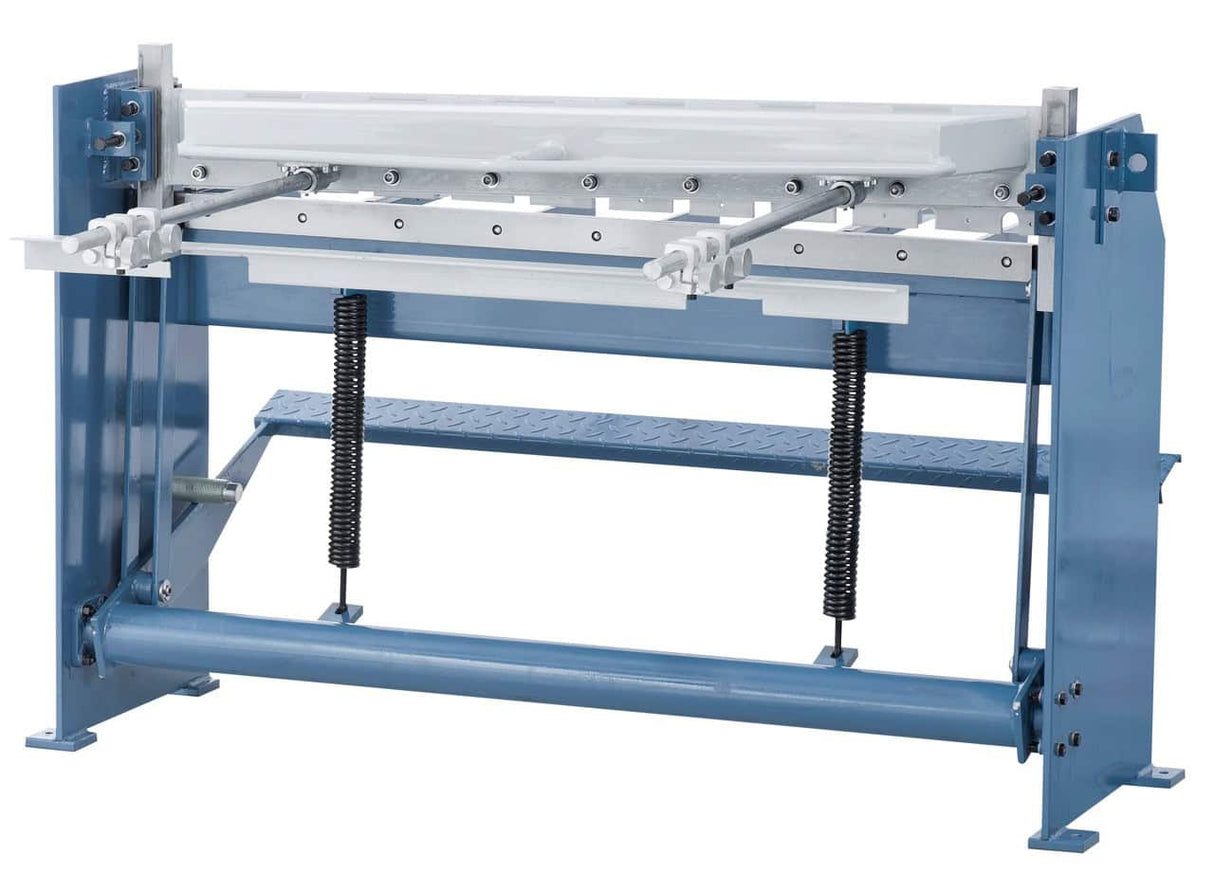

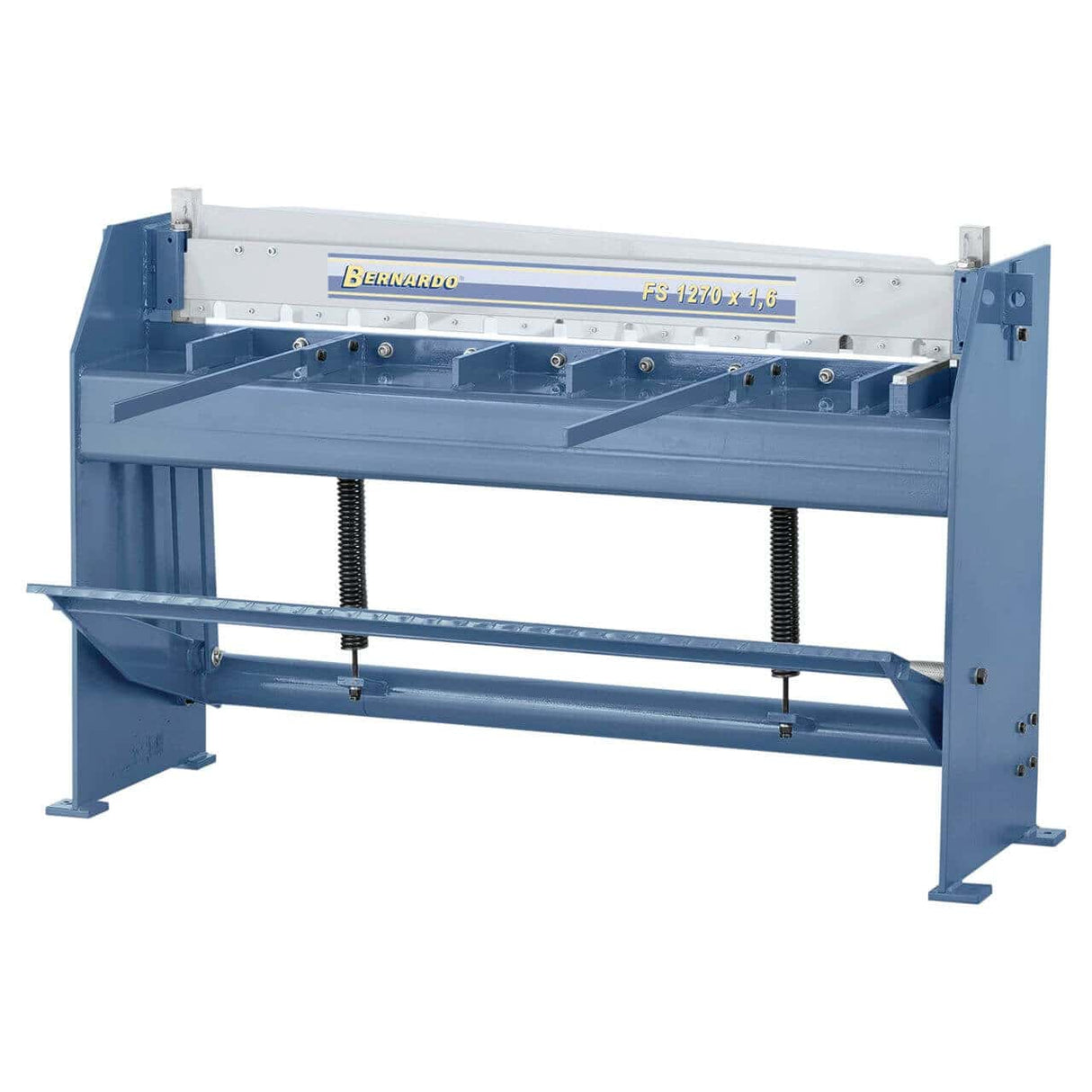

Bernardo Foot-Operated Shear FS 1270 x 1.6
The Bernardo Foot-Operated Shear FS 1270 x 1.6 is a robust machine, designed for precise and fast cutting of thin sheet metal up to 1.6 mm thick (400 N/mm² steel). With a cutting length of 1270 mm, it allows for quick processing of large panels. The solid cast iron construction ensures stability and durability, while the high-quality double-edged upper and lower blades guarantee clean and burr-free edges. The foot operation keeps your hands free for accurate sheet metal positioning. Equipped with a precisely adjustable back gauge up to 600 mm, front panel support, and a table with a millimeter scale, it is perfect for series production. With a weight of 320 kg and dimensions of 1580 x 1800 x 1020 mm, it is a stable, safe shear suitable for professional use in workshops and metal fabrication.
Main features:
Cutting length: 1270 mm
Sheet metal capacity up to 1.6 mm (400 N/mm² steel)
Solid cast iron construction, robust and durable
High-quality double-edged blades for clean cuts
Foot-operated for hands-free work

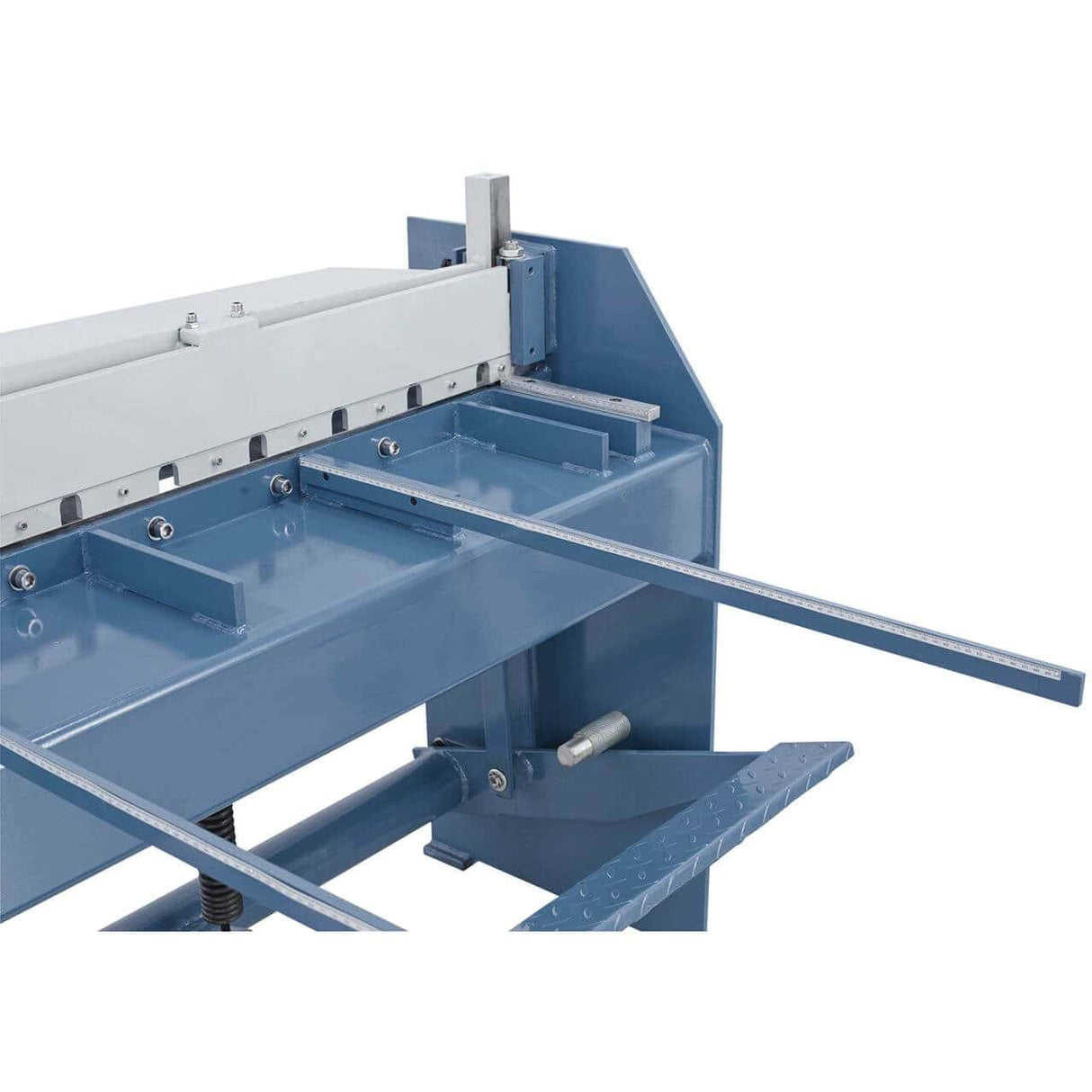

Table with ruler and angular stop

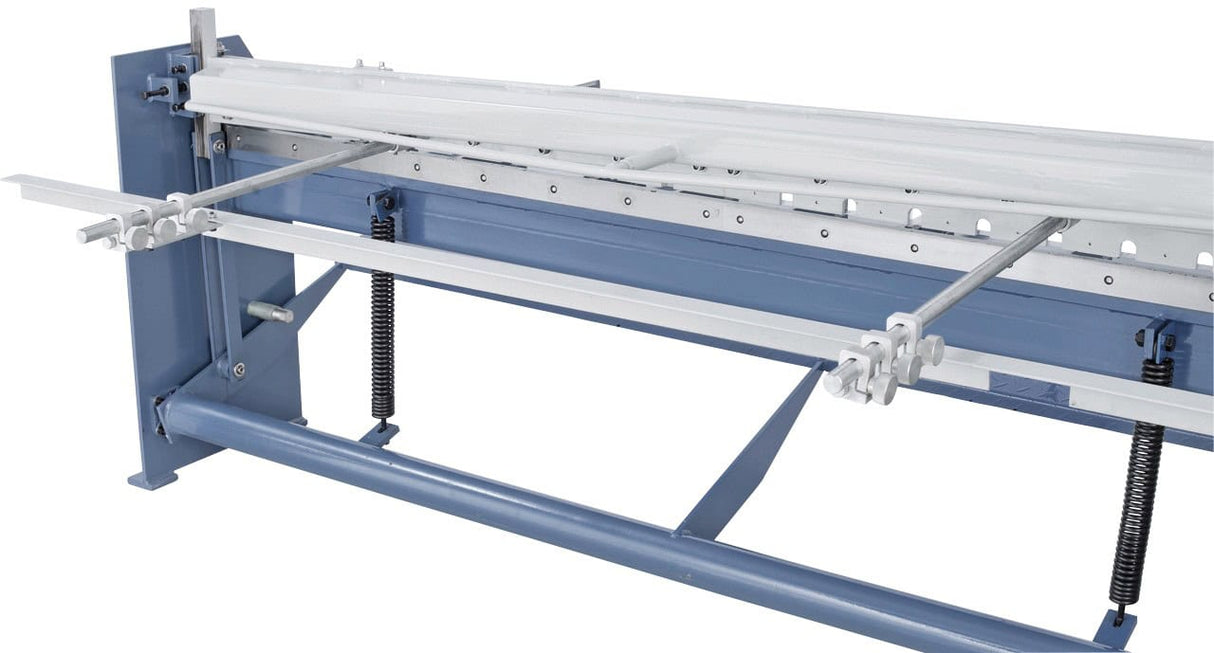

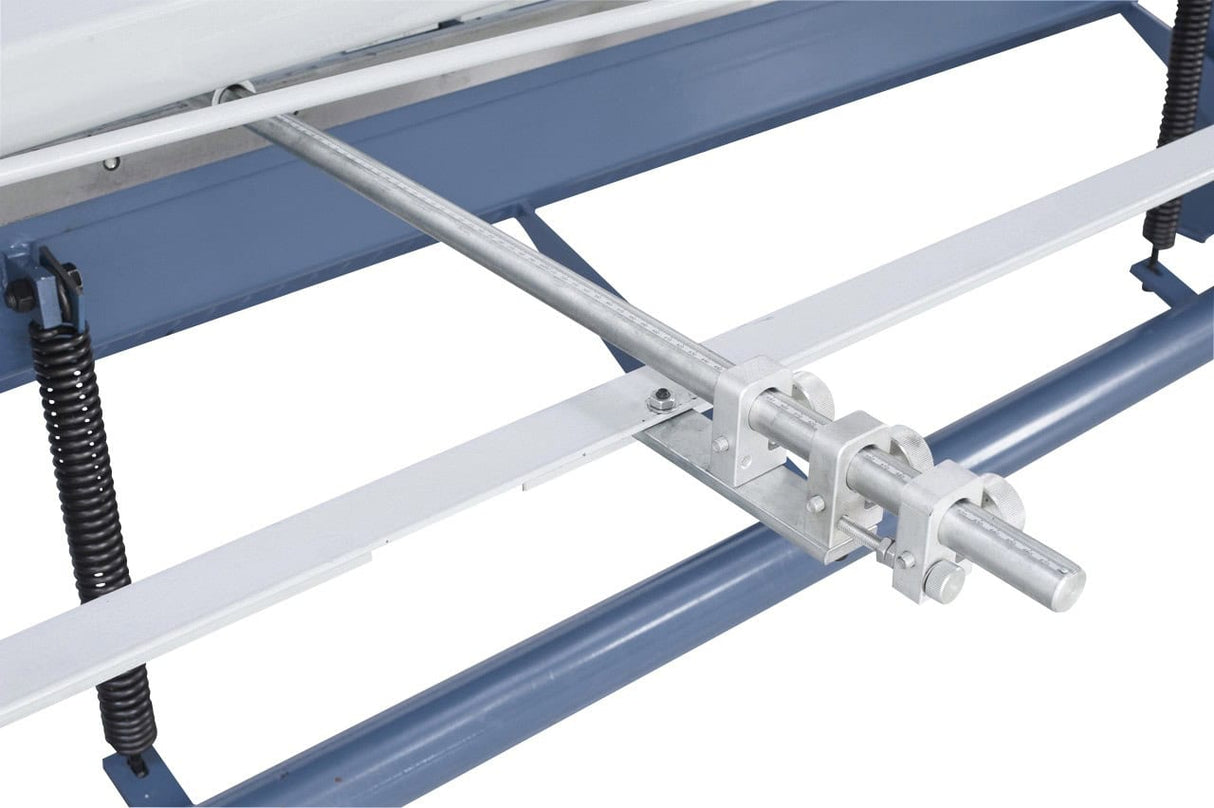

Back gauge adjustable up to 600 mm
Front support for large panels
Weight 320 kg, designed for professional use
Technical specifications
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | FS 1270 x 1.6 |
| Max. cutting length | 1270 mm |
| Max. sheet thickness (400 N/mm²) | 1.6 mm |
| Table height | 785 mm |
| Back gauge | 0 – 600 mm |
| Dimensions (L x W x H) | 1580 x 1800 x 1020 mm |
| Weight | approx. 320 kg |
Standard equipment
Hold-down device
Back gauge
Front sheet support
Tool steel blades
Logistics
Bernardo shipping: 5–9 working days (7 days in Southern Italy). Original spare parts available with 3–5 working day shipping. Customer service available in Italian.
Frequently Asked Questions
What is the maximum thickness for aluminum and stainless steel?
The nominal thickness of 1.6 mm refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50% (approx. 2.2 mm). For AISI 304 stainless steel, the capacity is reduced by 30–40% (approx. 1.0 mm).
Are the blades replaceable?
Yes. The cutting blades are replaceable when worn or damaged. Original Bernardo replacement blades are available with 3–5 working day shipping.
Does it require fixed installation or is it used on a workbench?
Most Bernardo lever shears are fixed to a workbench or floor with bolts. They do not require a special foundation. More compact versions can also be used with a bench vice.
Does the Bernardo Foot-Operated Shear FS 1270 x also cut copper and brass?
Yes. Copper and brass have lower resistance than S235 steel: the actual capacity for copper is similar to aluminum (approx. 2.2 mm). For specific alloys, please contact Krollit for verification.
Are assistance and spare parts available?
Original spare parts available with 3–5 working day shipping. Customer service available in Italian.
