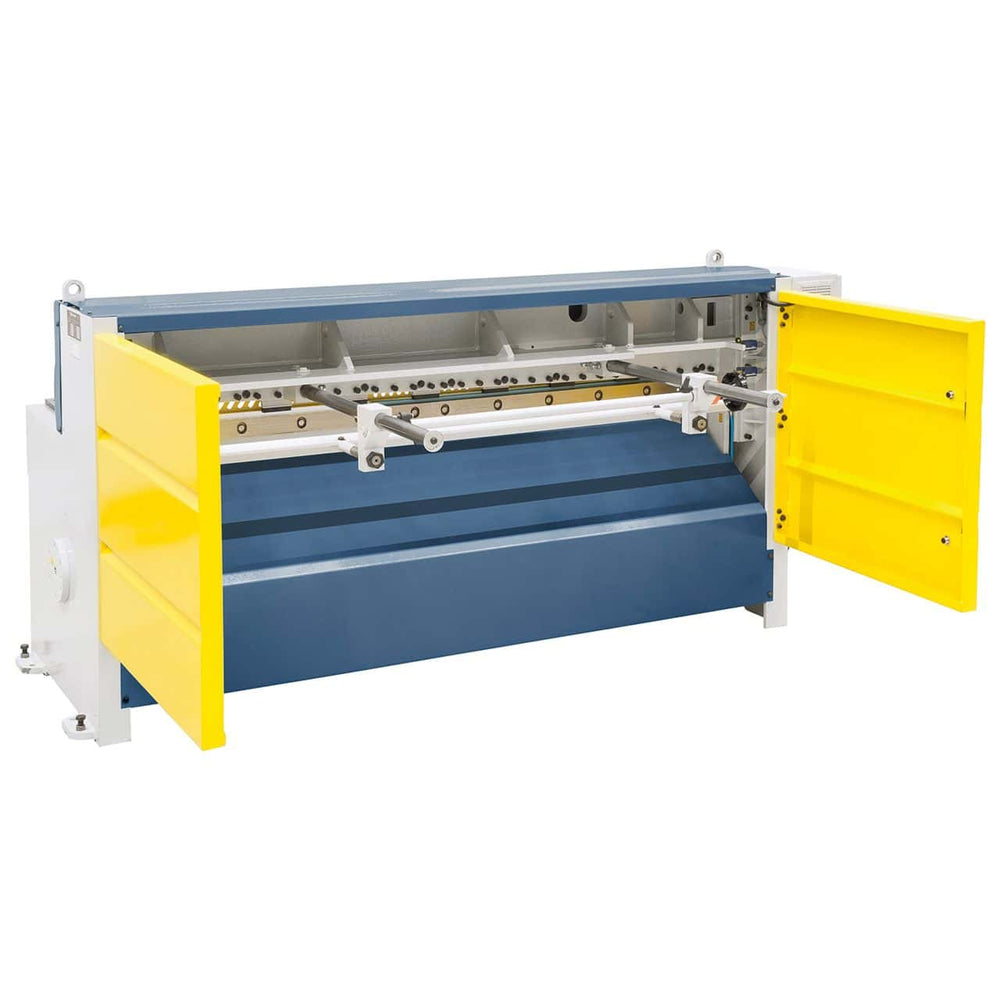

Bernardo MTA 2060 x 3 mm - Motorized Guillotine Shear

Bernardo MTA 2060 x 3 mm – Motorized Guillotine Shear with Manual Backgauge

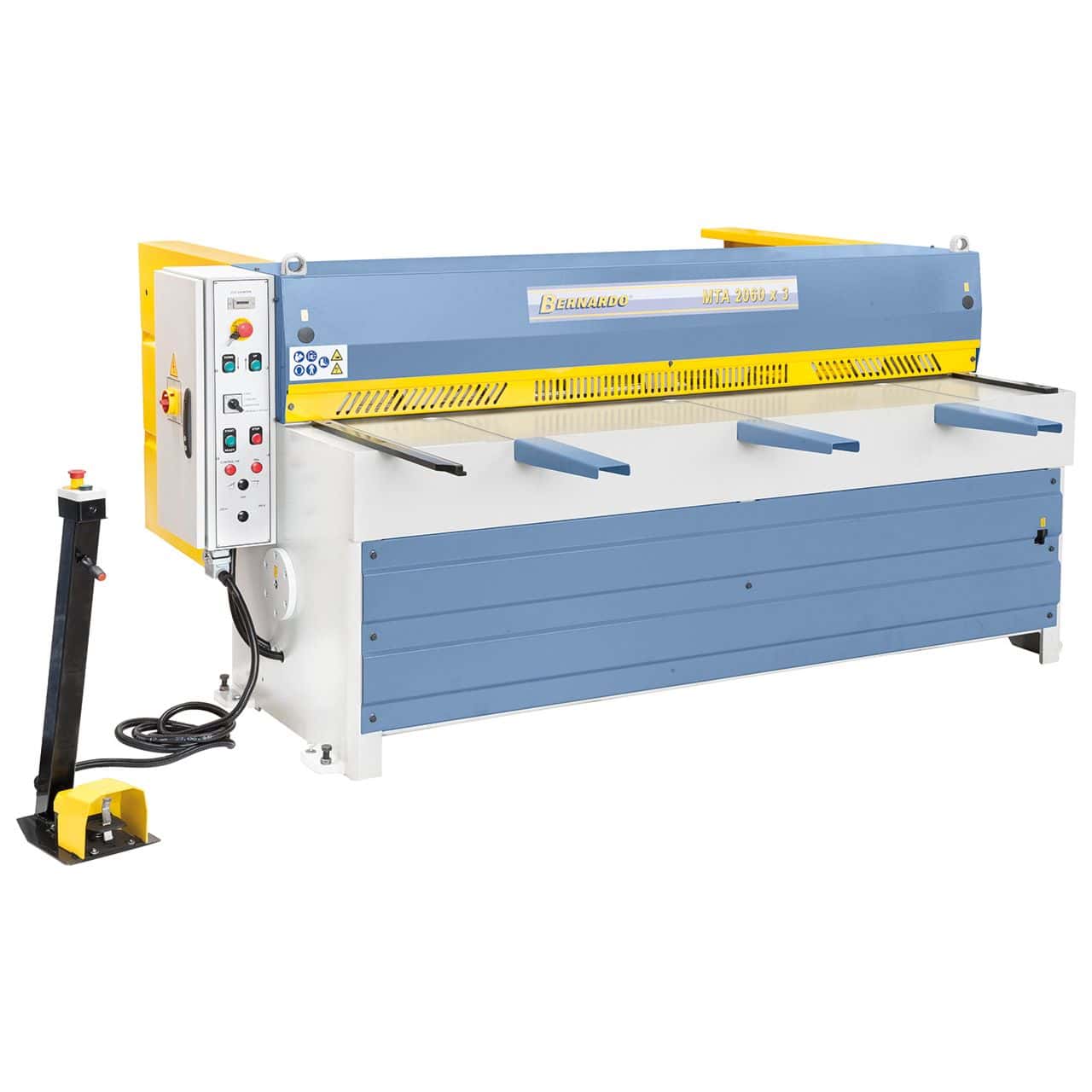

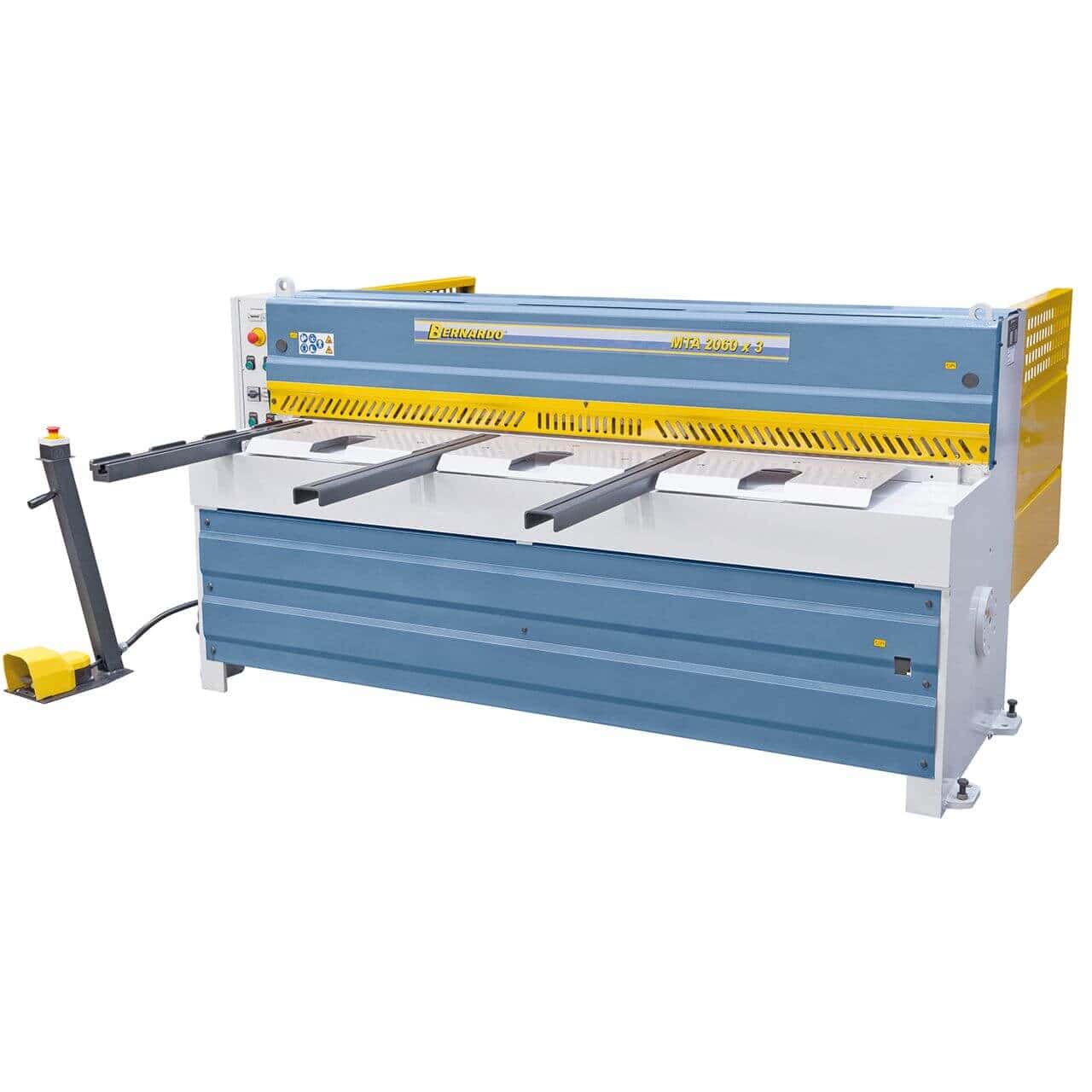

The Bernardo MTA 2060 x 3 mm is a motorized guillotine shear designed for professional cutting of steel, brass, copper, and aluminum sheets up to 3 mm thick (400 N/mm²). With a cutting length of 2060 mm and an angle of 1°30’, it guarantees precision and clean surfaces thanks to the double-edged upper and lower blades made of quality steel. The quick adjustment of the backgauge (0–750 mm) via handwheel and the table with integrated rollers simplify the handling of even large workpieces. Operator safety is ensured by rear photocell guards and a foot pedal with emergency stop. The integrated cutting line illumination with a silhouette light ensures precise work. With a robust and stable welded steel structure, a 4.0 kW motor, and a weight of 1685 kg, the MTA 2060 x 3 mm is ideal for workshops and companies that require a professional and reliable shear.

---

Main features:
2060 mm cutting length for industrial applications
Cutting capacity up to 3 mm (400 N/mm² steel)
1°30’ cutting angle for clean, burr-free results
Manual backgauge adjustable up to 750 mm
Double-edged upper and lower blades made of quality steel
Cutting line illumination with silhouette for greater precision
Table with integrated rollers and front support for large sheets
Rear photocell guards and foot pedal with emergency stop
Robust and torsionally rigid welded steel construction

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MTA 2060 x 3 mm
Type	Motorized guillotine shear
Cutting length	2060 mm
Max sheet thickness*	3 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (manual)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	2600 x 2100 x 1260 mm
Weight	1685 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTA 2060 x 3 mm guillotine shear

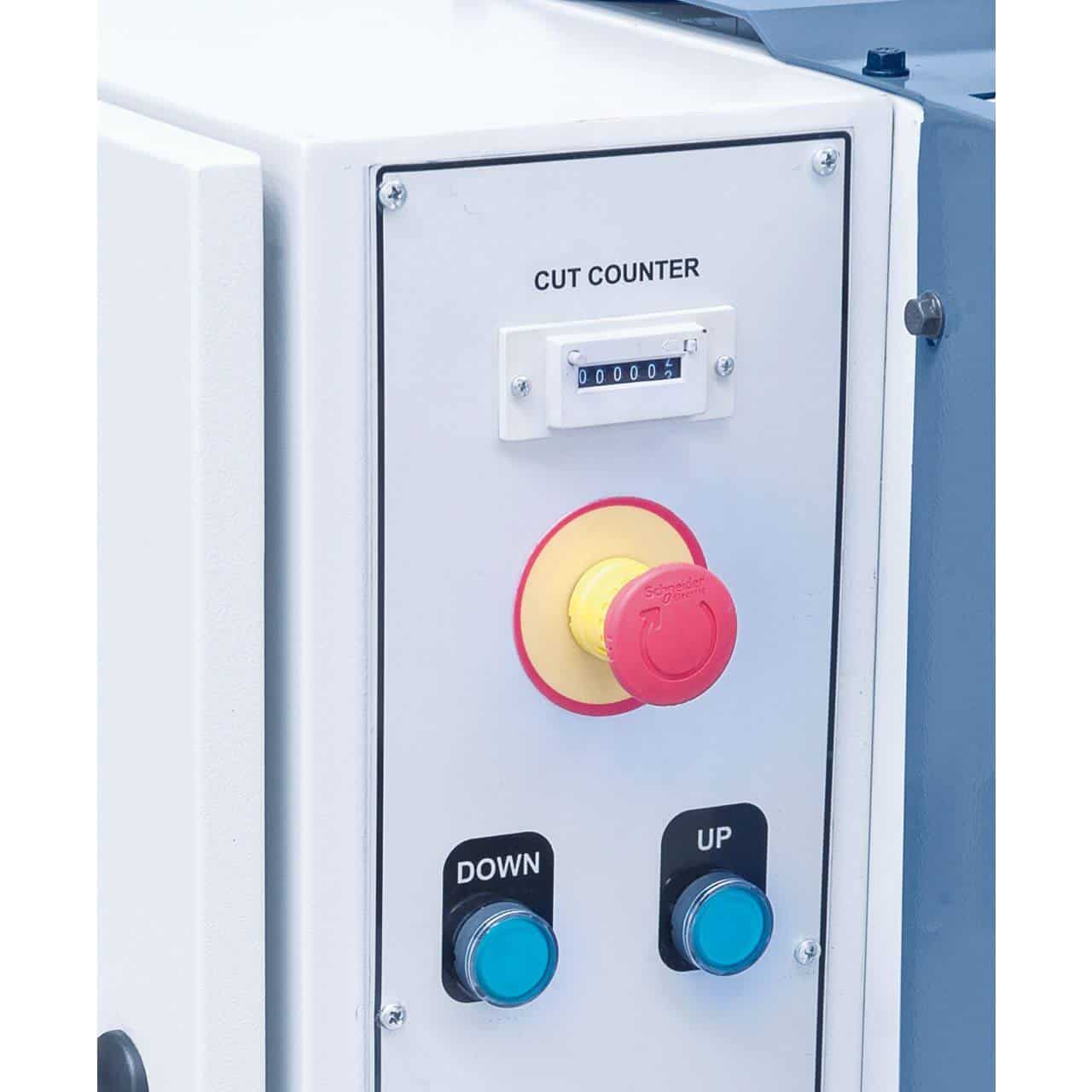

Cut counter
Cutting line illumination
Manual backgauge

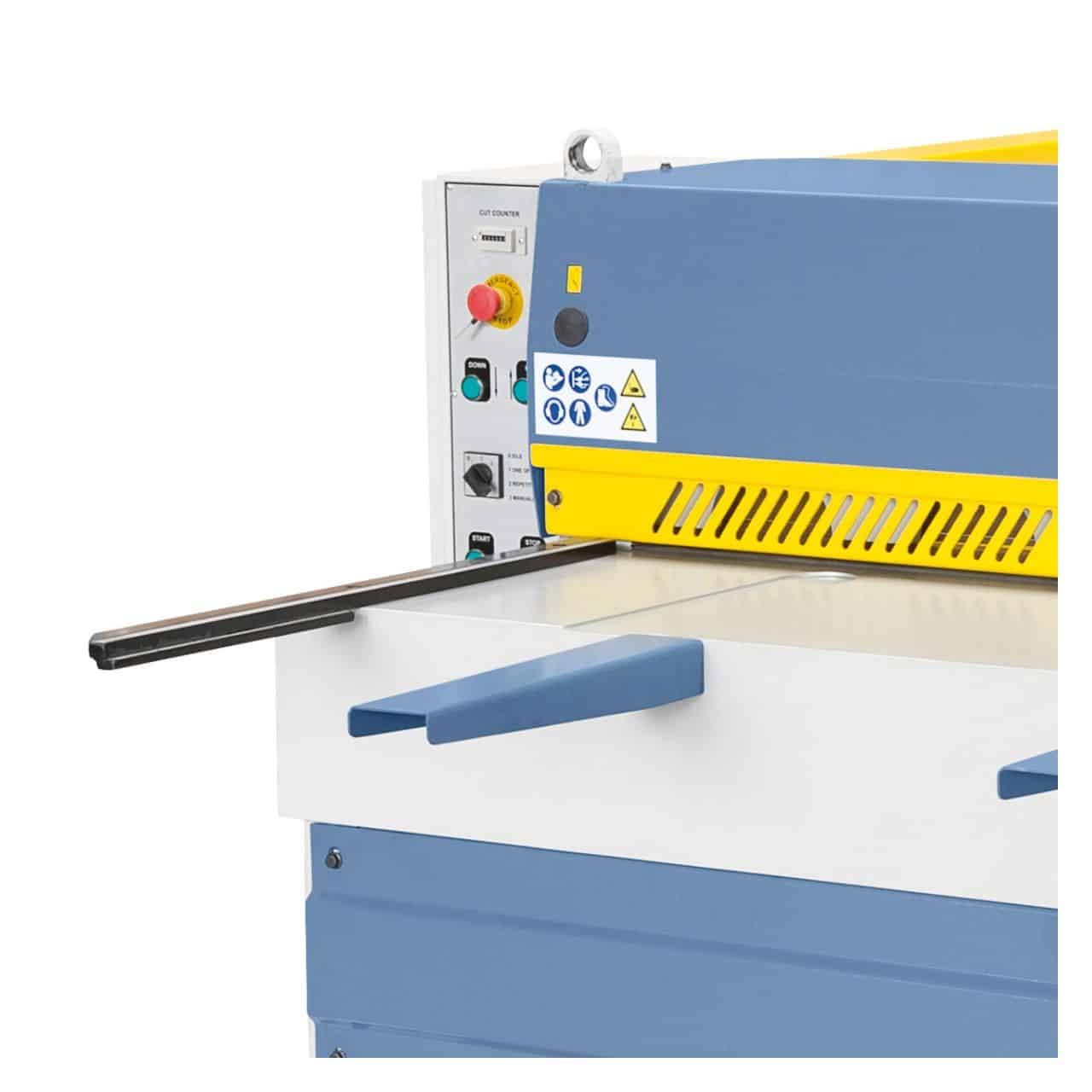

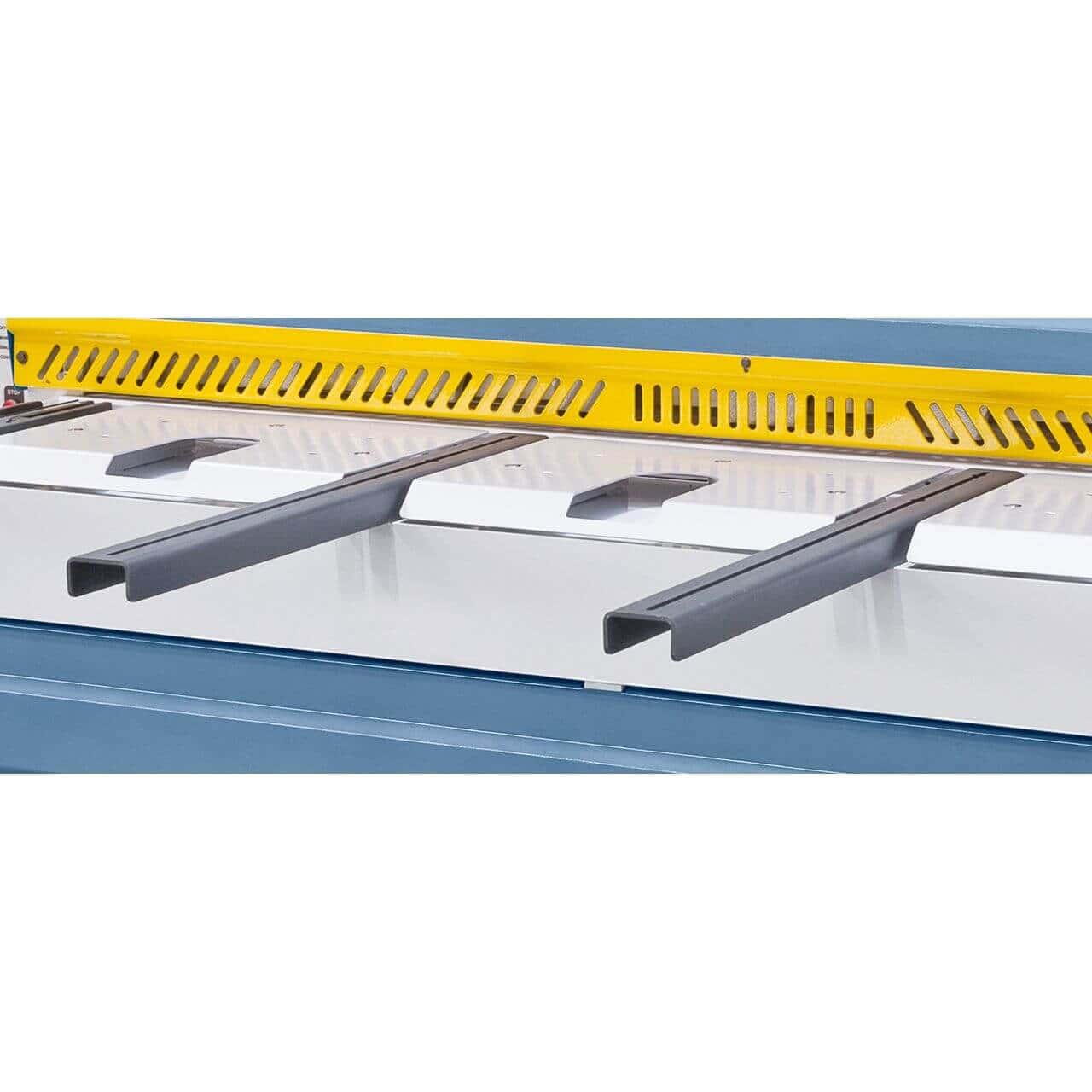

Front sheet support
Table with integrated rollers

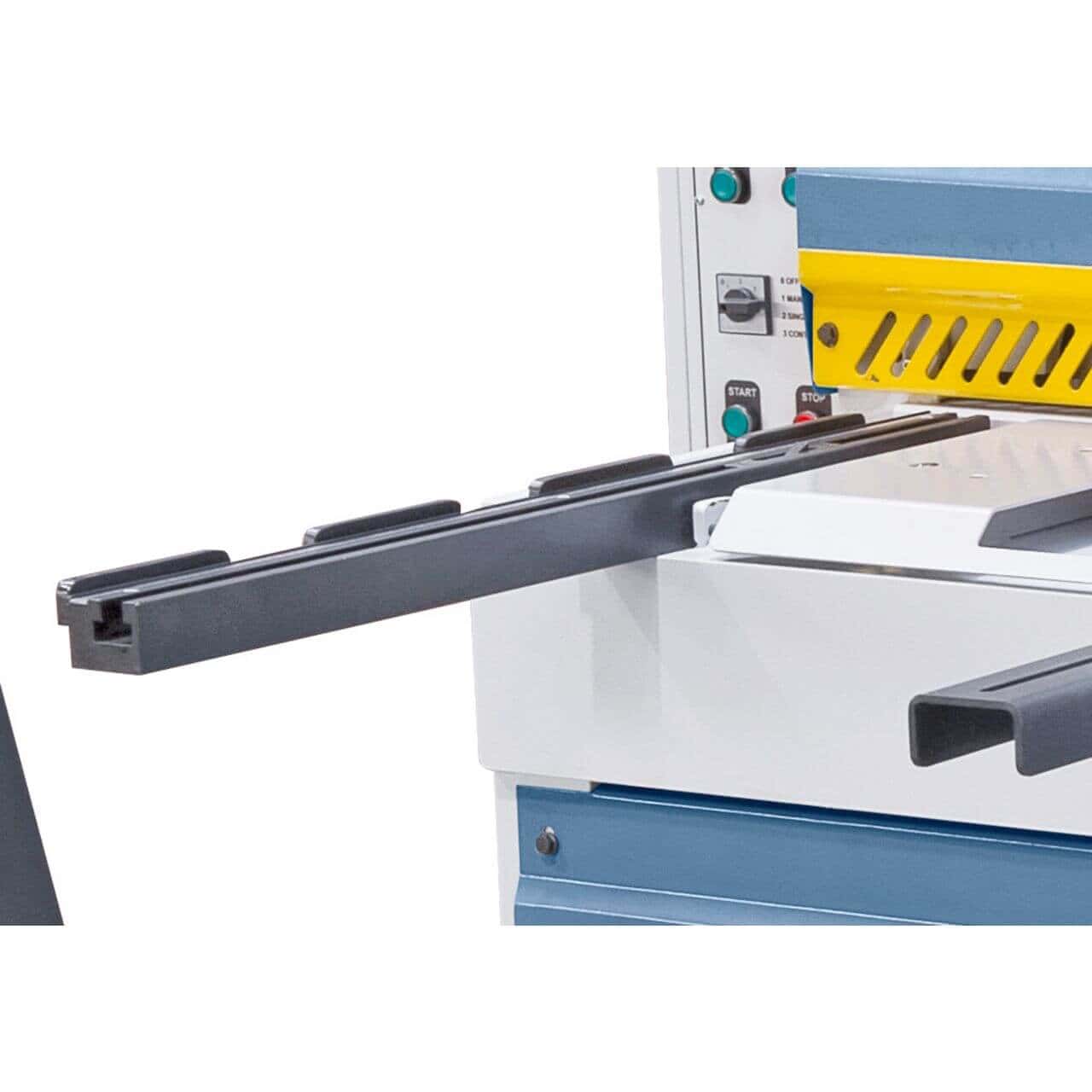

Side squaring arm

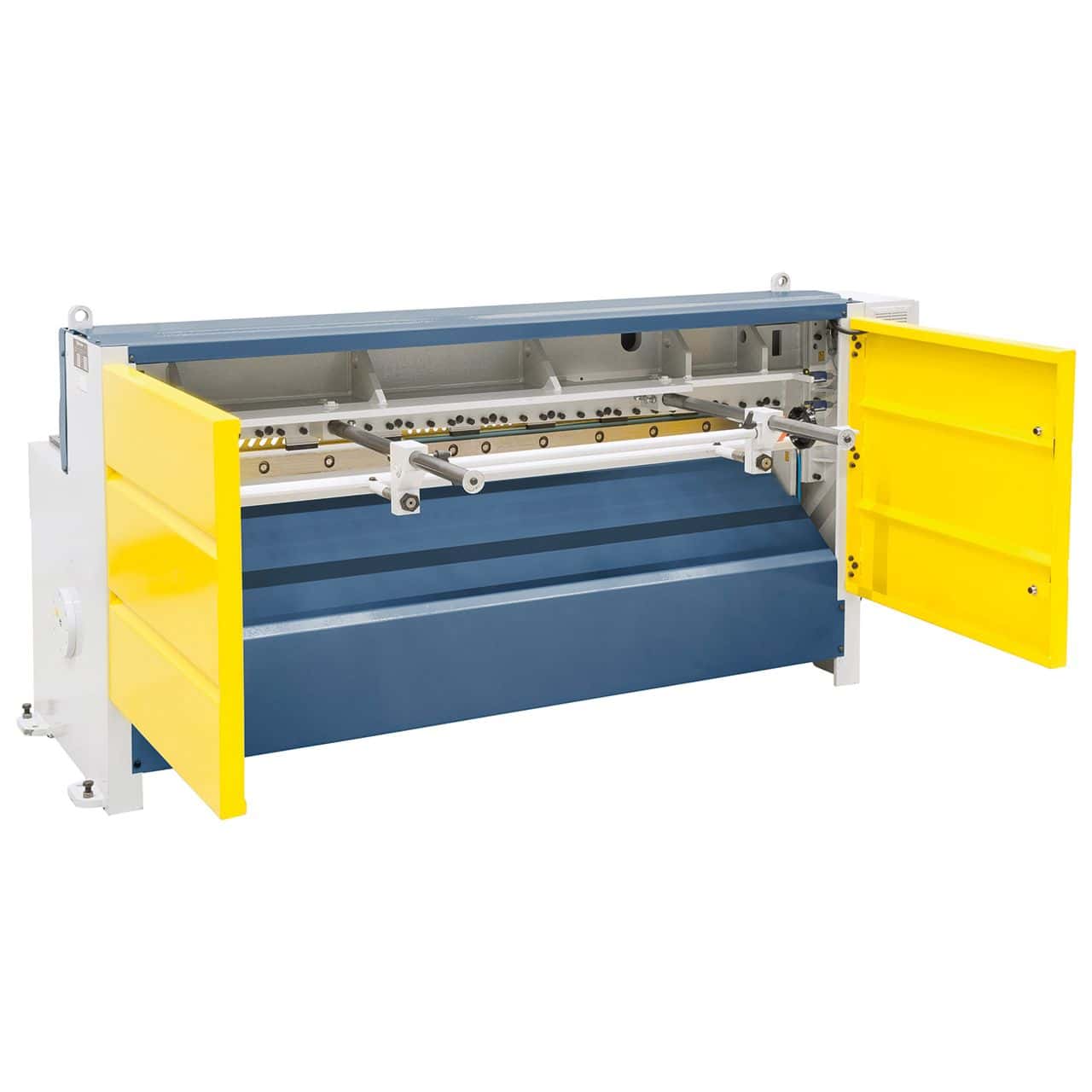

Rear photocell guard

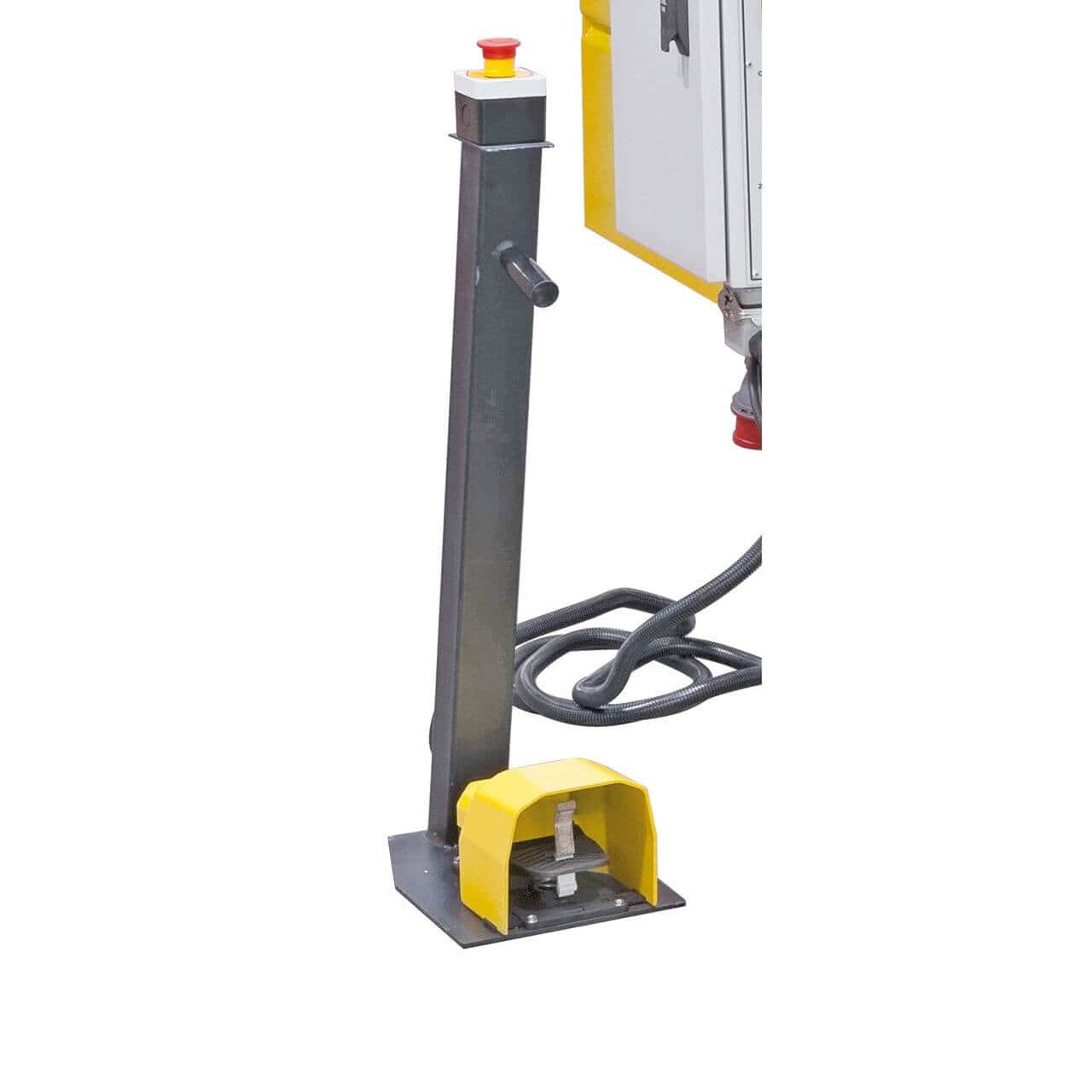

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo Shipping: 5–9 business days (7 days to Southern Italy). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate positioning heavy or long format sheets. The choice depends on production volume and the format of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTA 2060 x 3 mm – Guillotine shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 business days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet metal handling, at least the cutting length (2060 mm) of clear space is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
