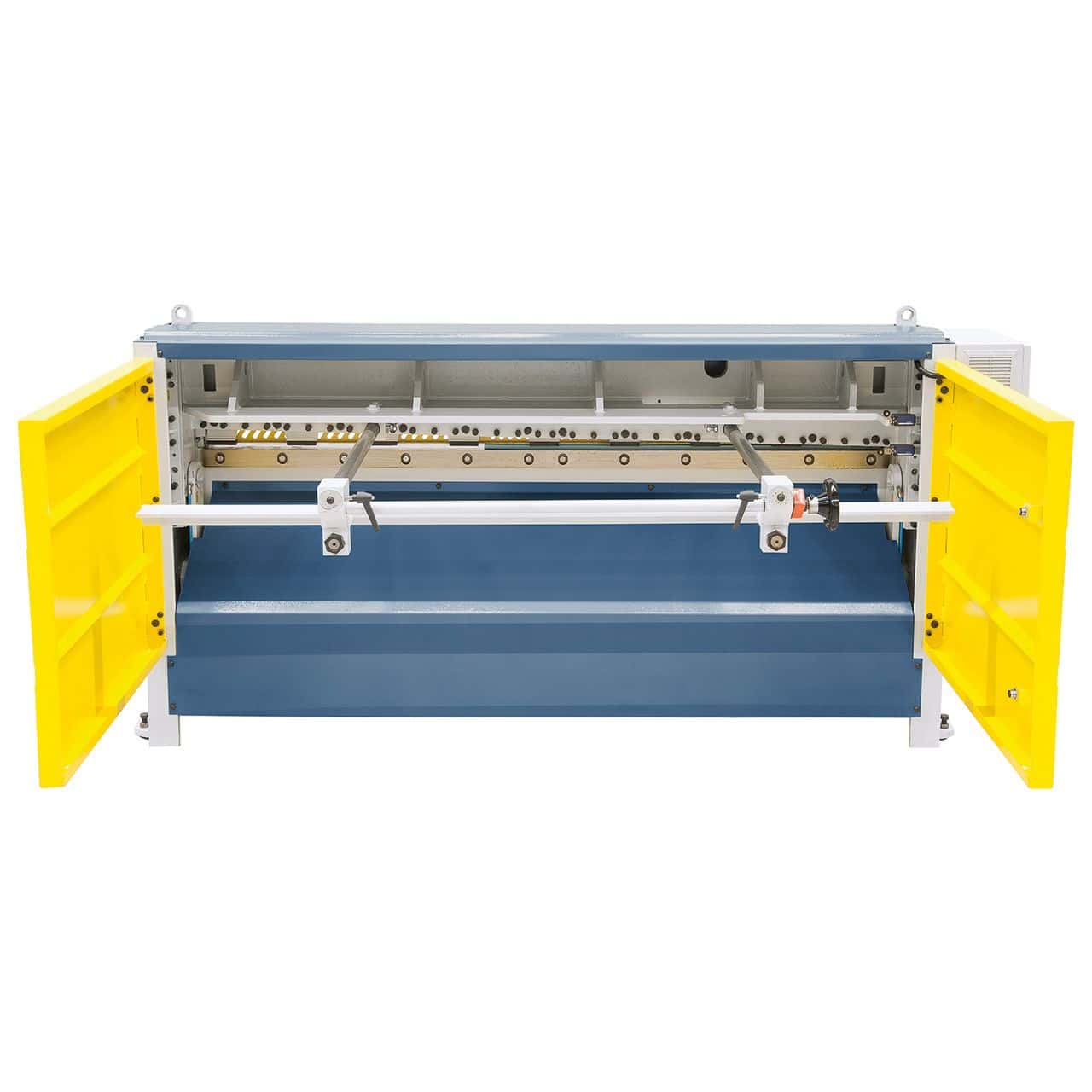

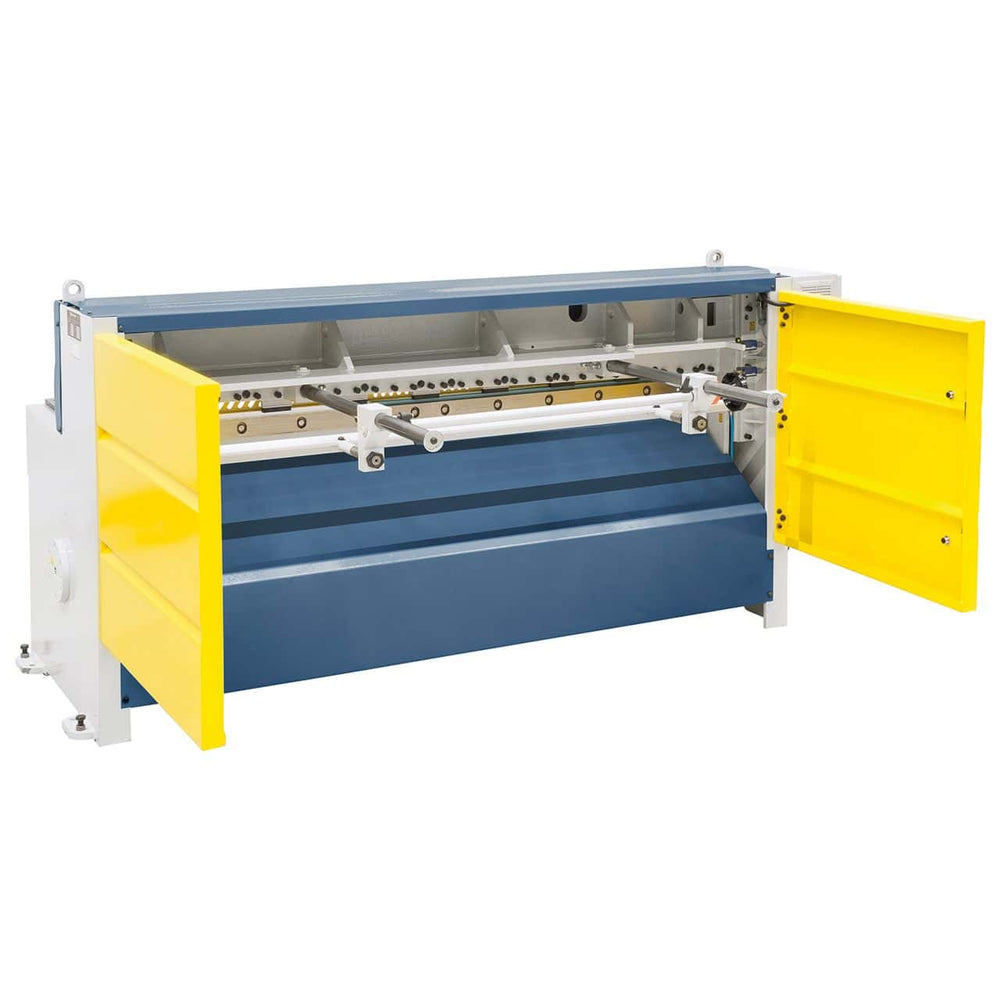

Bernardo MTA 2560 x 2.5 mm – Motorized Guillotine Shear

Bernardo MTA 2560 x 2.5 mm – Motorized Guillotine Shear with Manual Backgauge

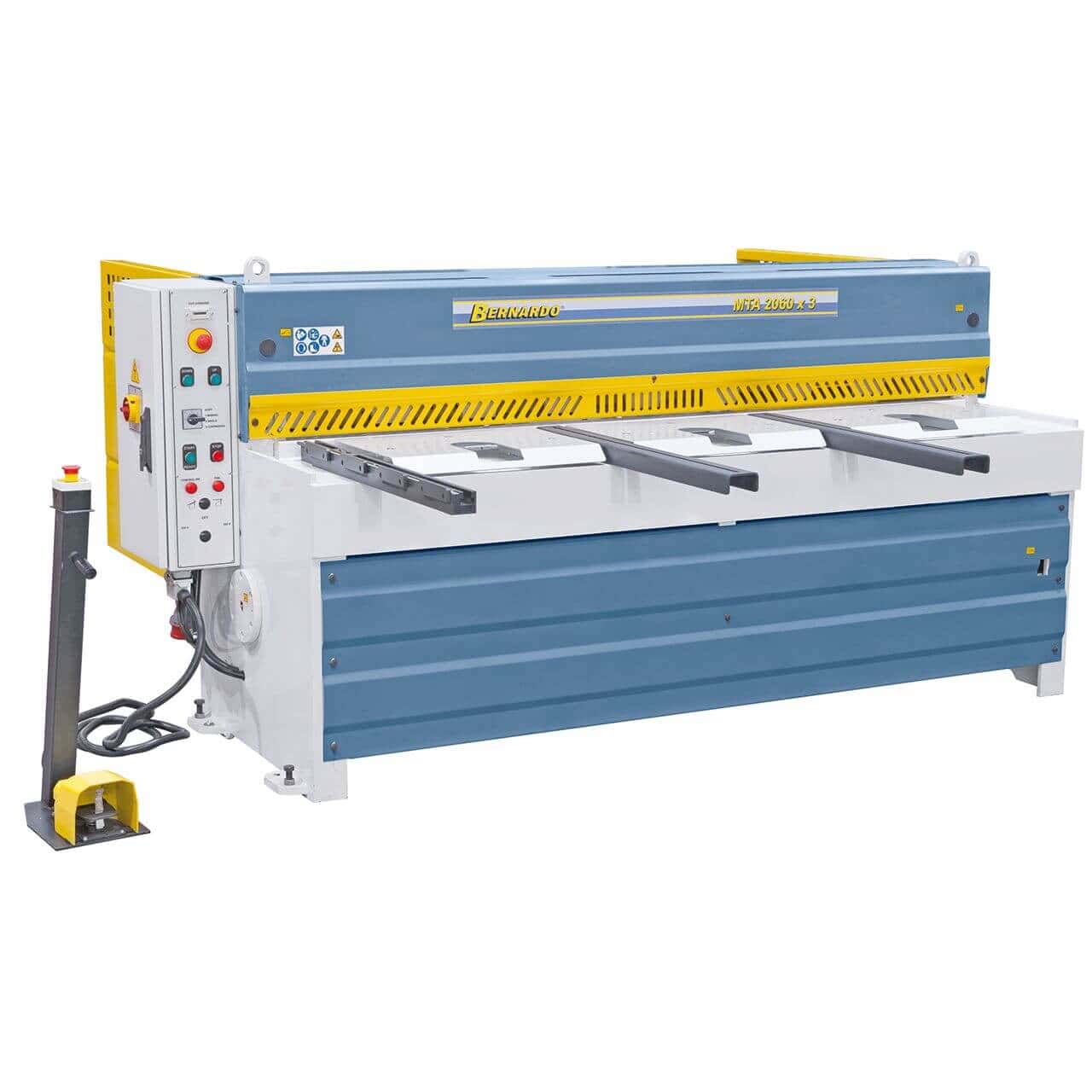

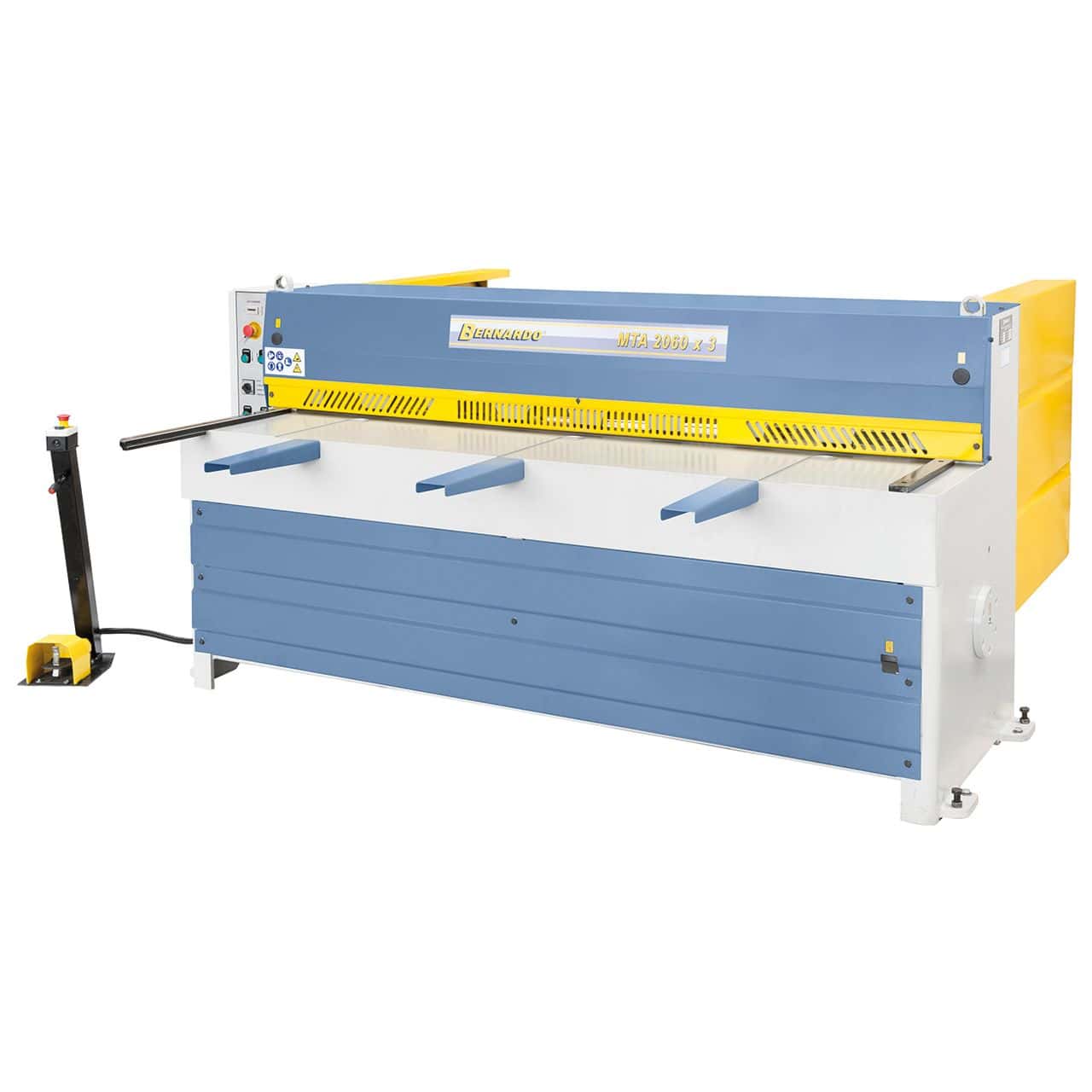

The Bernardo MTA 2560 x 2.5 mm is a motorized guillotine shear designed for efficient and precise cutting of steel, brass, copper, and aluminum sheets up to 2.5 mm thick (400 N/mm²). With a cutting length of 2560 mm and an angle of 1°30’, it ensures clean and burr-free surfaces thanks to the high-quality double-edged upper and lower blades. The manual backgauge, adjustable up to 750 mm via a handwheel, offers practicality and precision, while the foot pedal allows for hands-free workpiece positioning. The machine features rear safety light barriers, a cutting line illumination with silhouette, and a table with integrated rollers for handling large sheets. With a 4.0 kW motor and a weight of 1890 kg, the MTA 2560 x 2.5 mm is suitable for workshops and companies needing a robust, safe, and reliable shear.

---

Key Features:
2560 mm cutting length for large sheets
Cutting capacity up to 2.5 mm thickness (400 N/mm² steel)
1°30’ cutting angle for clean, burr-free results

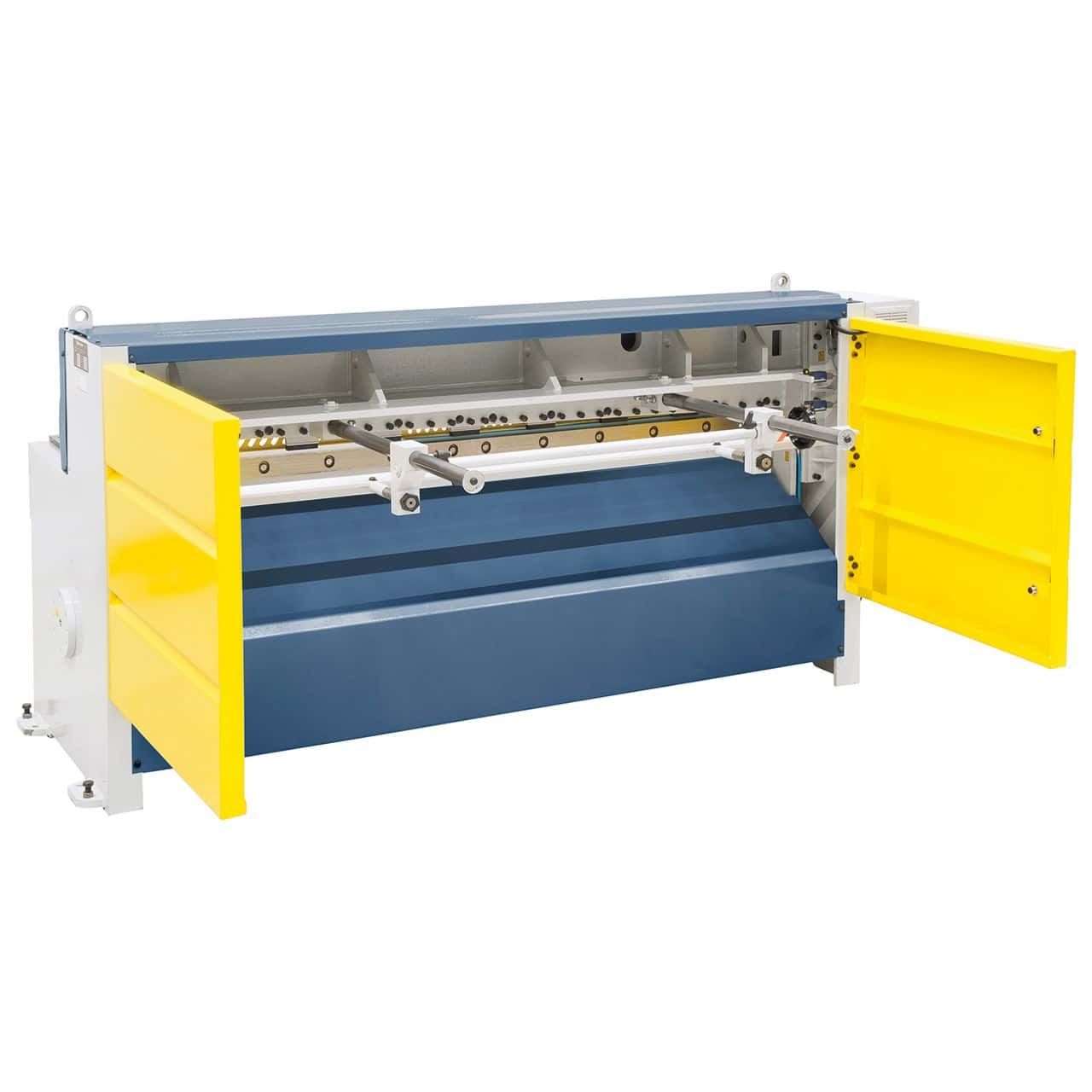

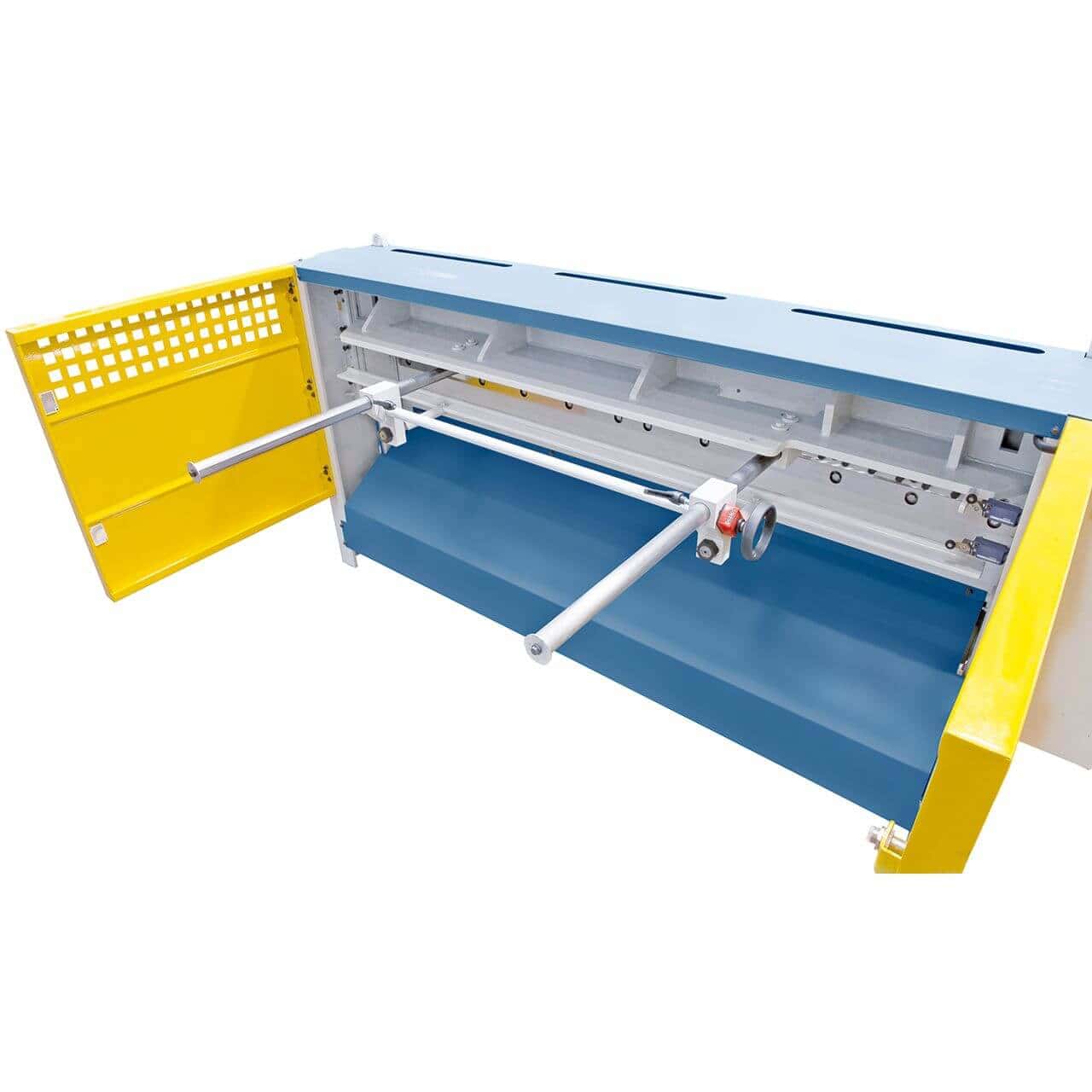

Manual backgauge up to 750 mm with handwheel
Double-edged hardened steel blades
Integrated cutting line illumination with silhouette
Table with rollers and front support for easy operation
Rear safety light barriers and foot pedal with emergency stop
Robust, torsionally rigid welded steel structure

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTA 2560 x 2.5 mm
Type	Motorized Guillotine Shear with Manual Backgauge
Cutting length	2560 mm
Max. sheet thickness*	2.5 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (manual)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	3150 x 2100 x 1260 mm
Weight	1890 kg
*Base material	400 N/mm²

---

Standard Equipment

Bernardo MTA 2560 x 2.5 mm Guillotine Shear

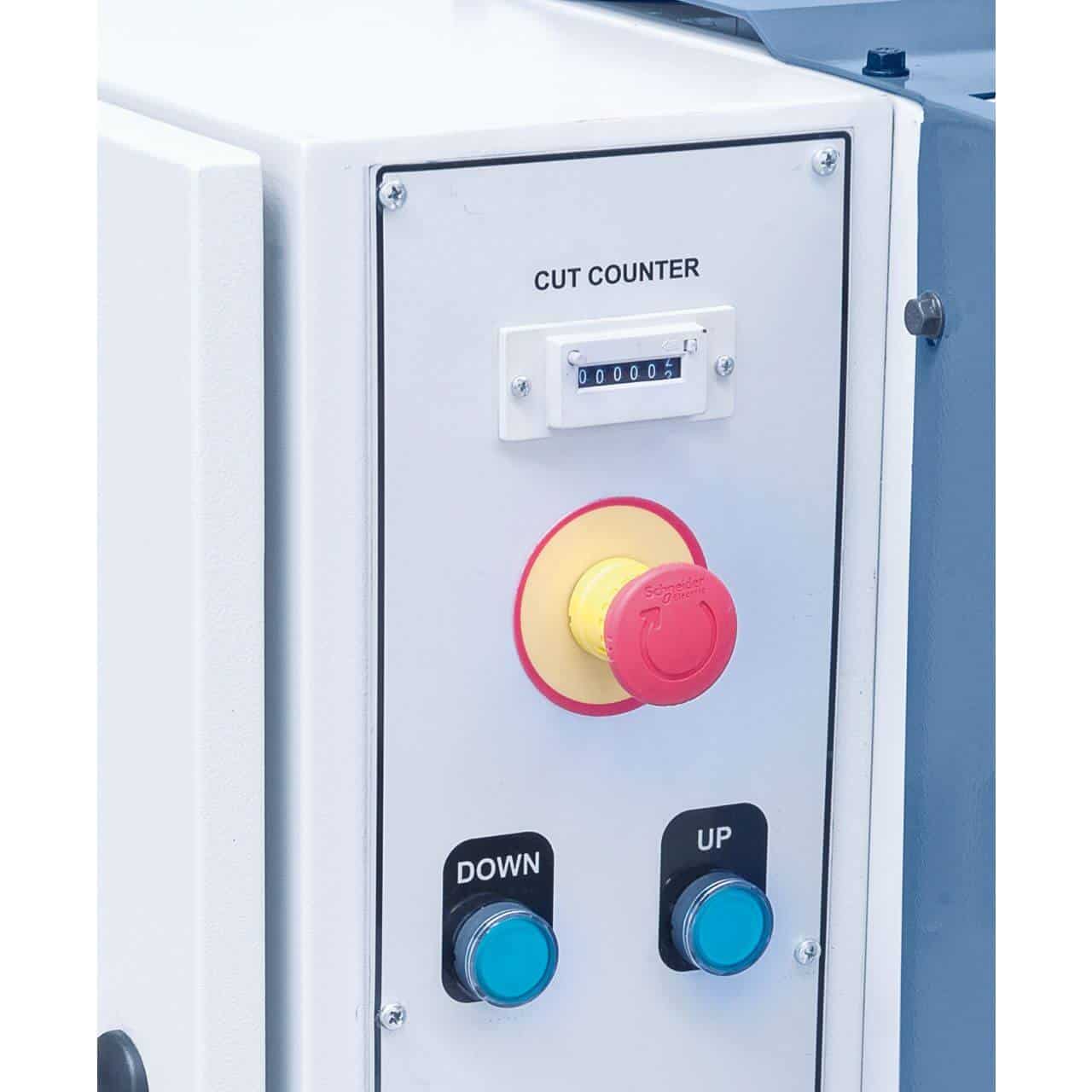

Stroke counter
Cutting line illumination
Manual backgauge

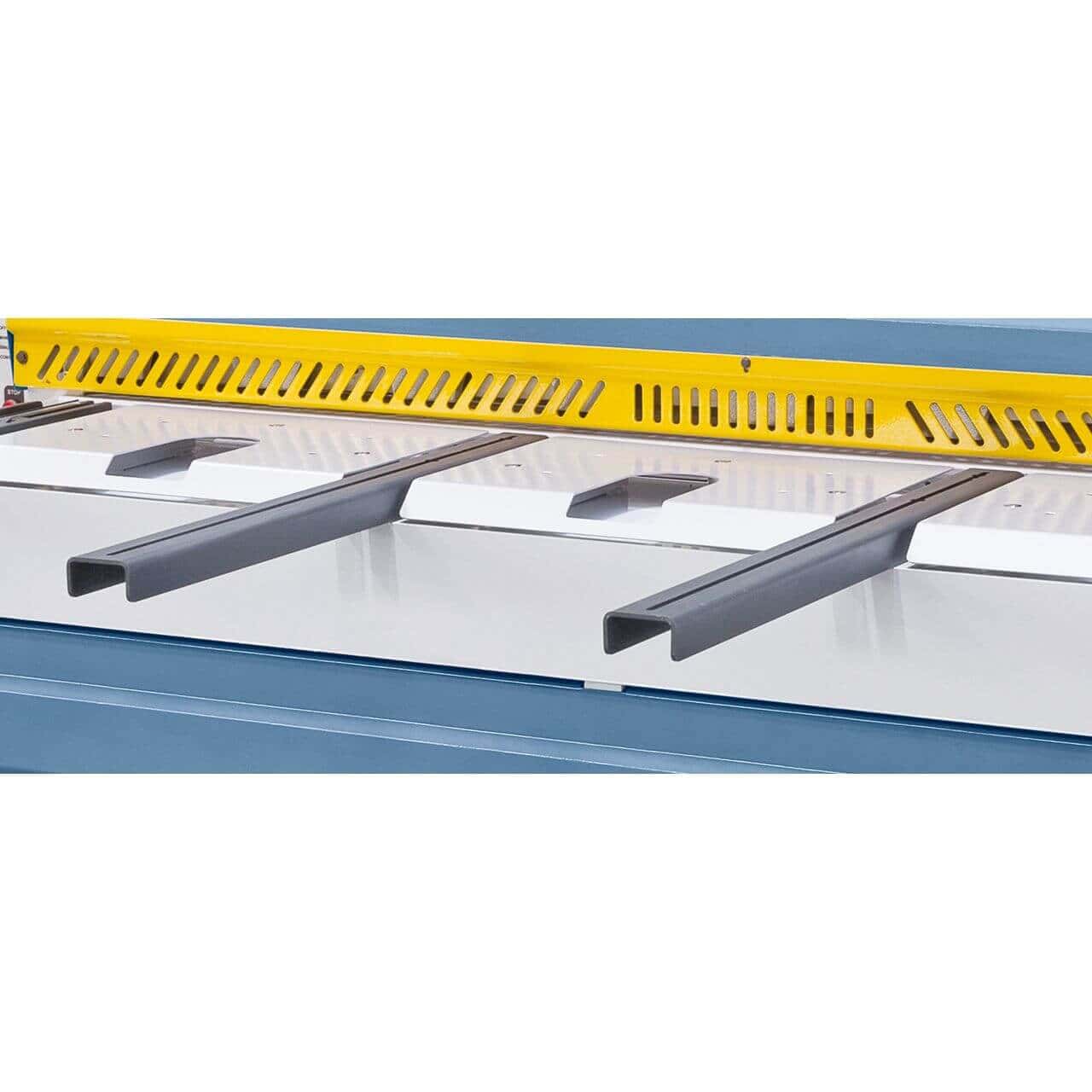

Front sheet support
Integrated table rollers

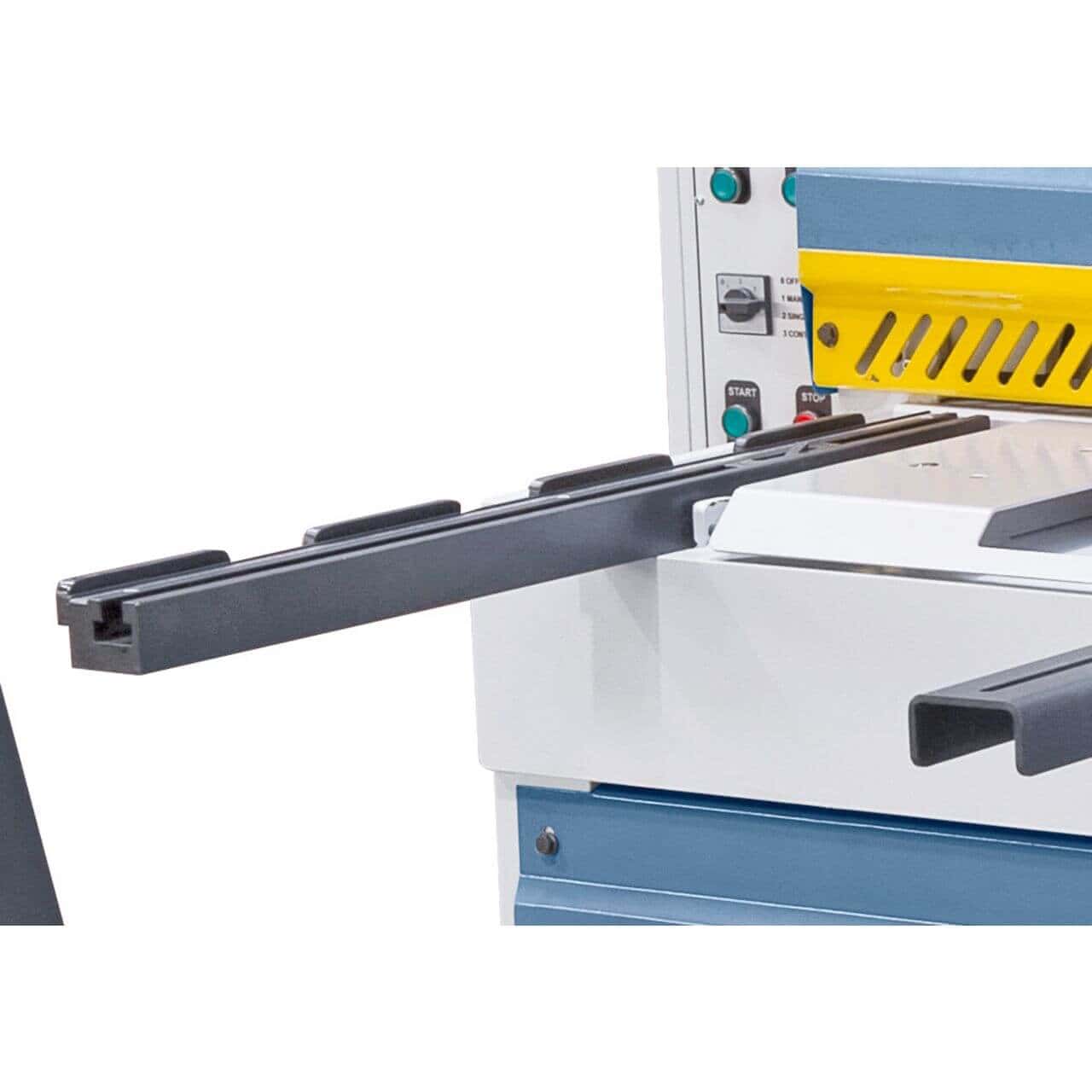

Side stop ruler
Rear safety light barriers

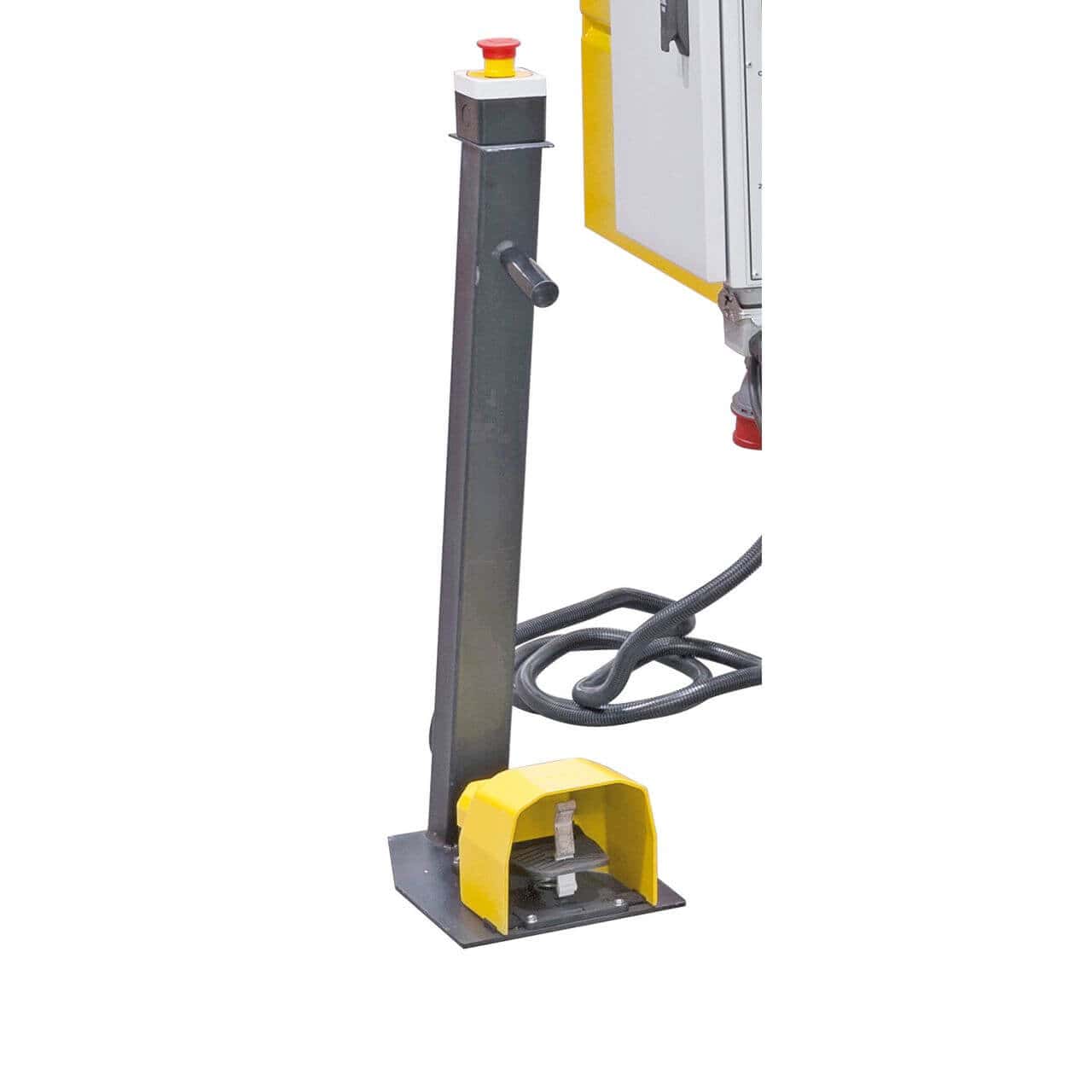

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 business days (7 days for Southern Italy). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

Frequently Asked Questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate positioning of heavy or long sheets. The choice depends on production volume and the size of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTA 2560 x 2.5 mm – Guillotine shear?

The nominal thickness of 2.5 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 1.6 mm). Always verify with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 business day shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

How much space is needed for installation?

For sheet handling, clear space at least equal to the cutting length (2560 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
