Bernardo MTA 2560 x 2.5 mm NCC – Motorized Guillotine Shear

Bernardo MTA 2560 x 2.5 mm NCC – Motorised Guillotine Shear with Pneumatic Sheet Support System

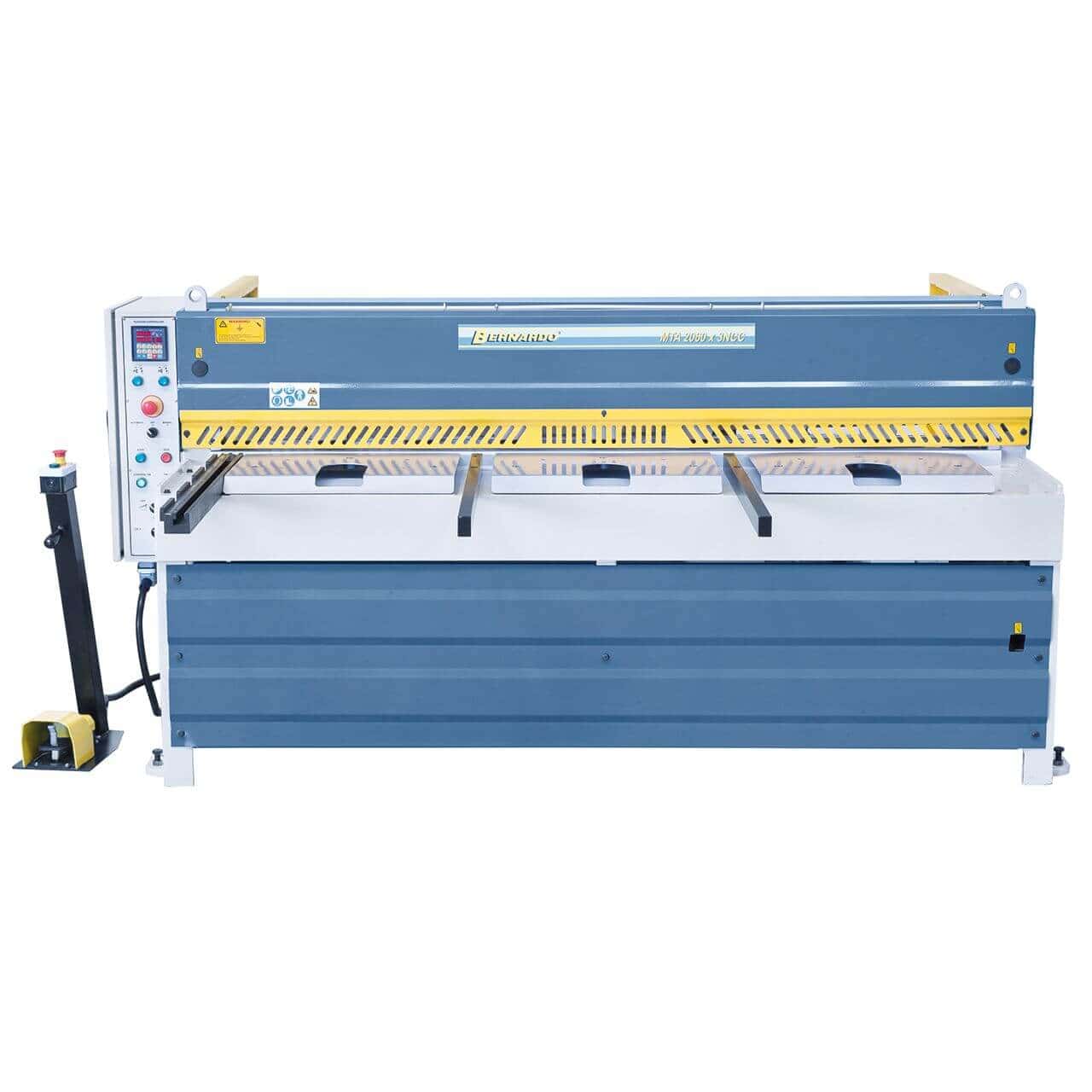

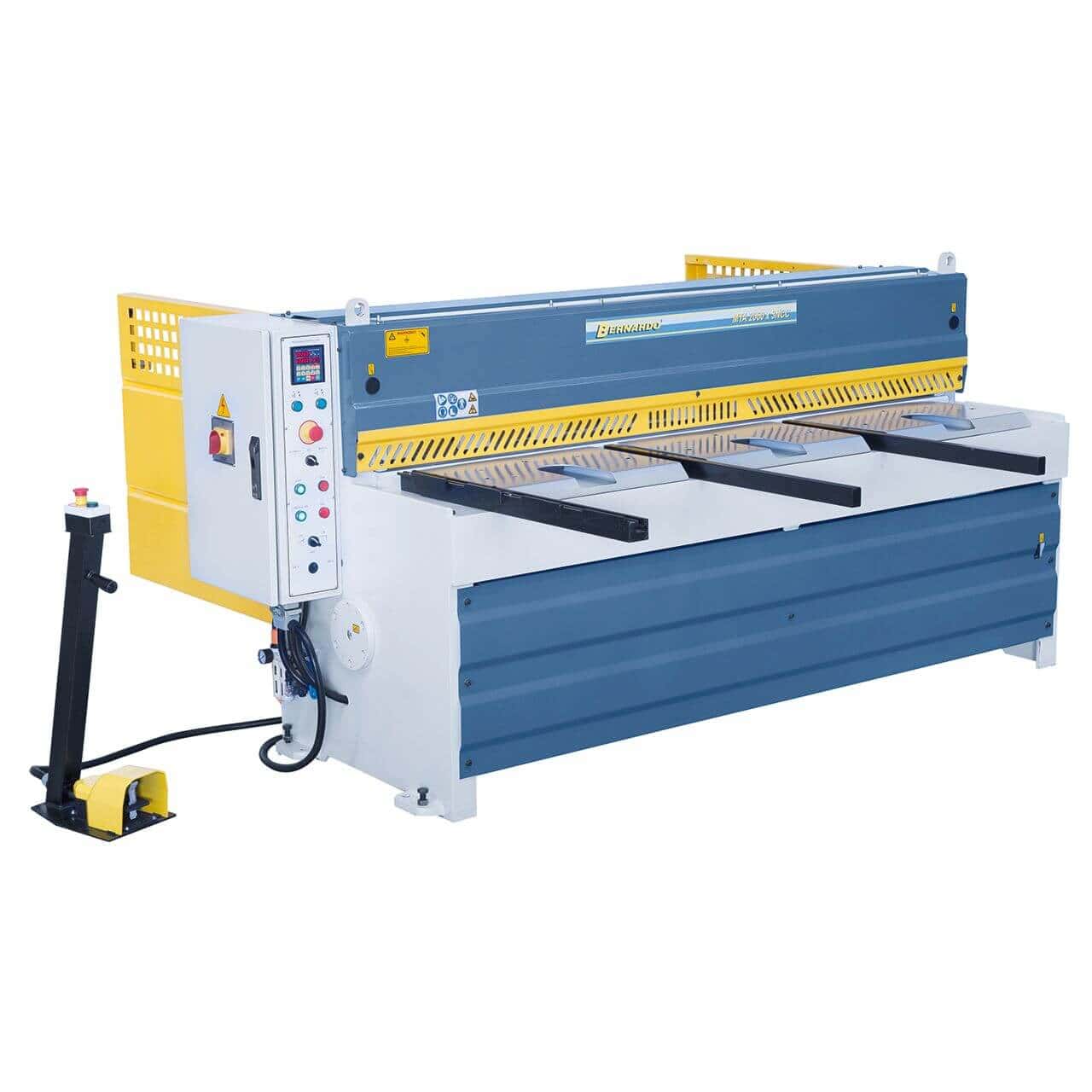

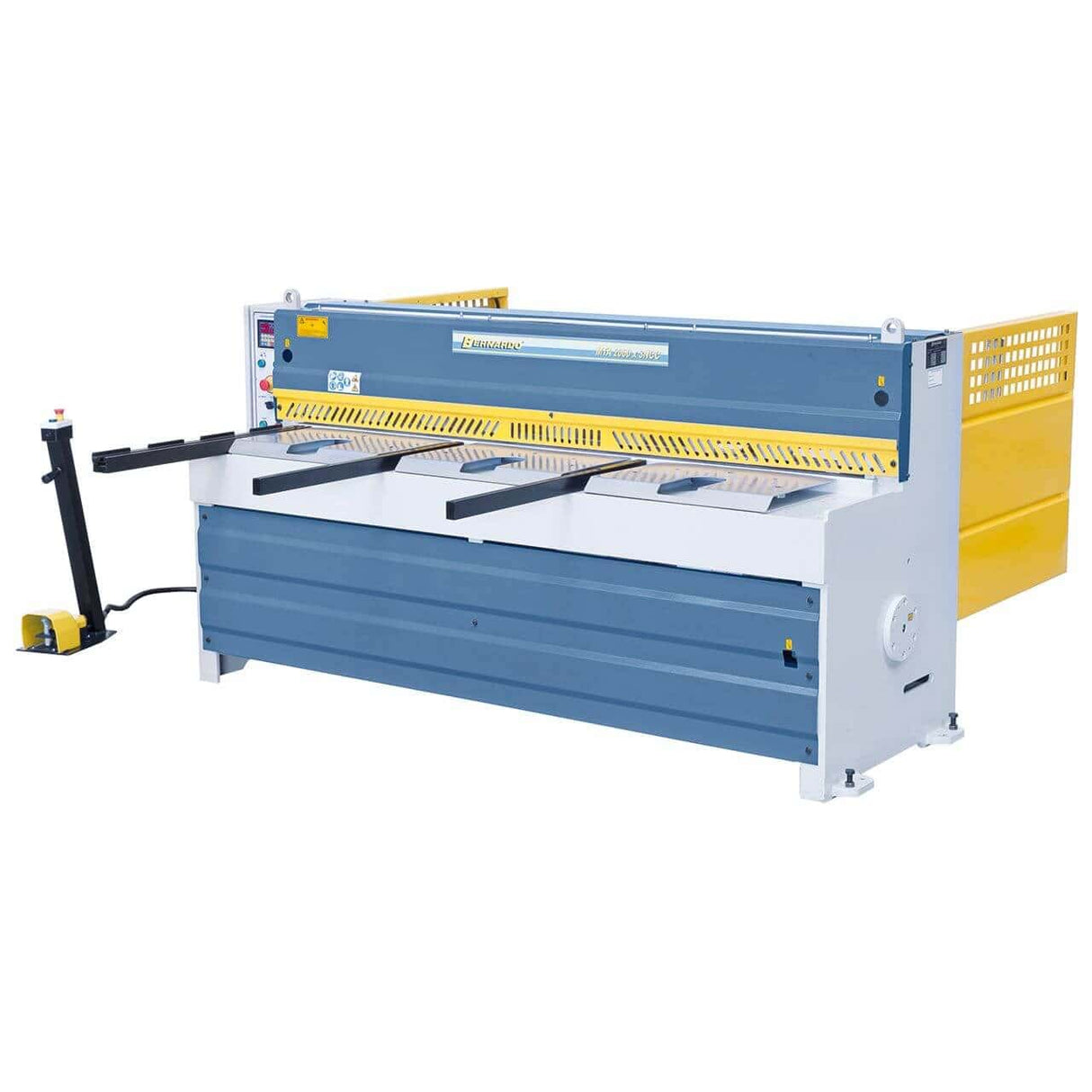

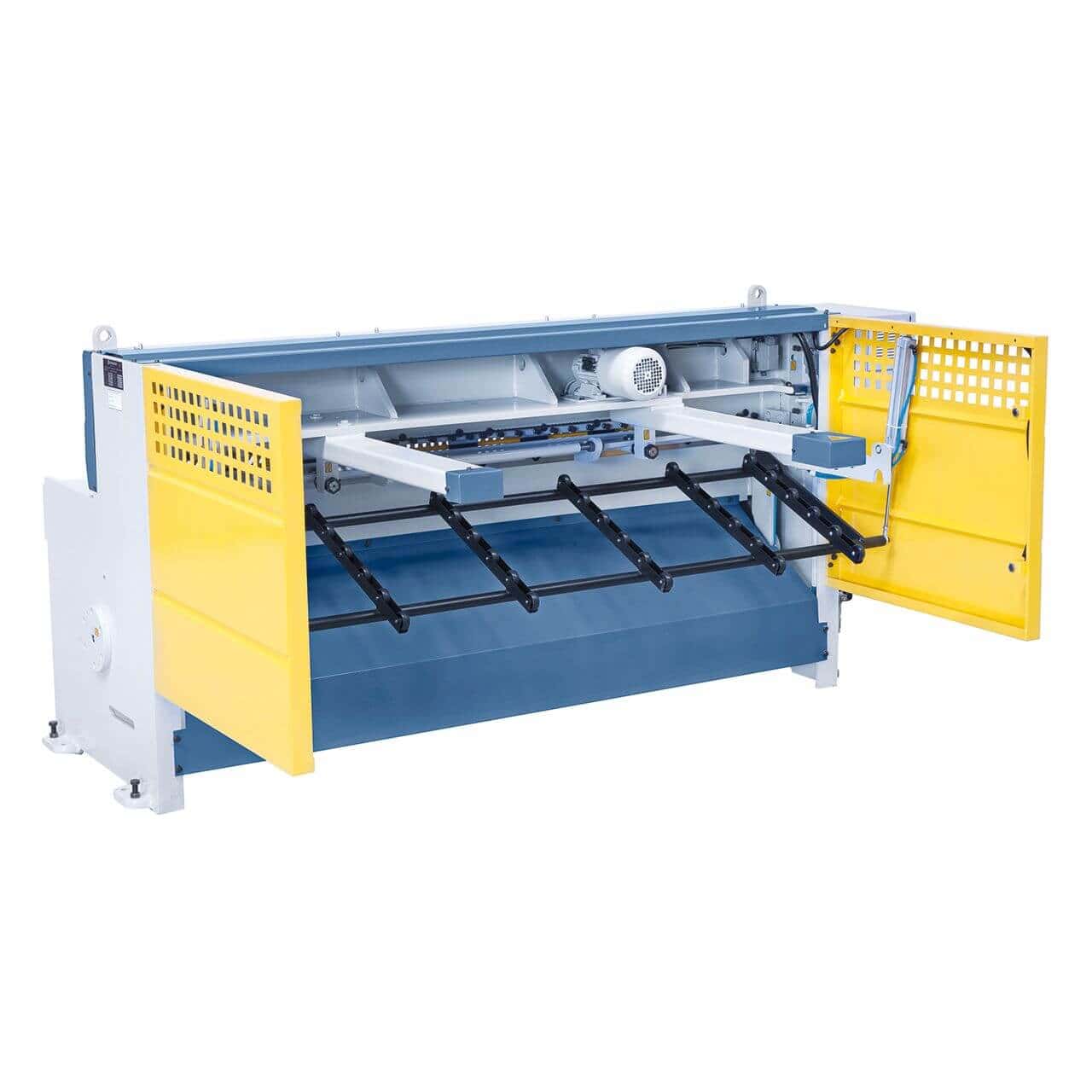

The Bernardo MTA 2560 x 2.5 mm NCC is an industrial-grade motorised guillotine shear, ideal for precise and efficient cutting of sheets up to 2.5 mm thick (400 N/mm²) and 2560 mm long. It is equipped with a pneumatic sheet support system, ensuring stability and precision, especially with thin or large sheets. The motorised NC backgauge, moved by ball screws, and the BRL 401.2 control panel allow for quick and accurate adjustments. The high-quality double-edged blades ensure clean, burr-free cuts, while safety light barriers and a foot pedal with emergency stop protect the operator. With integrated roller table, front support arms, and cutting line illumination, this shear combines robustness, reliability, and operating comfort. The 4.0 kW motor and a weight of 1920 kg make it the ideal choice for workshops and businesses requiring a precise and durable machine.

---

Key Features:
Cutting length 2560 mm for large sheets
Capacity up to 2.5 mm thickness (steel 400 N/mm²)
Pneumatic sheet support system for thin sheets

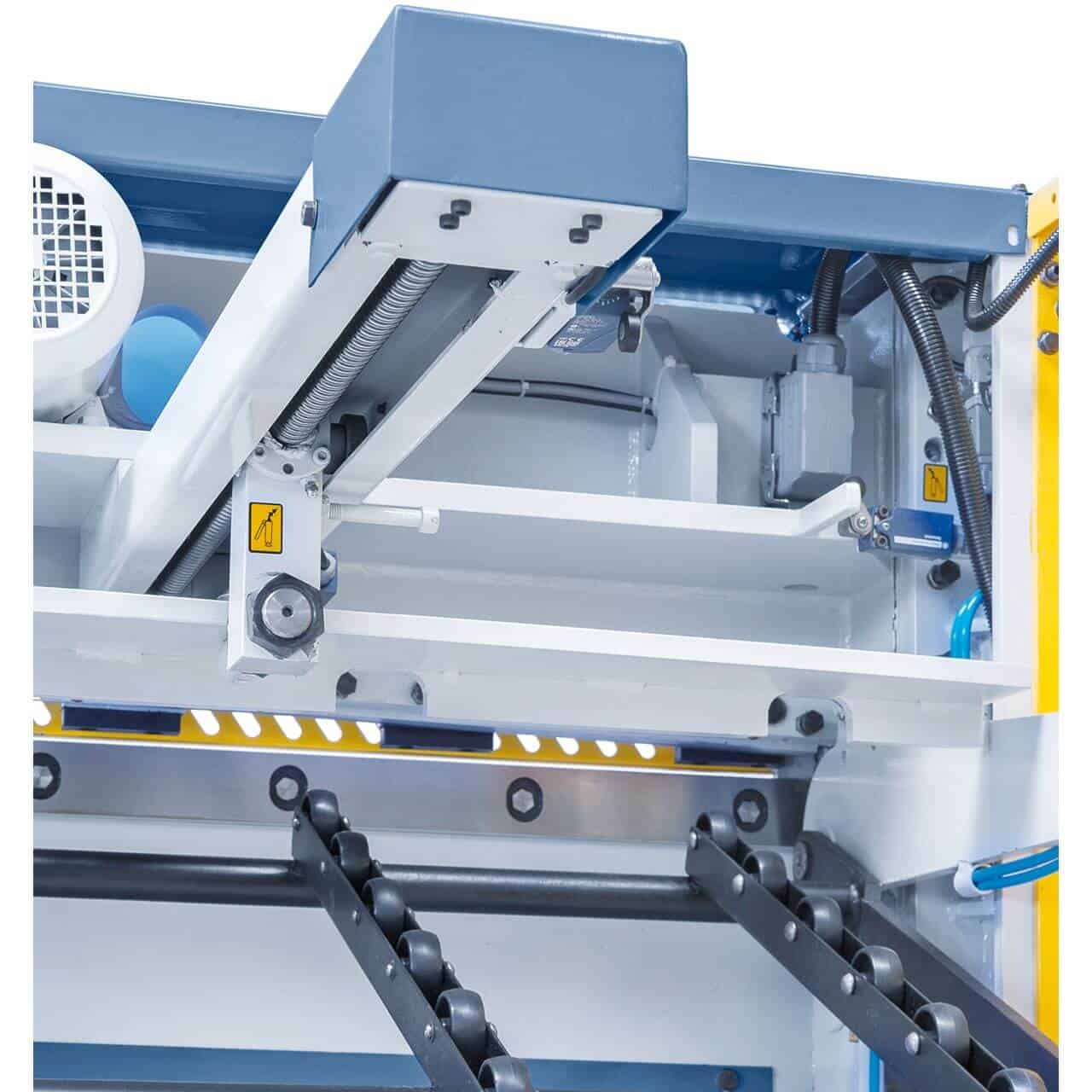

Motorised NC backgauge with ball screws

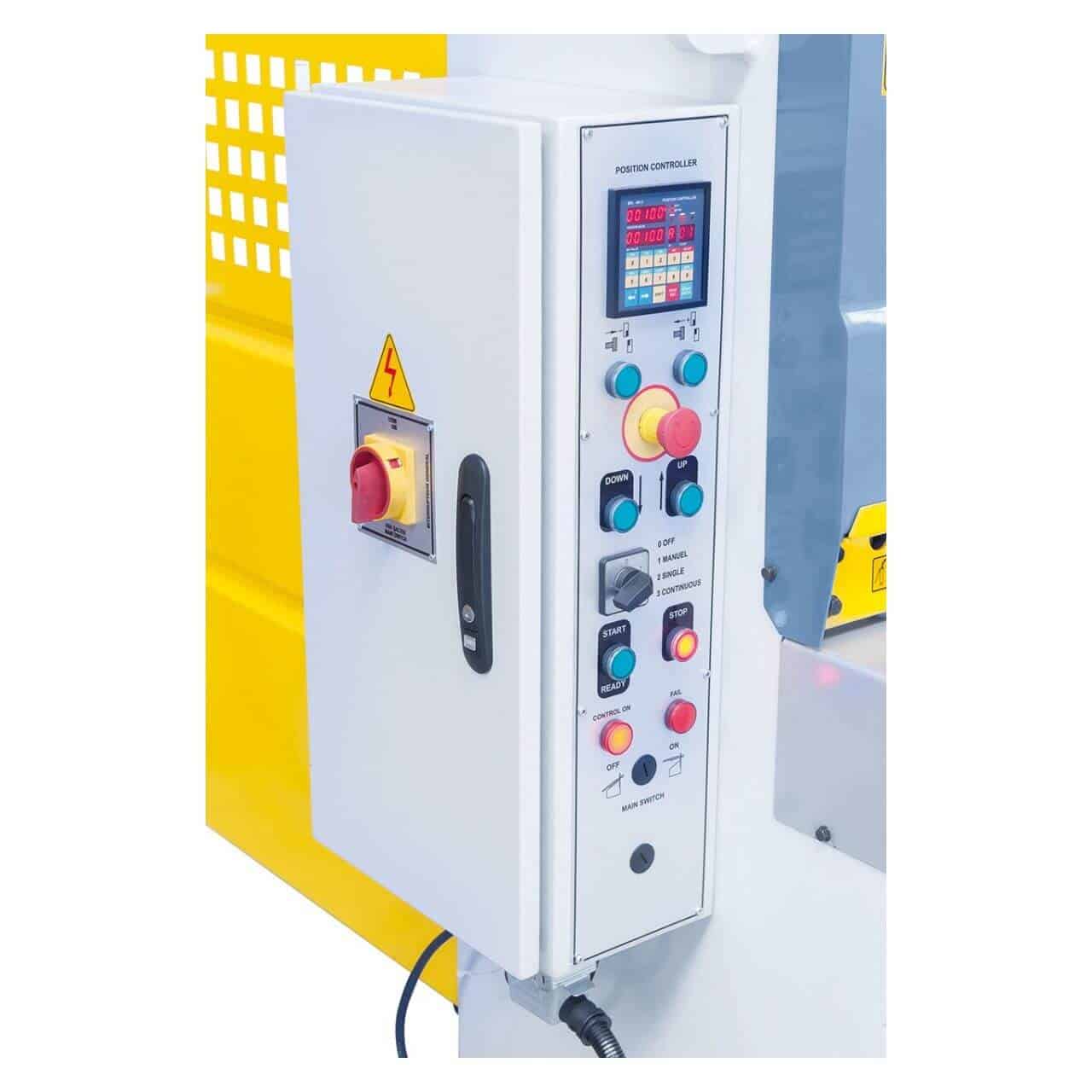

BRL 401.2 numeric control for quick and intuitive adjustments
Double-edged upper and lower blades made of hardened steel
Table with integrated rollers and front support arms
Integrated cutting line illumination for high precision
High safety with light barriers and foot pedal with emergency stop
Welded steel structure, torsionally rigid

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTA 2560 x 2.5 mm NCC
Type	Motorised Guillotine Shear with NC
Cutting length	2560 mm
Max. sheet thickness*	2.5 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (NC motorised)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	3150 x 2100 x 1260 mm
Weight	1920 kg
*Base material	400 N/mm²

---

Standard Equipment

Bernardo MTA 2560 x 2.5 mm NCC Guillotine Shear
Cut counter
Cutting line illumination
Motorised NC backgauge

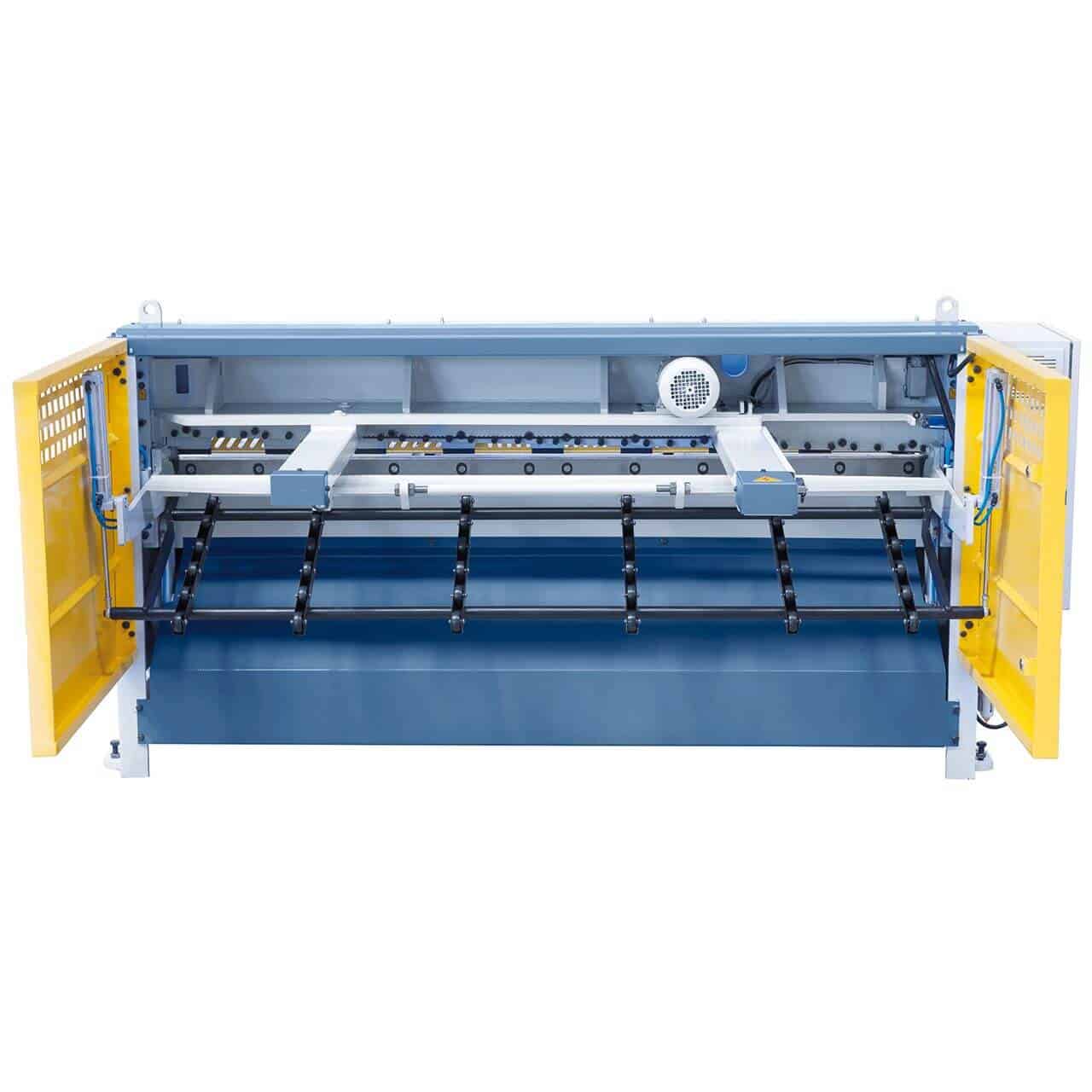

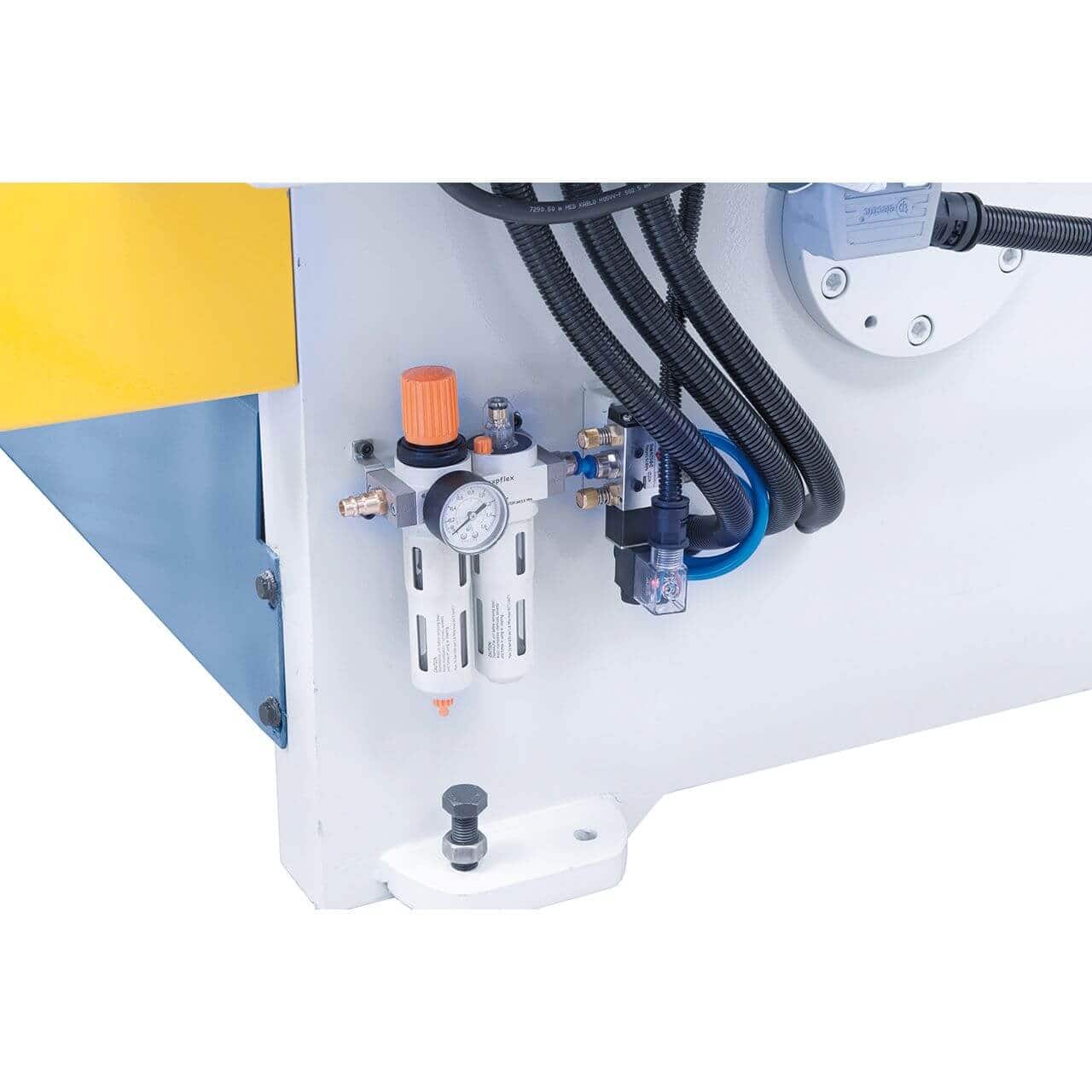

Pneumatic sheet support system
Front sheet support arms

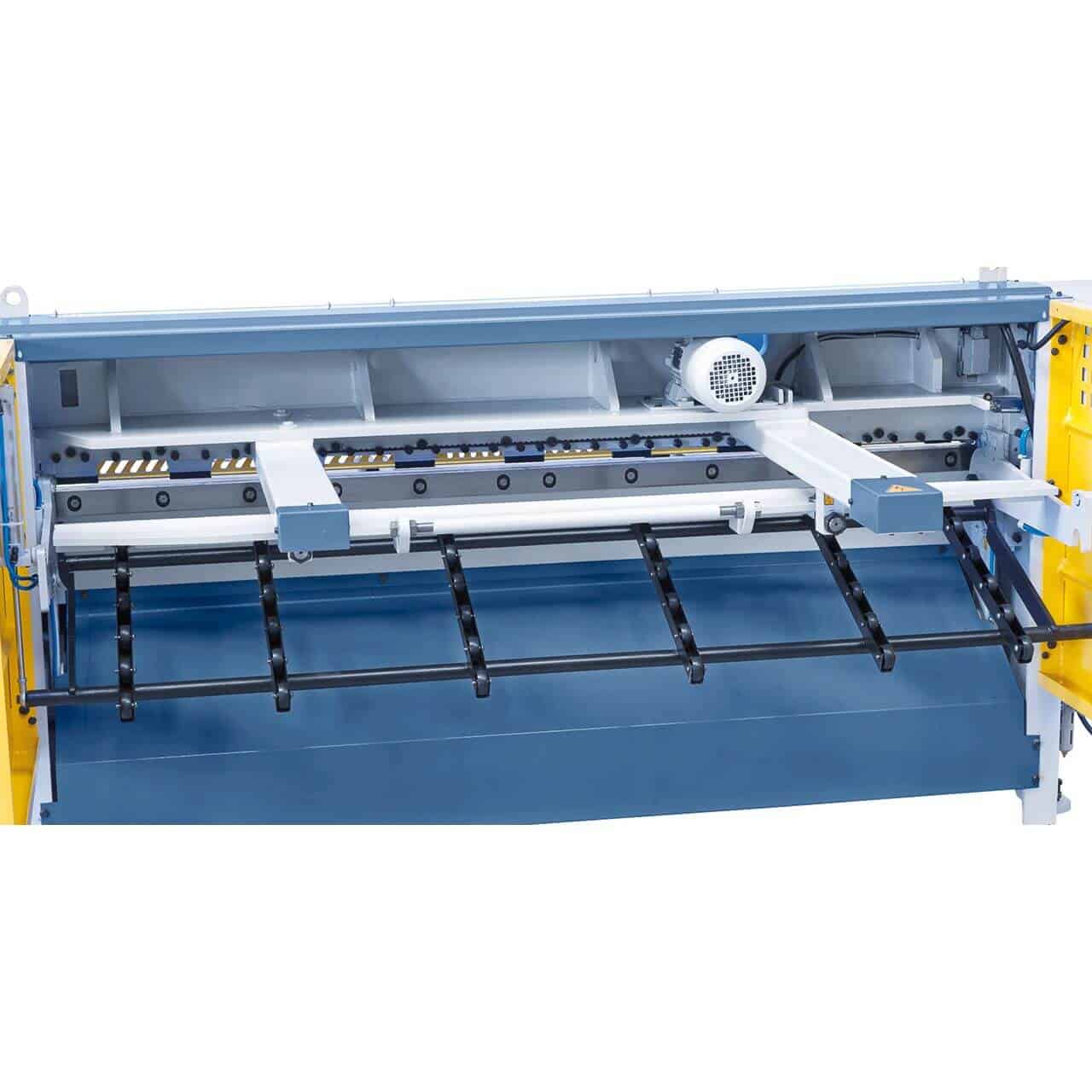

Table with integrated rollers

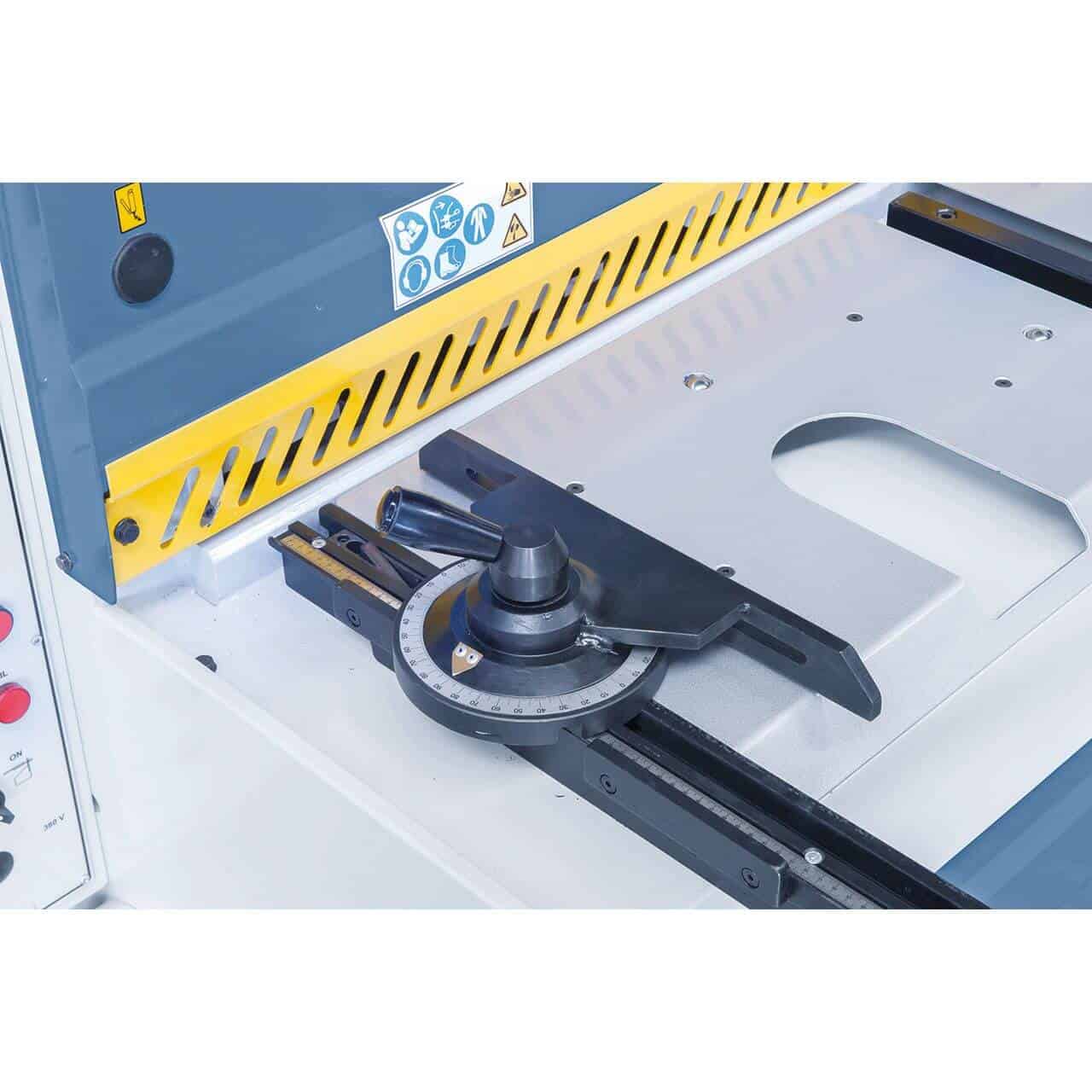

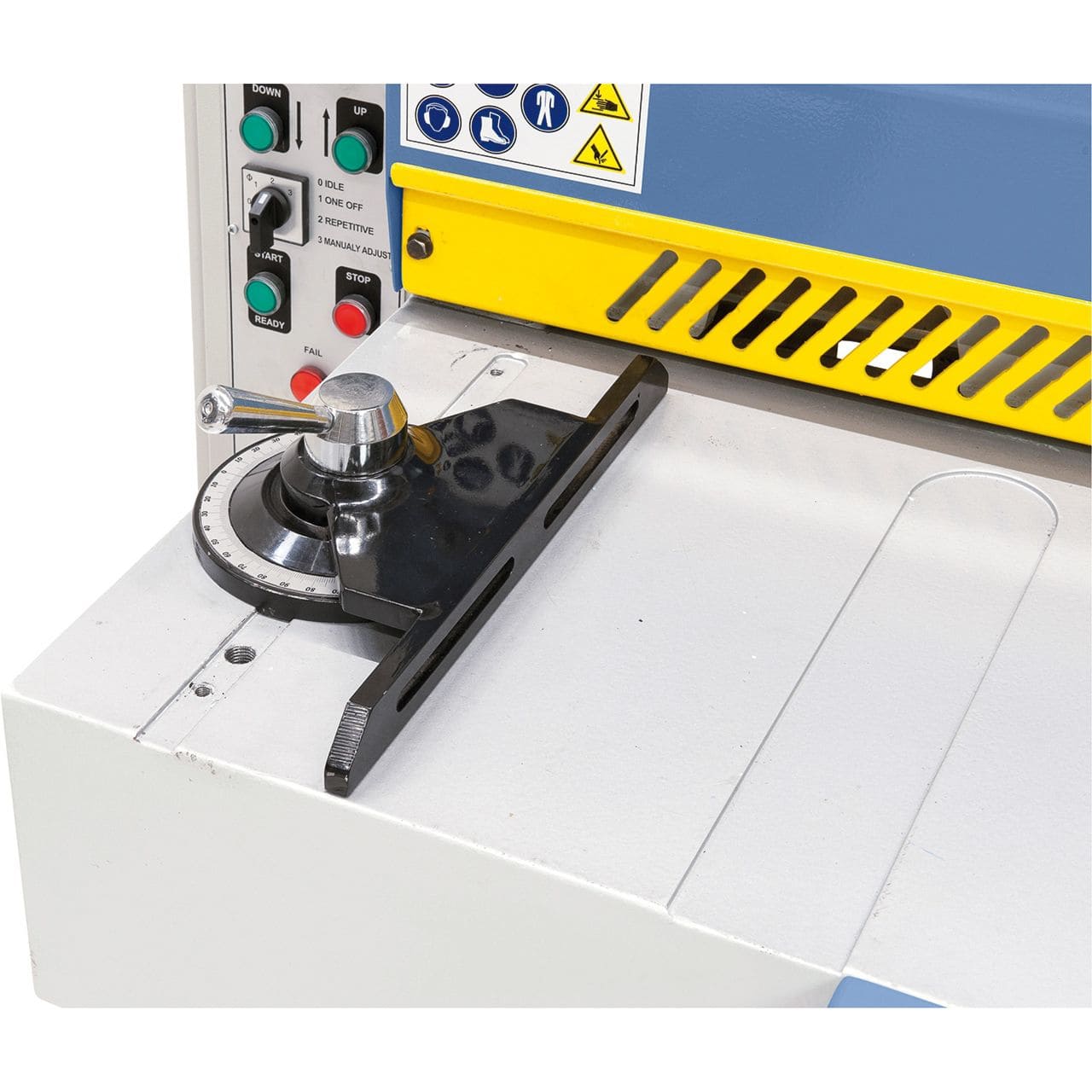

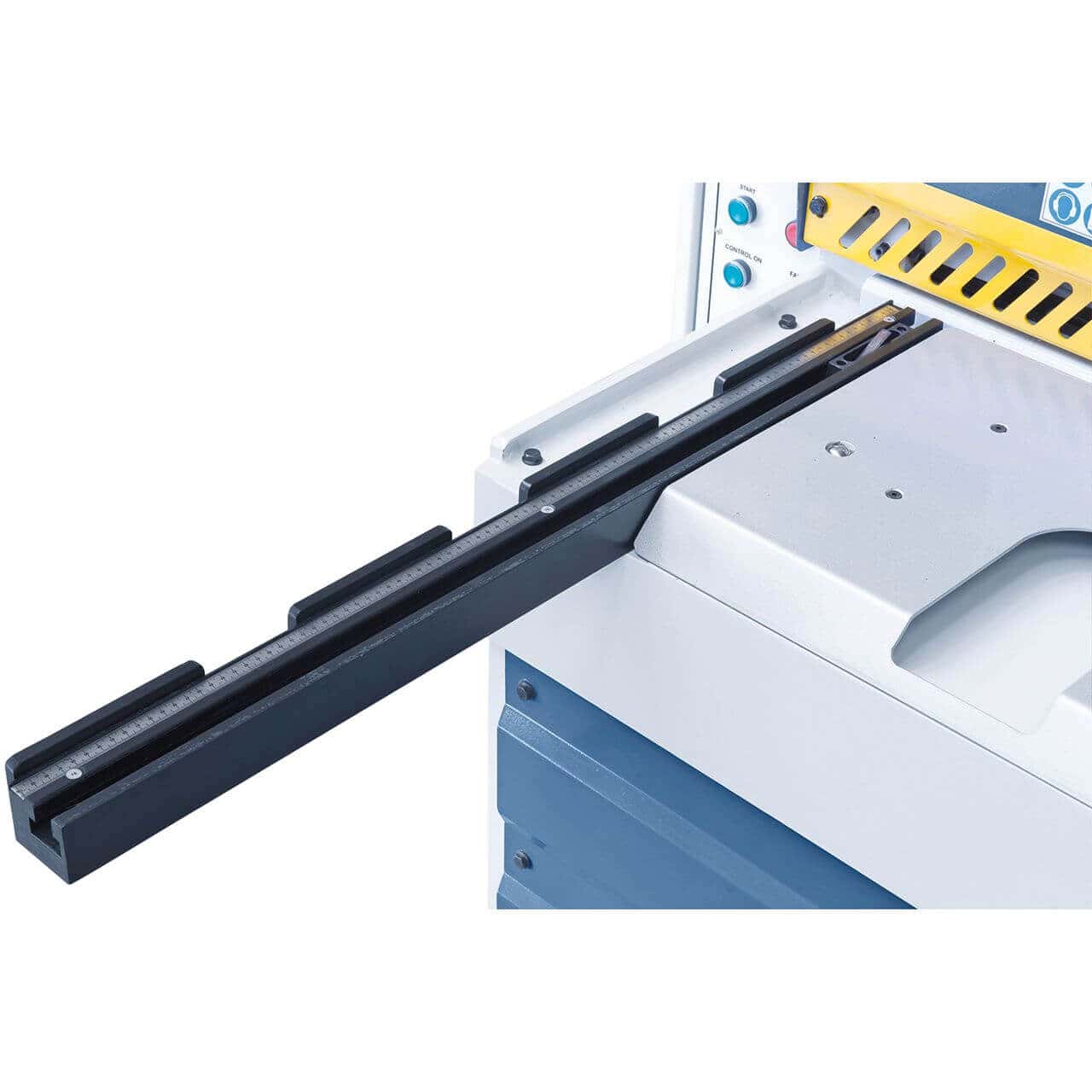

Side gauge ruler

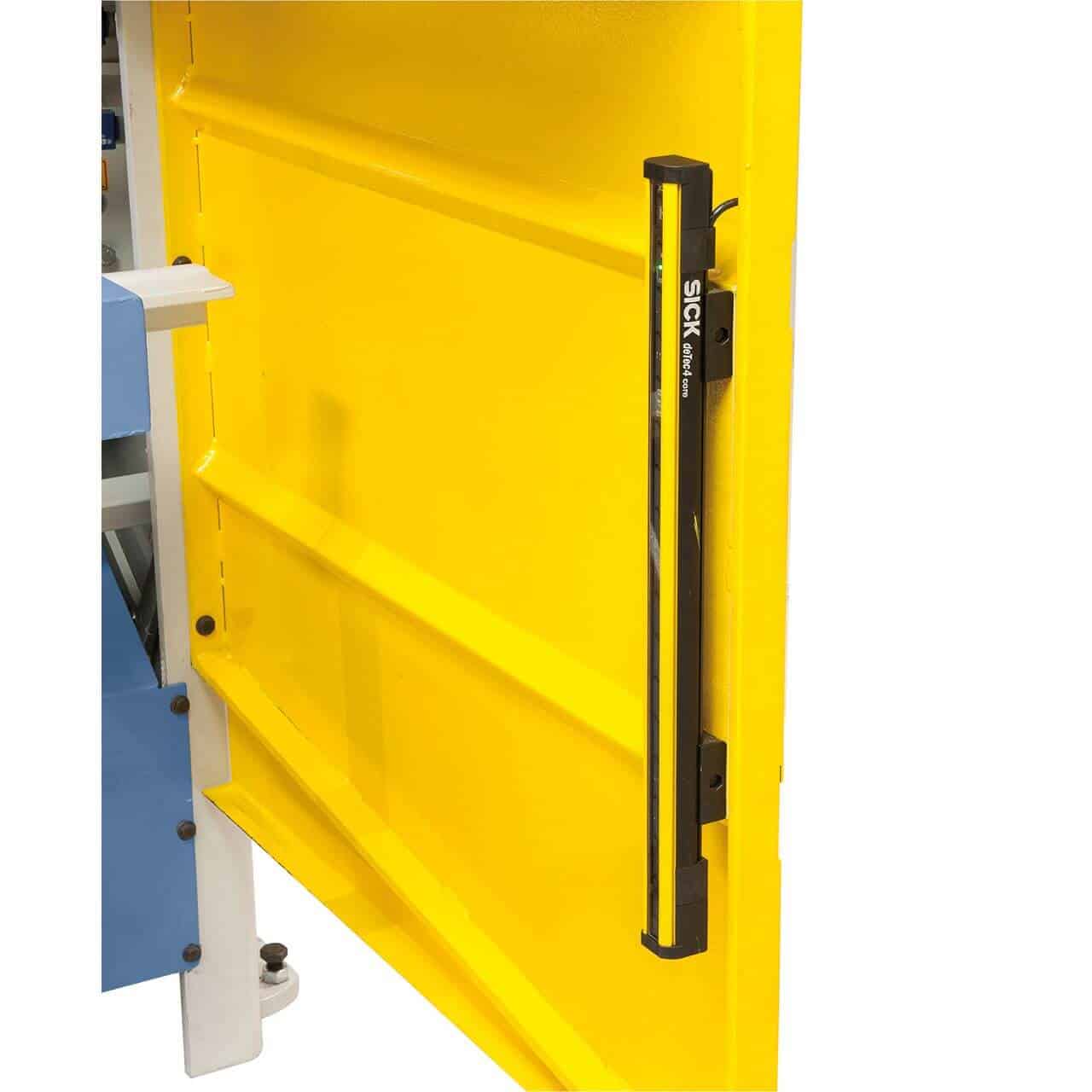

Rear safety light barriers

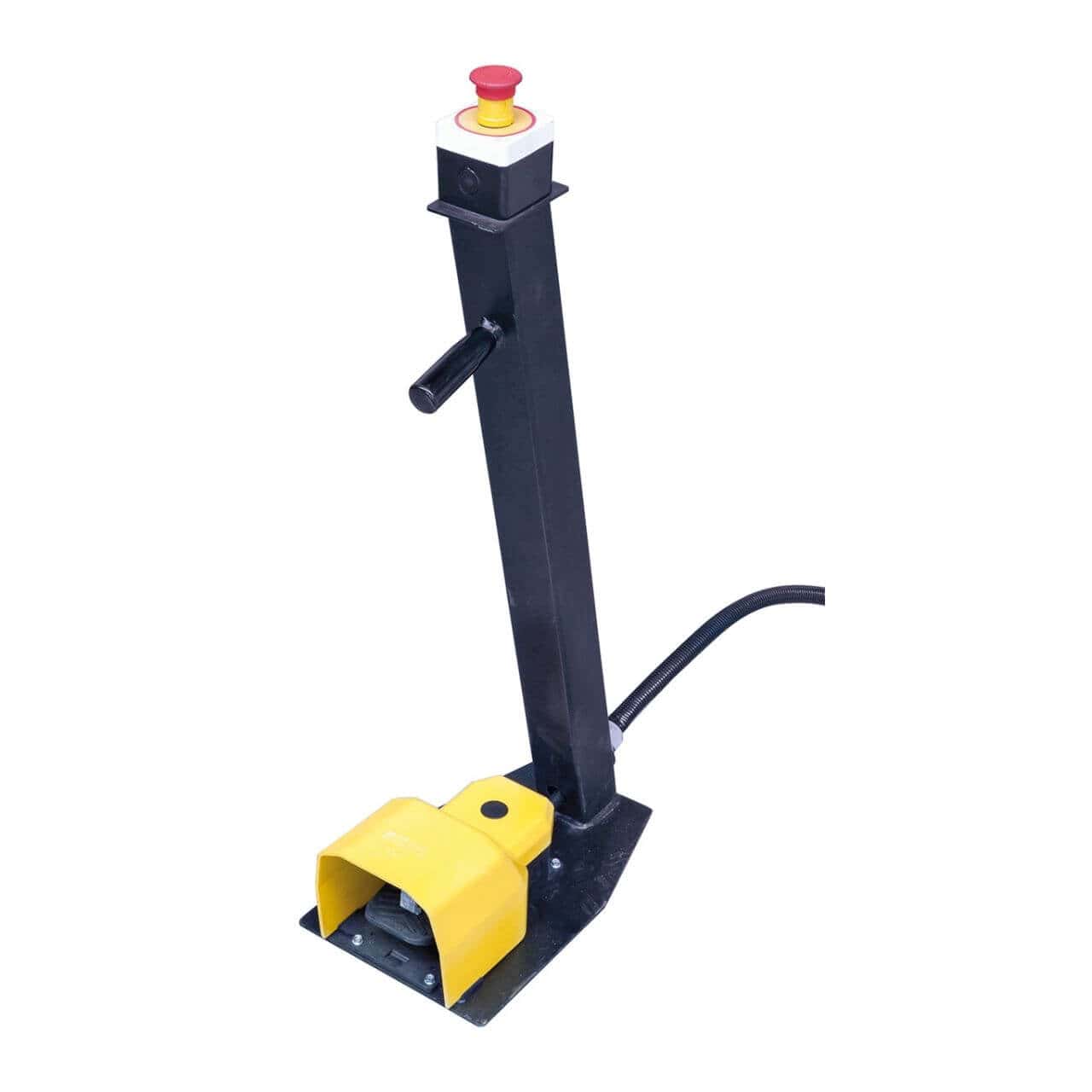

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorisation, for low-volume artisanal production. MTE: motorised with NC, standard electro-welded structure. MTR: motorised with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on production volume and the format of the sheets processed.

What is the maximum thickness for stainless steel with the Bernardo MTA 2560 x 2.5 mm NCC – Shear?

The nominal thickness of 2.5 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 1.6 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 business days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet handling, clear space at least equal to the cutting length (2560 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
