Bernardo MTA 3060 x 3 mm – Motorized Guillotine Shear

Bernardo MTA 3060 x 3 mm – Motorized Guillotine Shear with Manual Backgauge

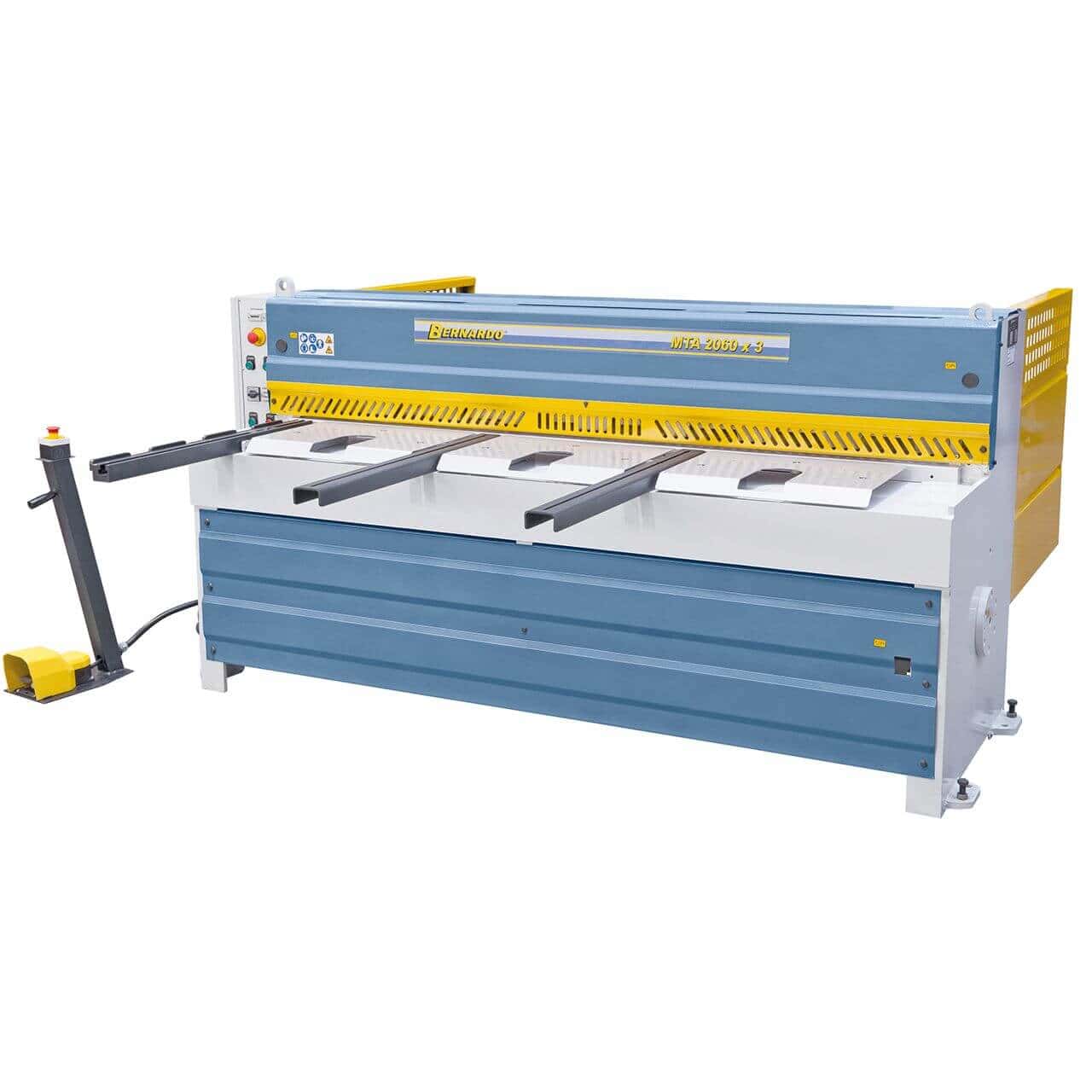

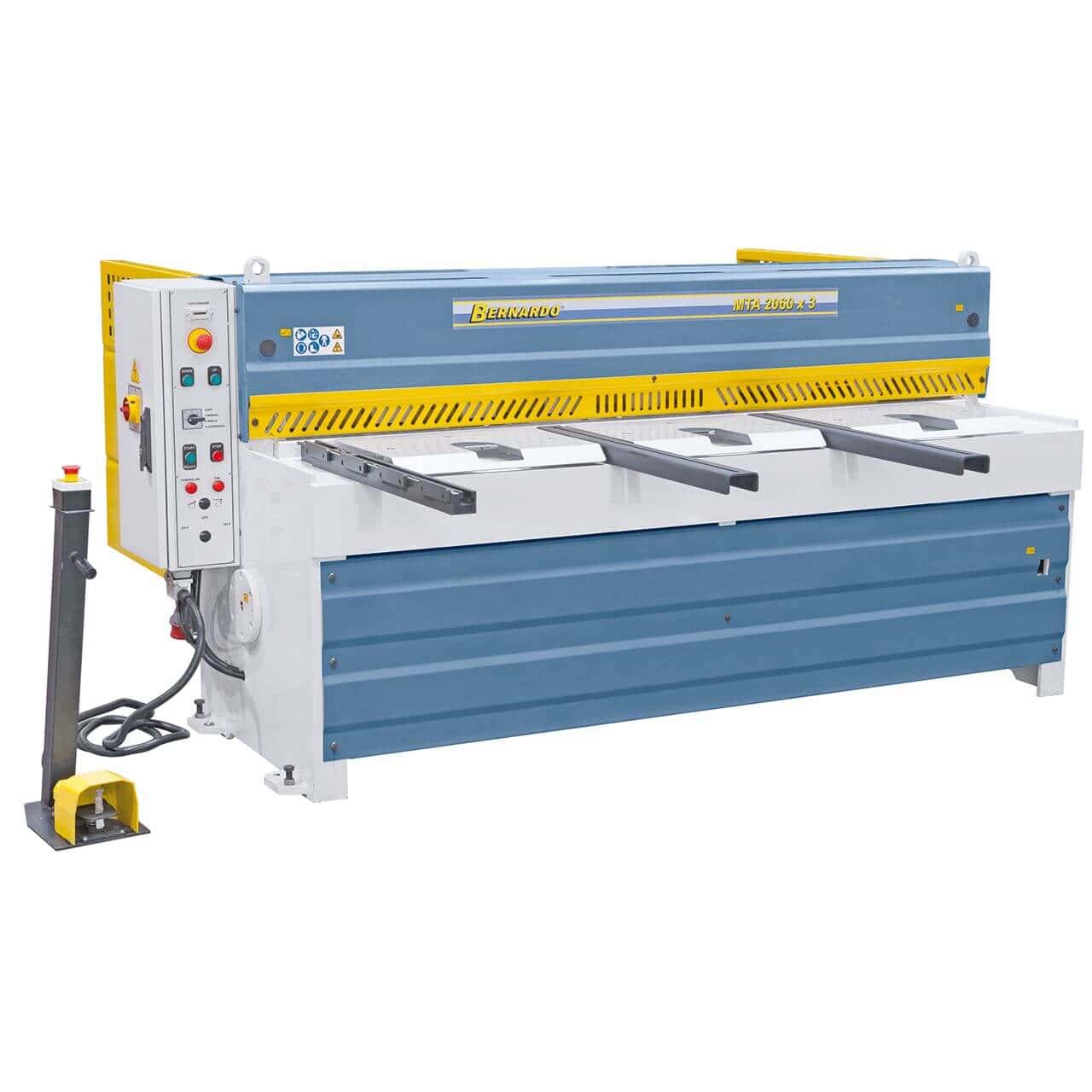

The Bernardo MTA 3060 x 3 mm is a motorized guillotine shear designed for precise and reliable cuts on steel, aluminum, copper, and brass sheets up to 3 mm thick (400 N/mm²). With a cutting length of 3060 mm and a 1°30’ angle, it ensures clean, burr-free surfaces thanks to its double-edged upper and lower blades made of hardened steel. The manual backgauge, adjustable up to 750 mm via handwheel, allows for quick and accurate positioning. The foot pedal keeps hands free for correct sheet positioning, while rear guards with photocells and an emergency stop guarantee high safety. The cutting line illumination with a silhouette and the worktable with integrated rollers and front supports make processing easier and more precise. With a 4.0 kW motor and a weight of 2140 kg, the MTA 3060 x 3 mm is a robust professional solution for workshops and industries.

---

Key Features:
3060 mm cutting length for large sheets
Cutting capacity up to 3 mm (400 N/mm² steel)
1°30’ cutting angle for clean and precise surfaces

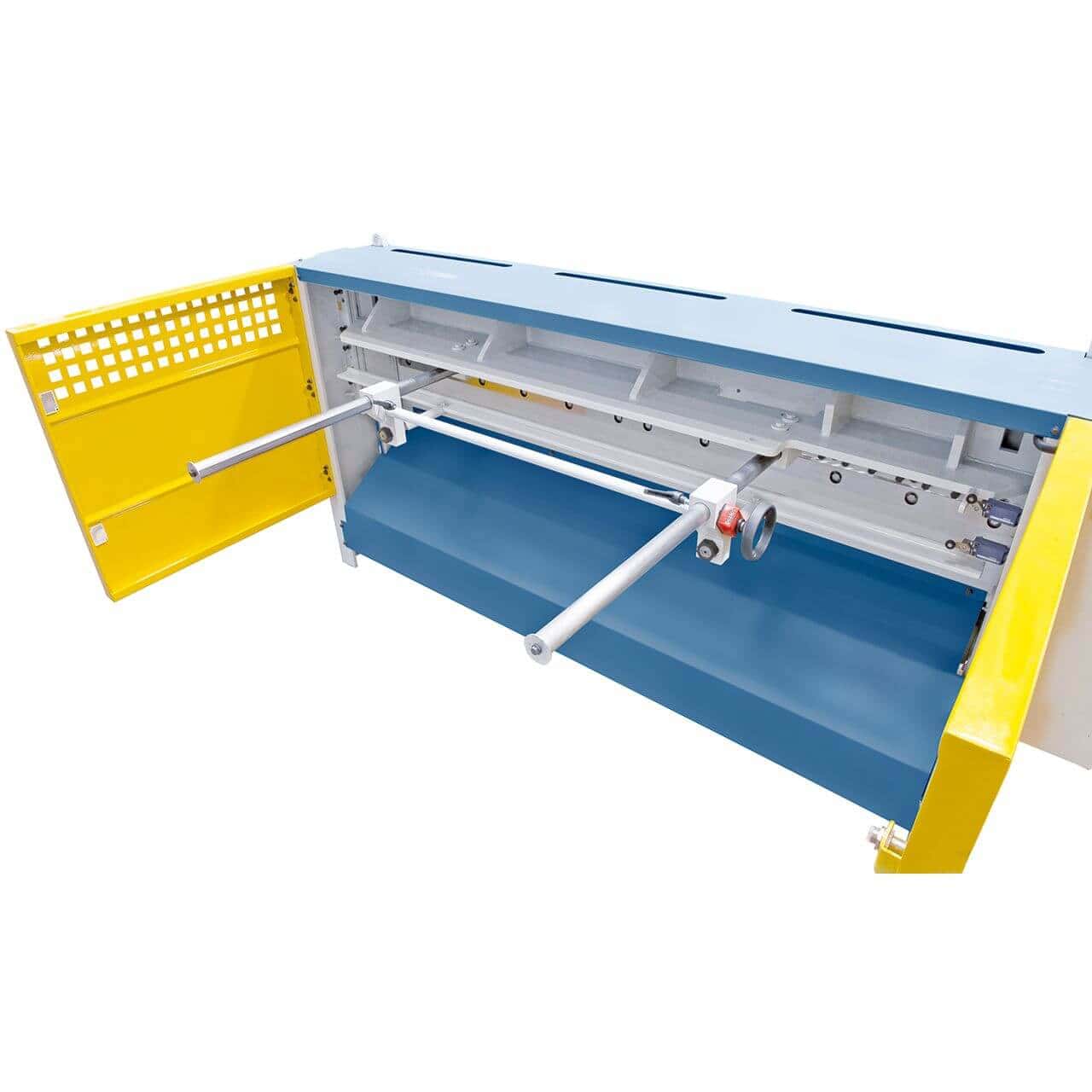

Manual backgauge up to 750 mm adjustable with handwheel
Double-edged blades made of hardened steel
Cutting line illumination with integrated silhouette
Table with integrated rollers and front support arms

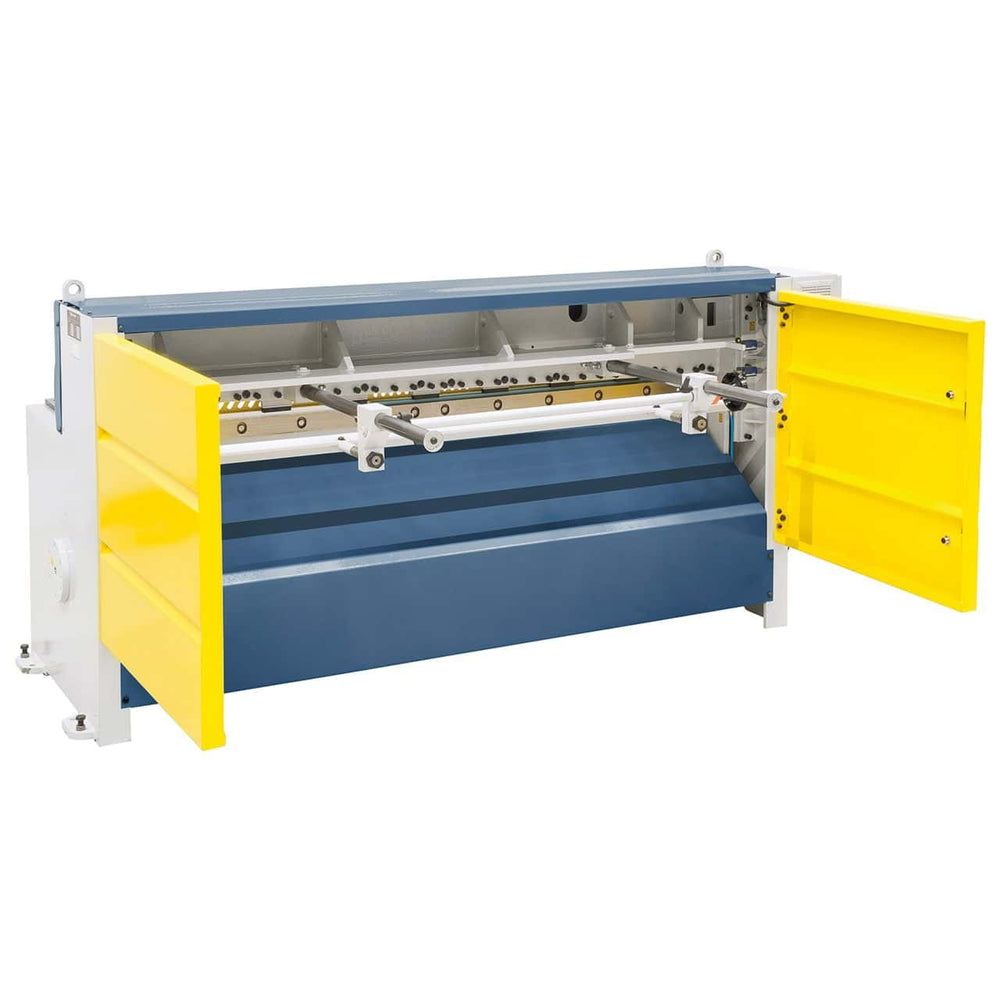

Rear guards with photocells and foot pedal with emergency stop
Robust welded steel construction for stability and long life

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTA 3060 x 3 mm
Type	Motorized Guillotine Shear with Manual Backgauge
Cutting Length	3060 mm
Max. Sheet Thickness*	3 mm
Cutting Angle	1°30’
Strokes per Minute	31
Working Height	810 mm
Backgauge	0 – 750 mm (manual)
Table Width	390 mm
Motor Power	4.0 kW
Dimensions (L x W x H)	3650 x 2100 x 1260 mm
Weight	2140 kg
*Base Material	400 N/mm²

---

Standard Equipment

Bernardo MTA 3060 x 3 mm Guillotine Shear

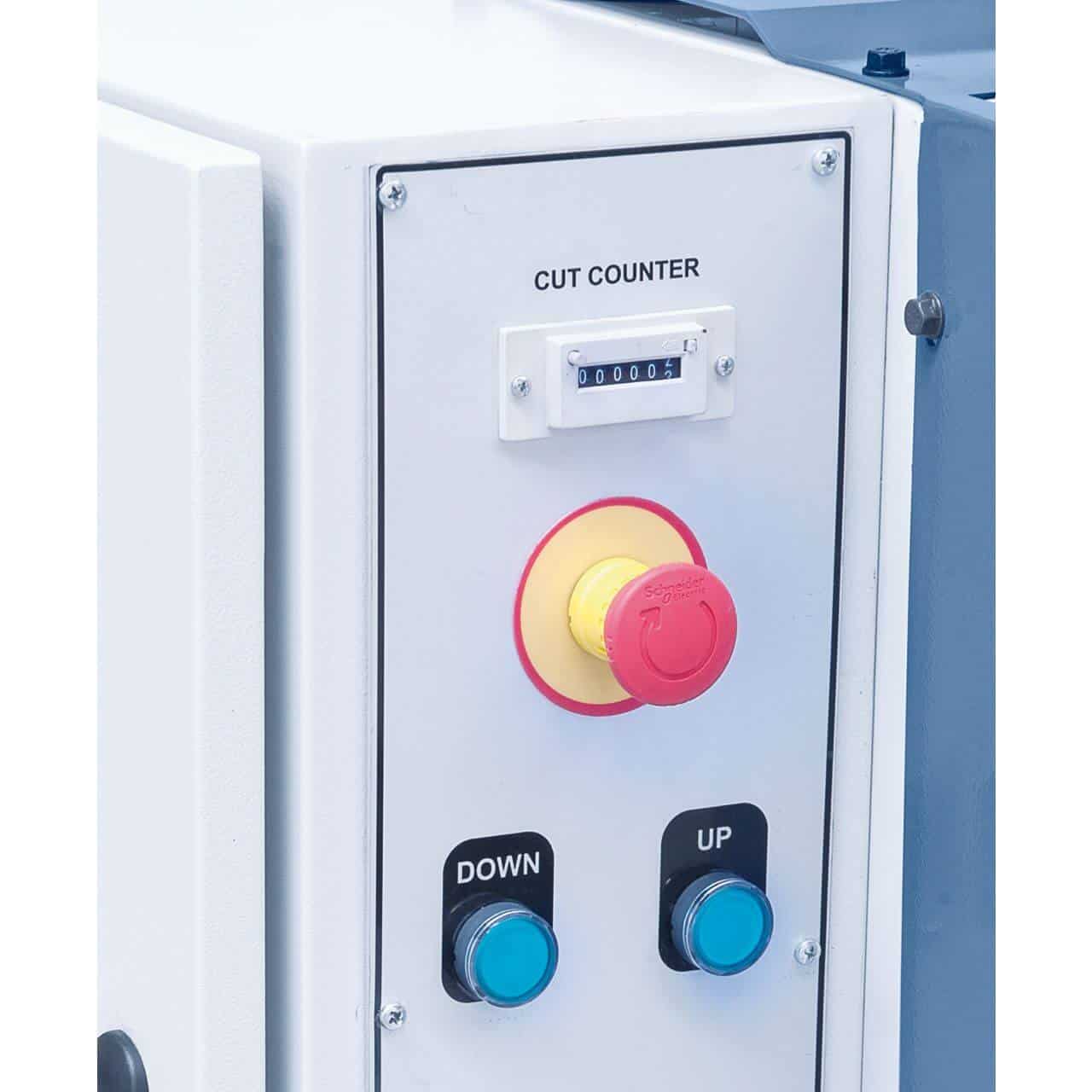

Cut Counter
Cutting Line Illumination
Manual Backgauge

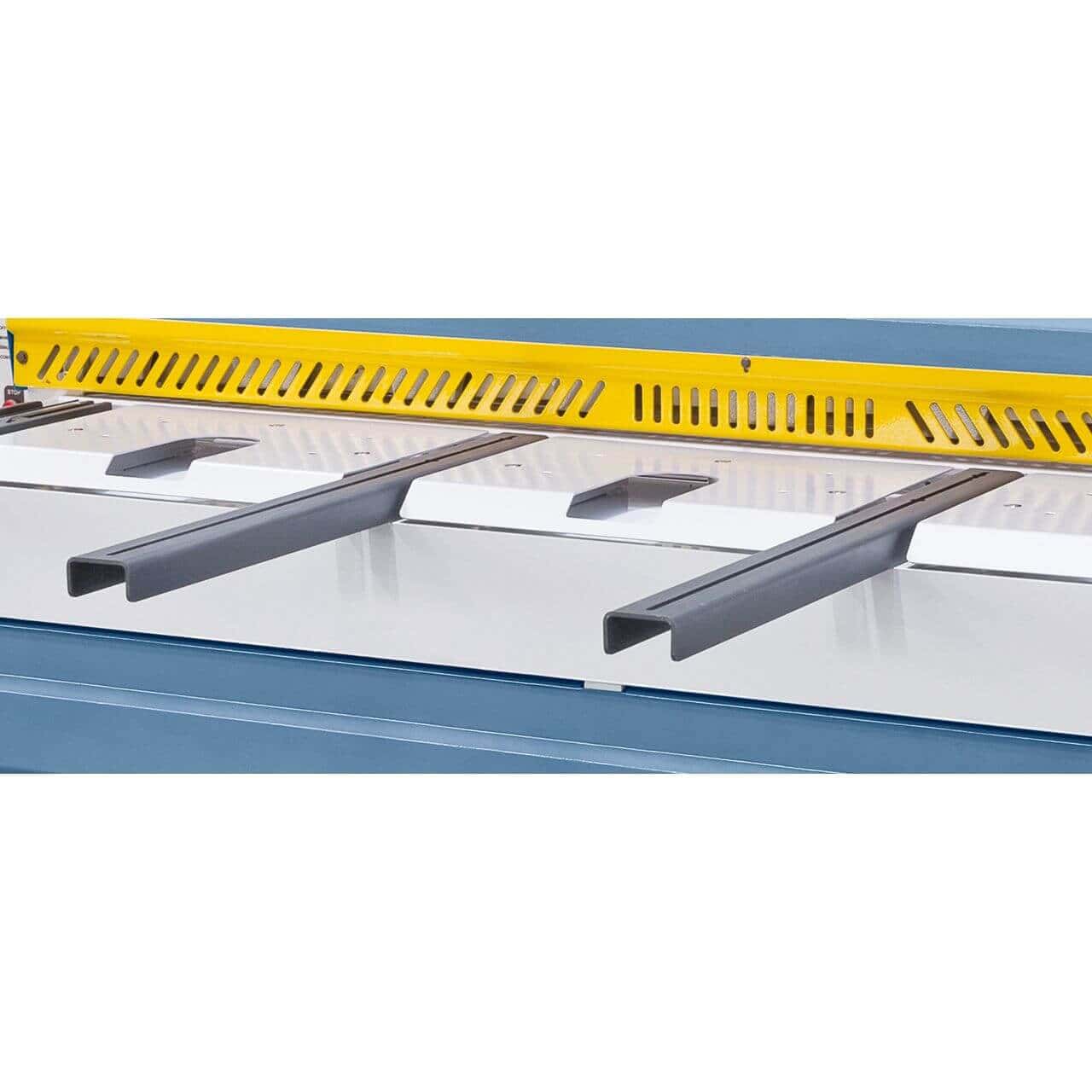

Front Sheet Support
Table with Integrated Rollers

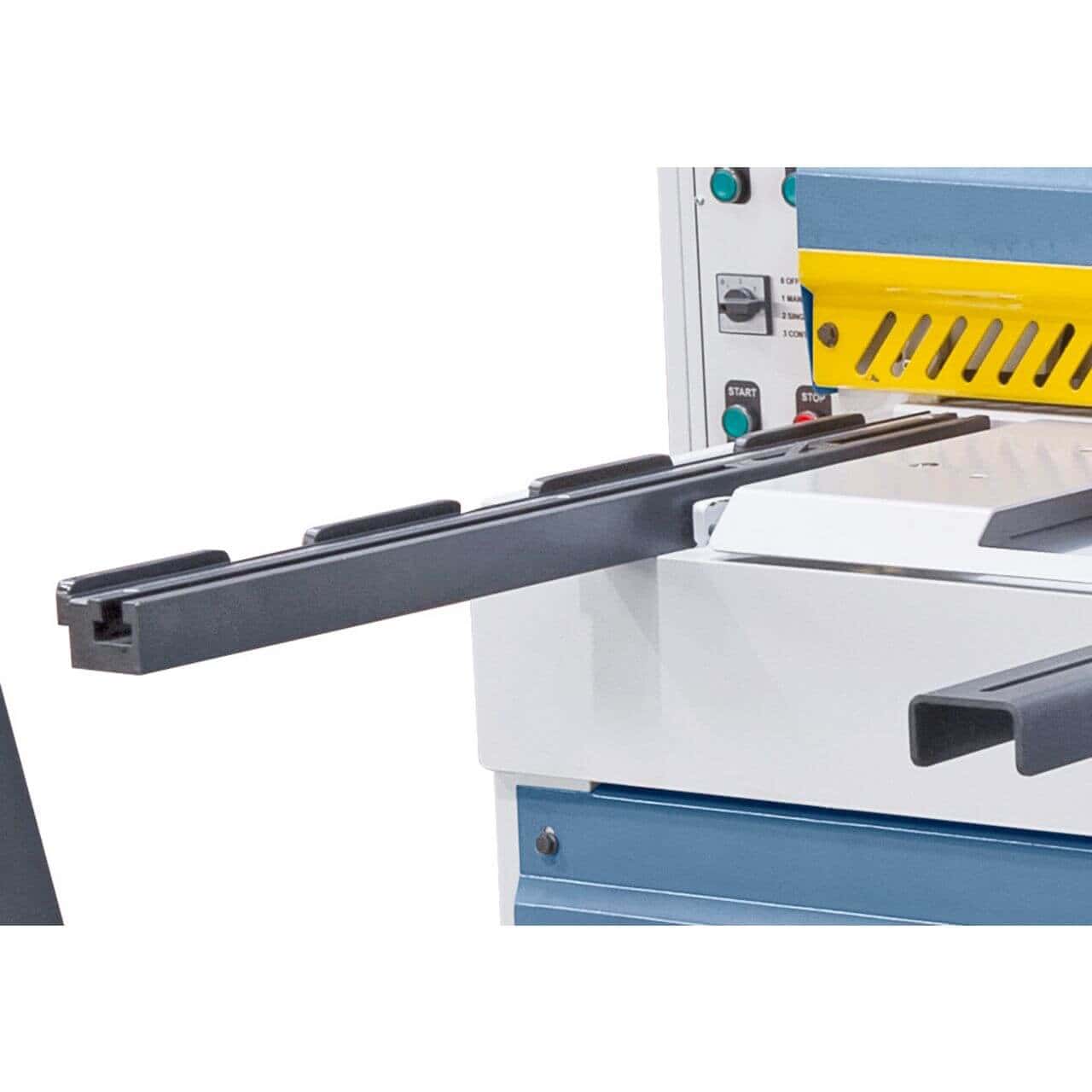

Side Stop Ruler

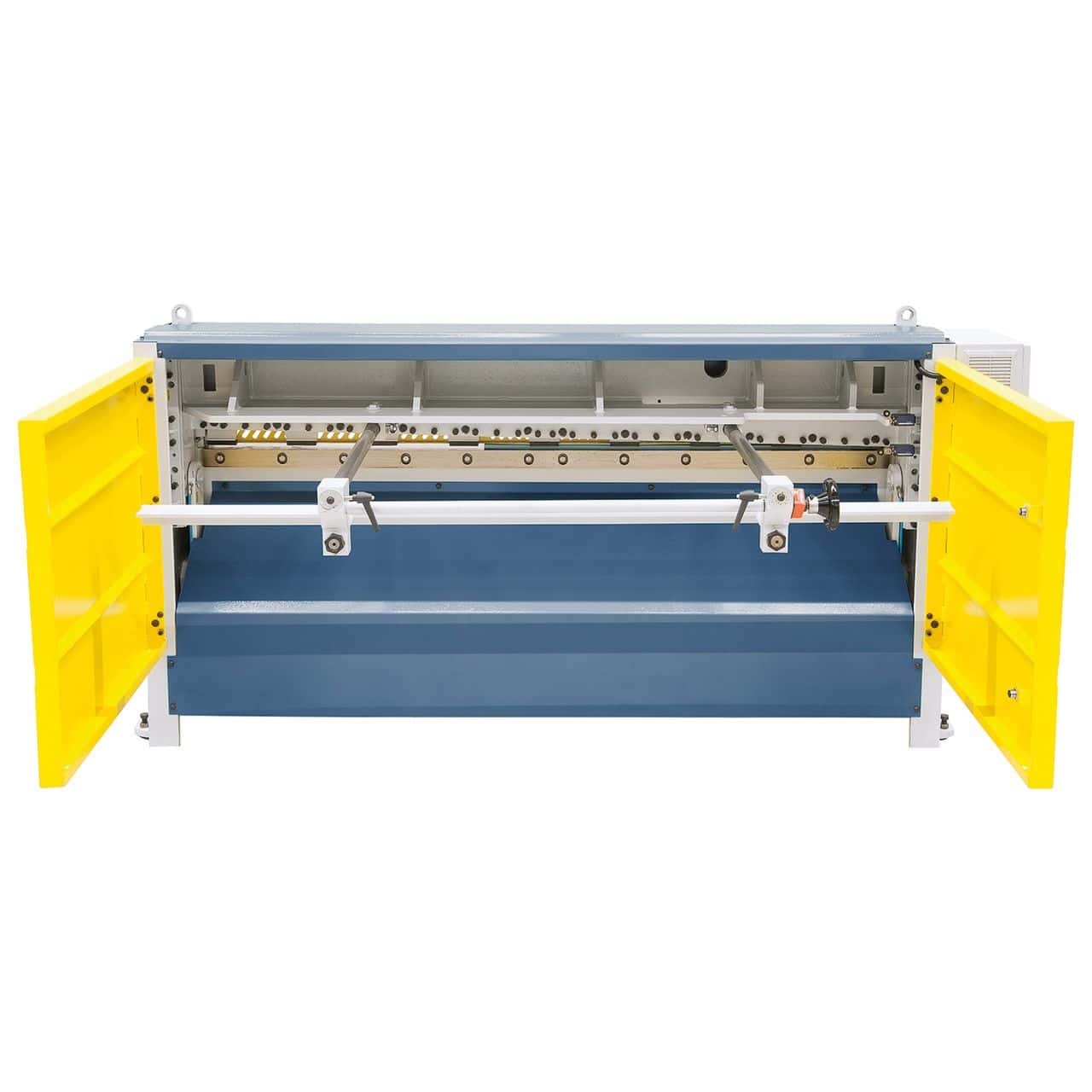

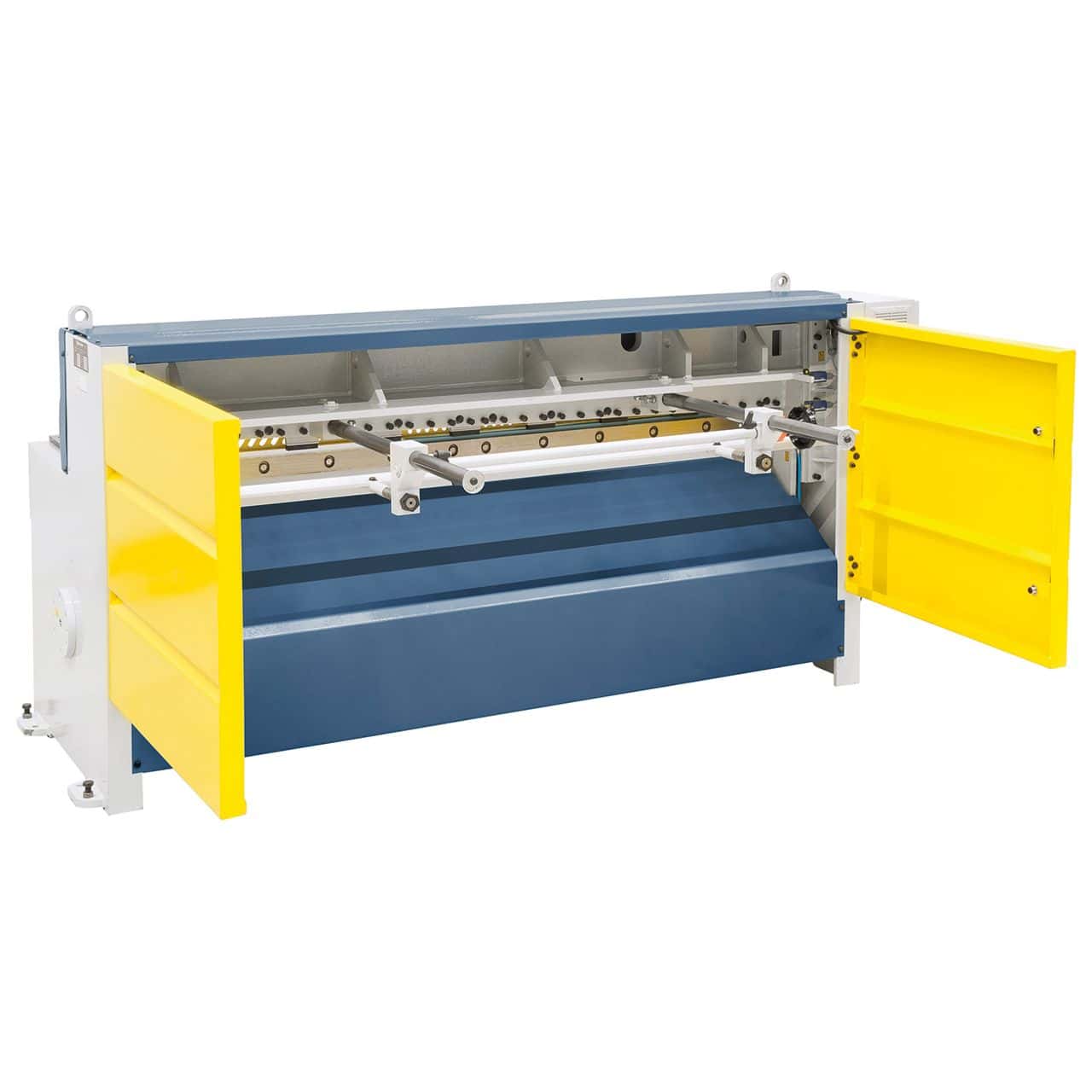

Rear Guards with Photocell

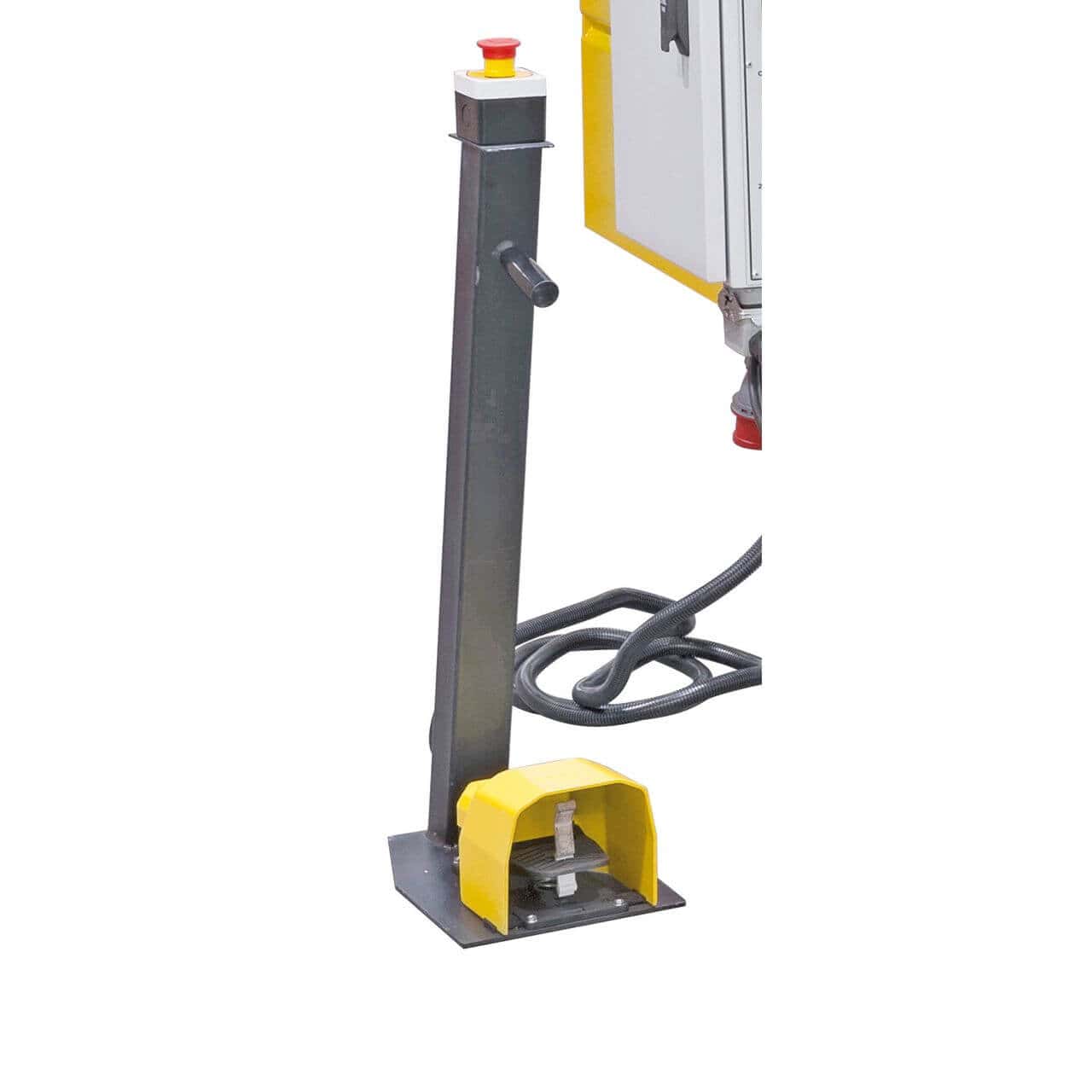

Foot Pedal with Emergency Stop
Steel Tool Blades

Logistics

Bernardo Shipping: 5–9 business days (7 days to the South). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy sheets or long formats. The choice depends on production volume and the format of the processed sheets.

What is the maximum thickness for stainless steel with the Bernardo MTA 3060 x 3 mm – Guillotine Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 business days shipping.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

How much space is needed for installation?

For sheet handling, free space at least equal to the cutting length (3060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
