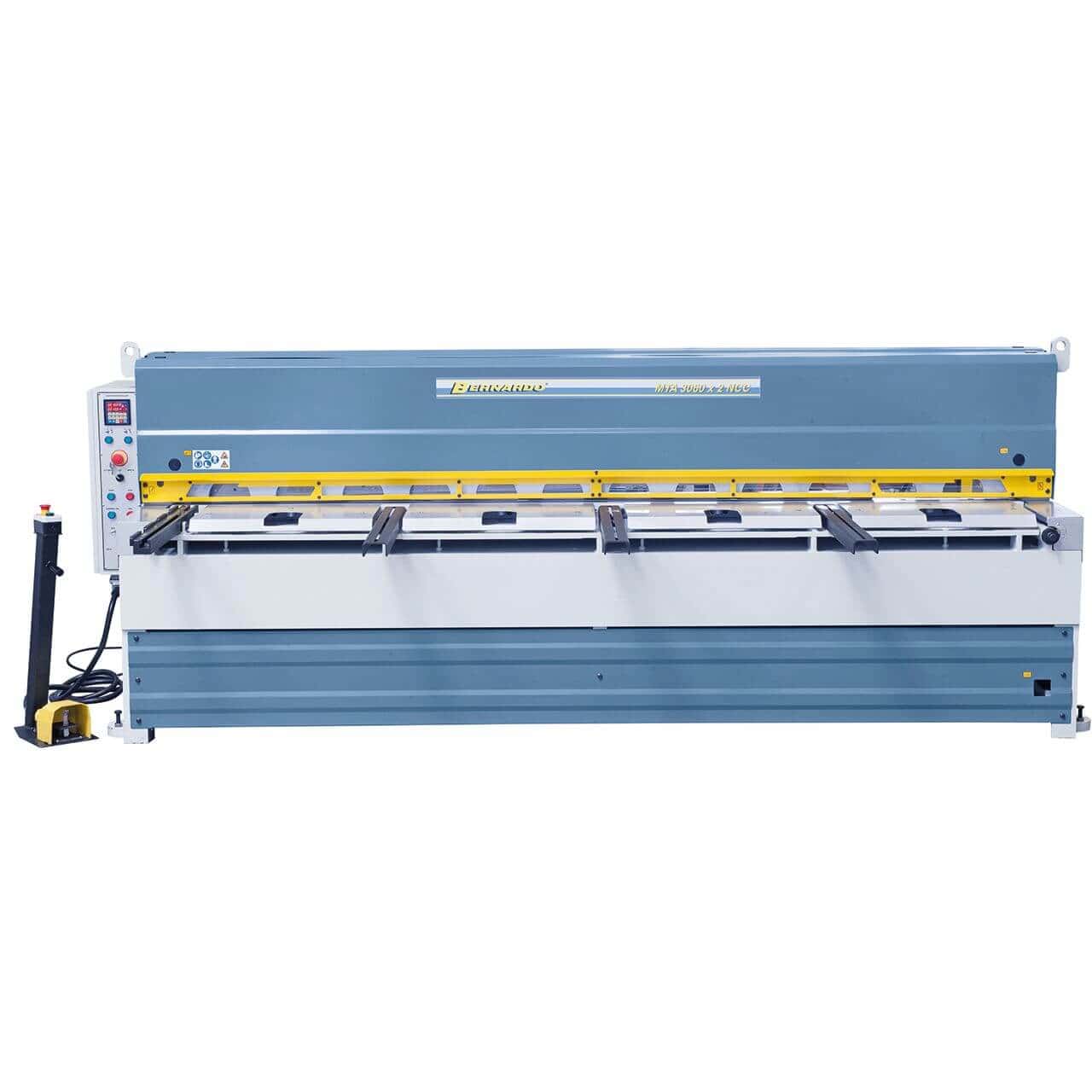

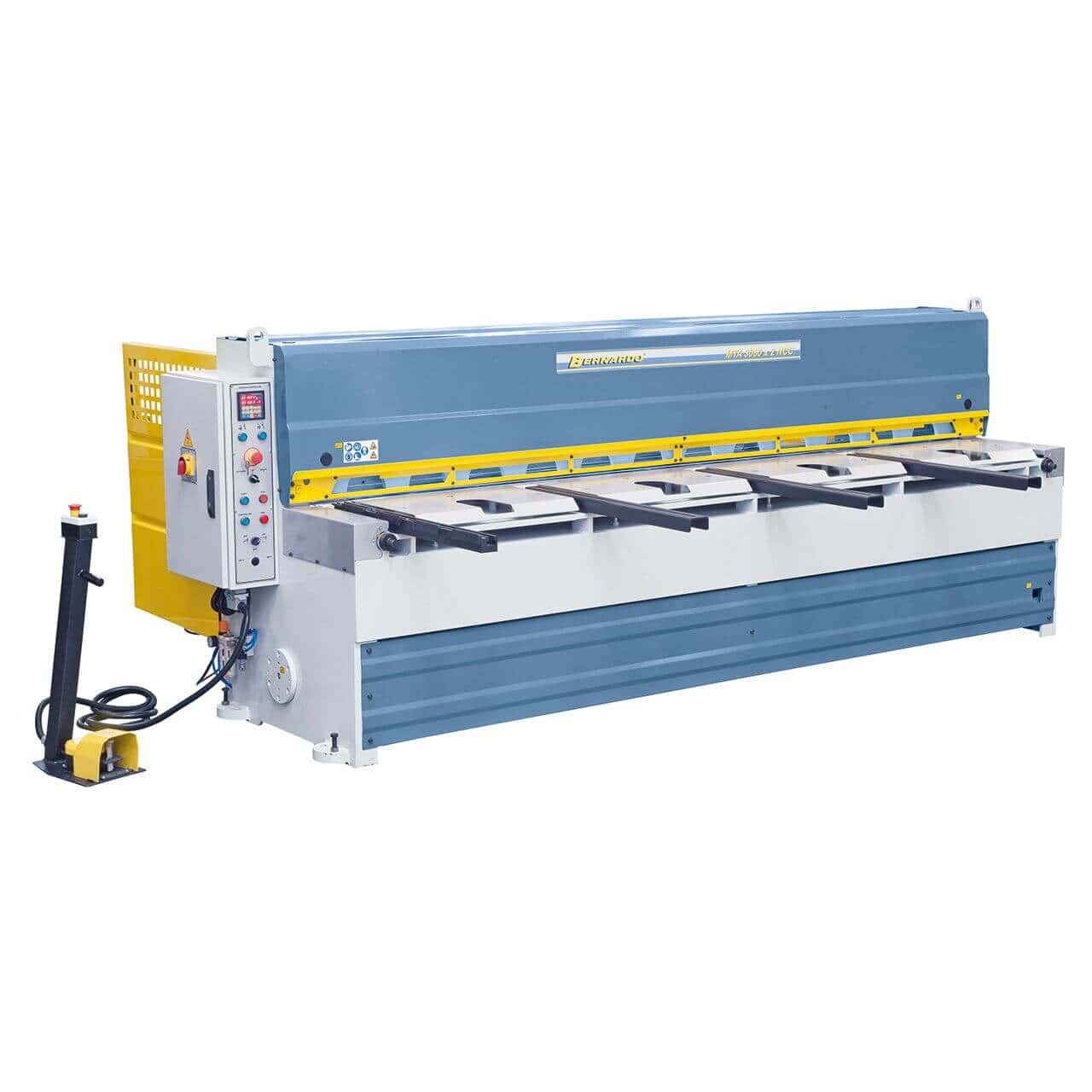

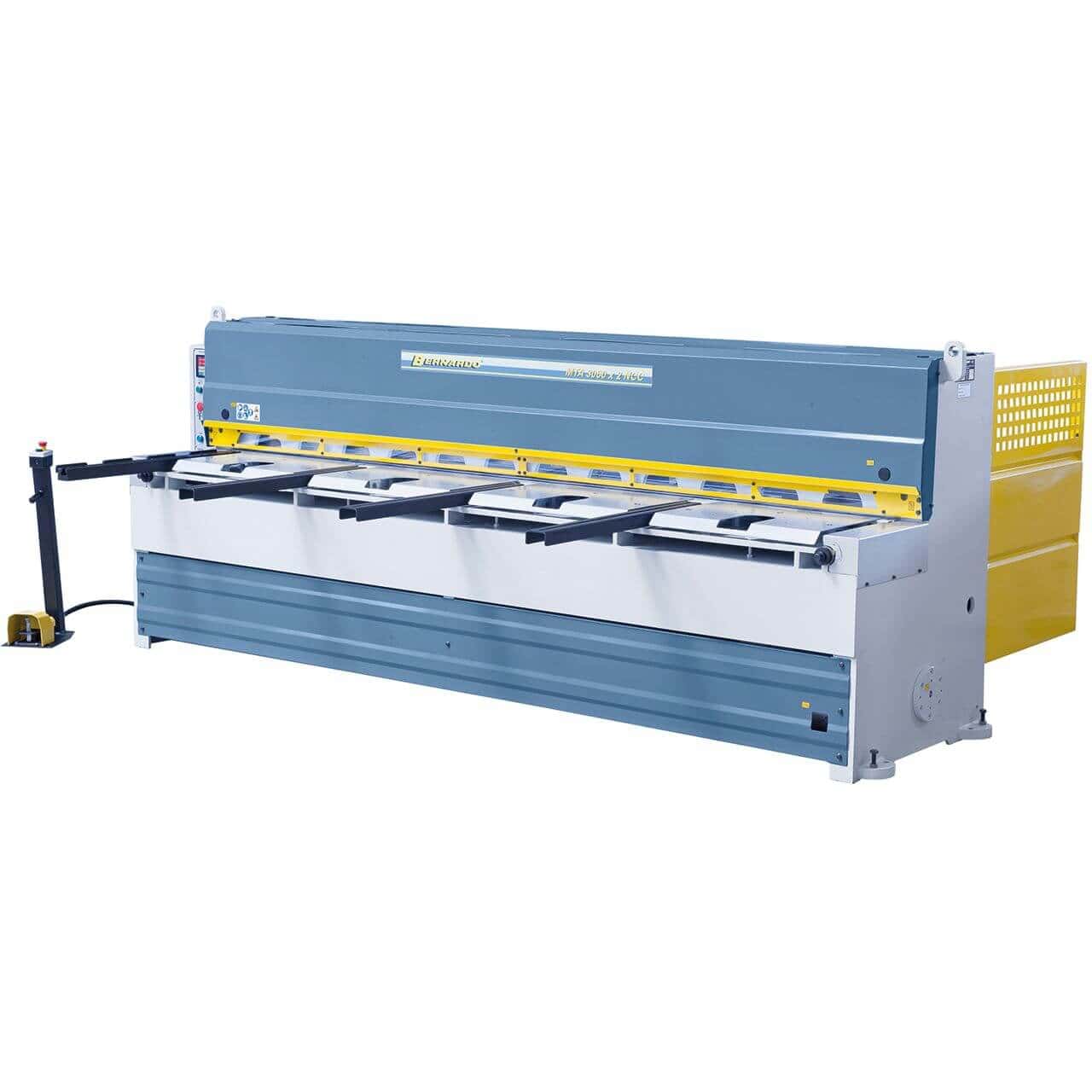

Bernardo MTA 3060 x 3 mm NCC – Motorised Guillotine Shears

Bernardo MTA 3060 x 3 mm NCC – Motorized Guillotine Shear with Pneumatic Sheet Support System

The Bernardo MTA 3060 x 3 mm NCC is a professional motorized guillotine shear, designed for the precise and safe cutting of sheet metal up to 3 mm thick (400 N/mm²) and 3060 mm long. Thanks to its pneumatic sheet support system, it is ideal for thin and large sheets, ensuring stability during cutting. The motorized NC backgauge with ball screws and the BRL 401.2 control panel allow for quick and accurate adjustments. The double-edged steel top and bottom blades ensure clean, burr-free cuts, while photocells and a foot pedal with emergency stop guarantee high operational safety. With a table equipped with integrated rollers, front support arms, and cutting line illumination, the MTA 3060 x 3 mm NCC combines precision, robustness, and efficiency. The 4.0 kW motor and a weight of 2170 kg make it the ideal choice for workshops and companies requiring a powerful and reliable industrial shear.

---

Key Features:
3060 mm cutting length for large industrial sheets
Cutting capacity up to 3 mm thick (400 N/mm² steel)

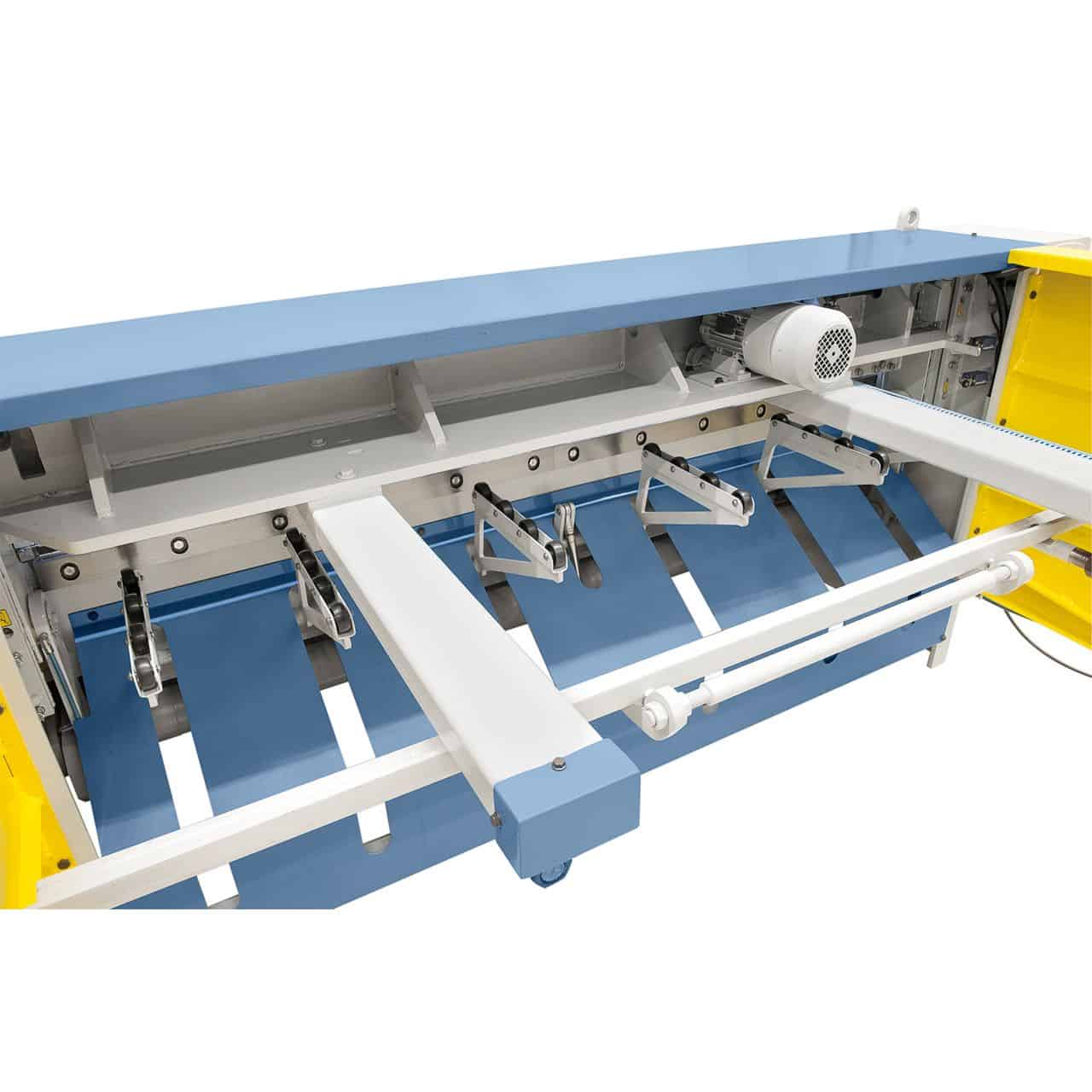

Pneumatic sheet support system, ideal for thin and large sheets
Motorized NC backgauge with ball screws

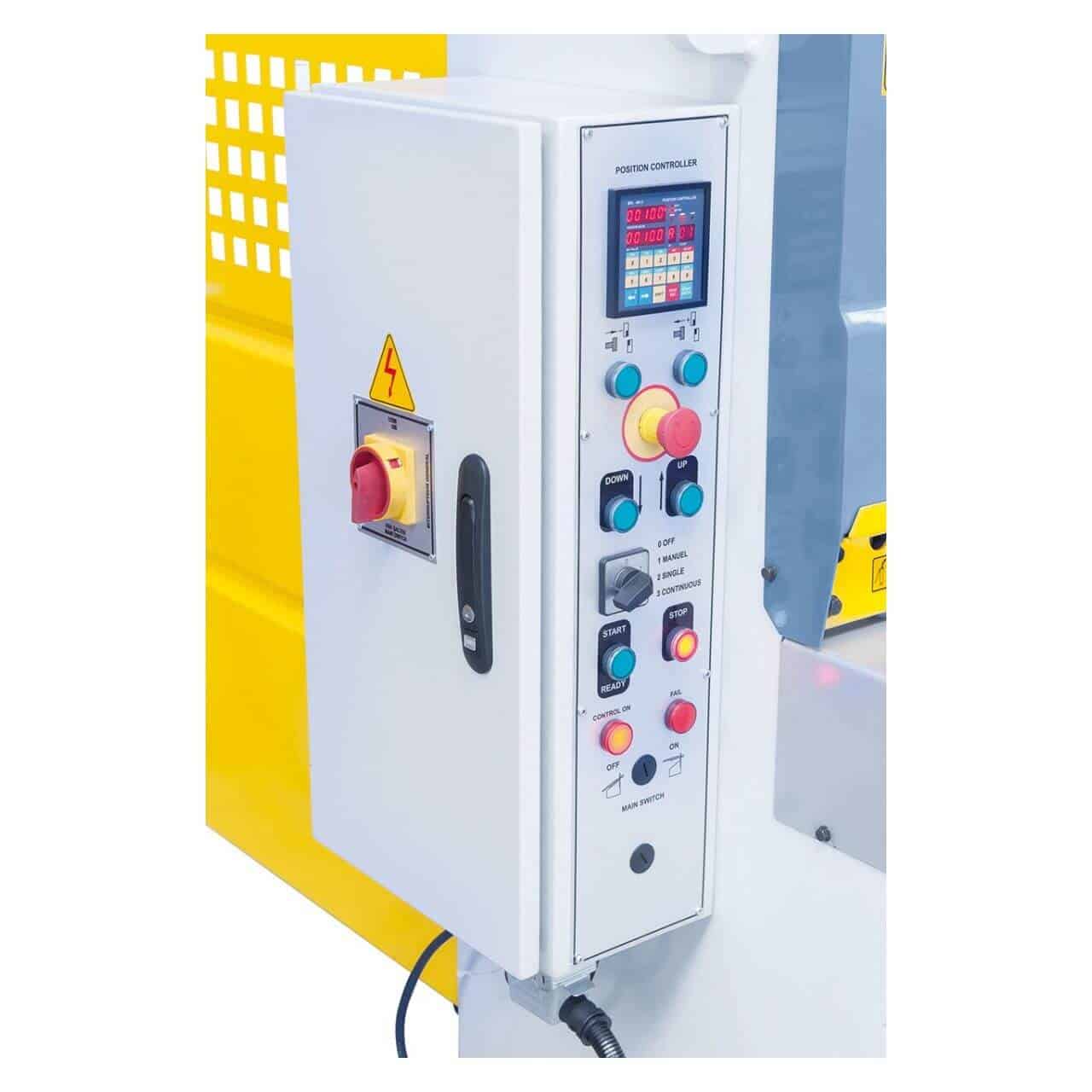

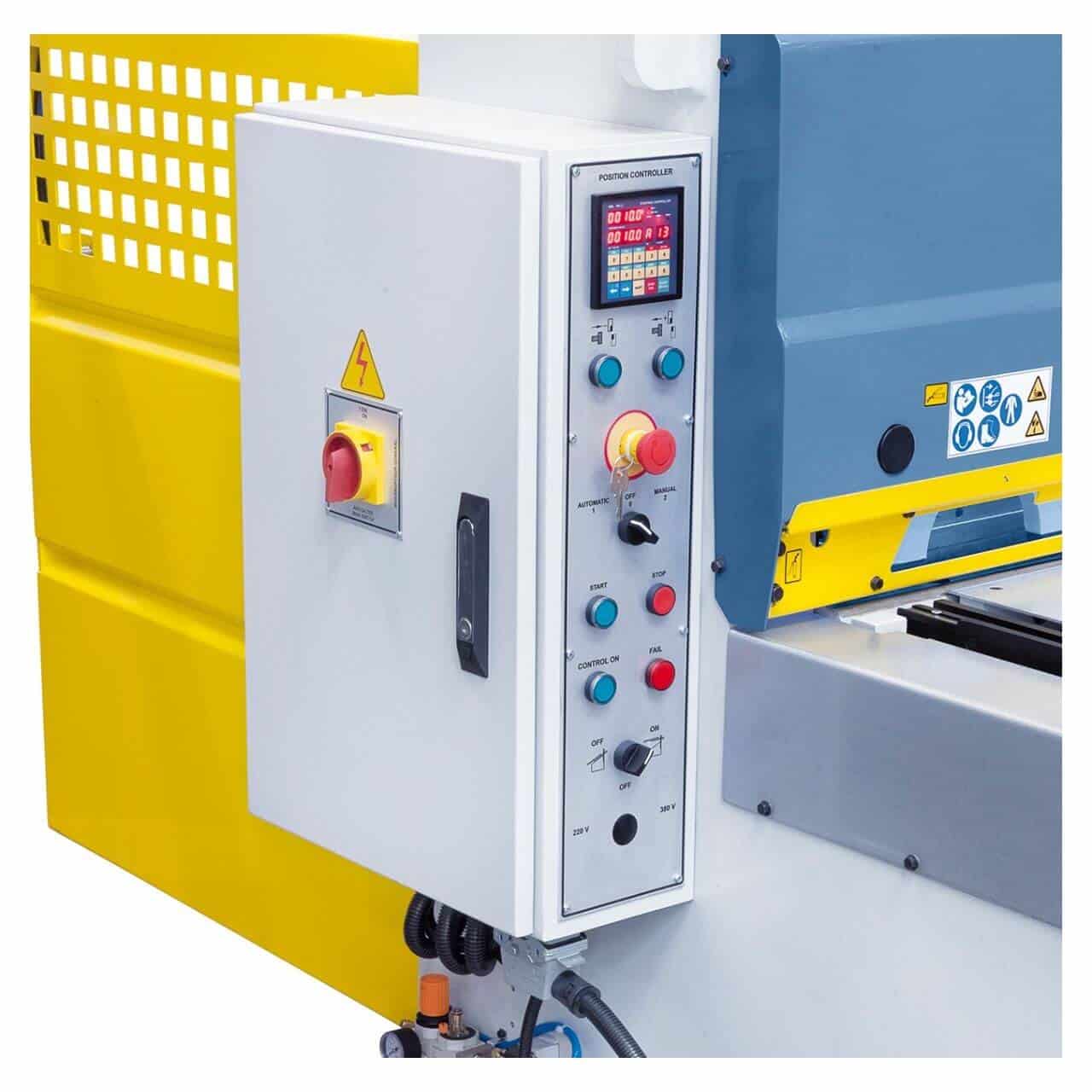

BRL 401.2 control panel for precise and intuitive settings
High-quality double-edged steel top and bottom blades
Table with integrated rollers and front support arms for easy handling
Cutting line illumination with integrated silhouette
Rear safety guards with photocells and foot pedal with emergency stop
Robust welded steel structure for torsionally rigid operation

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MTA 3060 x 3 mm NCC
Type	Motorized guillotine shear with pneumatic support
Cutting length	3060 mm
Max sheet thickness*	3 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorized NC)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	3650 x 2100 x 1260 mm
Weight	2170 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTA 3060 x 3 mm NCC Guillotine Shear
Stroke counter
Cutting line illumination

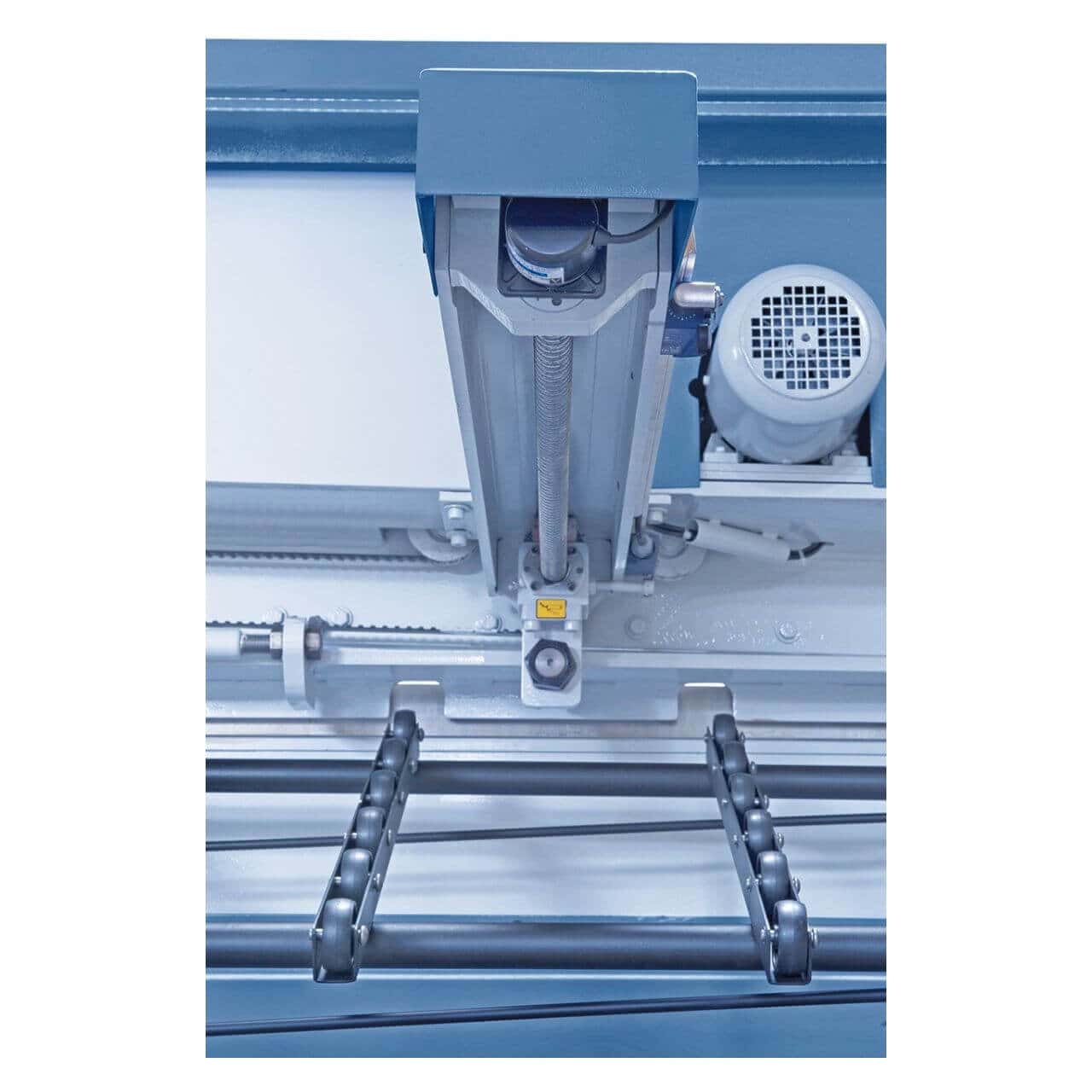

Motorized NC backgauge

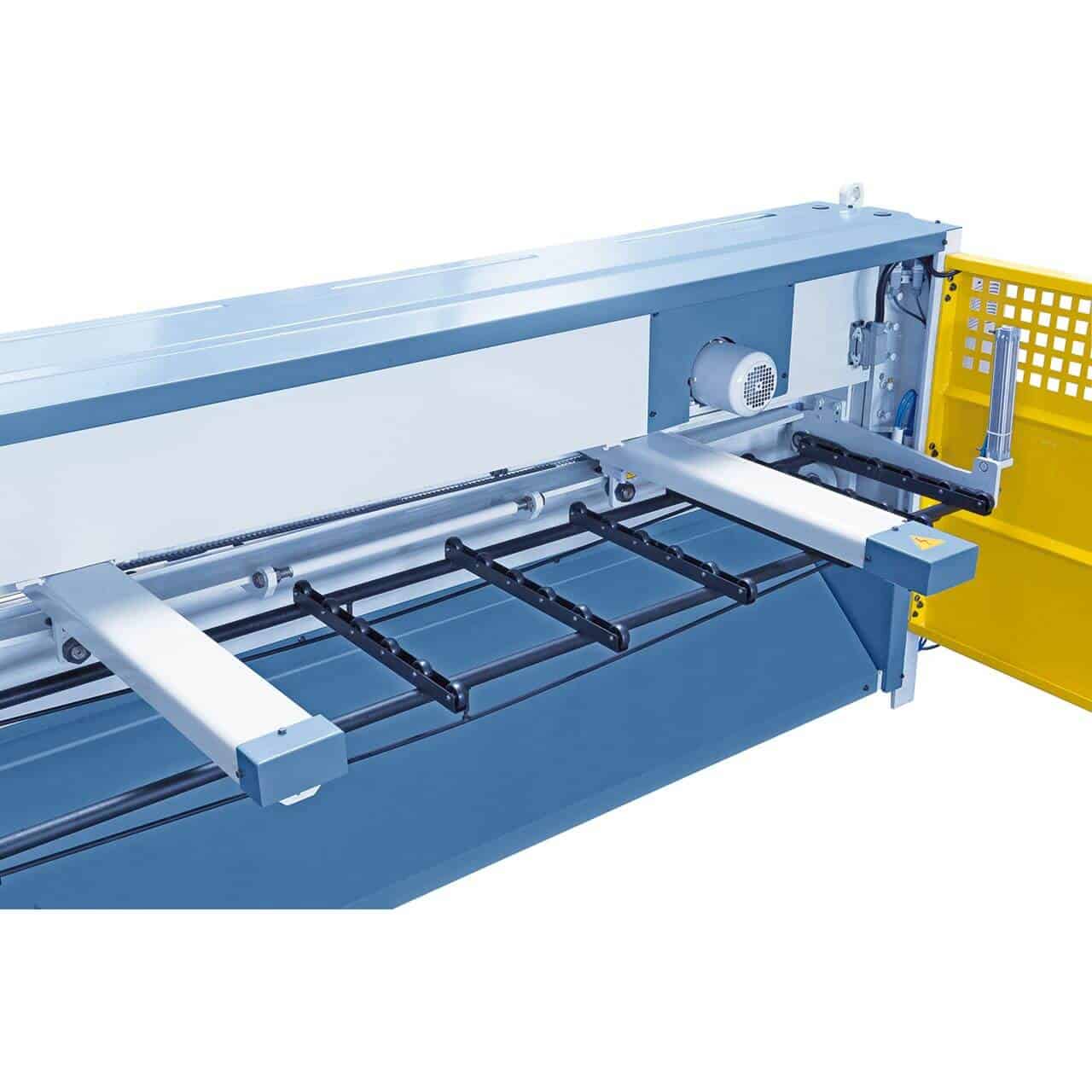

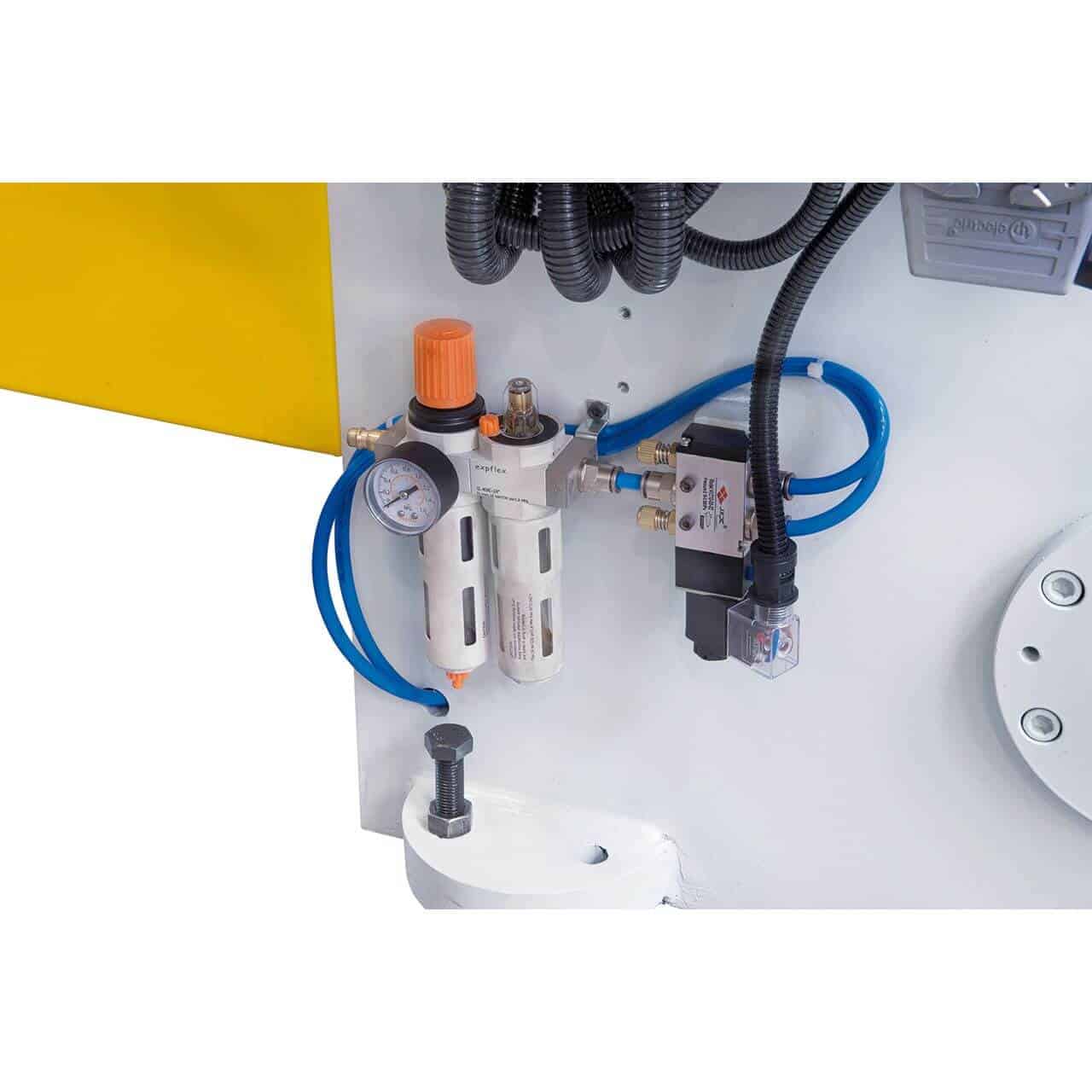

Pneumatic sheet support system
Front support arms for large sheets
Table with integrated rollers

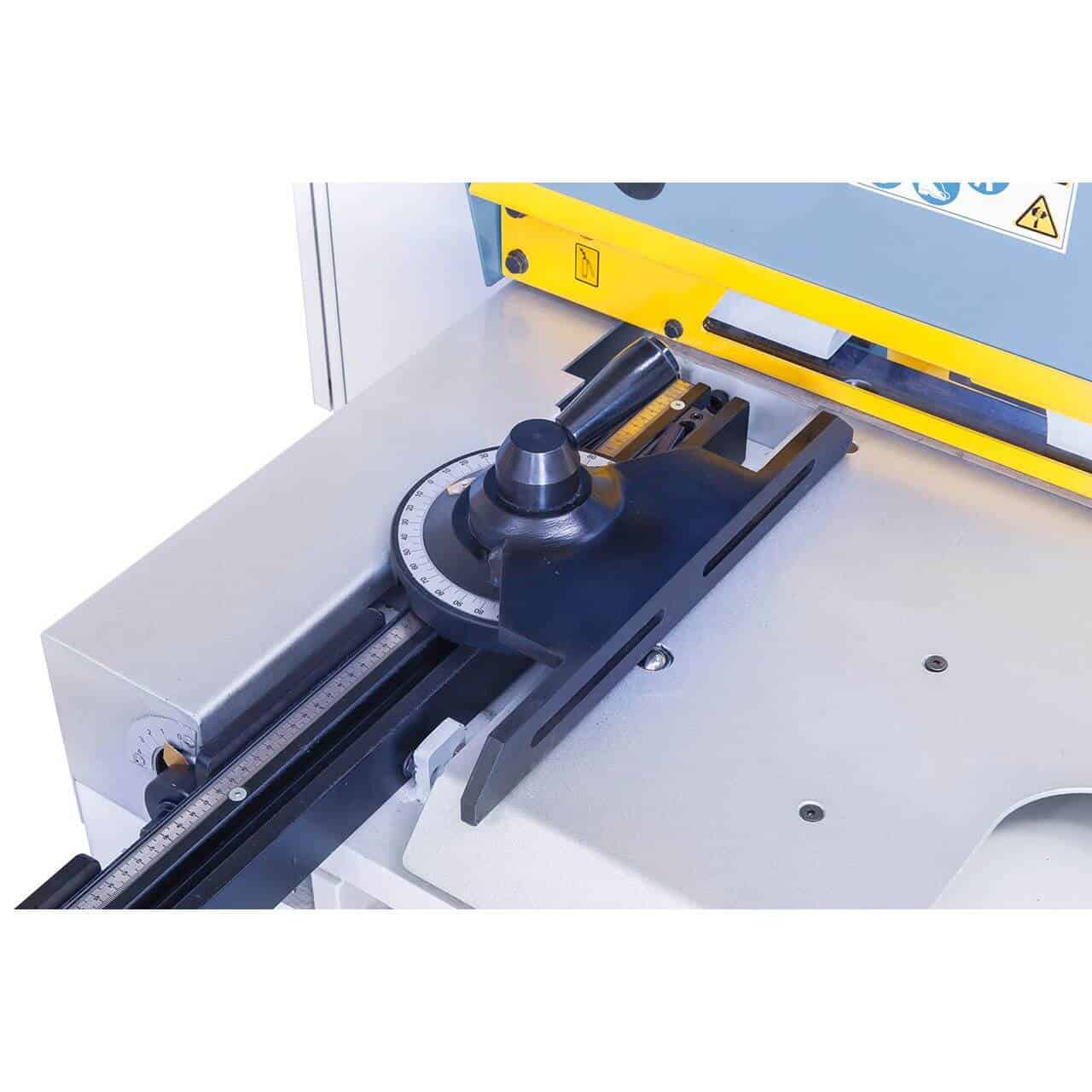

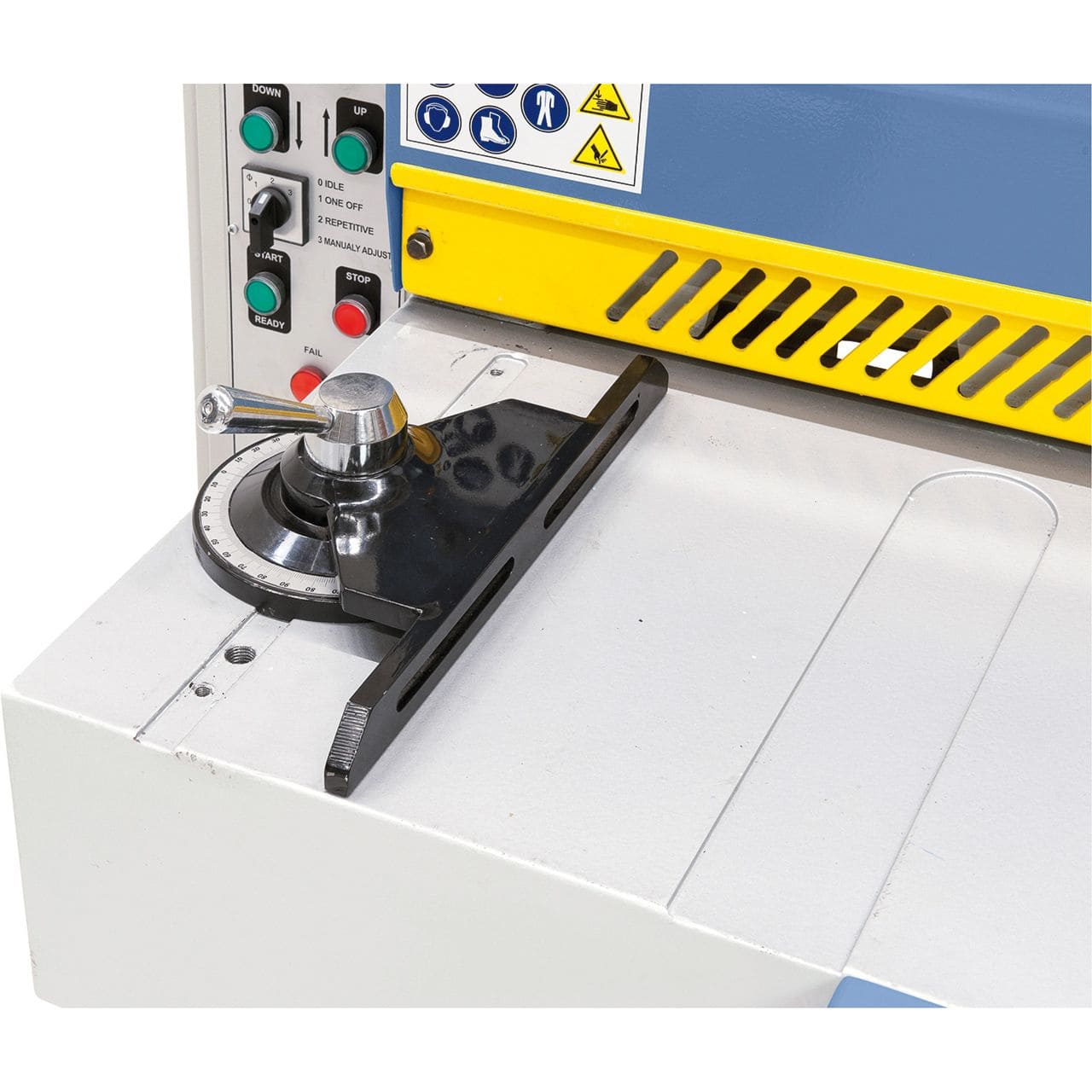

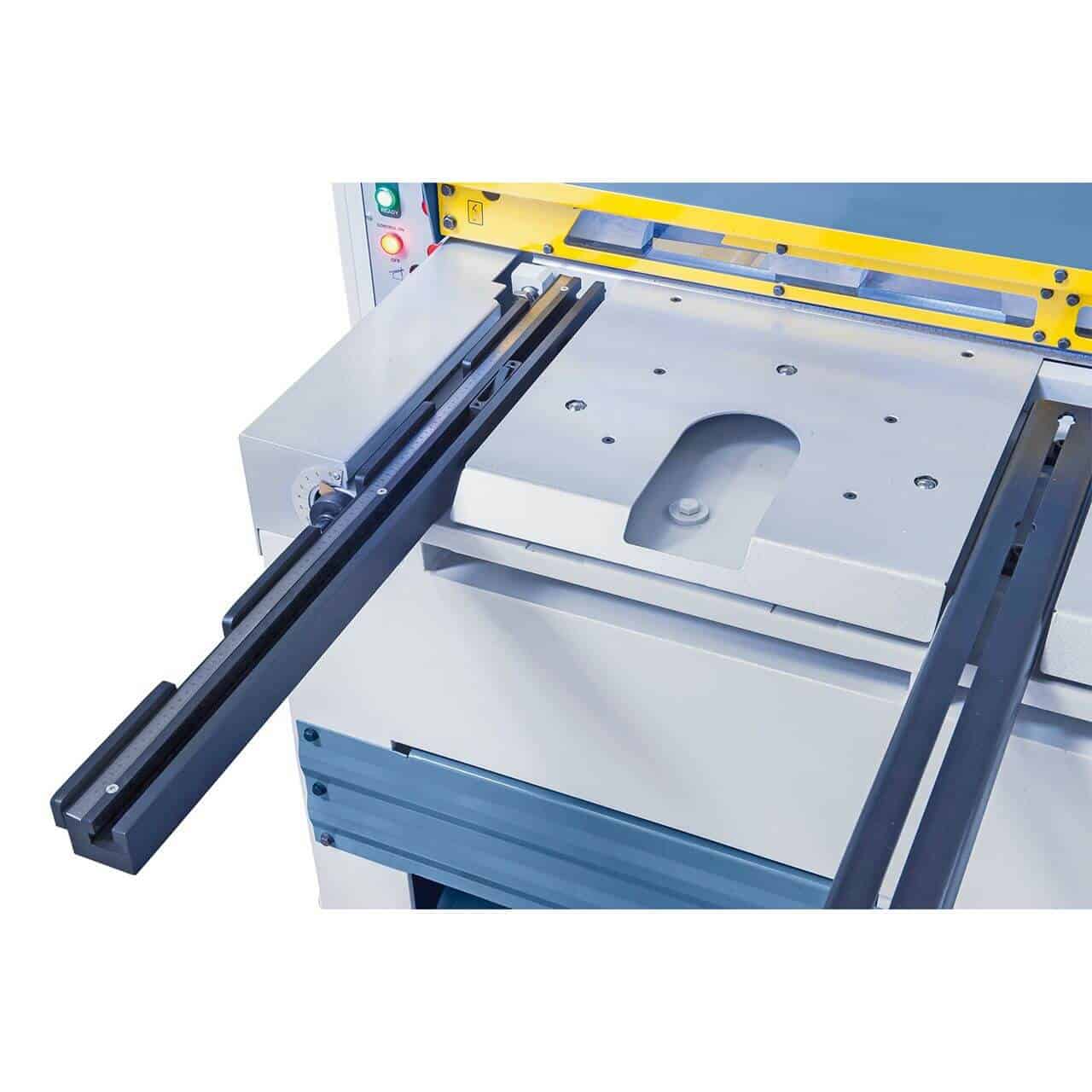

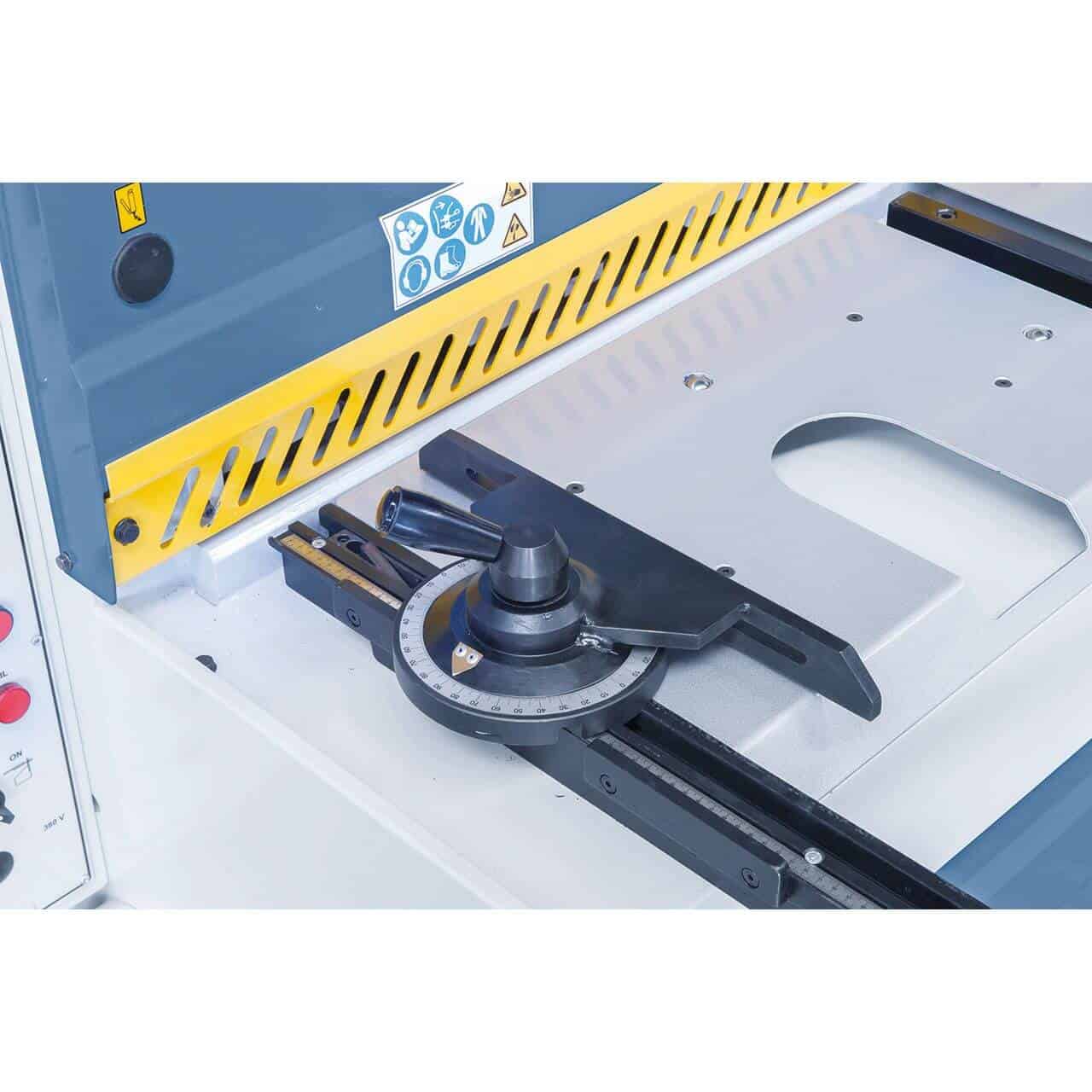

Lateral stop ruler

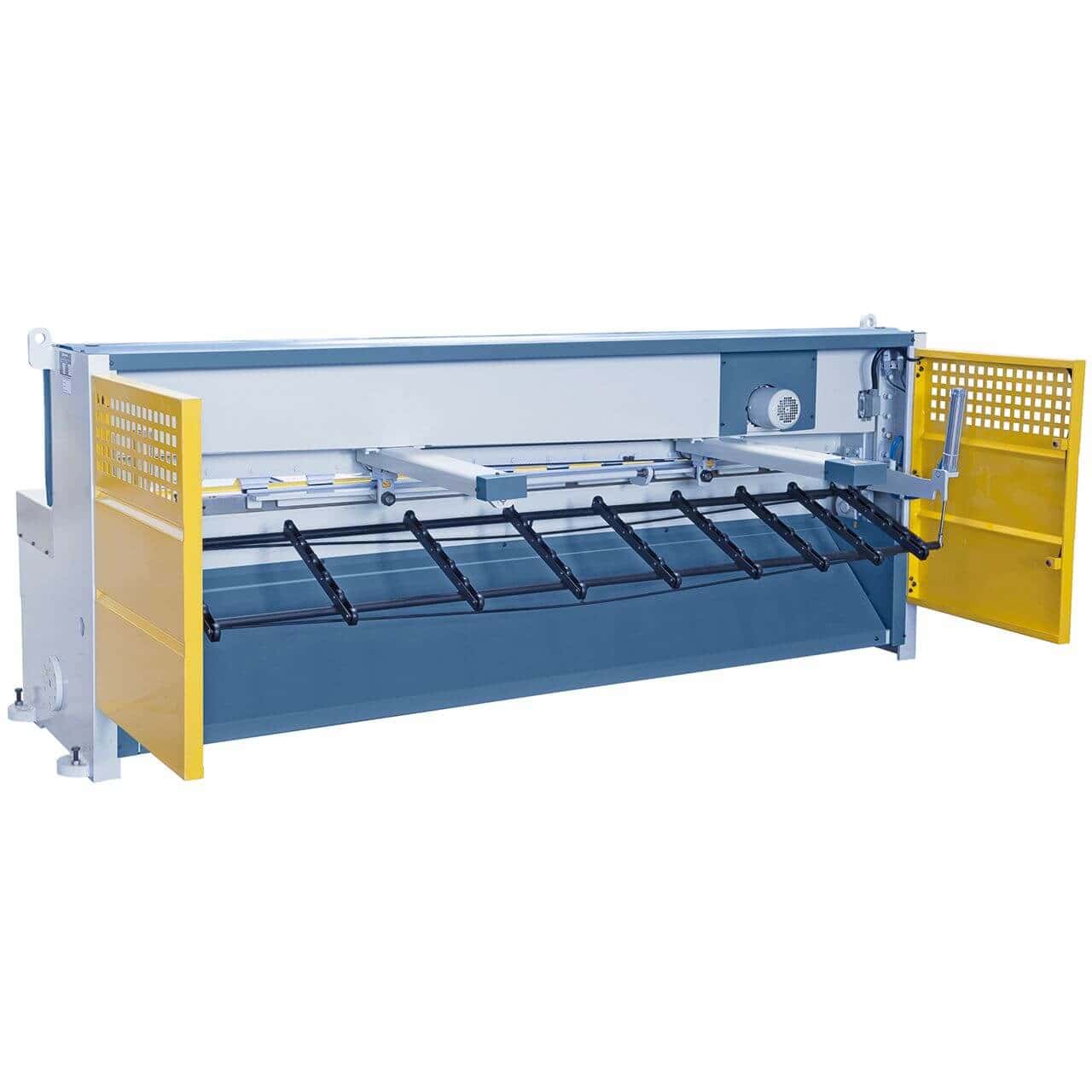

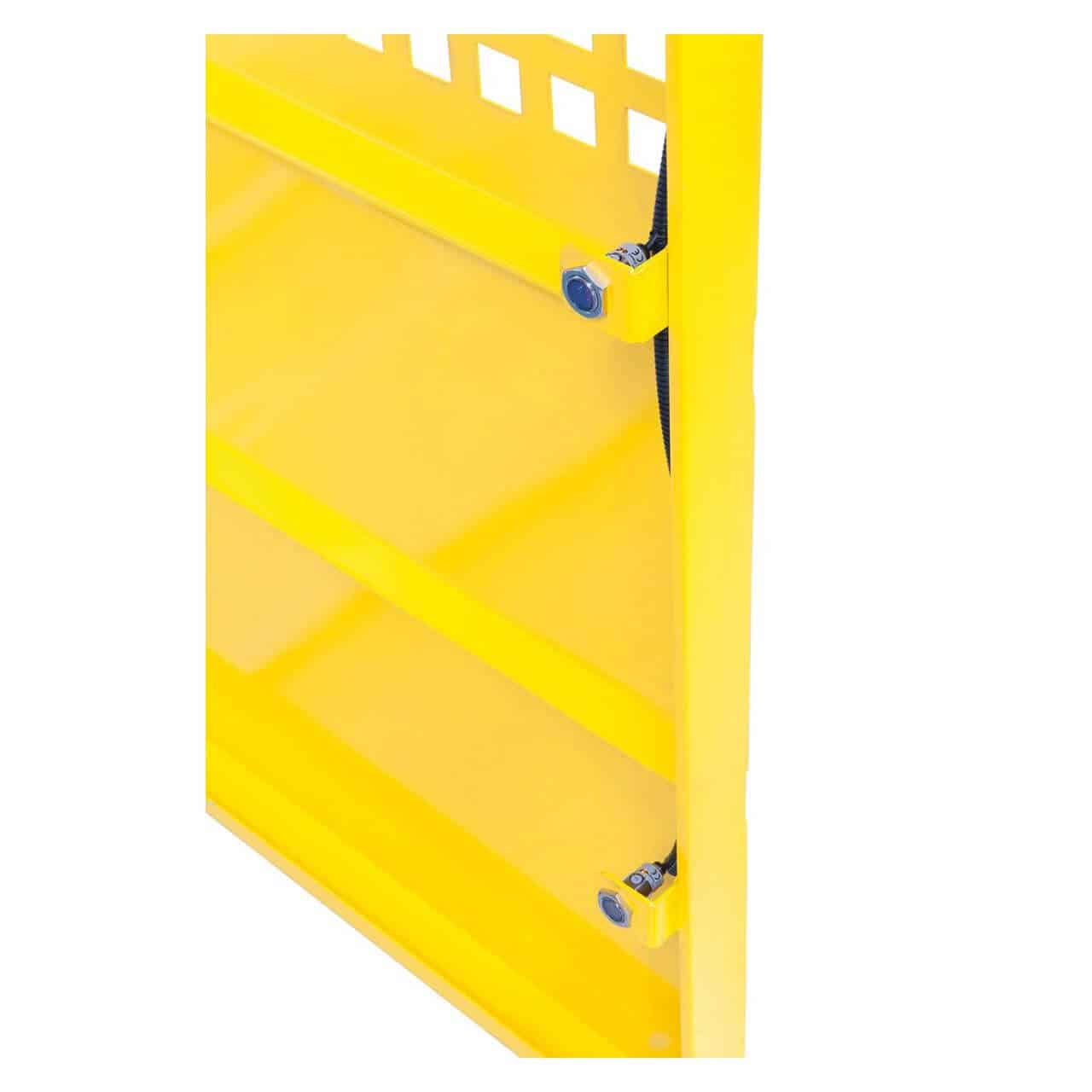

Rear safety guards with photocells

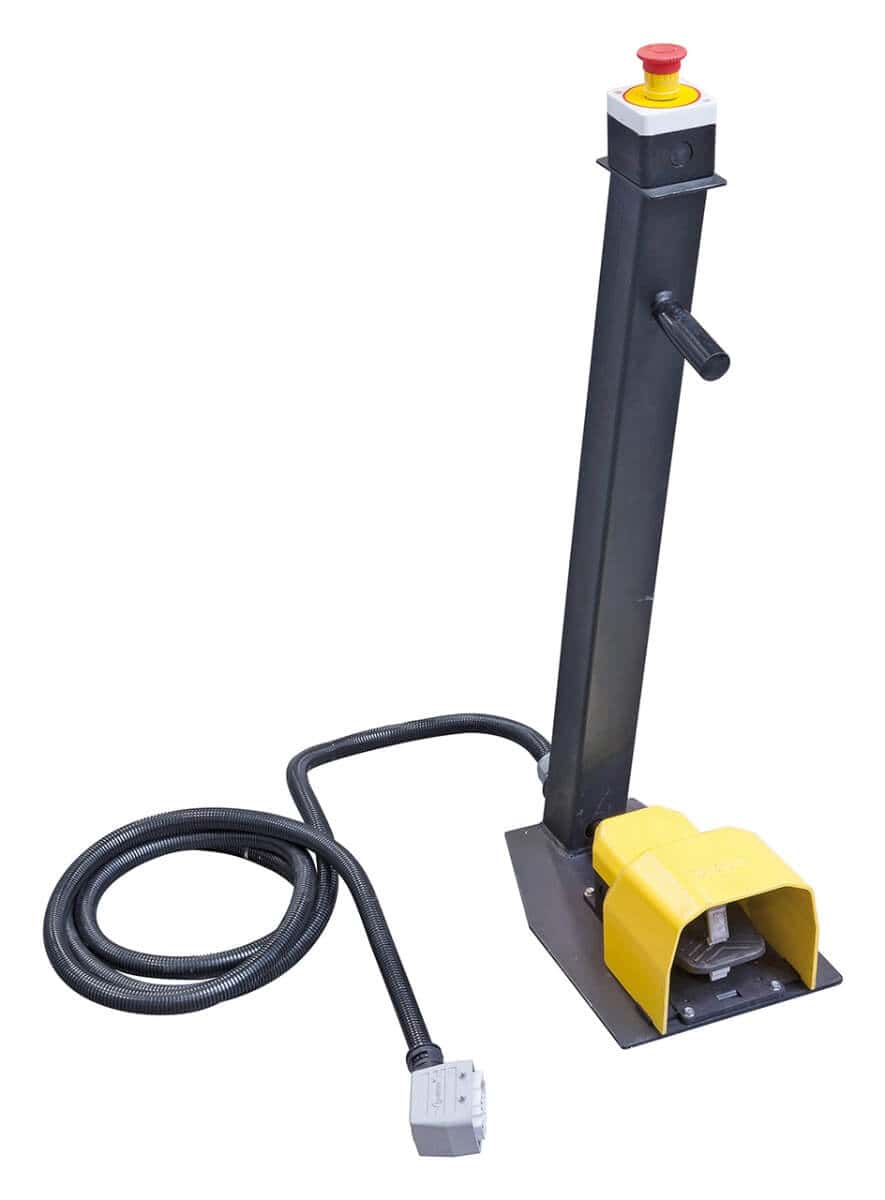

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Heavy machinery: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisan production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on the production volume and the size of the sheets processed.

What is the maximum thickness for stainless steel with the Bernardo MTA 3060 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 working days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet metal handling, free space at least equal to the cutting length (3060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
