Description

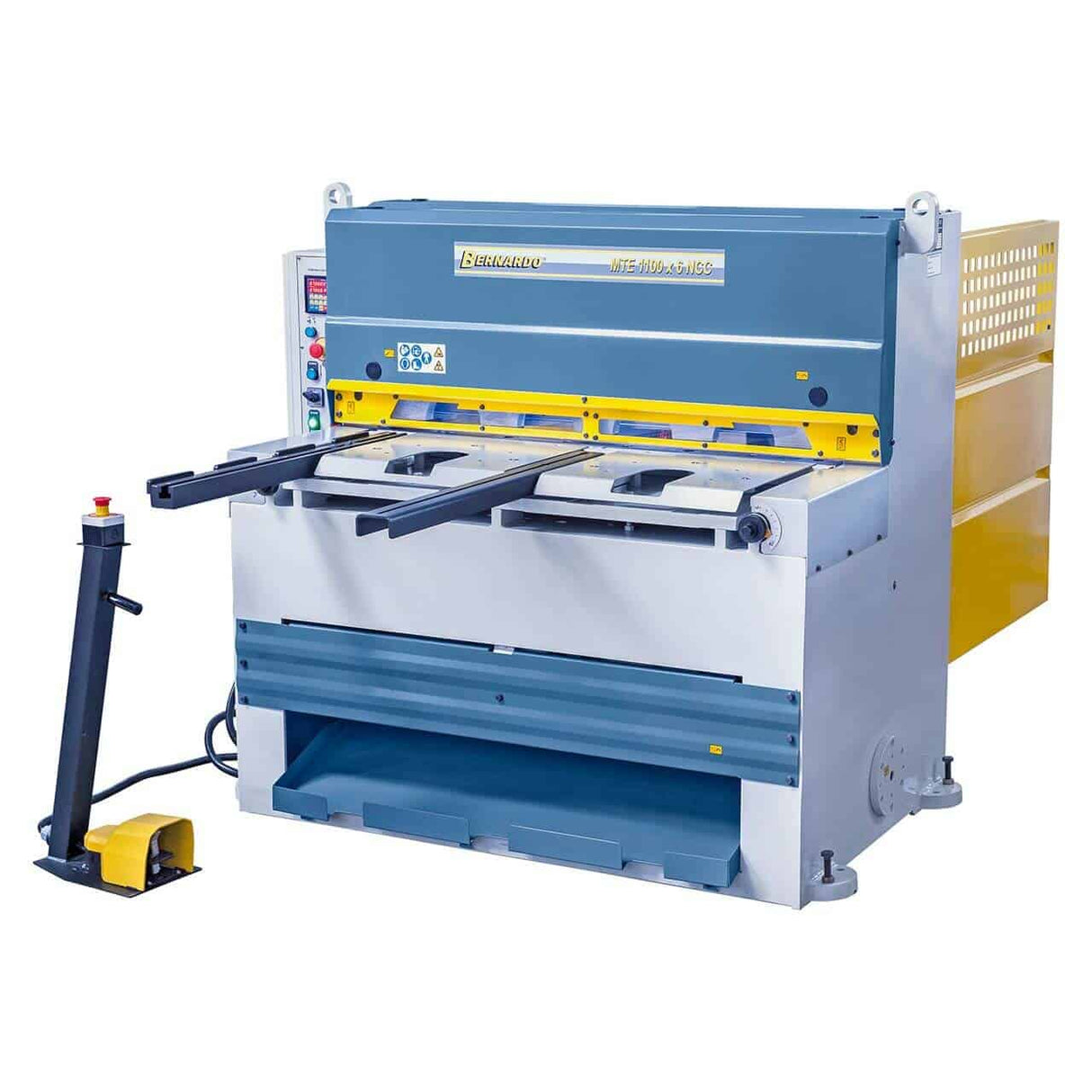

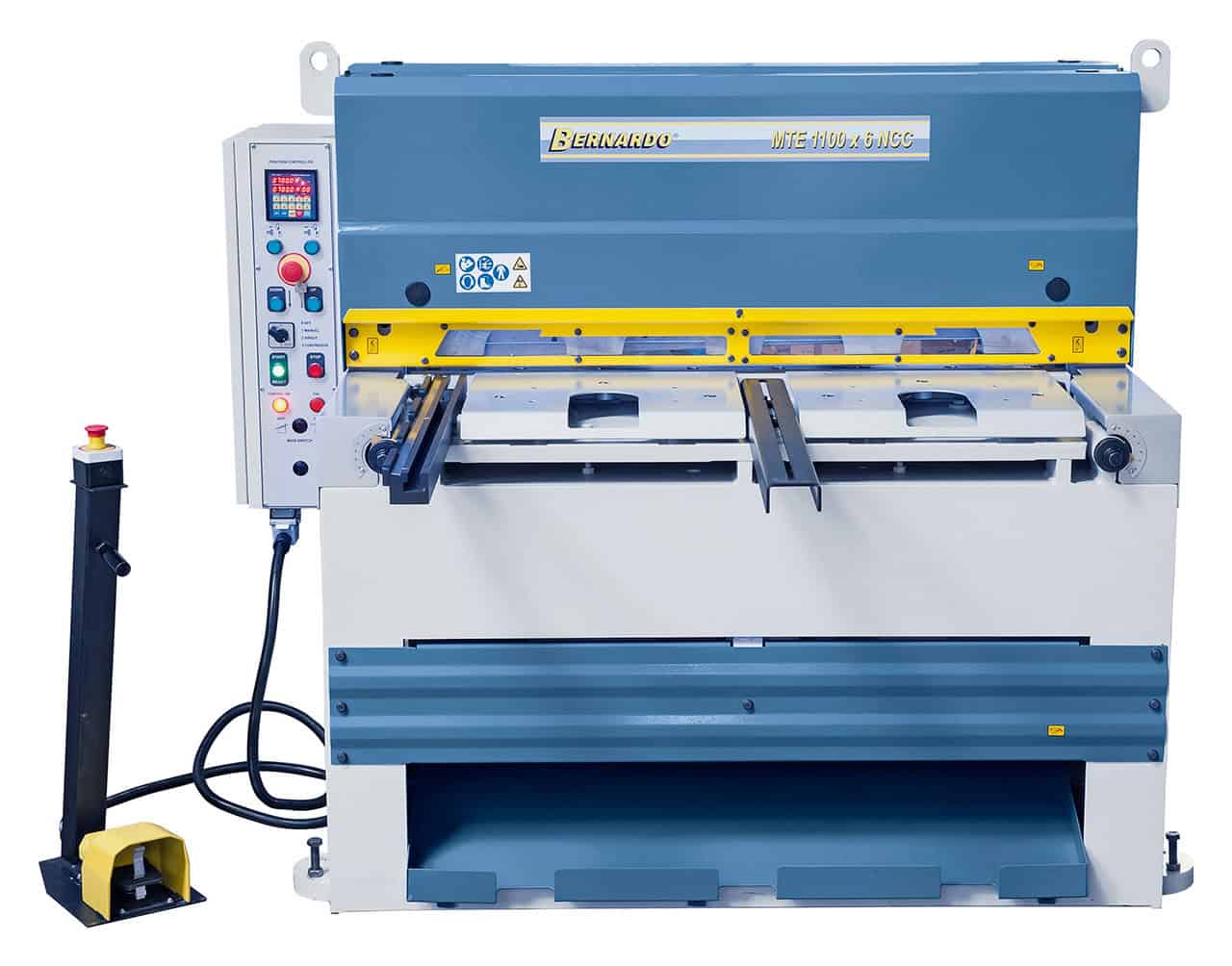

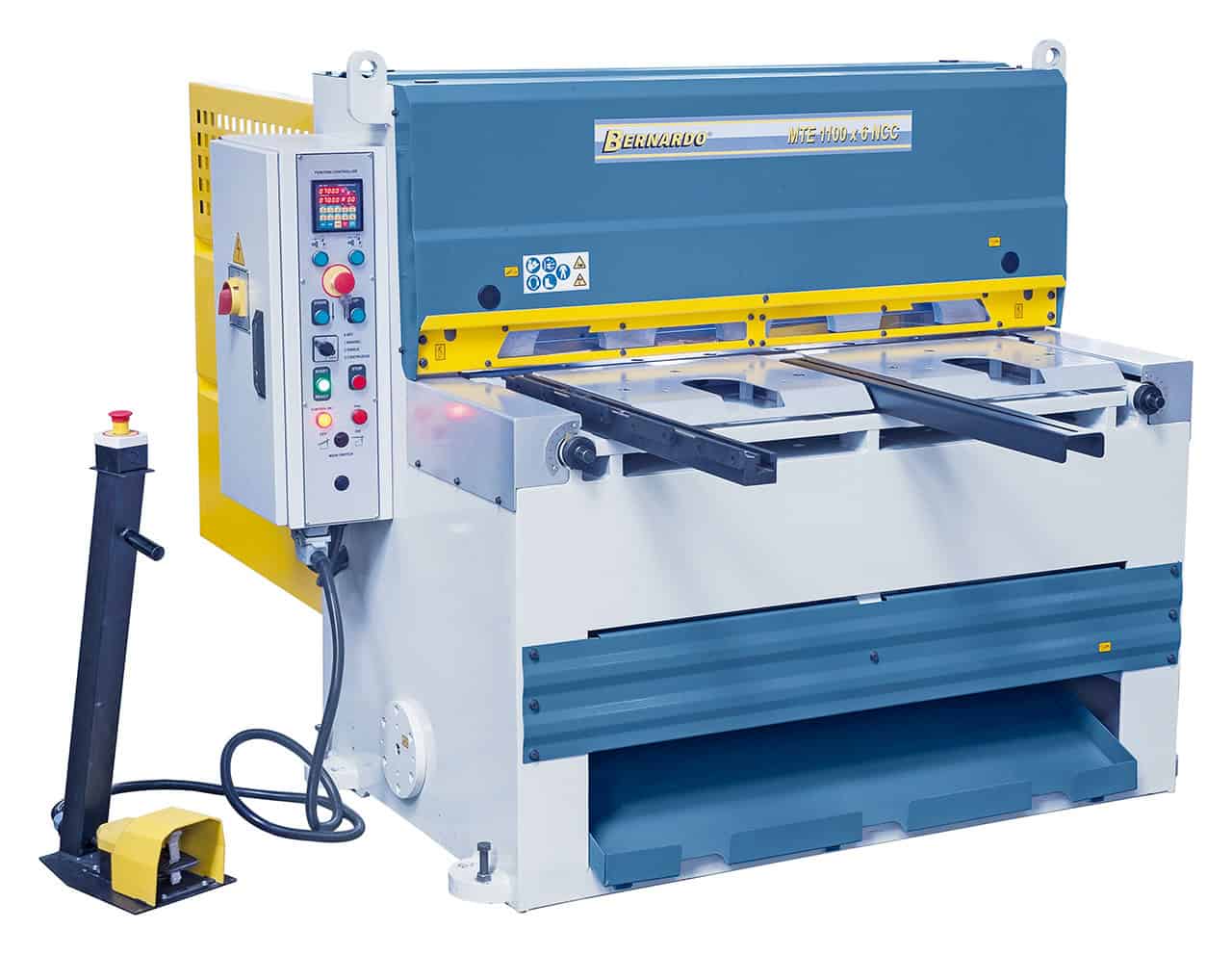

The Bernardo MTE 1100 × 6 NCC motorized guillotine shear cuts sheet metal up to 6 mm (400 N/mm²) over a length of 1100 mm, 31 strokes/min, motorized NC backgauge 0–750 mm, working height 800 mm, 7.5 kW motor. Weight 2000 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Cutting length: 1100 mm
- Max. sheet thickness (400 N/mm²): 6 mm
- Cutting angle: 2°
- Strokes/min: 31
- Working height: 800 mm

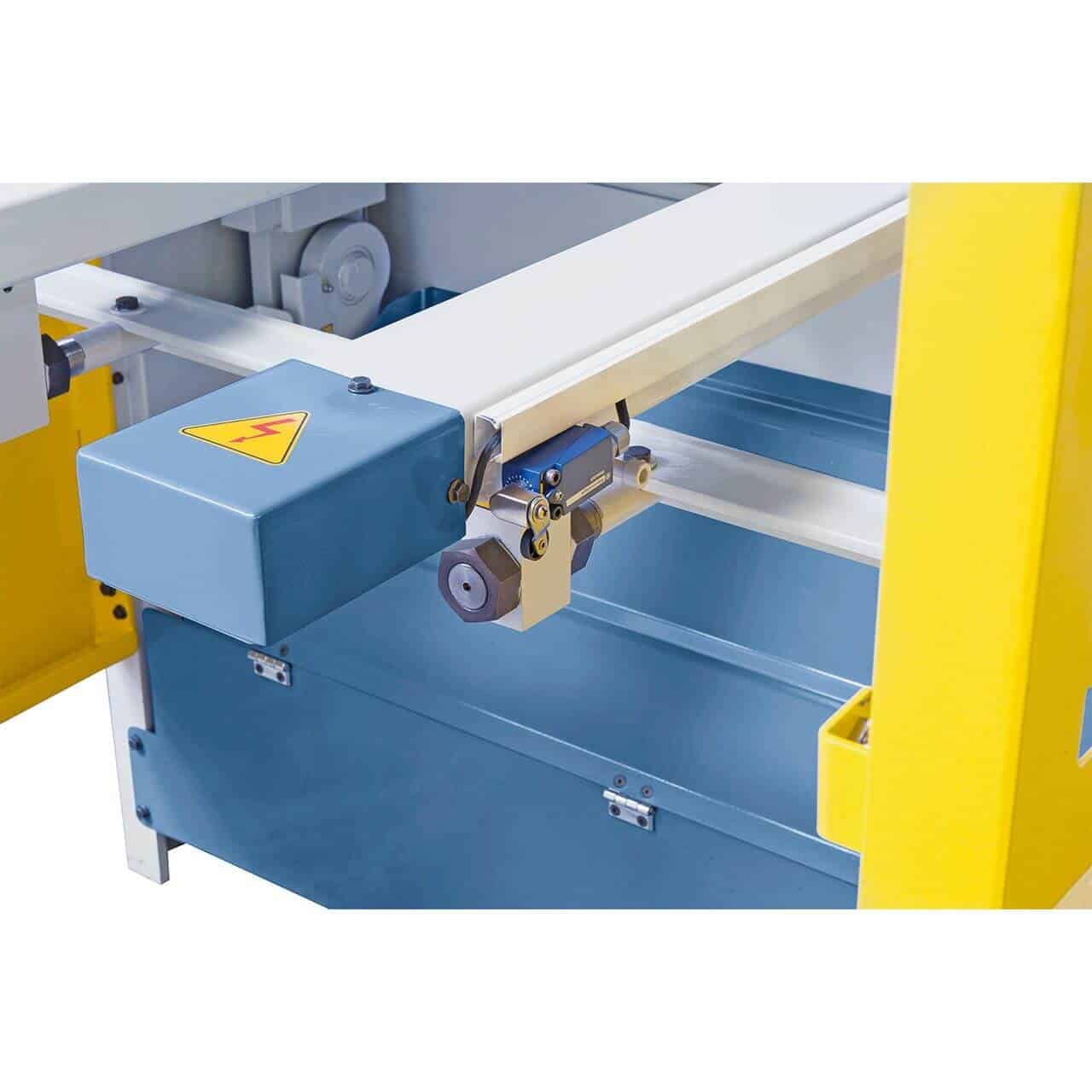

- Backgauge: 0–750 mm (motorized NC)
- Motor: 7.5 kW
- Weight: 2000 kg
Who uses the MTE 1100 × 6 NCC and for what
The Bernardo MTE 1100 × 6 NCC is a motorized guillotine shear with NC control for industrial sheet metal cutting: 31 strokes/min over a length of 1100 mm and thickness up to 6 mm. The motorized NC backgauge (0–750 mm) automatically positions the backstop with millimeter precision — eliminating manual positioning and ensuring repeatability on batches of identical parts. The MTE designation indicates the version with an electro-welded steel structure and robust frame. In Krollit customers' workshops, it is used by sheet metal workers, metal roofing manufacturers, and cutting centers that work with sheet metal in continuous production.
Who is the Bernardo MTE 1100 × 6 NCC for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist / light craftsman | Not recommended | Industrial shear weighing 2000 kg with NC control. Not suitable for non-professional use. |
| Sheet metal worker / cutting center | Ideal | 1100 mm × 6 mm, 31 cpm, NC backgauge: the shear for continuous sheet metal production with industrial quality and repeatability. |
| Industrial production | Ideal | The motorized NC backgauge is essential for series production — it positions the stop in seconds instead of minutes for manual positioning. |
Not recommended for: sheet metal over 6 mm; craft use with low volume (manual PTS or HSG shears have a much lower cost); installations without adequate space for 2000 kg.
Technical specifications
| Specification | Value |
|---|---|
| Cutting length | 1100 mm |
| Max. sheet thickness (400 N/mm²) | 6 mm |
| Cutting angle | 2° |
| Strokes per minute | 31 |
| Working height | 800 mm |
| Backgauge | 0–750 mm (motorized NC) |
| Table width | 455 mm |
| Motor power | 7.5 kW |
| Dimensions (L × D × H) | 1750 × 2250 × 1400 mm |
| Weight | 2000 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). At 2000 kg, delivery requires appropriate unloading equipment: coordinate with Krollit before delivery. Original spare parts available with 3–5 working day shipping. Italian customer support available.
Frequently Asked Questions
What does "motorized NC" mean on the backgauge?

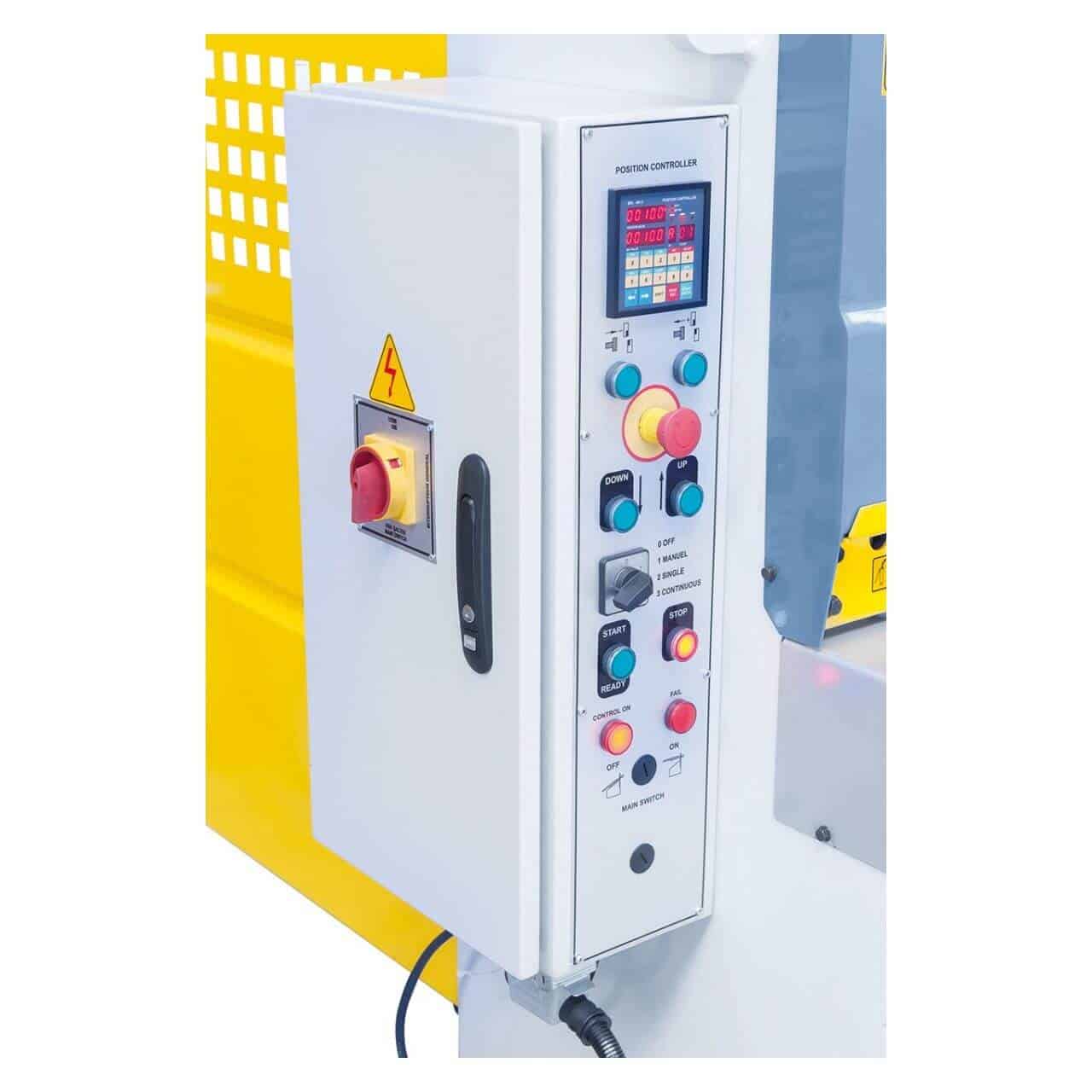

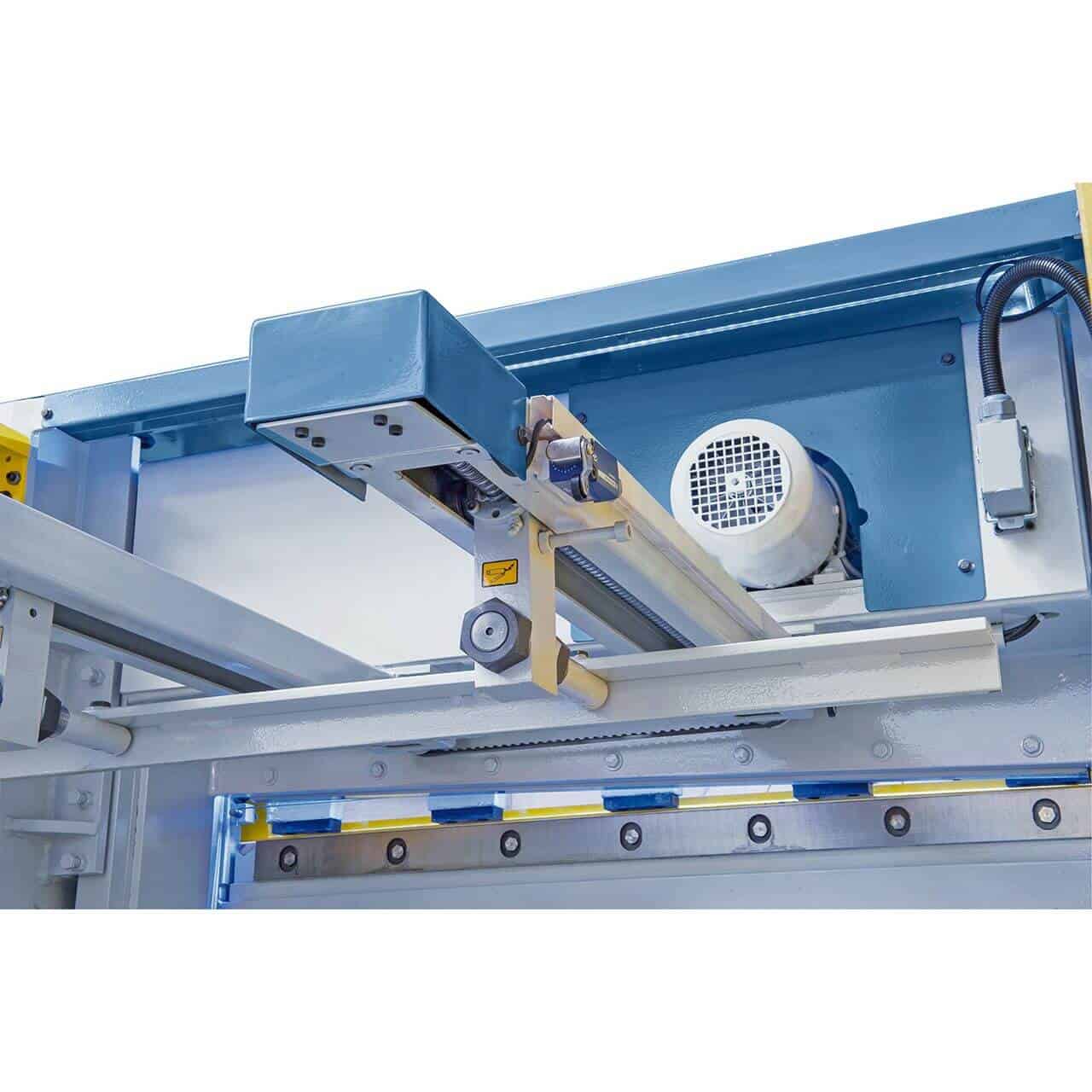

The motorized NC (Numeric Control) backgauge automatically positions the backstop to the set dimension via the control panel. In series production, the dimension is set once and the machine maintains it for all subsequent parts. Compared to a manual backgauge, it eliminates positioning errors and reduces dimension change times from minutes to seconds.
What is the maximum thickness on stainless steel with the MTE 1100 × 6 NCC?
The nominal thickness of 6 mm refers to S235 steel (400 N/mm²). On AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 3.9 mm). Always check with a Krollit technician for specific high-strength materials.
Are the blades replaceable and sharpenable?
Yes. The shear blades are reversible (4 cutting edges before replacement) and sharpenable. Original Bernardo spare blades available with 3–5 working day shipping.
Is assistance and spare parts available in Italian?
Italian customer support available. Original Bernardo spare parts (blades, hydraulic components, NC panel) with 3–5 working day shipping.
How much space is needed for installation?
Dimensions 1750 × 2250 × 1400 mm. For sheet metal handling, clear space at least equal to the cutting length (1100 mm) is needed in front of and behind the machine. For 2000 kg, coordinate with Krollit for the necessary unloading equipment.
