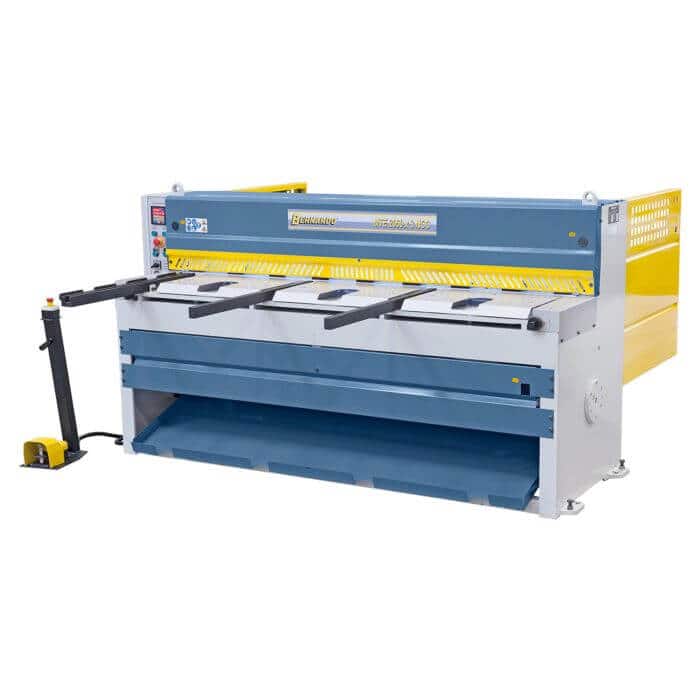

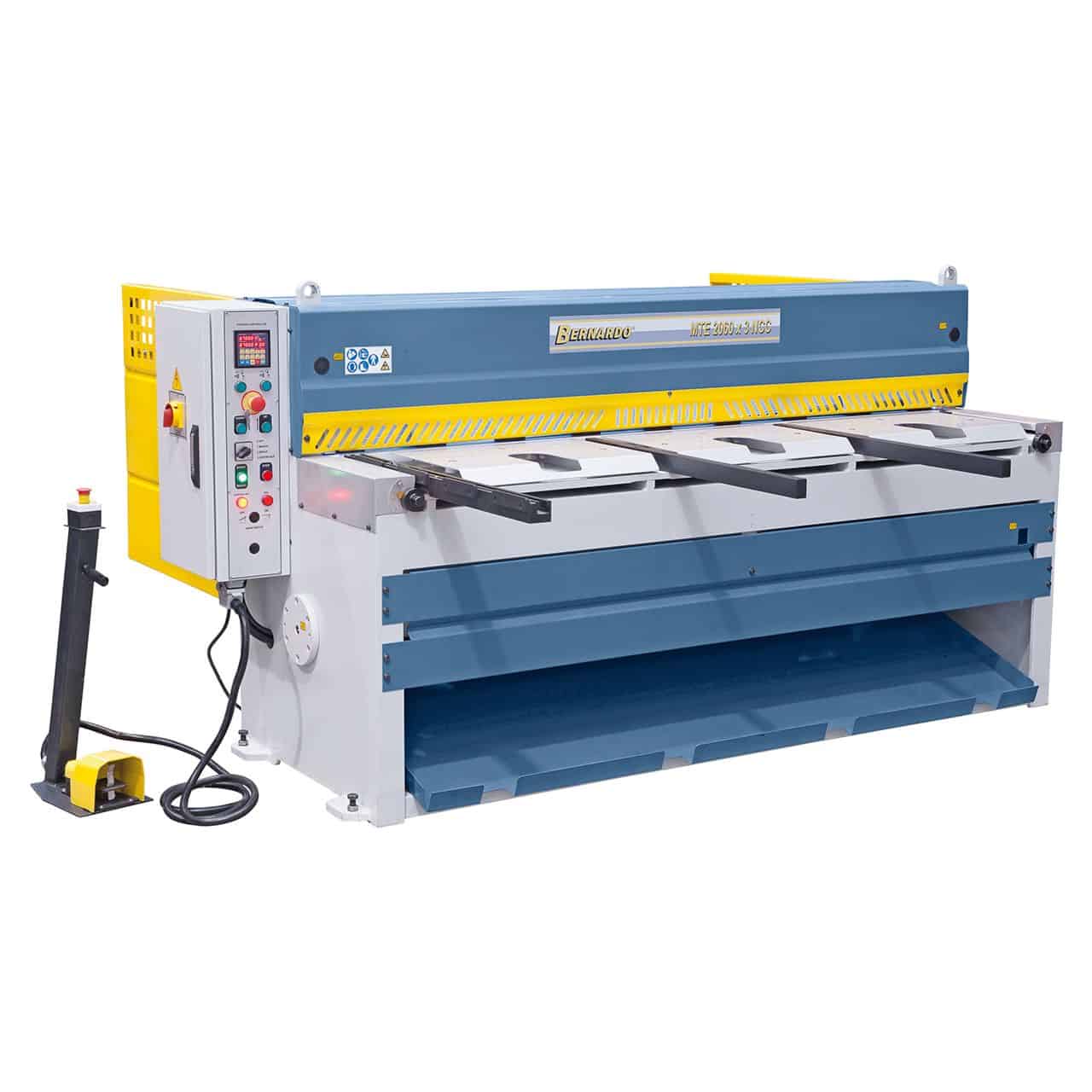

Bernardo MTE 1360 x 3 mm NCC – Motorized Guillotine Shear

Bernardo MTE 1360 x 3 mm NCC – Motorized Guillotine Shear

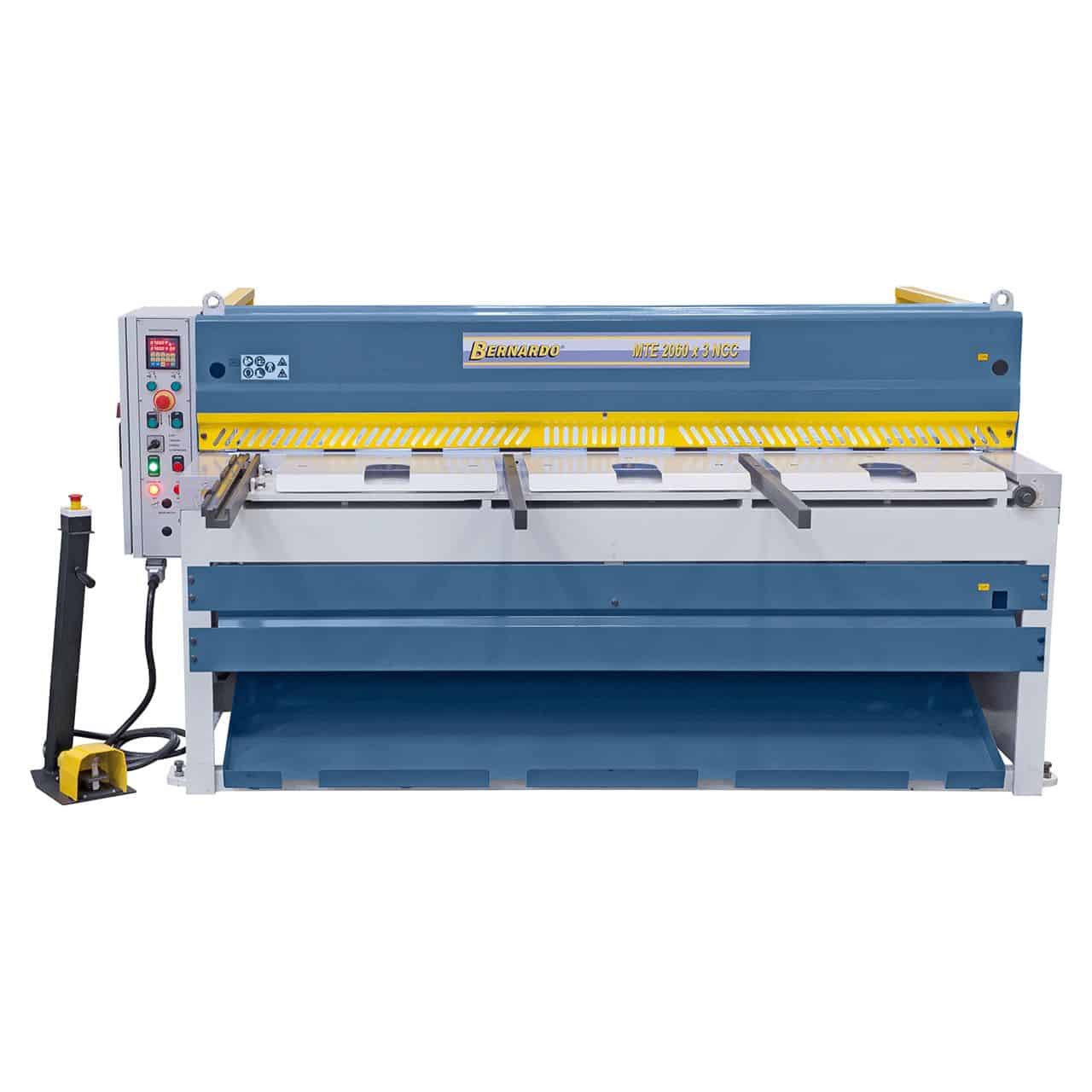

The Bernardo MTE 1360 x 3 mm NCC is a motorized guillotine shear designed for precise and efficient cutting of sheet metal up to 3 mm thick (400 N/mm²) and 1360 mm long. Thanks to the motorized NC backgauge with ball screws and the integrated BRL 401.2 control, it ensures quick and accurate adjustments. The double-edged tempered steel upper and lower blades offer clean, burr-free cuts, while the 2°30' cutting angle ensures maximum processing quality. The work table with integrated rollers and front supports facilitate handling of even large formats, while sheet expulsion can occur from the front (up to 400 mm) or rear. With a 3.0 kW motor, welded steel structure, and a weight of 1250 kg, the MTE 1360 x 3 mm NCC is ideal for workshops and companies looking for a reliable, compact, and high-performance shear.

---

Key features:
1360 mm cutting length for professional processing
Capacity up to 3 mm thickness (400 N/mm² steel)

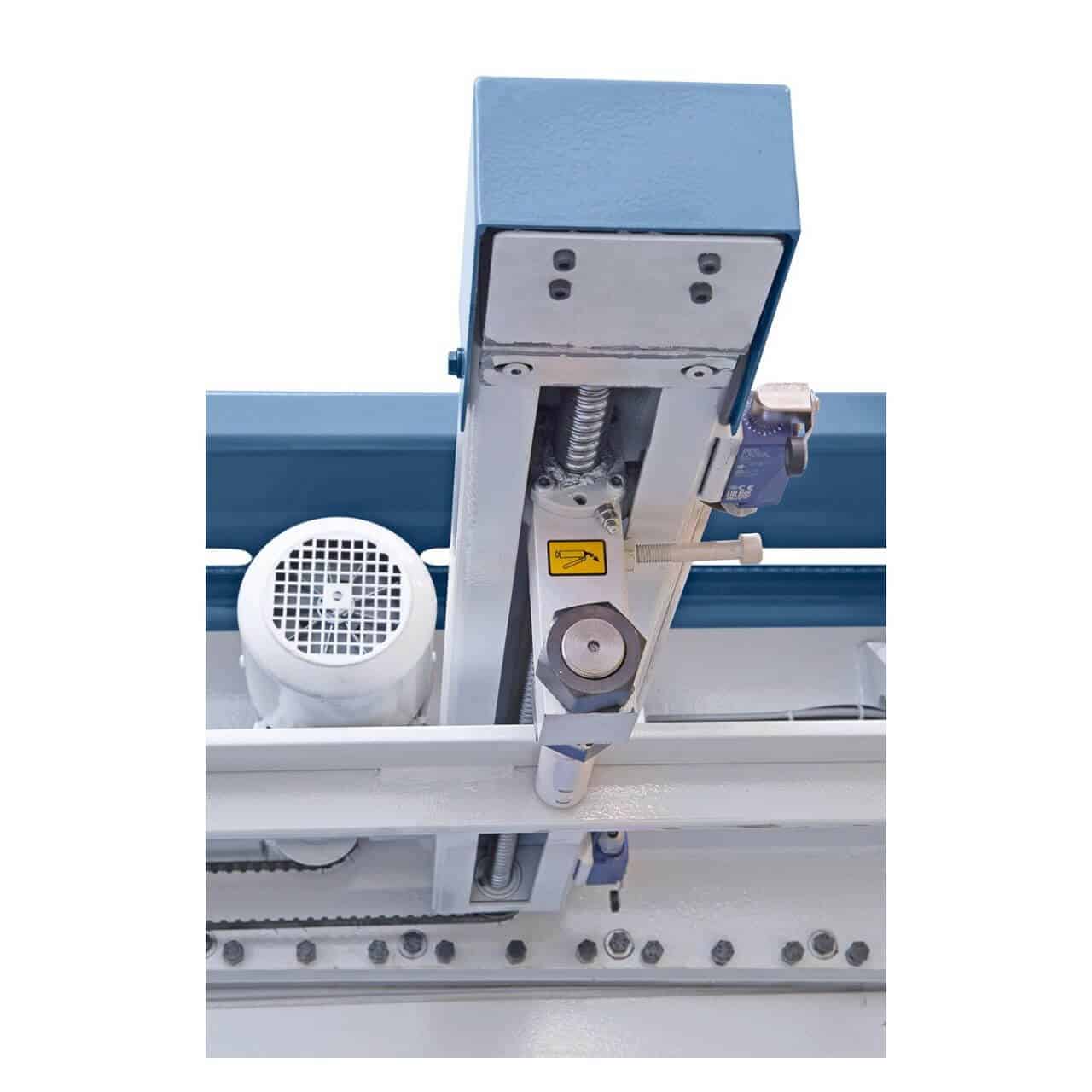

Motorized NC backgauge with ball screws

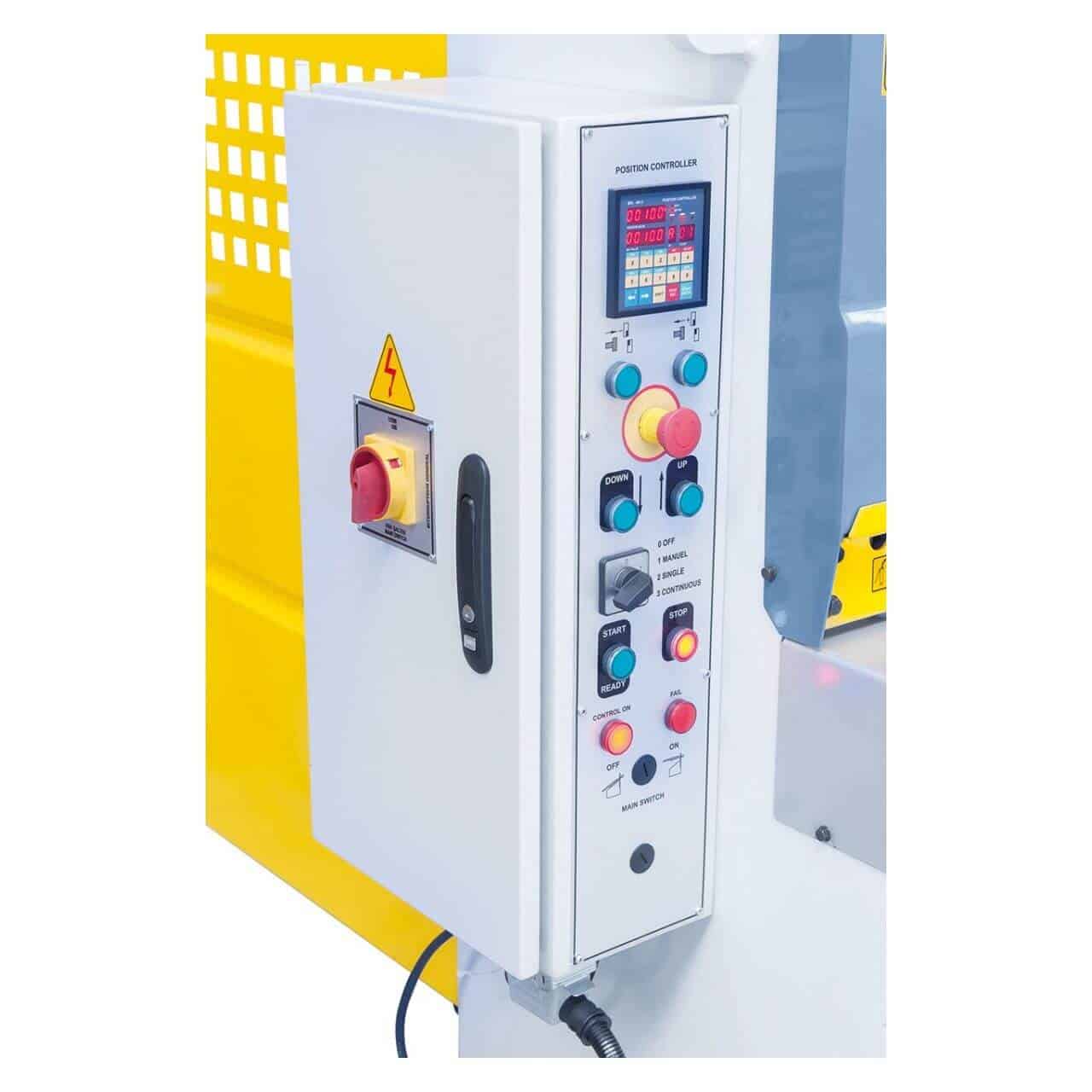

BRL 401.2 control panel with integrated counter and settings
Front (up to 400 mm) or rear sheet expulsion
Double-edged tempered steel upper and lower blades
Table with integrated rollers and front supports for large workpieces
Cutting line illumination with silhouette for greater precision

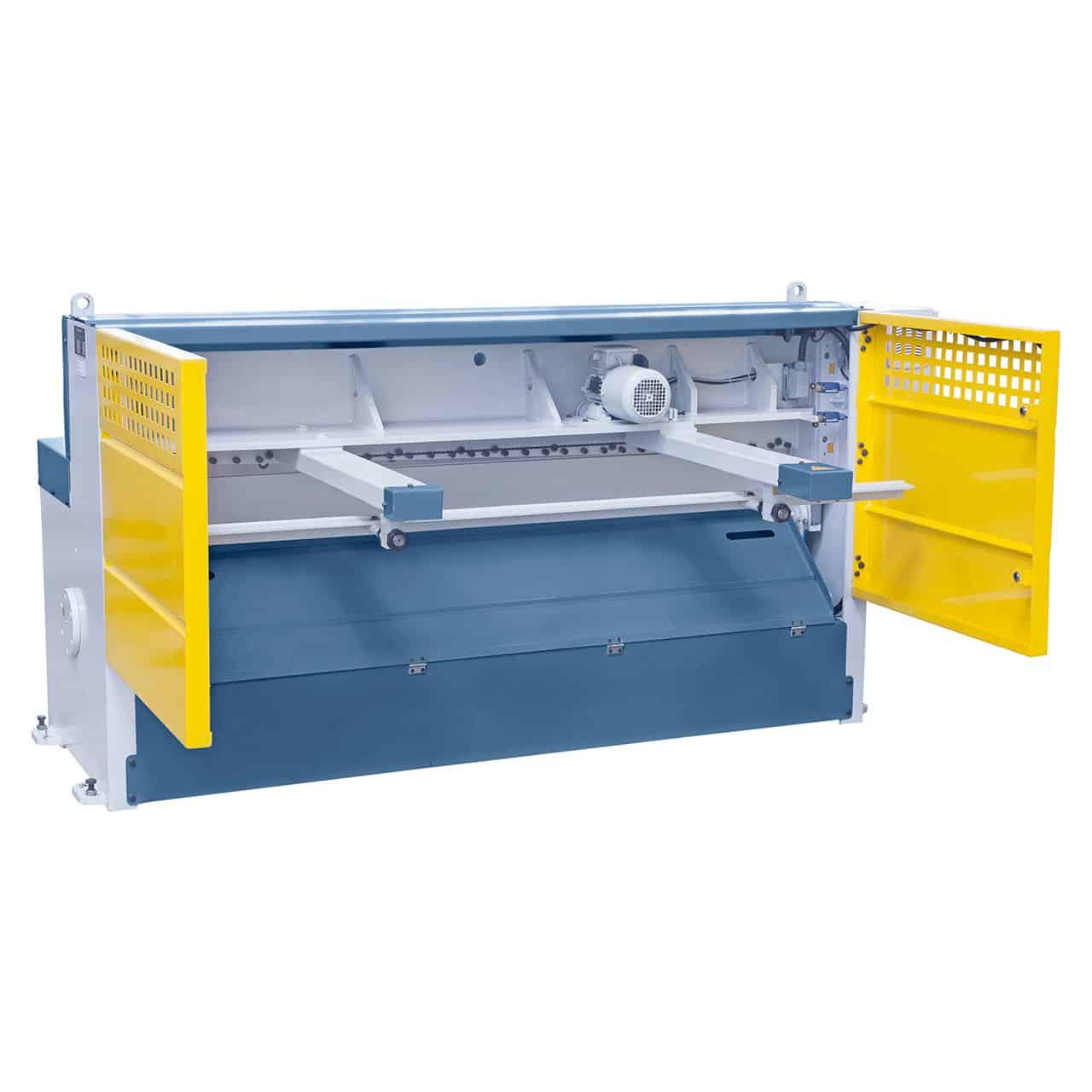

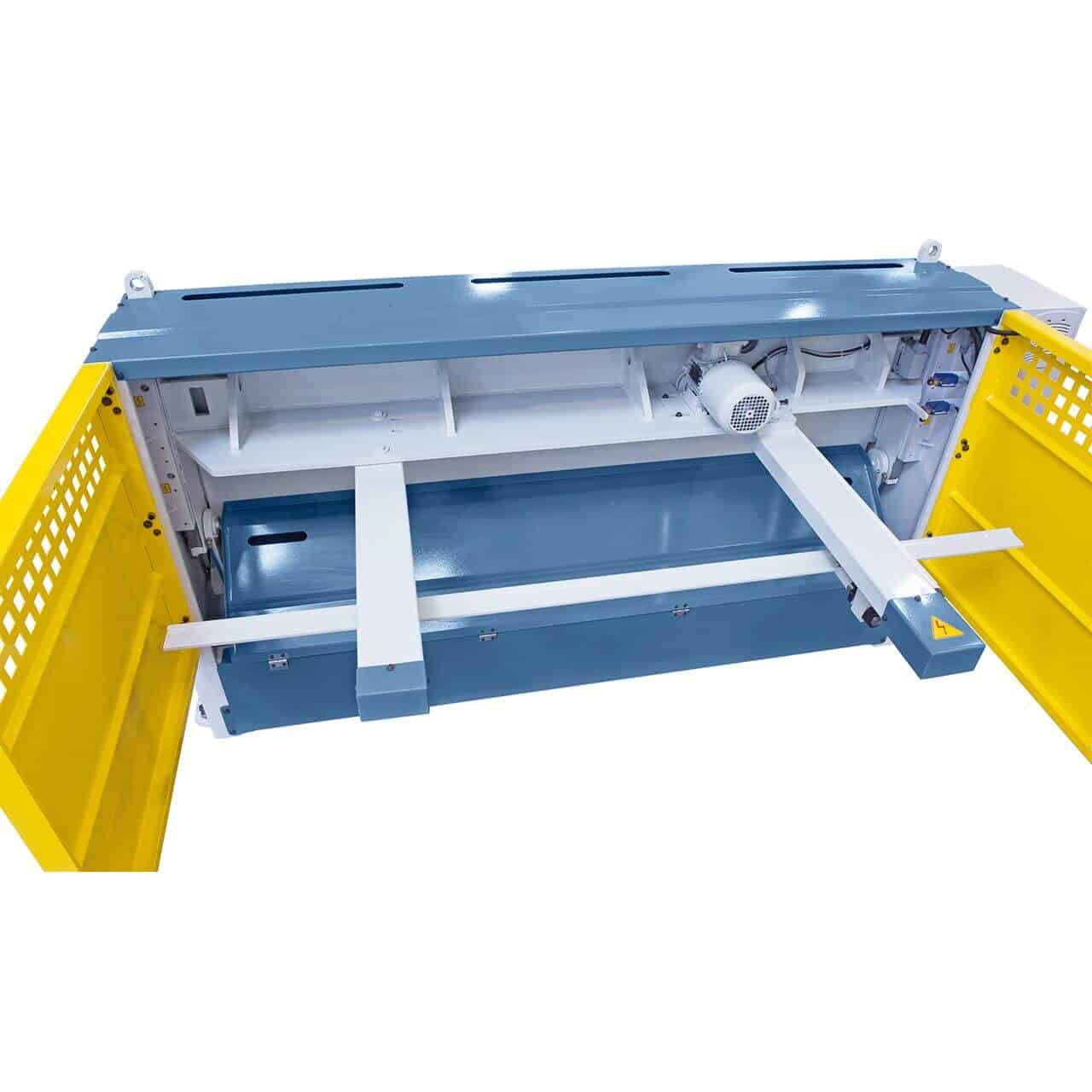

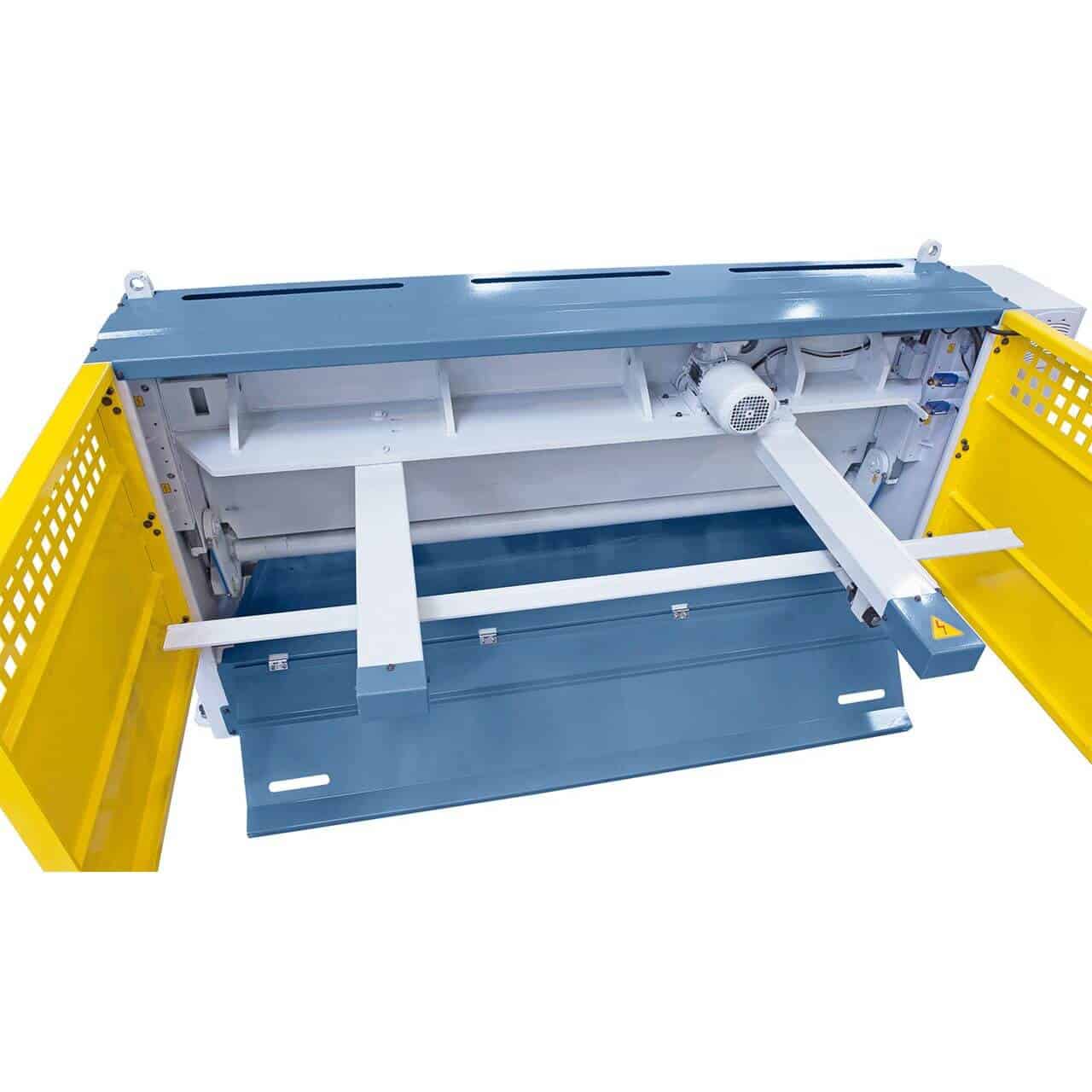

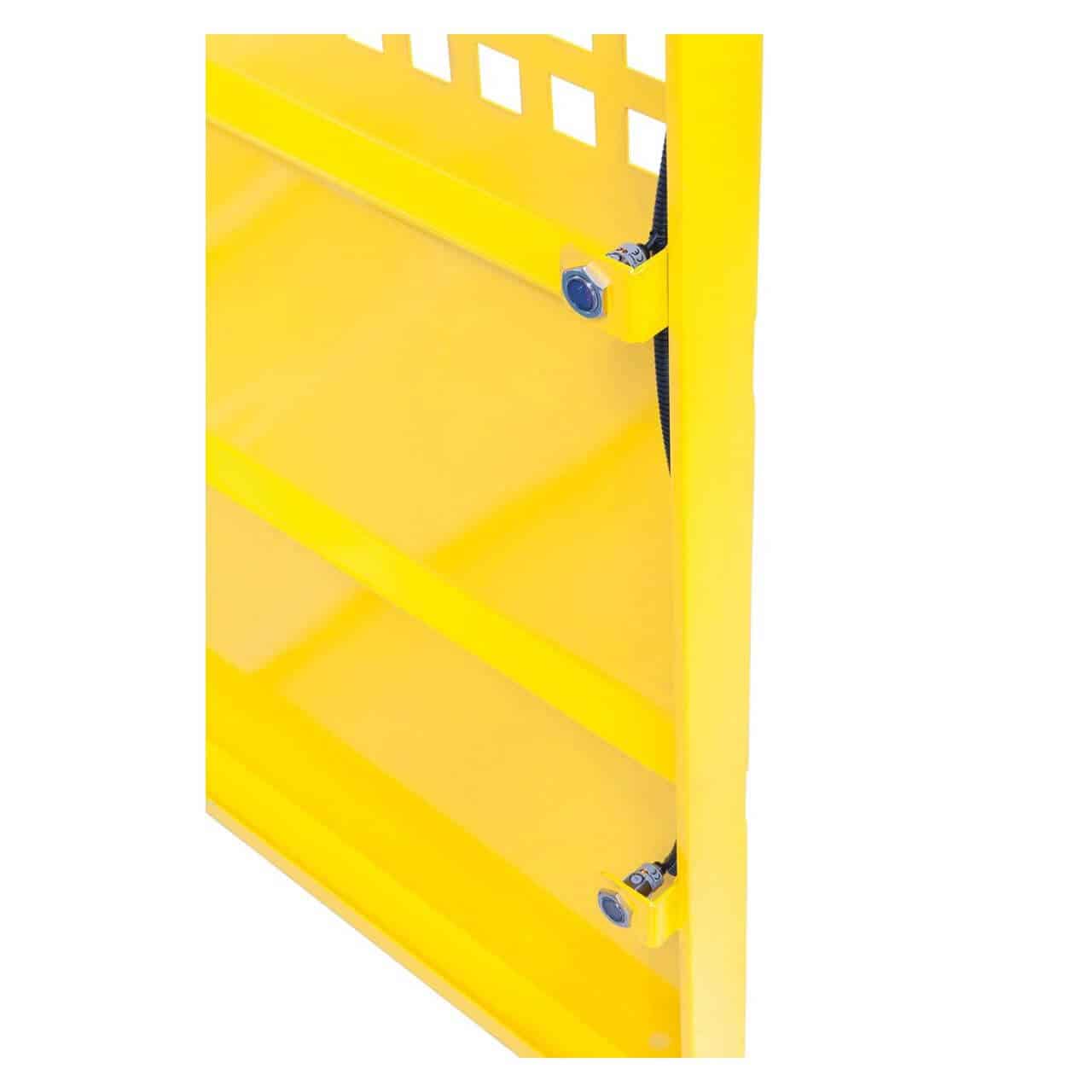

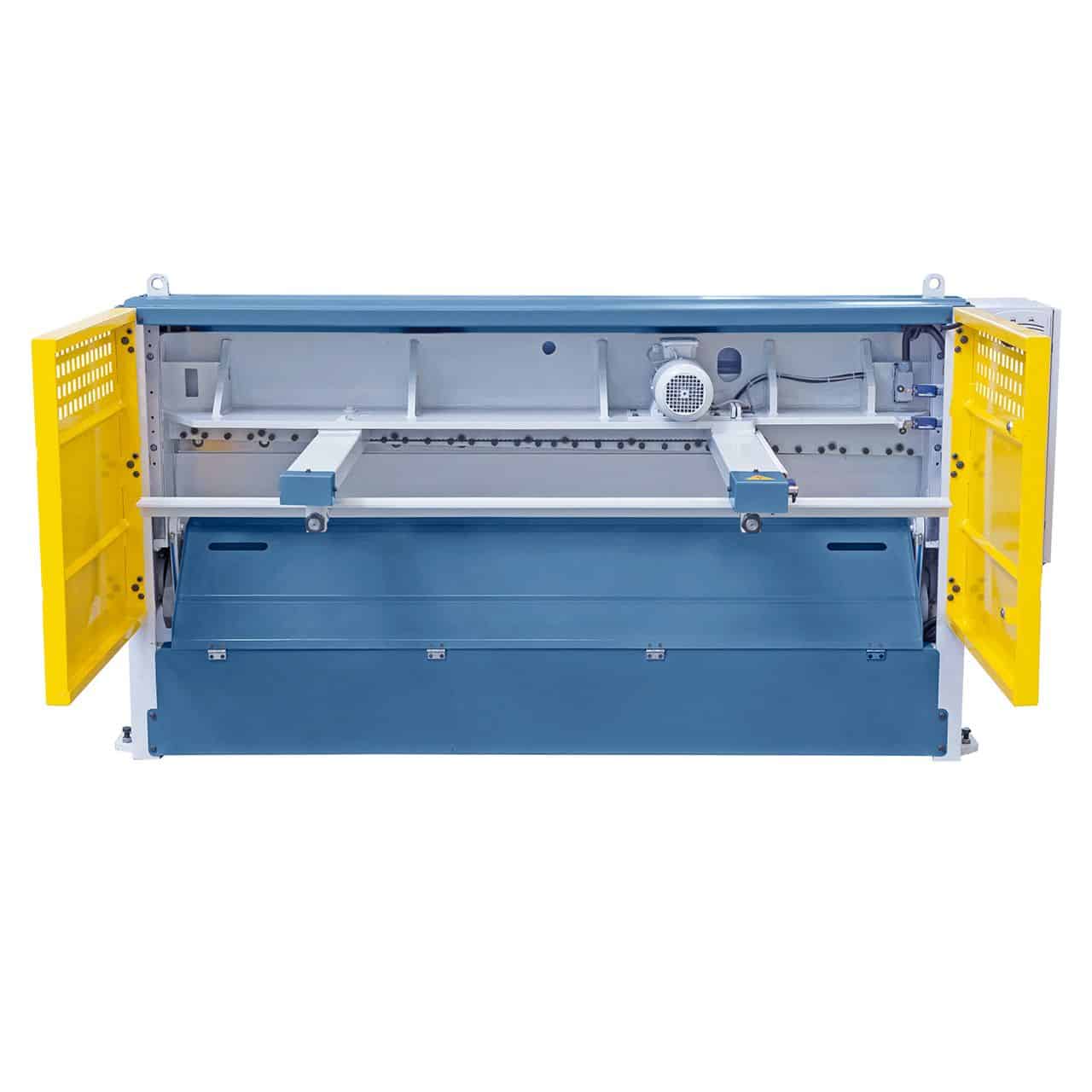

Rear safety guards with photocells and foot pedal with emergency stop
Robust welded steel structure, torsionally rigid

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTE 1360 x 3 mm NCC
Type	Motorized guillotine shear with NC
Cutting length	1360 mm
Max. sheet thickness*	3 mm
Cutting angle	2°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorized NC)
Table width	390 mm

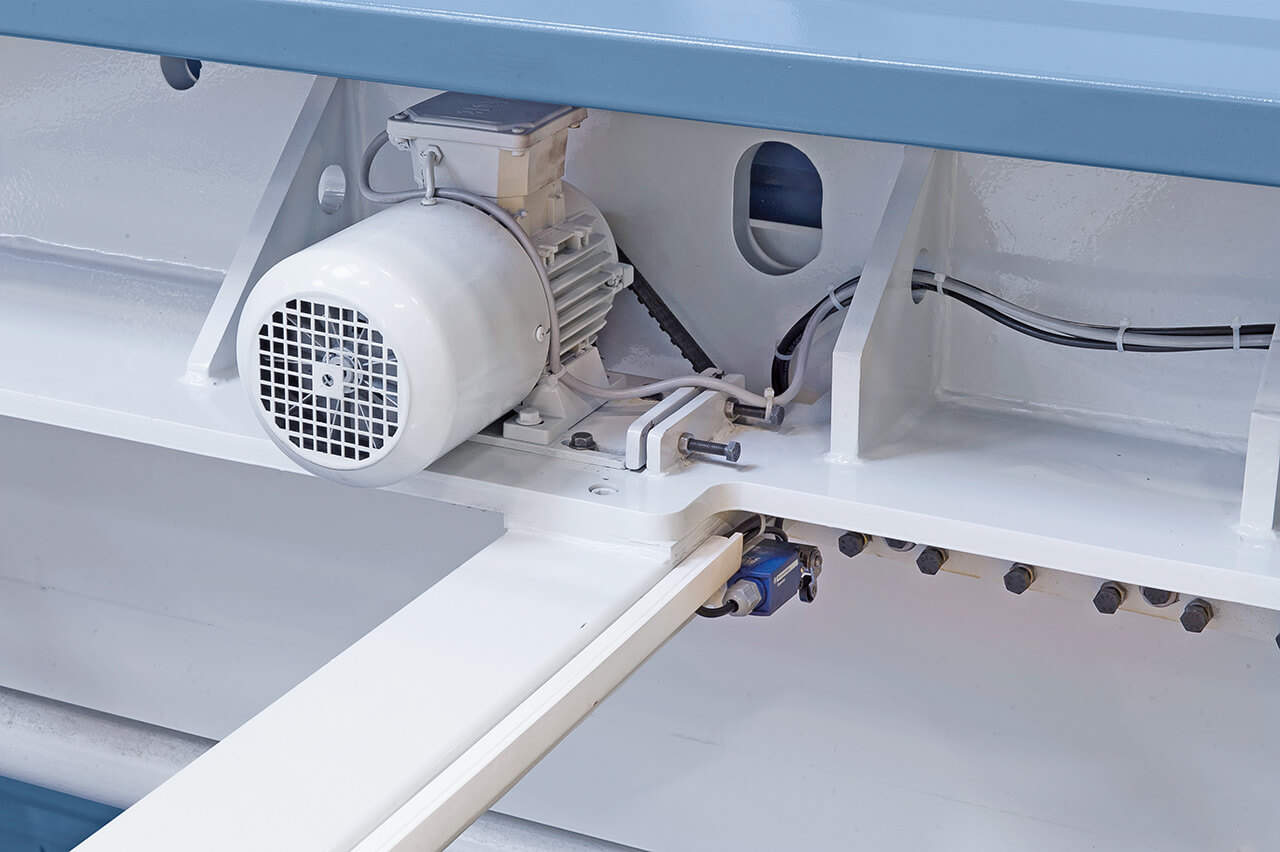

Motor power	3.0 kW
Dimensions (L x W x H)	1930 x 2100 x 1260 mm
Weight	1250 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTE 1360 x 3 mm NCC guillotine shear
Stroke counter
Cutting line illumination
Motorized NC backgauge
Front sheet support
Table with integrated rollers

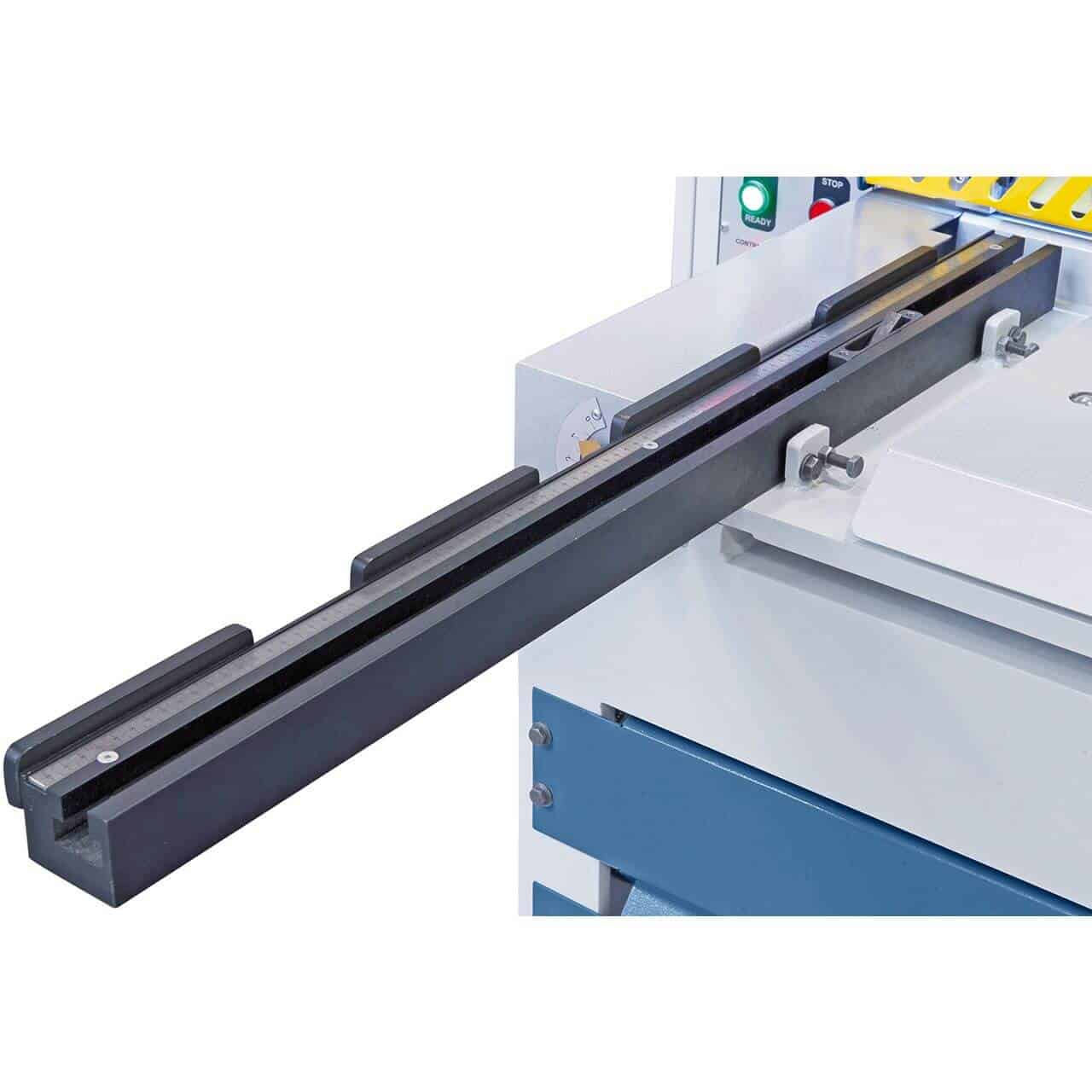

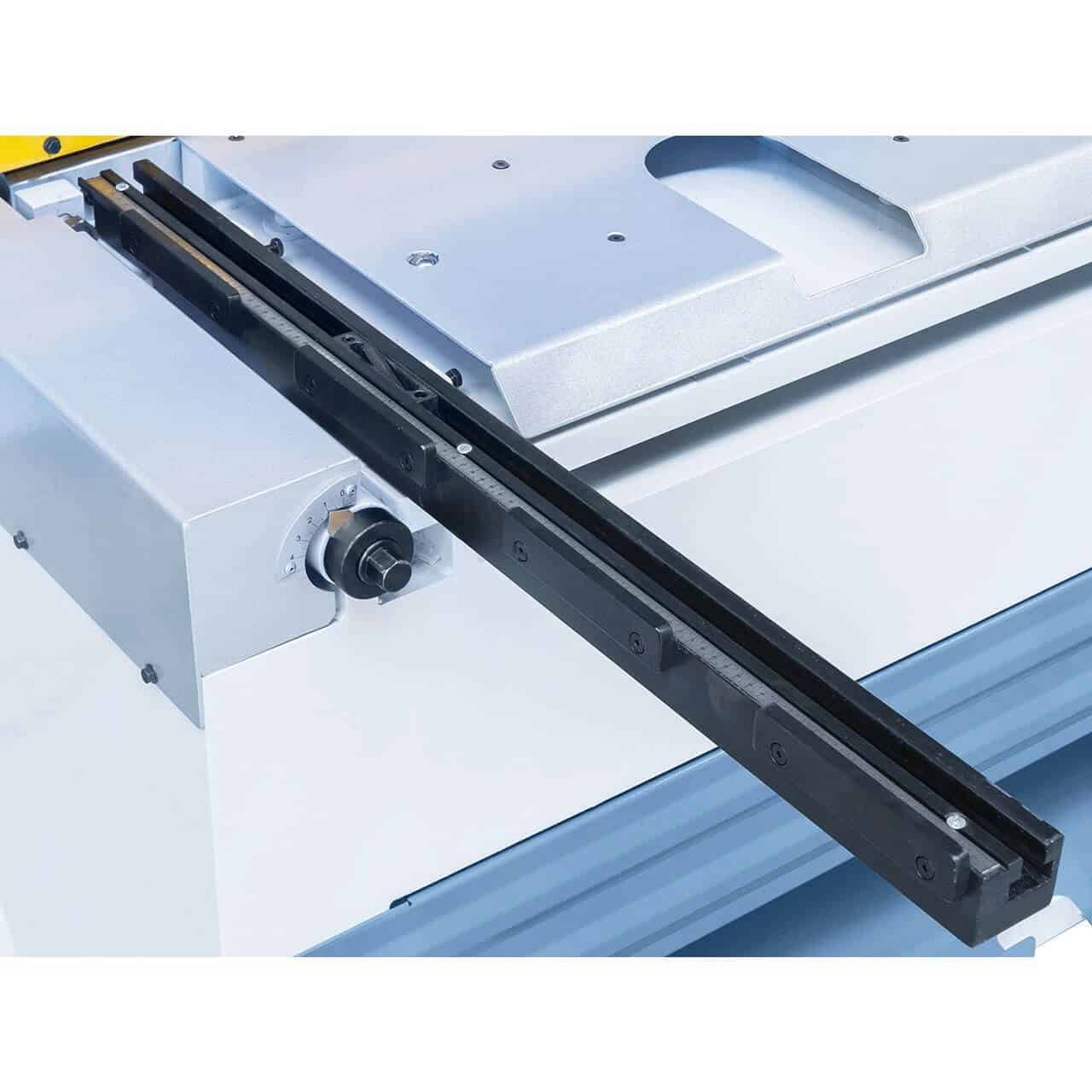

Side stop ruler
Rear safety guards with photocells
BRL 401.2 NC panel

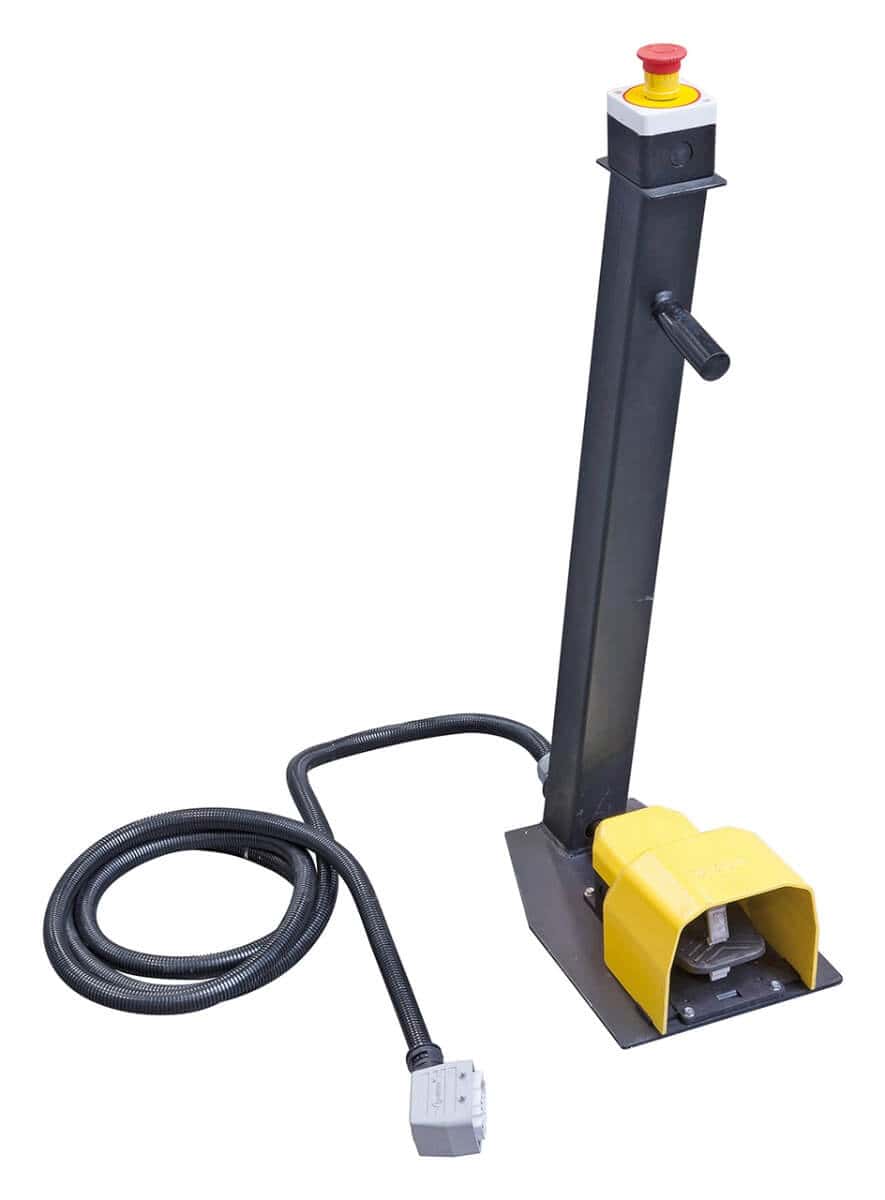

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on the production volume and the format of the sheets processed.

What is the maximum thickness for stainless steel with the Bernardo MTE 1360 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 working days shipping.

Are assistance and spare parts available in Italian?

Original spare parts are available with 3–5 working days shipping. Customer support is available in Italian.

How much space is needed for installation?

For sheet handling, free space at least equal to the cutting length (1360 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
