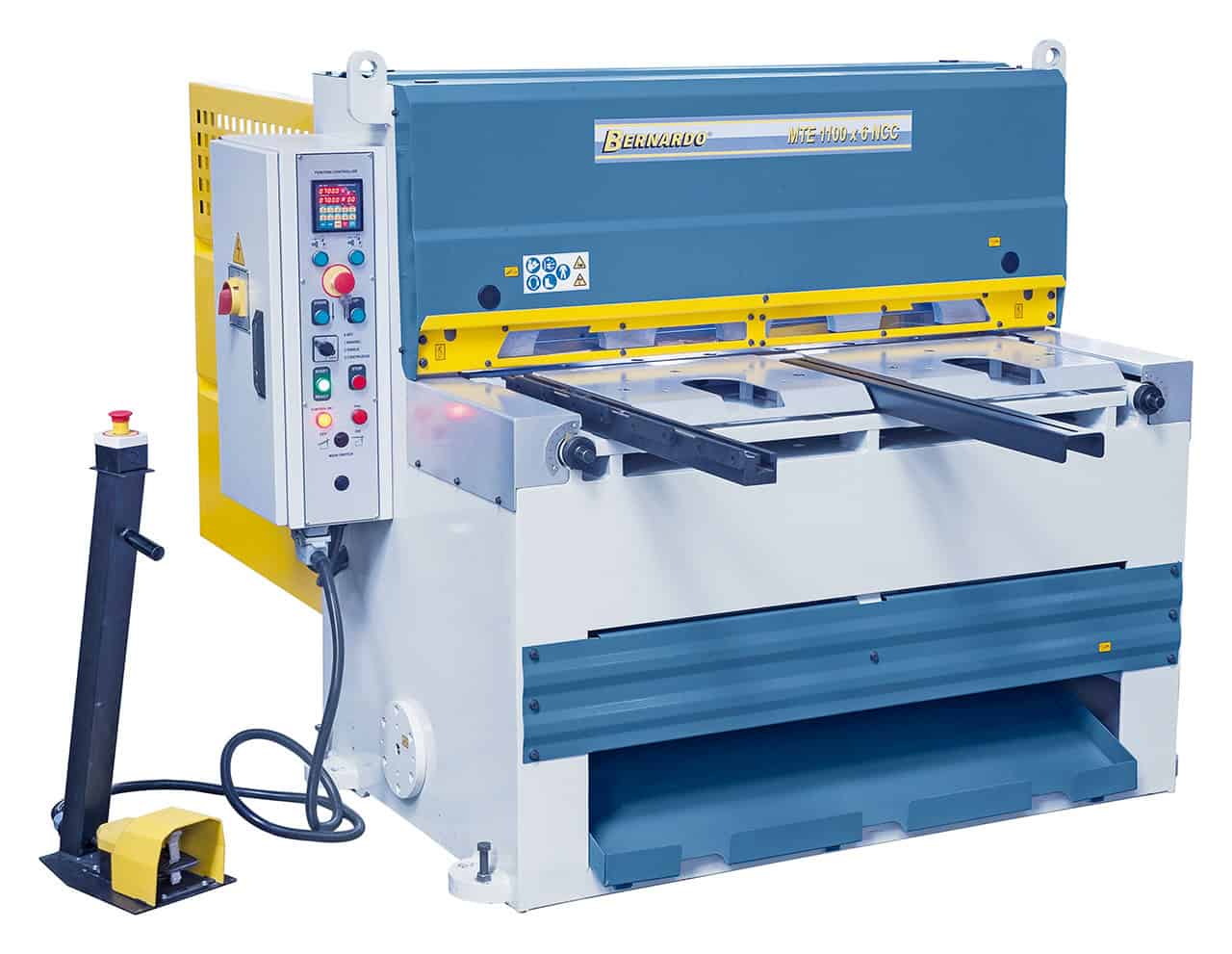

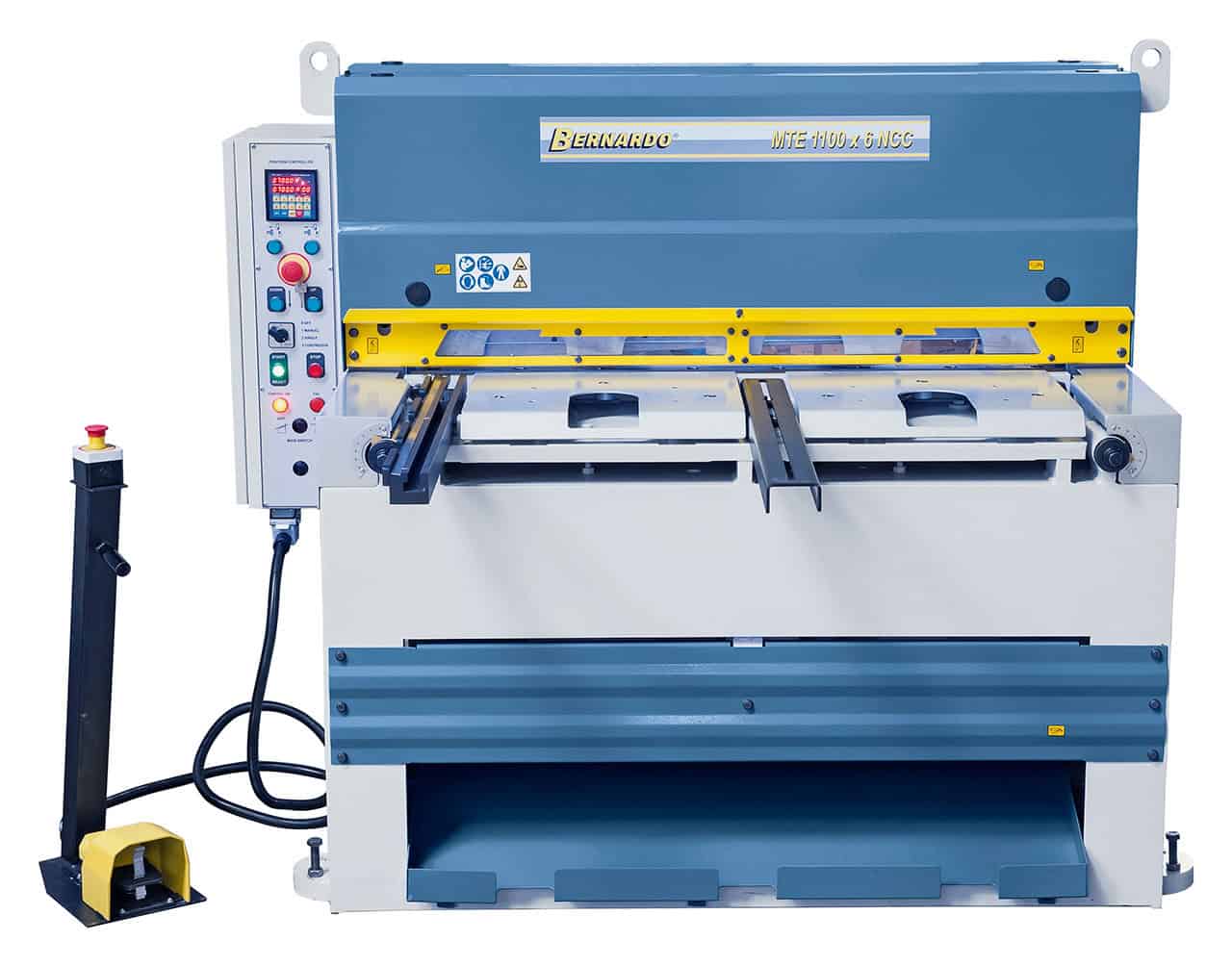

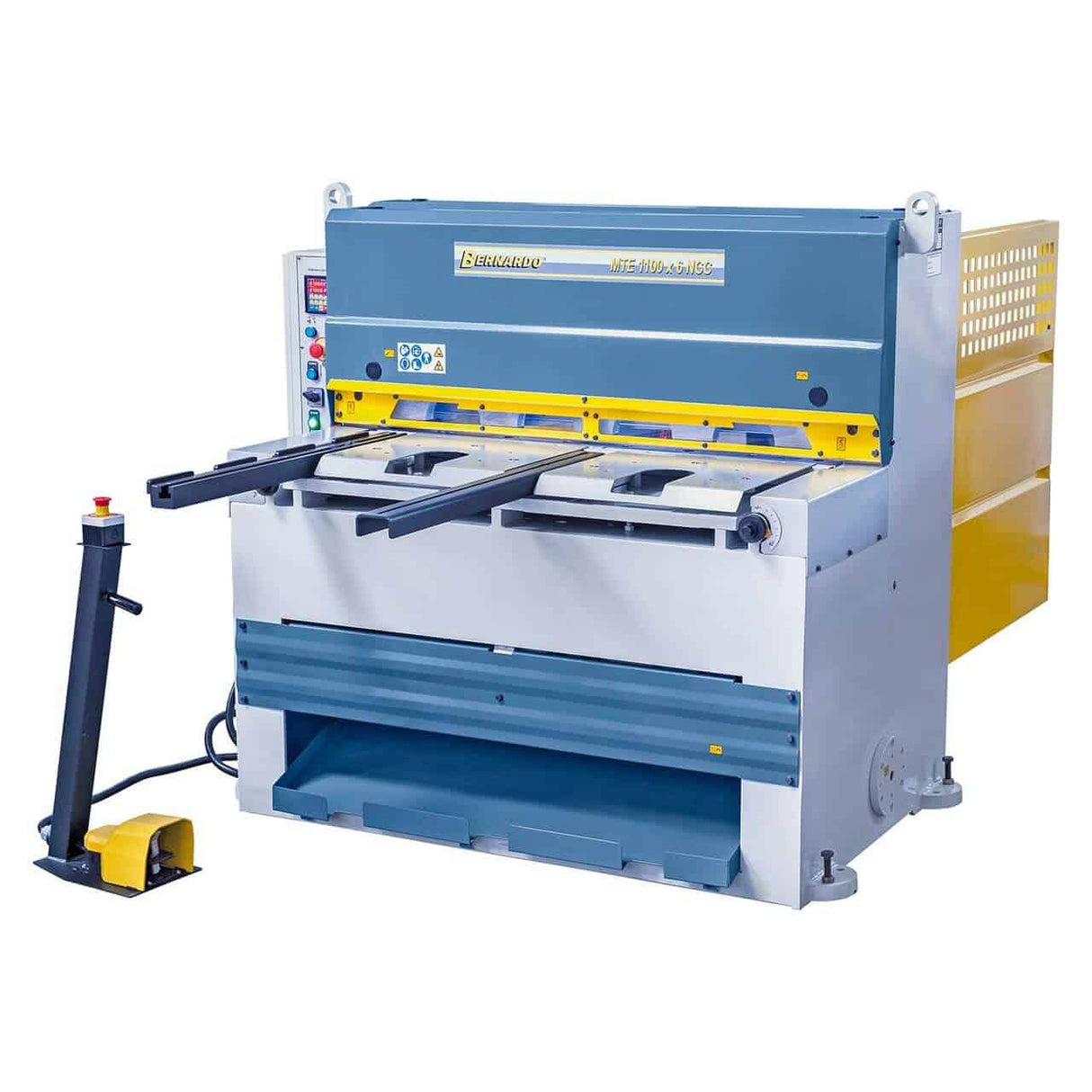

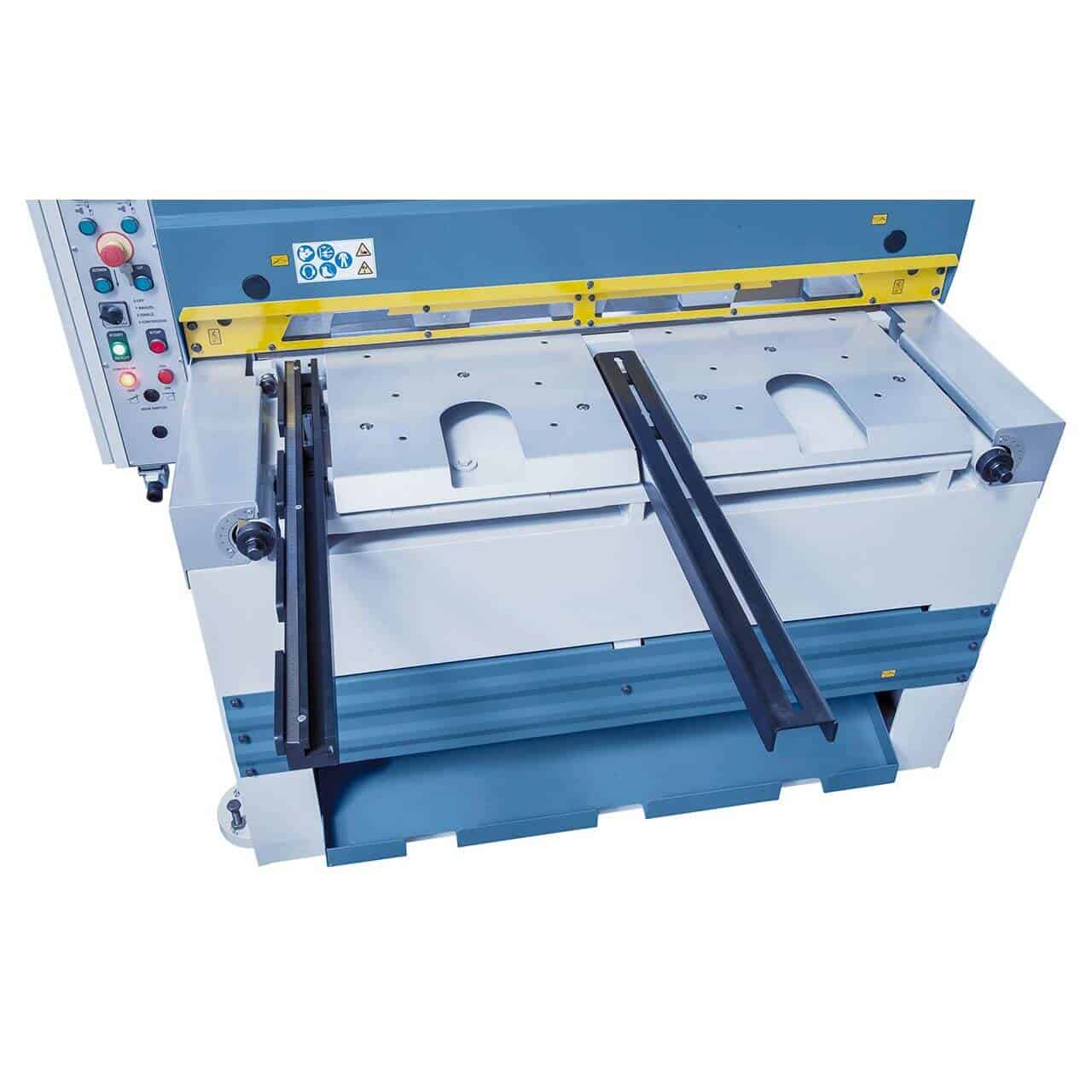

The Bernardo MTE 1360 × 6 NCC motorized guillotine shear cuts sheet metal up to 6 mm (400 N/mm²) over a length of 1360 mm, 31 strokes/min, motorized NC backgauge 0–750 mm, working height 800 mm, 7.5 kW motor. Weight 2350 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Cutting length: 1360 mm
- Max. sheet thickness (400 N/mm²): 6 mm
- Cutting angle: 2°
- Strokes/min: 31
- Working height: 800 mm

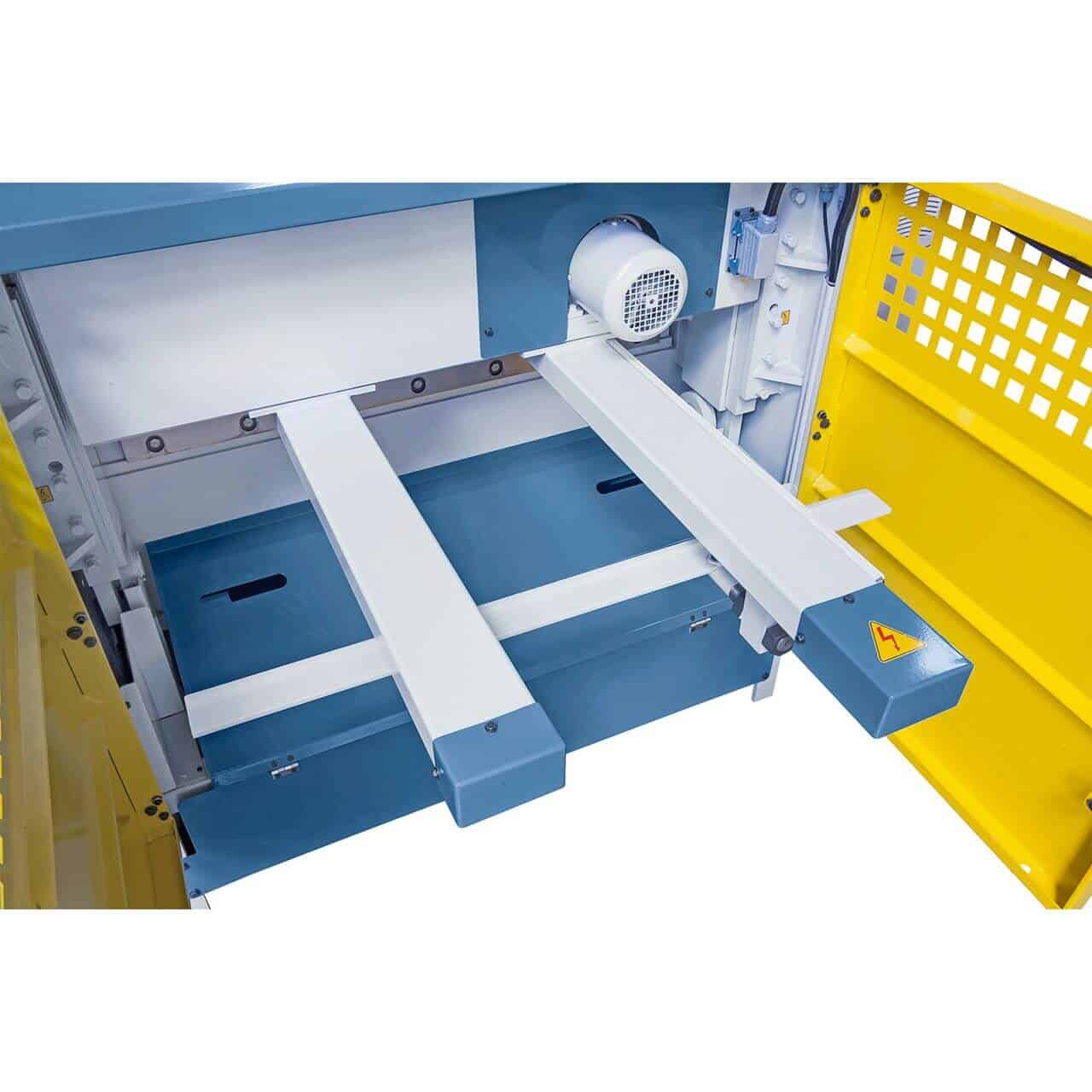

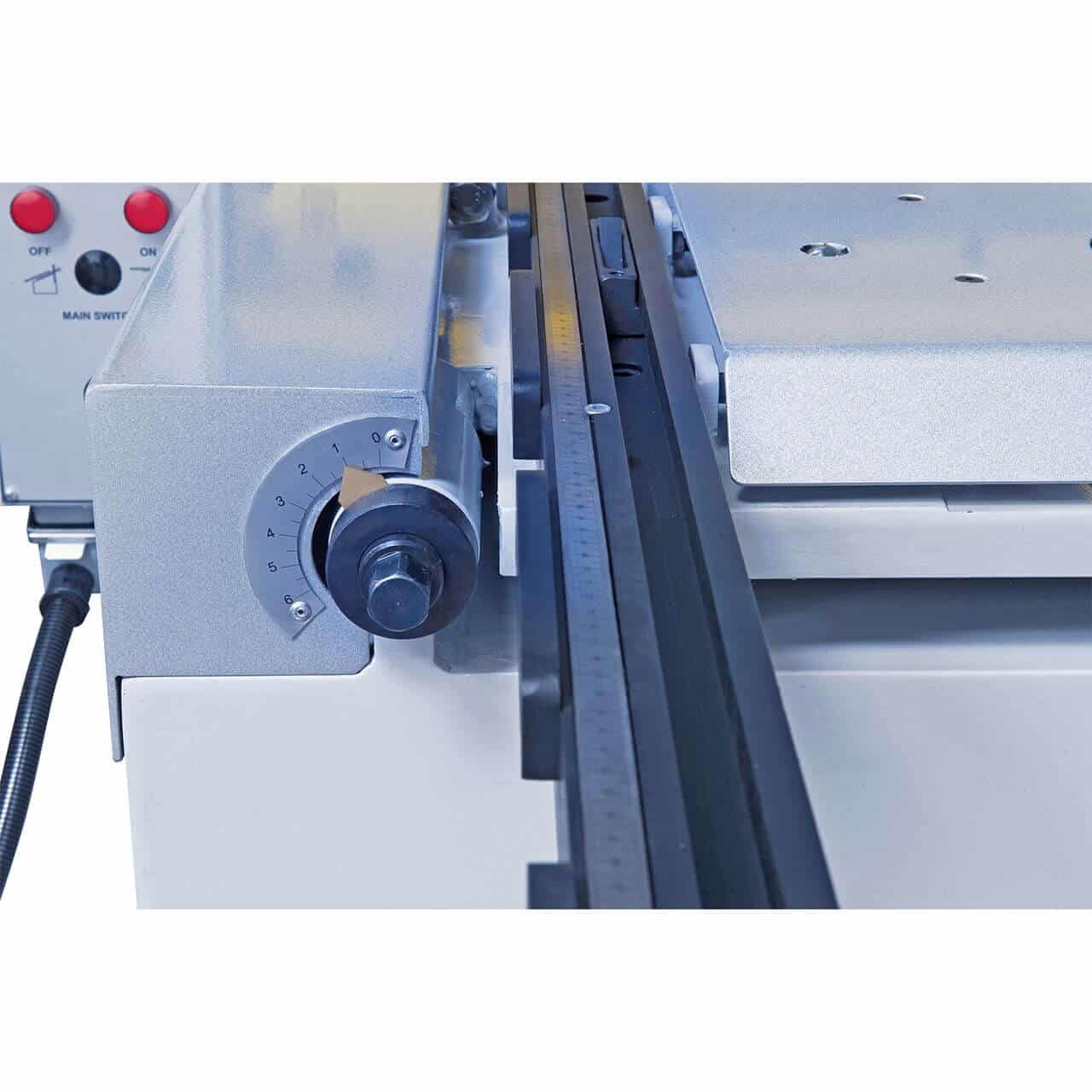

- Backgauge: 0–750 mm (motorized NC)

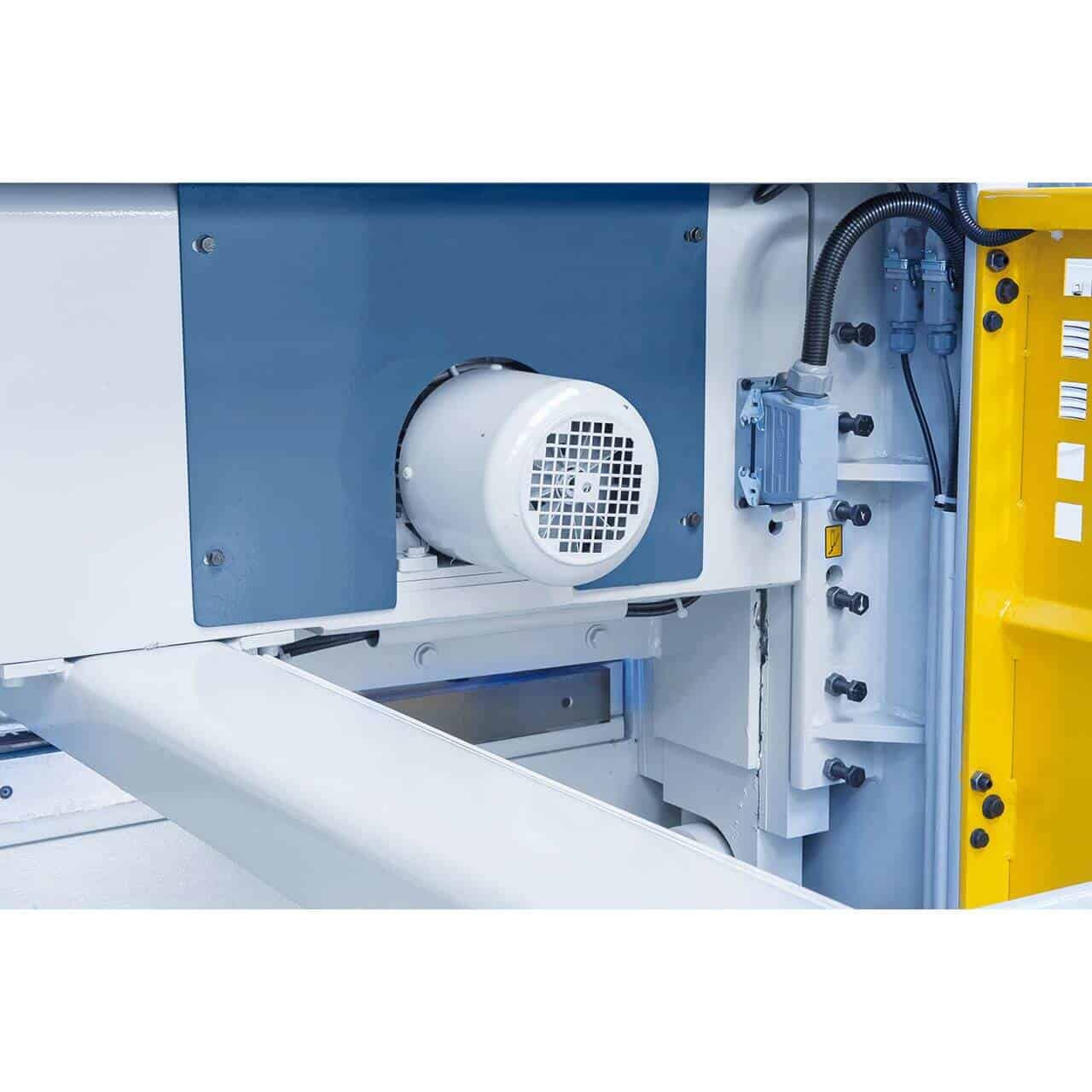

- Motor: 7.5 kW
- Weight: 2350 kg
Who uses the MTE 1360 × 6 NCC and for what
The Bernardo MTE 1360 × 6 NCC is a motorized guillotine shear with NC control for industrial sheet metal cutting: 31 strokes/min over a length of 1360 mm and thickness up to 6 mm. The motorized NC backgauge (0–750 mm) automatically positions the stop with millimeter precision — eliminating manual positioning and ensuring repeatability for identical series of parts. The MTE designation indicates the version with an electro-welded steel structure with a robust frame. In Krollit customer workshops, it is used by sheet metal workers, metal roofing manufacturers, and cutting centers that work with sheet metal in continuous production.
Who is the Bernardo MTE 1360 × 6 NCC for?
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist / light craftsman | Not suitable | Industrial shear weighing 2350 kg with NC control. Not suitable for non-professional use. |
| Sheet metal worker / cutting center | Ideal | 1360 mm × 6 mm, 31 cpm, NC backgauge: the shear for continuous sheet metal production with industrial quality and repeatability. |
| Industrial production | Ideal | The motorized NC backgauge is essential for series production — it positions the stop in seconds instead of minutes for manual positioning. |
Not suitable for: sheet metal over 6 mm; craft use with low volume (manual PTS or HSG shears have much lower costs); installations without adequate space for 2350 kg.
Technical specifications
| Specification | Value |
|---|---|
| Cutting length | 1360 mm |
| Max. sheet thickness (400 N/mm²) | 6 mm |
| Cutting angle | 2° |
| Strokes per minute | 31 |
| Working height | 800 mm |
| Backgauge | 0–750 mm (motorized NC) |
| Table width | 455 mm |
| Motor power | 7.5 kW |
| Dimensions (L × W × H) | 2100 × 2250 × 1400 mm |
| Weight | 2350 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/CE |
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). At 2350 kg, delivery requires adequate unloading equipment: coordinate with Krollit before delivery. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Frequently asked questions
What does "motorized NC" mean on the backgauge?

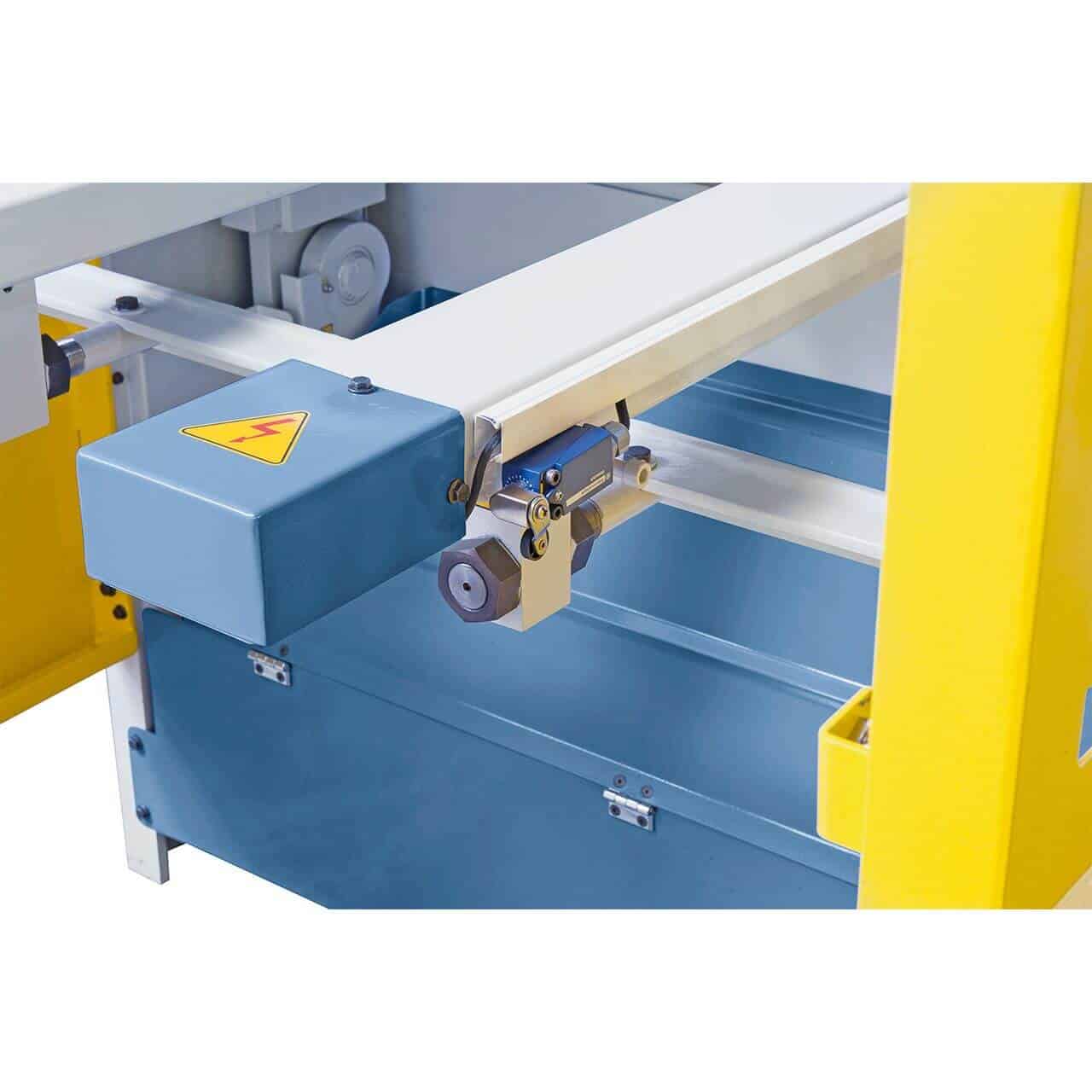

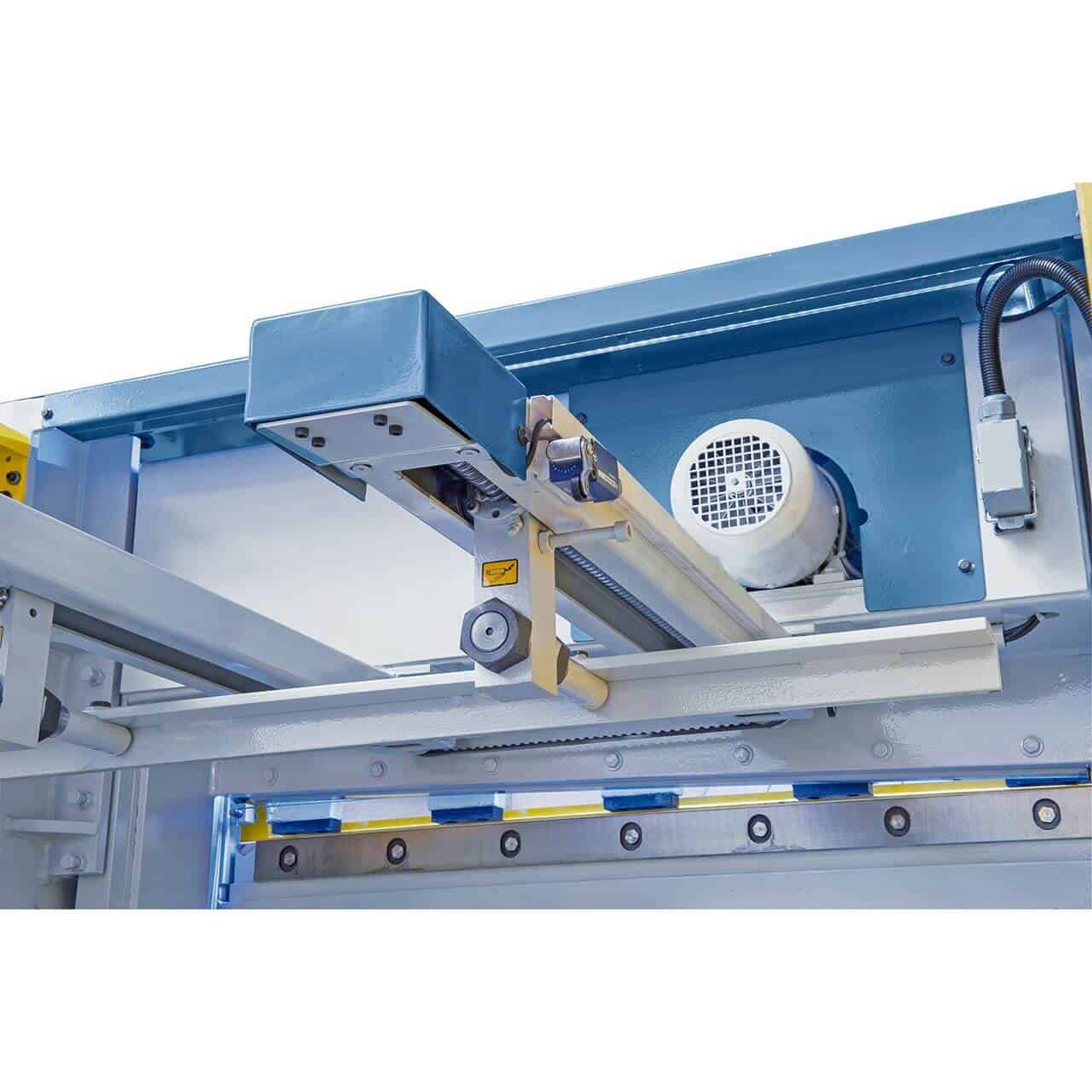

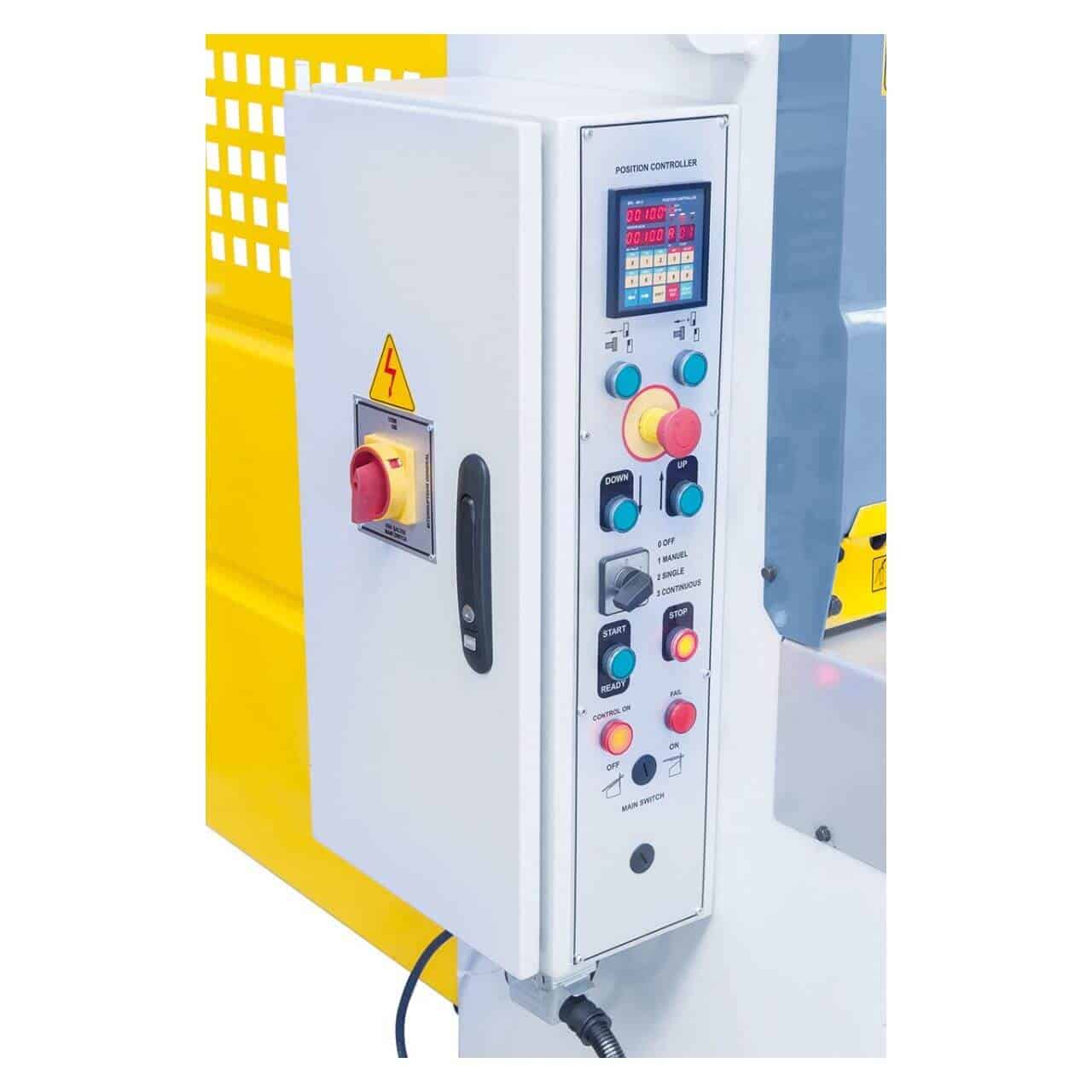

The motorized NC (Numeric Control) backgauge automatically positions the rear stop to the set dimension via the control panel. In series production, the dimension is set once, and the machine maintains it for all subsequent parts. Compared to a manual backgauge, it eliminates positioning errors and reduces dimension changeover times from minutes to seconds.
What is the maximum thickness for stainless steel with the MTE 1360 × 6 NCC?
The nominal thickness of 6 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 3.9 mm). Always check with a Krollit technician for specific high-strength materials.
Are the blades replaceable and sharpenable?
Yes. The shear blades are reversible (4 cutting edges before replacement) and sharpenable. Original Bernardo replacement blades available with 3–5 working days shipping.
Is assistance and spare parts available in Italian?
Customer support available in Italian. Original Bernardo spare parts (blades, hydraulic components, NC panel) with 3–5 working days shipping.
How much space is needed for installation?
Dimensions 2100 × 2250 × 1400 mm. For sheet metal handling, free space at least equal to the cutting length (1360 mm) is needed in front of and behind the machine. For 2350 kg, coordinate with Krollit for the necessary unloading equipment.
