Bernardo MTE 2060 x 3 mm NCC – Motorised Guillotine Shear

Bernardo MTE 2060 x 3 mm NCC – Motorised Guillotine Shear

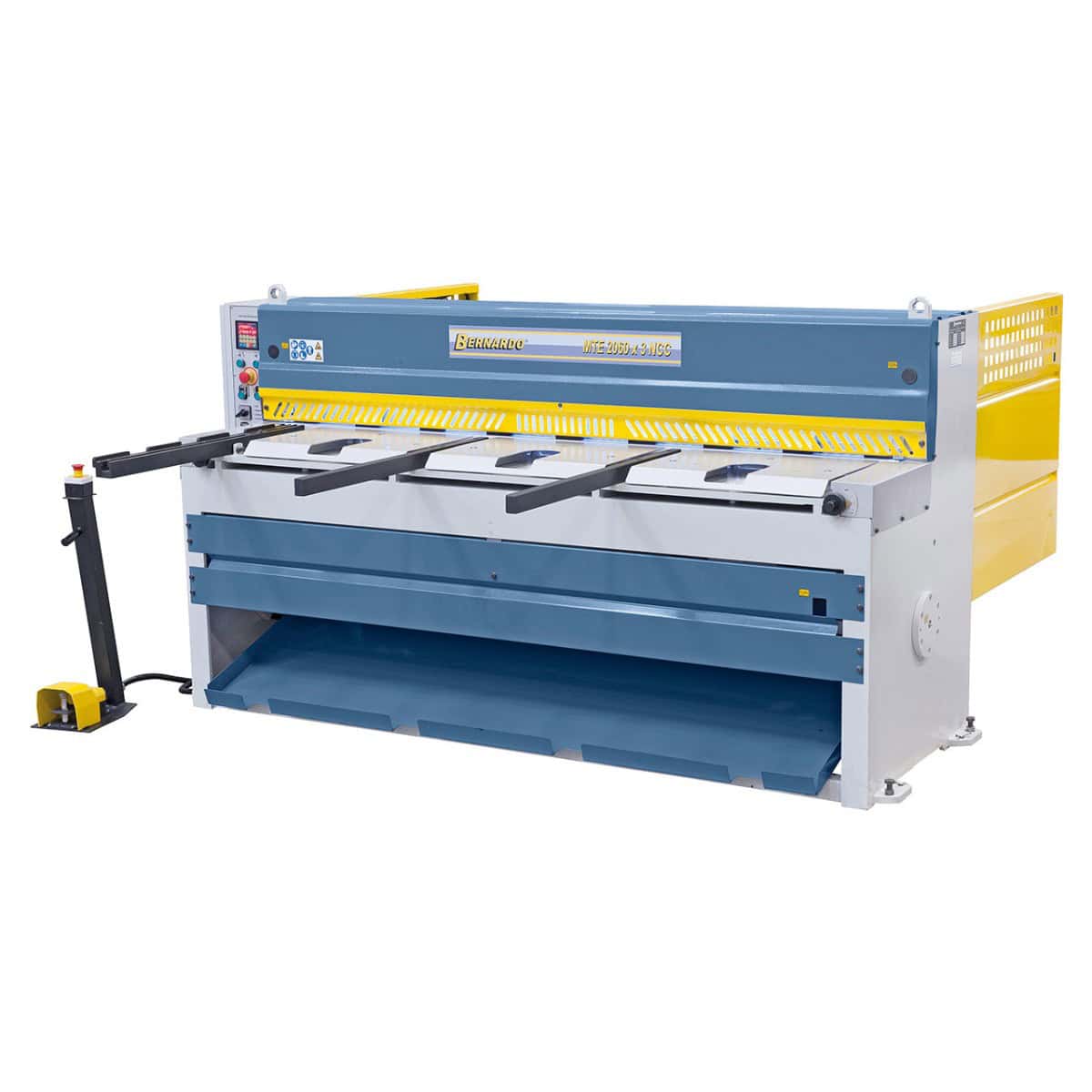

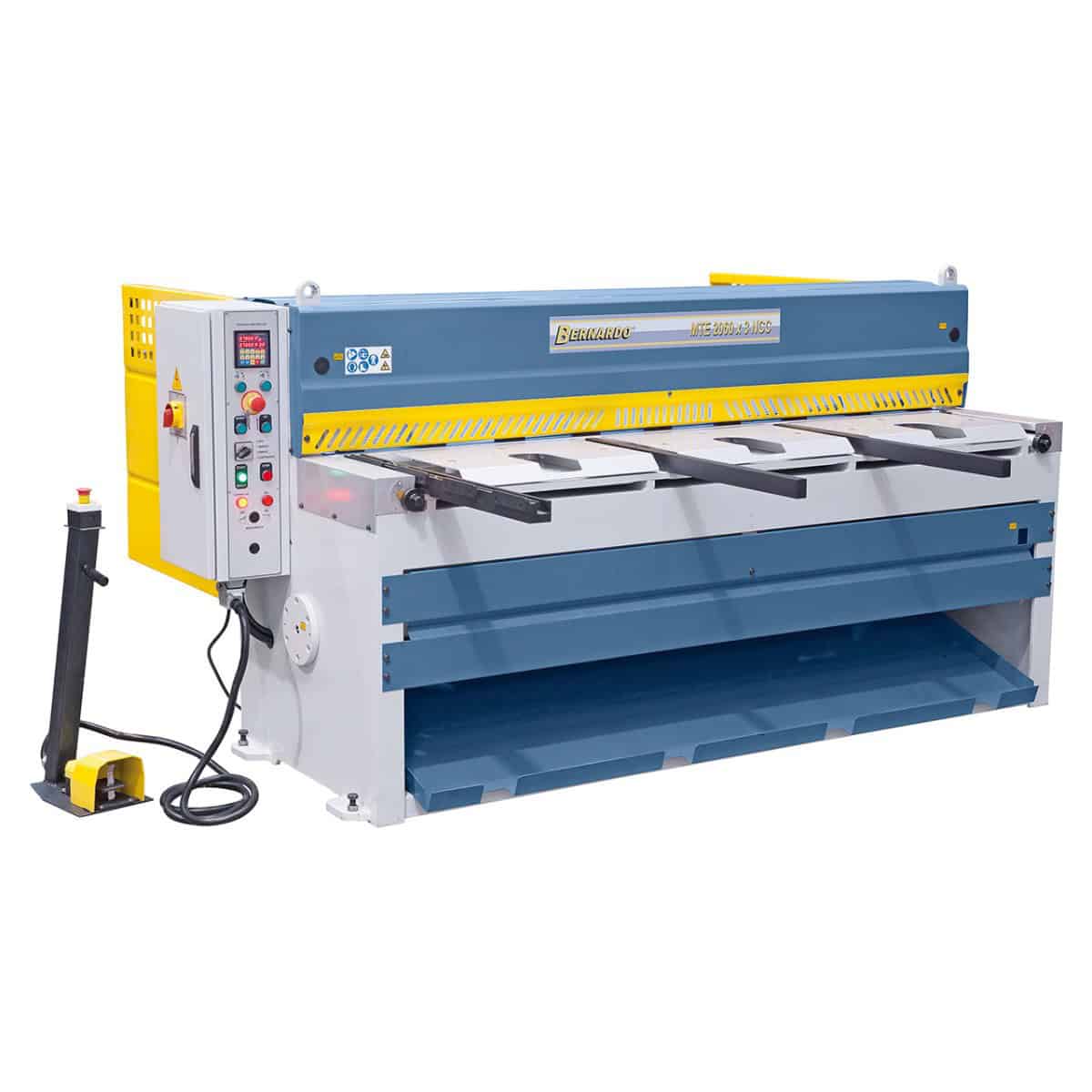

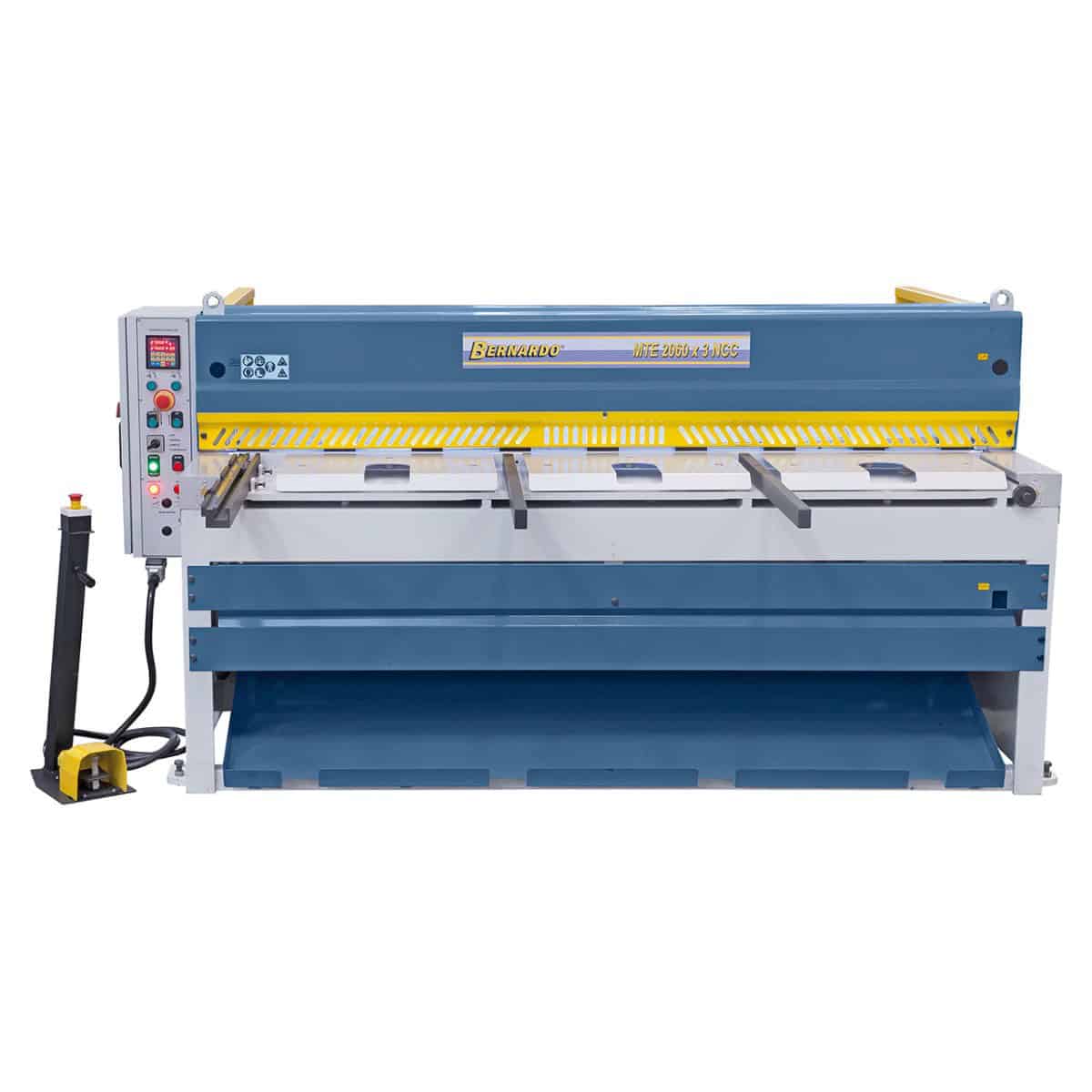

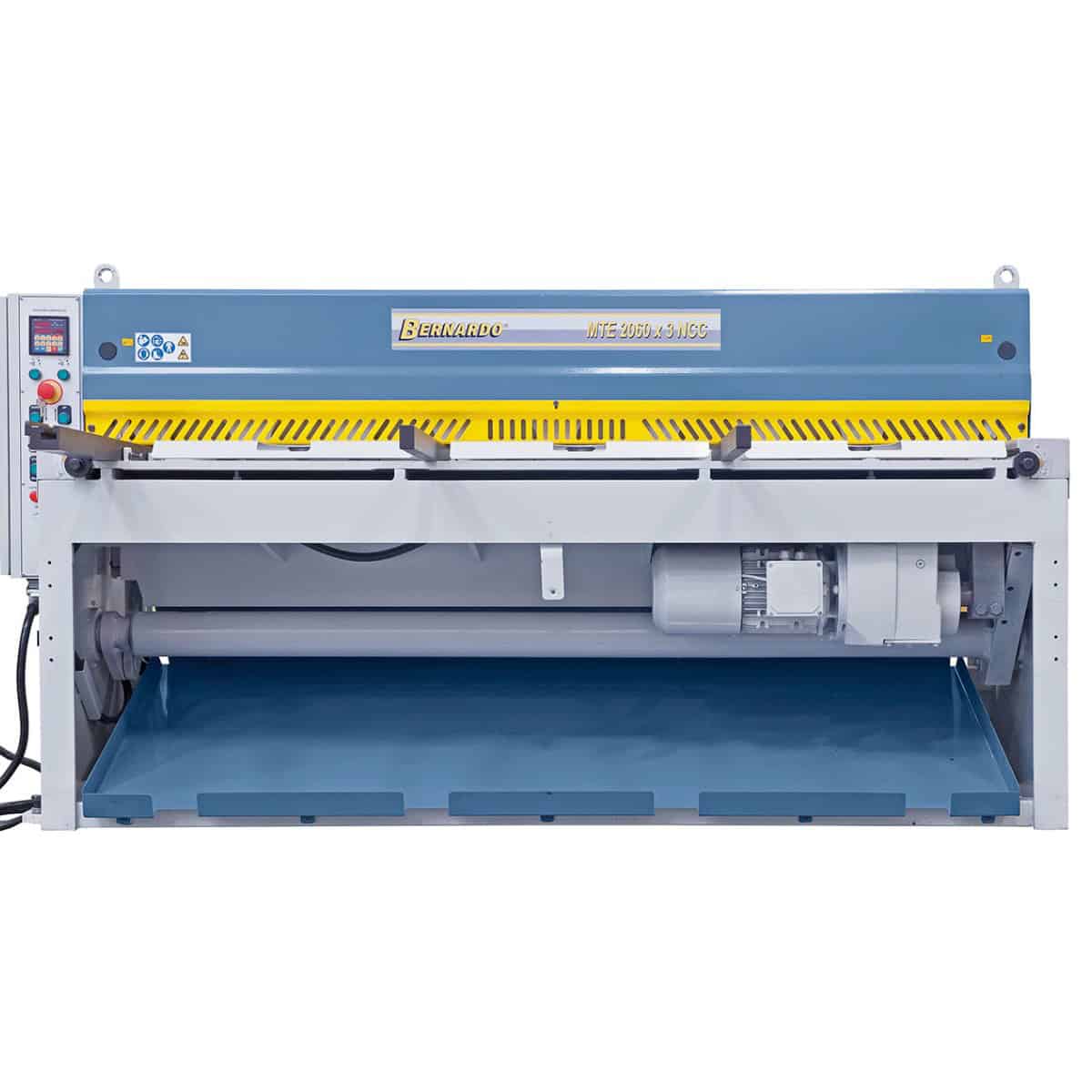

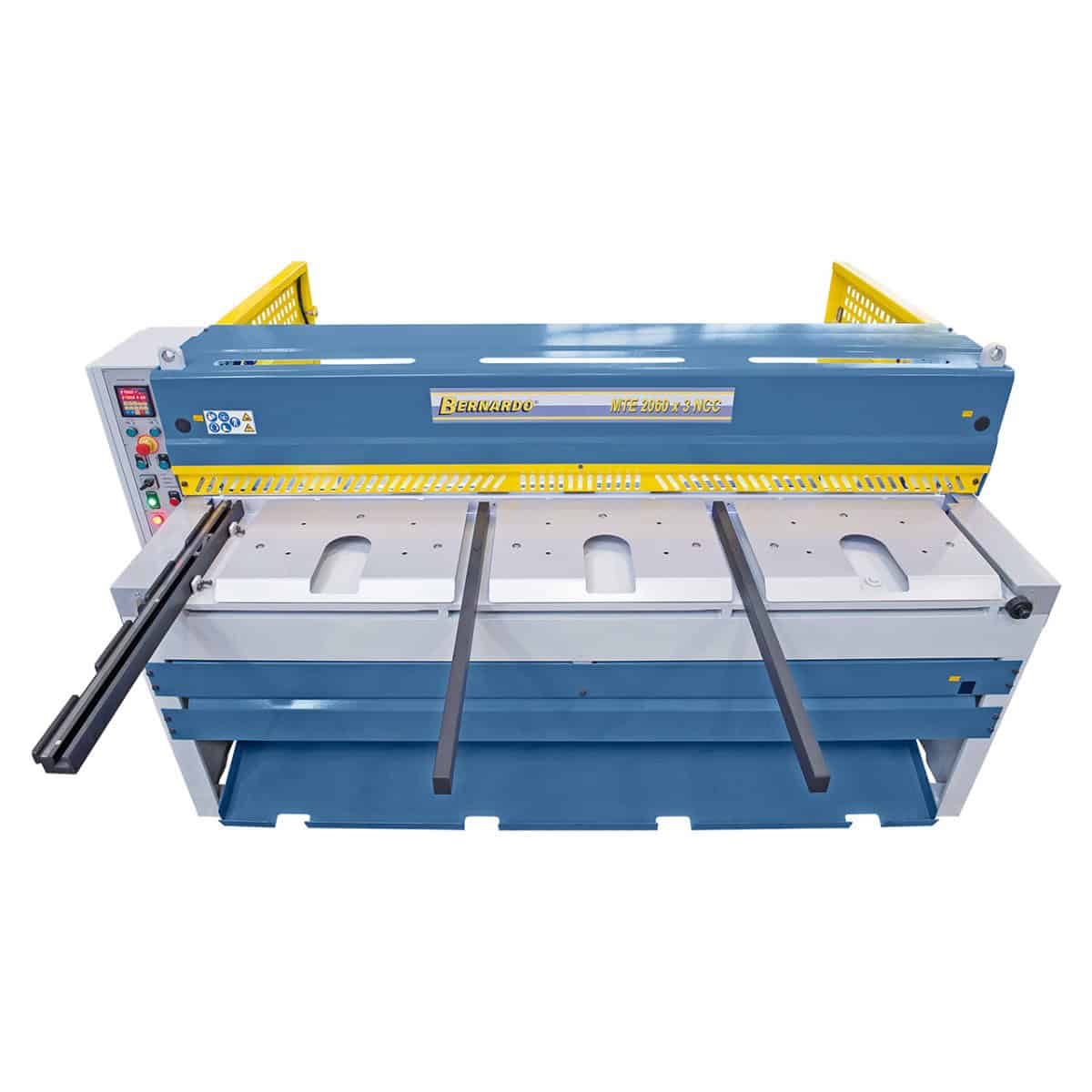

The Bernardo MTE 2060 x 3 mm NCC is a motorised guillotine shear designed for precise and efficient cutting of sheet metal up to 3 mm thick (400 N/mm²) and 2060 mm in length. Thanks to the motorised NC backgauge with ball screws and the BRL 401.2 control panel, it allows for quick, accurate, and safe adjustments. The double-edged upper and lower blades made of hardened steel ensure clean, burr-free cuts, while the 1°30’ cutting angle provides a clean finish. Sheet metal ejection can occur either from the front (up to 400 mm) or from the rear, making the machine versatile. The table with integrated rollers and front supports facilitate the handling of even large pieces. With a 4.0 kW motor, robust structure, and a weight of 1750 kg, the MTE 2060 x 3 mm NCC is suitable for workshops and companies that require a compact, reliable, and precise shear.

---

Main features:
2060 mm cutting length for professional applications
Capacity up to 3 mm thick (steel 400 N/mm²)

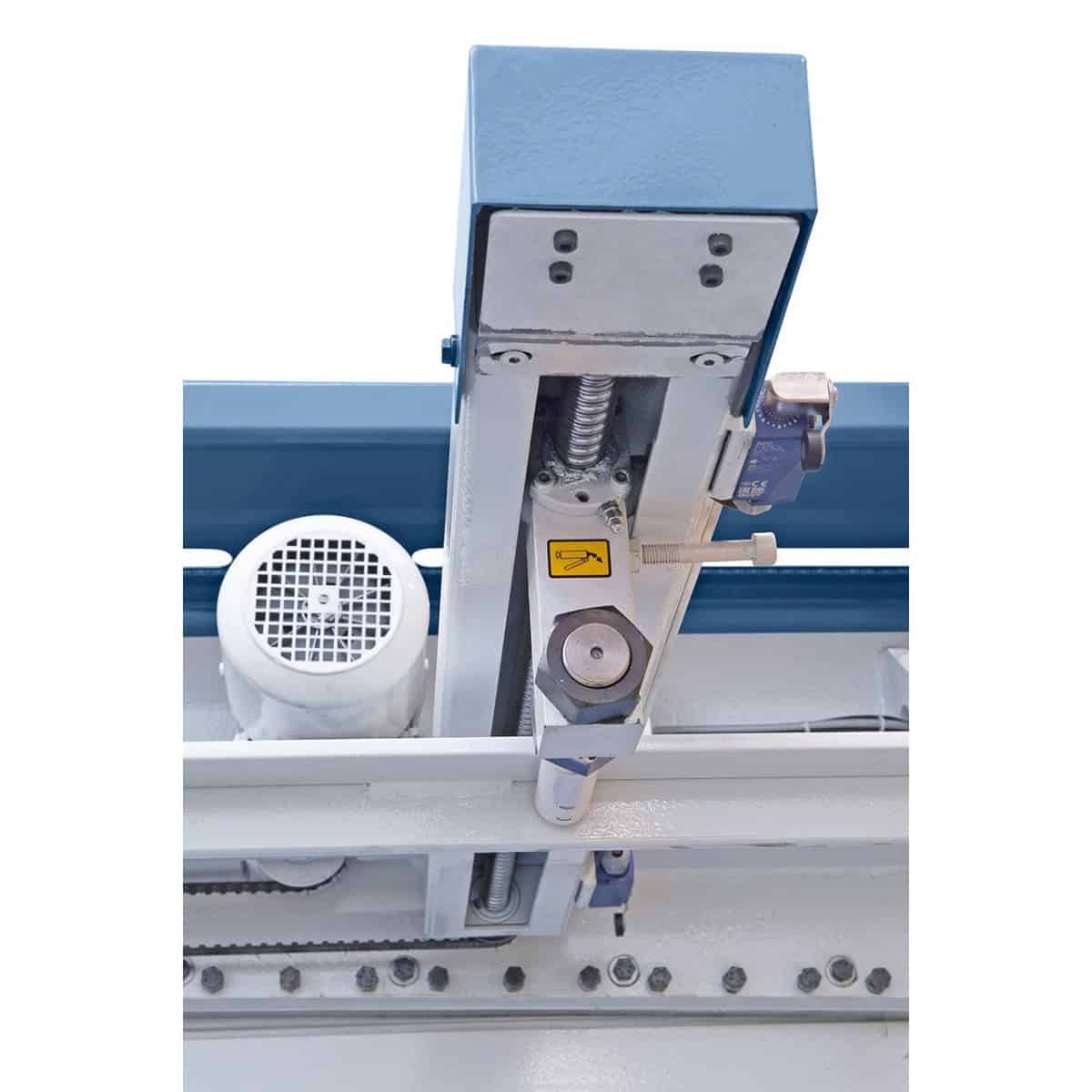

Motorised NC backgauge with ball screws

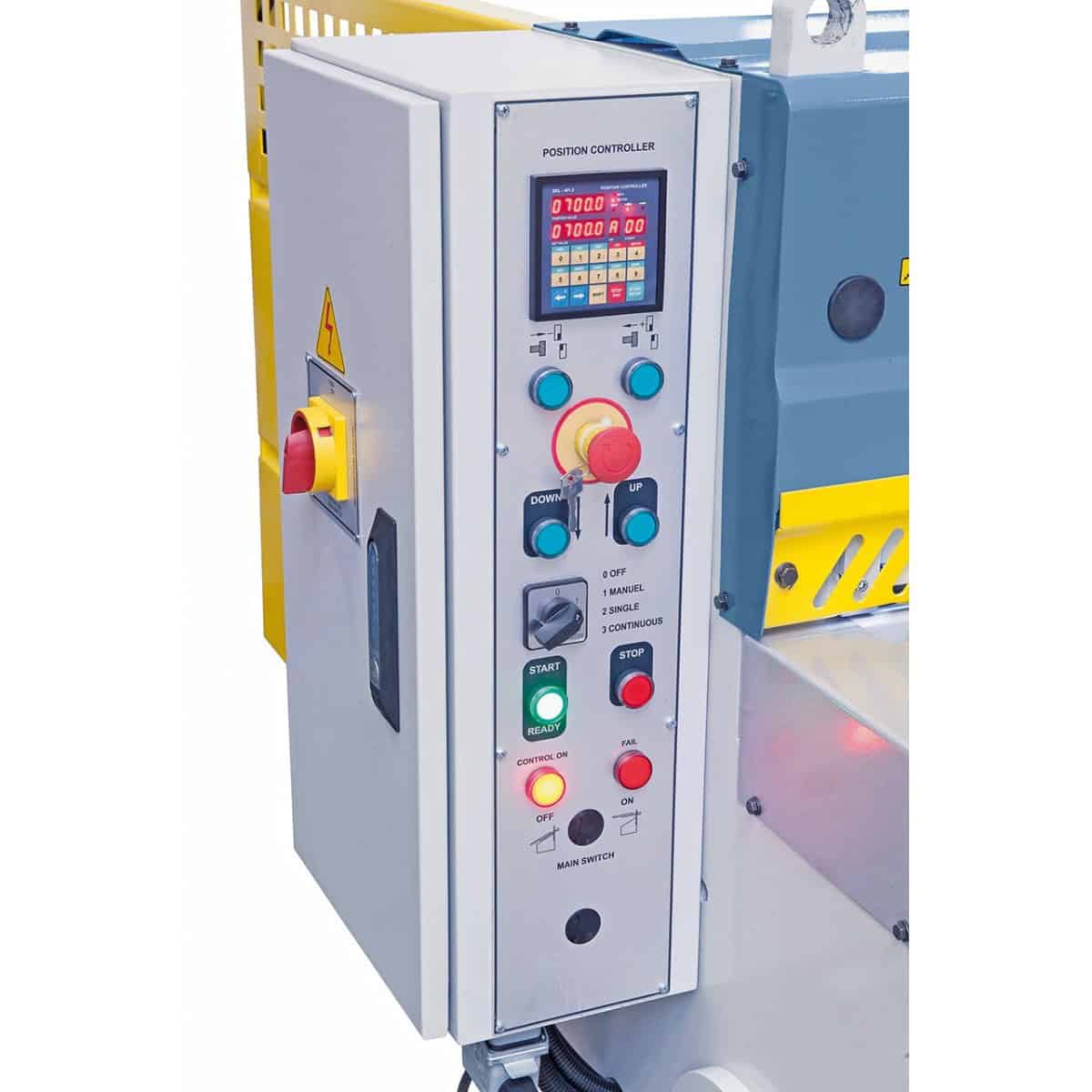

BRL 401.2 control panel with integrated counter and settings

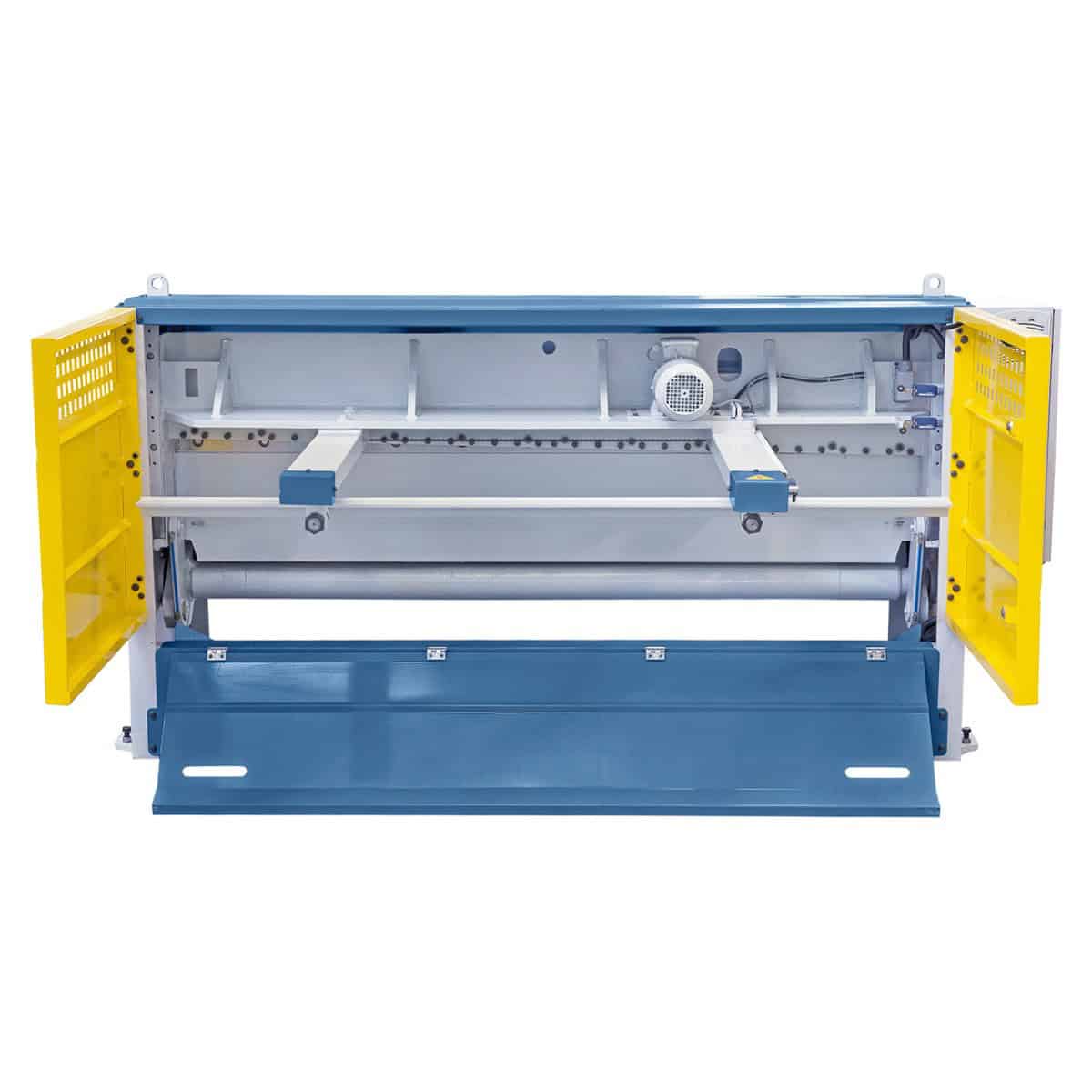

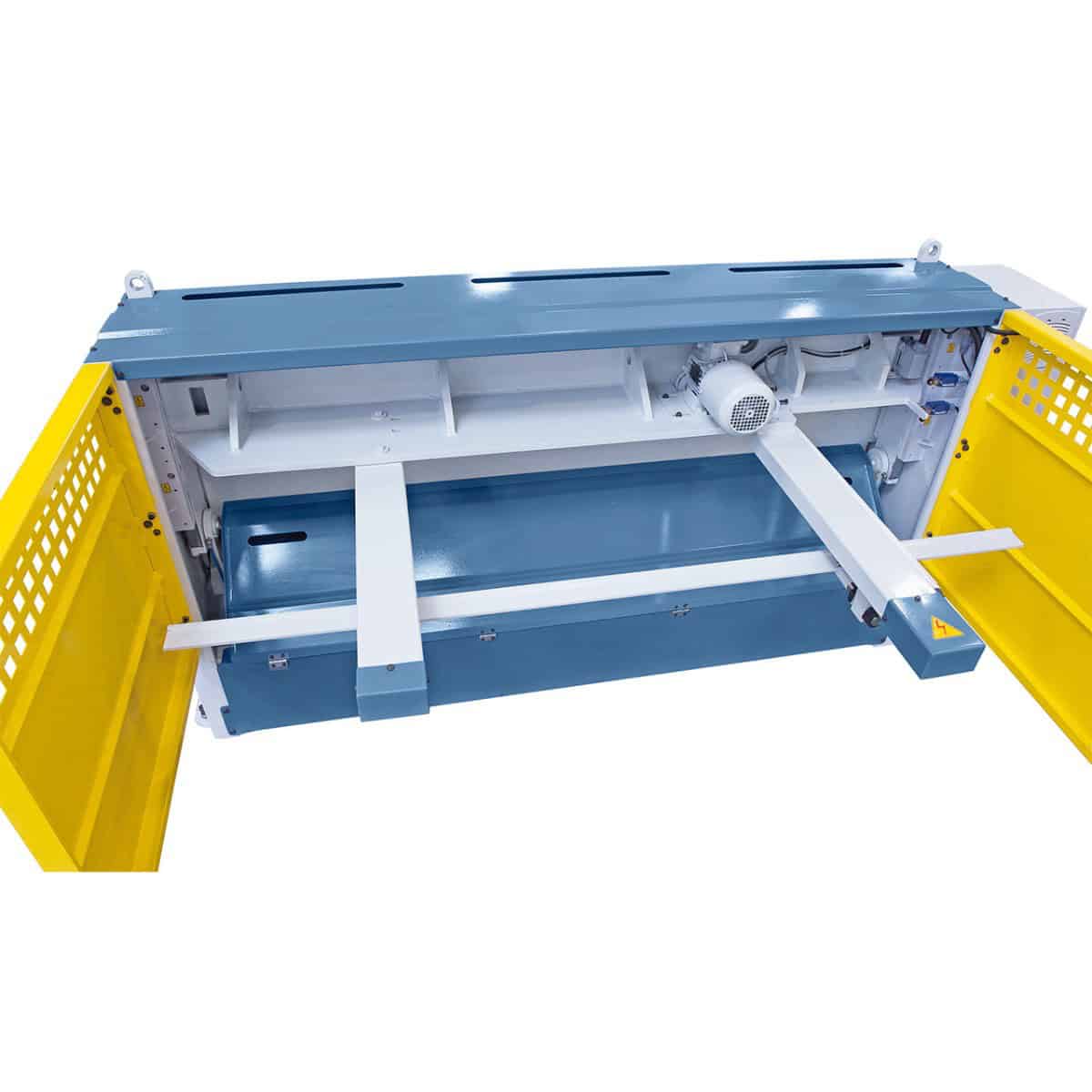

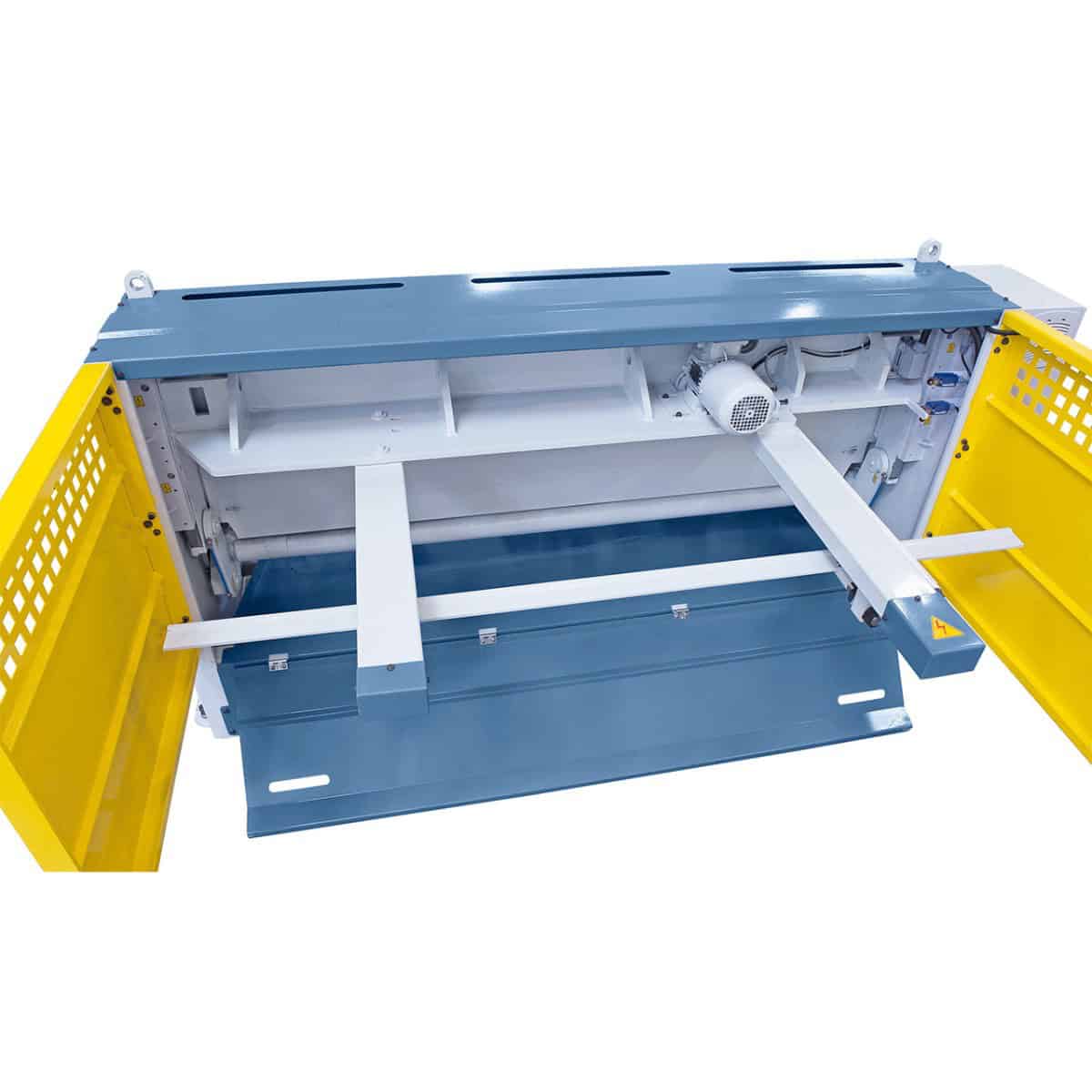

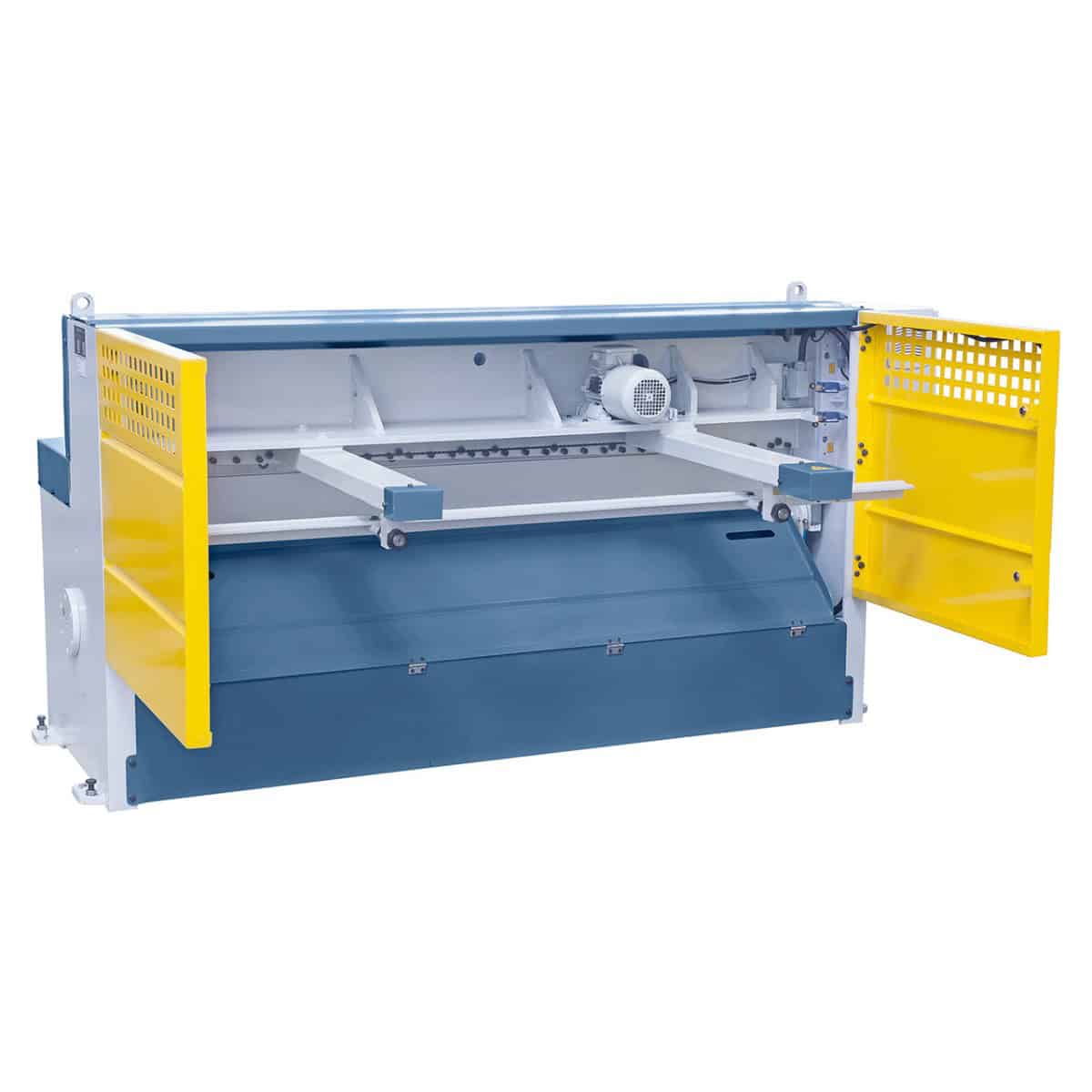

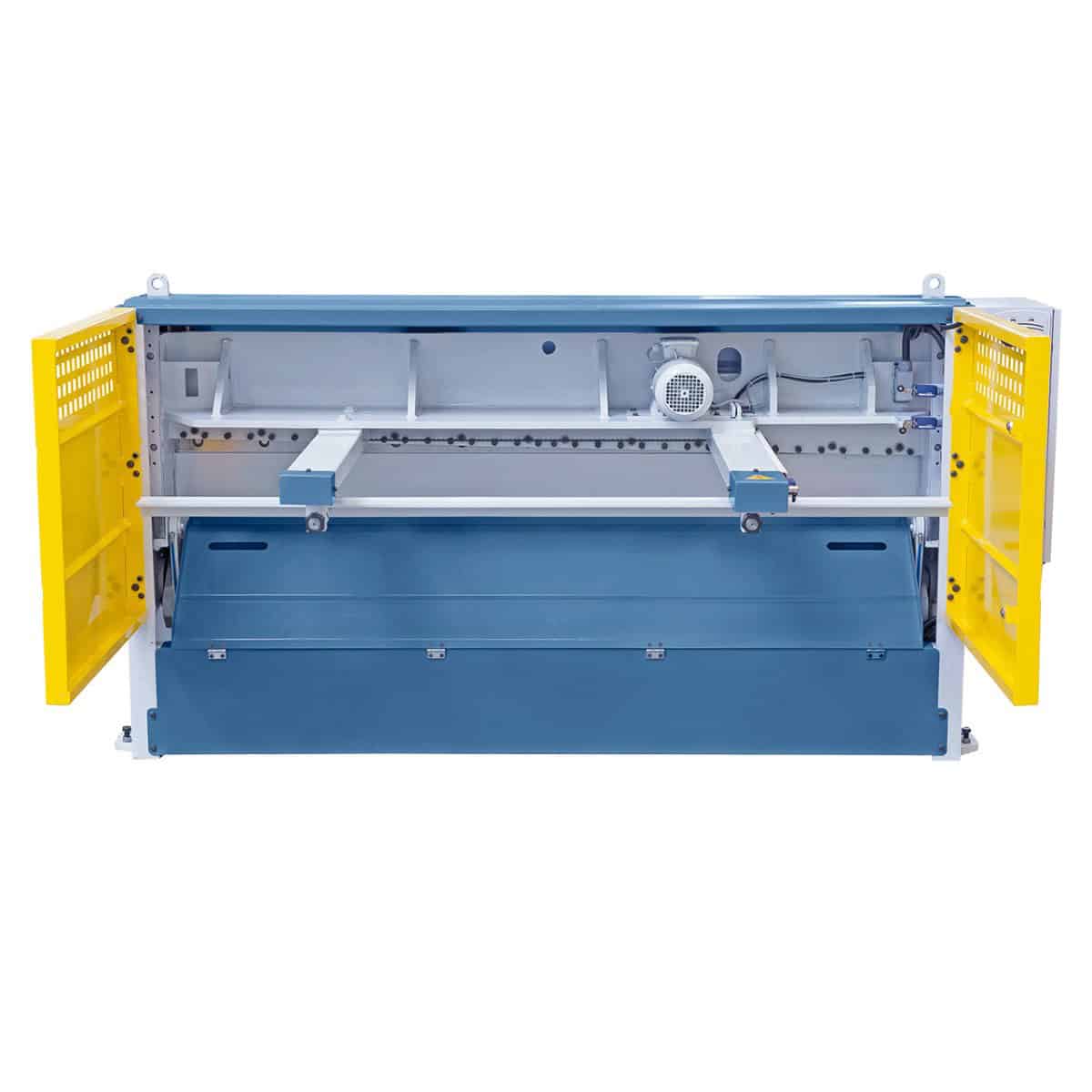

Frontal (max 400 mm) or rear sheet ejection
Double-edged upper and lower blades made of hardened steel
Table with integrated rollers and front support for large sheets
Cutting line illumination with integrated silhouette

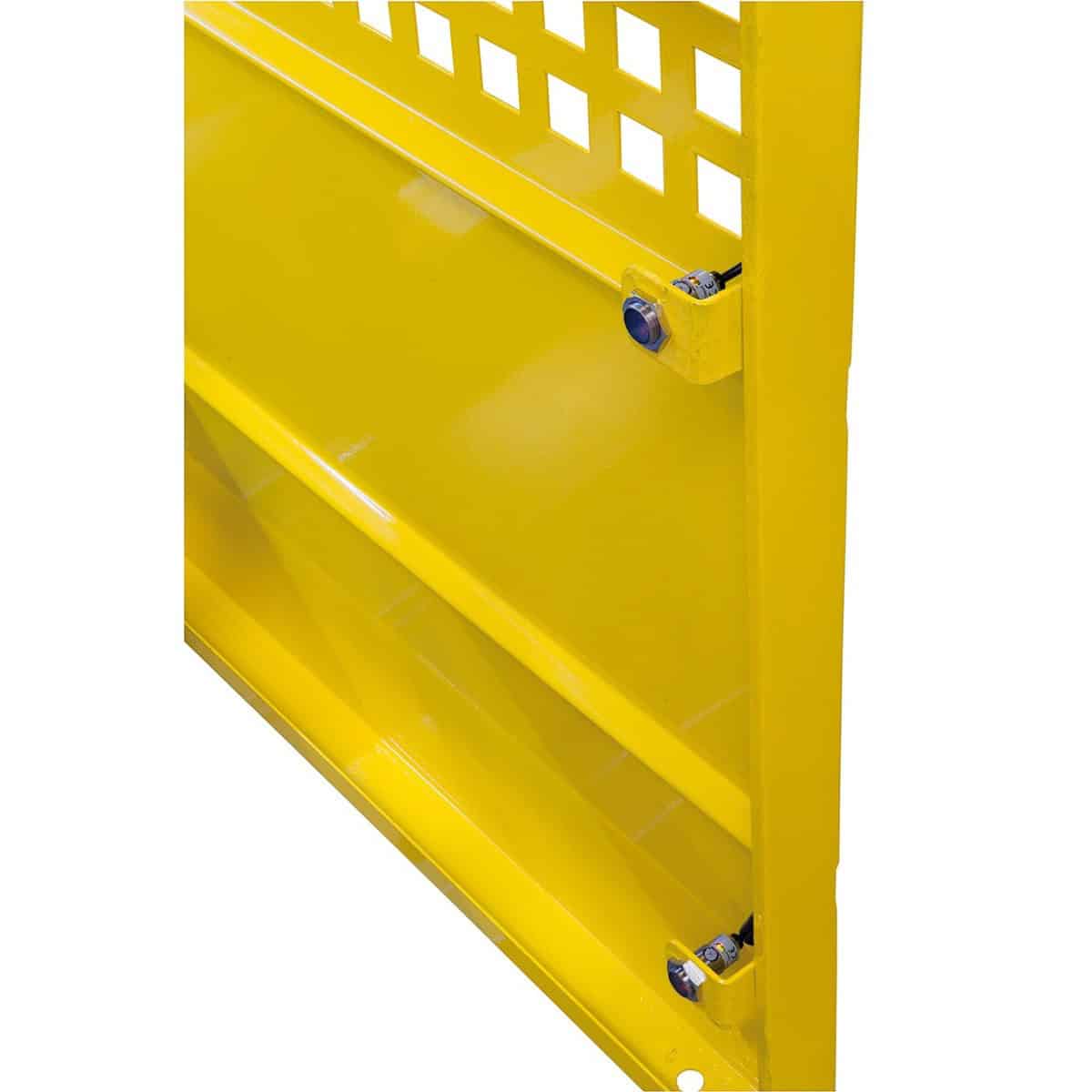

Safety guards with photocells and foot pedal with emergency stop
Robust welded steel structure for stability and durability

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MTE 2060 x 3 mm NCC
Type	Motorised guillotine shear with NC
Cutting length	2060 mm
Max sheet thickness*	3 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorised NC)
Table width	390 mm

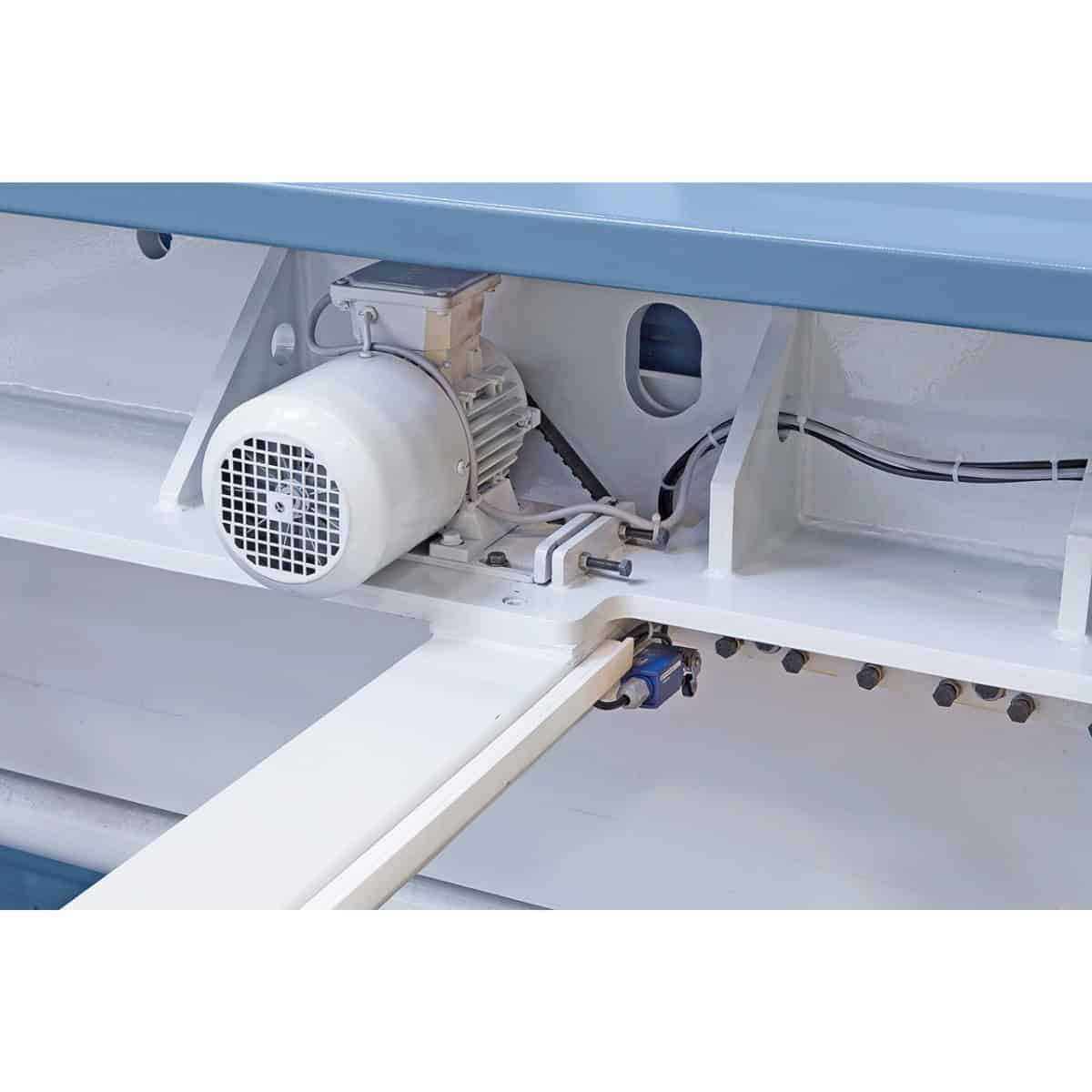

Motor power	4.0 kW
Dimensions (L x W x H)	2600 x 2100 x 1260 mm
Weight	1750 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTE 2060 x 3 mm NCC guillotine shear
Stroke counter
Cutting line illumination
Motorised NC backgauge
Front sheet support
Table with integrated rollers

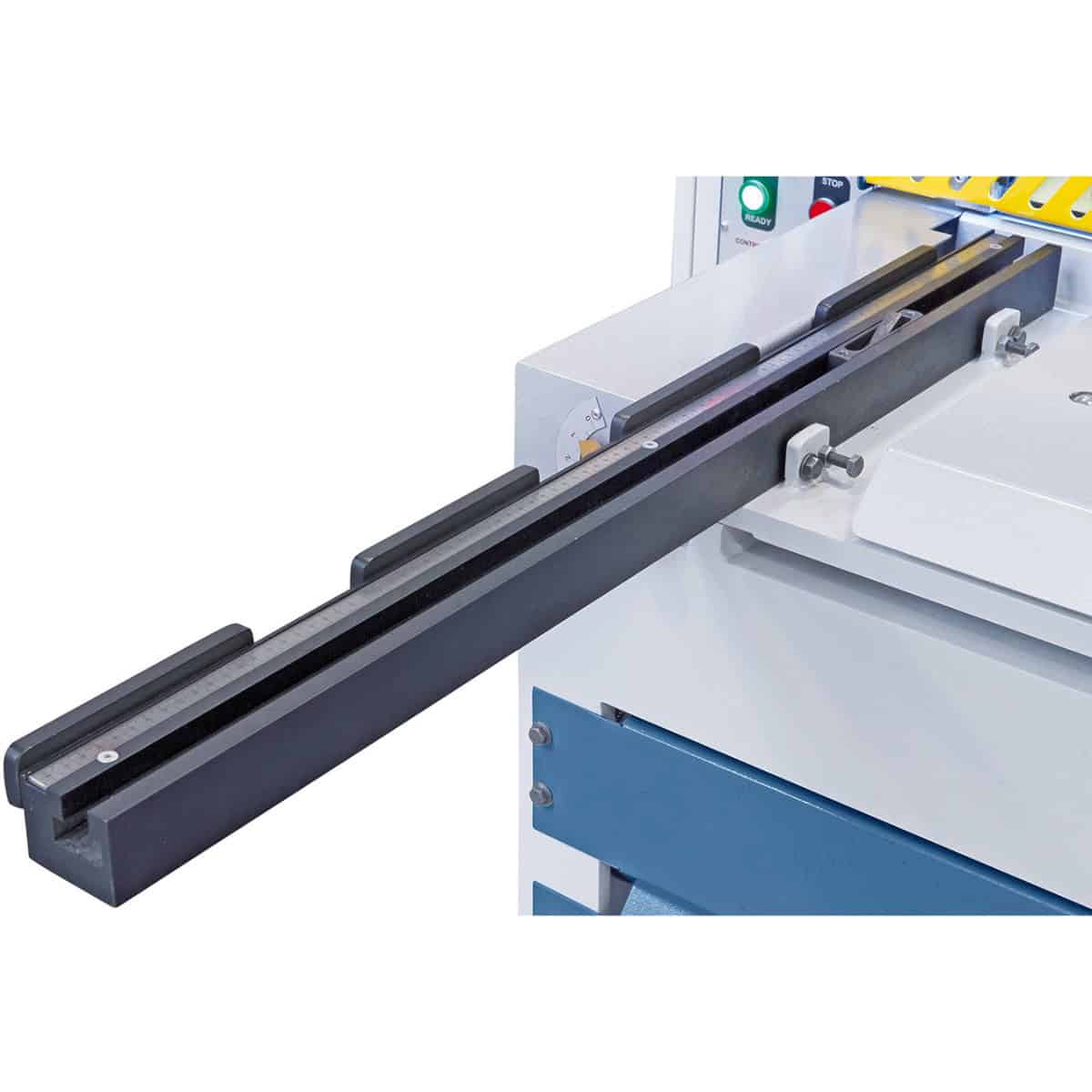

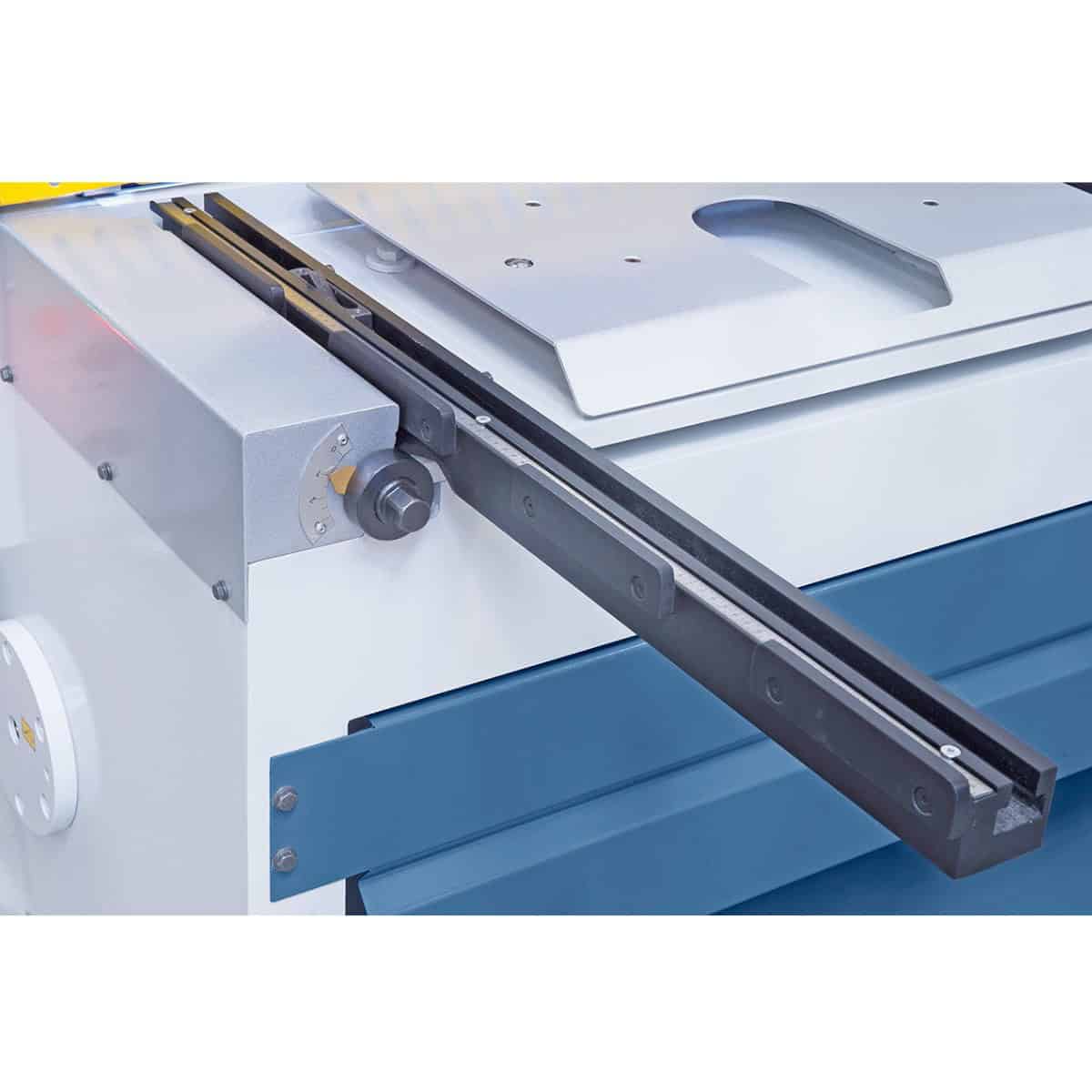

Side ruler backgauge

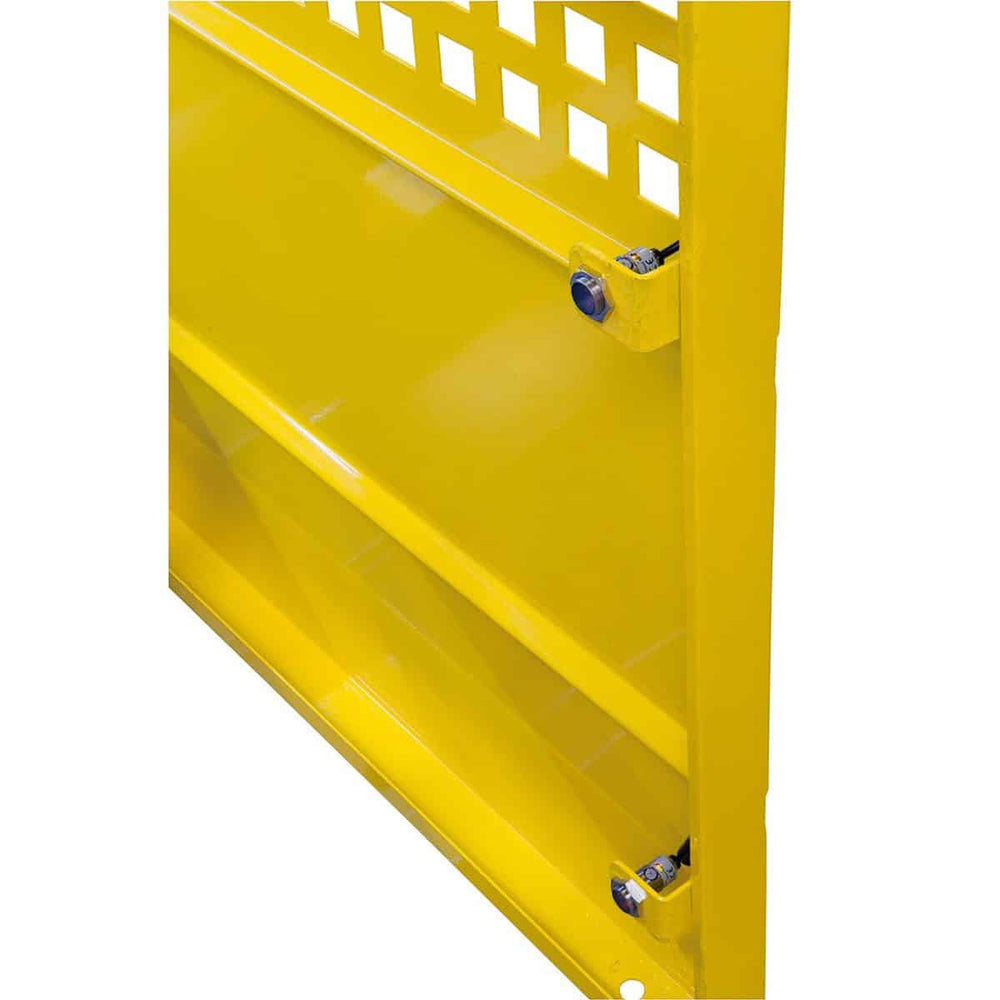

Photocell guards
NC BRL 401.2 panel

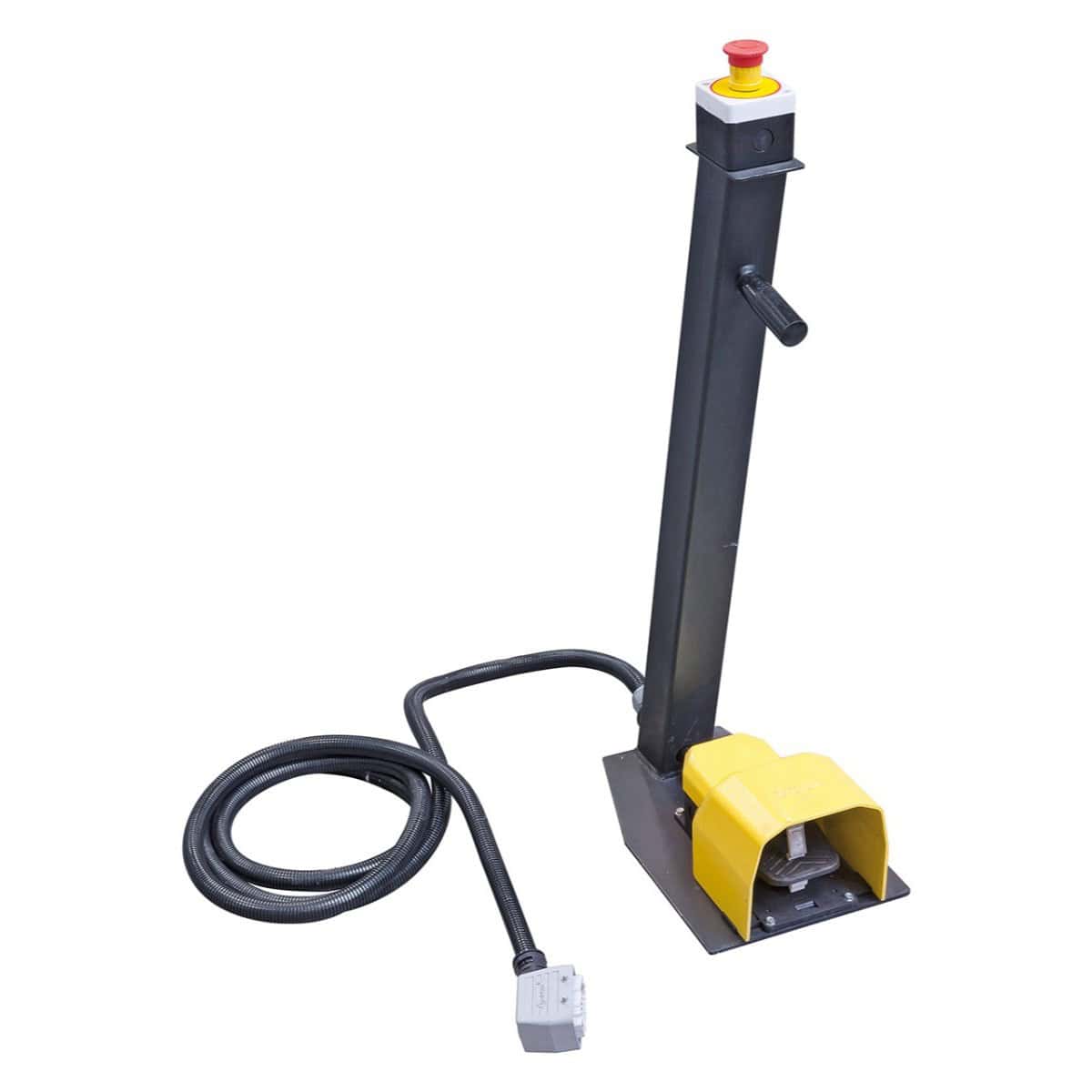

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Heavy machine: coordinate with Krollit for unloading equipment. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE and MTR series?

MTA: manual structure without NC motorisation, for low-volume artisan production. MTE: motorised with NC, standard electro-welded structure. MTR: motorised with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on the production volume and the format of the processed sheets.

What is the maximum thickness for stainless steel with the Bernardo MTE 2060 x 3 mm NCC – Guillotine shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 working days shipping.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet handling, free space at least equal to the cutting length (2060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
