Description

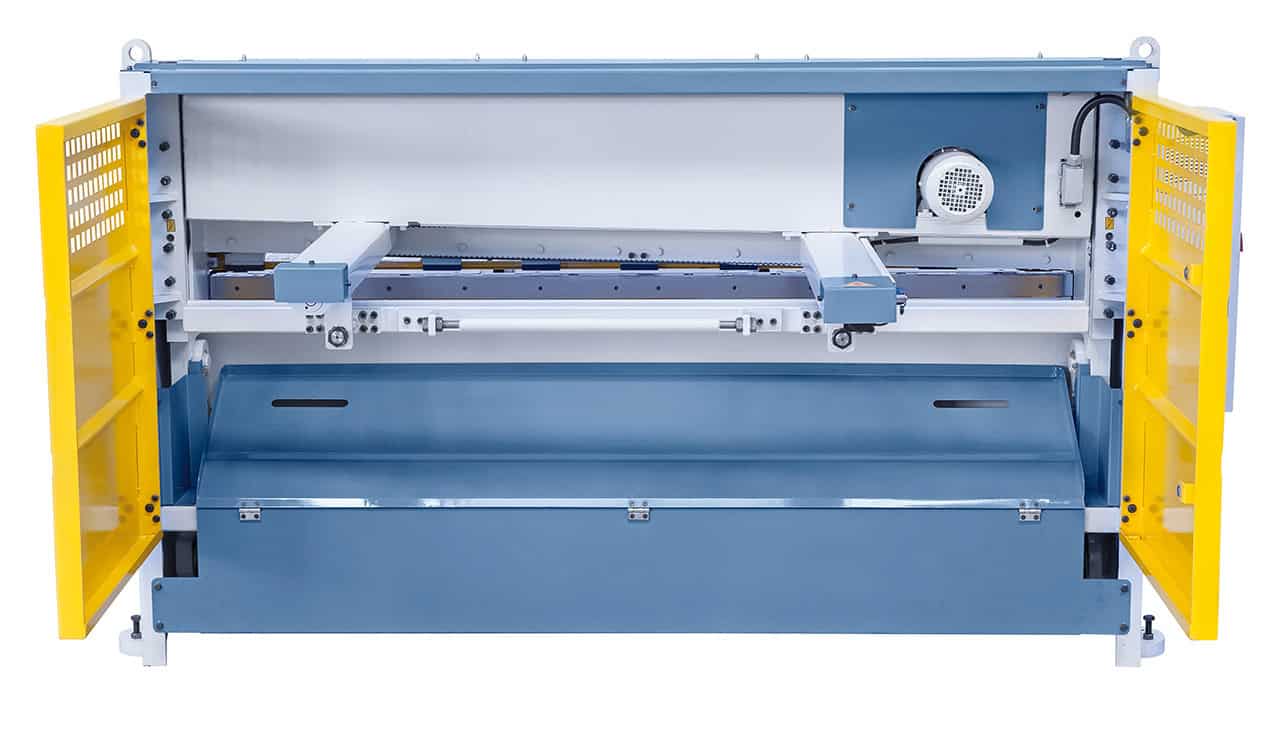

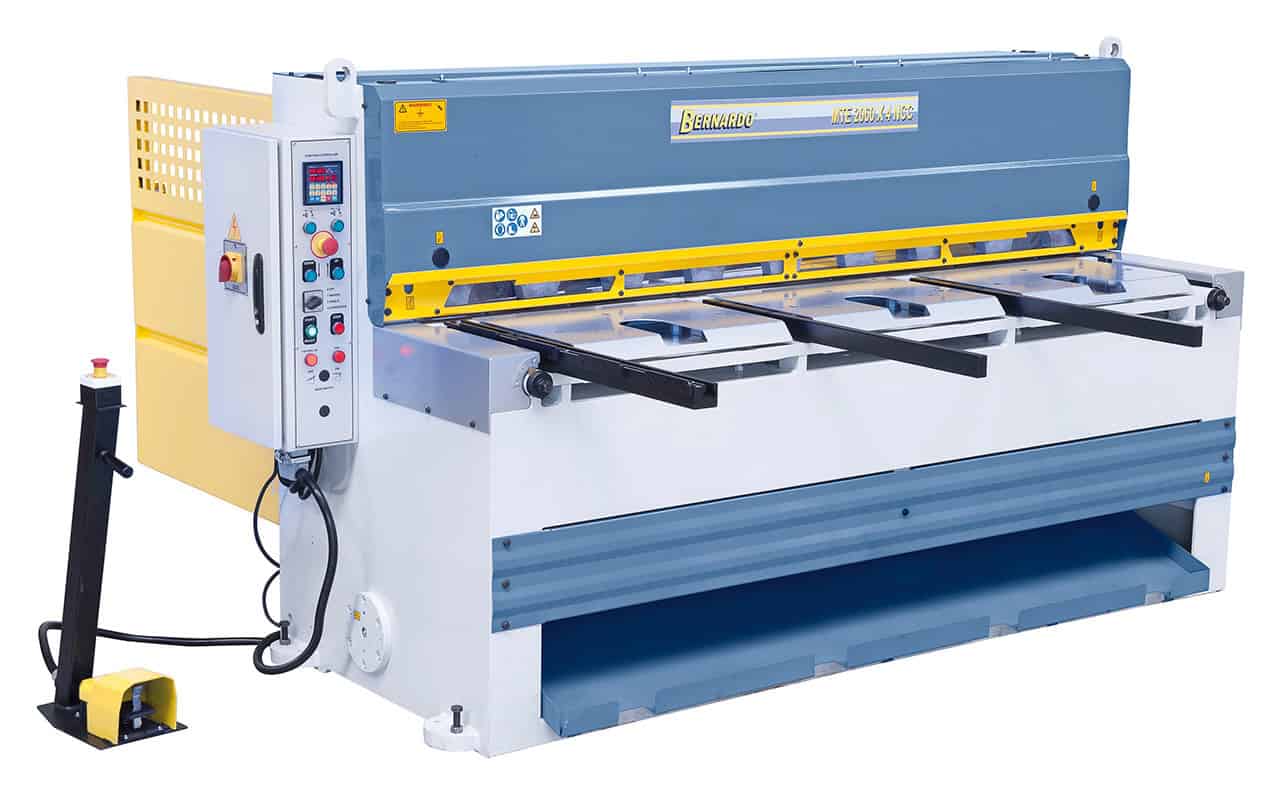

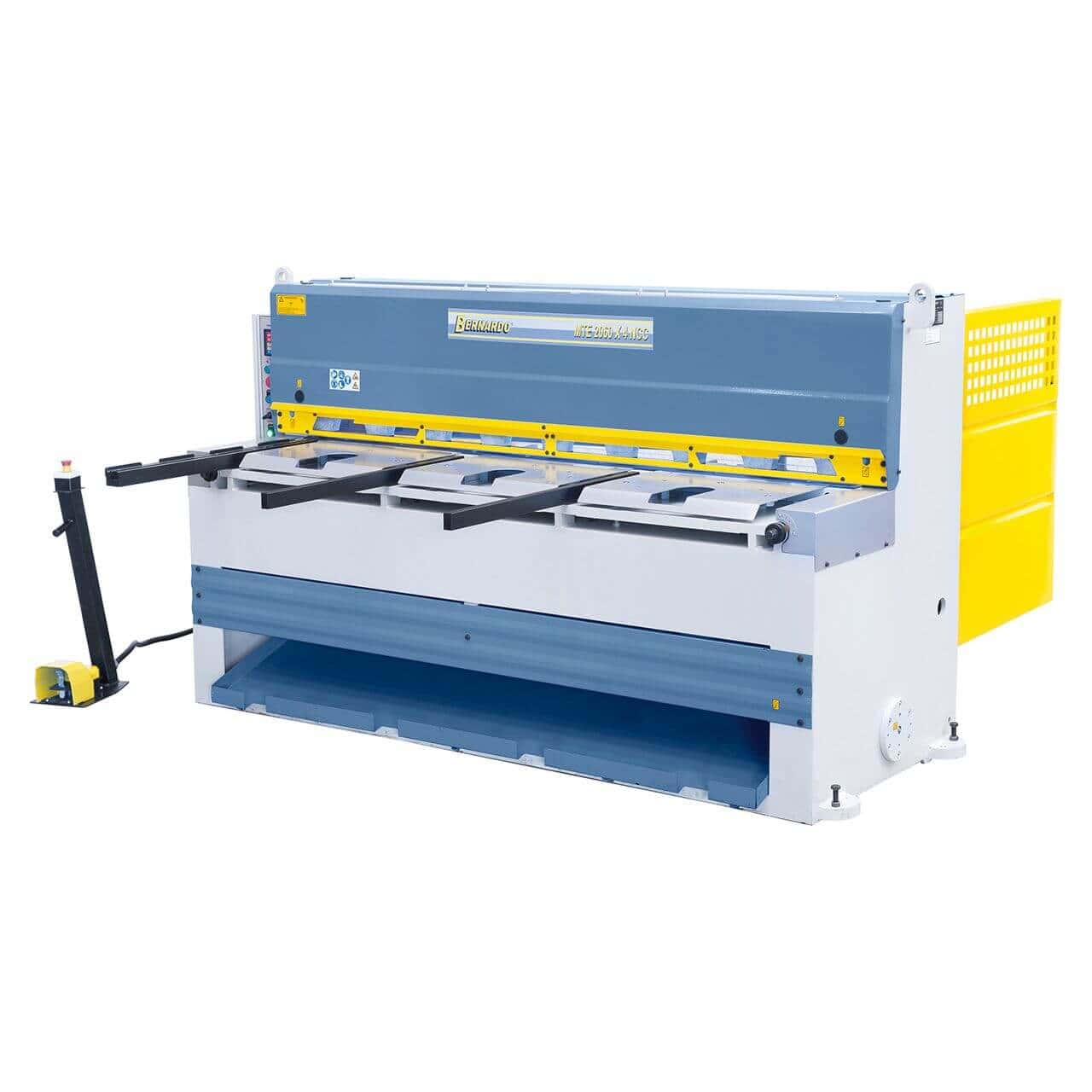

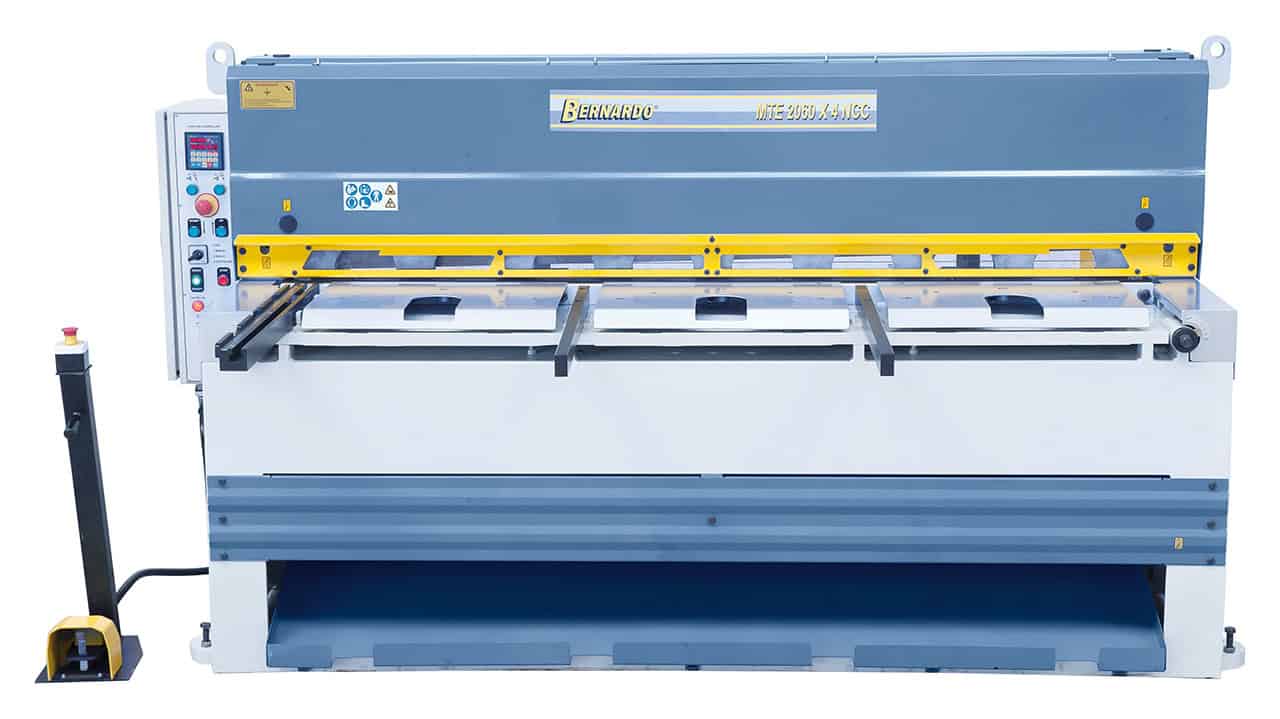

The Bernardo MTE 2060 × 4 NCC motorized guillotine shear cuts sheet metal up to 4 mm (400 N/mm²) over 2060 mm length, 1°30'° cutting angle, 31 strokes/min, 0–750 mm motorized NC back gauge, 800 mm working height, 7.5 kW motor. Weight 3000 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Cutting length: 2060 mm
- Max. sheet thickness (400 N/mm²): 4 mm
- Cutting angle: 1°30'°
- Strokes/min: 31
- Working height: 800 mm

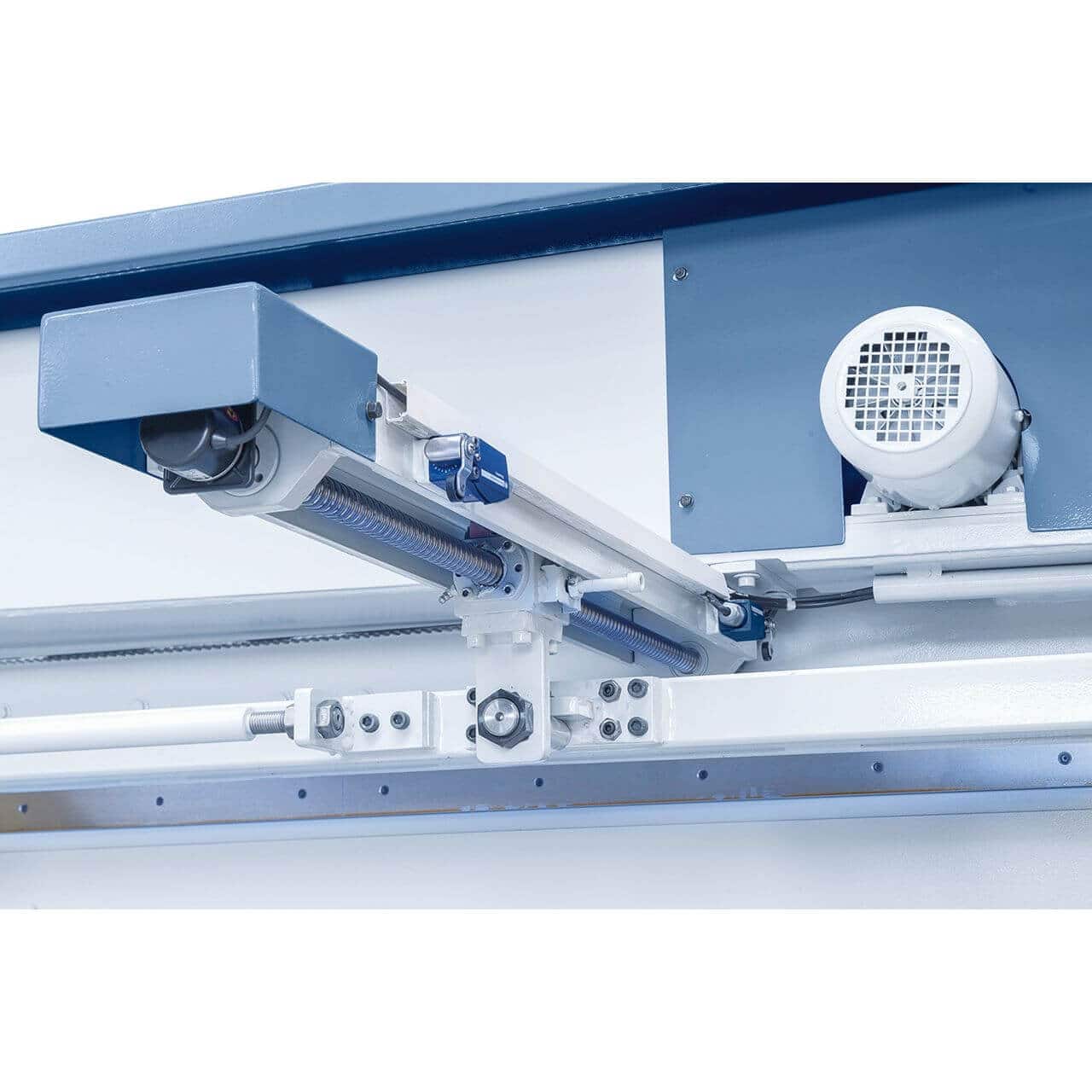

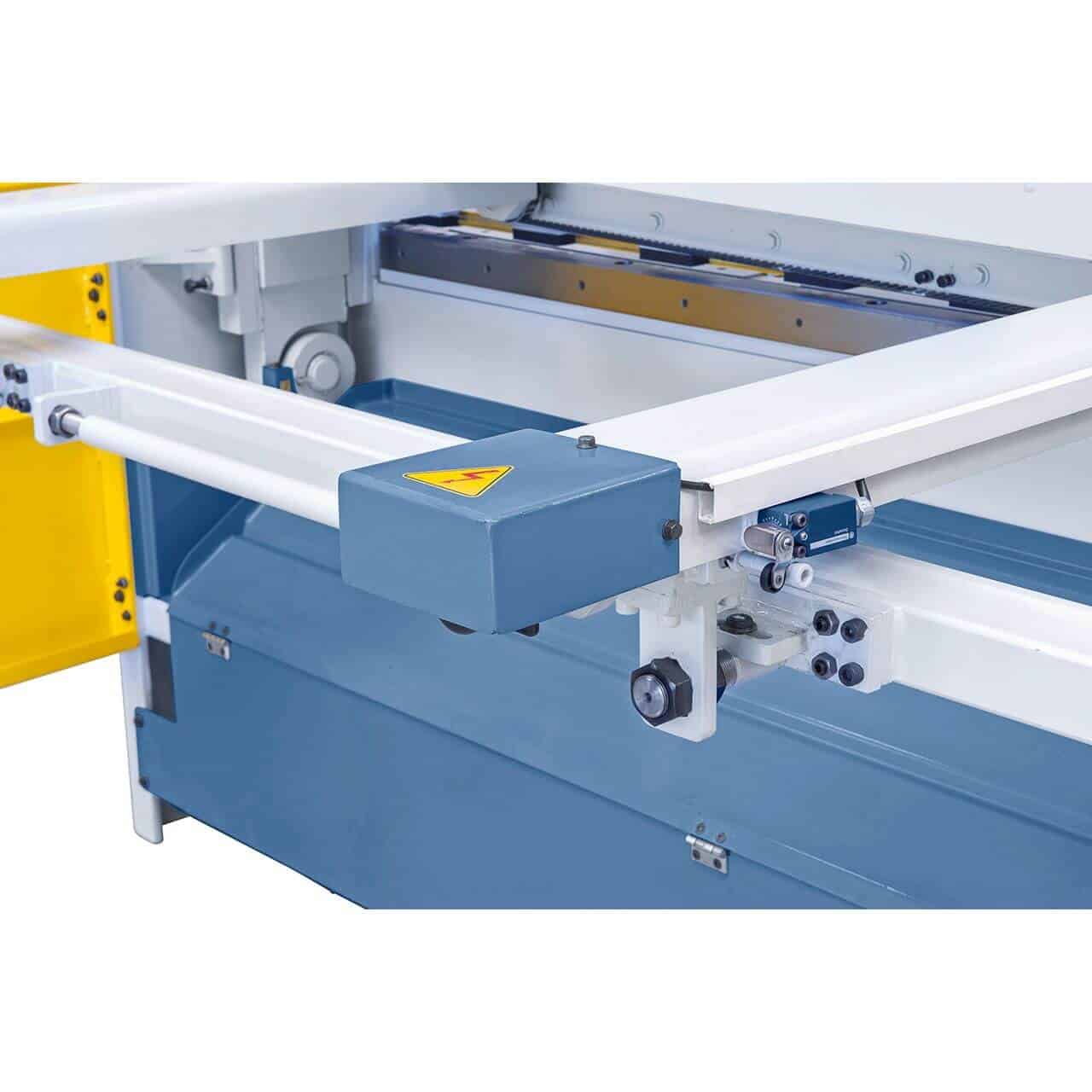

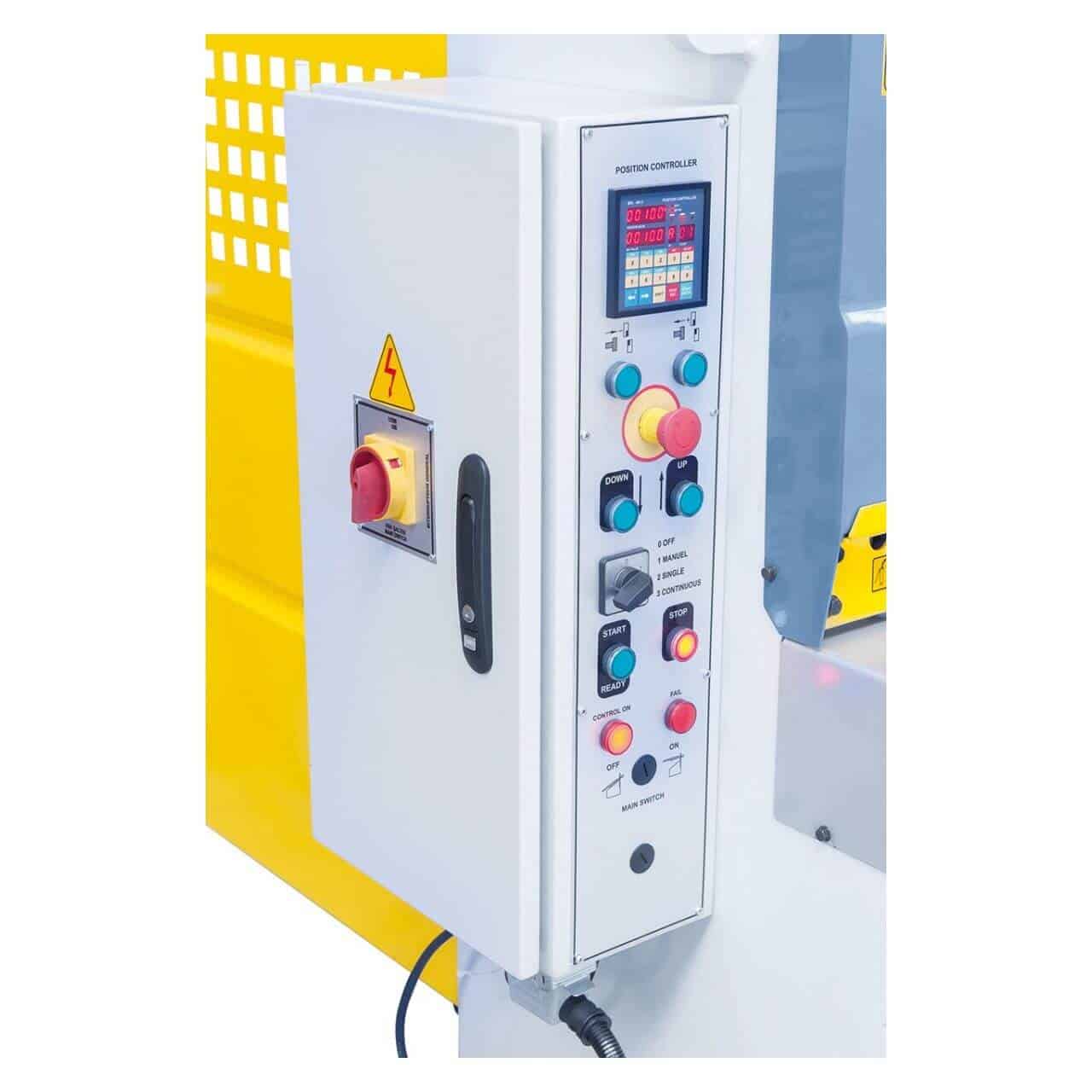

- Back gauge: 0–750 mm (motorized NC)

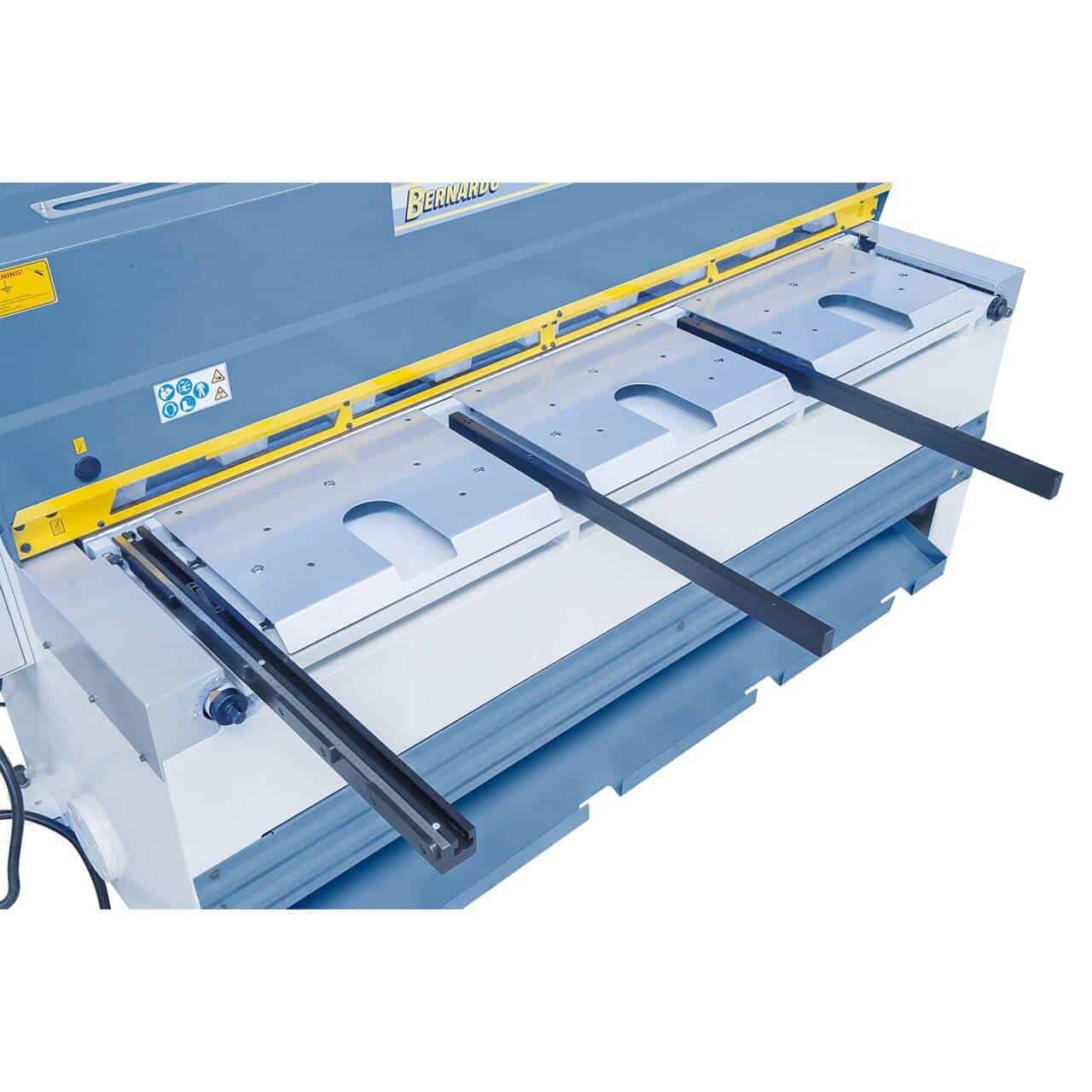

- Table width: 455 mm
- Motor: 7.5 kW
- Weight: 3000 kg
Who uses the MTE 2060 × 4 NCC and for what
The Bernardo MTE 2060 × 4 NCC is a motorized guillotine shear (MTE series) for industrial sheet metal cutting in continuous production. With 31 strokes/min over 2060 mm length and motorized NC back gauge, it is sized for cutting centers, sheet metal fabricators, and metal structure manufacturers who process sheet metal in series with constant quality and repeatability. The MTE series is the basic version with a welded steel structure without pneumatic support: suitable for standard production where the sheet is positioned manually. In Krollit customers' workshops, it is used by sheet metal cutting centers, metal roofing manufacturers, and sheet metal component producers.
Who is the Bernardo MTE 2060 × 4 NCC for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist / light craftsman | Not suitable | 3000 kg industrial shear with NC control. Not suitable for non-professional use. |
| Cutting center / sheet metal fabricator | Ideal | 2060 mm × 4 mm, 31 cpm, NC back gauge: for continuous production with industrial quality and repeatability. |
| High-volume industrial production | Ideal | The motorized NC back gauge and 31 strokes/min ensure the productivity needed for high cutting volumes. |
Not suitable for: sheets over 4 mm; low-volume artisan use (manual PTS or HSG shears have a much lower cost); installations without adequate space for 3000 kg and 2800 mm length.
Technical specifications
| Specification | Value |
|---|---|
| Cutting length | 2060 mm |
| Max. sheet thickness (400 N/mm²) | 4 mm |
| Cutting angle | 1°30'° |
| Strokes per minute | 31 |
| Working height | 800 mm |
| Back gauge | 0–750 mm (motorized NC) |
| Table width | 455 mm |

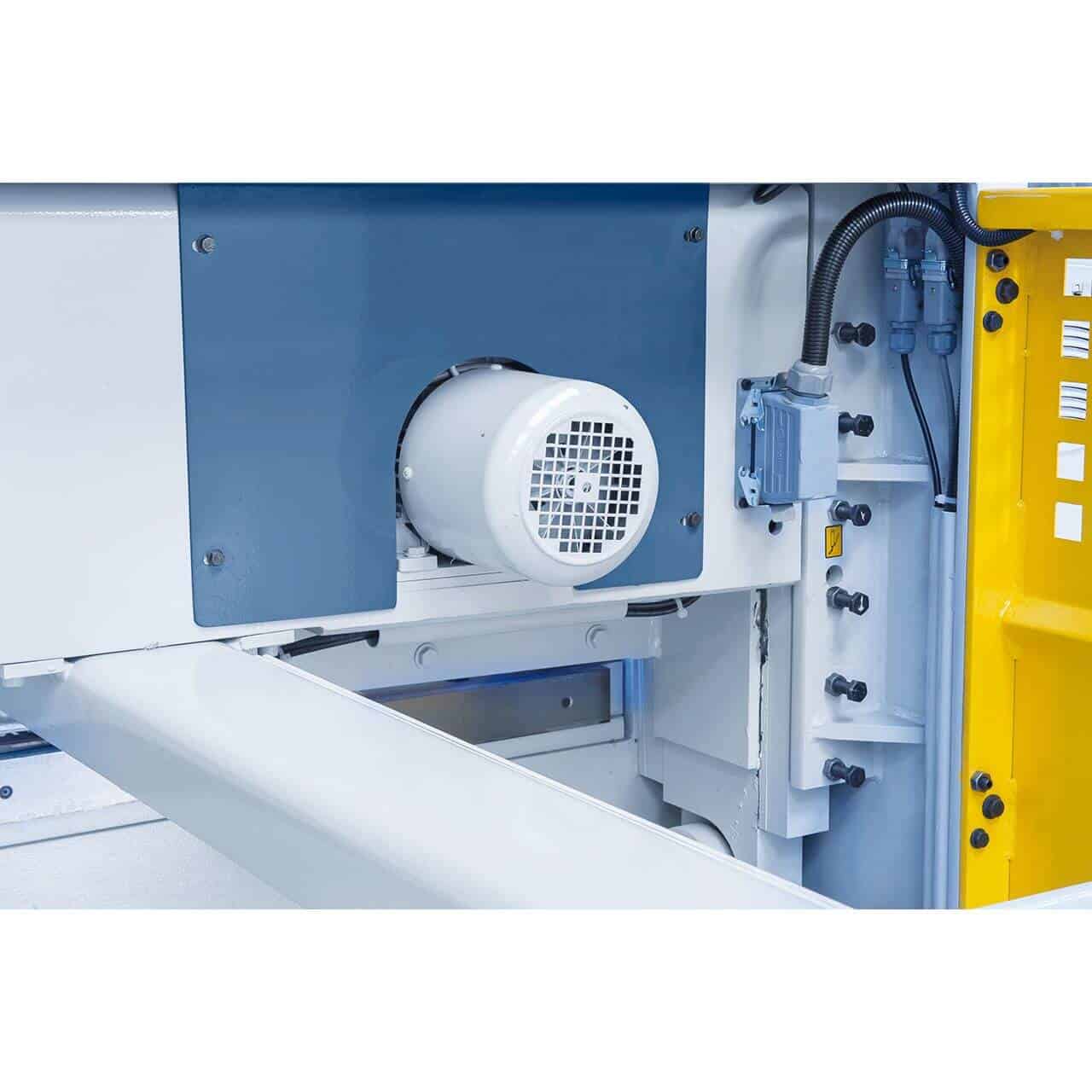

| Motor power | 7.5 kW |
| Dimensions (L × W × H) | 2800 x 2250 x 1400 mm |
| Weight | 3000 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Logistics
Bernardo shipping: 5–9 working days (7 days in the South). With 3000 kg, delivery requires appropriate unloading equipment: coordinate with Krollit before delivery. Original spare parts available with 3–5 working days shipping. Italian customer support available.
Frequently Asked Questions
What is the difference between the MTE series and the MTR series?
Both have a motorized NC back gauge, the same number of strokes (31/min), and a similar structure. The MTR adds pneumatic sheet support: pins that lift the sheet metal during positioning, reducing friction, which is crucial for long (over 2,000 mm) or heavy sheets. The MTE does not have this support — the sheet slides directly on the table. For standard production on light sheet metal, the MTE is sufficient; for heavy sheet metal or large formats, the MTR significantly facilitates the operator's work.
What is the maximum thickness for stainless steel?
The nominal thickness of 4 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.6 mm). Always check with Krollit for specific high-strength materials.
Are the blades reversible?
Yes. The shear blades have 4 cutting edges: when one edge is worn, the blade is rotated to expose the next cutting edge before complete replacement. Original Bernardo replacement blades are available with 3–5 working days shipping.
Is three-phase power required?
Yes. The 7.5 kW motor requires 400V three-phase power. Verify the availability of a three-phase system at the installation site before ordering.
How much space is needed for installation?
Footprint 2800 x 2250 x 1400 mm. For sheet handling, free space at least equal to the cutting length (2060 mm) is needed in front of and behind the machine. With 3000 kg, coordinate with Krollit for the necessary unloading equipment.
