Bernardo MTE 2520 x 2.5 mm NCC – Motorised Guillotine Shear

Bernardo MTE 2520 x 2.5 mm NCC – Motorized Guillotine Shear

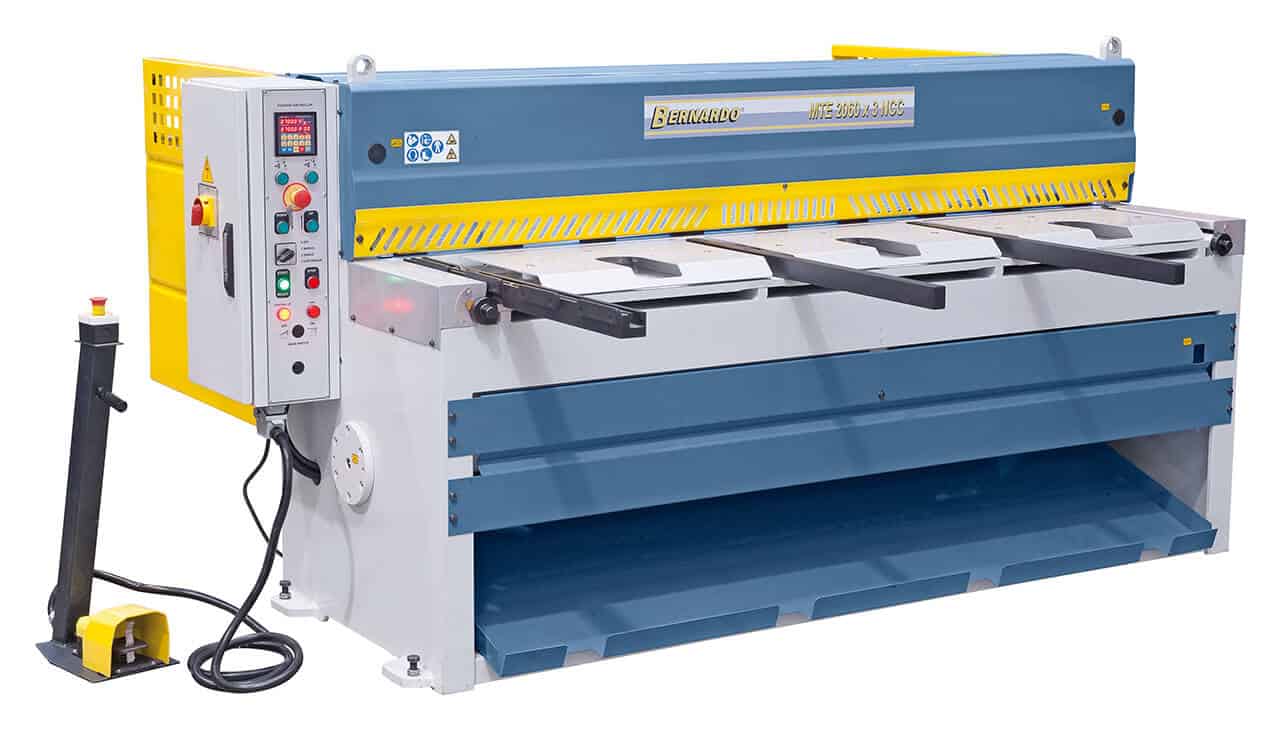

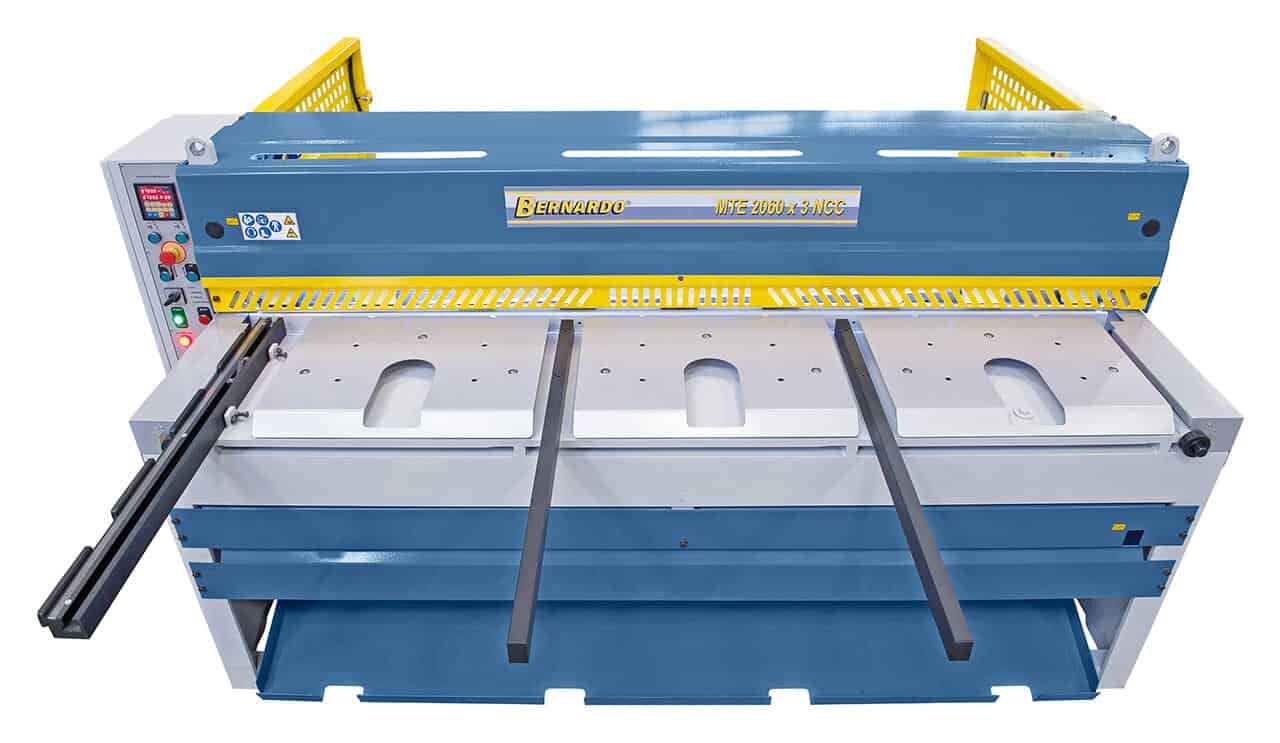

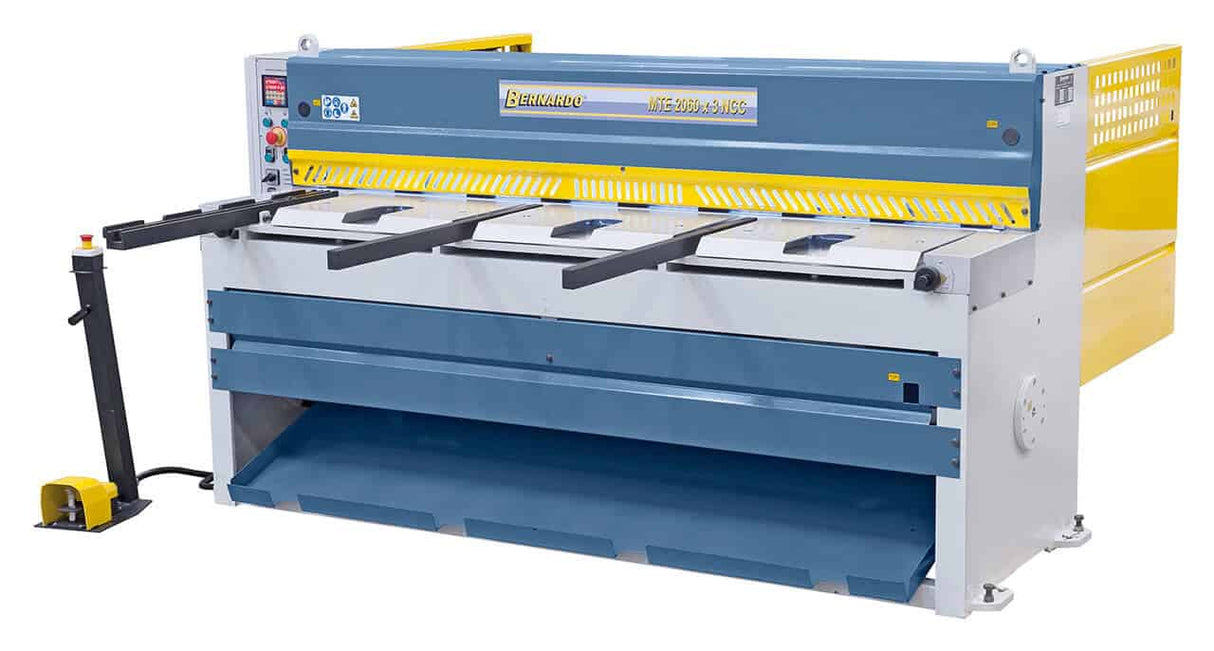

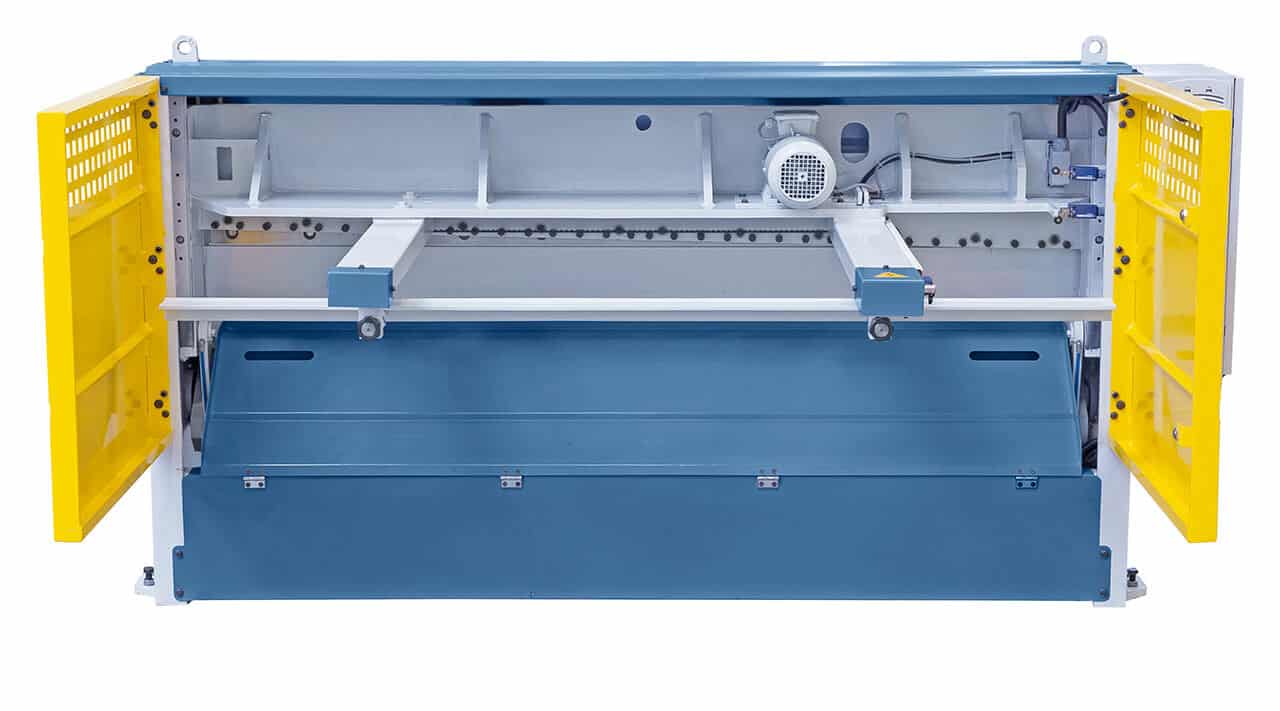

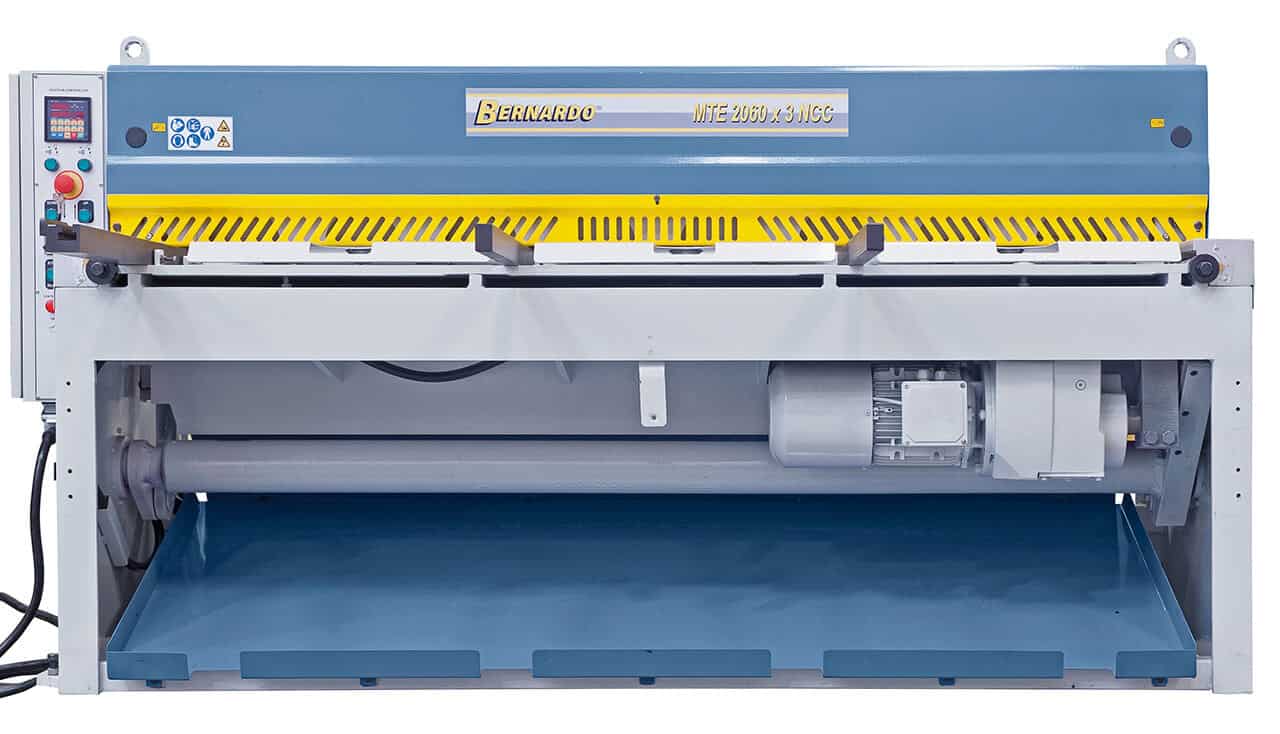

The Bernardo MTE 2520 x 2.5 mm NCC is a professional motorized guillotine shear, designed for cutting sheet metal up to 2.5 mm thick (400 N/mm²) and 2520 mm long. It is equipped with a motorized NC backgauge with ball screws and a BRL 401.2 control panel, ensuring precision and speed in adjustments. The double hardened steel blades allow for clean, burr-free cuts, while the 1°30’ cutting angle ensures clean results even on large surfaces. The table with integrated rollers and front supports makes sheet metal handling easy, while ejection can occur from the front (up to 400 mm) or rear. With a 4.0 kW motor and a robust 1950 kg steel structure, the MTE 2520 x 2.5 mm NCC is the ideal choice for workshops and companies that require a compact, precise, and safe shear.

---

Main features:
2520 mm cutting length for large sheet metal
Capacity up to 2.5 mm thick (400 N/mm² steel)

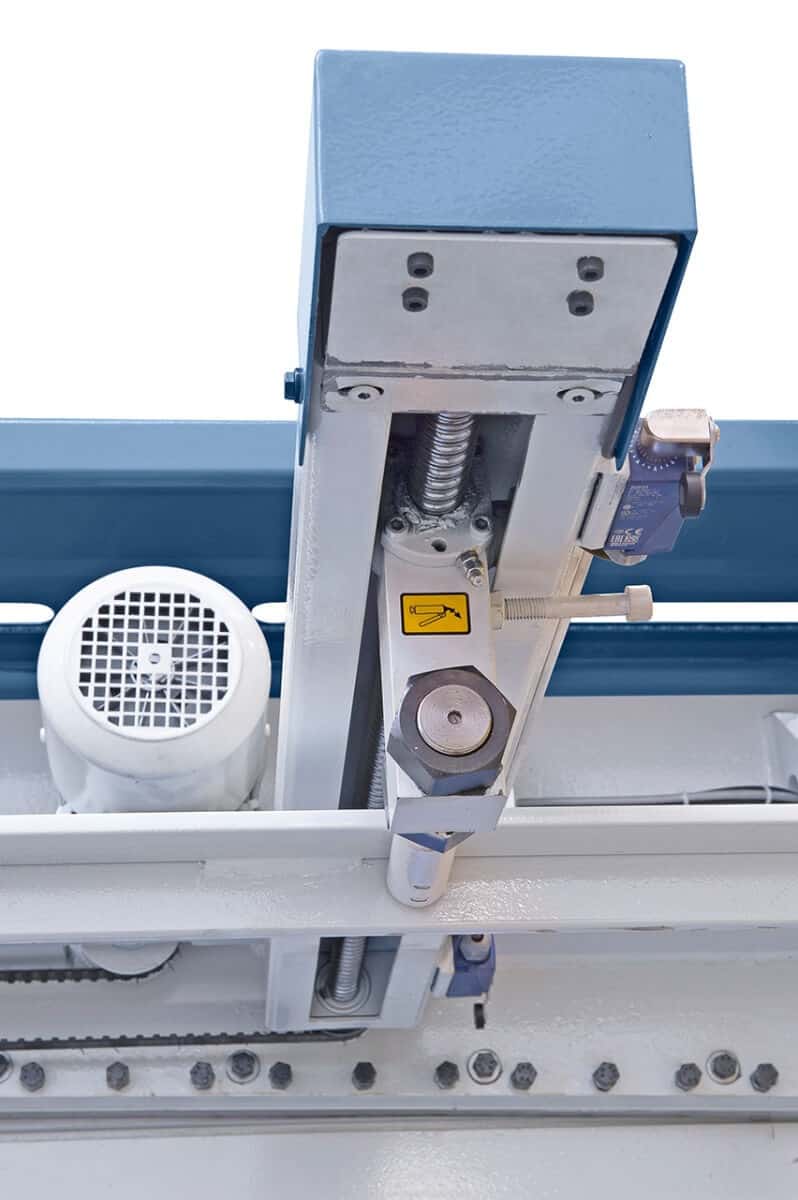

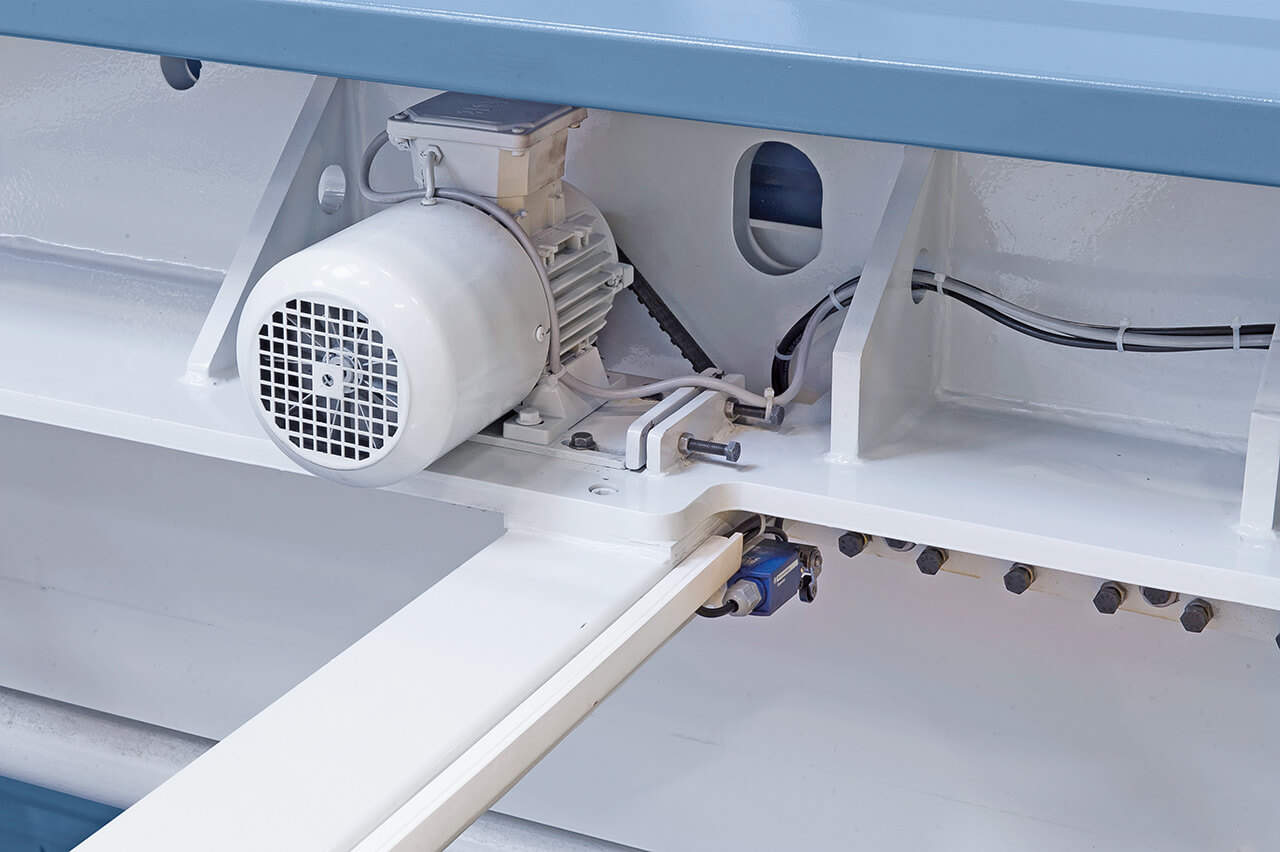

Motorized NC backgauge with ball screws

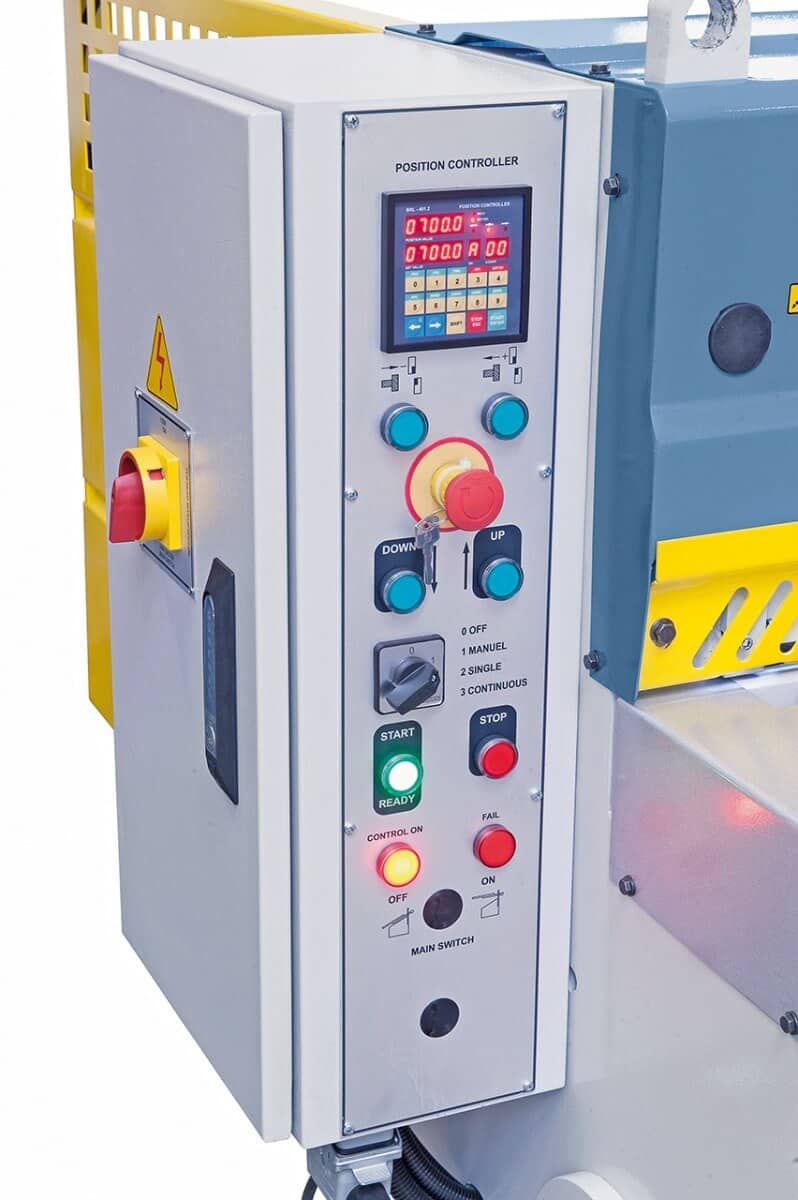

BRL 401.2 control panel with integrated counter and settings
Front (up to 400 mm) or rear sheet ejection
Double-edged hardened steel top and bottom blades
Table with integrated rollers and front support
Cutting line illumination with silhouette

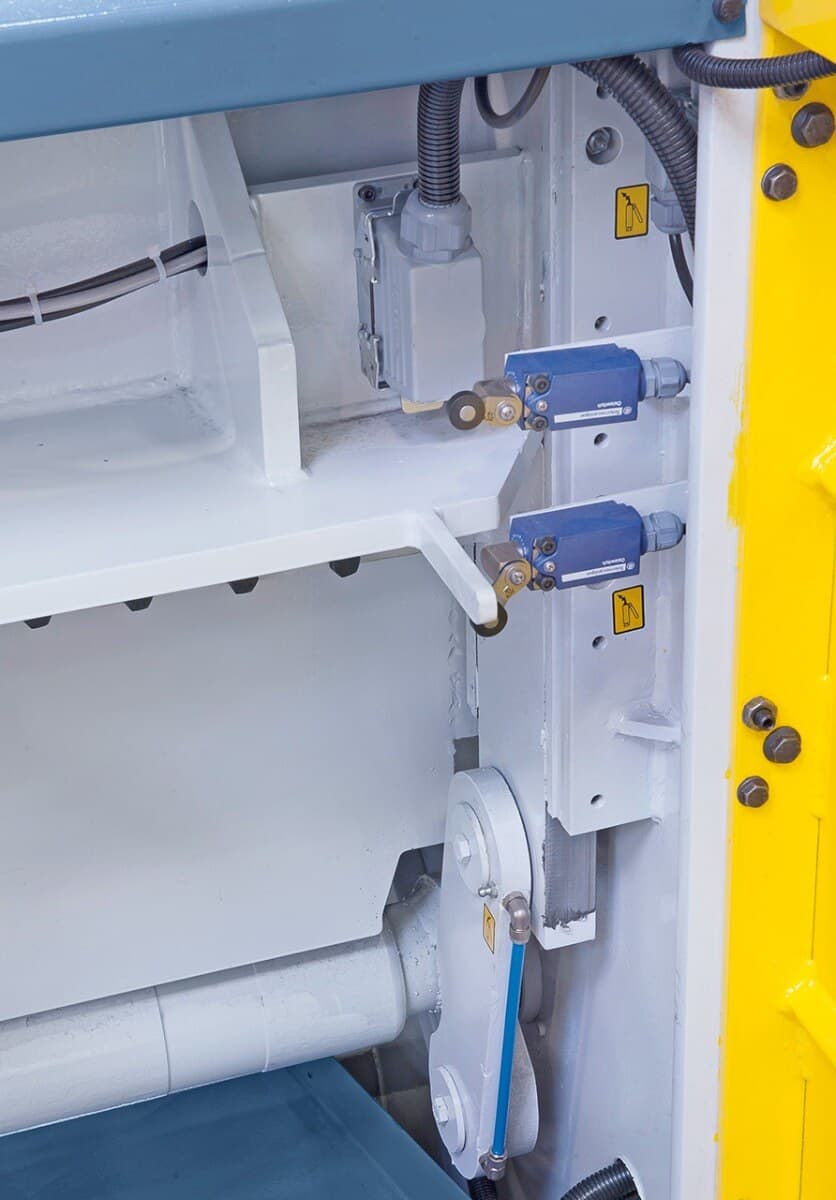

Photocell safety guards and foot pedal with emergency stop
Robust, torsionally rigid steel structure

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTE 2520 x 2.5 mm NCC
Type	Motorized Guillotine Shear with NC
Cutting length	2520 mm
Max sheet thickness*	2.5 mm

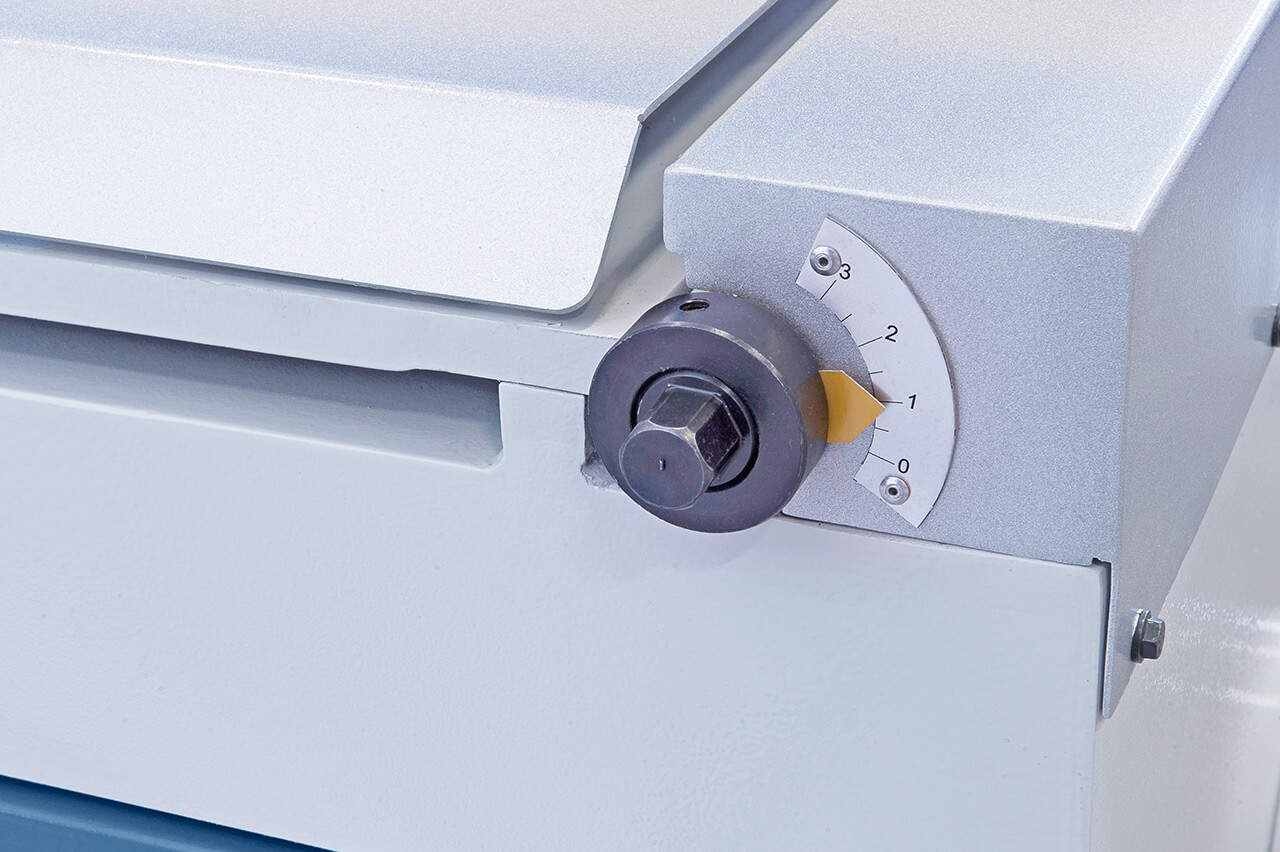

Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorized NC)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	3150 x 2100 x 1260 mm
Weight	1950 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTE 2520 x 2.5 mm NCC Guillotine Shear
Cut counter
Cutting line illumination
Motorized NC backgauge
Front sheet support
Table with integrated rollers

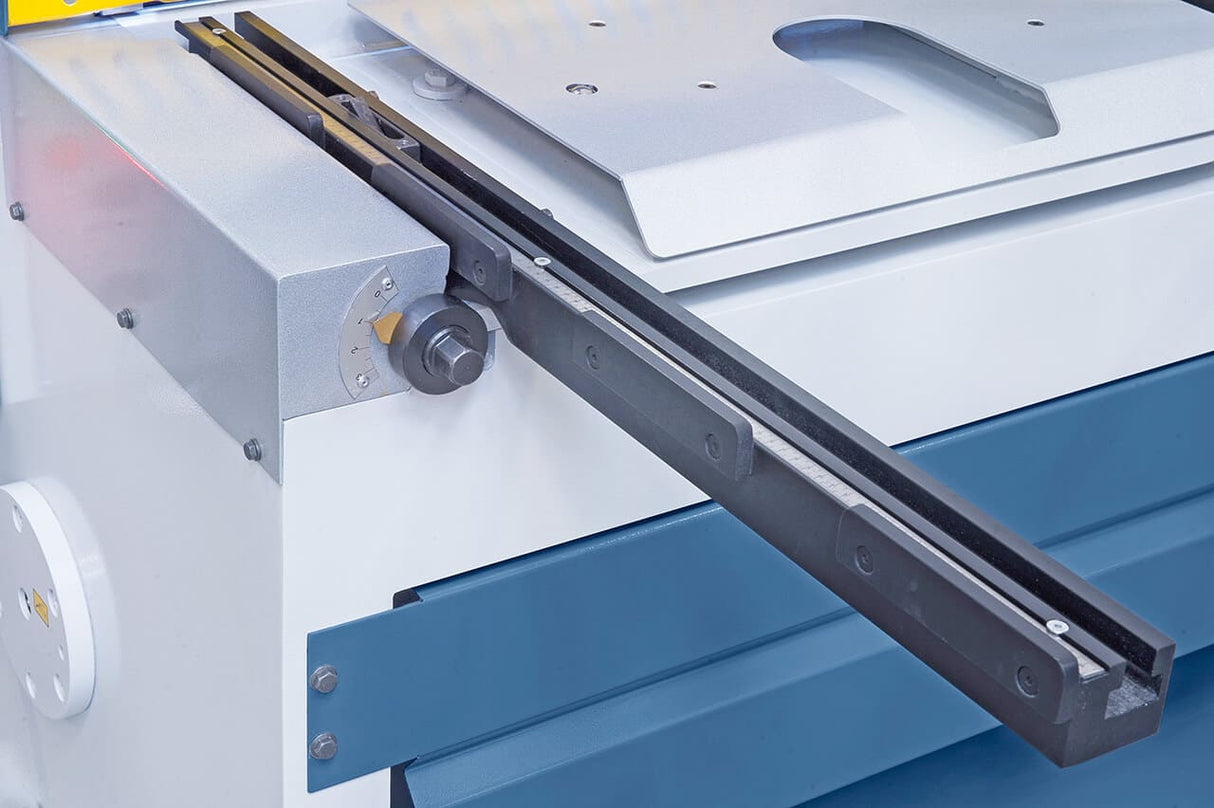

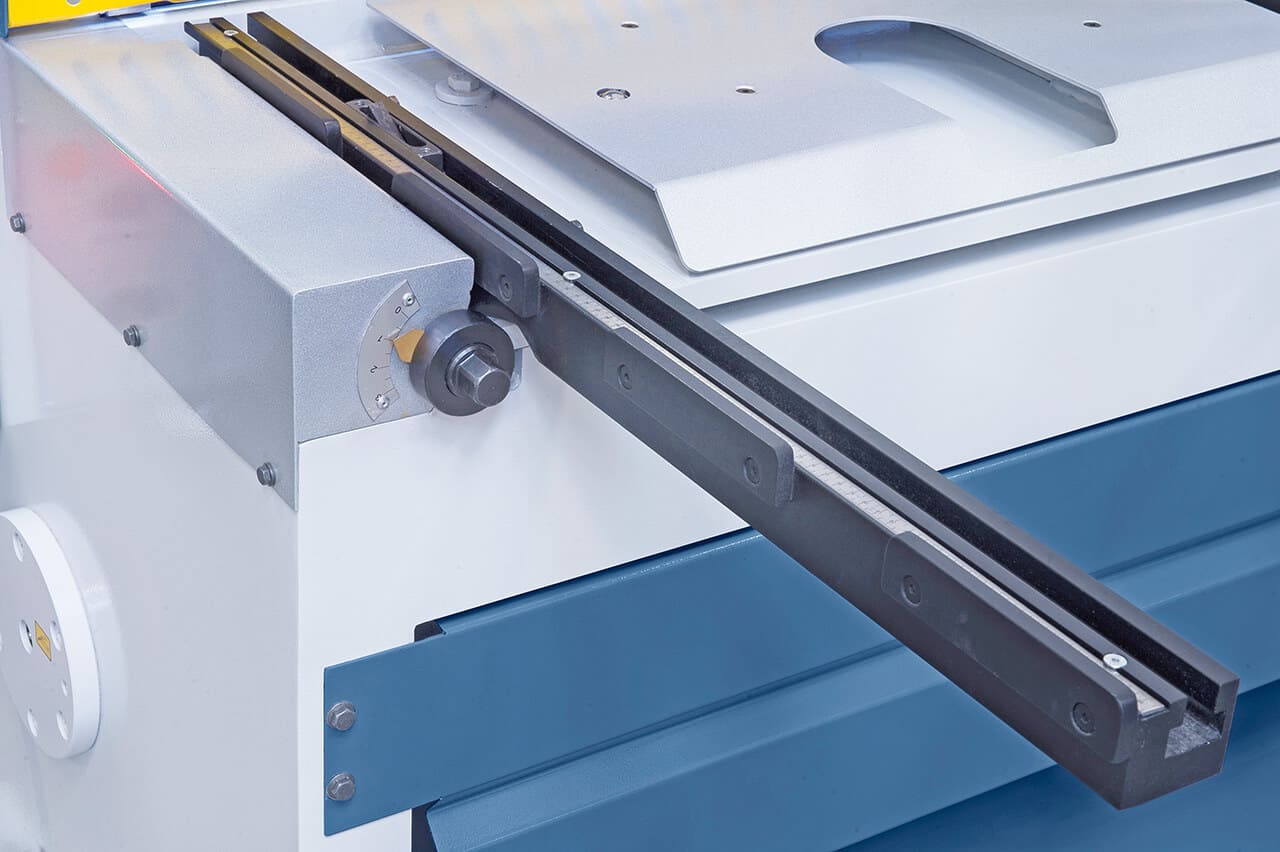

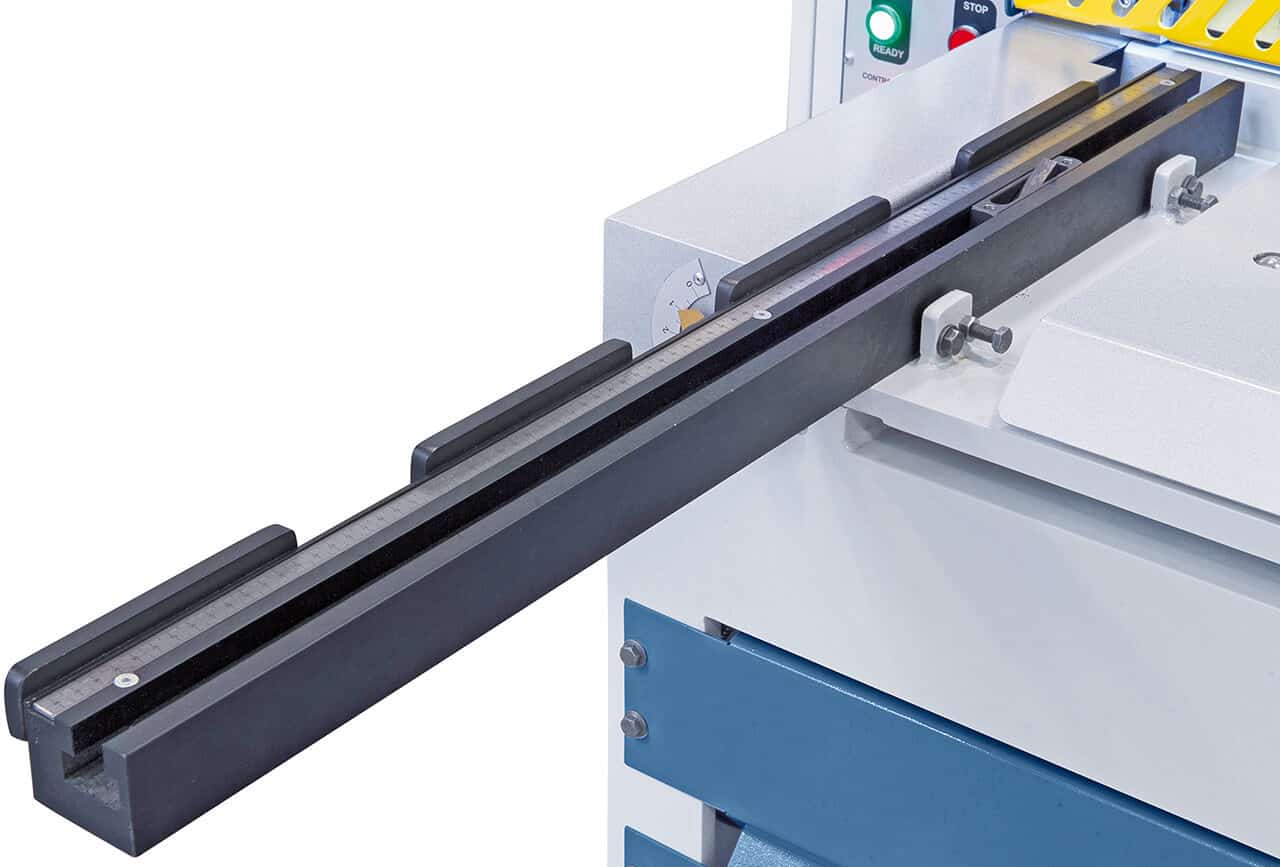

Side stop ruler

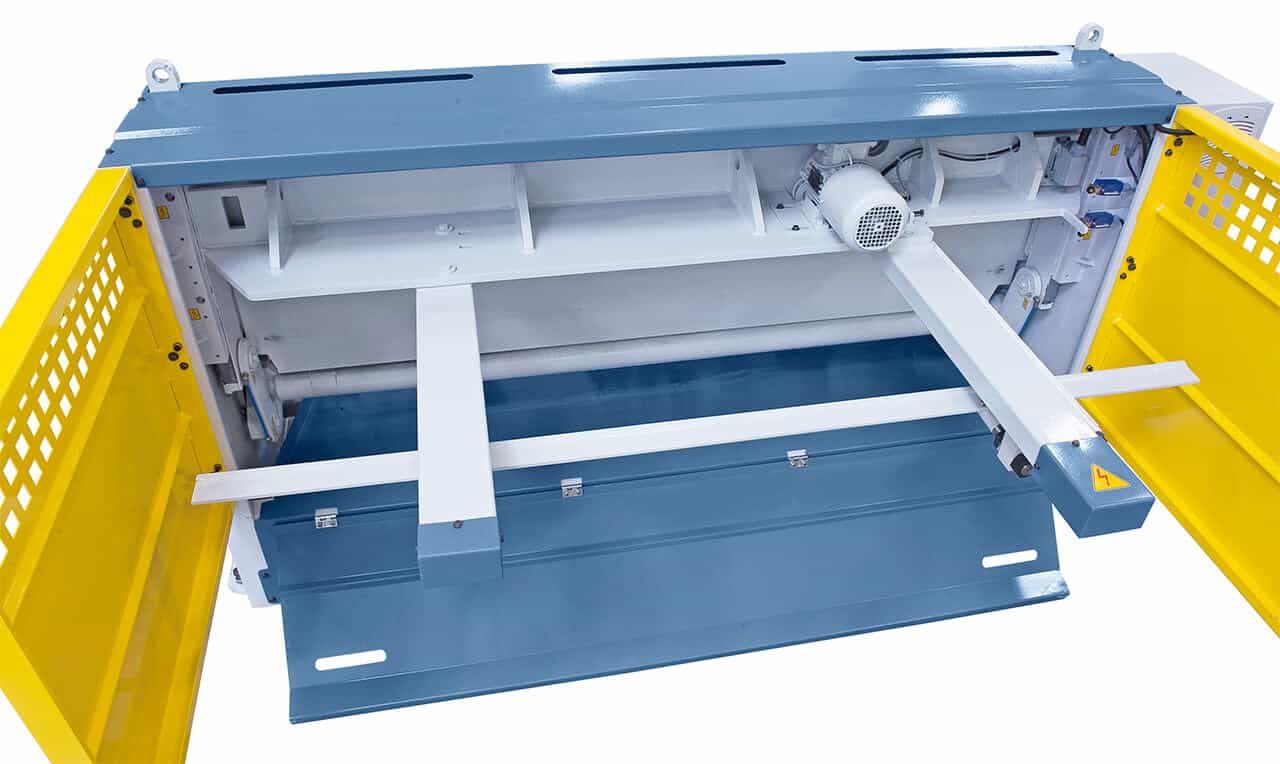

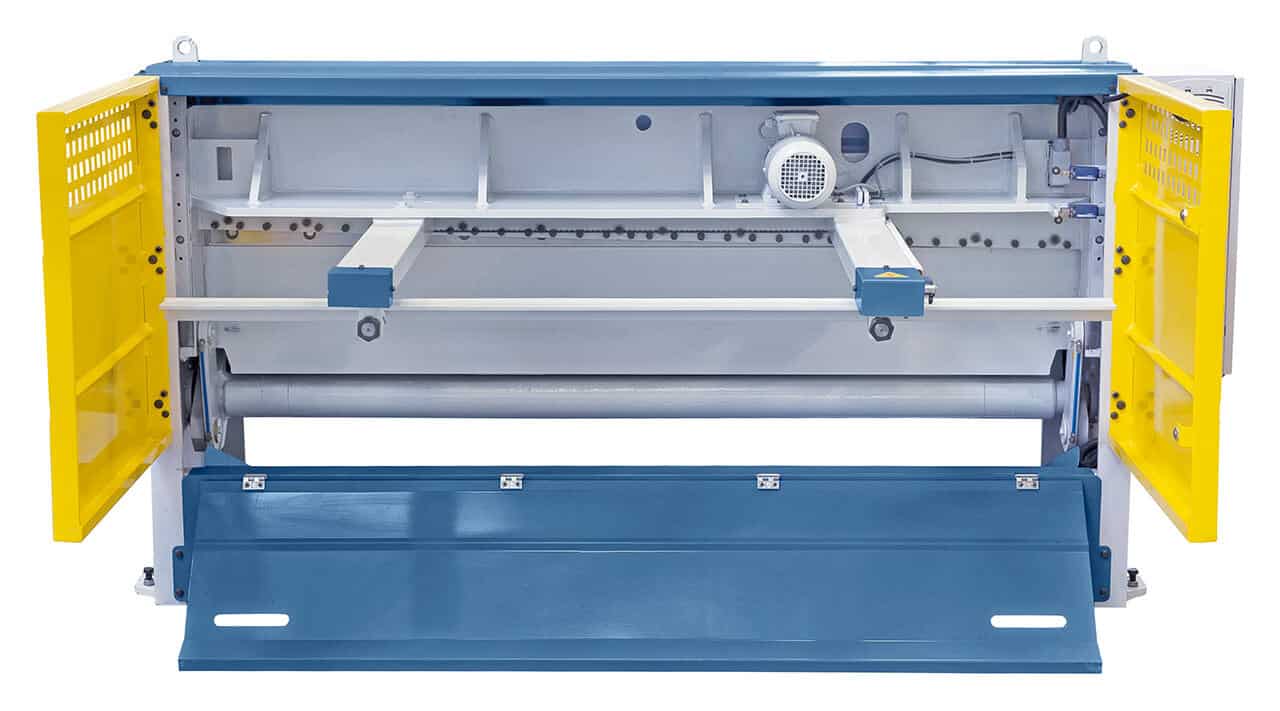

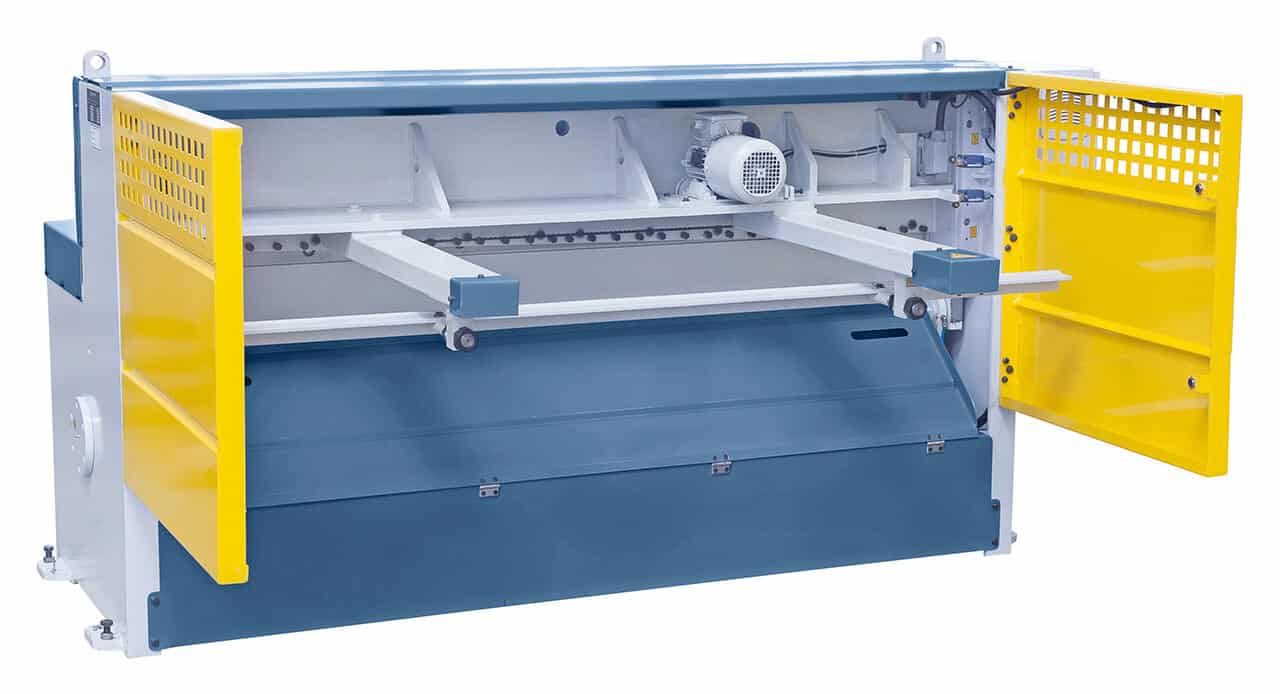

Rear safety guards with photocells
BRL 401.2 NC panel

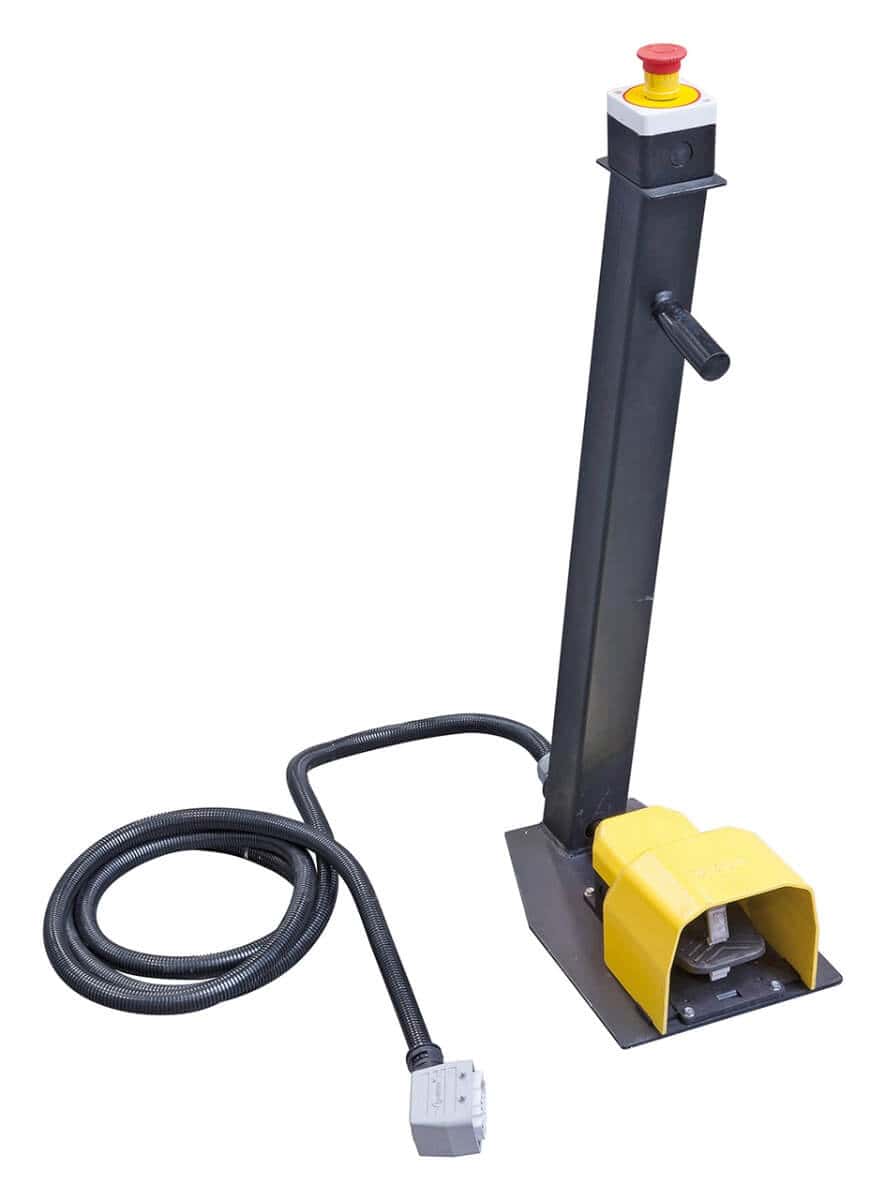

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 business days (7 days to Southern Italy). Heavy machinery: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate positioning of heavy or long sheets. The choice depends on the production volume and the format of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTE 2520 x 2.5 mm NCC – Shear?

The nominal thickness of 2.5 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 1.6 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 business day shipping.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet metal handling, clear space at least equal to the cutting length (2520 mm) is needed in front of and behind the machine. Coordinate with Krollit for specific weight and necessary unloading equipment.
