Bernardo MTE 3060 x 3 mm NCC – Motorised Guillotine Shear

Bernardo MTE 3060 x 3 mm NCC – Motorised Guillotine Shear

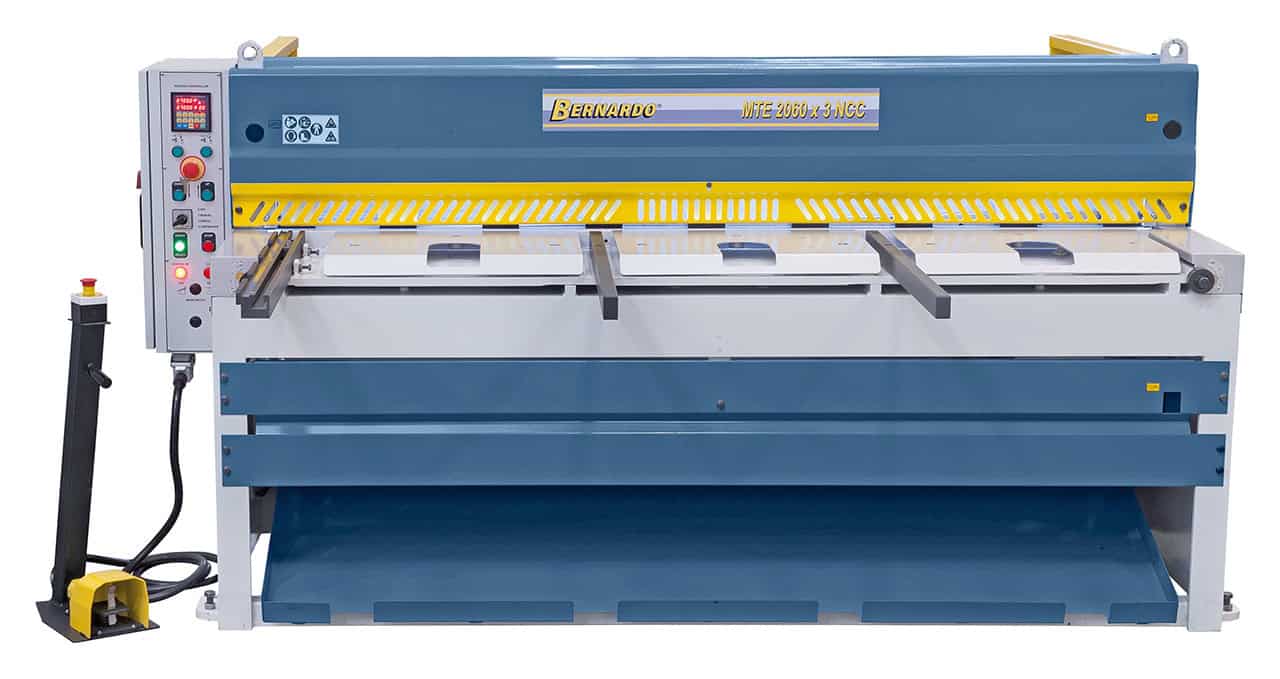

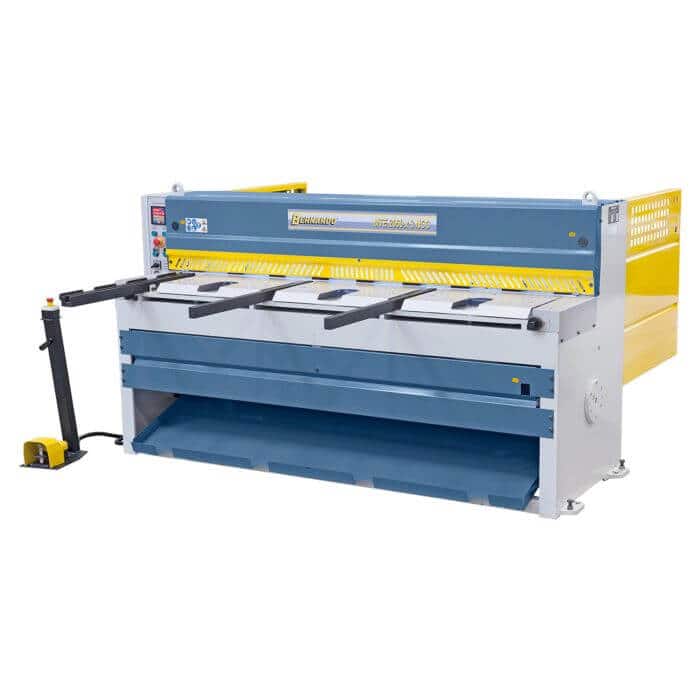

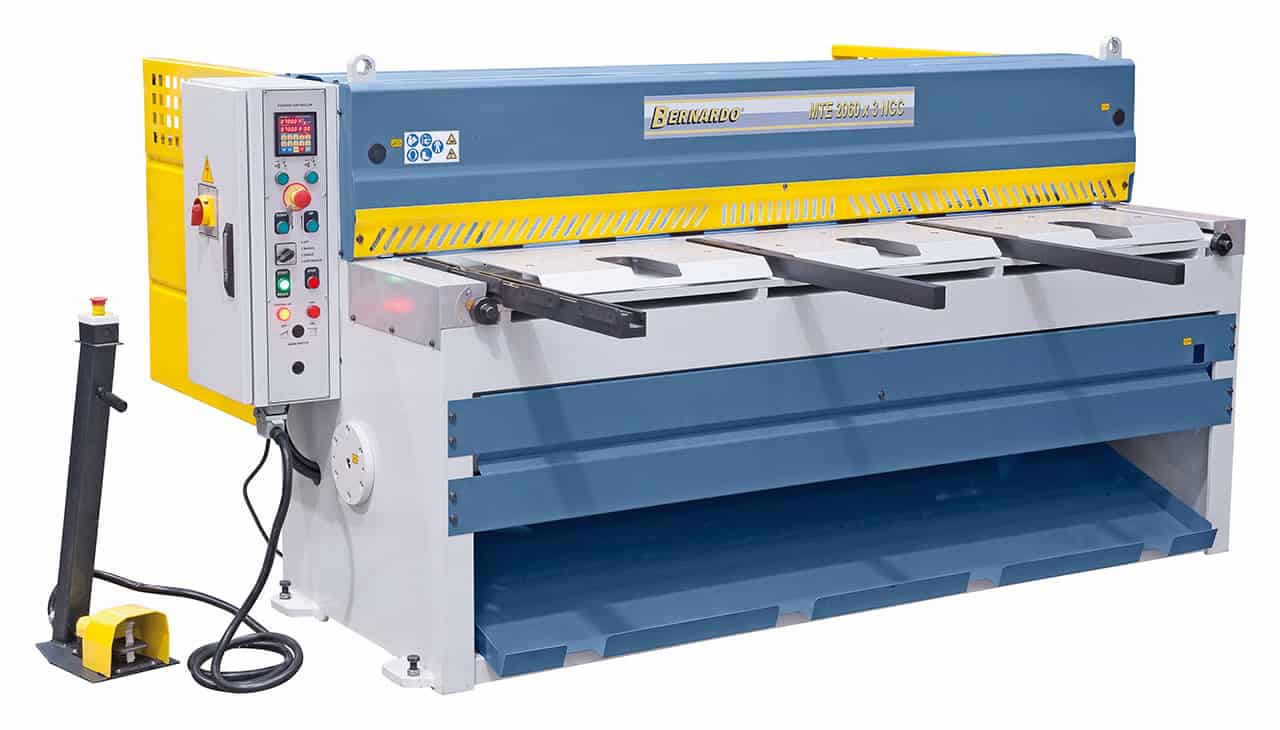

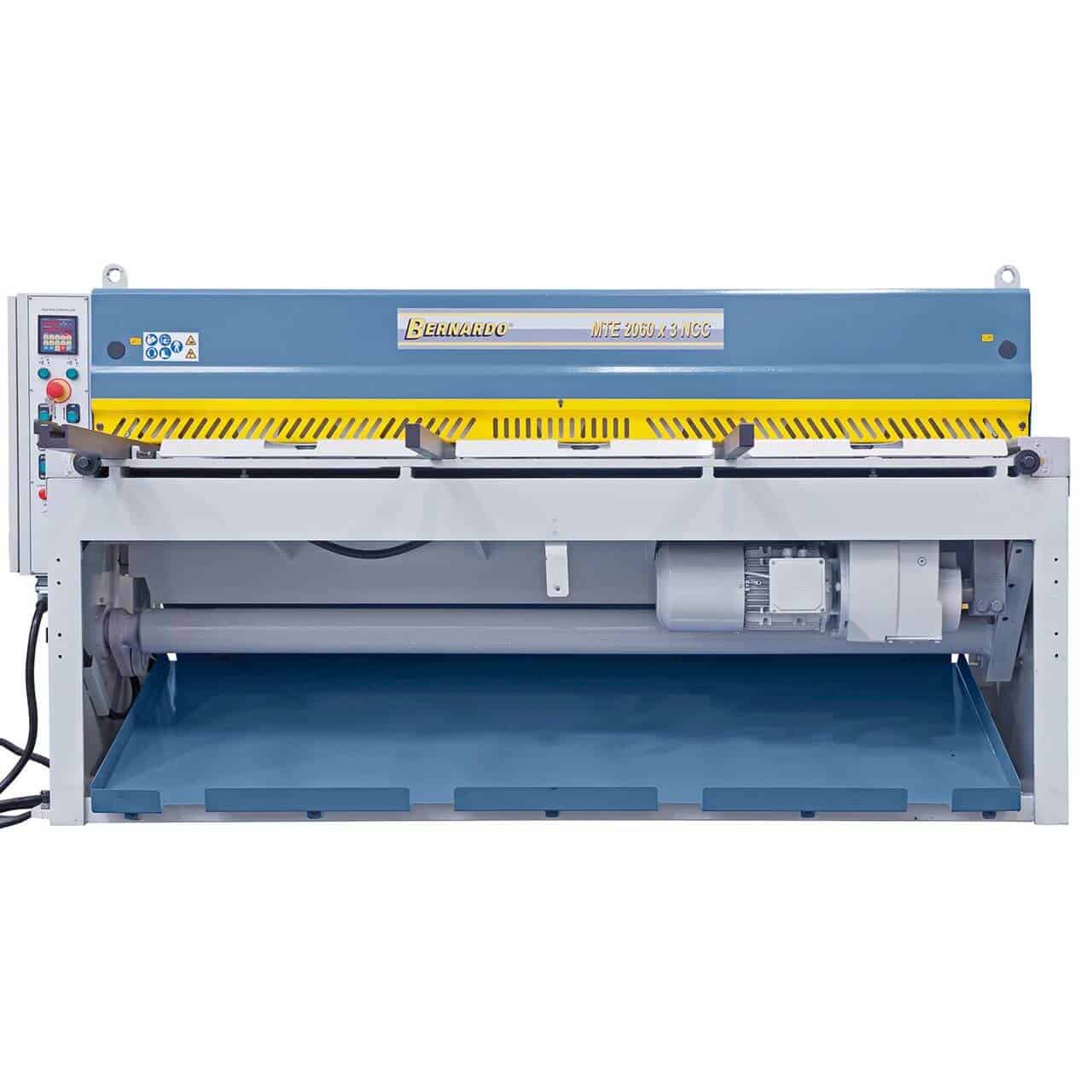

The Bernardo MTE 3060 x 3 mm NCC is a high-performance motorised guillotine shear, designed for professional cutting of sheet metal up to 3 mm thick (400 N/mm²) and 3060 mm long. The machine features a motorised NC backgauge with ball screws and a BRL 401.2 control panel, ensuring quick, safe, and precise adjustments. The double-edged top and bottom blades made of quality steel allow for clean, burr-free cuts, while the 1°30’ cutting angle ensures clean surfaces. Sheet metal ejection can occur either from the front (up to 400 mm) or from the rear. With a table equipped with integrated rollers, front supports, and a side ruler with a scale, it is designed to handle even large sheet metal. With a 4.0 kW motor and a robust welded steel structure, the 2200 kg MTE 3060 x 3 mm NCC guarantees stability, safety, and high-level performance.

---

Main features:
3060 mm cutting length for large sheets
Capacity up to 3 mm thickness (400 N/mm² steel)

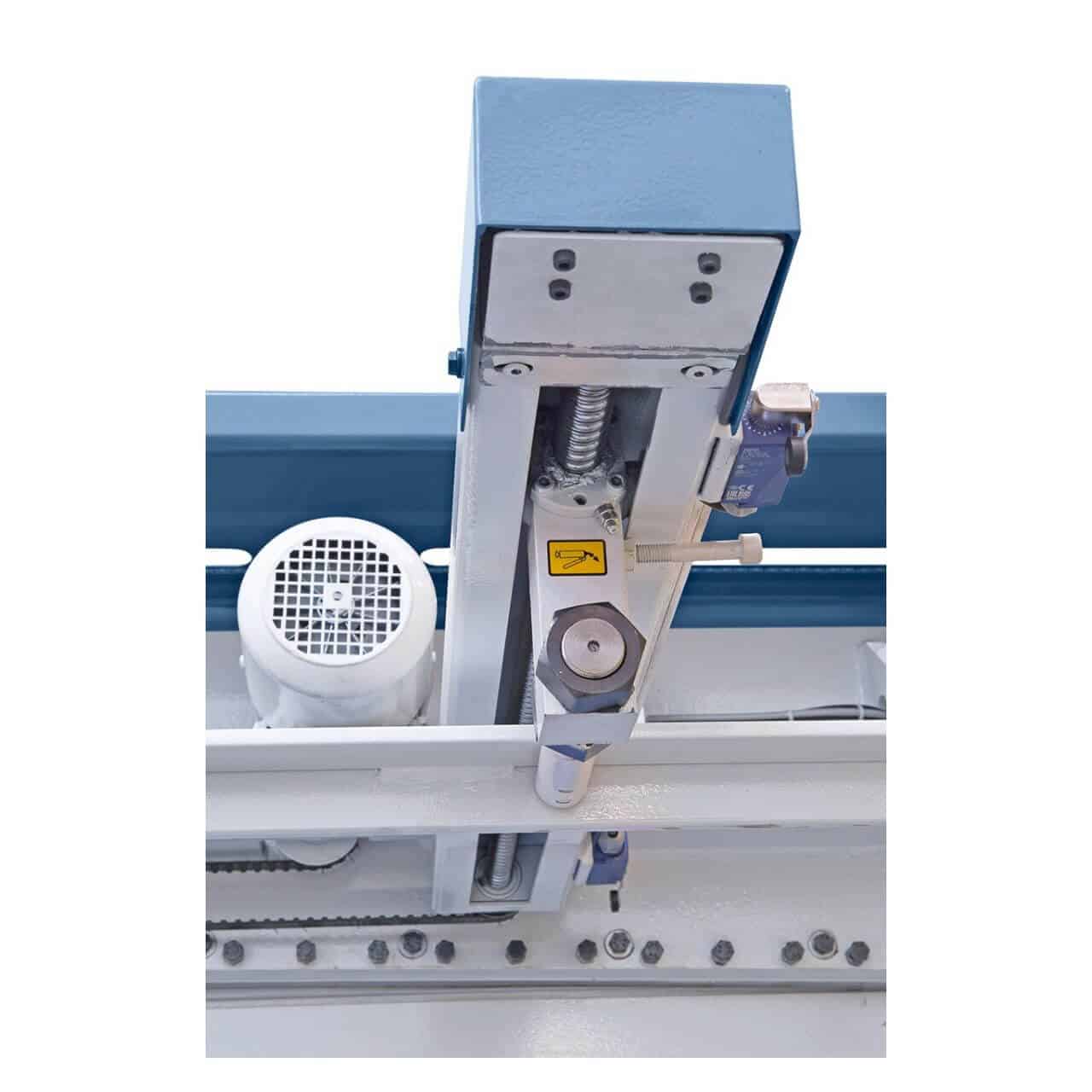

Motorised NC backgauge with ball screws

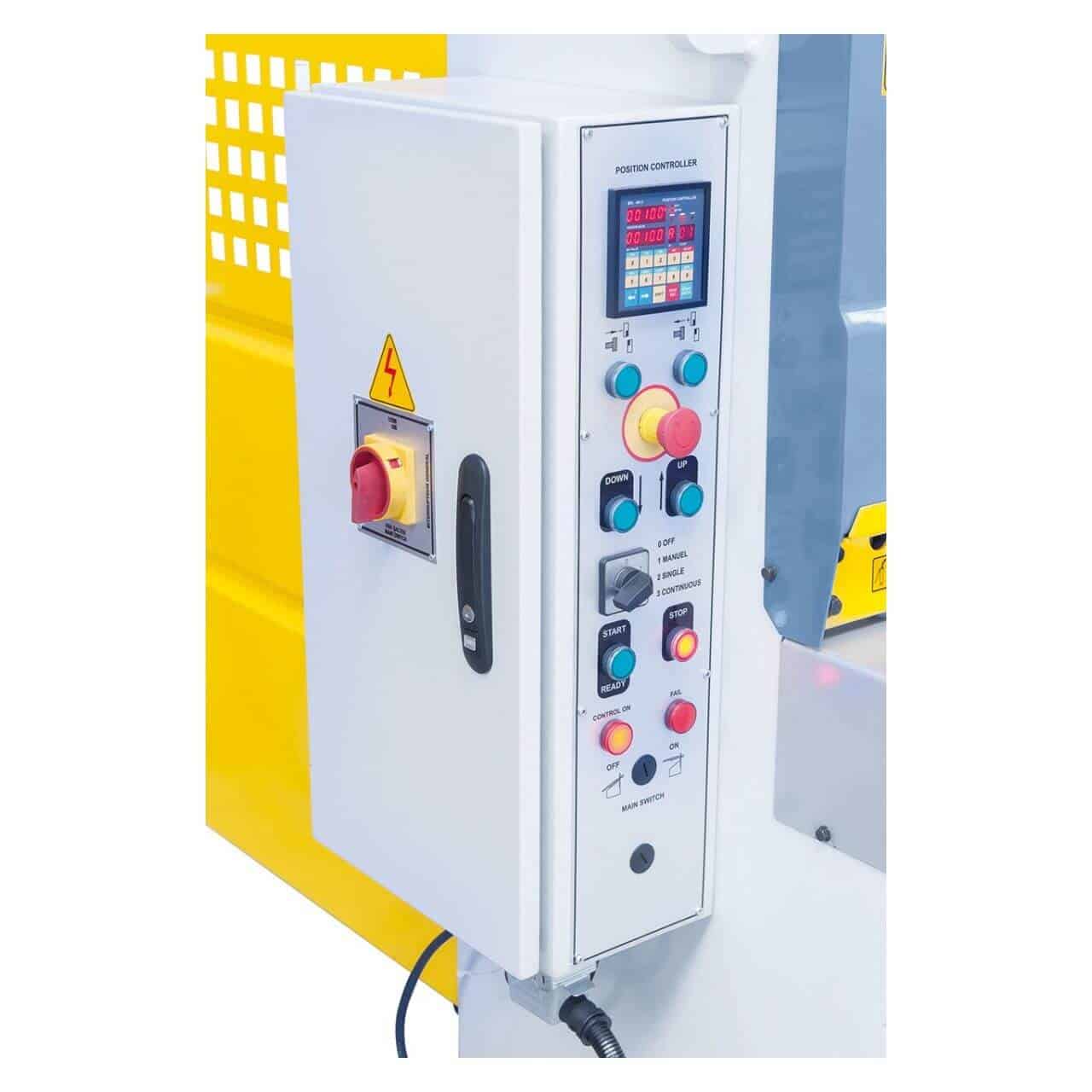

BRL 401.2 control panel with counter and integrated settings

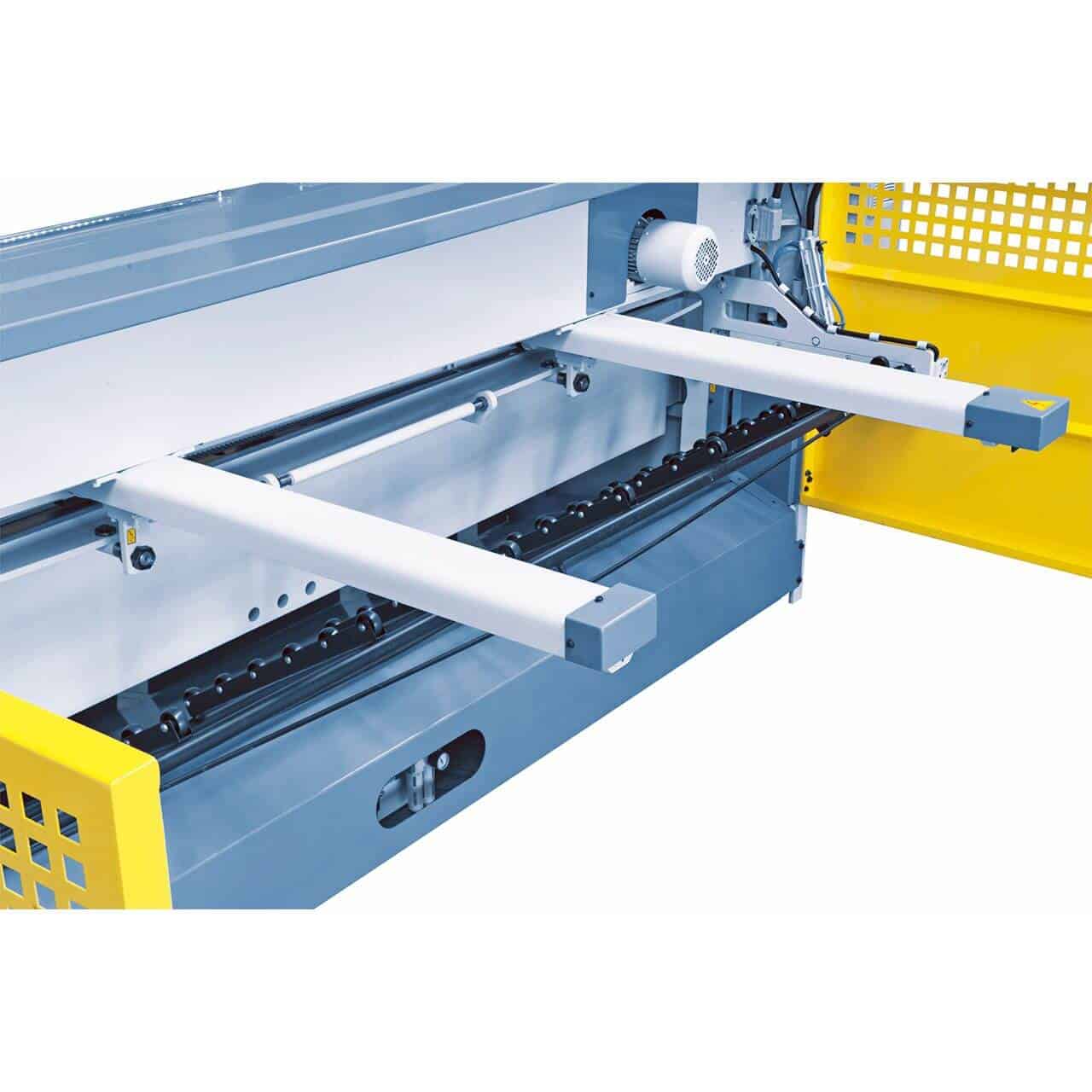

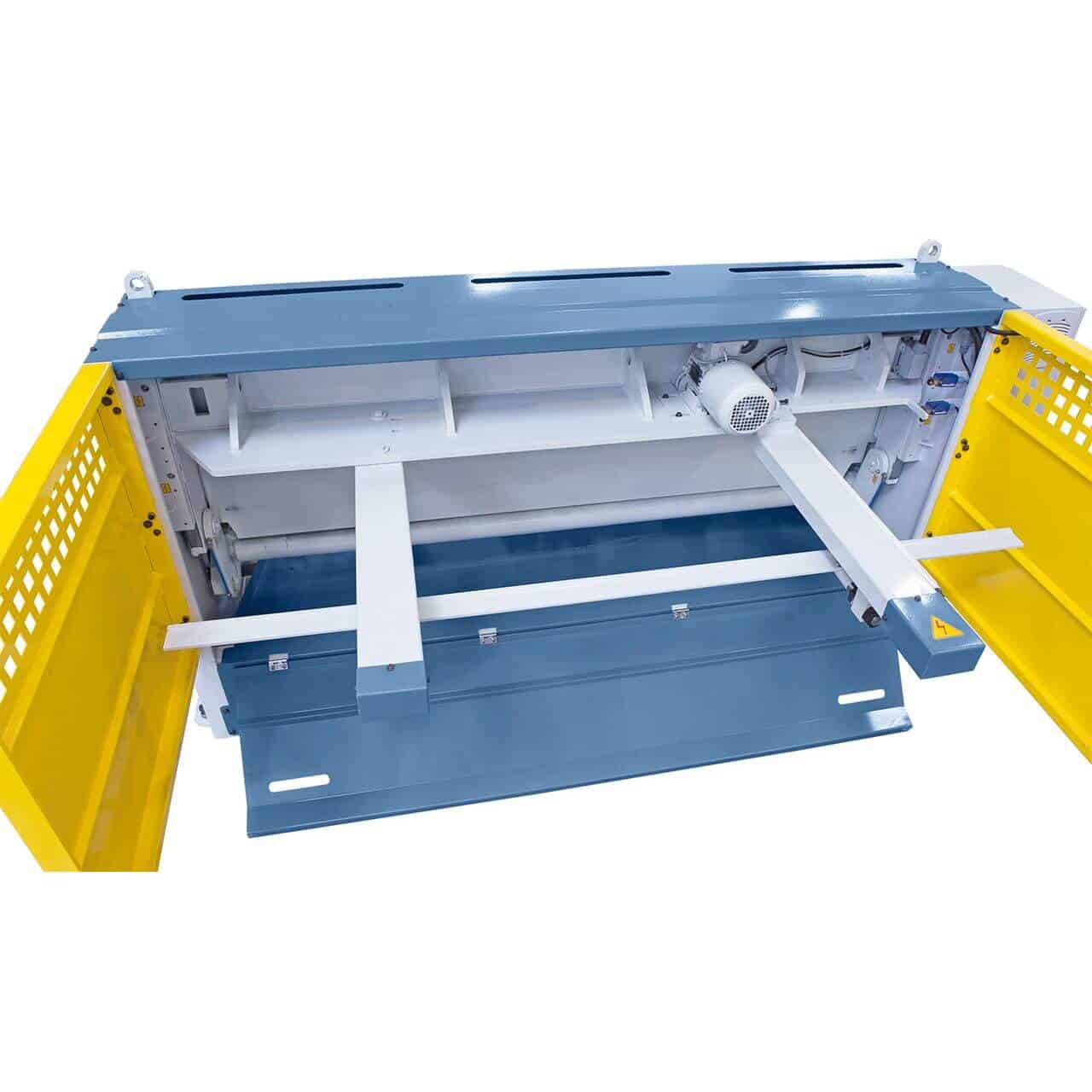

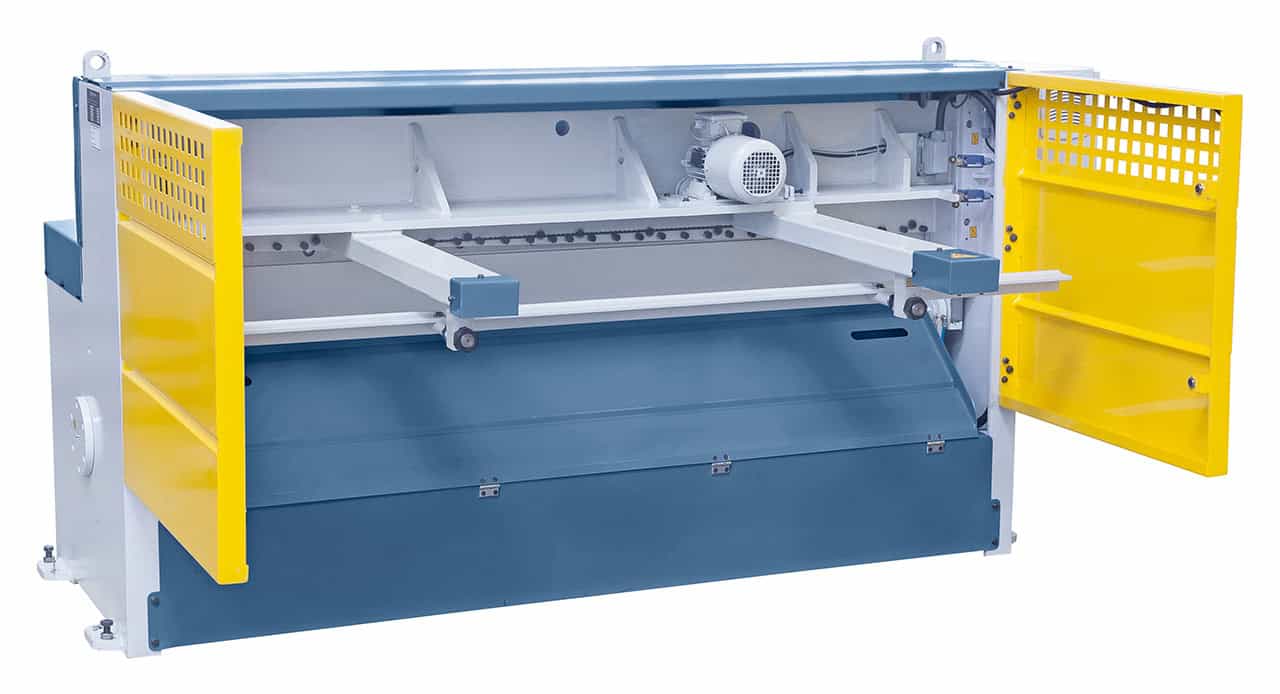

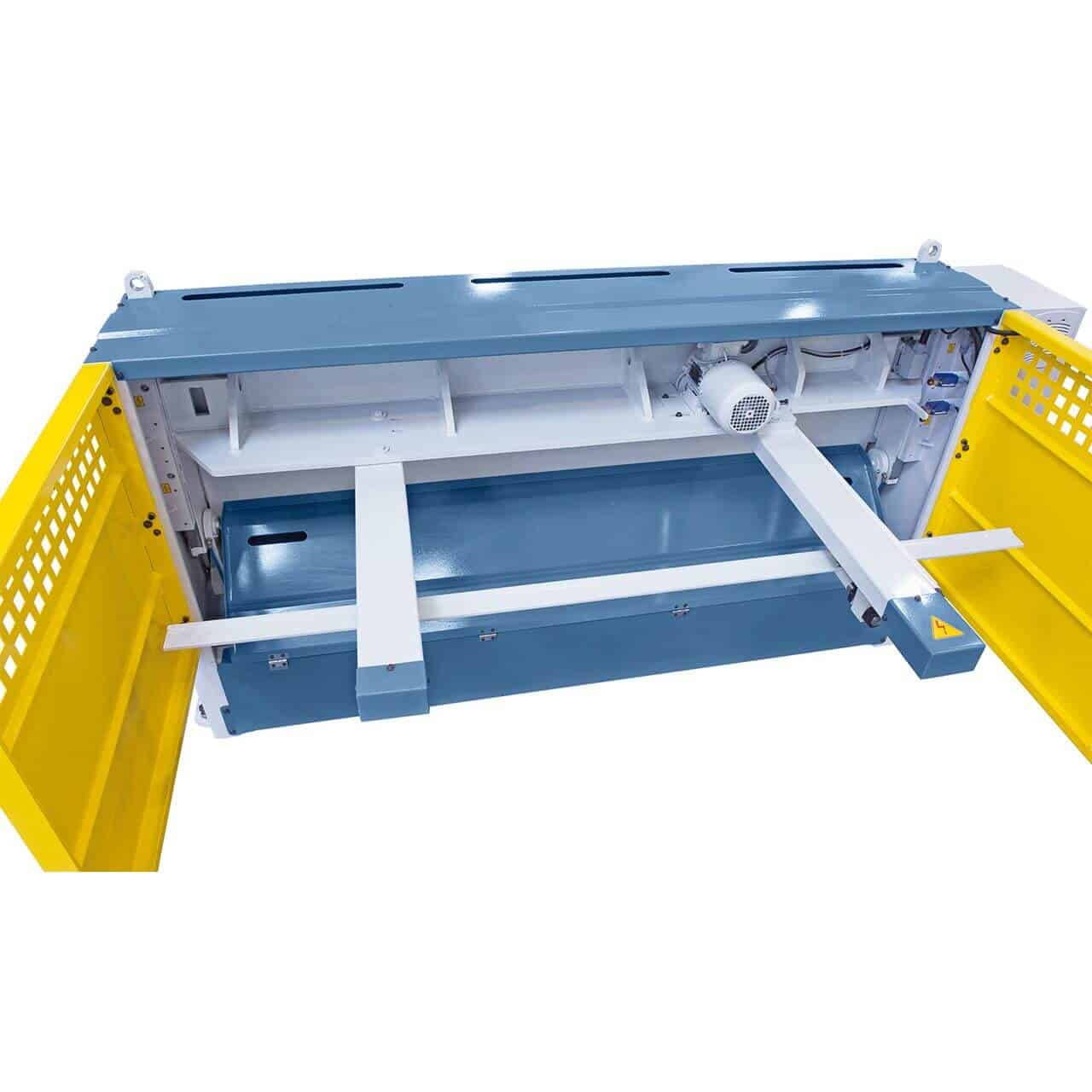

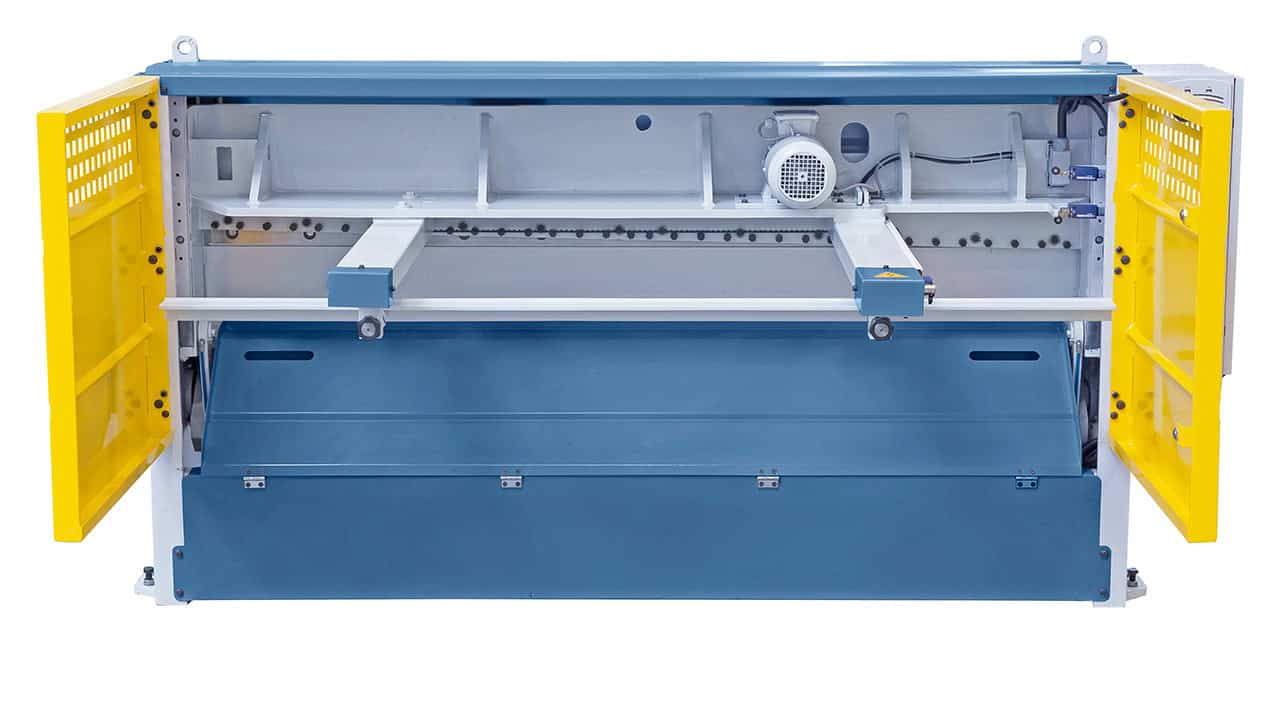

Front (max 400 mm) or rear sheet ejection
Double-edged top and bottom blades made of hardened steel
Table with integrated rollers and front supports
Cutting line illumination with silhouette
Safety light barriers and foot pedal with emergency stop
Robust steel structure for stable, torsion-free operation

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MTE 3060 x 3 mm NCC
Type	Motorised guillotine shear with NC
Cutting length	3060 mm
Max sheet thickness*	3 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorised NC)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	3650 x 2100 x 1260 mm
Weight	2200 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTE 3060 x 3 mm NCC guillotine shear
Stroke counter
Cutting line illumination
Motorised NC backgauge
Front sheet support
Table with integrated rollers

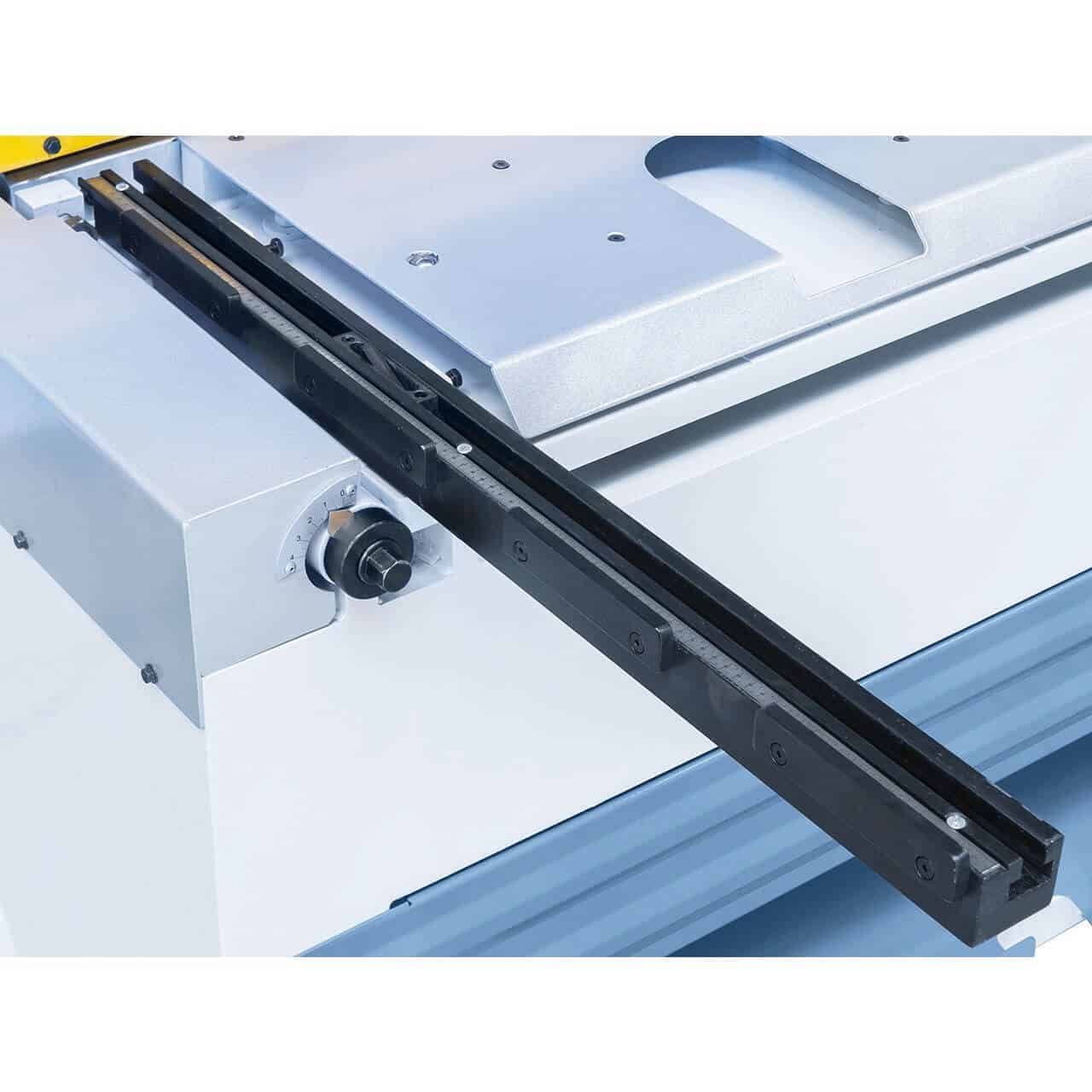

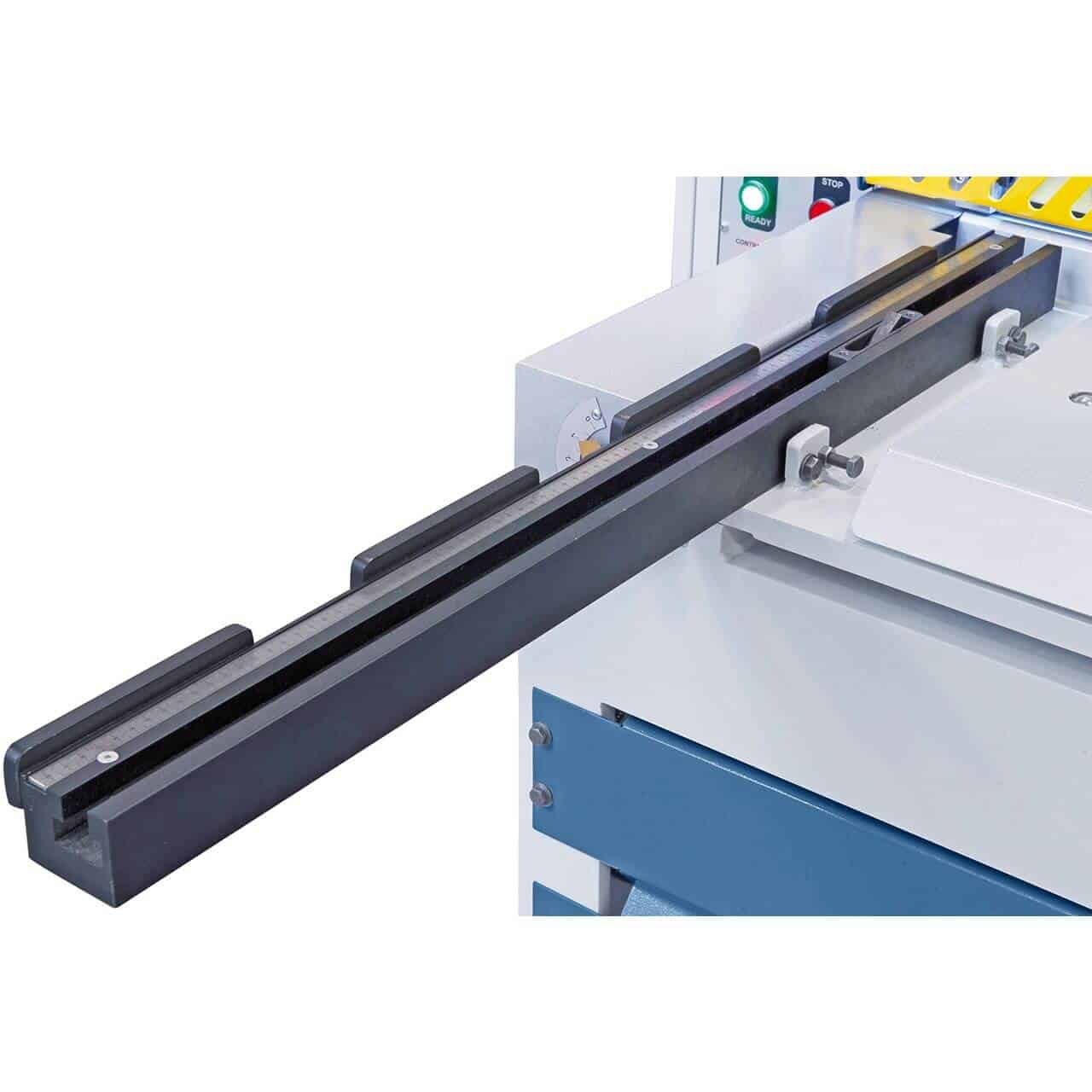

Side stop ruler

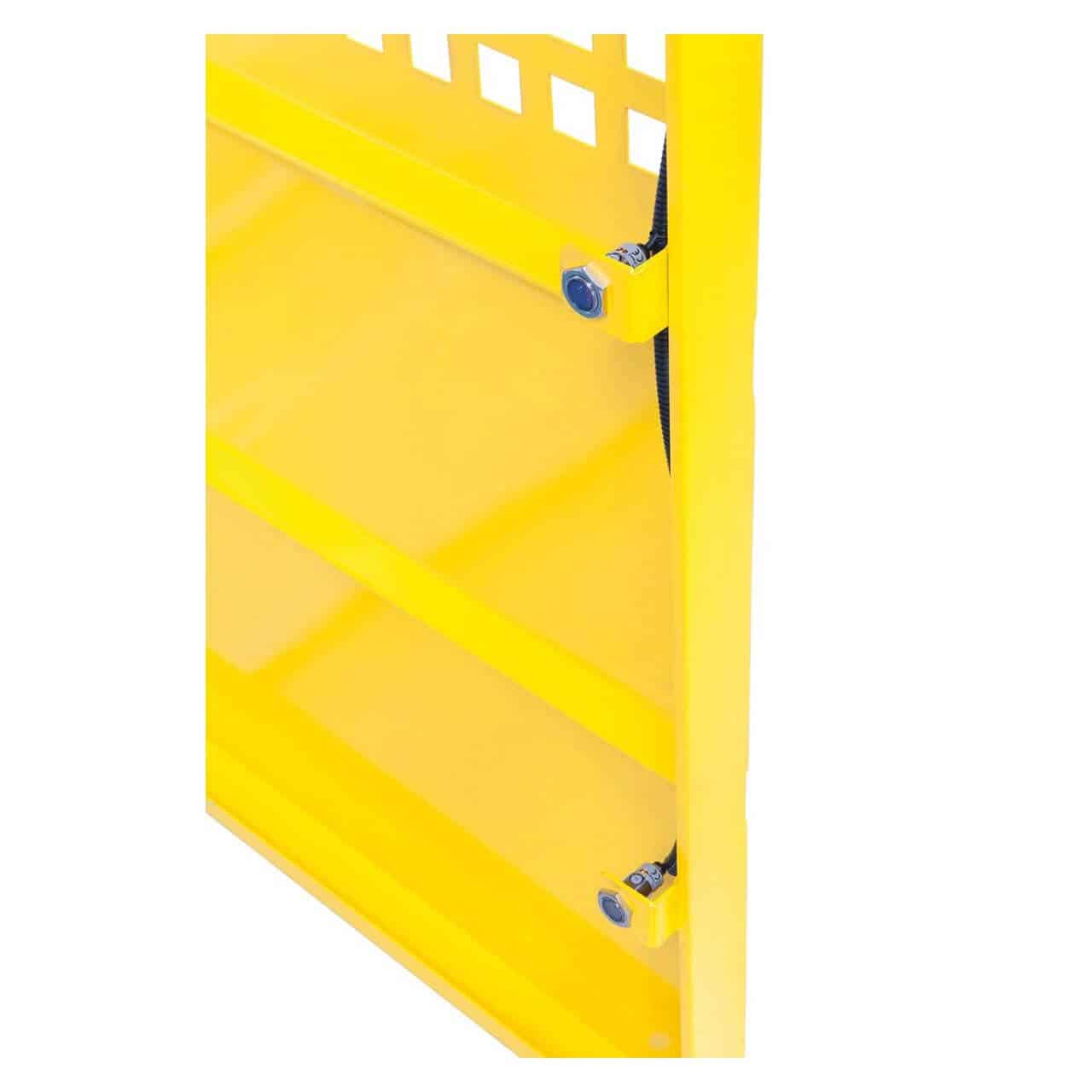

Safety light barriers
NC panel BRL 401.2

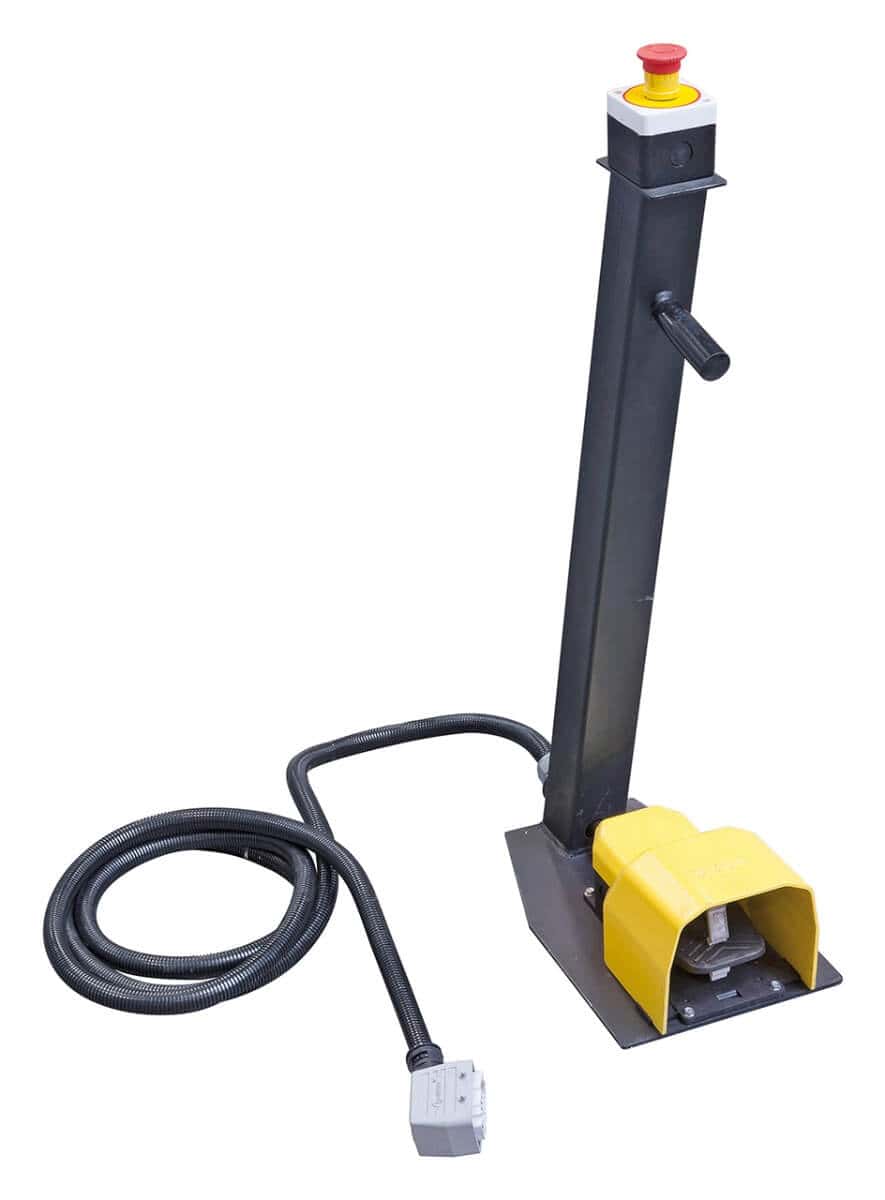

Foot pedal with emergency stop
Steel blades

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Heavy machine: coordinate with Krollit for unloading equipment. Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

Frequently asked questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorisation, for low-volume artisanal production. MTE: motorised with NC, standard electro-welded structure. MTR: motorised with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on production volume and the format of the processed sheets.

What is the maximum thickness on stainless steel with the Bernardo MTE 3060 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 working day shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet metal handling, at least free space equal to the cutting length (3060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
