Bernardo MTM 2050 x 3 mm – Motorized guillotine shear

Bernardo MTM 2050 x 3 mm – Motorized Guillotine Shear with Manual Backgauge

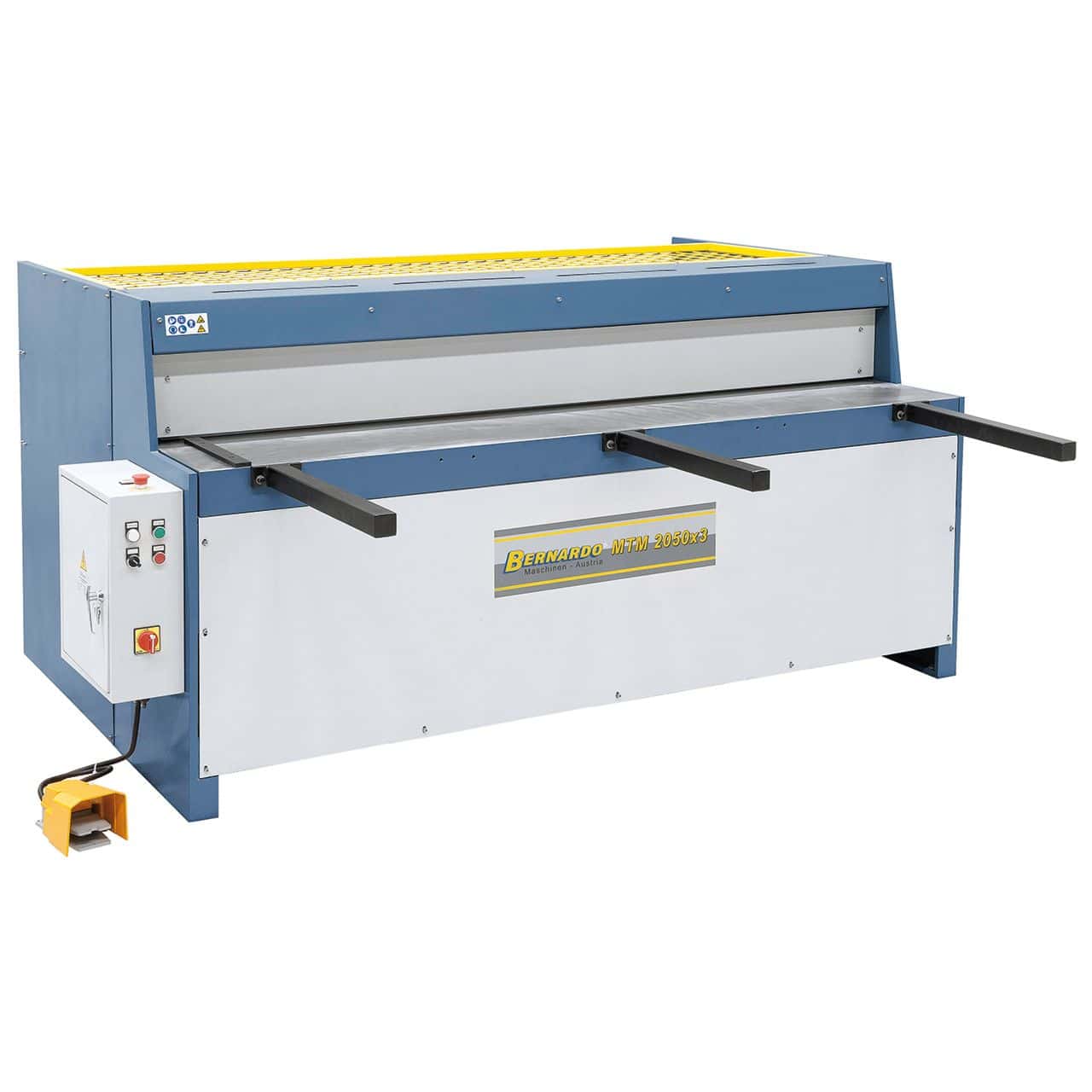

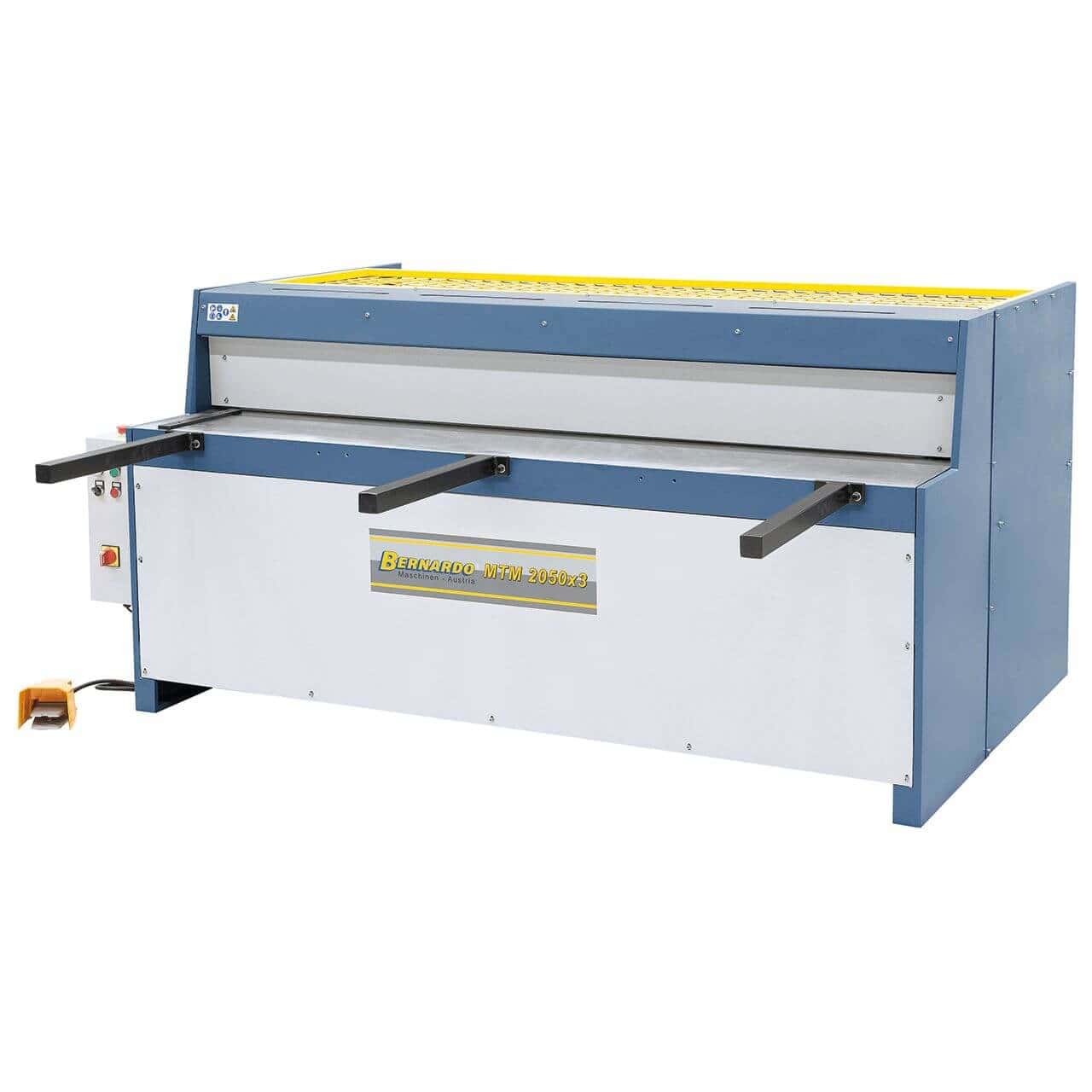

The Bernardo MTM 2050 x 3 mm is a motorized guillotine shear designed for precise and efficient cutting of steel, aluminum, copper, and brass sheets up to 3 mm thick (400 N/mm²). With a cutting length of 2050 mm and an angle of 2°, it ensures clean, burr-free cuts thanks to its high-quality, double-edged upper and lower blades. The manual backgauge, adjustable up to 600 mm via handwheel, allows for quick and accurate workpiece positioning, while the foot pedal keeps hands free for optimal sheet metal handling. Safety is ensured by the protective grid, photoelectric barrier, and foot pedal with emergency stop. Featuring a 4.0 kW motor, a table with front supports, integrated rollers, and weighing 1540 kg, the MTM 2050 x 3 mm is suitable for workshops and businesses requiring a compact, robust shear.

---

Key Features:
2050 mm cutting length for professional applications
Cutting capacity up to 3 mm (400 N/mm² steel)
2° cutting angle for clean and precise surfaces

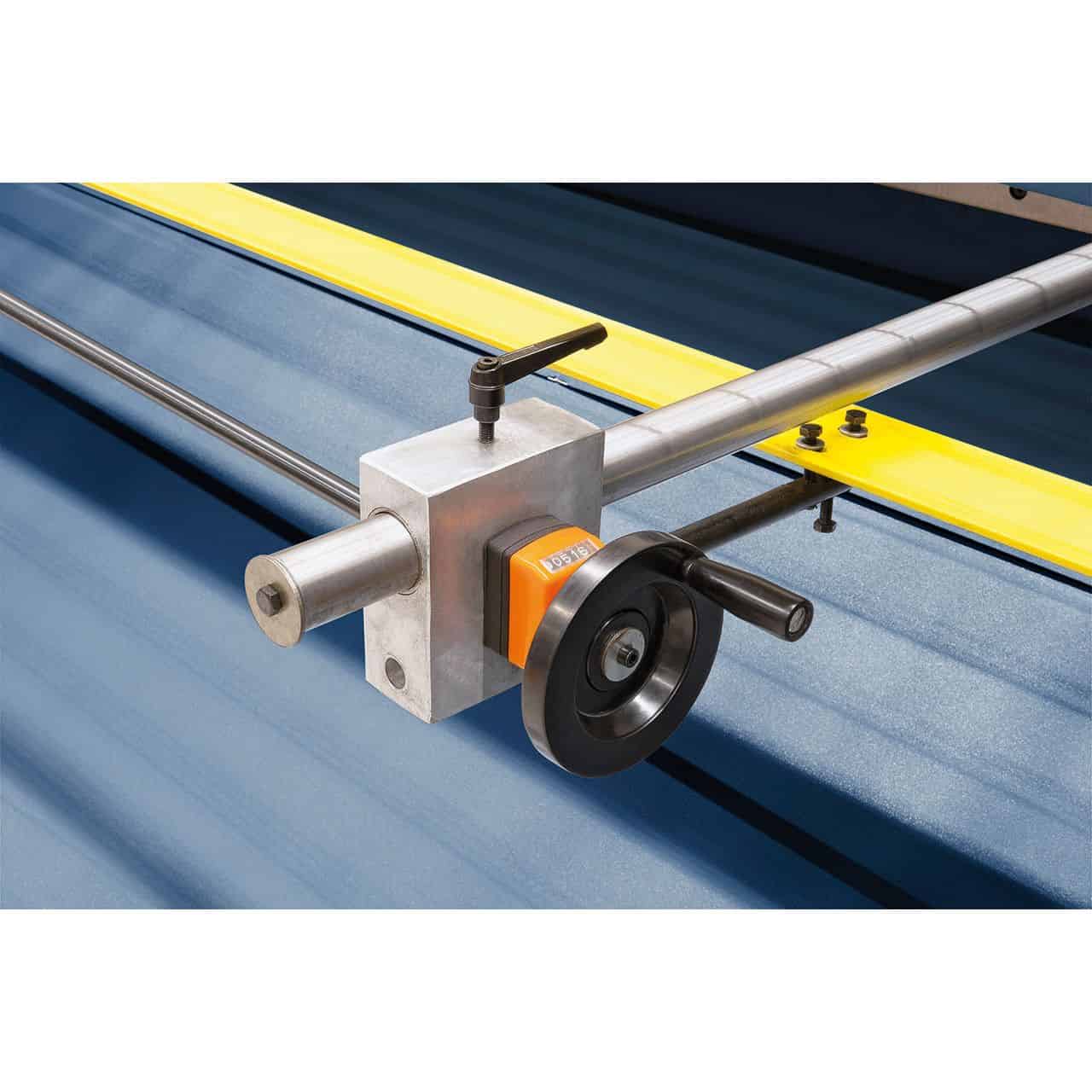

Manual backgauge adjustable up to 600 mm
Double-edged blades made of professional quality hardened steel
Cutting line illumination with integrated silhouette light
Foot pedal control with hands always free for positioning
Protective grid and photoelectric barrier for high safety
Robust steel construction for stability and durability

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTM 2050 x 3 mm
Type	Motorized guillotine shear with manual backgauge
Cutting length	2050 mm
Max sheet thickness*	3 mm
Cutting angle	2°
Strokes per minute	30
Working height	820 mm
Backgauge	0 – 600 mm (manual)
Table width	380 mm
Motor power	4.0 kW
Dimensions (L x W x H)	2580 x 2090 x 1200 mm
Weight	1540 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTM 2050 x 3 mm Guillotine Shear
Cutting line illumination
Manual backgauge

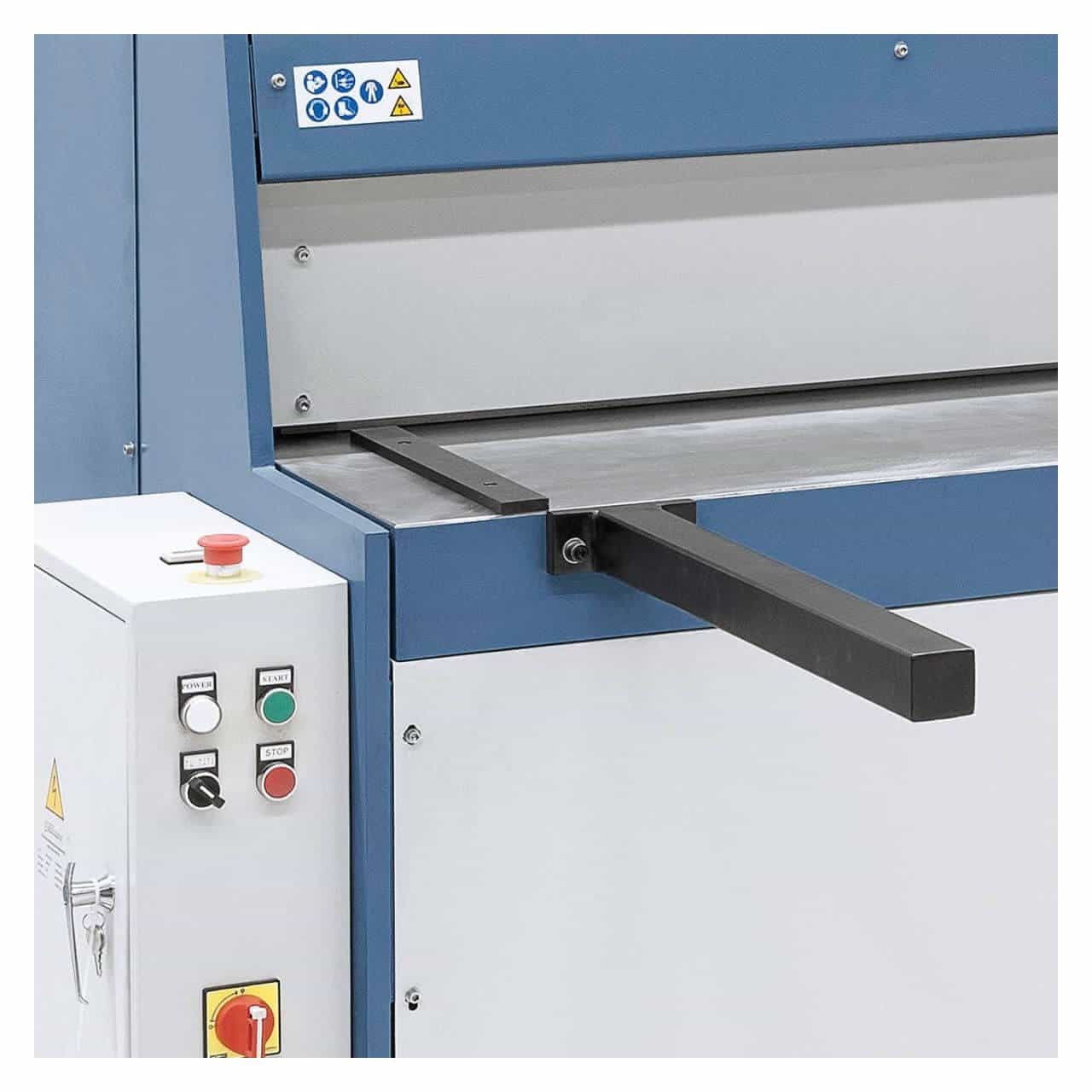

Front sheet supports
Side ruler stop

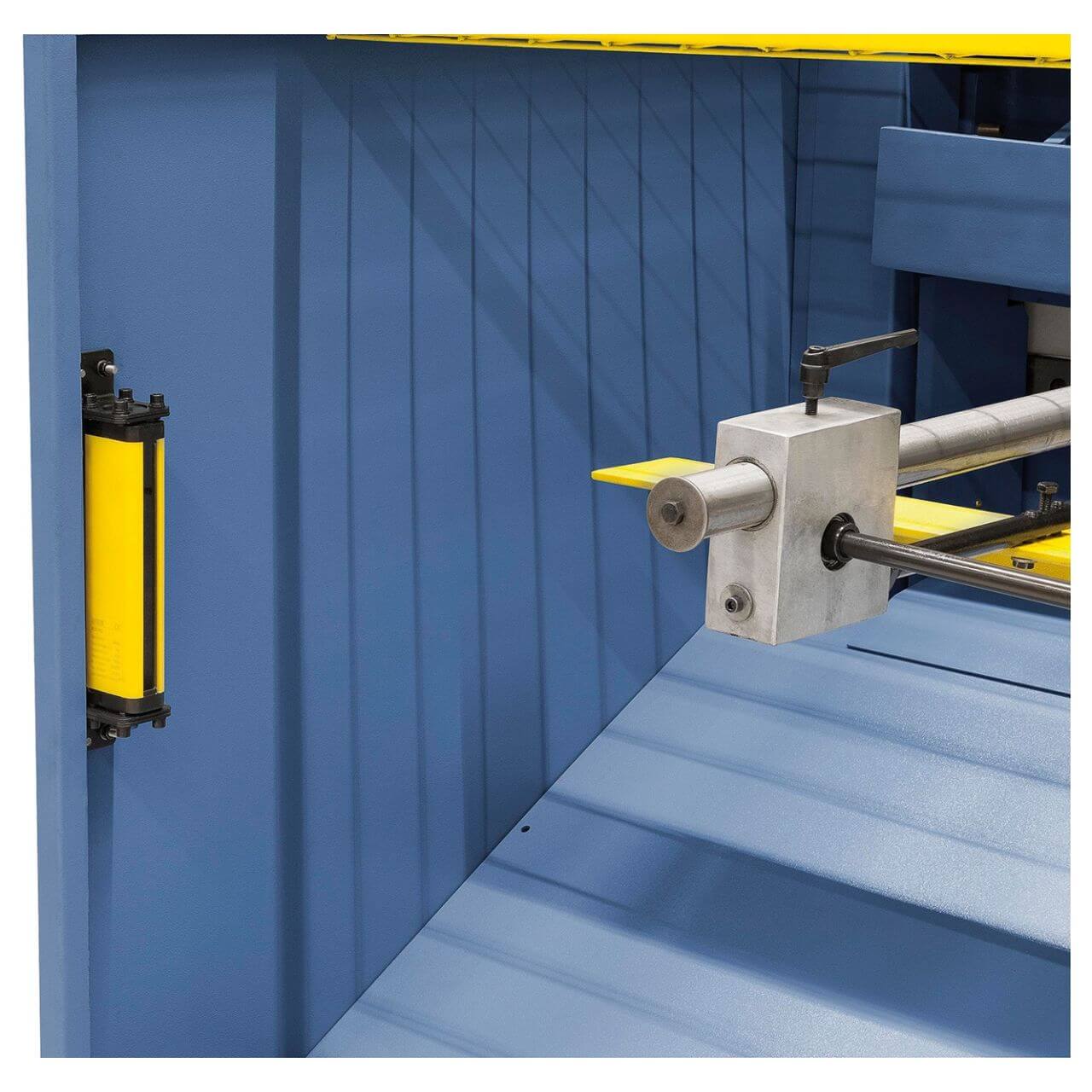

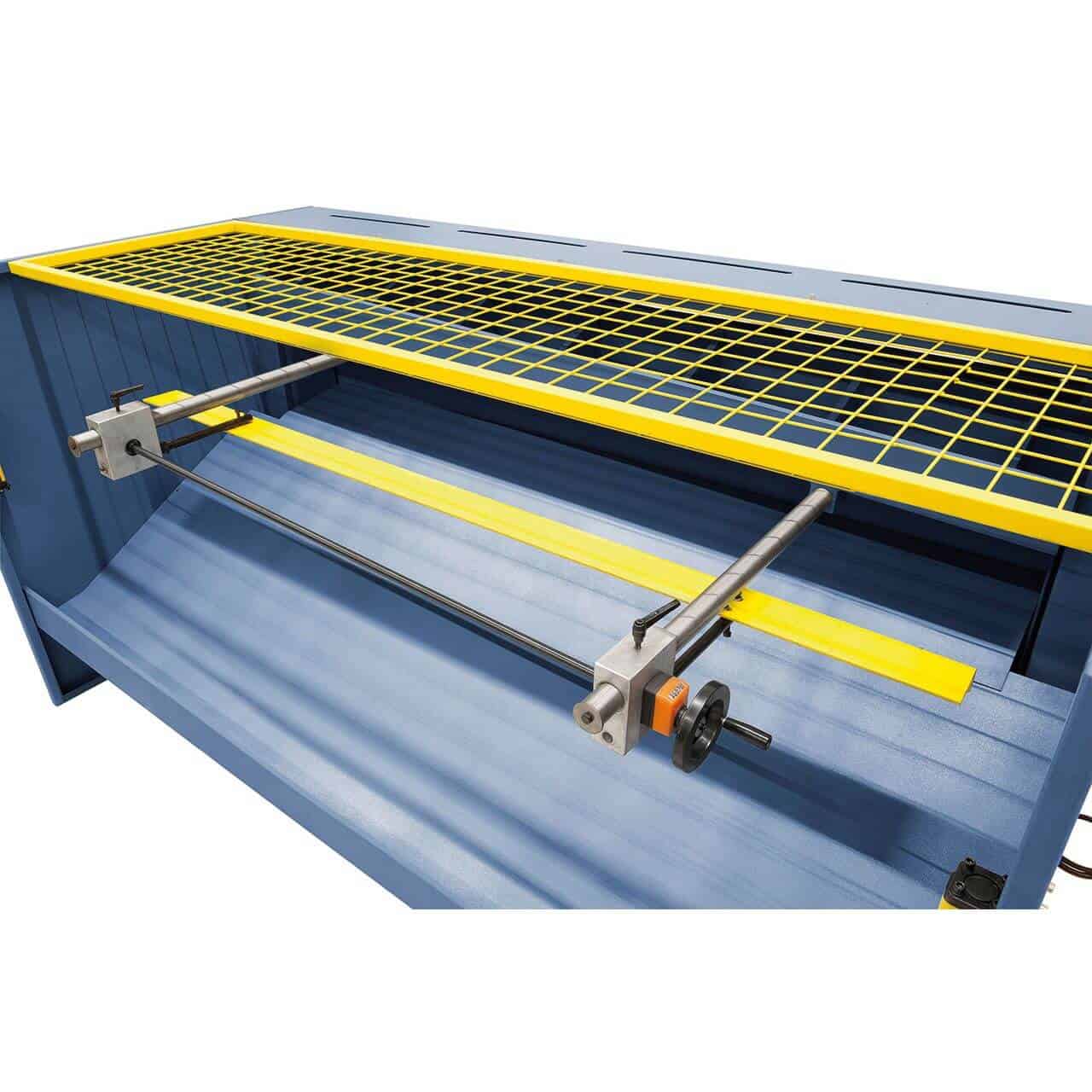

Protective grid with photoelectric barrier
Foot pedal control with emergency stop
Steel tool blades

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

Frequently Asked Questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy sheets or long formats. The choice depends on production volume and the format of the sheets processed.

What is the maximum thickness for stainless steel with the Bernardo MTM 2050 x 3 mm – Guillotine Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 business day shipping.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

How much space is needed for installation?

For sheet metal handling, free space at least equal to the cutting length (2050 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
