Description

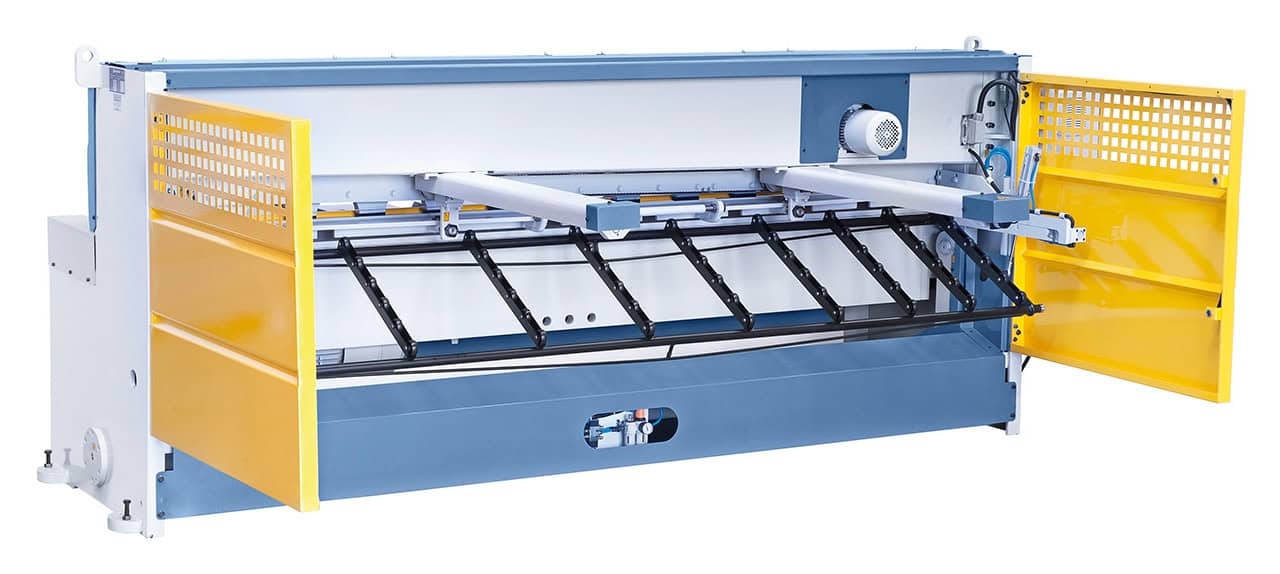

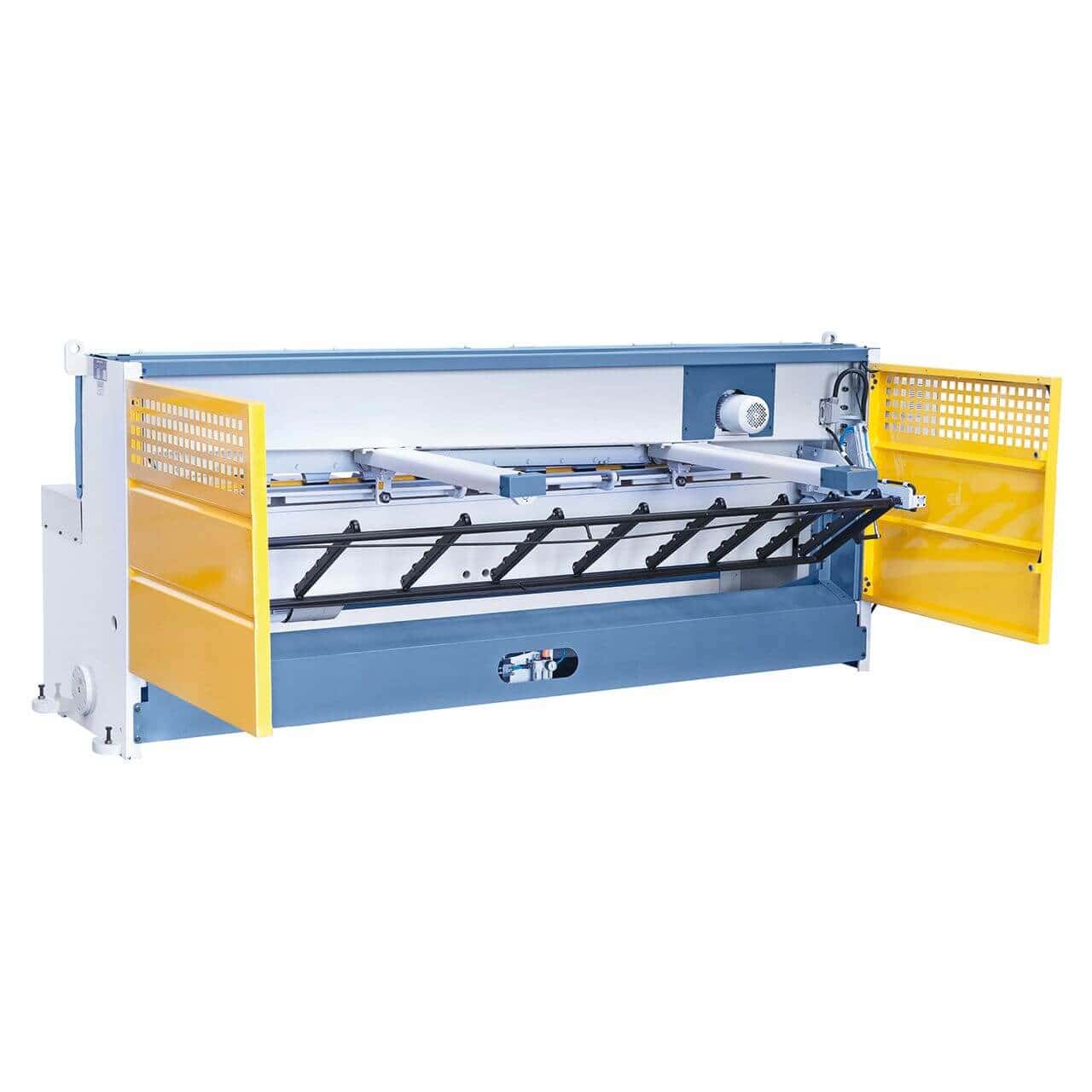

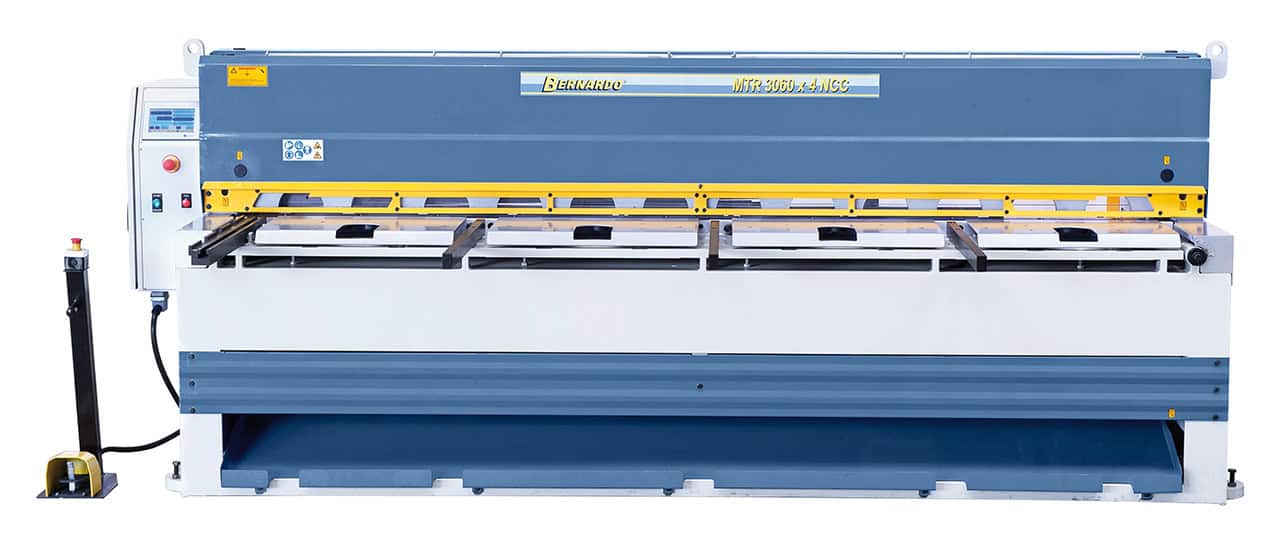

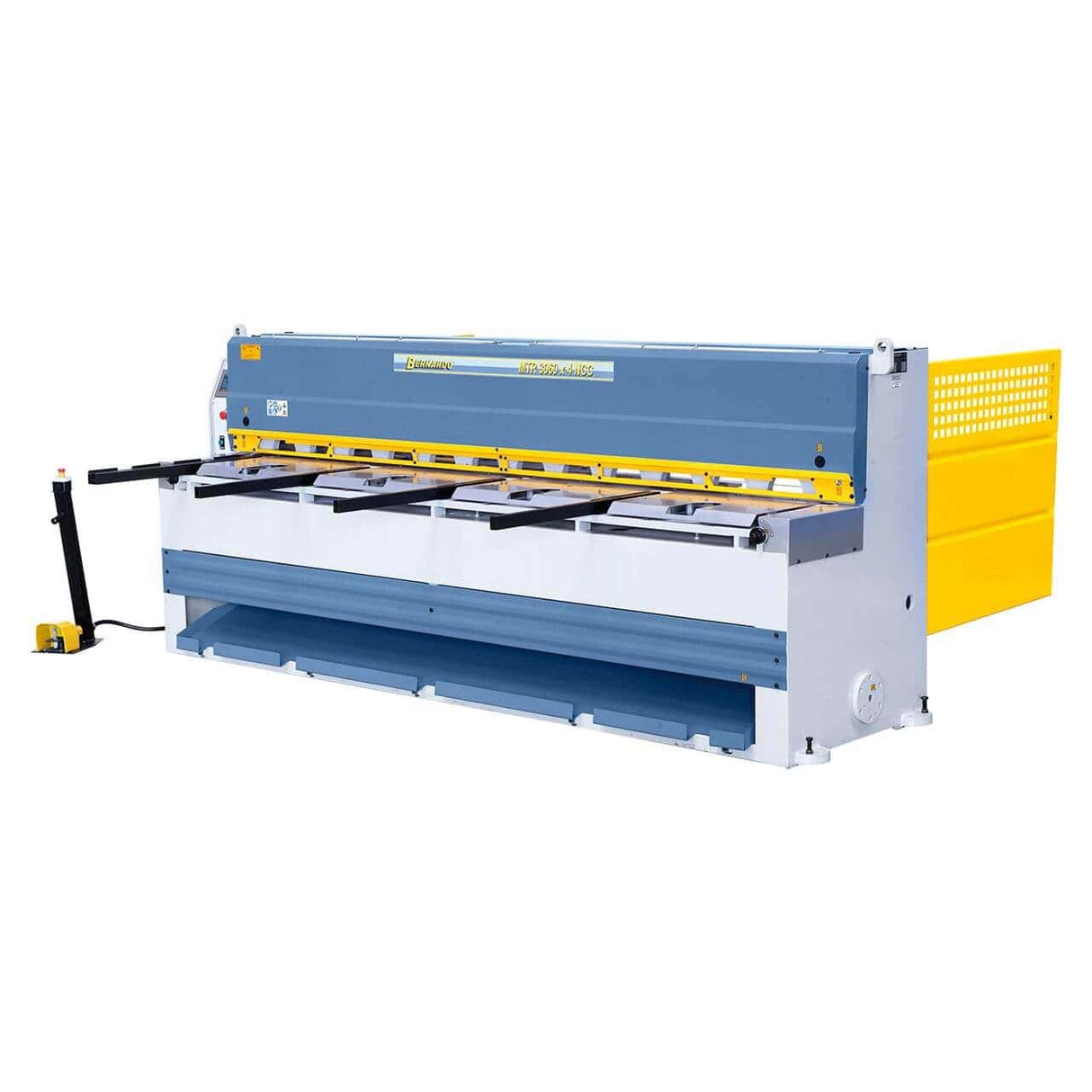

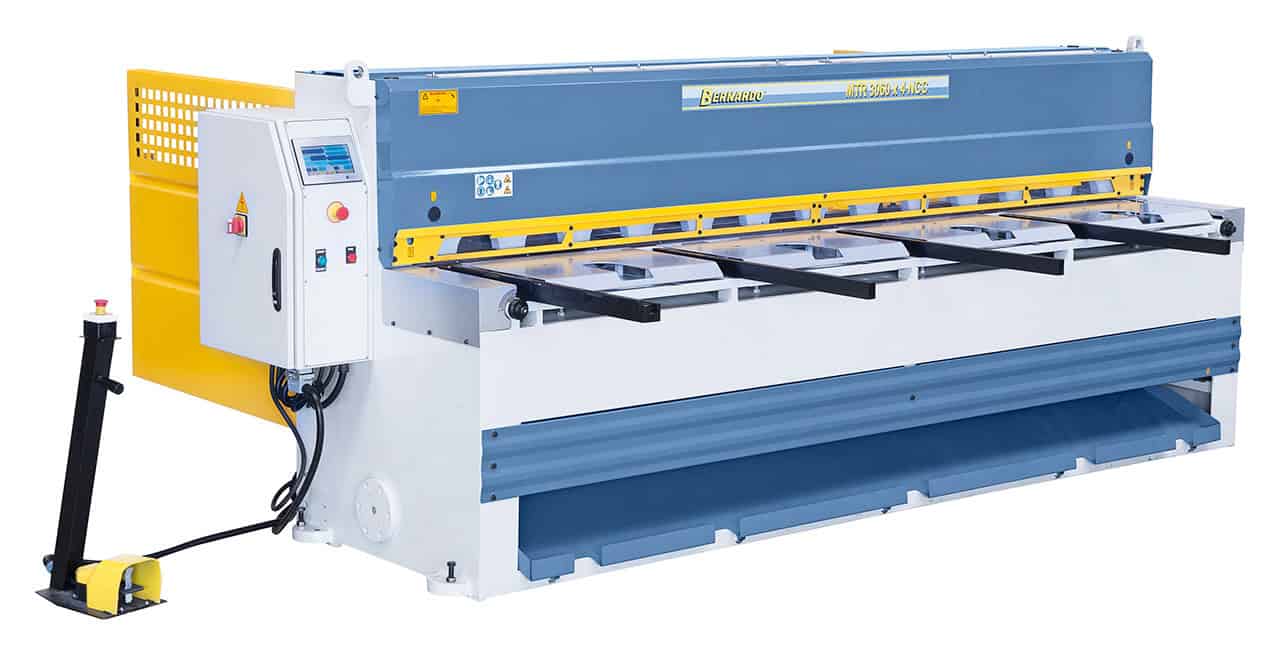

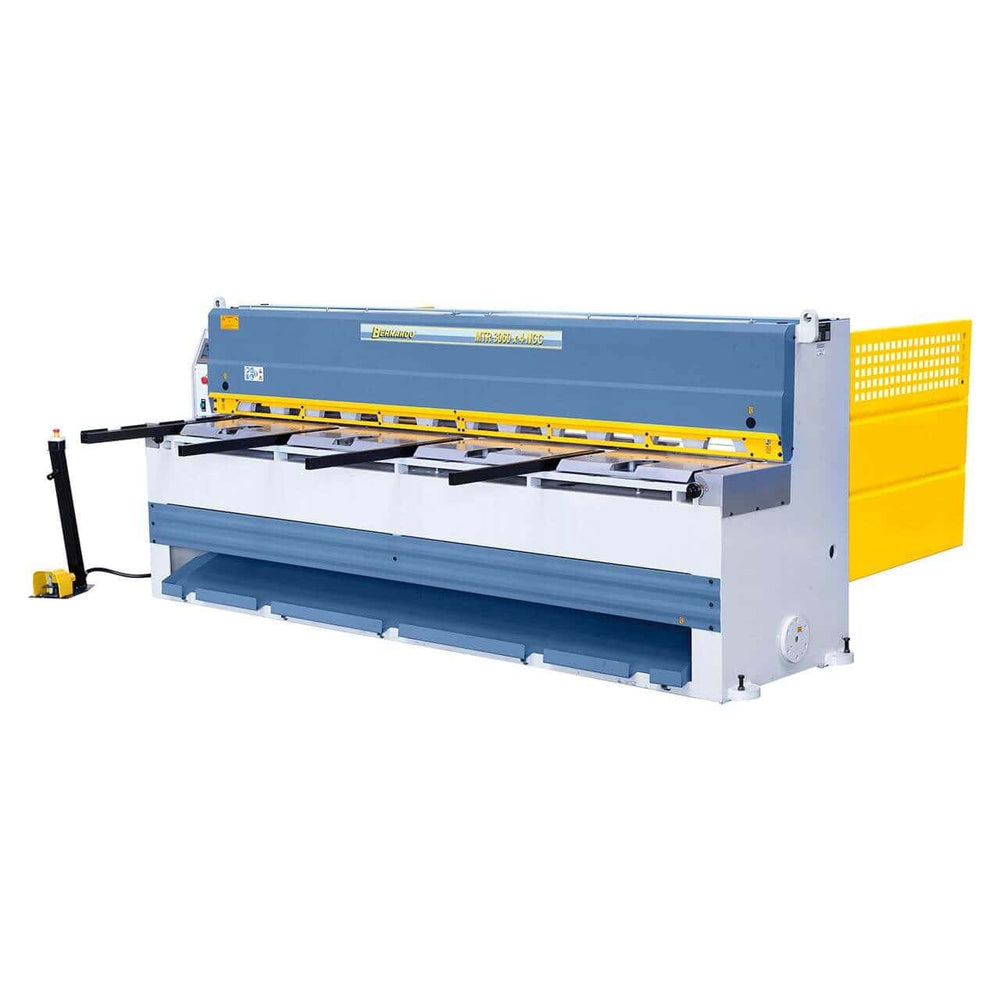

The Bernardo MTR 1100 × 6 NCC motorized guillotine shear cuts sheet metal up to 6 mm (400 N/mm²) over 1100 mm length, cutting angle 2°, 31 strokes/min, NC motorized backgauge 0–750 mm, working height 800 mm, motor 7.5 kW. Weight 2000 kg. Distributed in Italy by Krollit as official Bernardo distributor since 2007.
- Cutting length: 1100 mm
- Max. sheet thickness (400 N/mm²): 6 mm
- Cutting angle: 2°
- Strokes/min: 31
- Working height: 800 mm

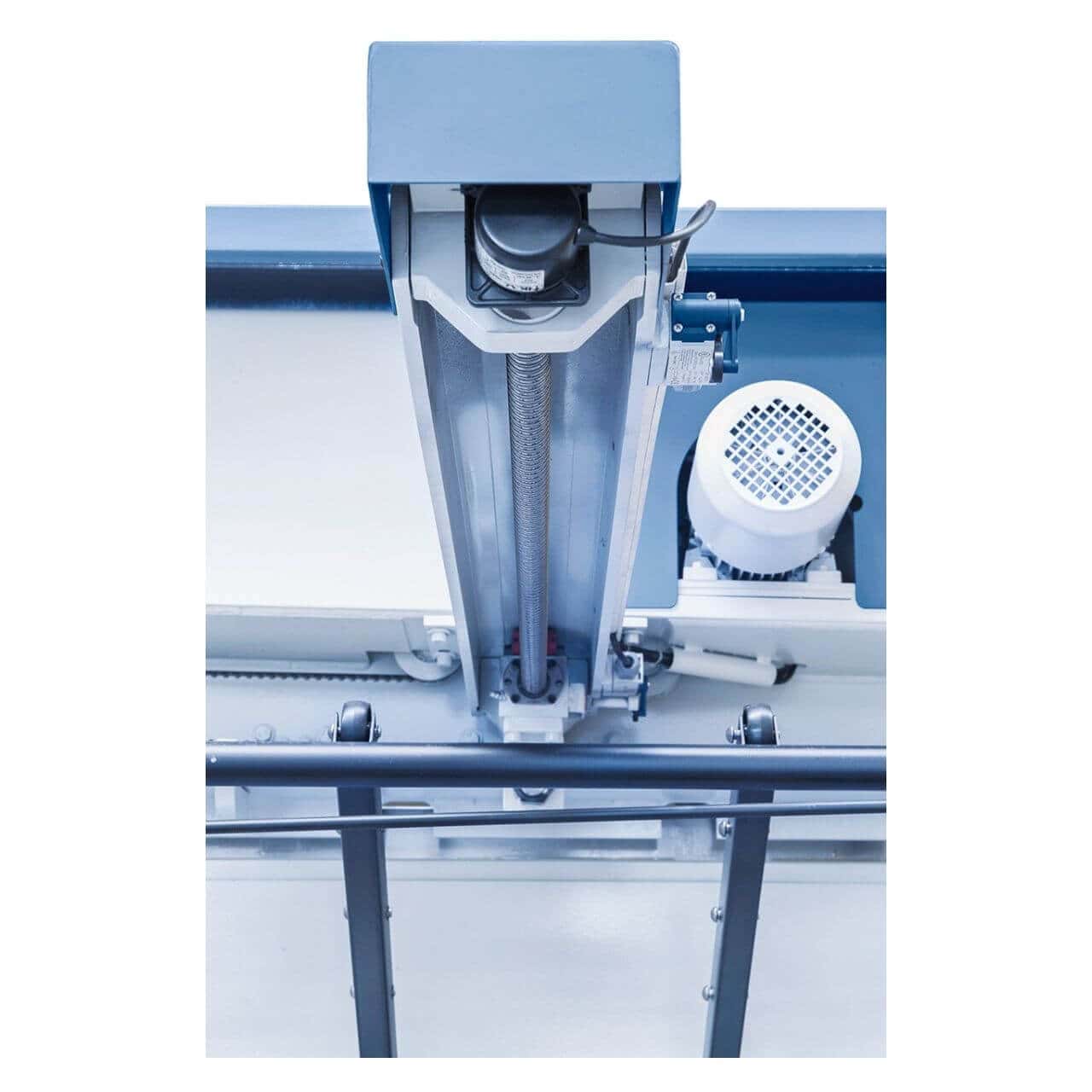

- Backgauge: 0–750 mm (NC motorized)
- Table width: 450 mm
- Motor: 7.5 kW
- Weight: 2000 kg
Who uses the MTR 1100 × 6 NCC and for what

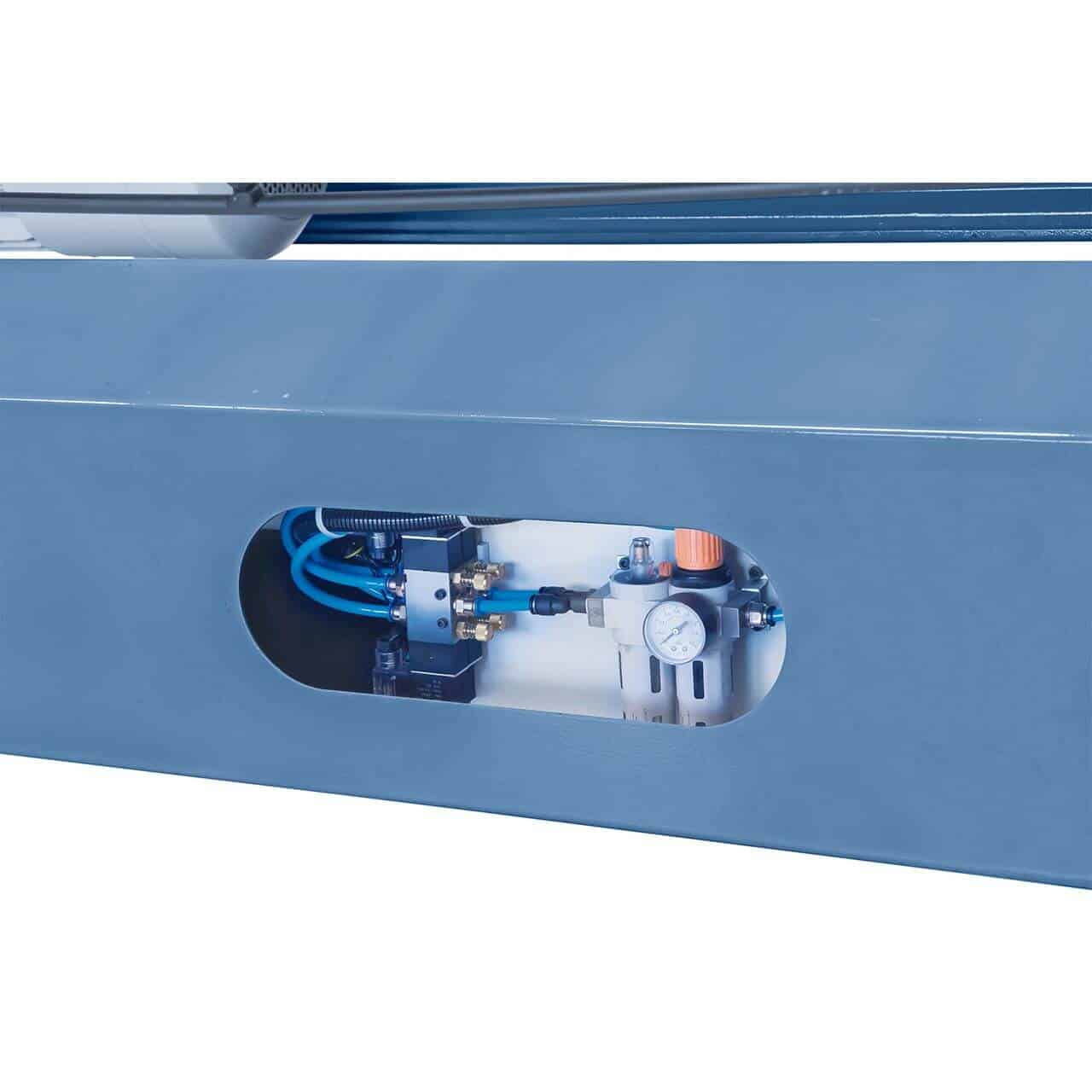

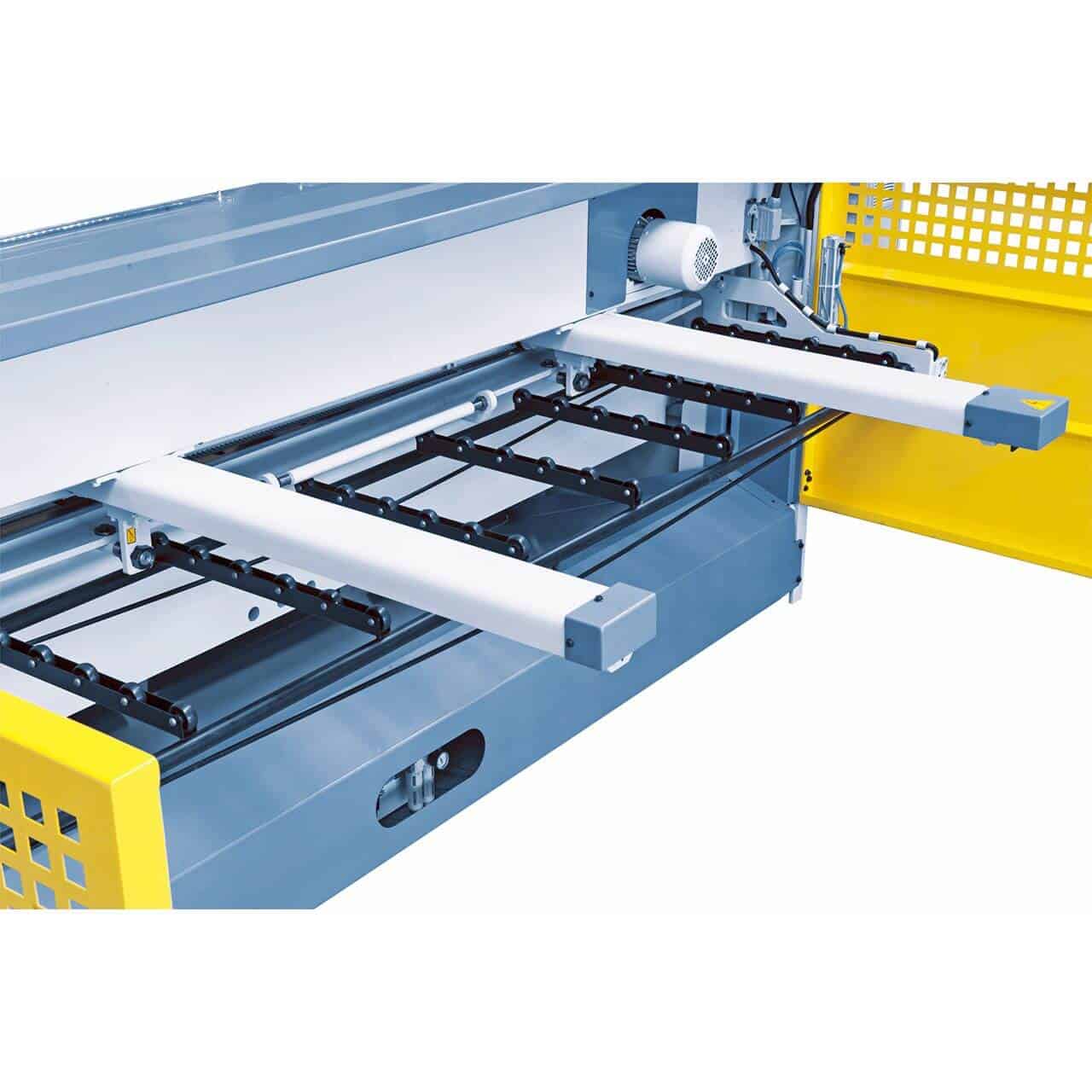

The Bernardo MTR 1100 × 6 NCC is a motorized guillotine shear with pneumatic sheet support (MTR series) for industrial sheet metal cutting in continuous production. With 31 strokes/min over 1100 mm length and NC motorized backgauge, it is sized for cutting centers, sheet metal fabricators, and metal structure manufacturers who process sheet metal in series with constant quality and repeatability. The MTR series adds pneumatic sheet support: pneumatic pins lift the sheet from the table during positioning, reducing friction and allowing heavy sheets to be moved with less effort—crucial for lengths over 2,000 mm or thick sheets. In Krollit customers' workshops, it is used by sheet metal cutting centers, metal roofing manufacturers, and sheet metal component producers.
Who the Bernardo MTR 1100 × 6 NCC is for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist / Light artisan | Not suitable | Industrial shear of 2000 kg with NC control. Not suitable for non-professional use. |
| Cutting center / Sheet metal fabricator | Ideal | 1100 mm × 6 mm, 31 cpm, NC backgauge: for continuous production with industrial quality and repeatability. |
| High-volume industrial production | Ideal | The NC motorized backgauge and 31 strokes/min ensure the necessary productivity for large cutting volumes. |
Not suitable for: sheet metal over 6 mm; low-volume artisanal use (manual PTS or HSG shears have a much lower cost); installations without adequate space for 2000 kg and 1750 mm length.
Technical specifications
| Specification | Value |
|---|---|
| Cutting length | 1100 mm |
| Max. sheet thickness (400 N/mm²) | 6 mm |
| Cutting angle | 2° |
| Strokes per minute | 31 |
| Working height | 800 mm |
| Backgauge | 0–750 mm (NC motorized) |
| Table width | 450 mm |
| Motor power | 7.5 kW |
| Pneumatic sheet support | Yes (MTR series) |
| Dimensions (L × W × H) | 1750 x 2250 x 1400 mm |
| Weight | 2000 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). With 2000 kg, delivery requires adequate unloading equipment: coordinate with Krollit before delivery. Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between the MTE series and the MTR series?
Both have NC motorized backgauge, the same number of strokes (31/min), and a similar structure. The MTR adds pneumatic sheet support: pins that lift the sheet during positioning, reducing friction, which is essential for long (over 2,000 mm) or heavy sheets. The MTE does not have this support—the sheet slides directly on the table. For standard production on light sheets, the MTE is sufficient; for heavy sheets or large formats, the MTR significantly facilitates the operator's work.
What is the maximum thickness for stainless steel?
The nominal thickness of 6 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 3.9 mm). Always check with Krollit for specific high-strength materials.
Are the blades reversible?
Yes. The shear blades have 4 cutting edges: when one edge is worn, the blade is rotated to expose the next cutting edge, before complete replacement. Original Bernardo spare blades are available with 3–5 working day shipping.
Is three-phase power required?
Yes. The 7.5 kW motor requires 400V three-phase power. Verify the availability of the three-phase system at the installation site before ordering.
How much space is needed for installation?
Overall dimensions 1750 x 2250 x 1400 mm. For sheet handling, free space at least equal to the cutting length (1100 mm) is needed in front of and behind the machine. For 2000 kg, coordinate with Krollit for the necessary unloading equipment.
