Bernardo MTR 1360 x 3 mm NCC – Motorized Guillotine Shear

Bernardo MTR 1360 x 3 mm NCC – Motorised Guillotine Shear with Pneumatic Sheet Support System

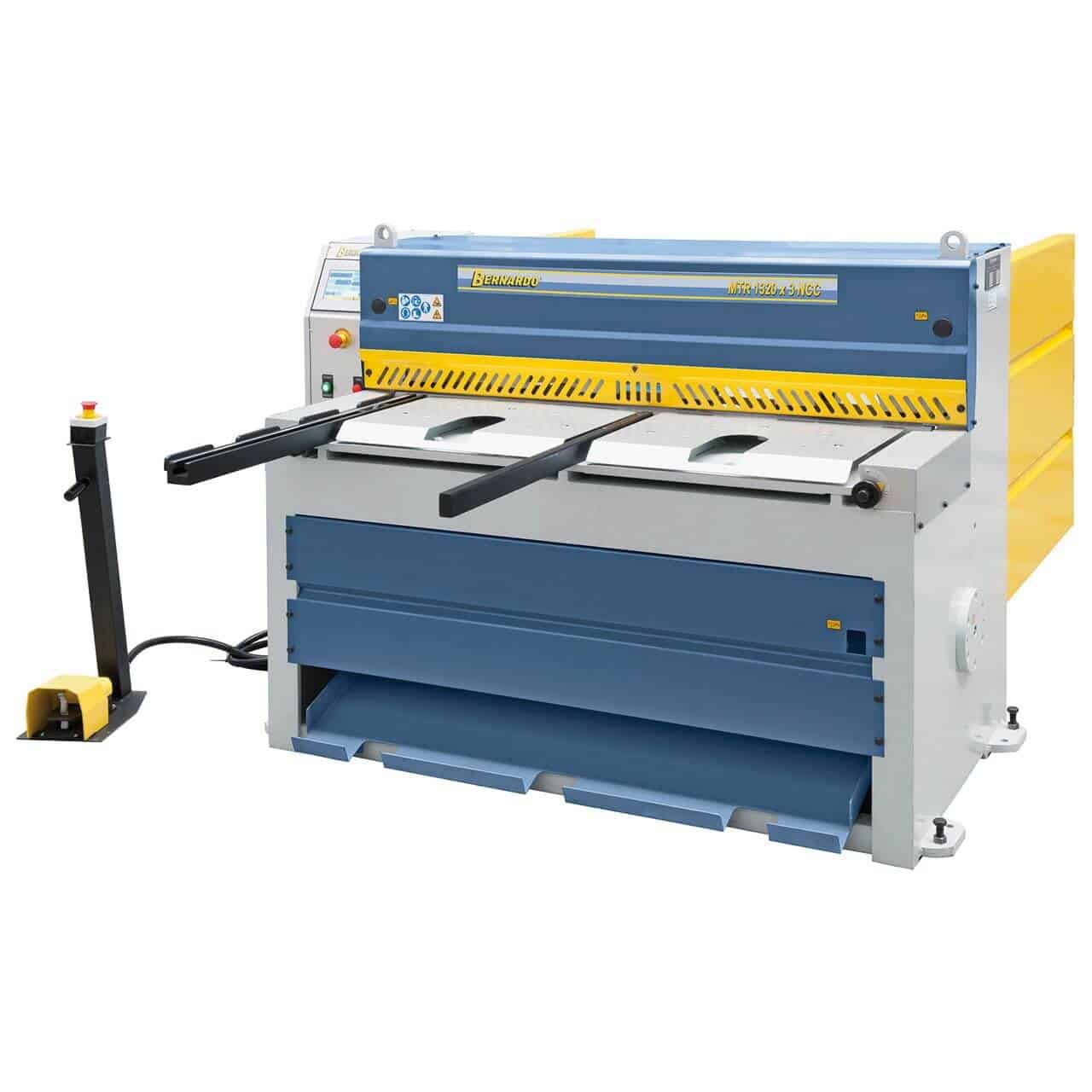

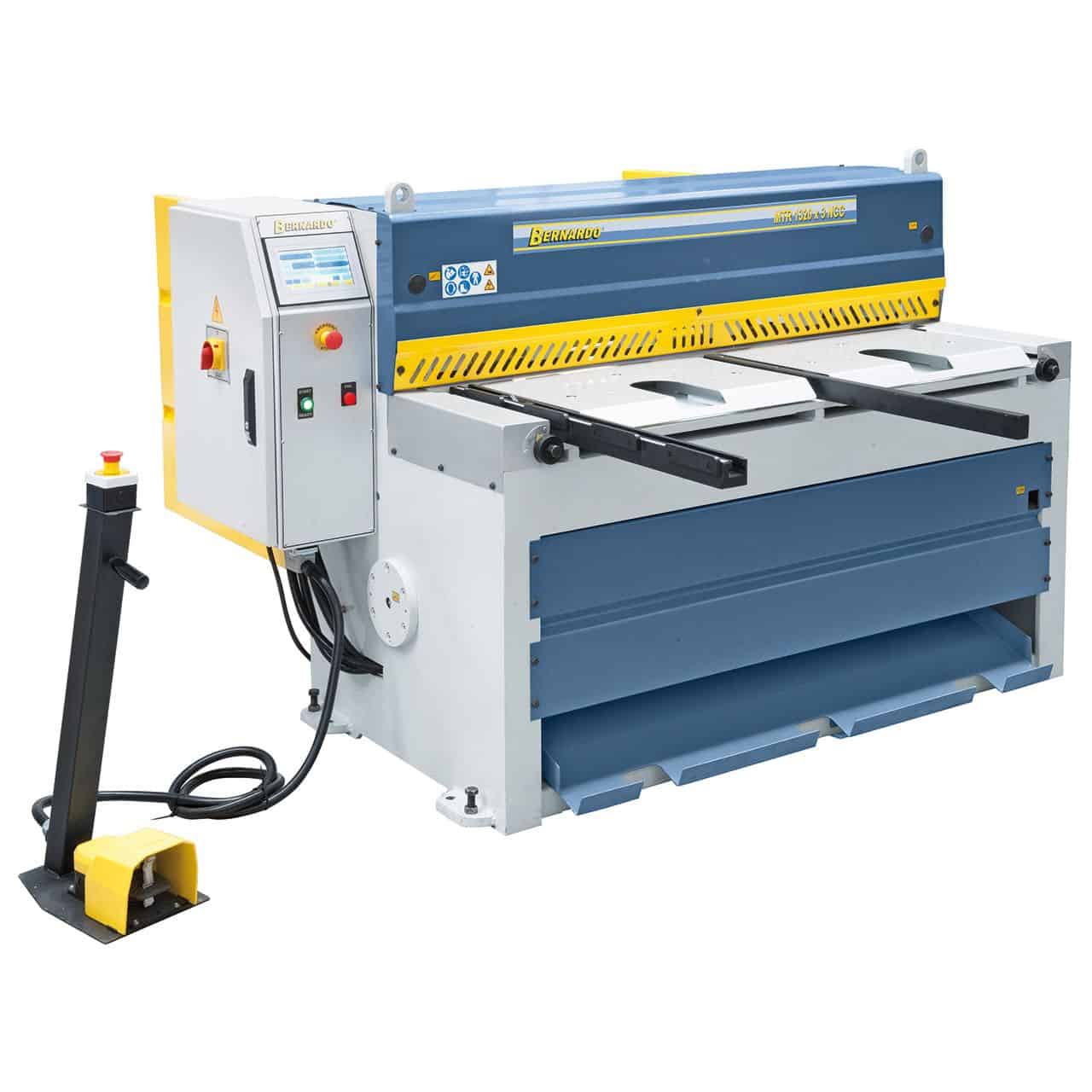

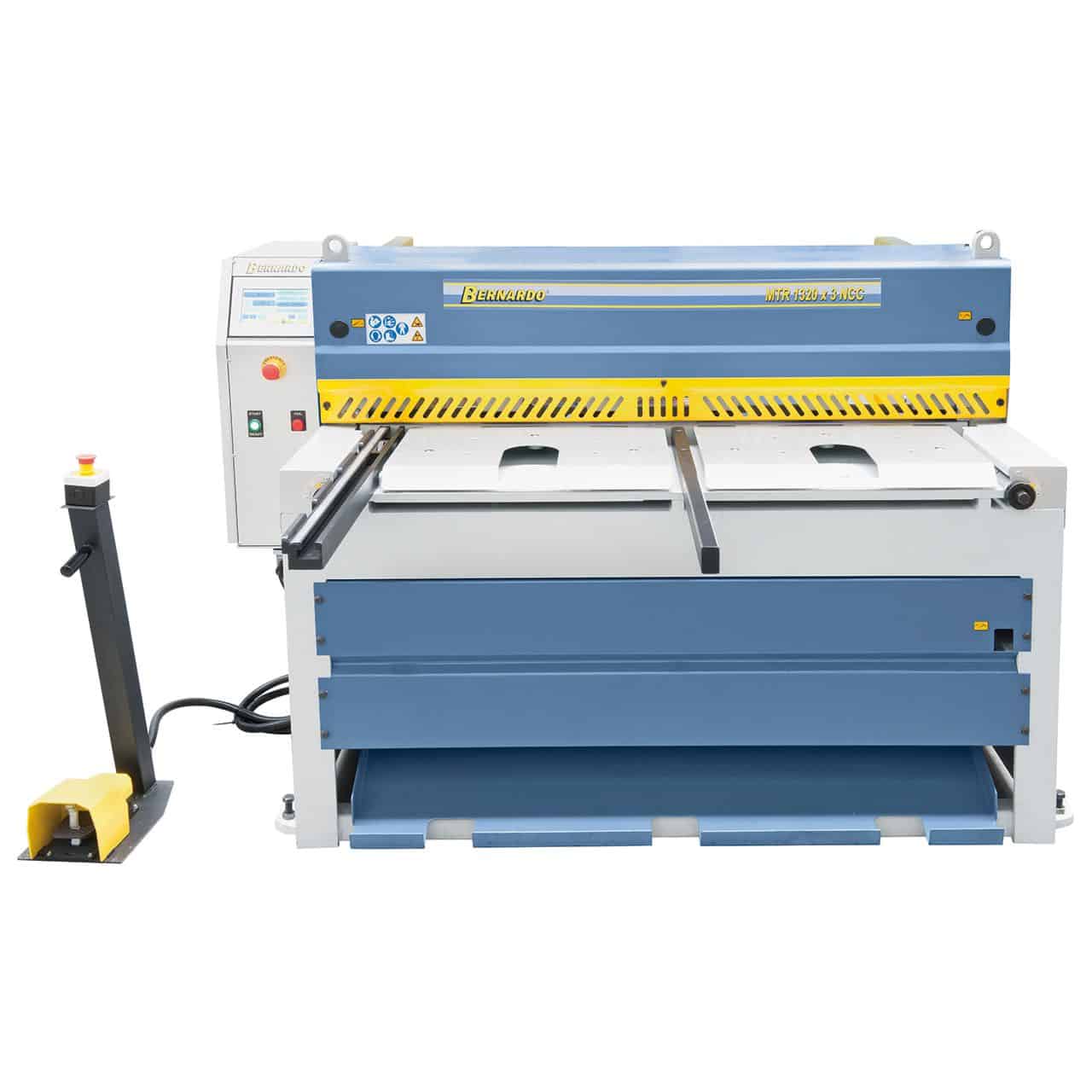

The Bernardo MTR 1360 x 3 mm NCC is a state-of-the-art motorised guillotine shear, designed for precise and efficient cutting of steel, aluminium, copper, and brass sheets up to 3 mm thick (400 N/mm²). With a cutting length of 1320 mm and an angle of 2°30’, it guarantees clean, burr-free surfaces thanks to the high-quality, double-edged upper and lower blades. It features Fuji control with touchscreen, motorised NC backgauge with ball screws, and a pneumatic sheet support system, characteristics that ensure speed, precision, and operational comfort. The table with integrated rollers, the side ruler with scale, and the possibility of integrating an optional angle cutting device enhance versatility. With a 3.0 kW motor, 31 strokes/min, and a weight of 1300 kg, the MTR 1360 x 3 mm NCC is a compact, safe, and high-performance industrial shear.

---

Key features:
1320 mm cutting length for industrial applications
Cutting capacity up to 3 mm (400 N/mm² steel)
Fuji control with integrated touchscreen for intuitive management
Motorised NC backgauge with ball screws

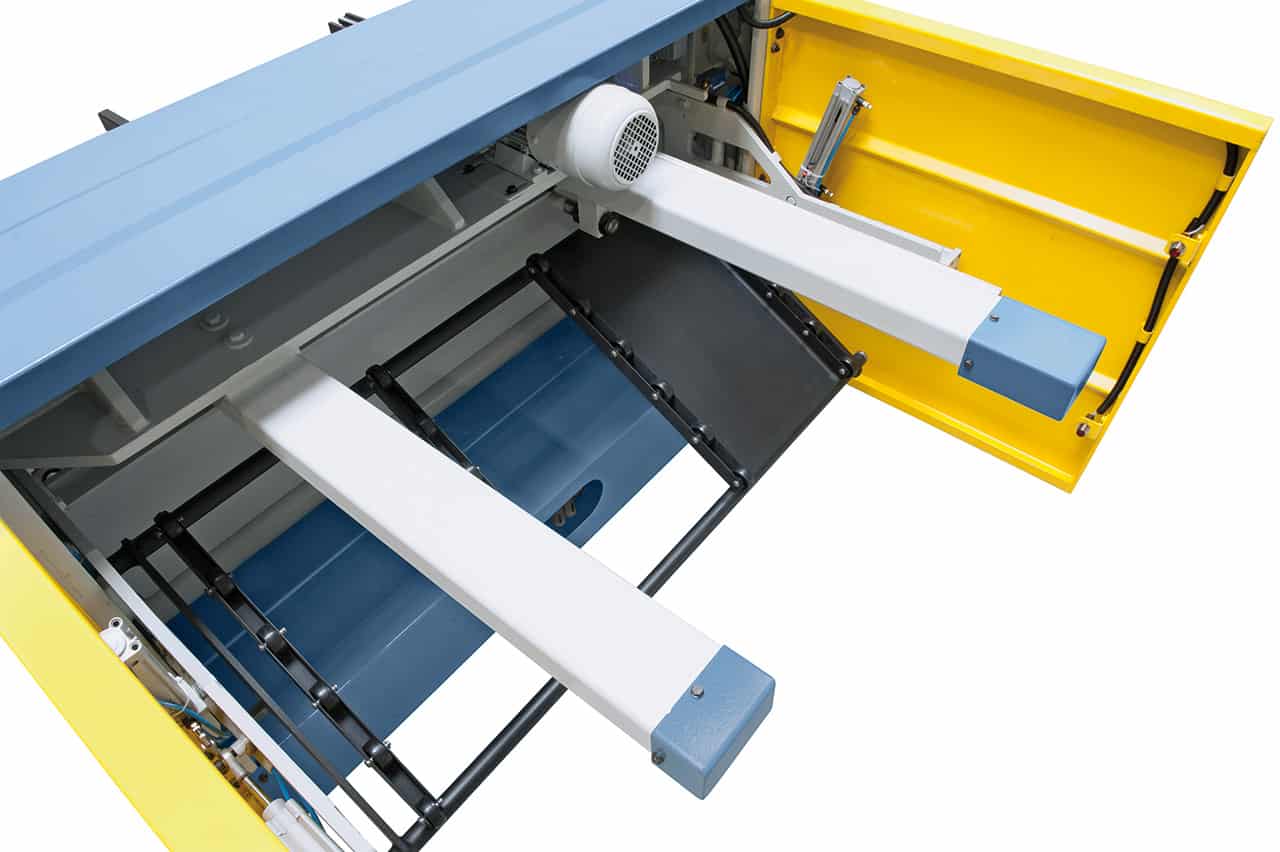

Pneumatic sheet support system for thin sheets
Double-edged upper and lower blades made of hardened steel
Table with integrated rollers and front supports for large sheets
Cutting line illumination with silhouette for greater precision
Safety photocells and foot pedal with emergency stop
Possibility of integrating an optional angle cutting device

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTR 1360 x 3 mm NCC
Type	Motorised guillotine shear with NC and pneumatic support
Cutting length	1320 mm
Max sheet thickness*	3 mm
Cutting angle	2°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorised NC)
Table width	390 mm
Motor power	3.0 kW
Dimensions (L x W x H)	1860 x 2200 x 1280 mm
Weight	1300 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTR 1360 x 3 mm NCC guillotine shear

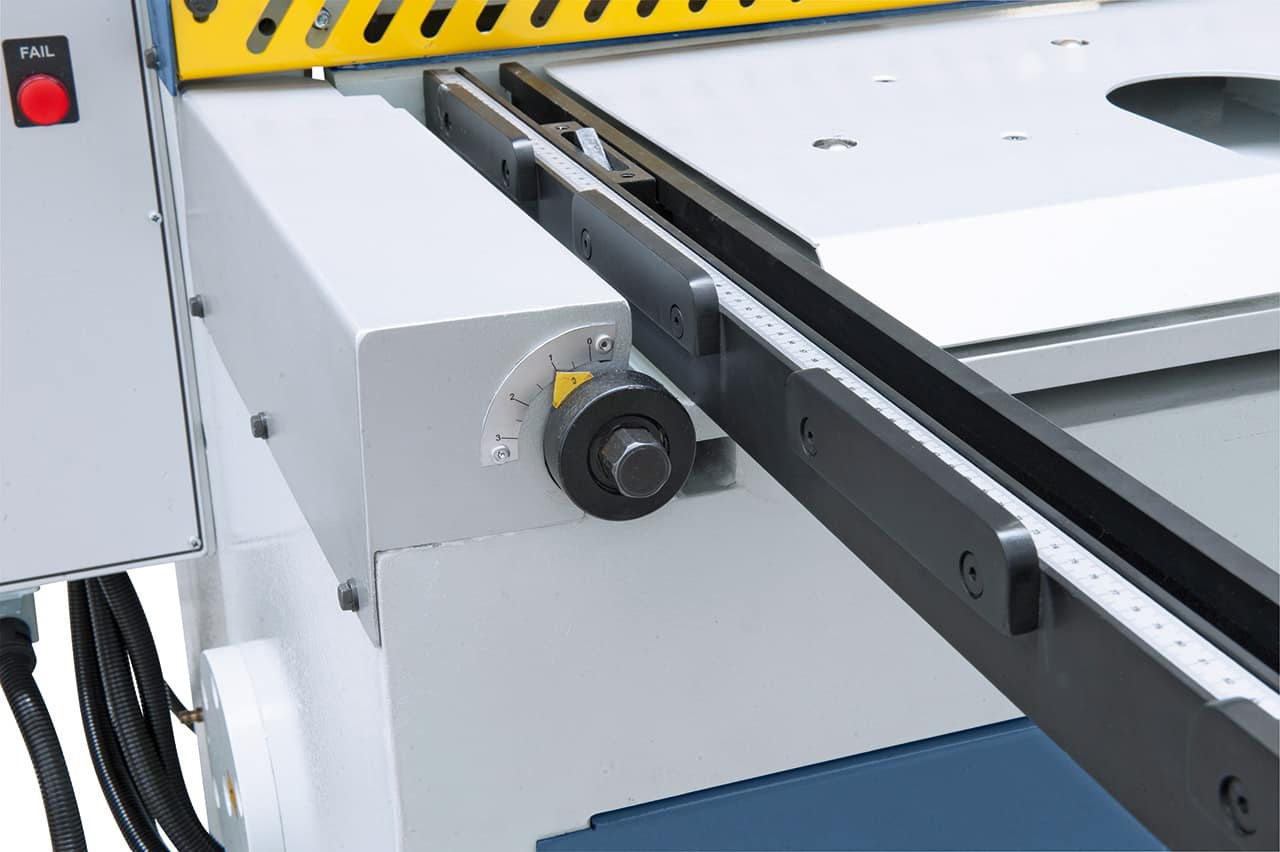

Front blade gap adjustment
Cutting line illumination
Motorised NC backgauge

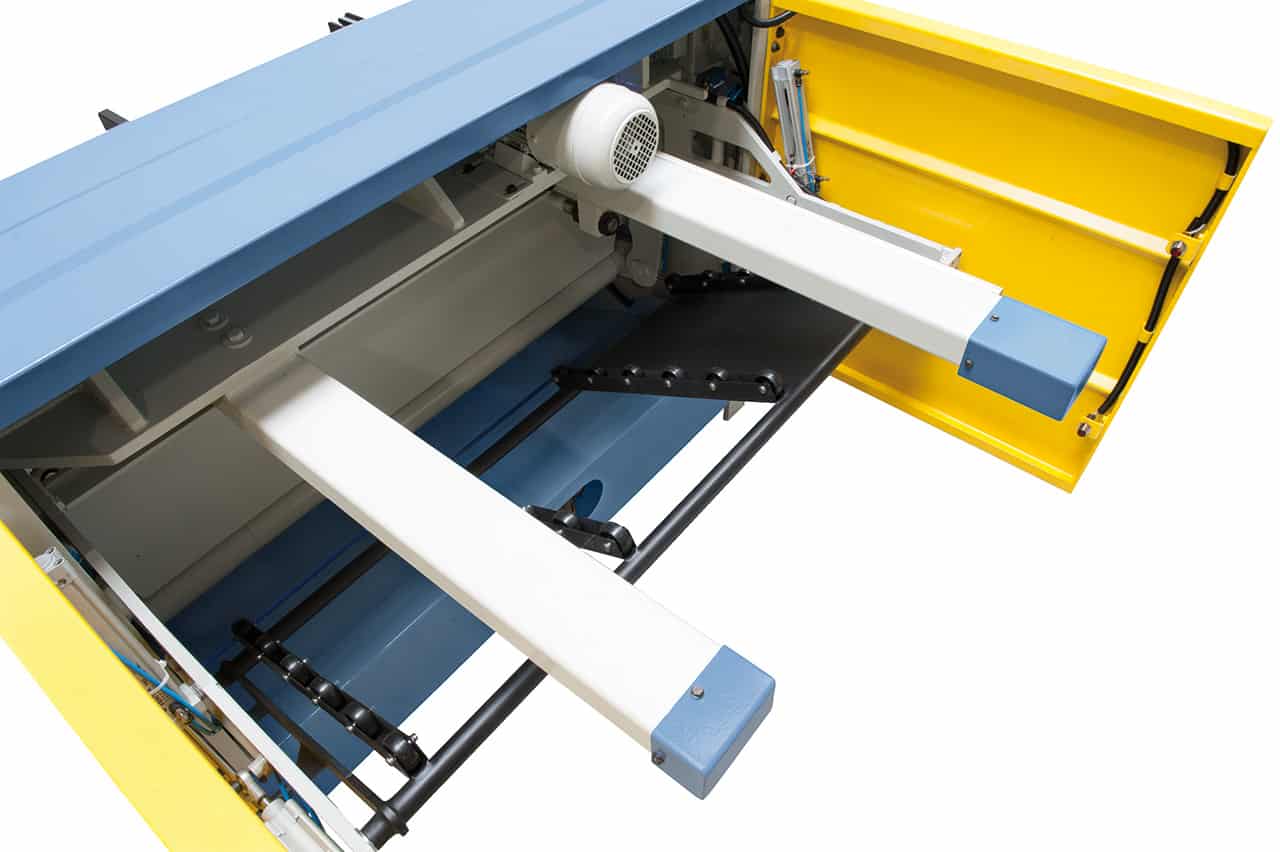

Pneumatic sheet support system
Front sheet support
Table with integrated rollers

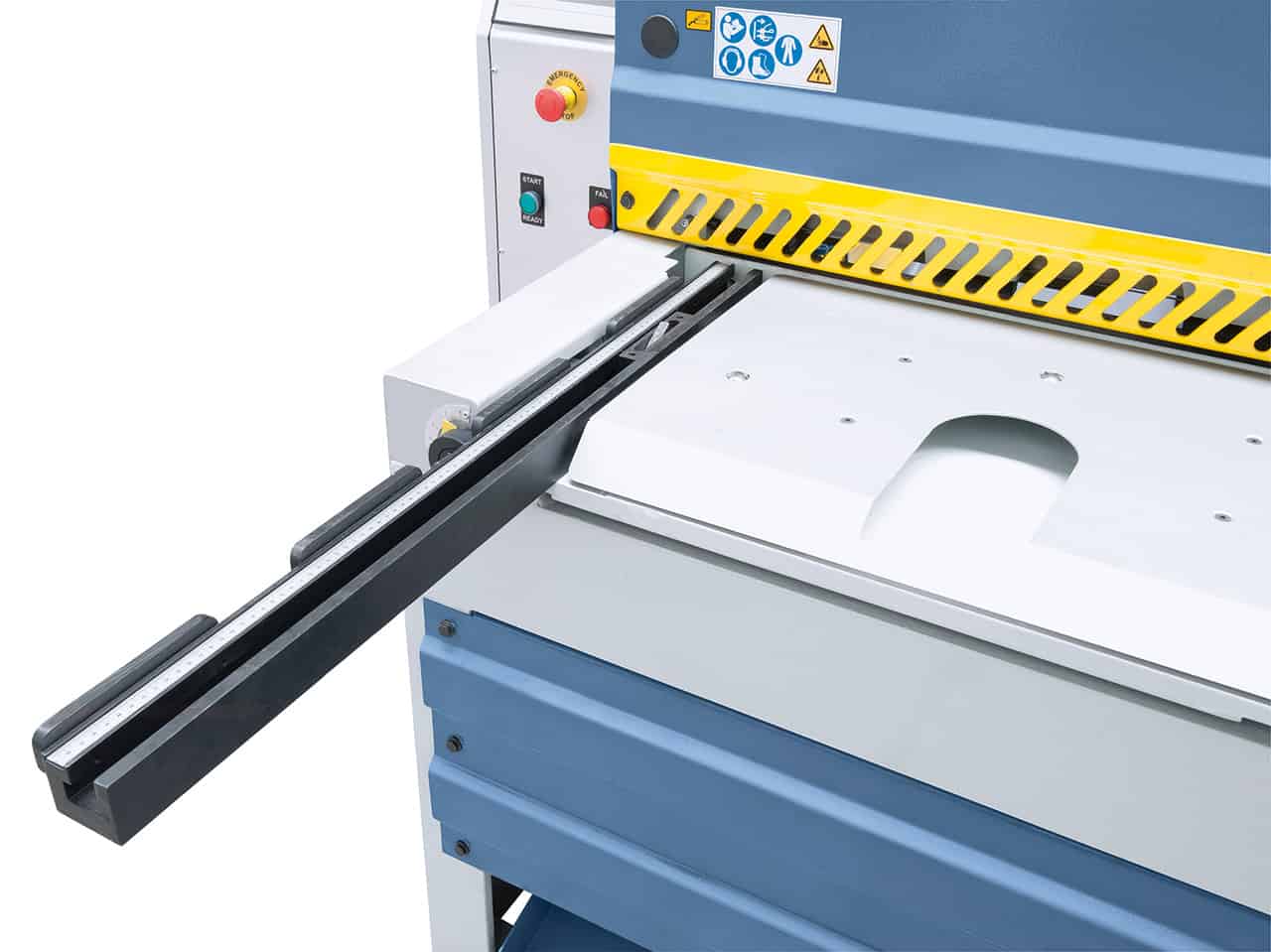

Side ruler with scale

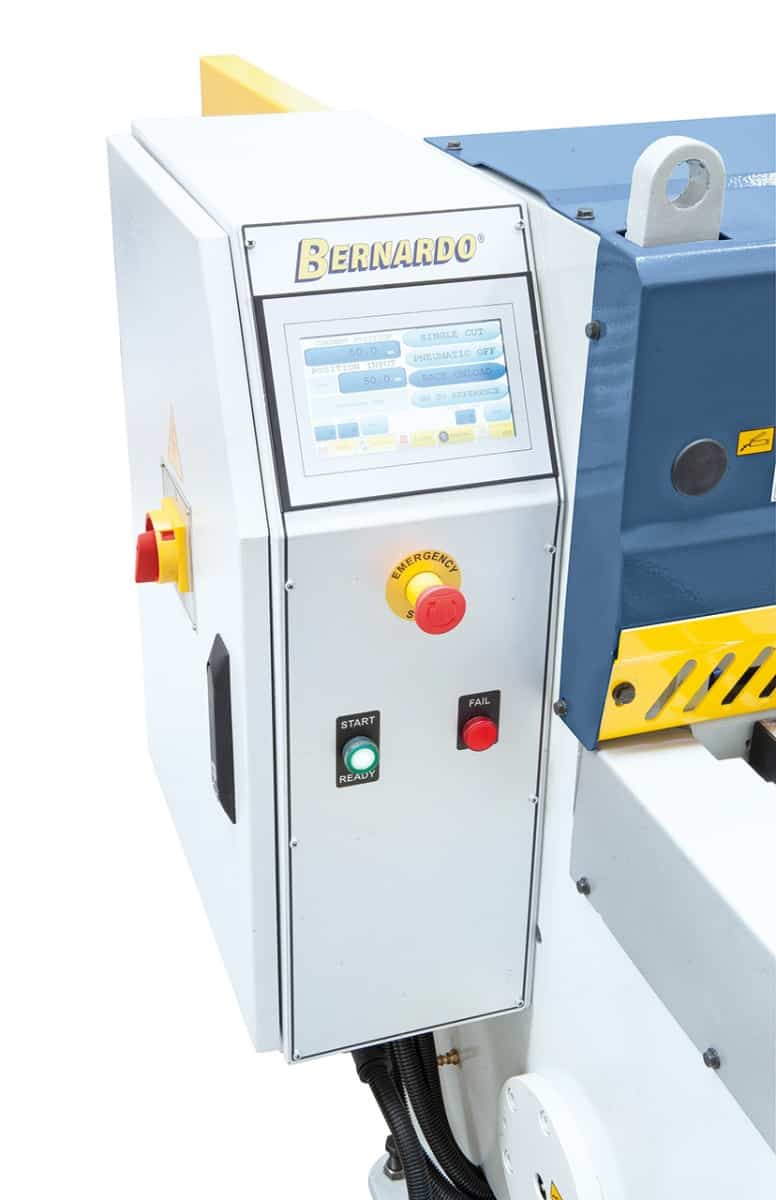

Fuji control panel with touchscreen

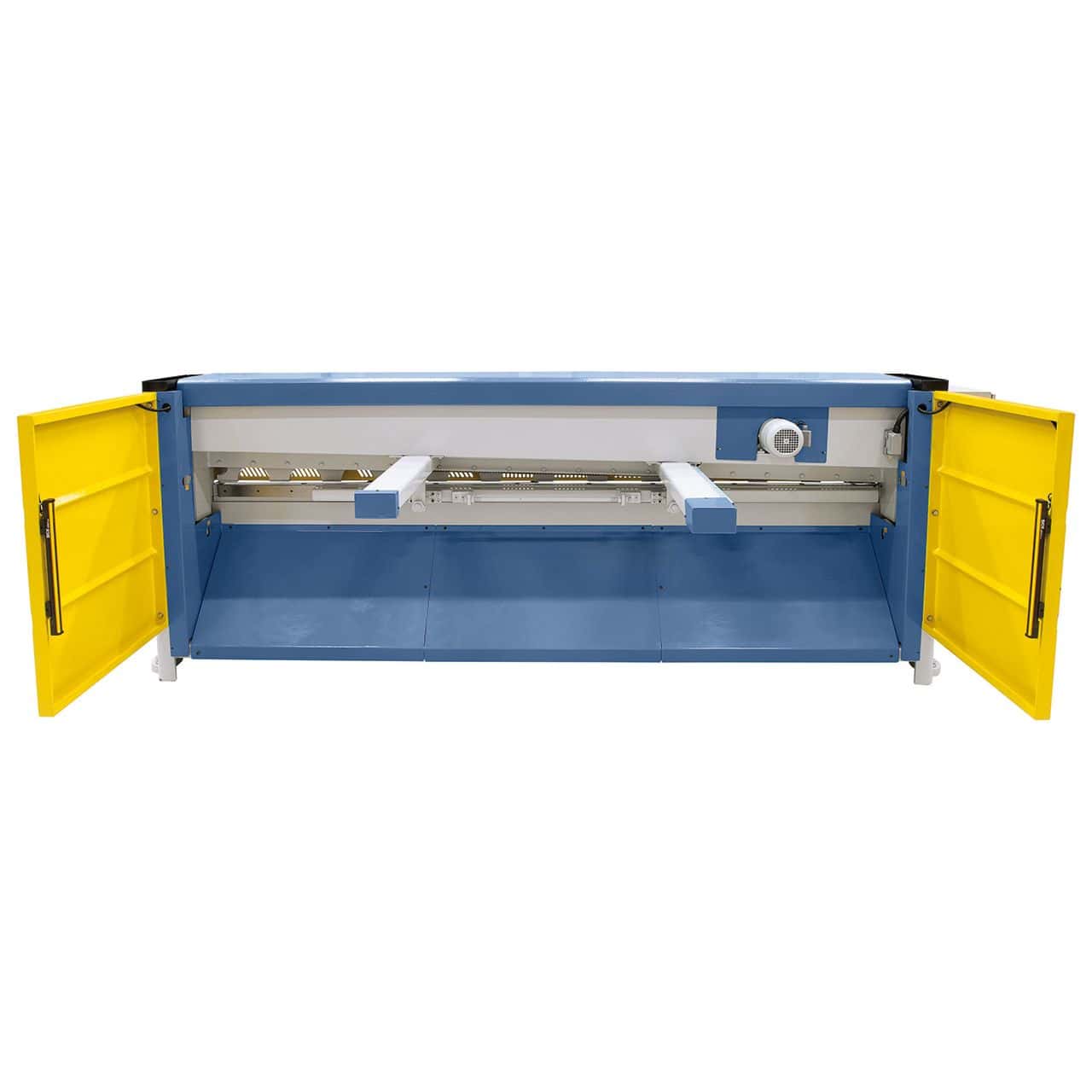

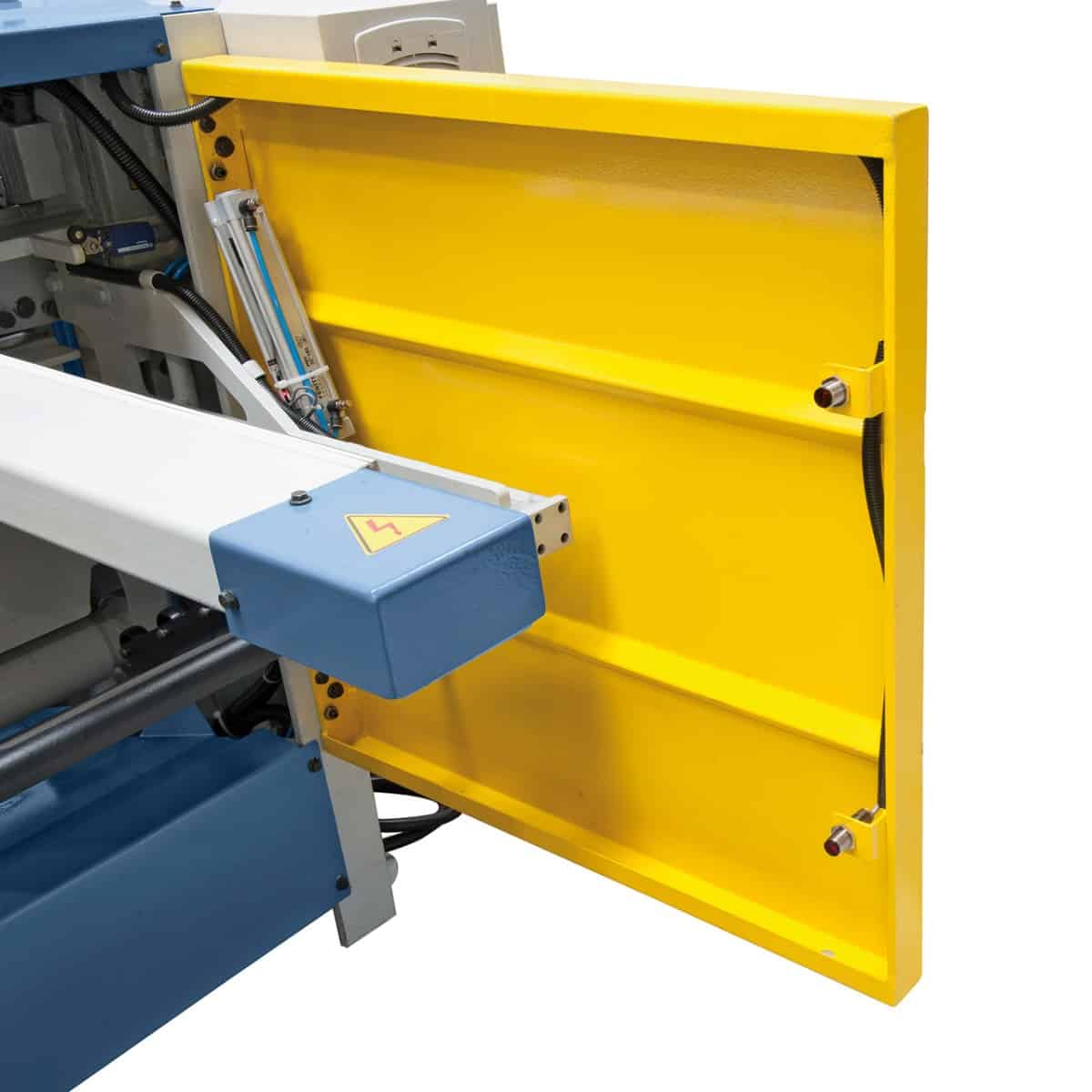

Rear guards with photocells
Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorisation, for low-volume artisanal production. MTE: motorised with NC, standard welded structure. MTR: motorised with NC and pneumatic sheet support to facilitate positioning of heavy or long format sheets. The choice depends on production volume and the format of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTR 1360 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 working days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet handling, free space at least equal to the cutting length (1360 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
