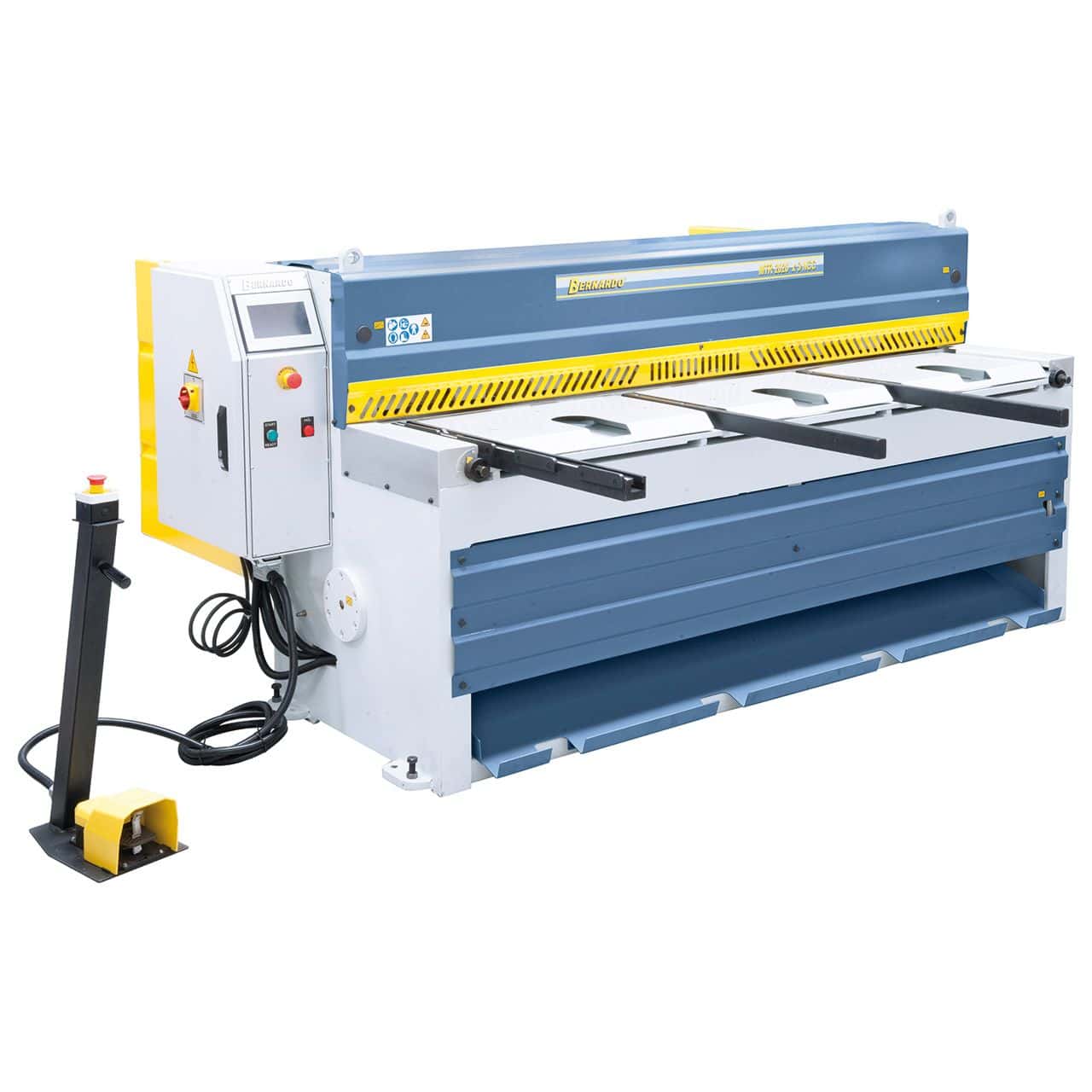

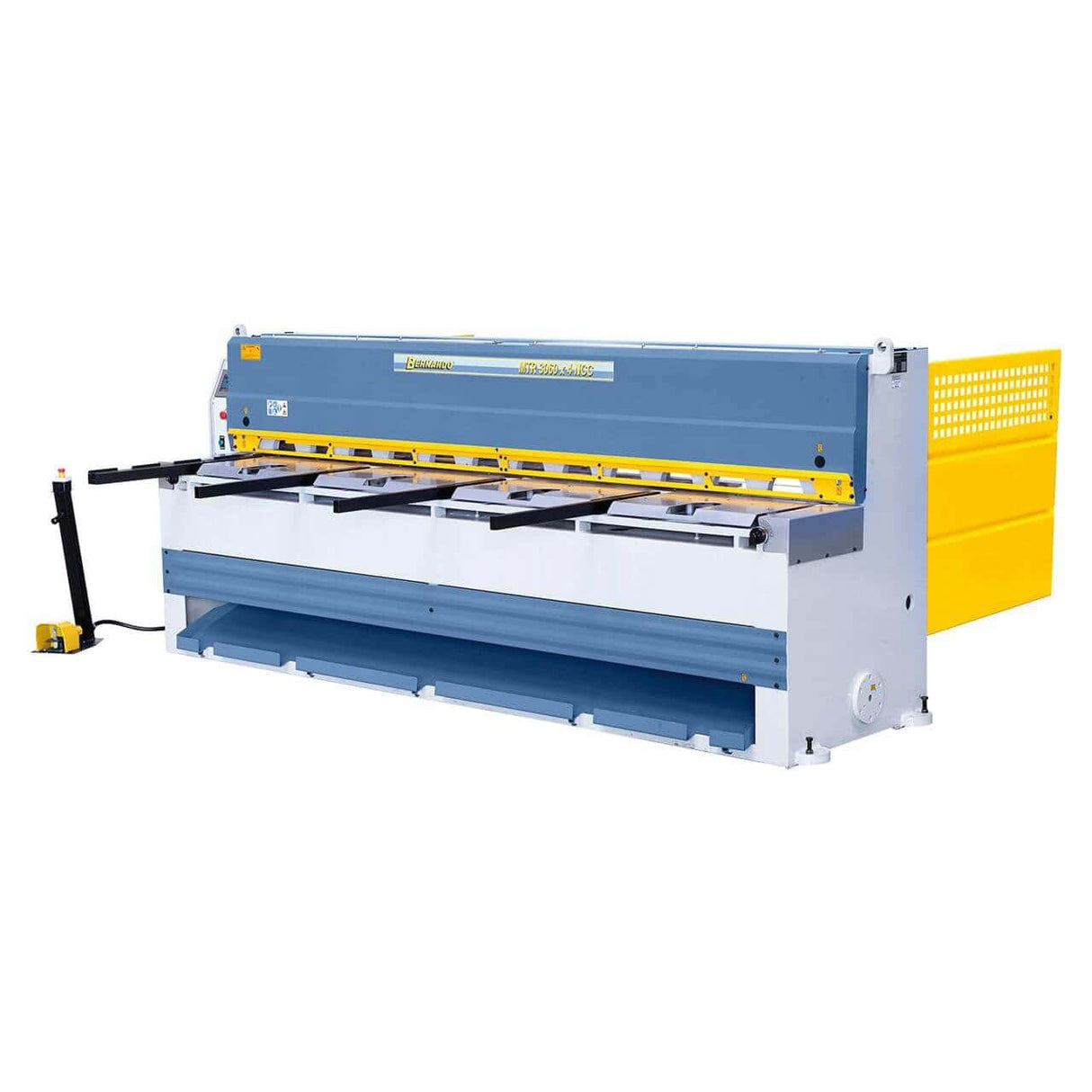

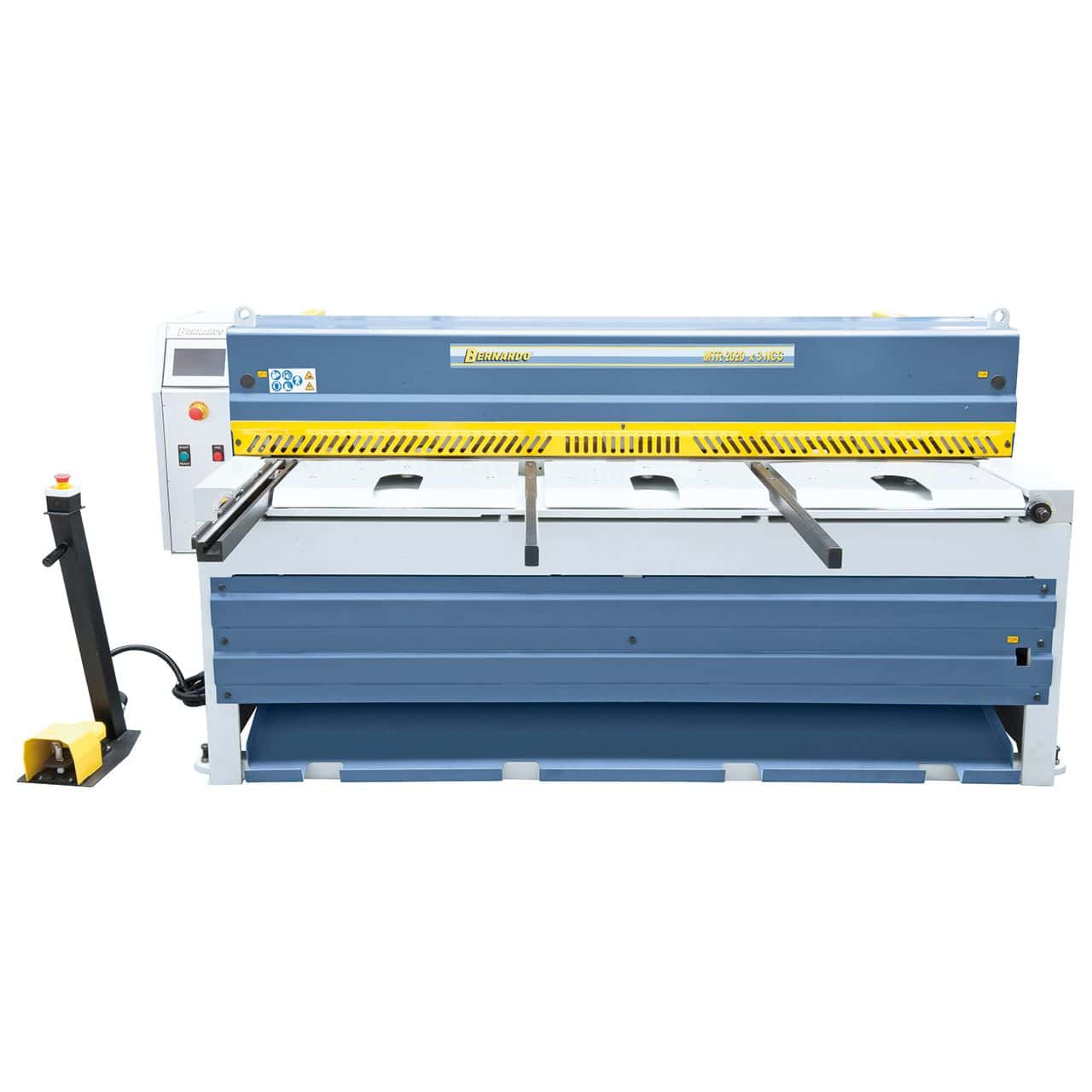

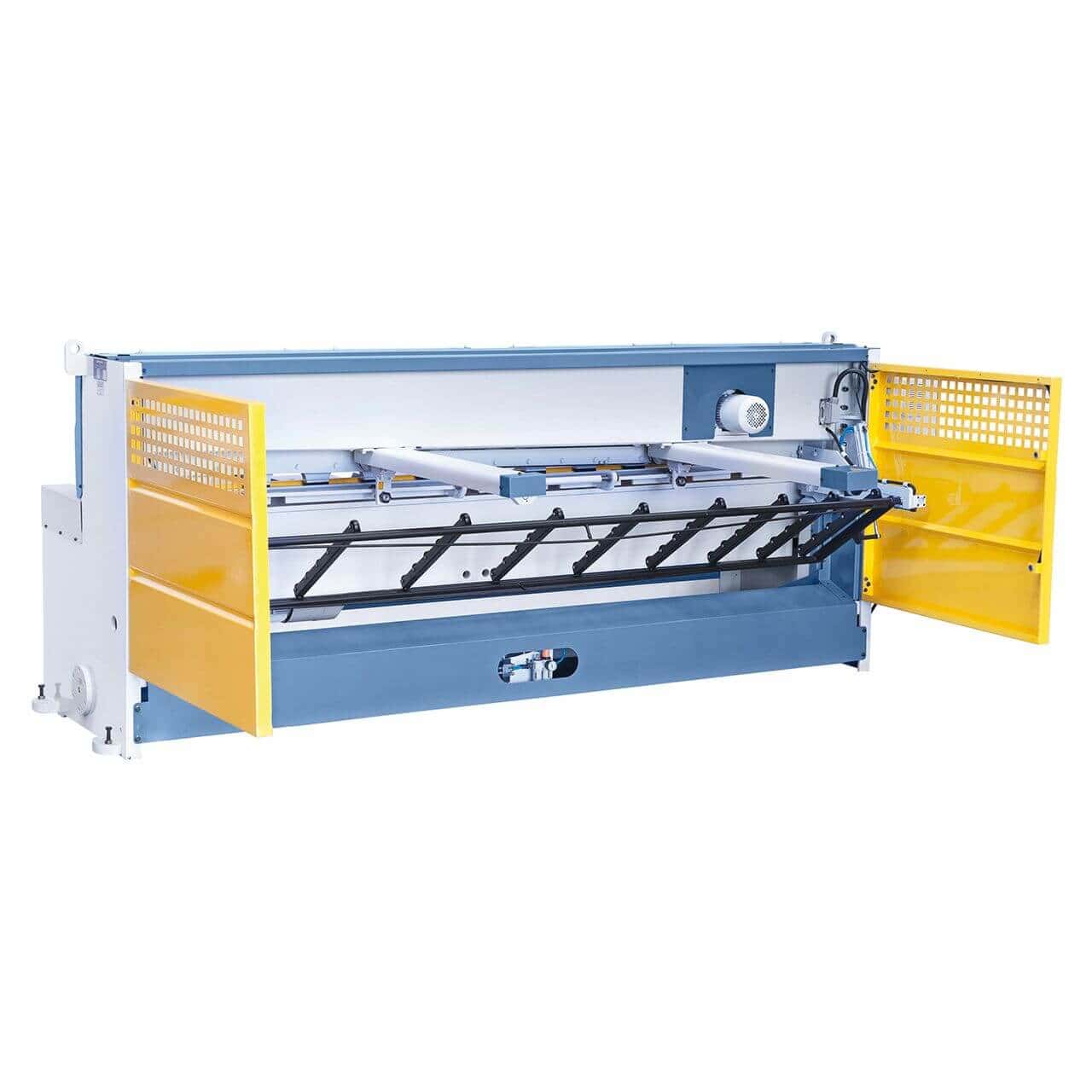

Bernardo MTR 2060 x 4 mm NCC – Motorised Guillotine Shear

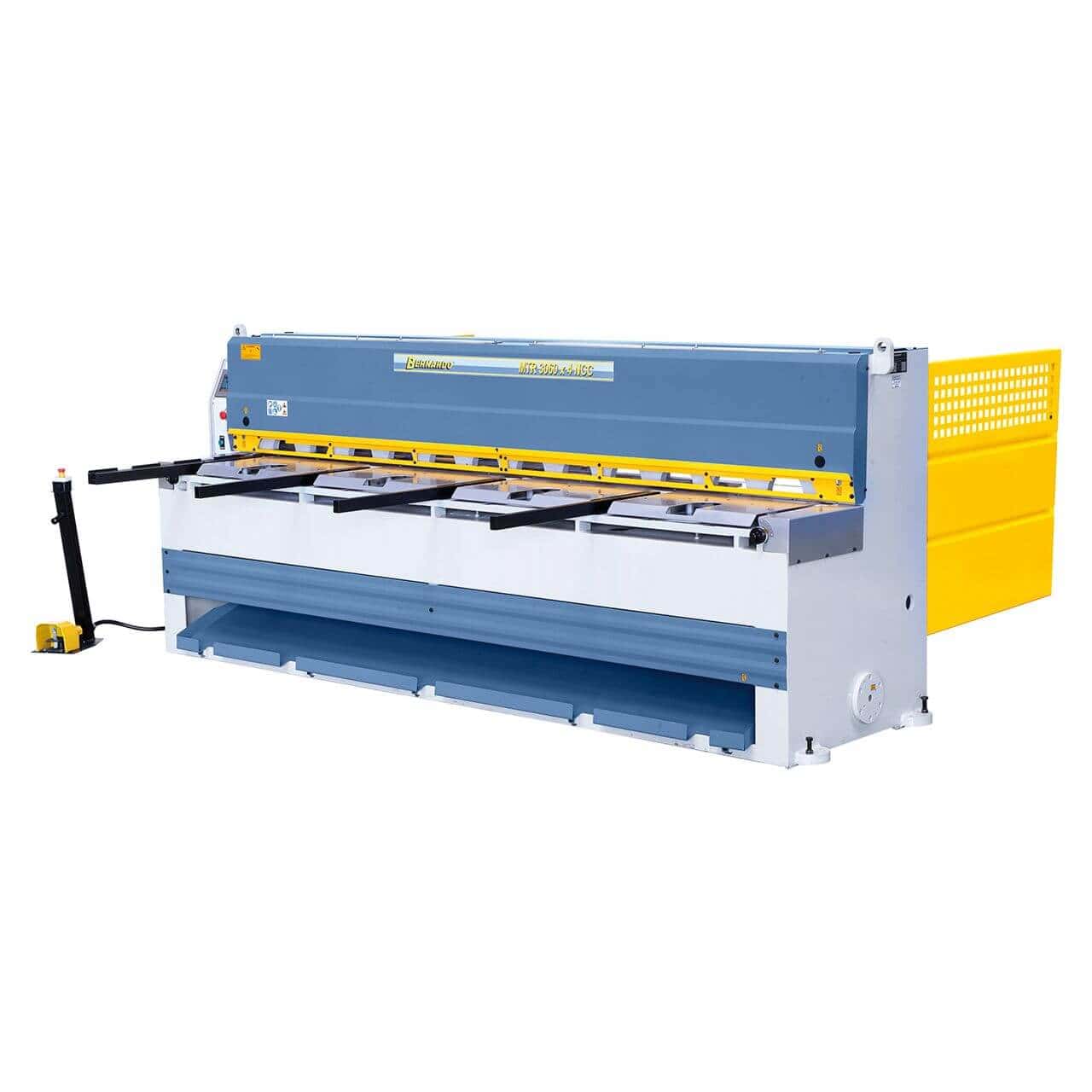

Bernardo MTR 2060 x 4 mm NCC – Motorized Guillotine Shear with Pneumatic Sheet Support System

The Bernardo MTR 2060 x 4 mm NCC is a high-end motorized guillotine shear, designed for professional cutting of sheet metal up to 4 mm thick (400 N/mm²) and 2060 mm long. It features Fuji control with touch screen, a motorized NC backgauge with ball screws, and a pneumatic sheet support system, ensuring precision, safety, and ease of use. Thanks to its high-quality hardened steel double-edged blades, it delivers clean, burr-free surfaces. The cutting line illumination, integrated roller table, and front supports make processing simple and precise, even with large sheets. With a powerful 7.5 kW motor, a robust welded steel structure, and a weight of 3000 kg, the MTR 2060 x 4 mm NCC is the choice for workshops and businesses that require a reliable, safe, and technologically advanced industrial shear.

---

Key Features:
2060 mm cutting length for large sheet metal
Capacity up to 4 mm thickness (400 N/mm² steel)

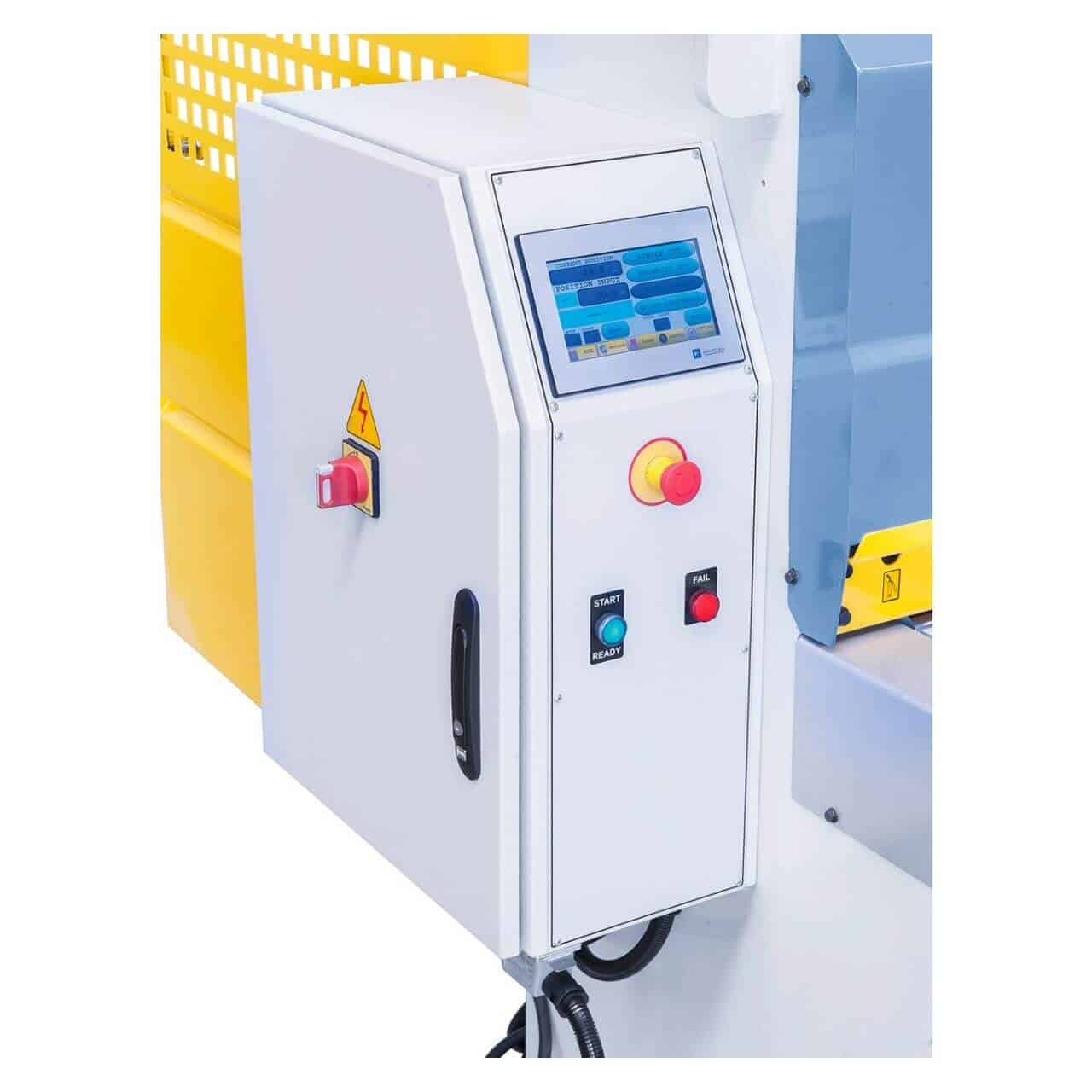

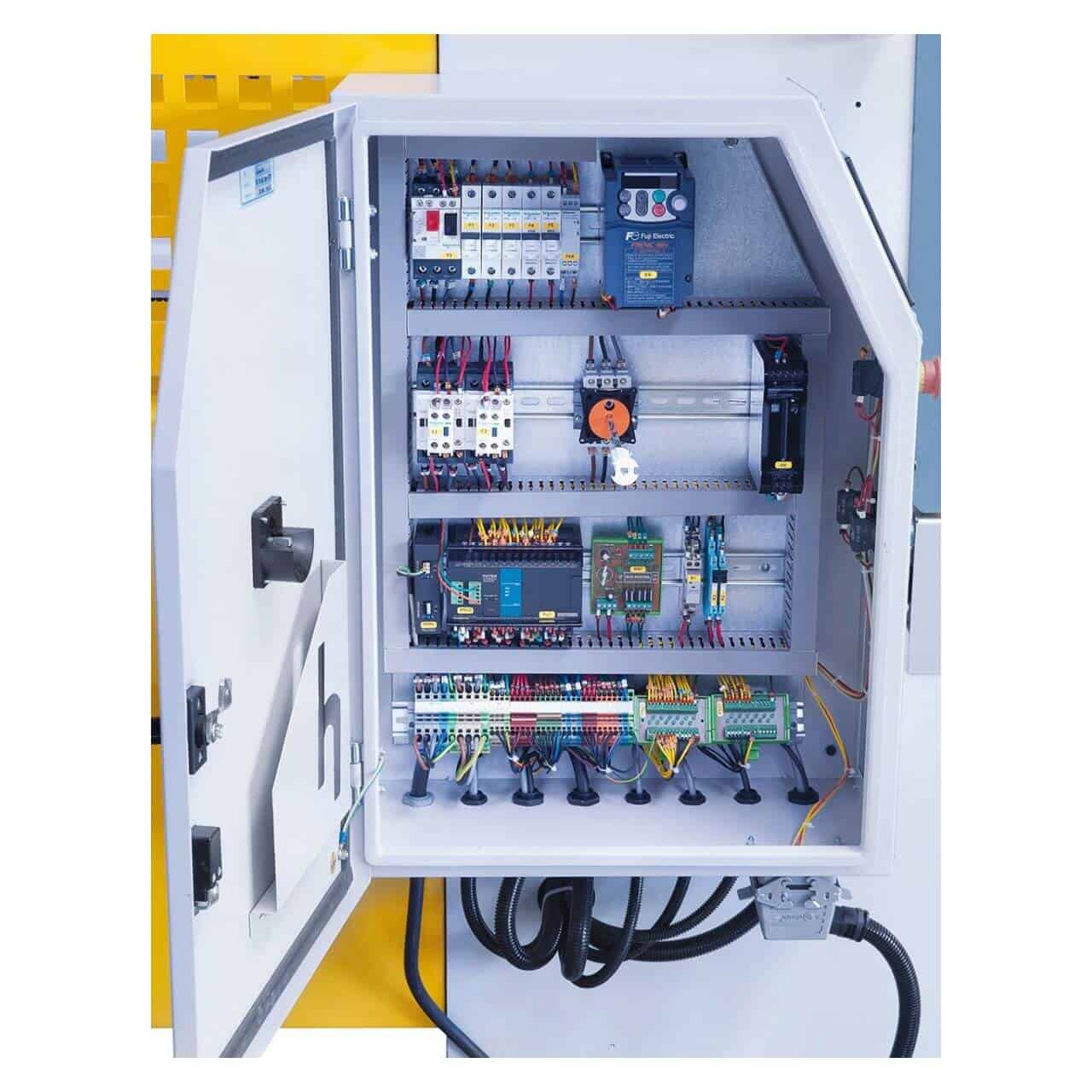

Fuji control with touch screen for intuitive settings

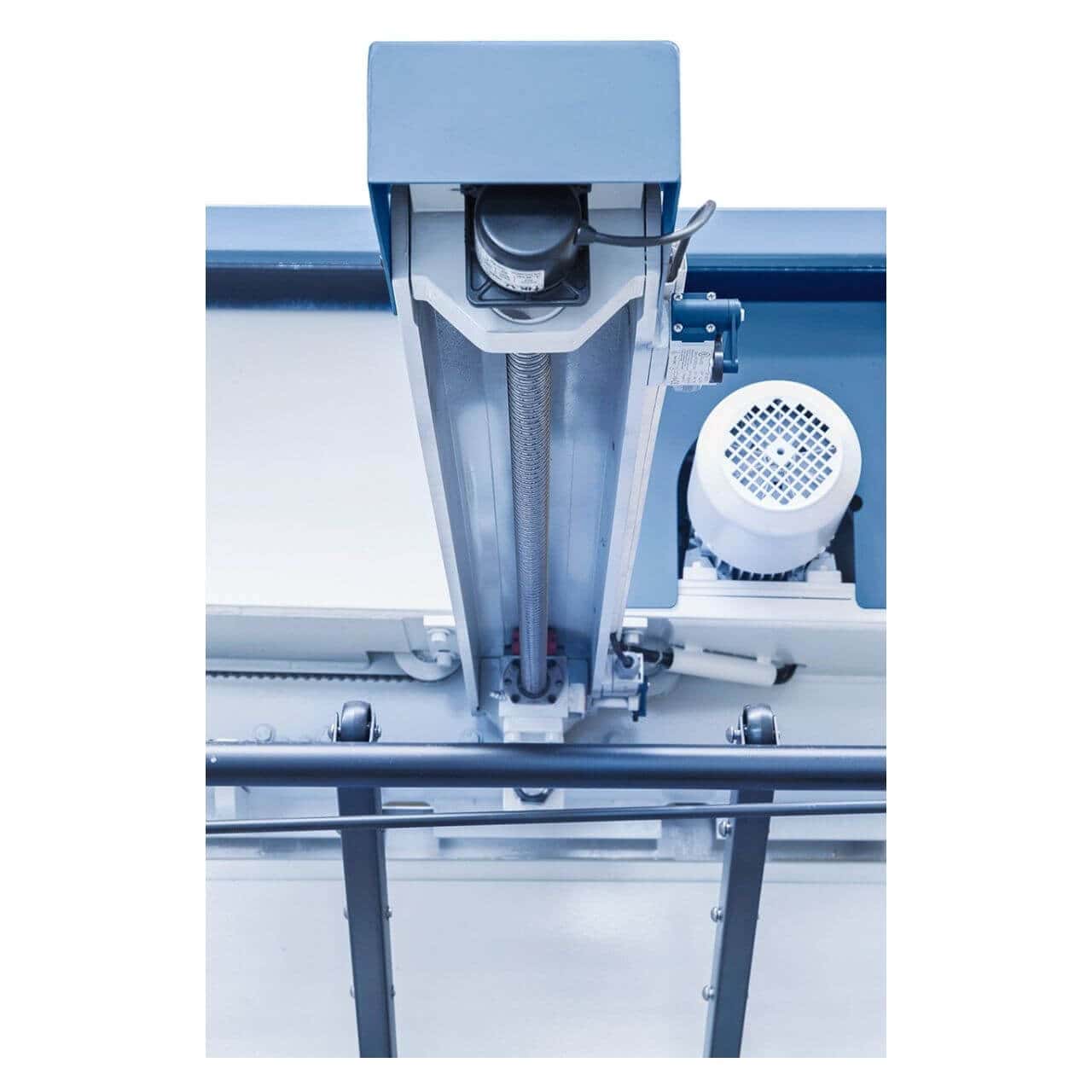

Motorized NC backgauge with ball screws

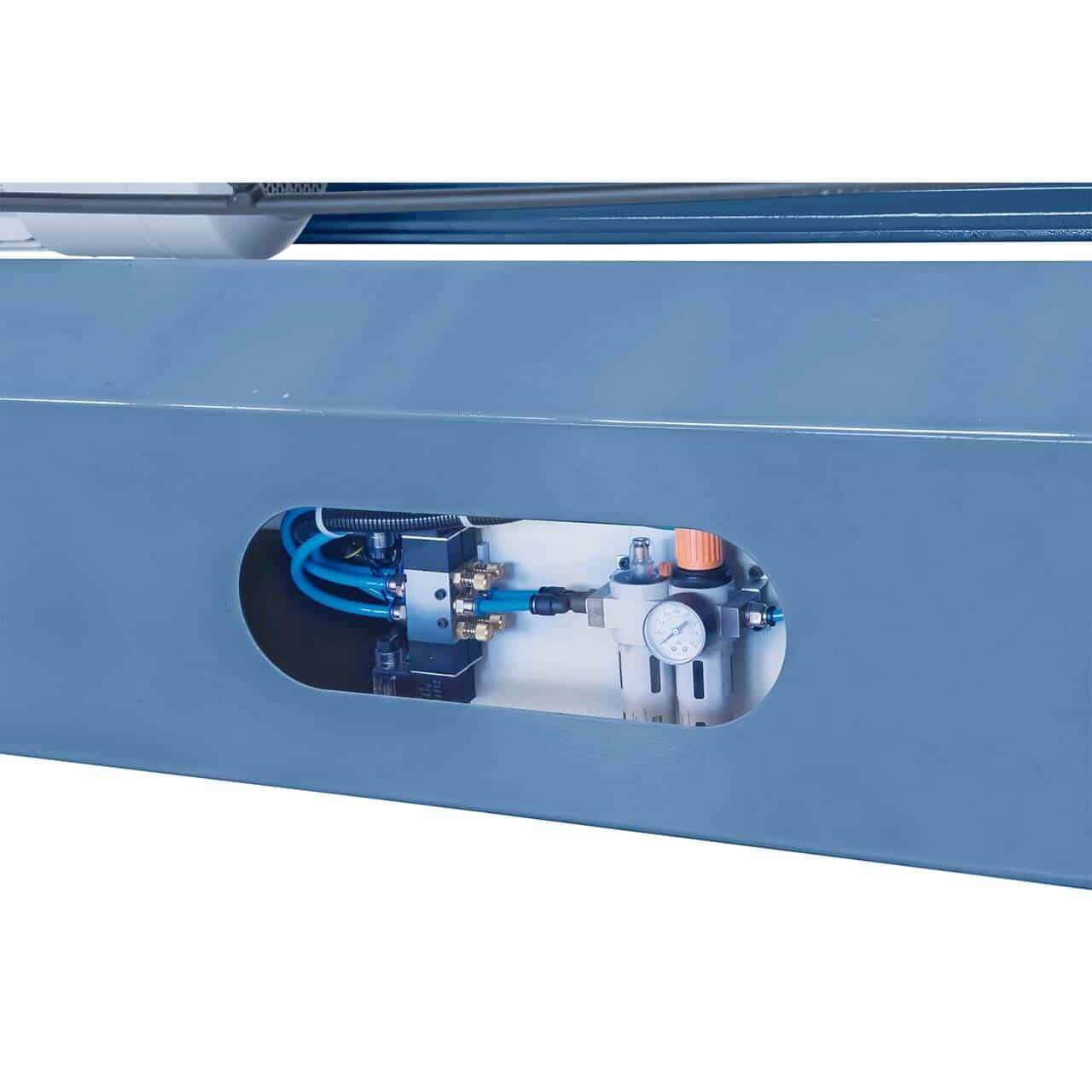

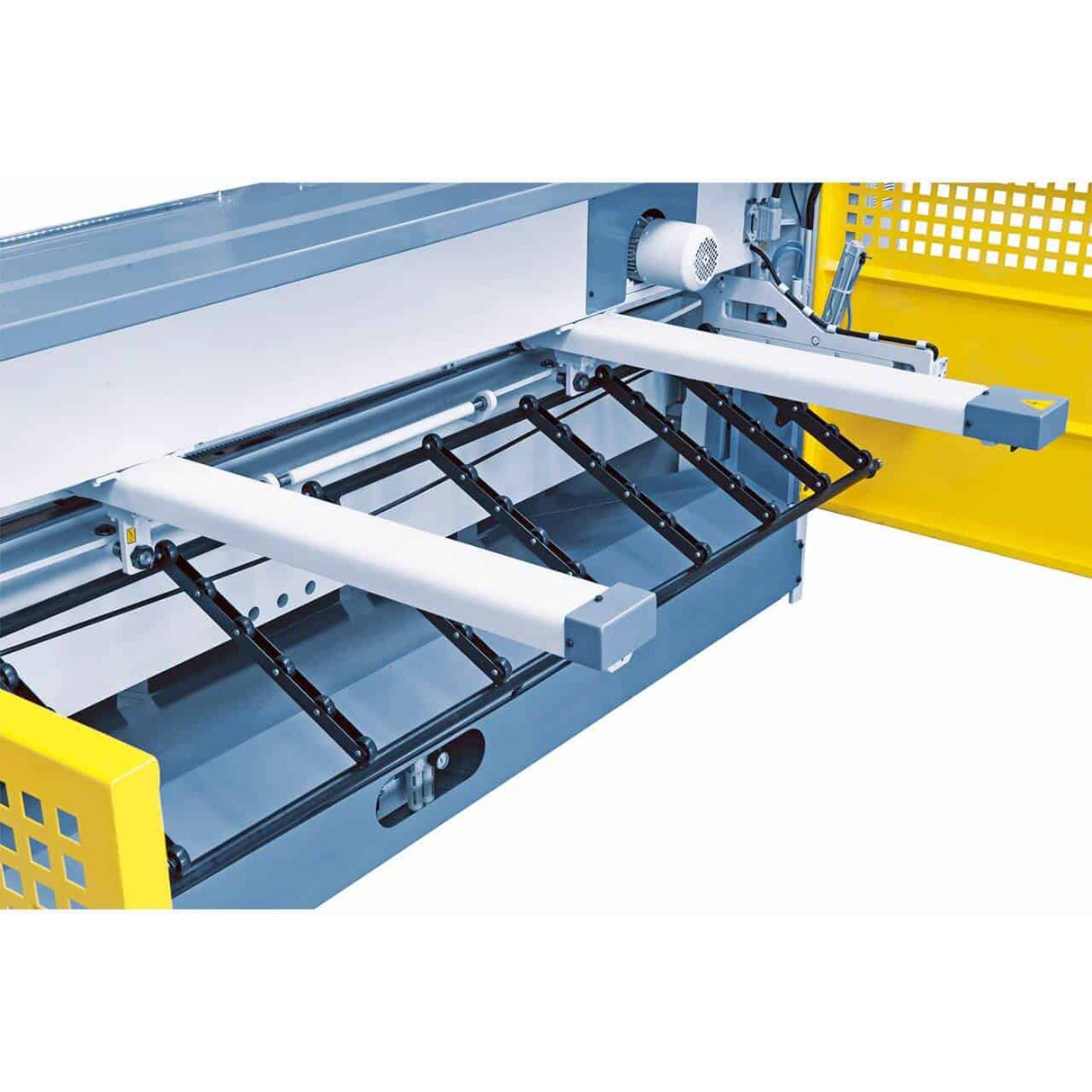

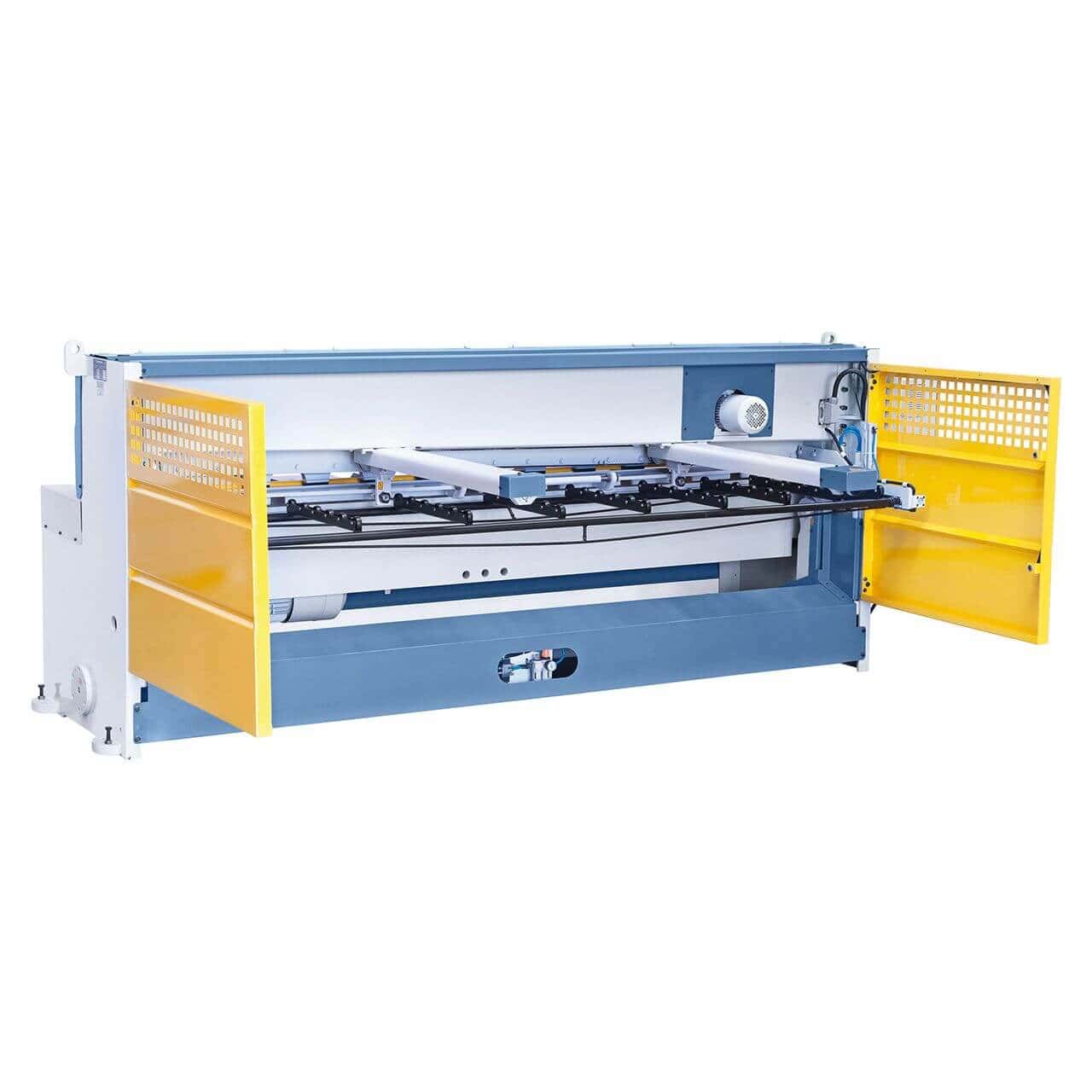

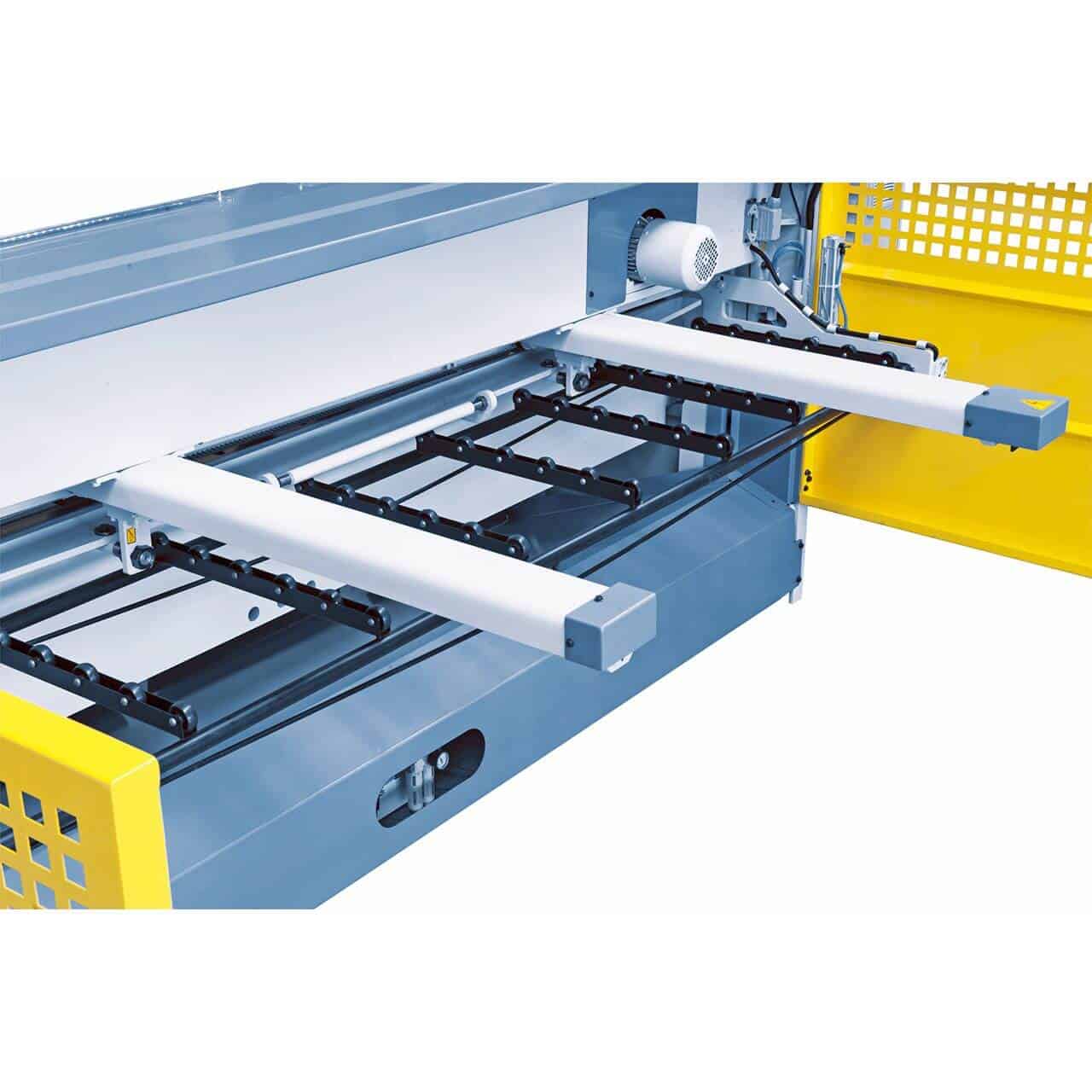

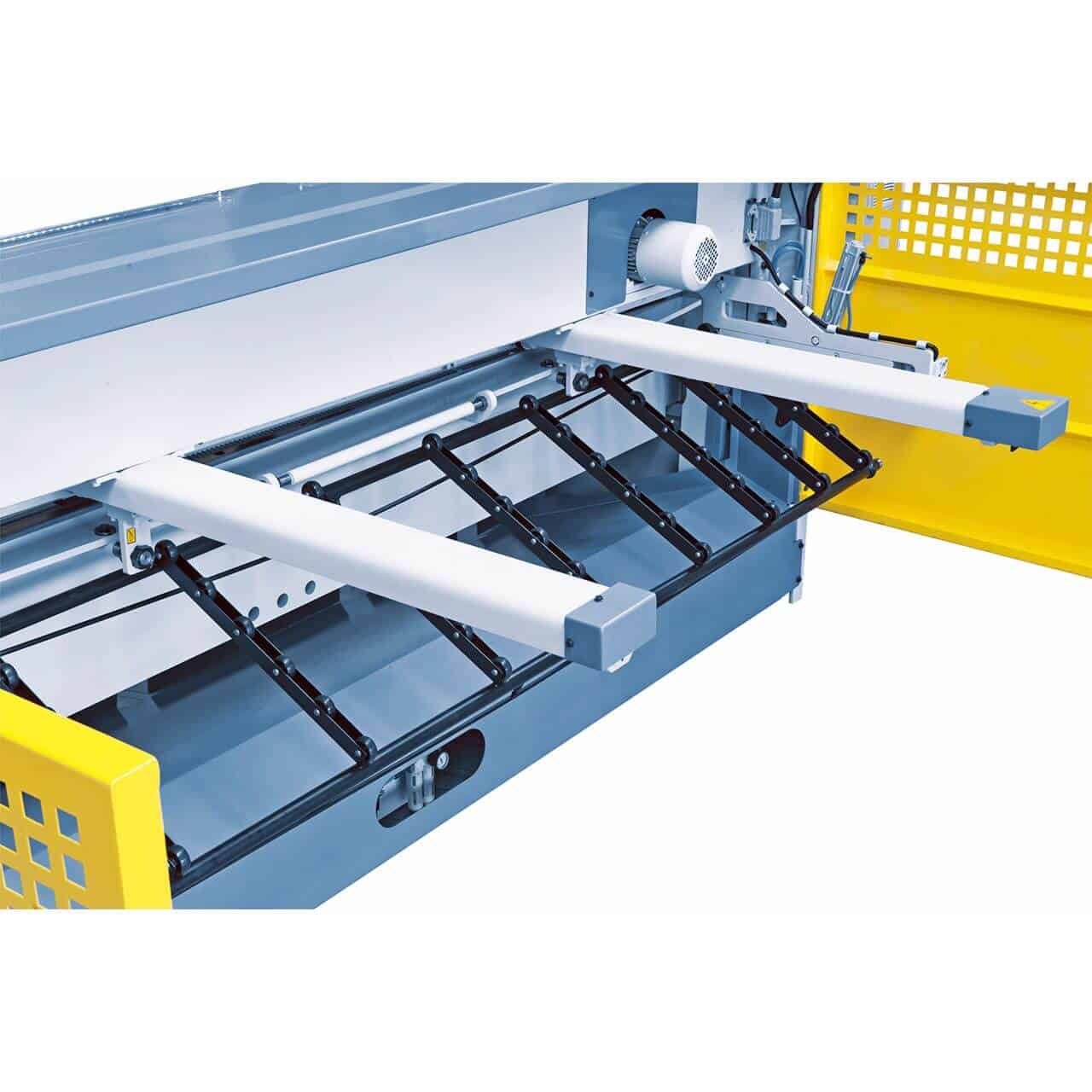

Pneumatic sheet support system, ideal for thin sheets
Double-edged top and bottom blades made of quality steel
Table with integrated rollers and front support for large pieces
Cutting line illumination with integrated silhouette
Safety guards with photocells and foot pedal with emergency stop
7.5 kW motor and robust welded steel structure

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTR 2060 x 4 mm NCC
Type	Motorized guillotine shear with NC and pneumatic support
Cutting Length	2060 mm
Max. Sheet Thickness*	4 mm
Cutting Angle	1°30’
Strokes per Minute	31
Working Height	800 mm
Backgauge	0 – 750 mm (motorized NC)
Table Width	450 mm
Motor Power	7.5 kW
Dimensions (L x W x H)	2800 x 2250 x 1400 mm
Weight	3000 kg
*Base Material	400 N/mm²

---

Standard Equipment

Bernardo MTR 2060 x 4 mm NCC Guillotine Shear

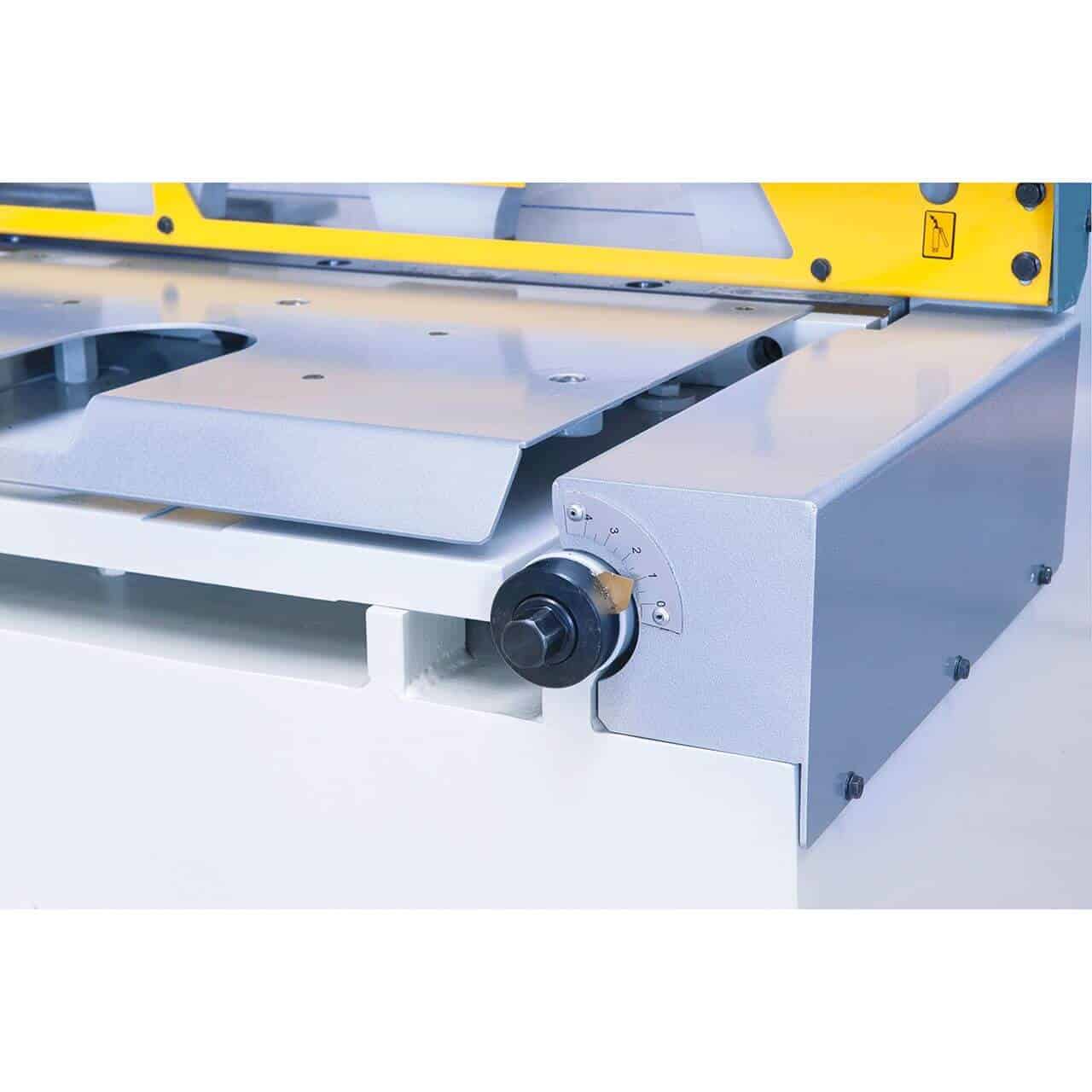

Front blade gap adjustment
Cutting line illumination
Motorized NC backgauge
Pneumatic sheet support system

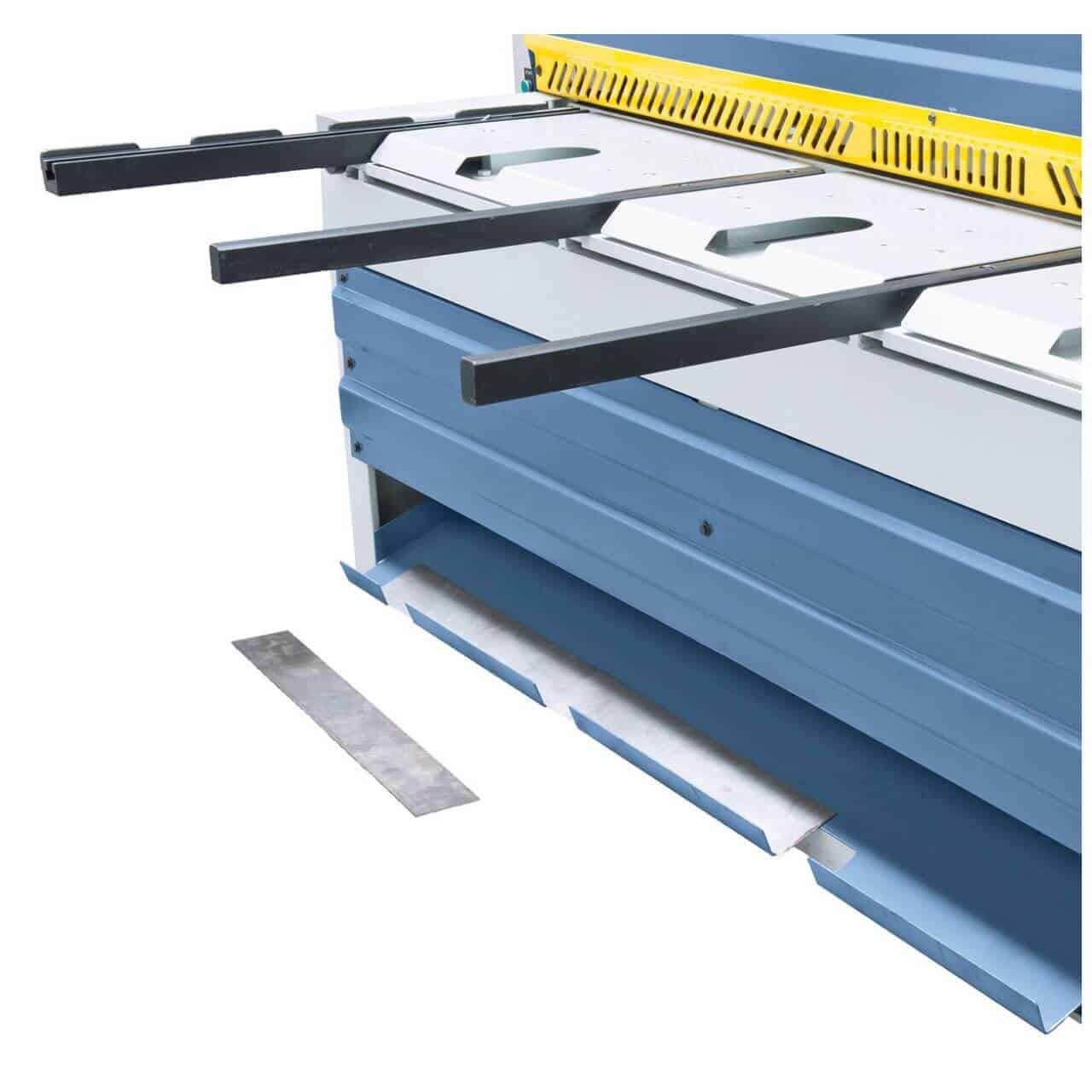

Front sheet support
Table with integrated rollers

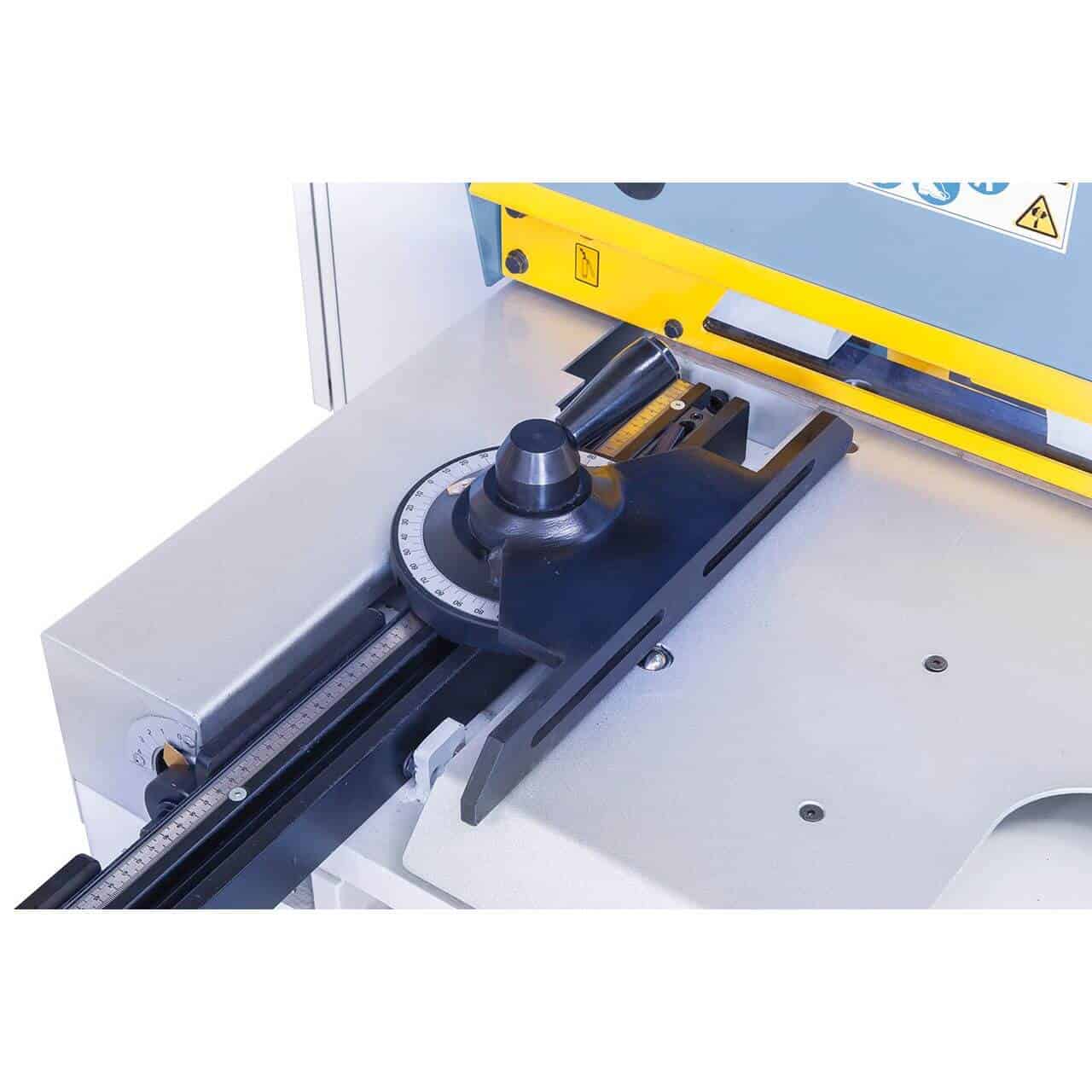

Side ruler with scale
Fuji control with touch screen

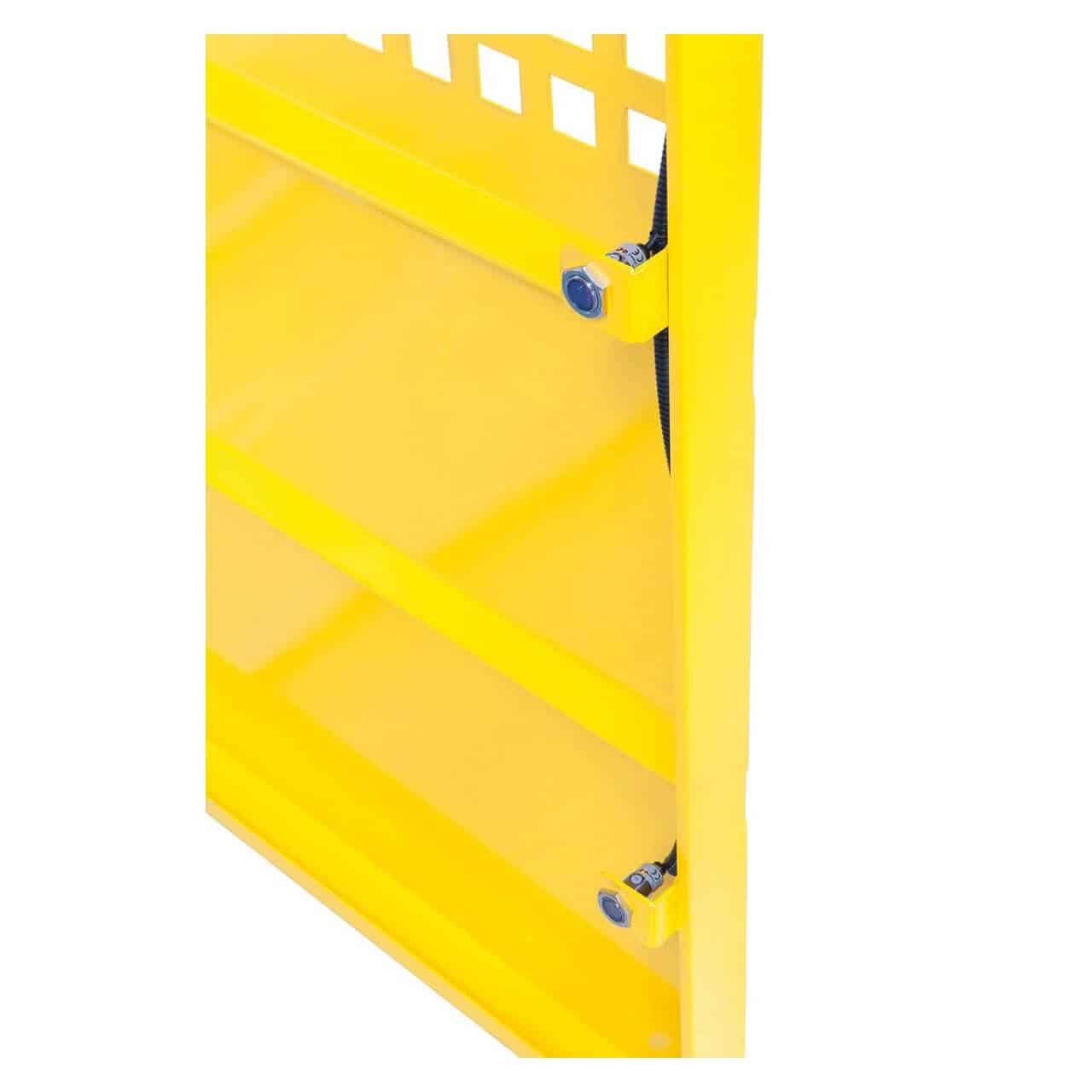

Photocell safety guards

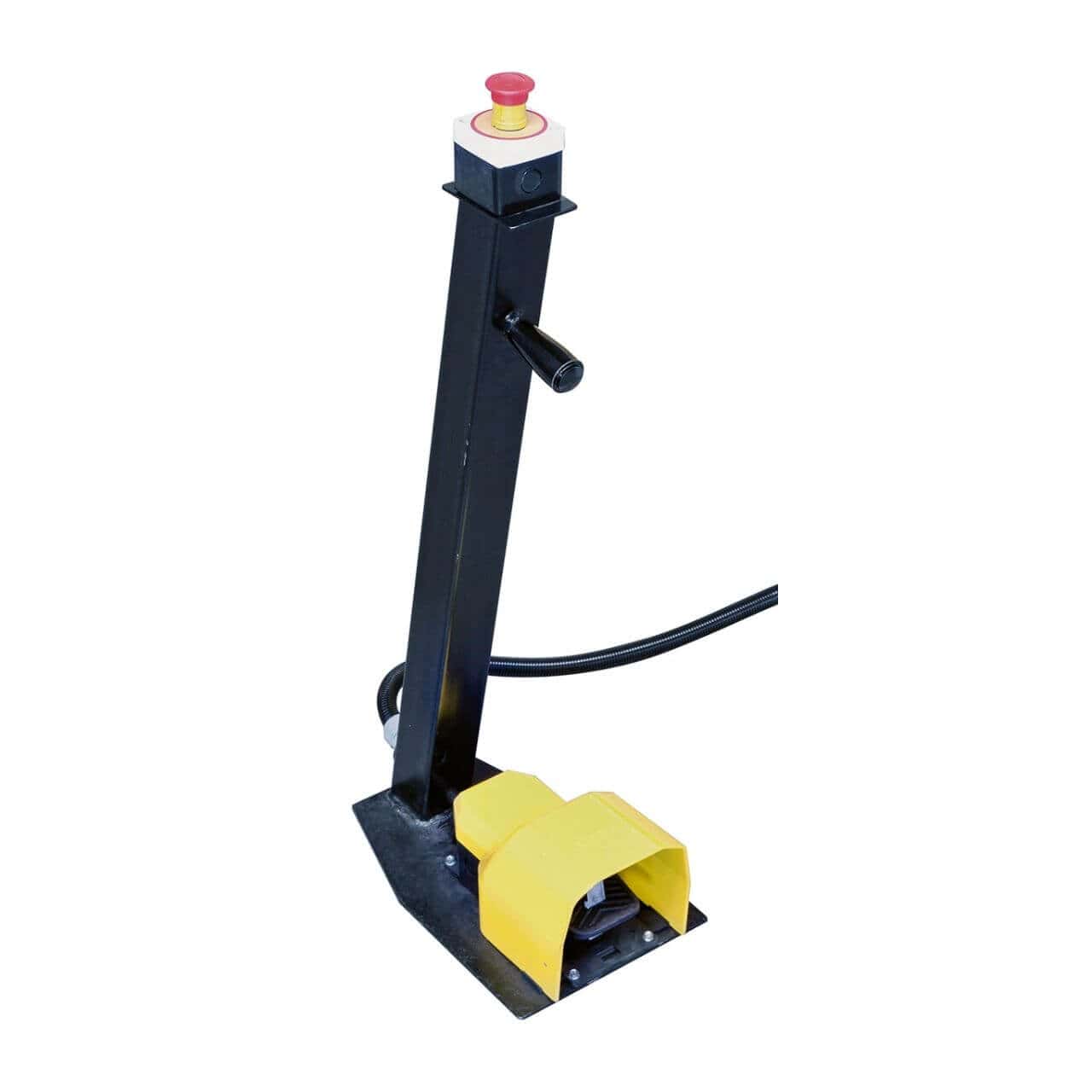

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo Shipping: 5–9 working days (7 days to Southern Italy). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on production volume and the size of the sheets processed.

What is the maximum thickness for stainless steel with the Bernardo MTR 2060 x 4 mm NCC – Shear?

The nominal thickness of 4 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.6 mm). Always verify with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 working days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet metal handling, clear space at least equal to the cutting length (2060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
