Bernardo MTR 3060 x 3 mm NCC – Motorized Guillotine Shear

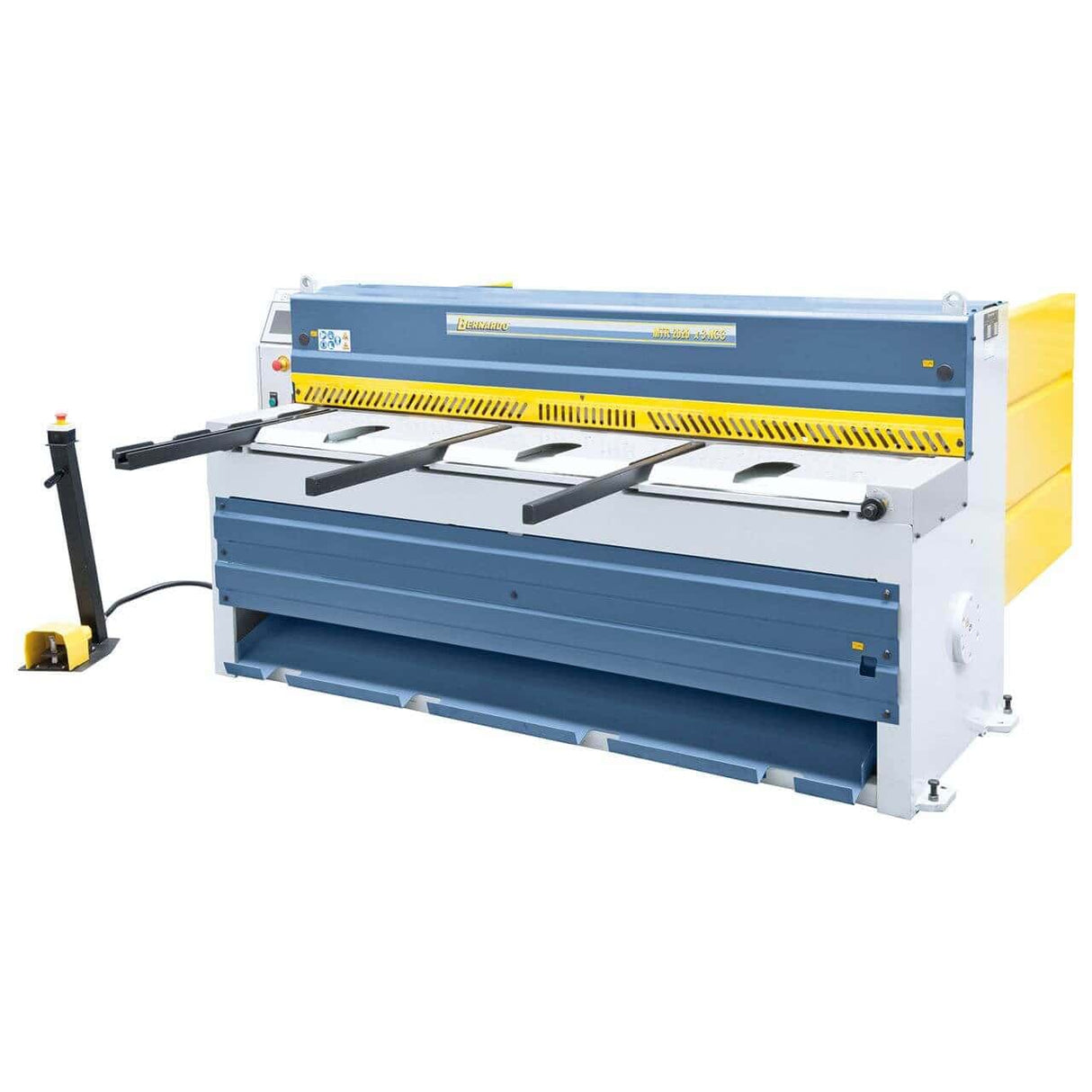

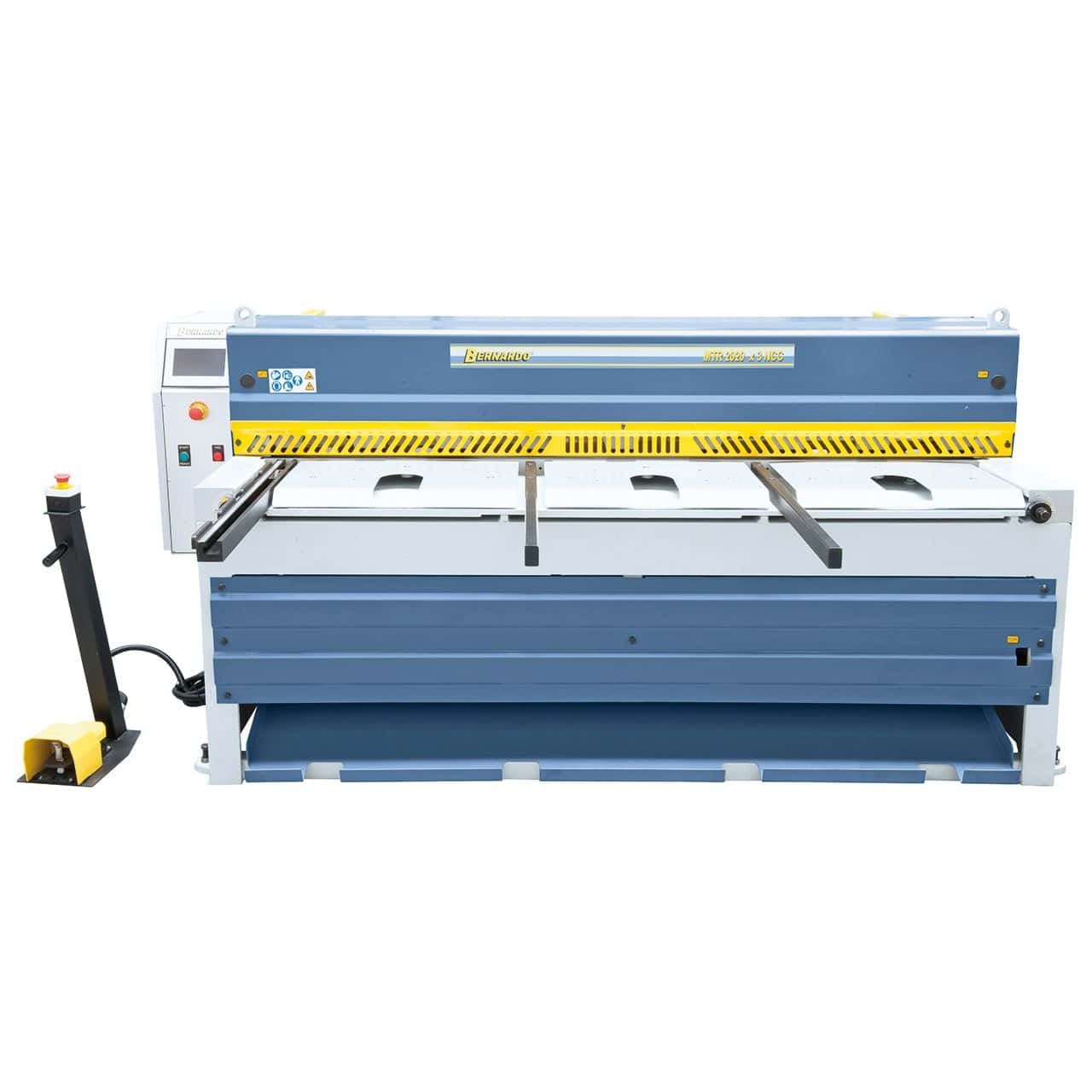

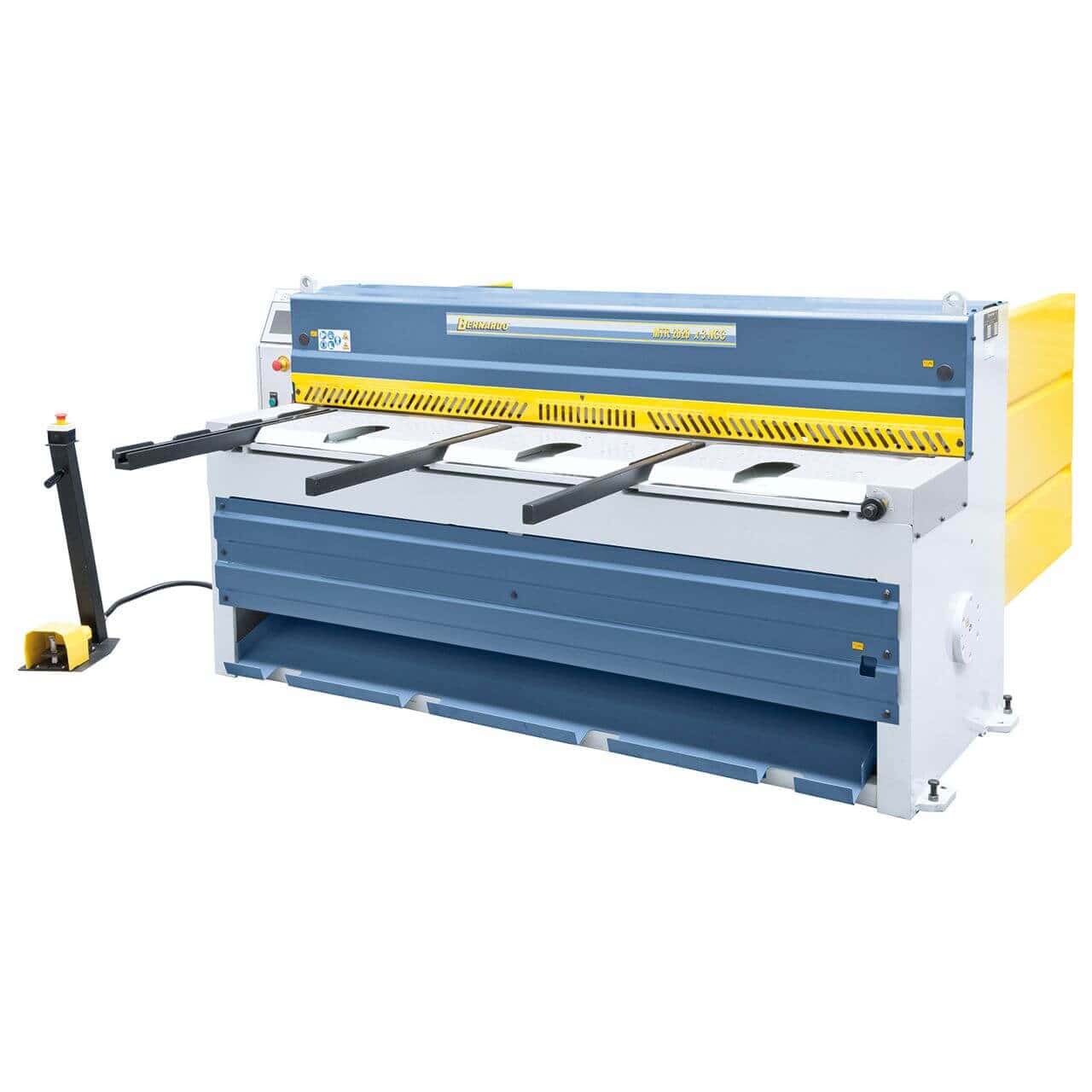

Bernardo MTR 3060 x 3 mm NCC – Motorized guillotine shear with pneumatic sheet support system

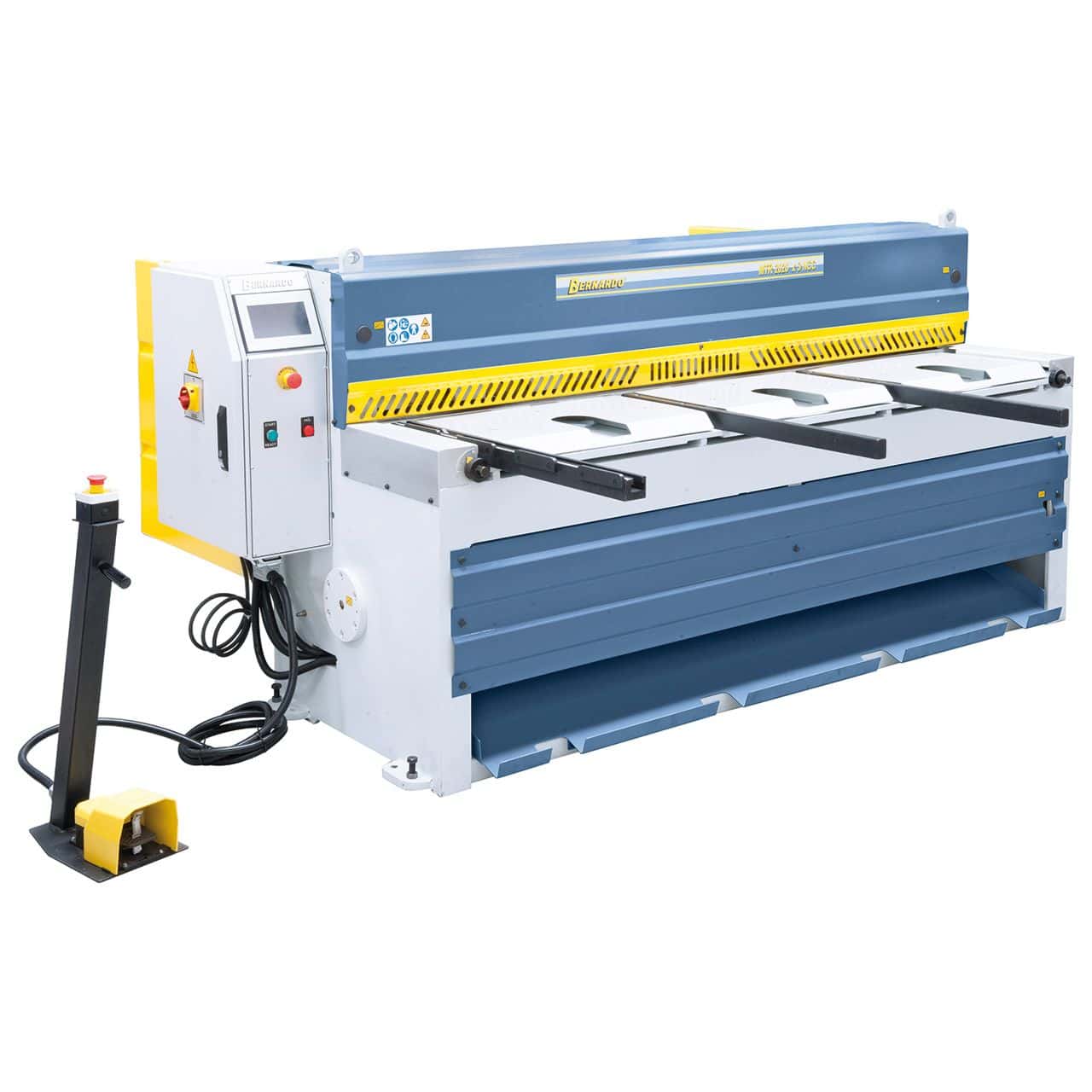

The Bernardo MTR 3060 x 3 mm NCC is an industrial motorized guillotine shear, designed for the efficient and safe cutting of steel, aluminum, copper, and brass sheets up to 3 mm thick (400 N/mm²). With a cutting length of 3060 mm and an angle of 1°30’, it ensures clean and burr-free surfaces thanks to the professional-grade double-edged steel blades. Equipped with a Fuji control with touch screen, motorized with ball screws, and a pneumatic sheet support system, it guarantees precision and comfort even when cutting thin and large sheets. The machine is equipped with an integrated roller table, a side ruler with a scale, front support, and preparation for an optional angular cutting device. With a 4.0 kW motor, 31 strokes/min, and a weight of 2450 kg, the MTR 3060 x 3 mm NCC is the ideal choice for workshops and industries that require a robust, precise, and technologically advanced shear.

---

Key features:
3060 mm cutting length for large sheets
Cutting capacity up to 3 mm thick (400 N/mm² steel)
Fuji control with integrated touchscreen for intuitive management

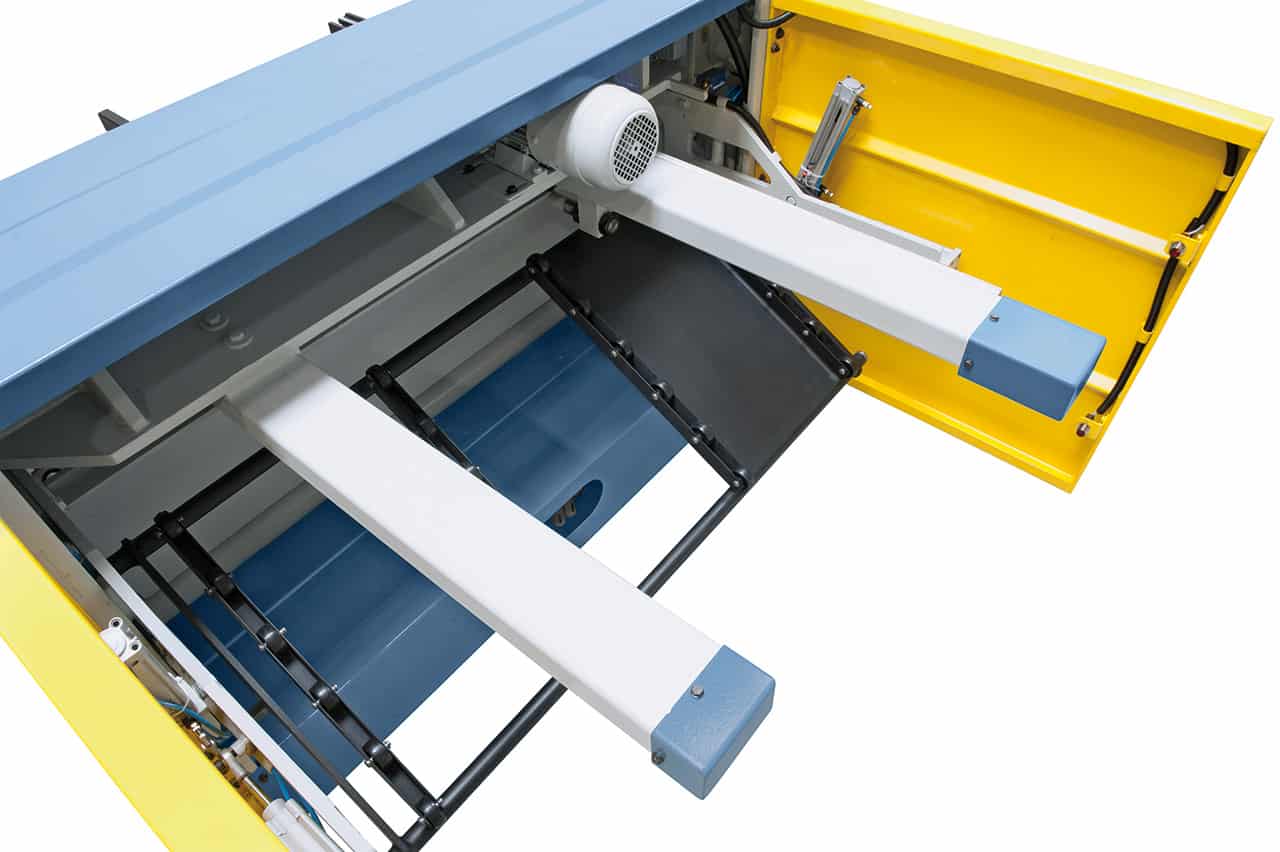

NC motorized backgauge with ball screws
Pneumatic sheet support system, ideal for thin sheets
Double-edged upper and lower blades made of hardened steel
Table with integrated rollers and front supports for large workpieces
Cutting line illumination with integrated silhouette
Safety photocells and foot pedal with emergency stop
Robust, torsionally rigid welded steel structure

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MTR 3060 x 3 mm NCC
Type	Motorized guillotine shear with NC and pneumatic support
Cutting length	3060 mm
Max sheet thickness*	3 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	830 mm
Backgauge	0 – 750 mm (NC motorized)
Table width	390 mm
Motor power	4.0 kW
Dimensions (L x W x H)	3650 x 1750 x 1260 mm
Weight	2450 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTR 3060 x 3 mm NCC guillotine shear
Front blade gap adjustment
Cutting line illumination

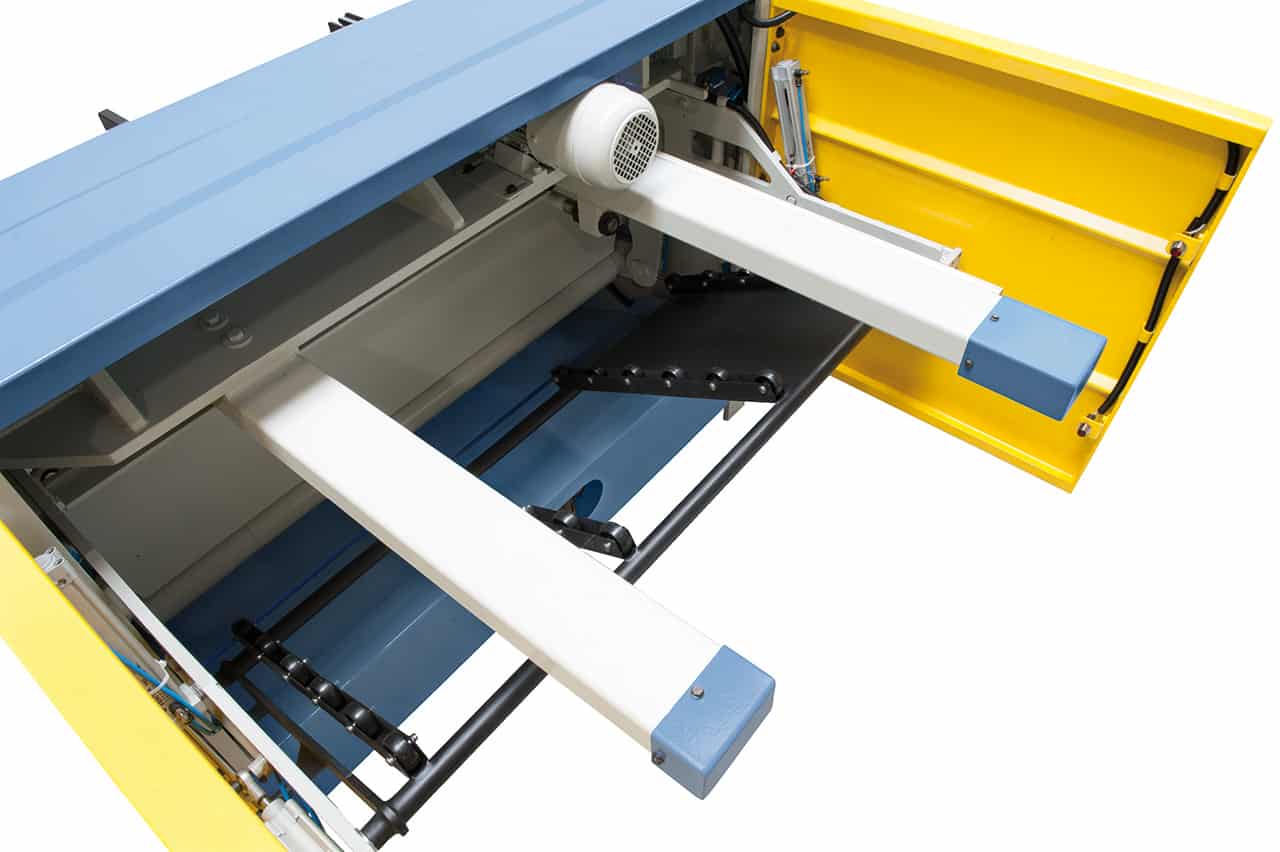

NC motorized backgauge
Pneumatic sheet support system

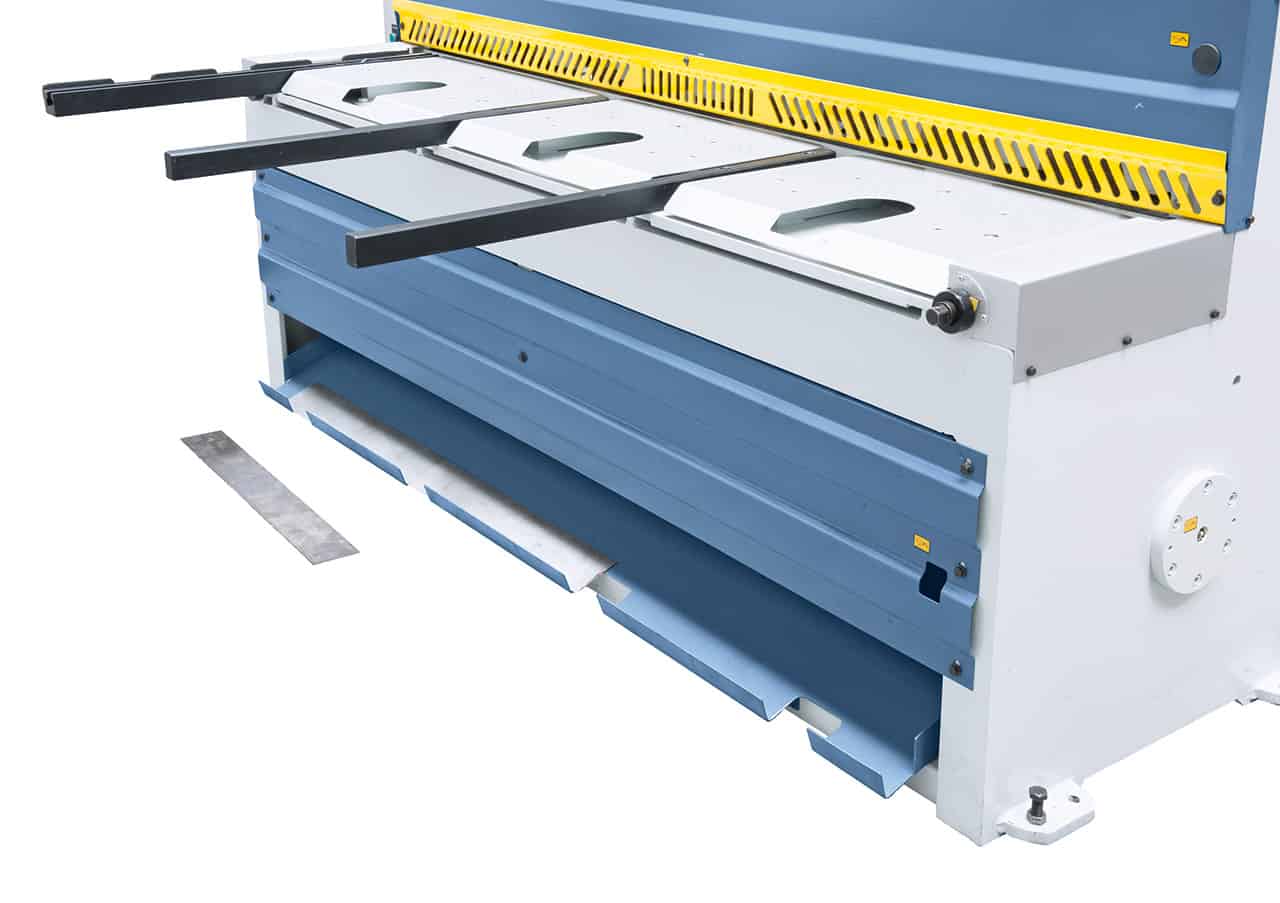

Front sheet supports
Table with integrated rollers

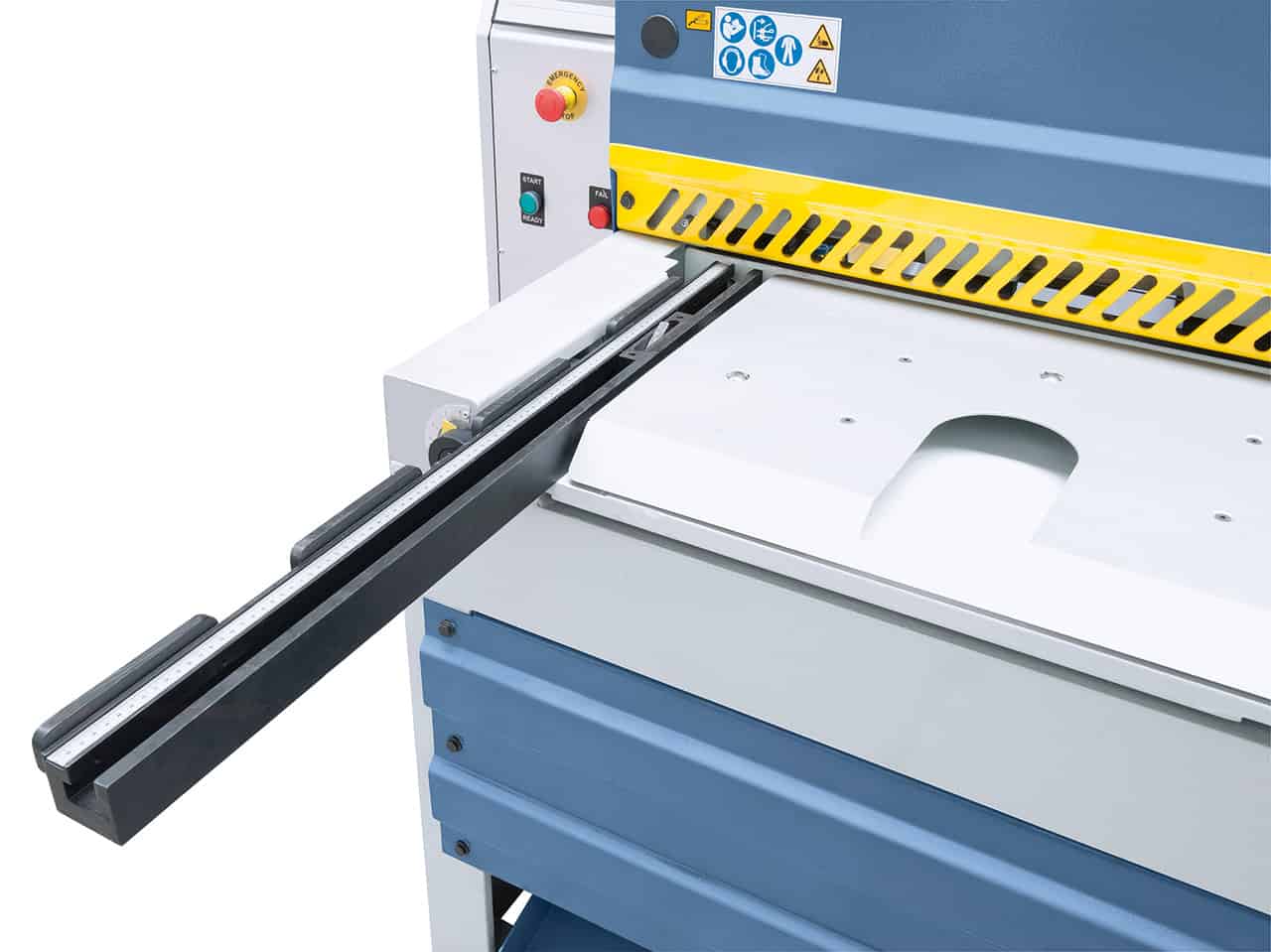

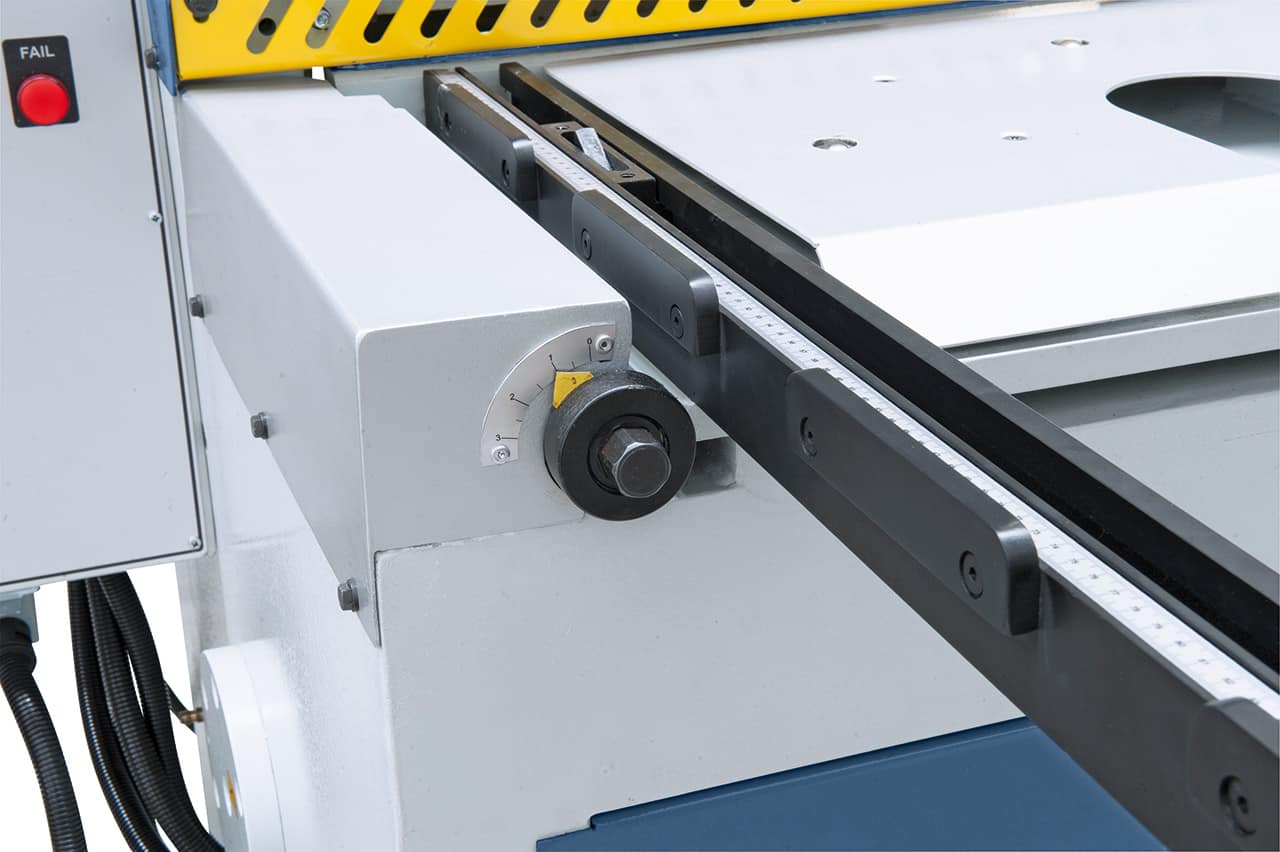

Side ruler with scale

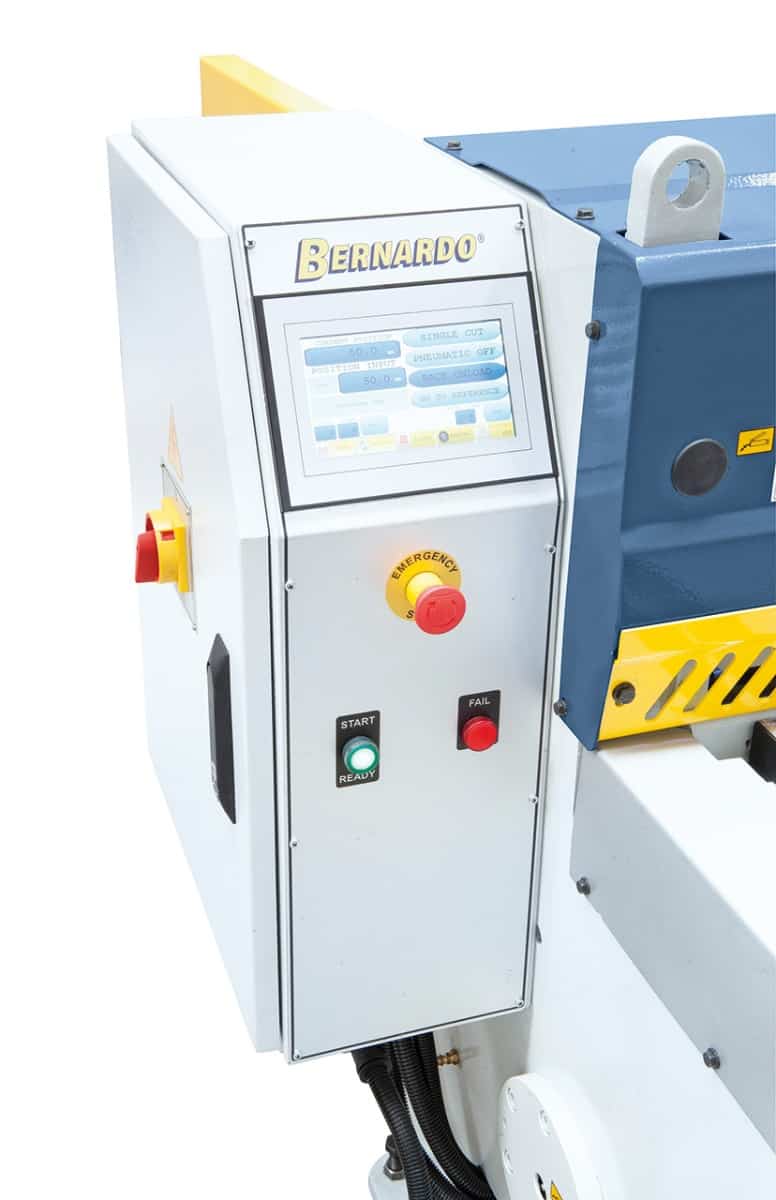

Fuji control panel with touchscreen

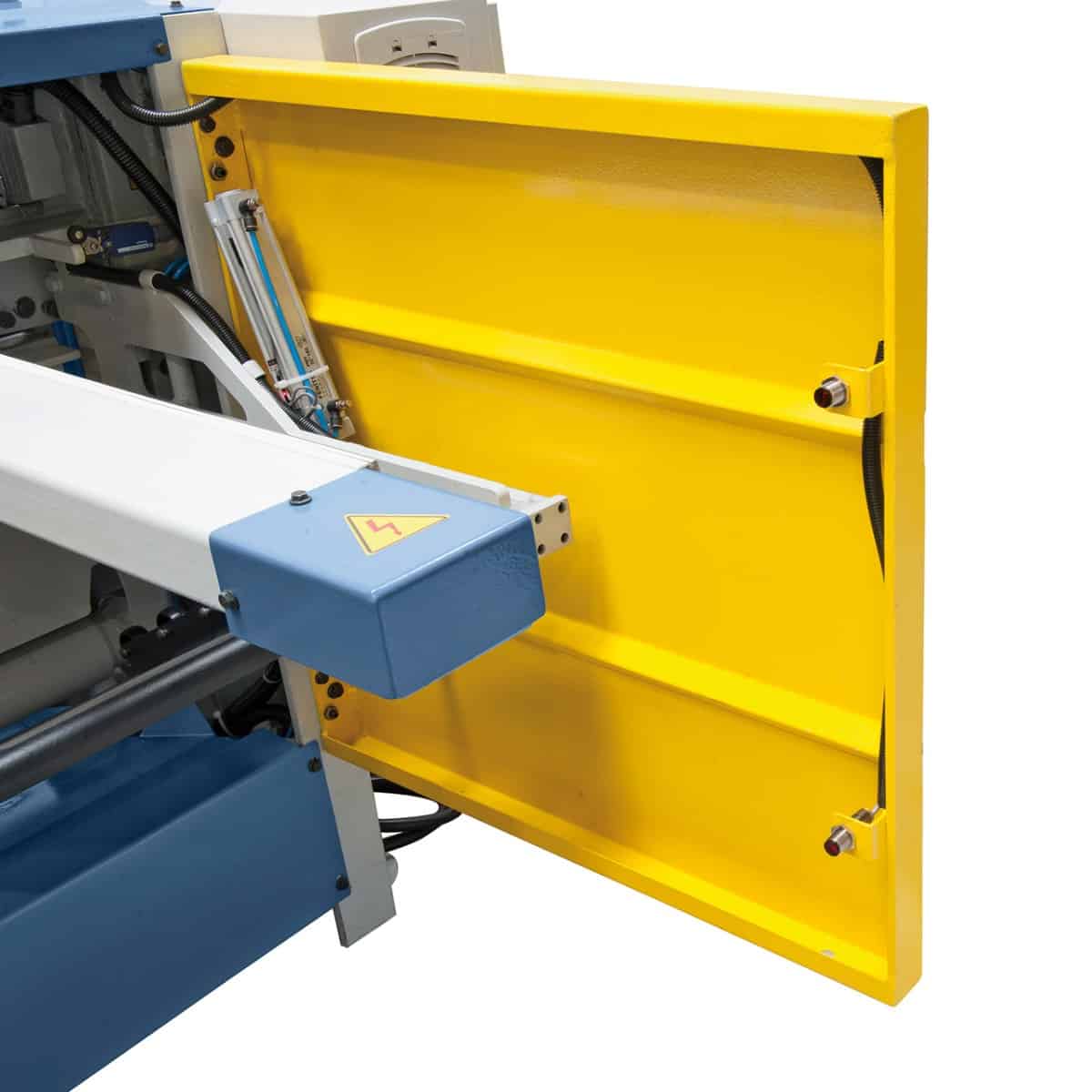

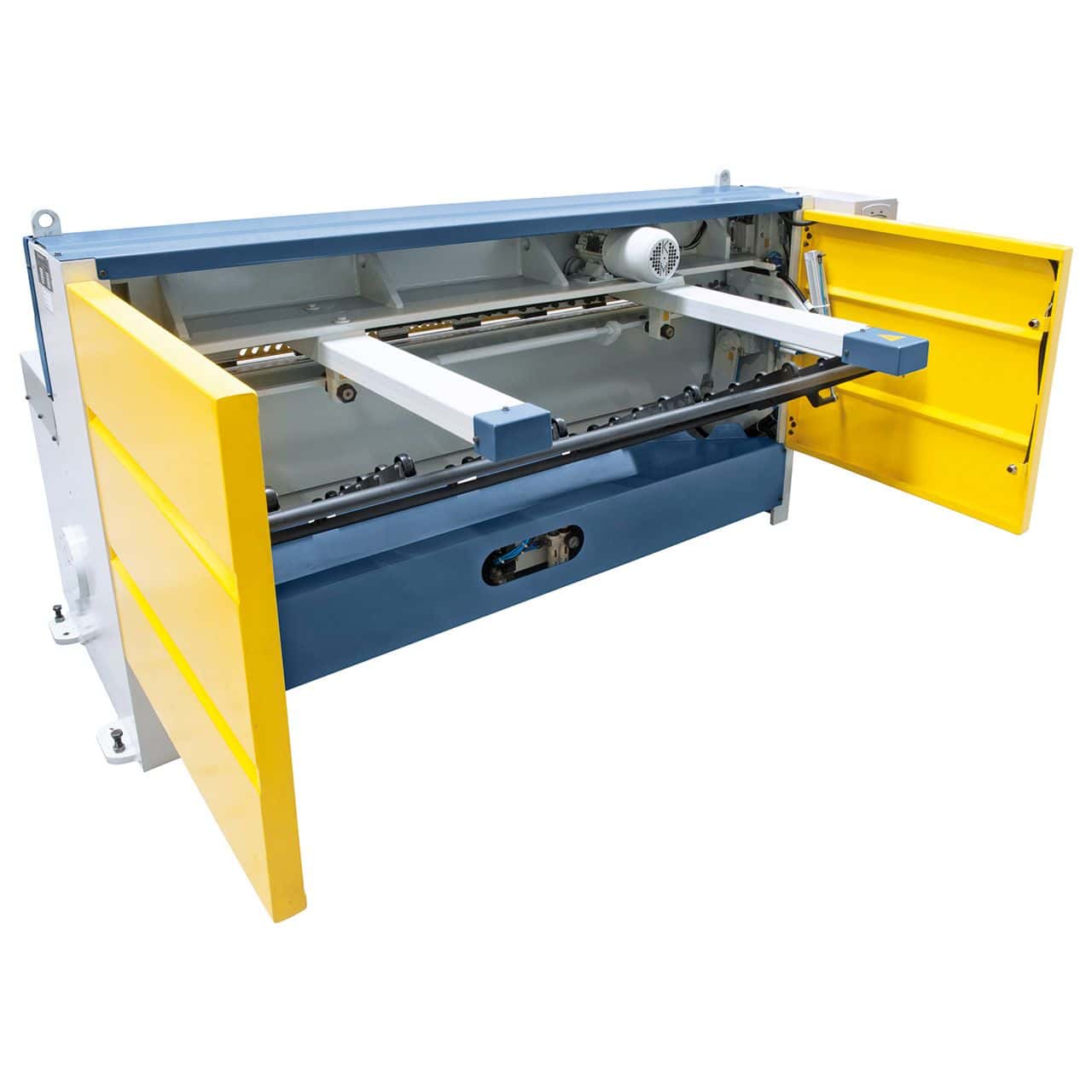

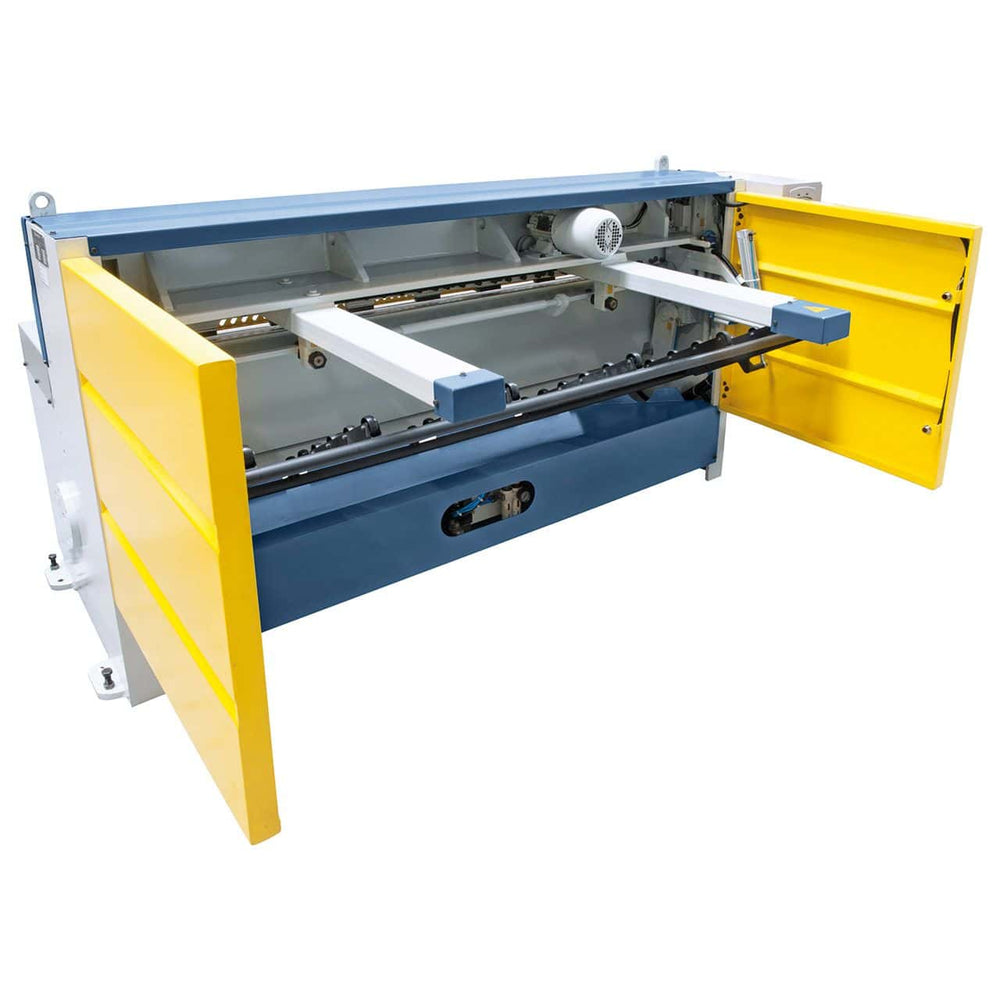

Rear guards with photocells
Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 working days (7 days in the South). Heavy machine: coordinate with Krollit for unloading equipment. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently asked questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard welded steel structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on the production volume and the size of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTR 3060 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 working days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet handling, free space at least equal to the cutting length (3060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
