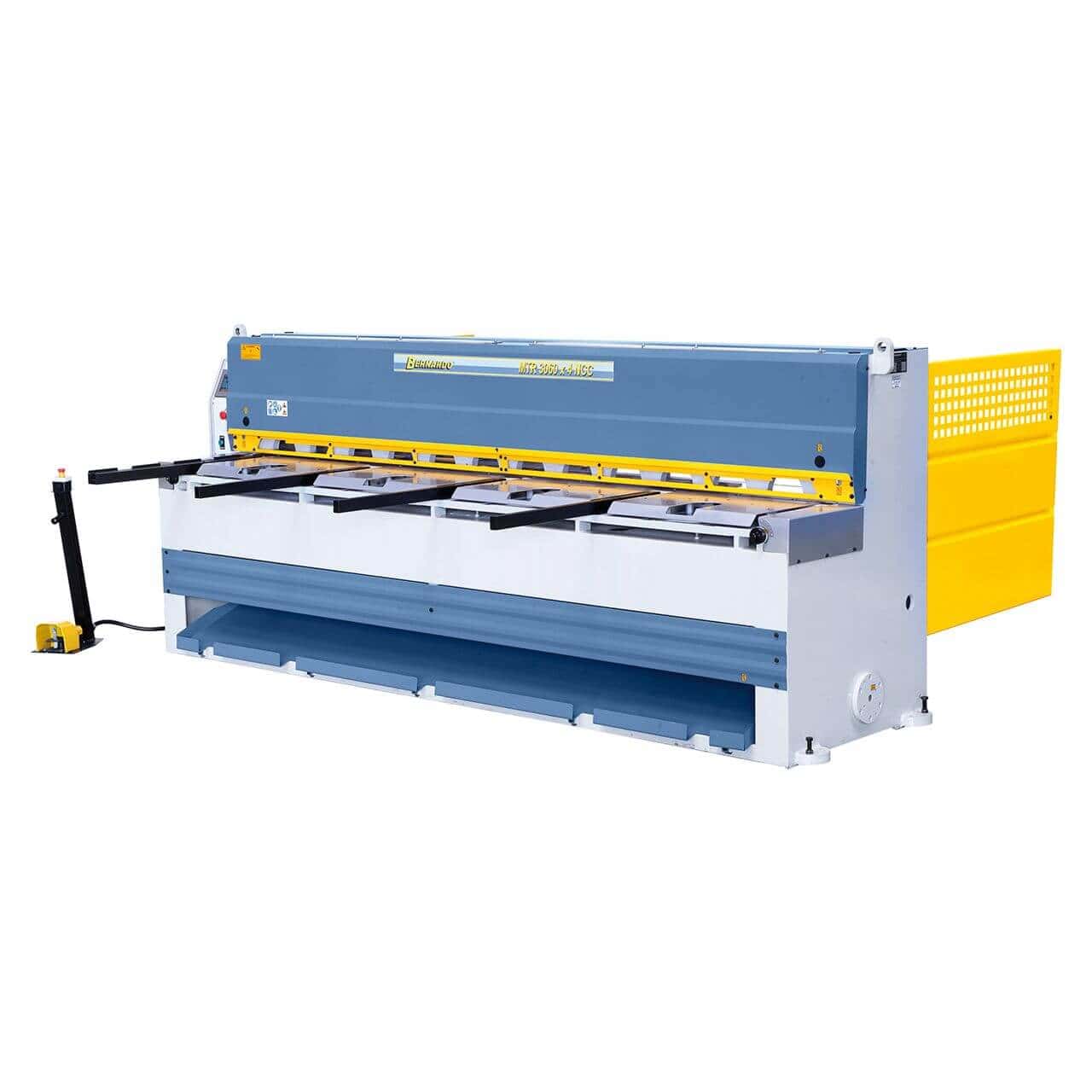

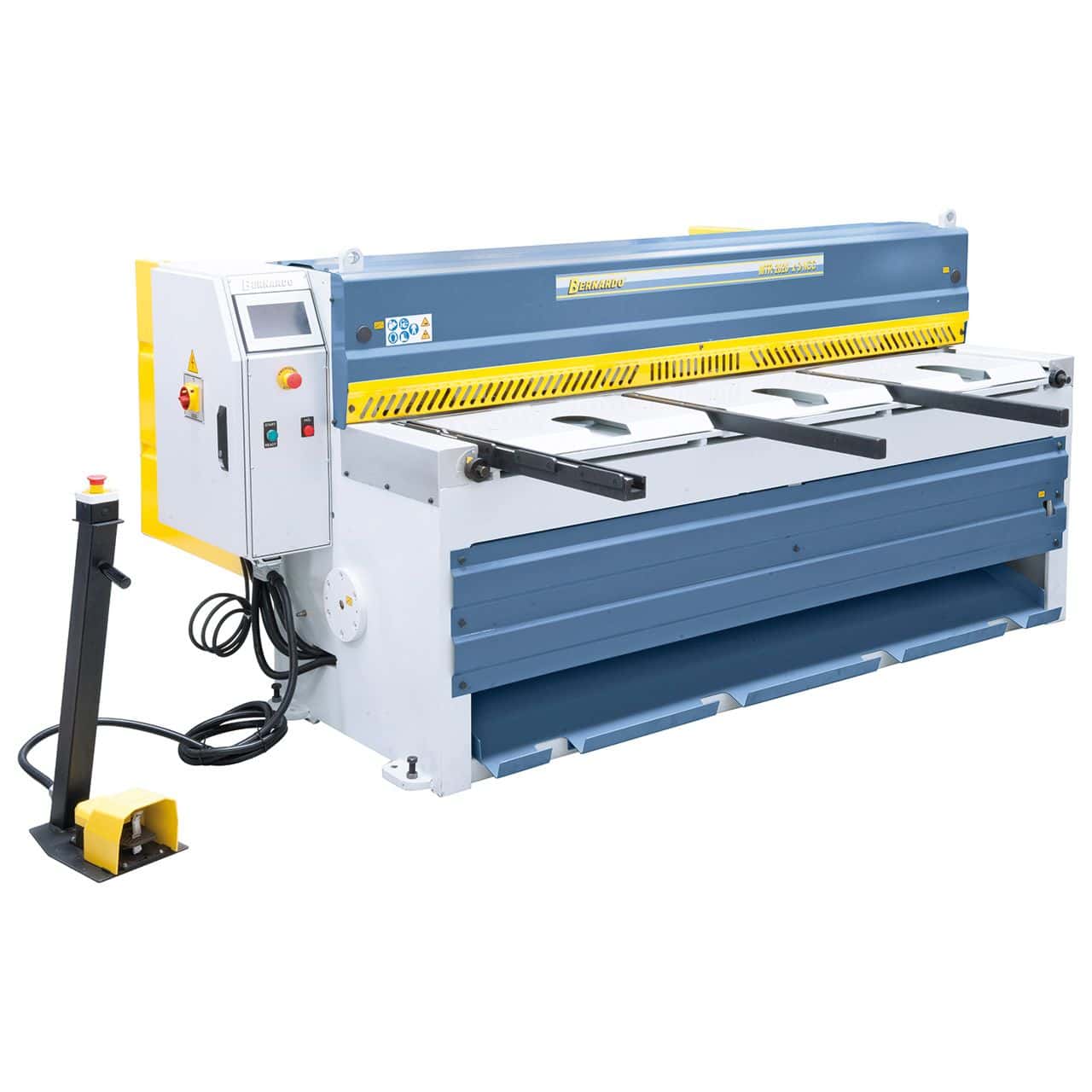

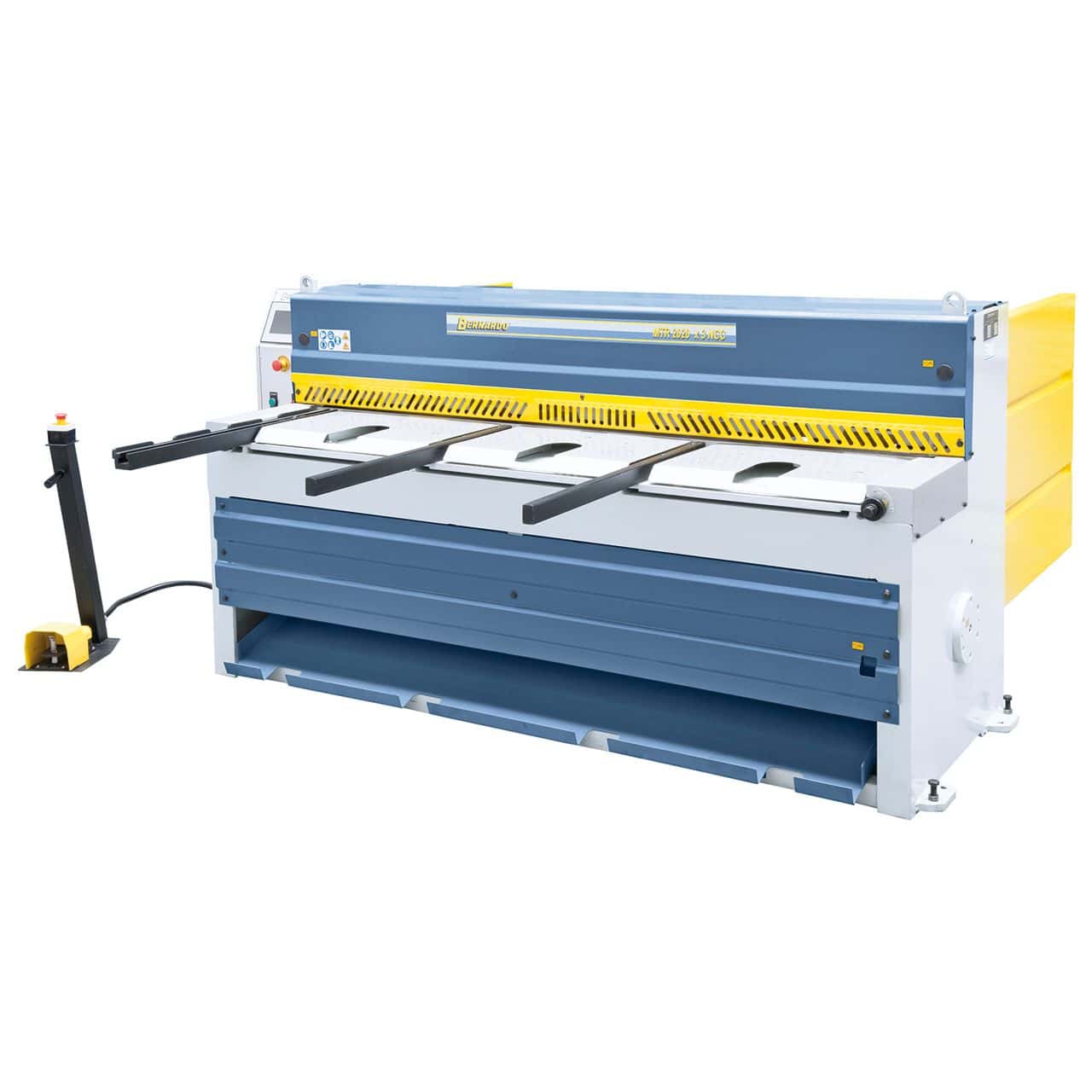

Bernardo MTR 3060 x 4 mm NCC – Motorized Guillotine Shear

Bernardo MTR 3060 x 4 mm NCC – Motorized Guillotine Shear with Pneumatic Sheet Support System

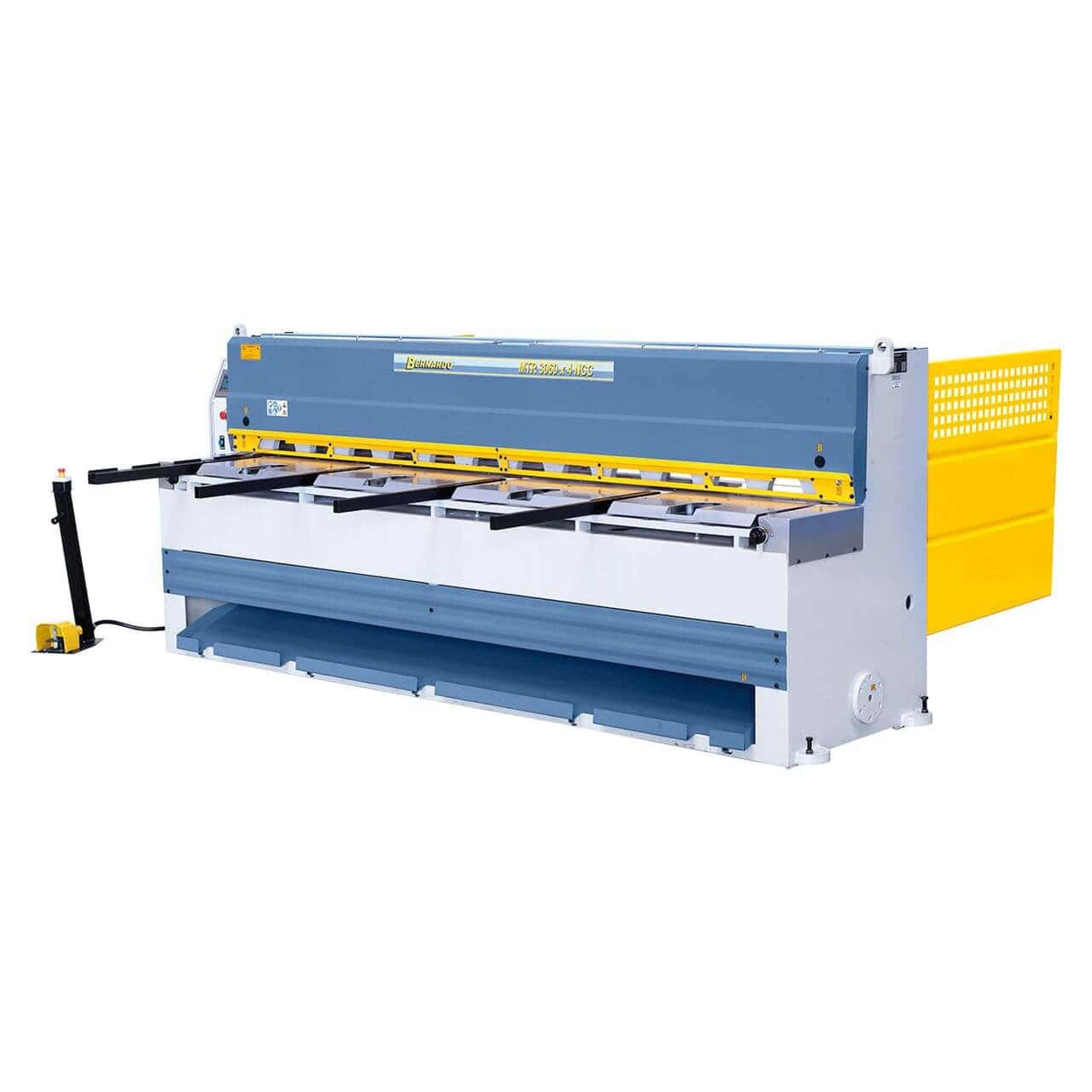

The Bernardo MTR 3060 x 4 mm NCC is a high-performance industrial guillotine shear, designed for precise and efficient cutting of sheet metal up to 4 mm thick (400 N/mm²) and 3060 mm long. It features a Fuji control with touchscreen, motorized with ball screws, and a pneumatic sheet support system, ensuring high precision, safety, and ease of use. The dual upper and lower hardened steel blades ensure clean, burr-free surfaces. Thanks to the work table with integrated rollers, front supports, a side ruler with scale, and cutting line illumination with silhouette, the machine offers operational comfort and versatility, with provision for an optional angular cutting device. With a powerful 7.5 kW motor, robust welded steel structure, and a weight of 4000 kg, the MTR 3060 x 4 mm NCC is the choice for workshops and industries requiring a powerful, safe, and durable professional shear.

---

Key features:
3060 mm cutting length for large sheets
Capacity up to 4 mm thickness (400 N/mm² steel)

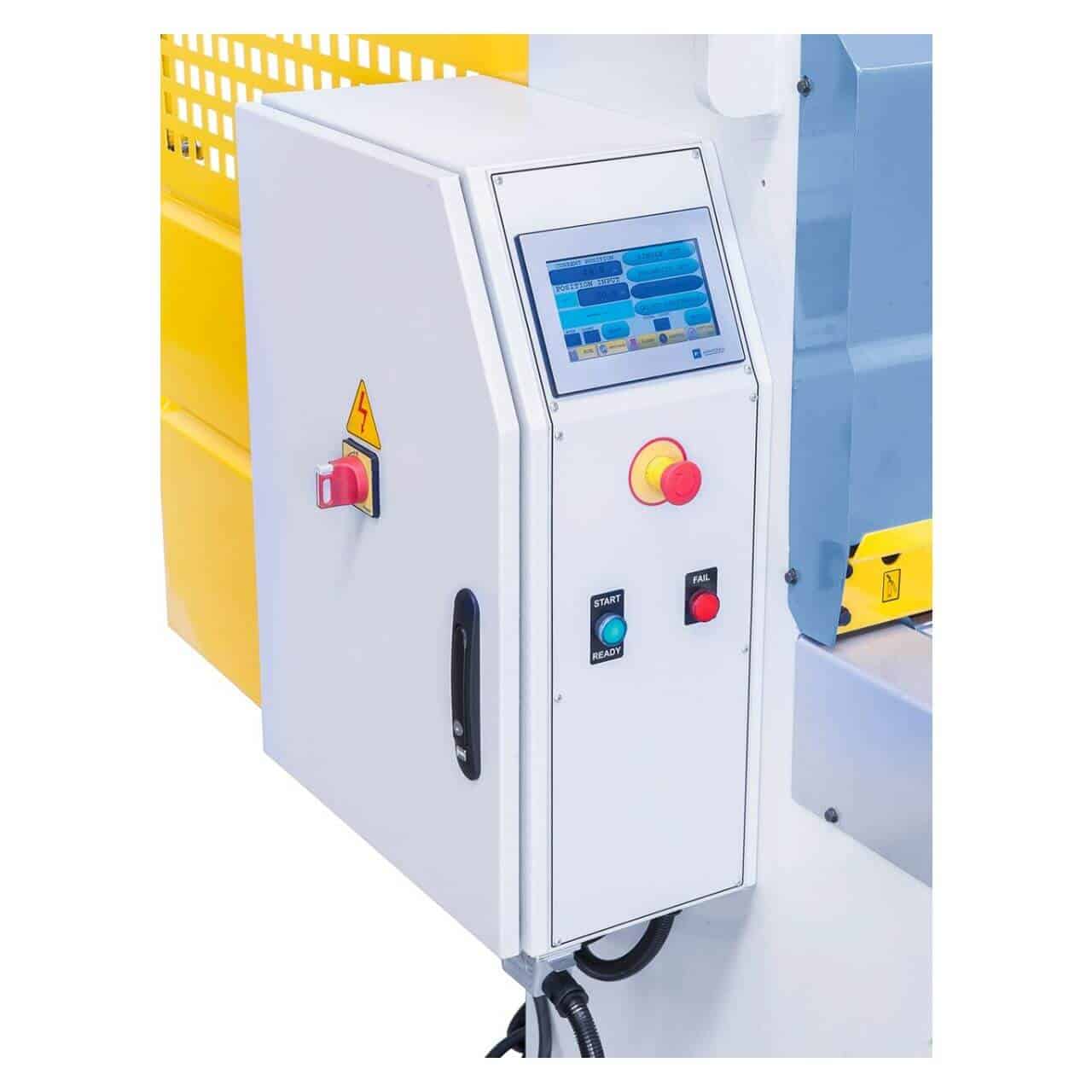

Fuji control with integrated touchscreen for intuitive management

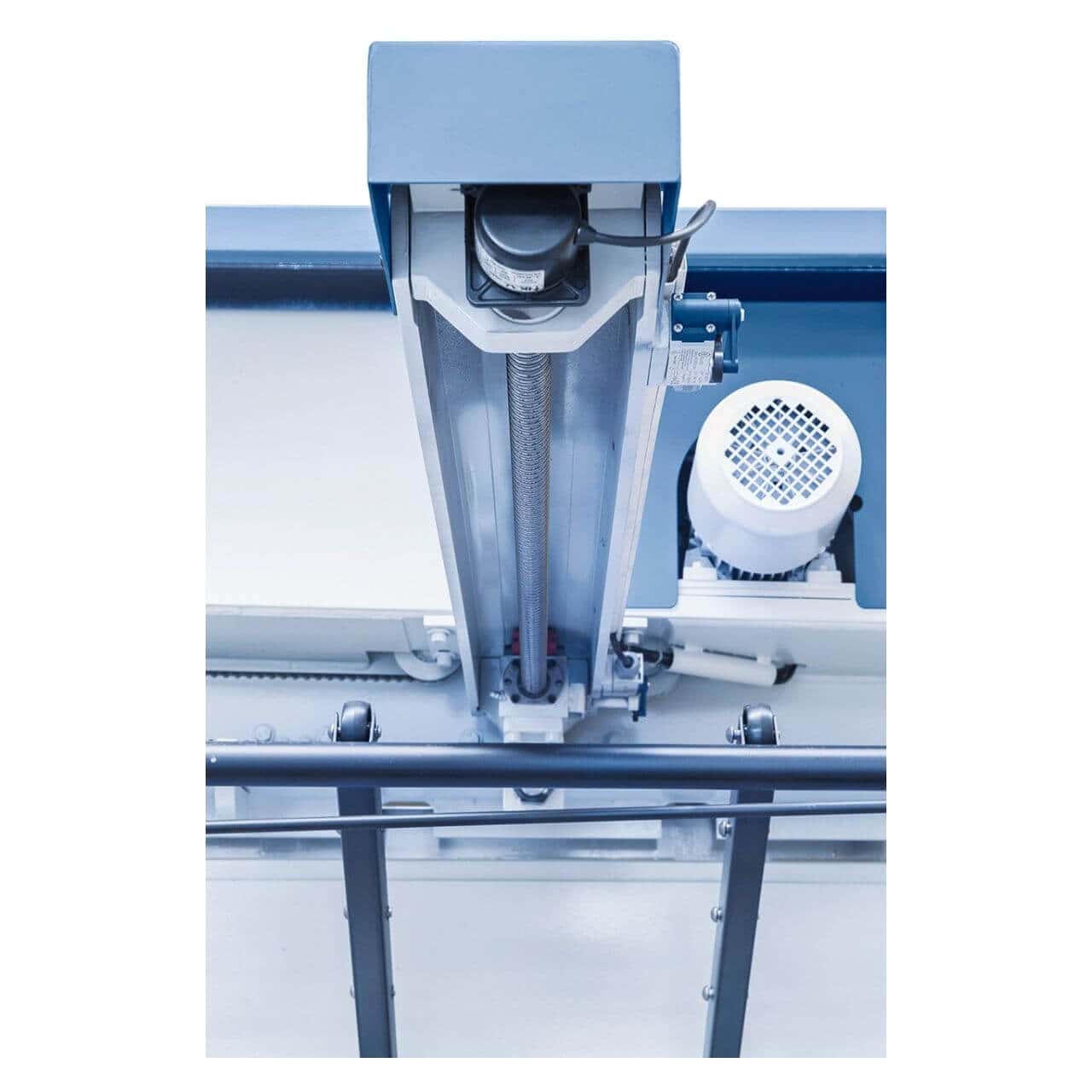

Motorized NC backgauge with ball screws

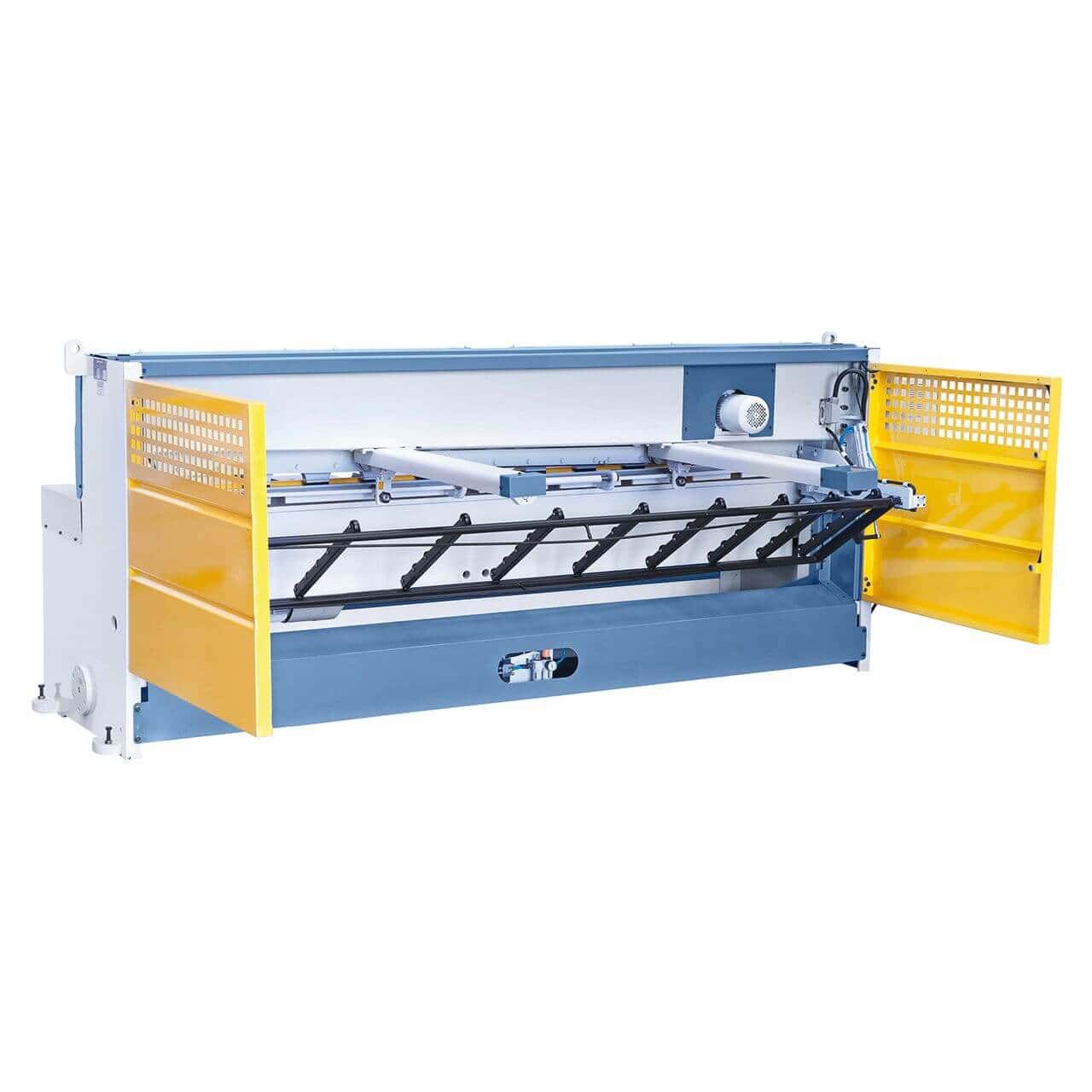

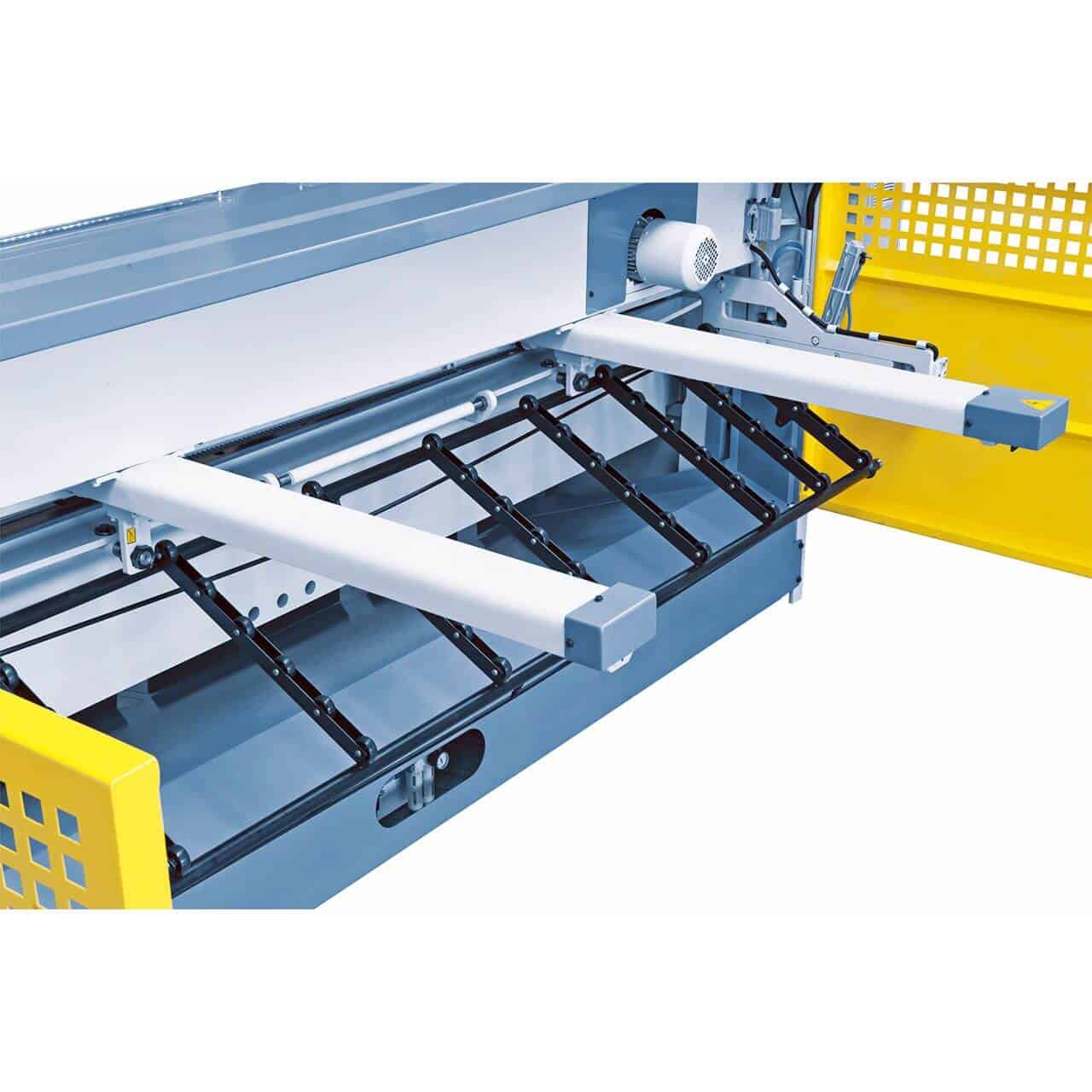

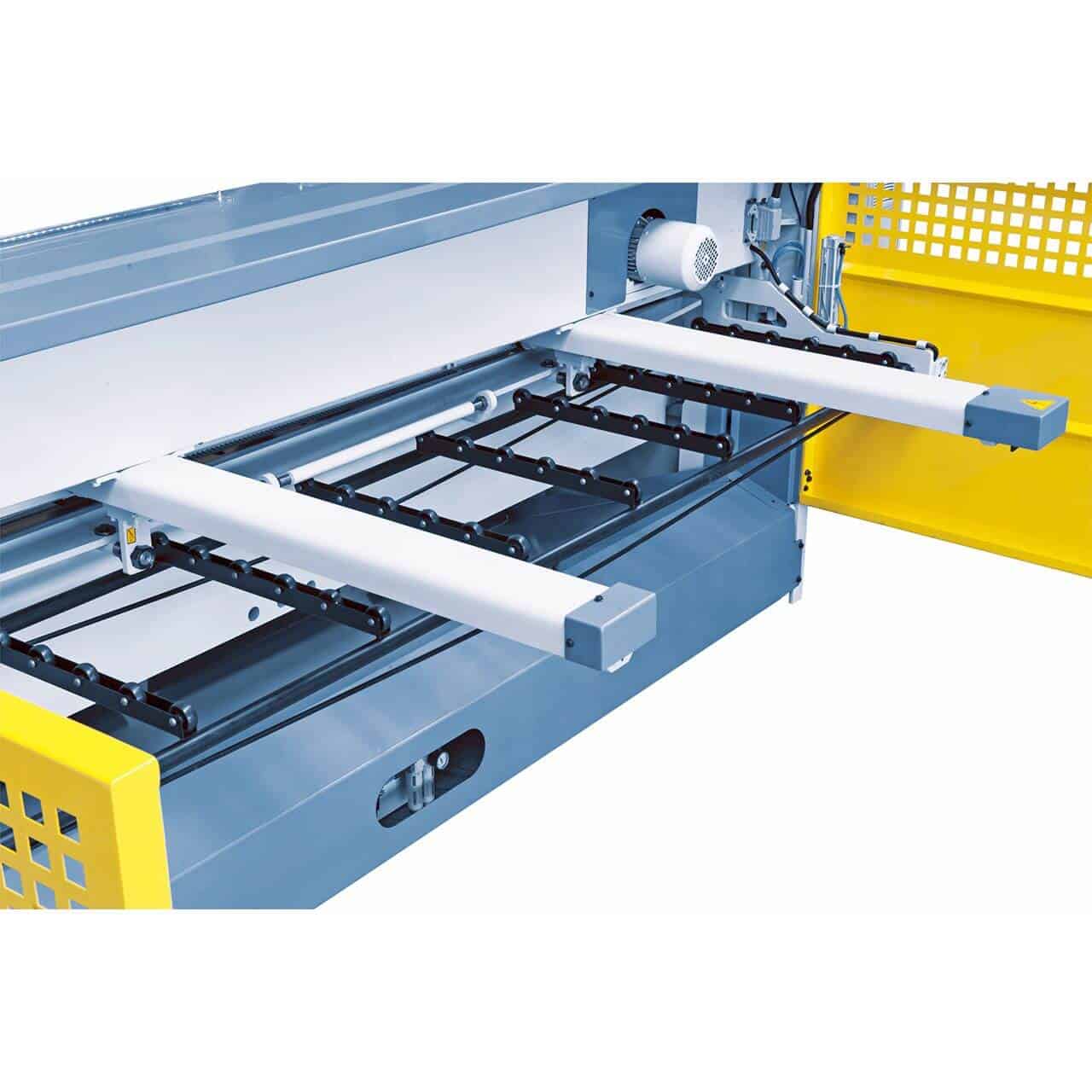

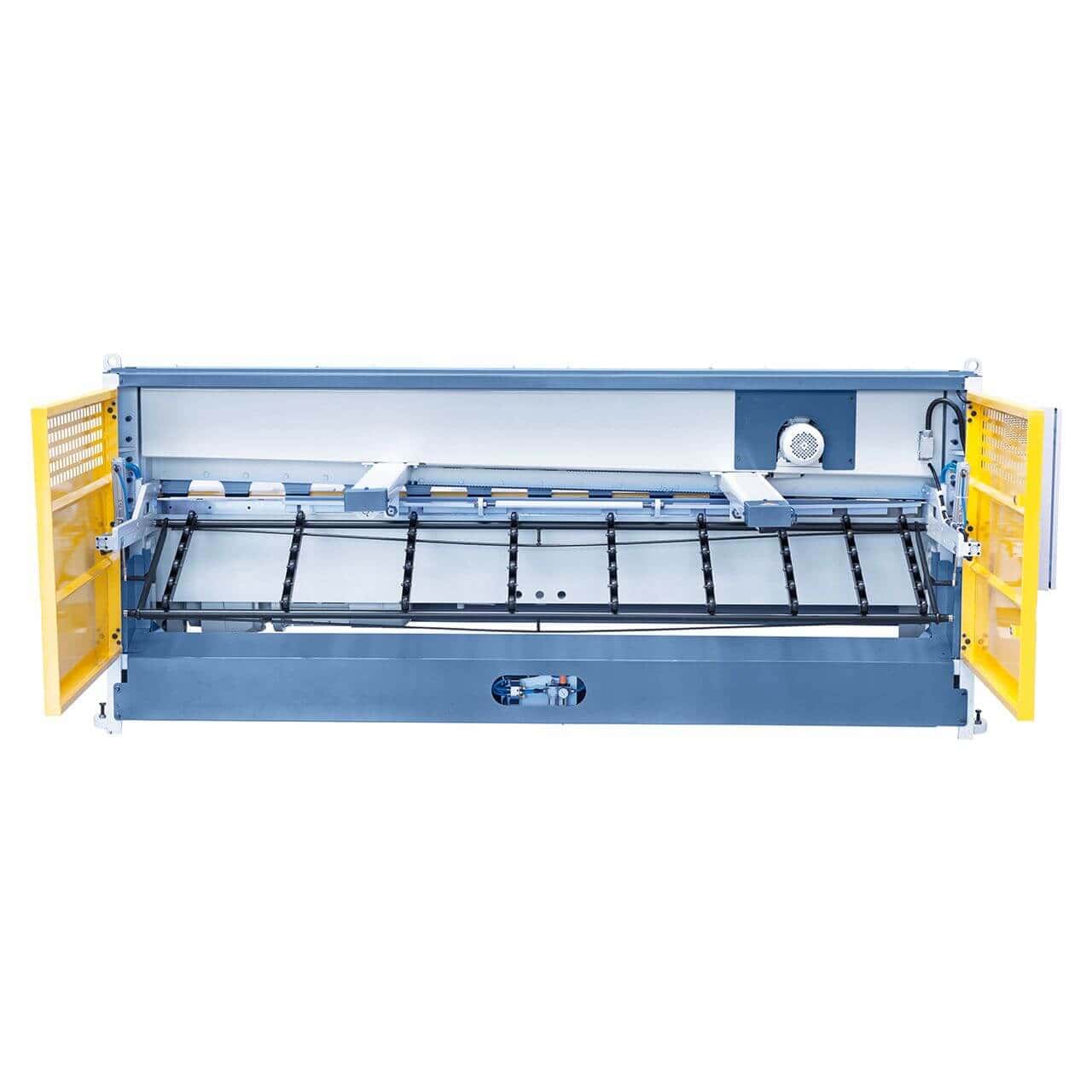

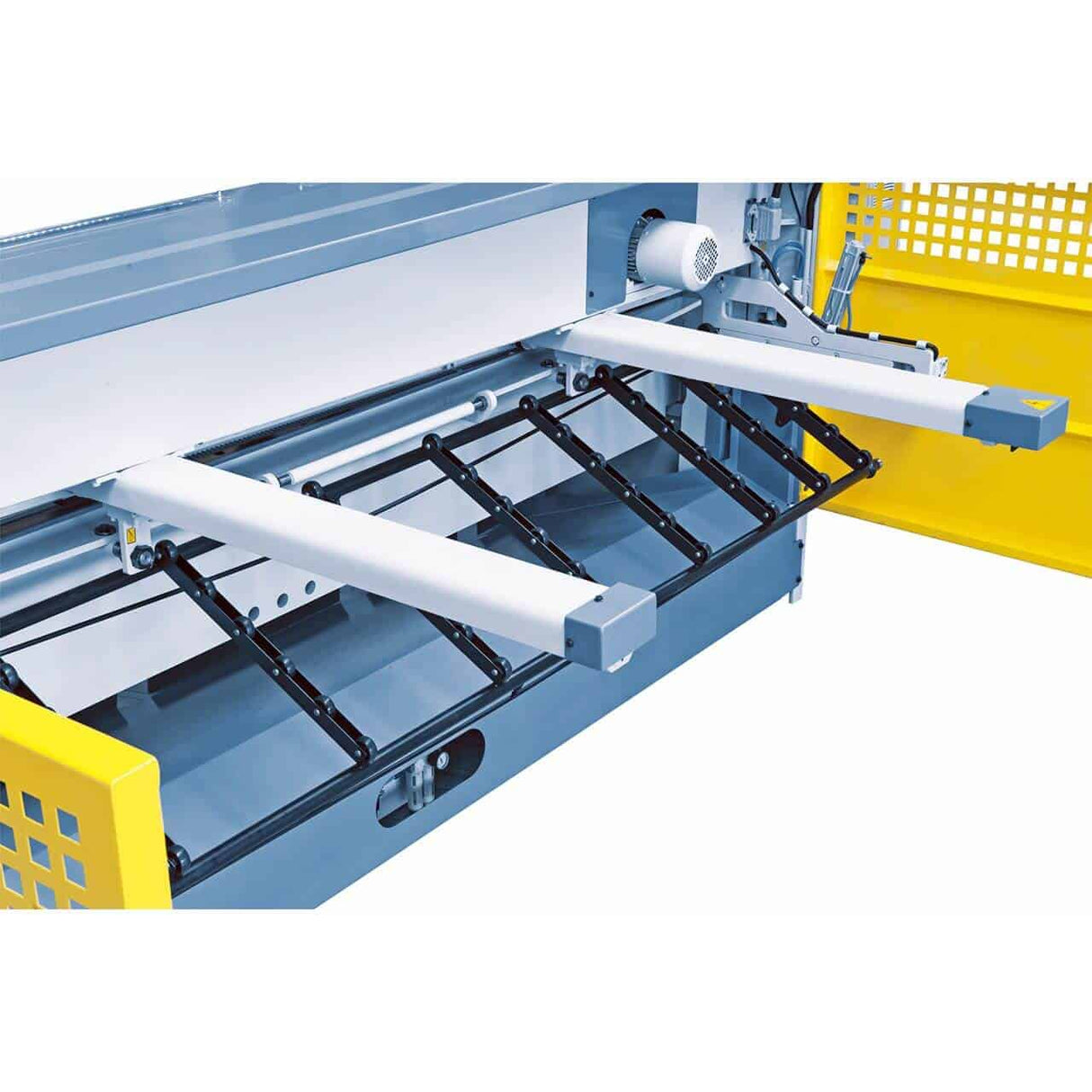

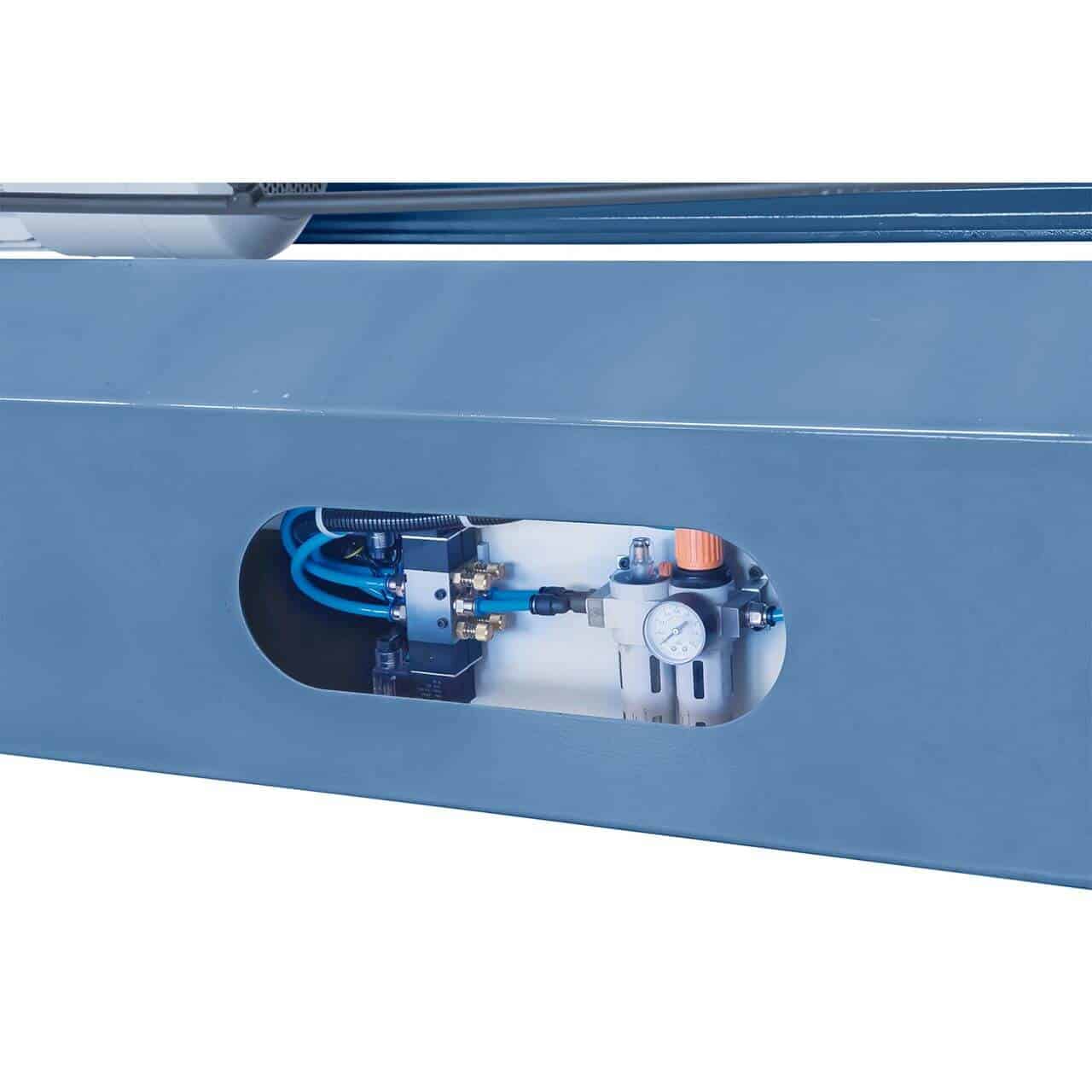

Pneumatic sheet support system, ideal for thin sheets
Hardened steel dual blades, clean and burr-free
Table with integrated rollers and front supports for large formats
Integrated cutting line illumination with silhouette
Safety guards with photocells and foot pedal with emergency stop
7.5 kW motor and robust welded steel structure

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MTR 3060 x 4 mm NCC
Type	Motorized guillotine shear with NC and pneumatic support
Cutting length	3060 mm
Max sheet thickness*	4 mm
Cutting angle	1°30’
Strokes per minute	31
Working height	800 mm
Back gauge	0 – 750 mm (motorized NC)
Table width	450 mm
Motor power	7.5 kW
Dimensions (L x W x H)	3770 x 2250 x 1400 mm
Weight	4000 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTR 3060 x 4 mm NCC Guillotine Shear

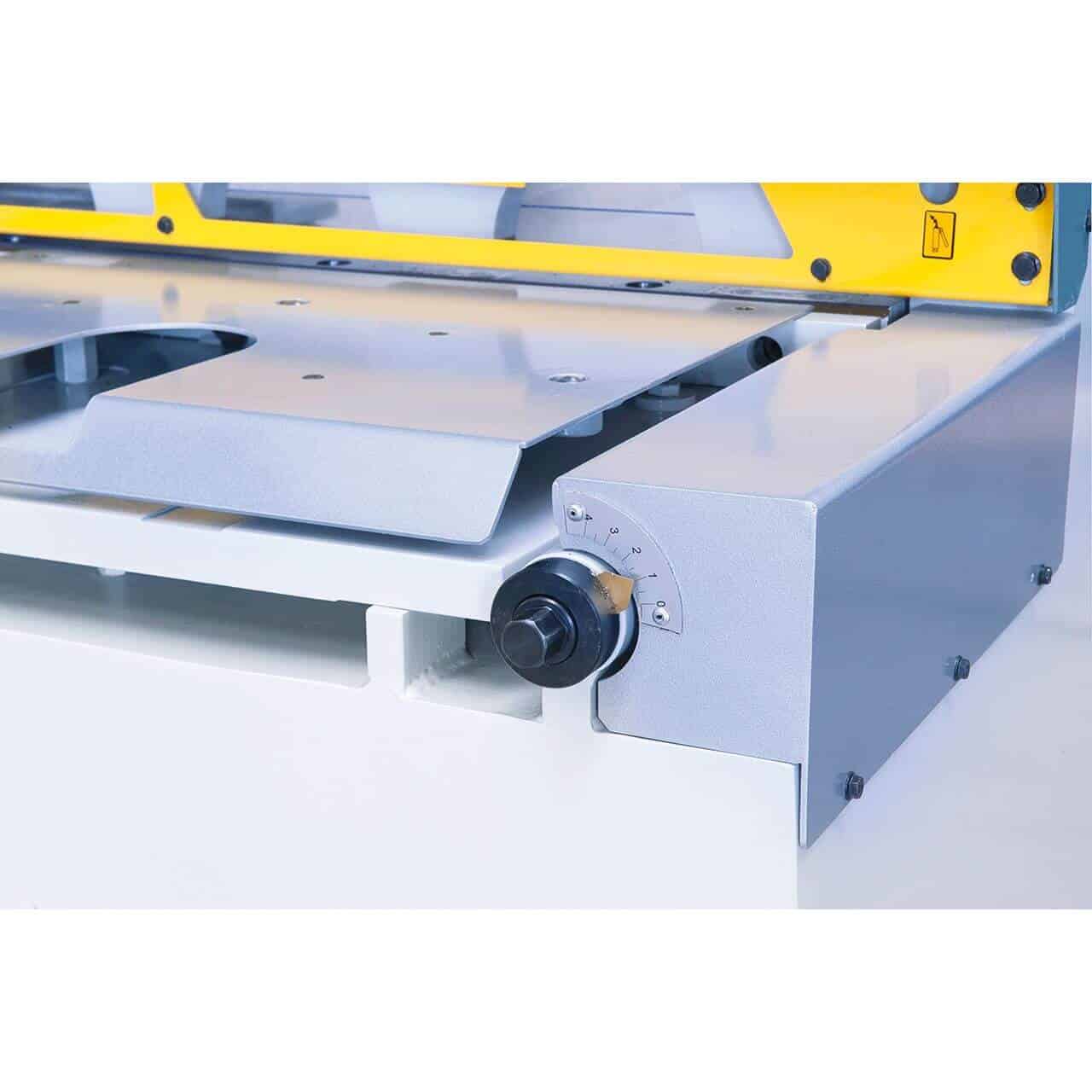

Front blade gap adjustment
Cutting line illumination
Motorized NC backgauge

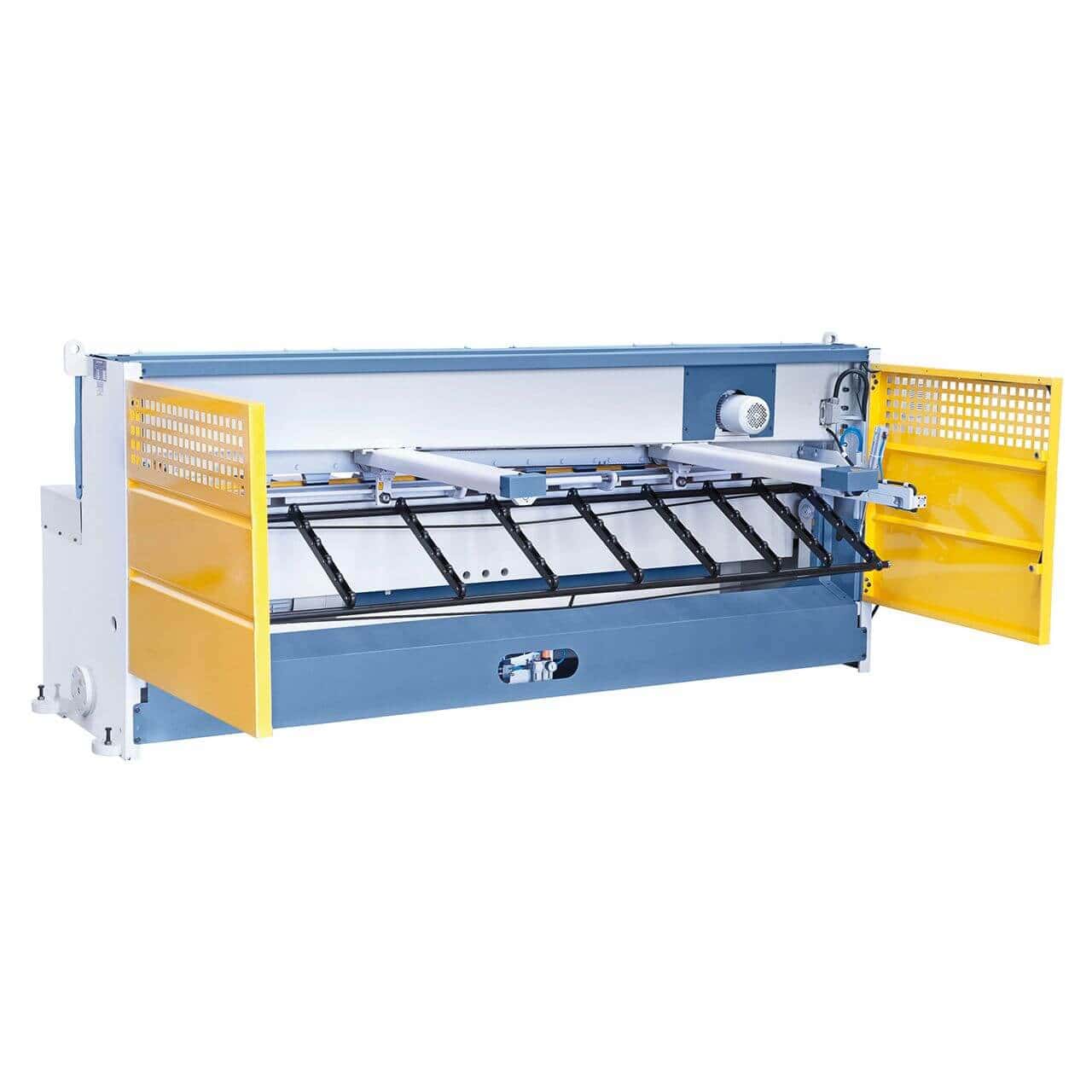

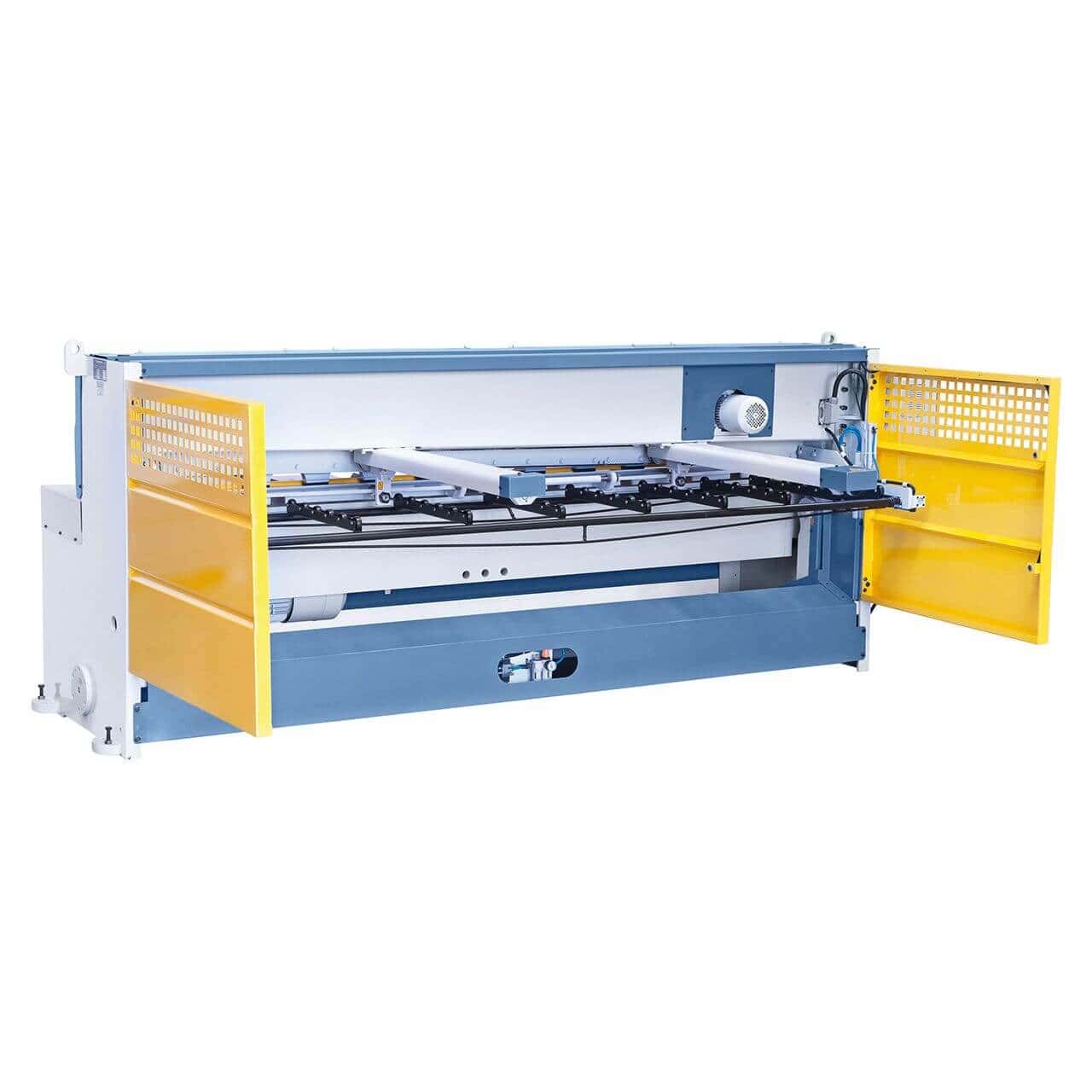

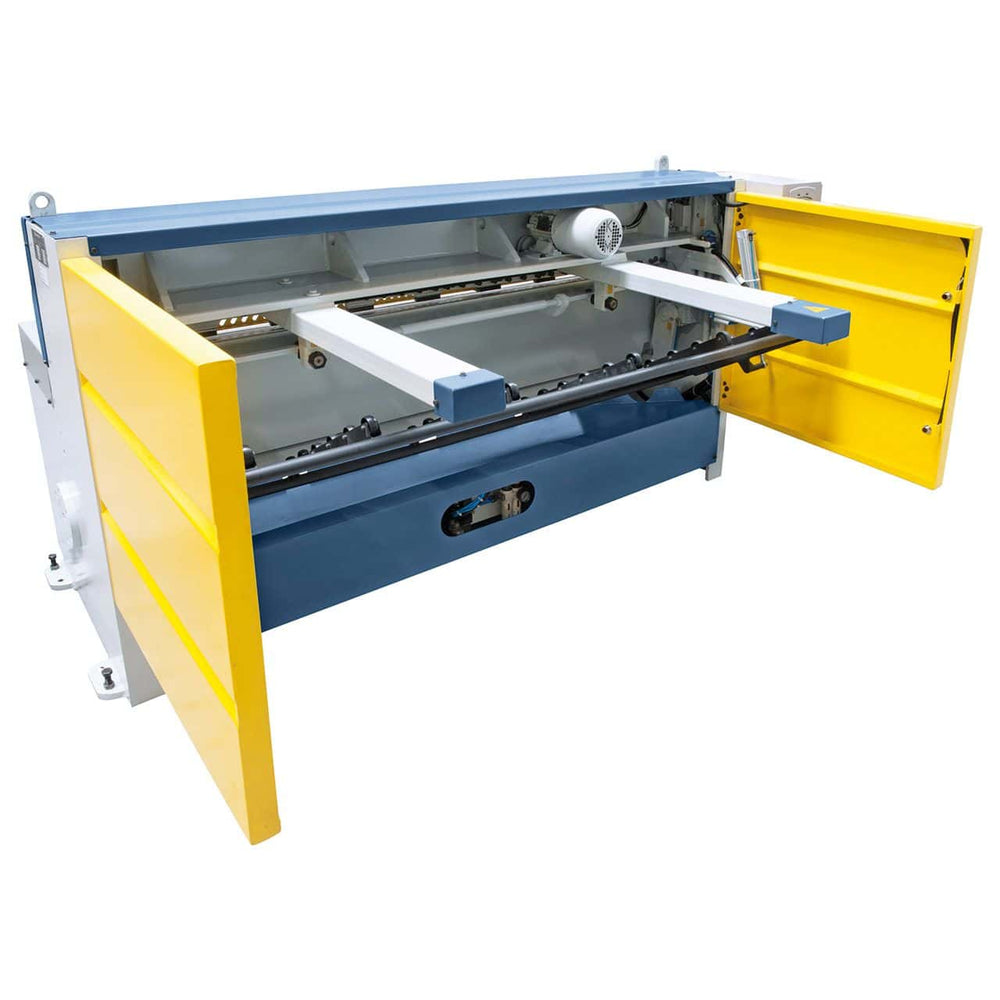

Pneumatic sheet support system

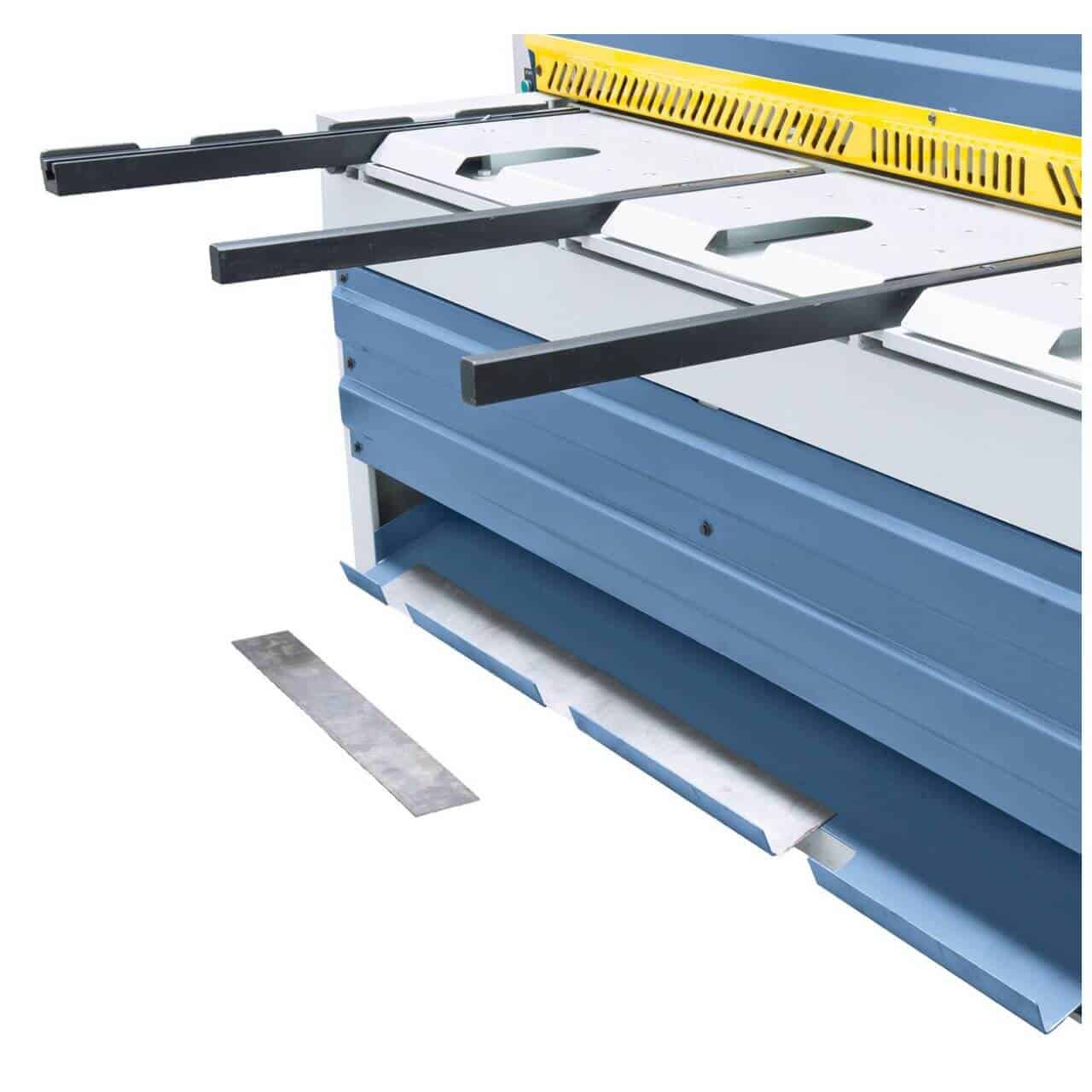

Front sheet supports
Table with integrated rollers

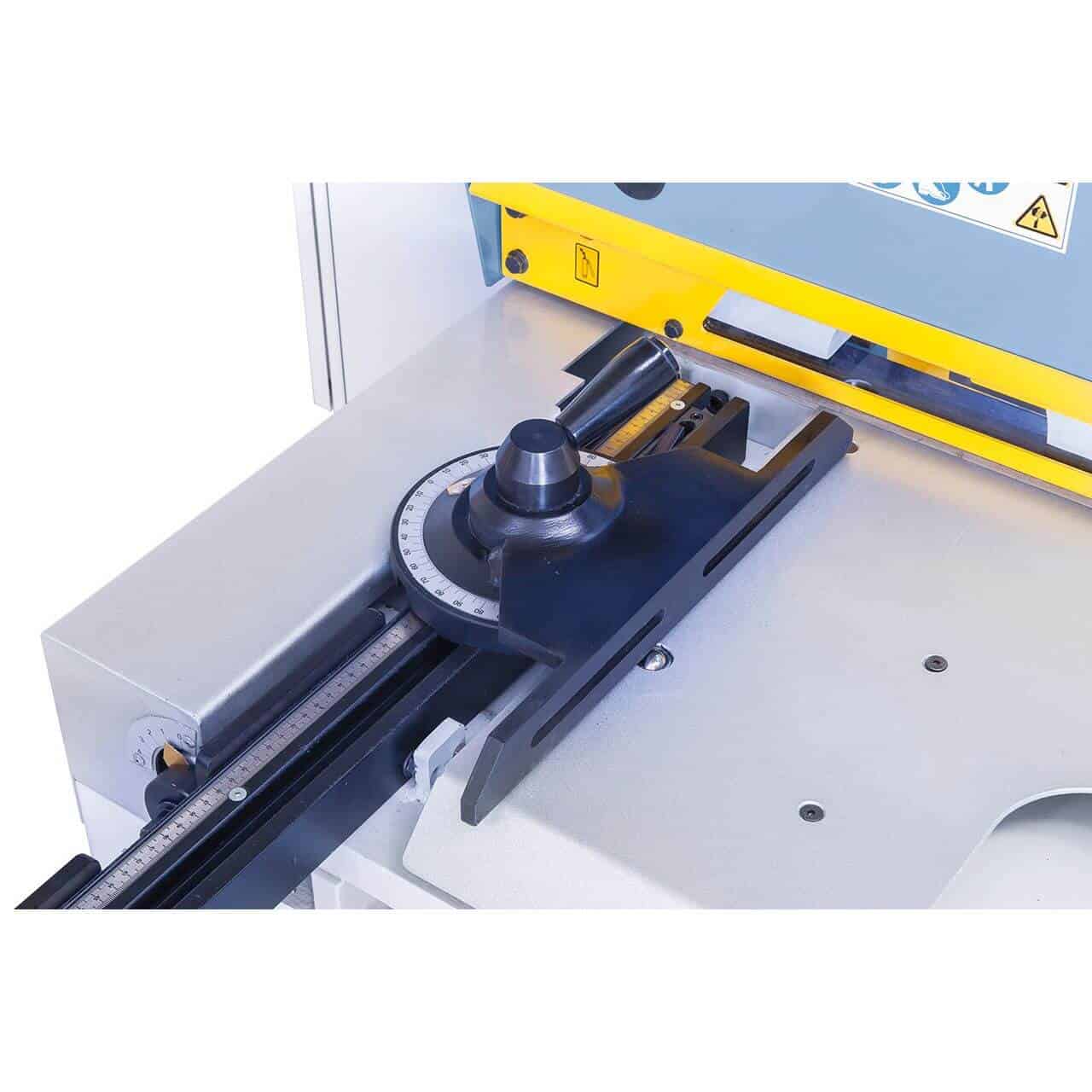

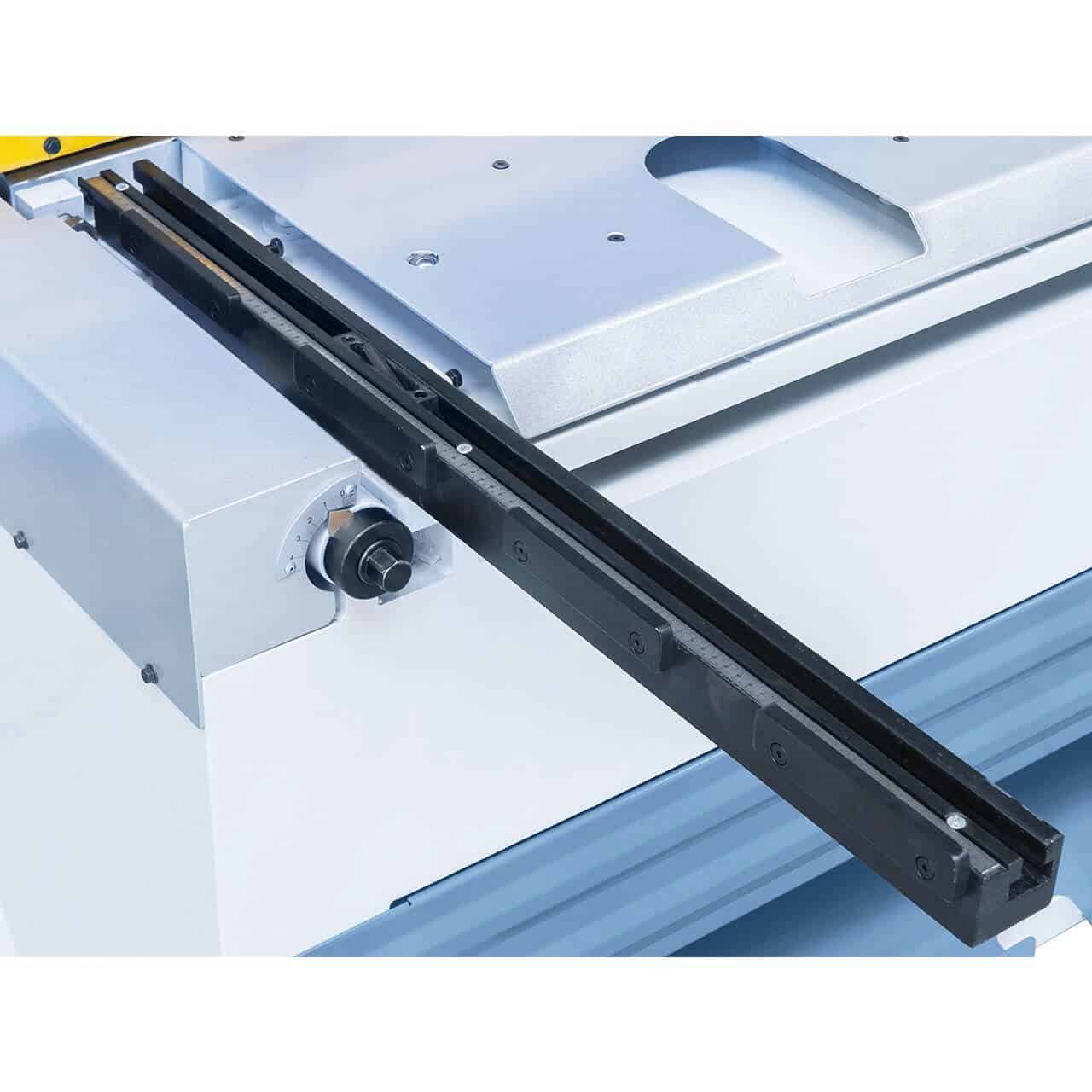

Side ruler with scale

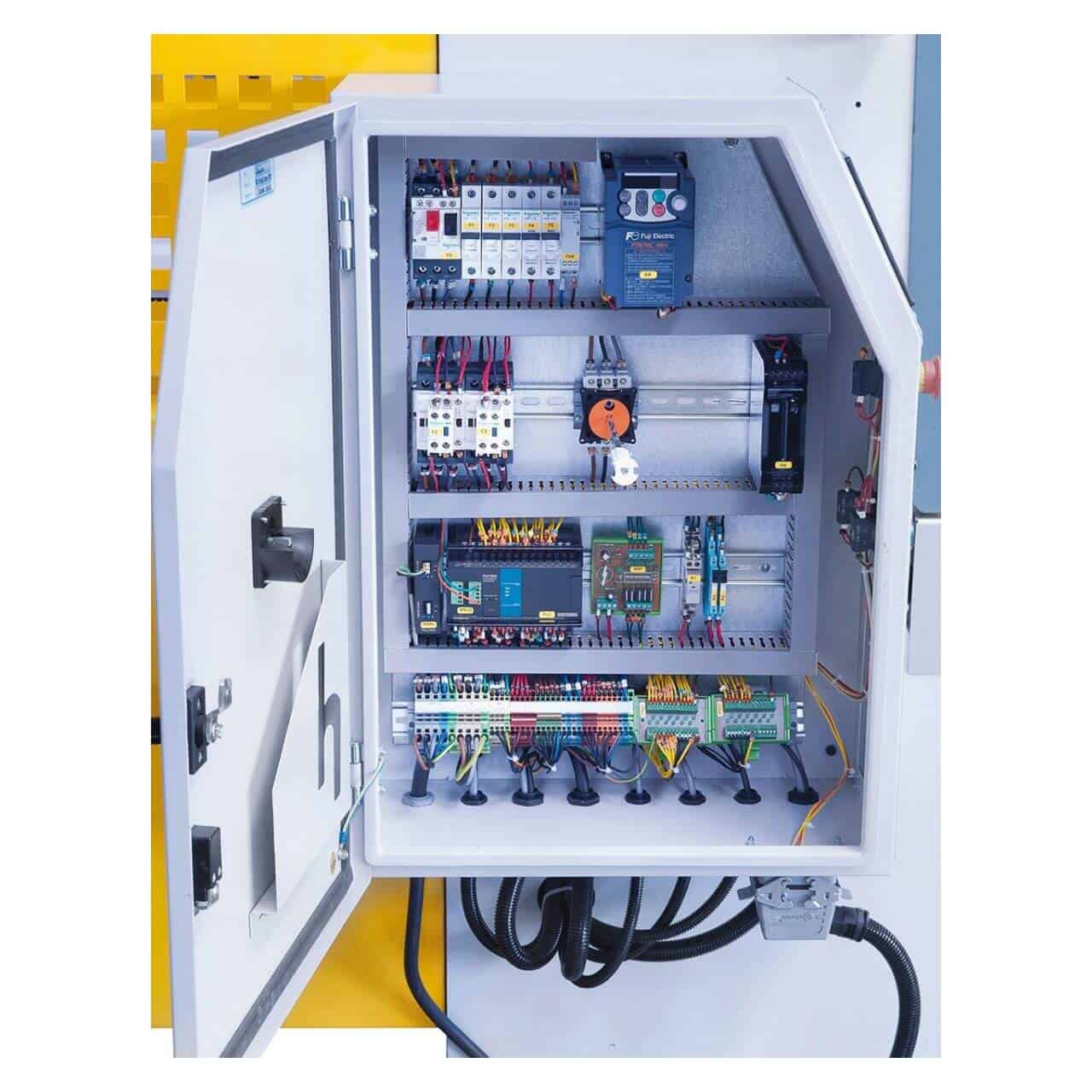

Fuji control with touchscreen

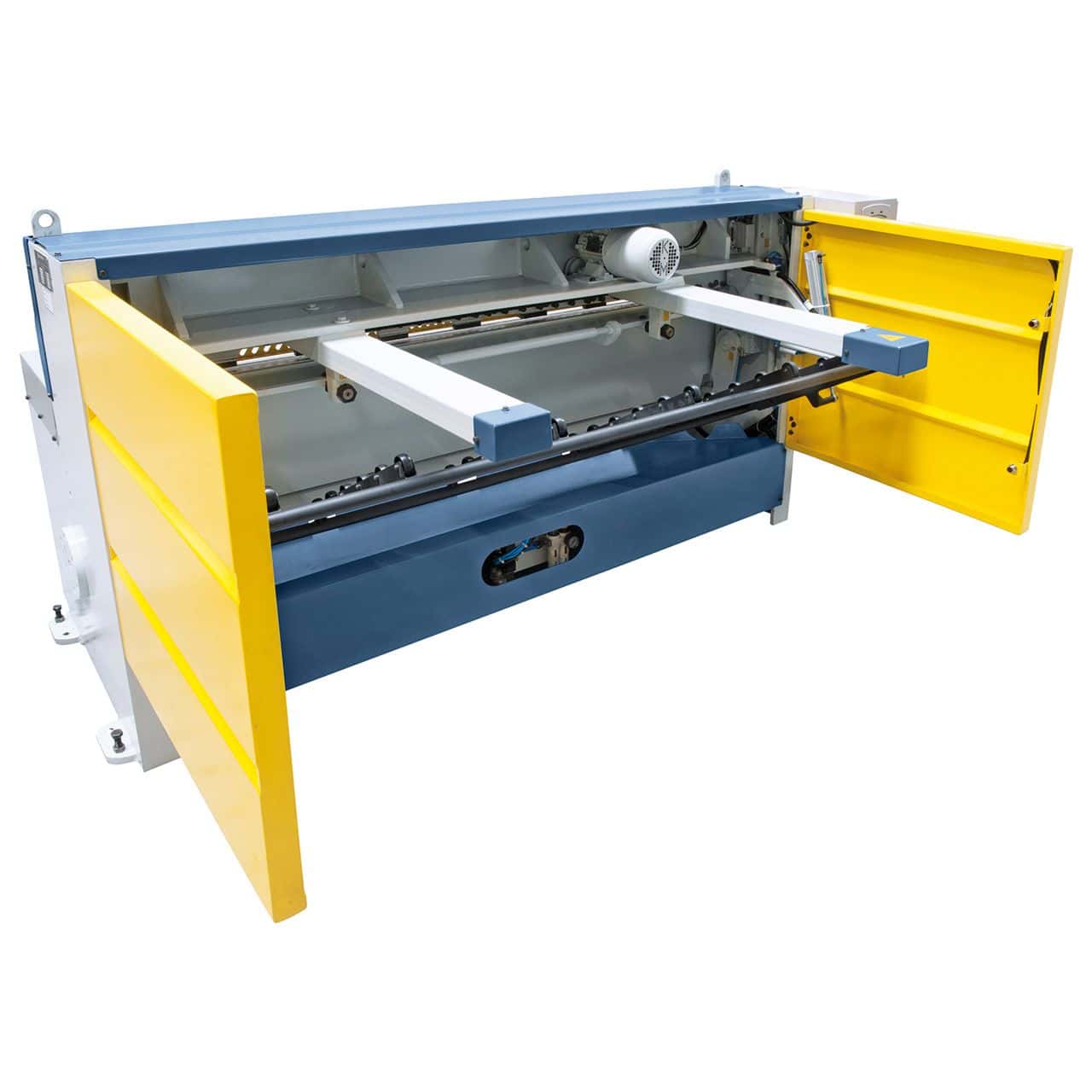

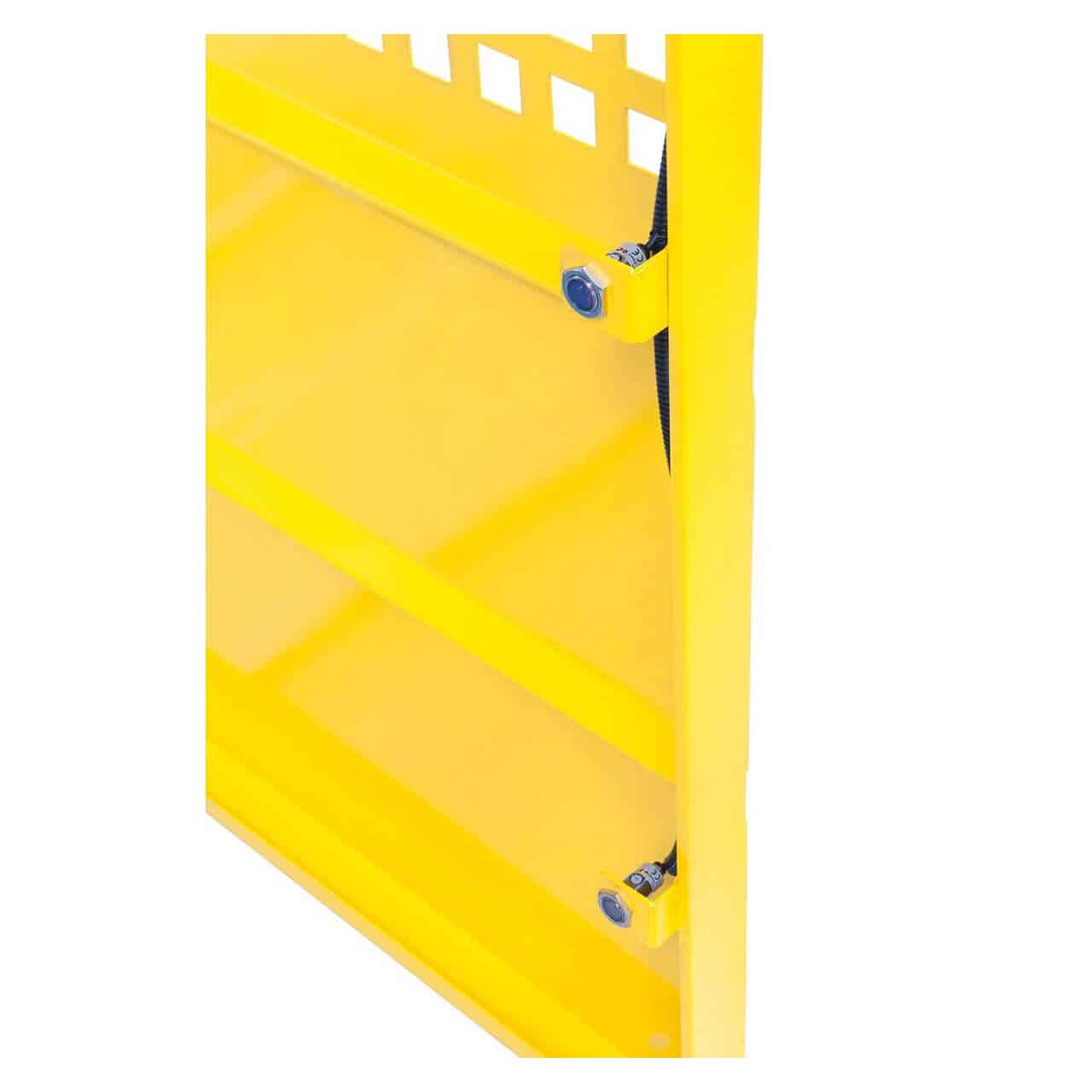

Rear safety guards with photocells

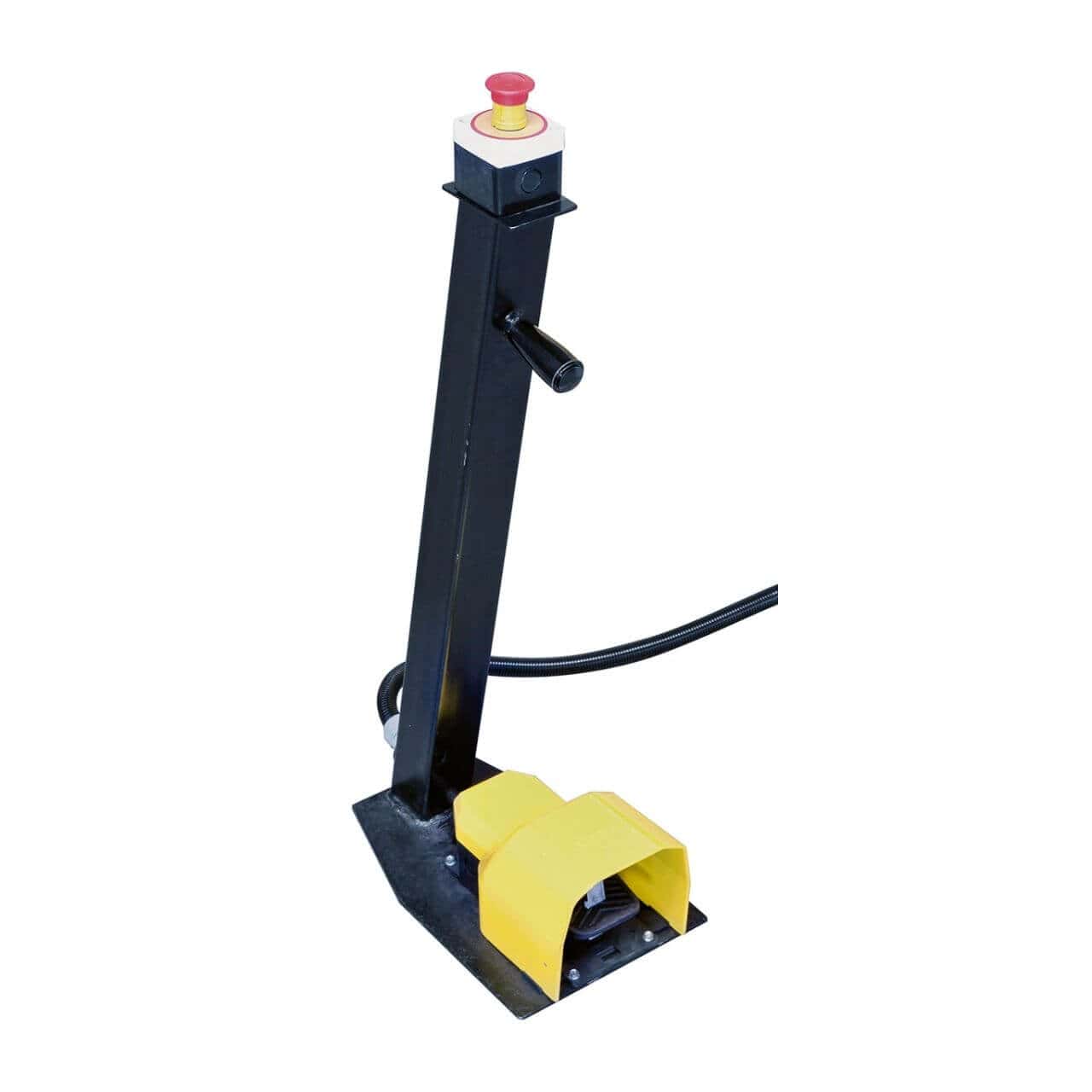

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 business days (7 days to Southern Italy). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate positioning of heavy or long sheets. The choice depends on production volume and the format of the processed sheets.

What is the maximum thickness for stainless steel with the Bernardo MTR 3060 x 4 mm NCC – Shear?

The nominal thickness of 4 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.6 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 business days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet handling, free space at least equal to the cutting length (3060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
