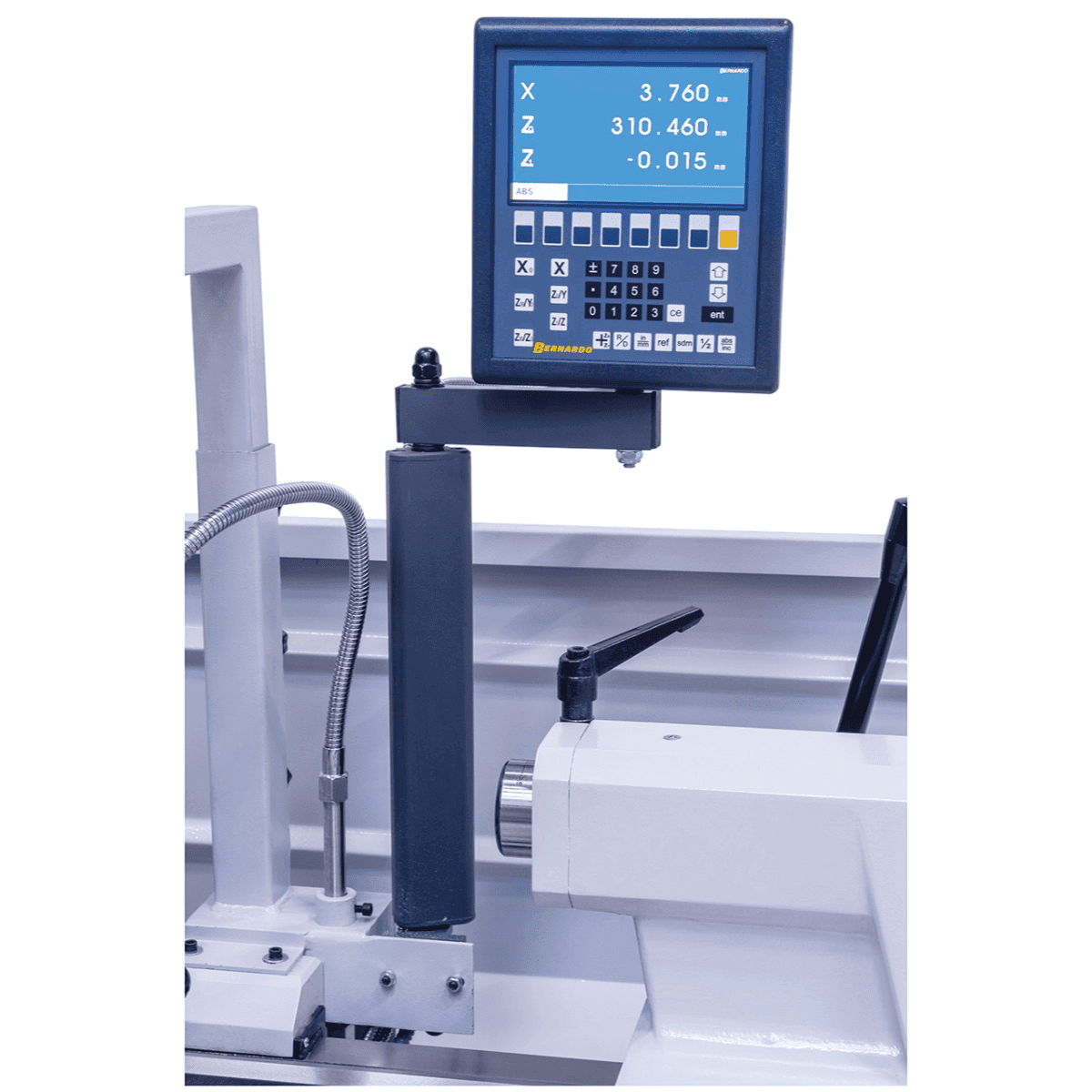

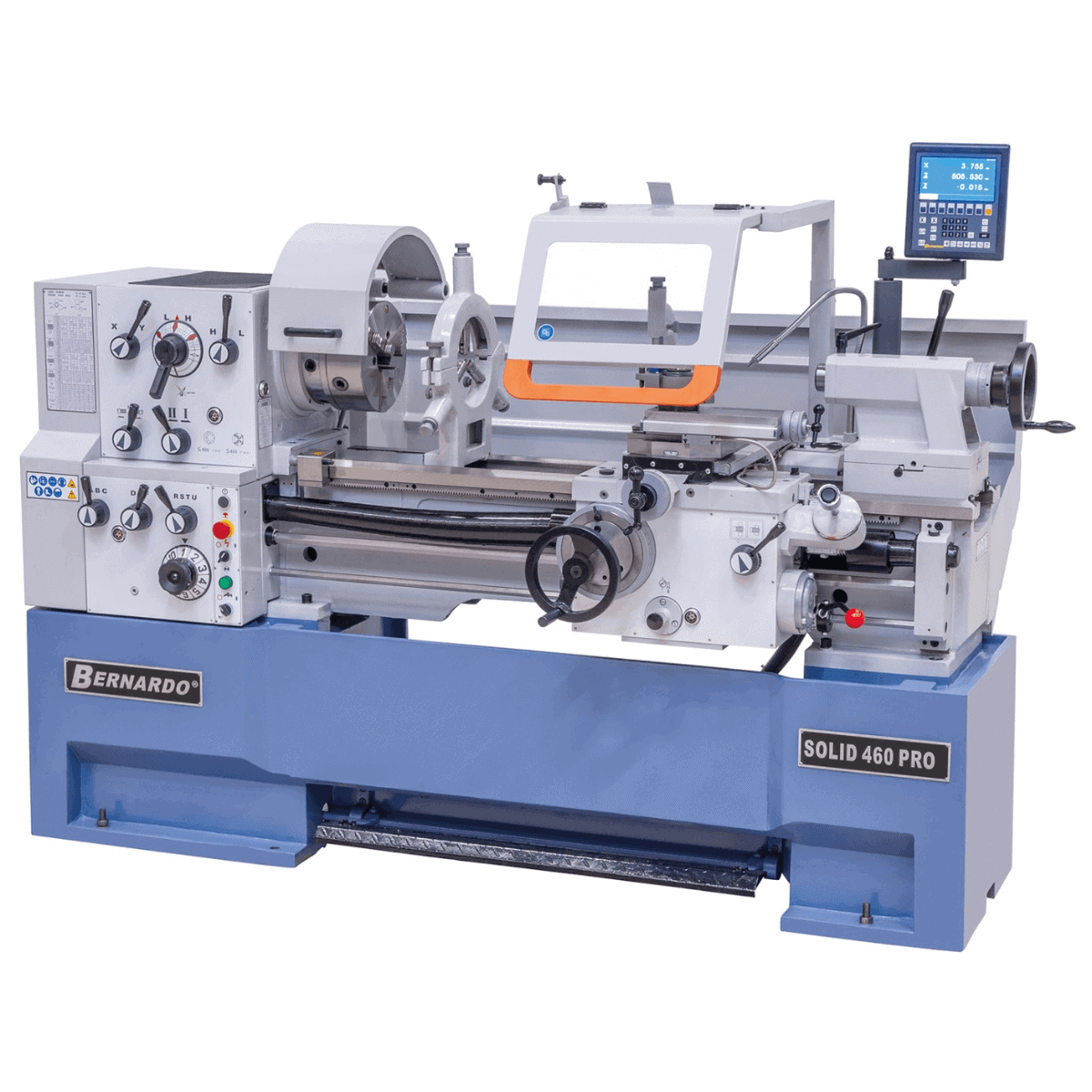

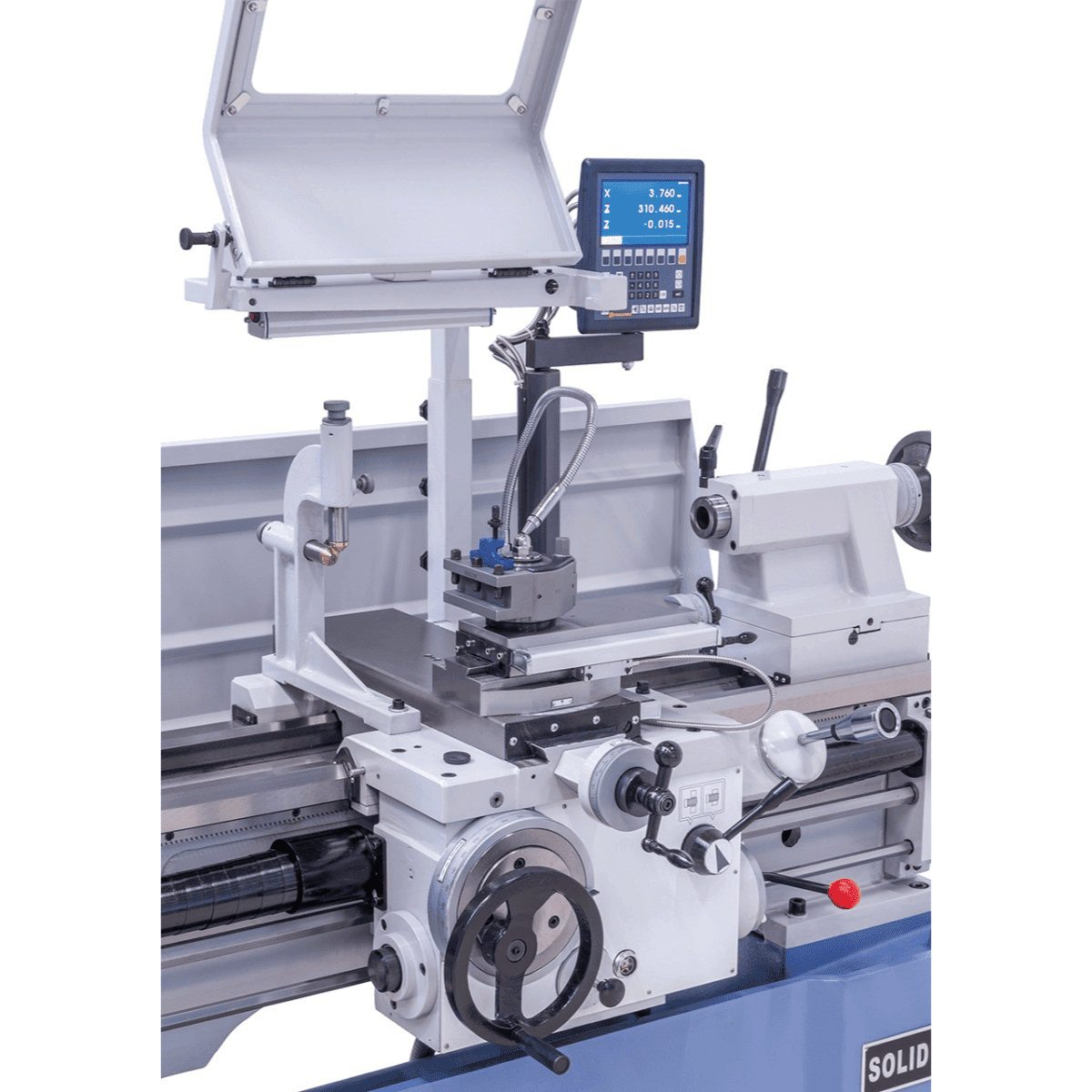

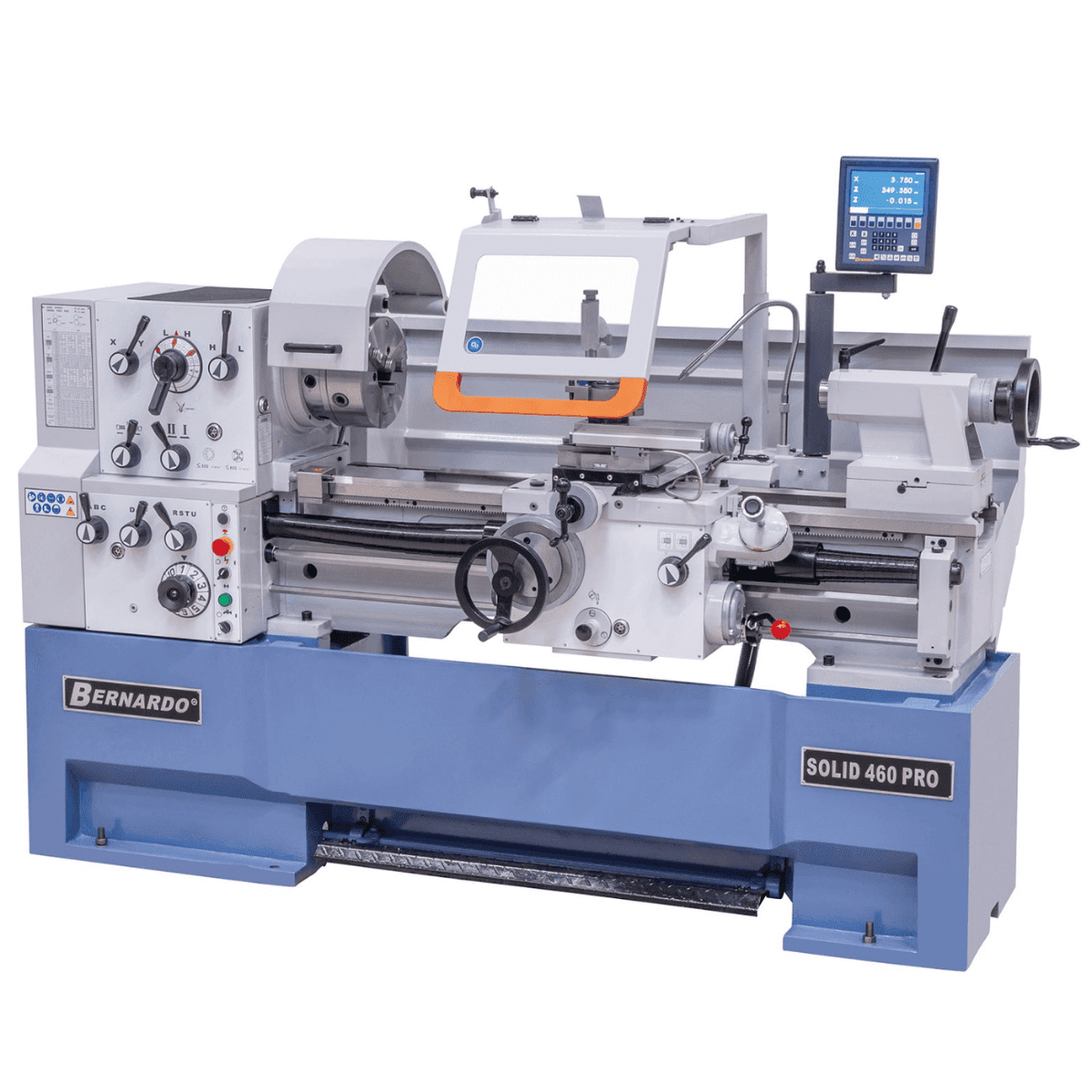

Bernardo Solid 460 x 1000 Pro Metal Lathe with 3-Axis Digital Readout
-
Description
-
Product safety
-
Reviews
Description
The Bernardo Solid 460 x 1000 Pro with 3-axis digital display is a metal lathe for professional use, with a distance between centers of 1000 mm, center height of 230 mm, 5.5 kW (7.5 HP) motor, and approximate weight of 1675 kg. Krollit, official Bernardo distributor since 2007.
- Distance between centers: 1000 mm
- Center height: 230 mm
- Swing over bed: 460 mm
- Swing in gap: 690 mm
- Swing over cross slide: 270 mm
- Bed width: 300 mm
Who uses the Solid 460 x 1000 Pro with 3-axis digital display and for what purpose
Mechanical workshops and artisan turners use the Solid 460 x 1000 Pro with 3-axis digital display for cylindrical and conical turning, and threading operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.
Its place in the Bernardo range
The Bernardo Solid 460 x 1000 Pro with 3-axis digital display fits into the Bernardo range of metal lathes, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the machine suitable for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days to the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Solid 460 x 1000 Pro with 3-axis digital display for?
The Solid 460 x 1000 Pro with 3-axis digital display is recommended for the following professional profiles:
- Mechanical workshops and artisan turners: cylindrical and conical turning, and threading on steels and alloys.
- Industrial maintenance technicians and repair centers: processing of spare parts, shafts, bushings, and small production.
- Hobbyists and model making: professional machine: for occasional home use, consider smaller benchtop models.
Spindle, tools and speed
| Distance between centers | 1000 mm |
| Center height | 230 mm |
| Spindle nose | DIN 55029, D1-8 |
| Spindle speed | 25 – 1700 rpm (12) |
Table, dimensions and geometry
| Bed width | 300 mm |
| Machine dimensions | 2300 x 1080 x 1600 mm |
| Weight | approx. 1675 kg |
Other specifications
| Swing over bed | 460 mm |
| Swing in gap | 690 mm |
| Swing over cross slide | 270 mm |
| Spindle bore | 80 mm |
| Metric threads | 0.1 – 14 mm (41) |
| Inch threads | 2 – 112 TPI (60) |
| Longitudinal feeds | 0.055 – 3.065 mm/rev |
| Cross feeds | 0.025 – 1.386 mm/rev |

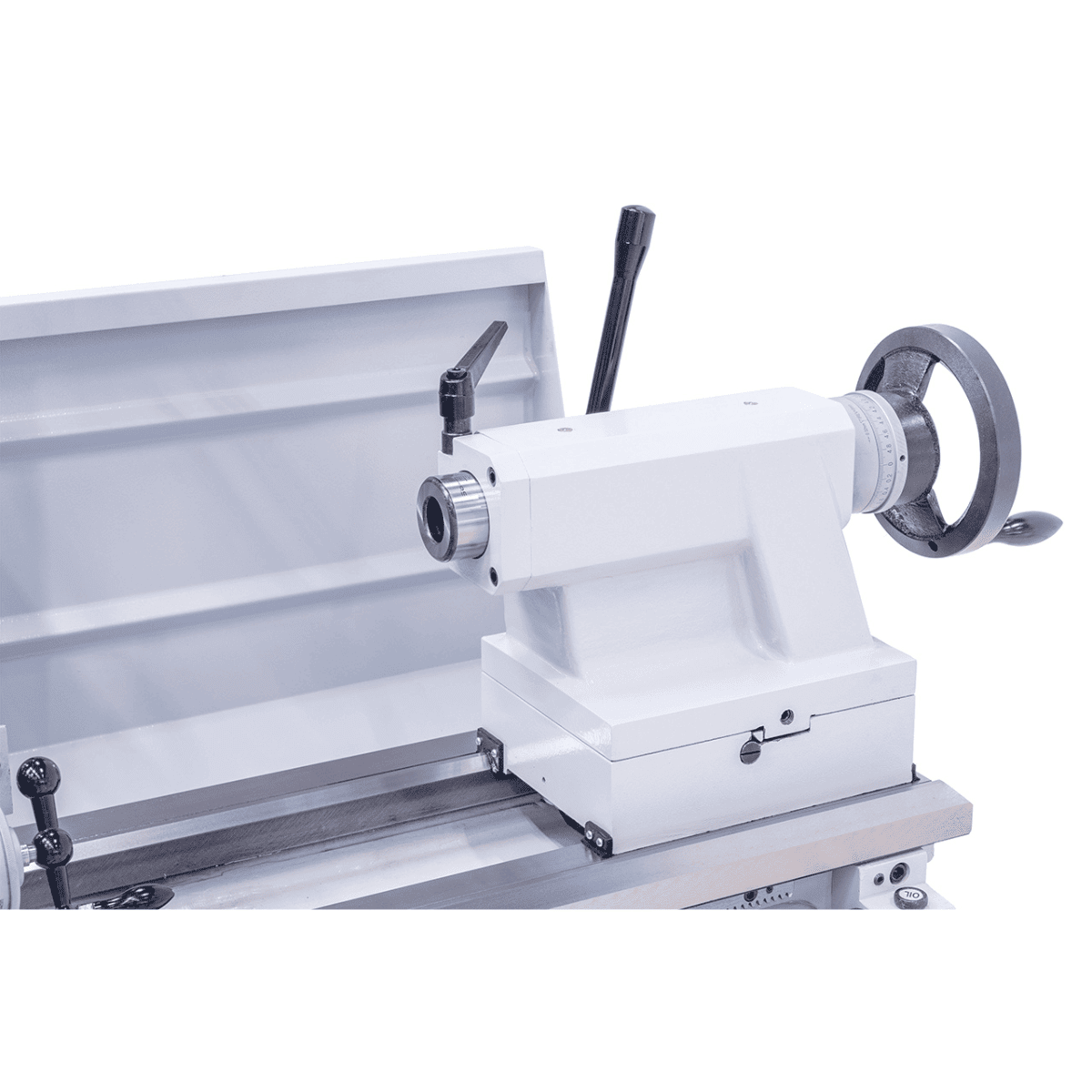

| Tailstock – quill | Ø 60 mm, travel 130 mm, MT4 taper |
| Motor power | 5.5 kW (7.5 HP) |
Frequently Asked Questions
What materials can the Solid 460 x 1000 Pro with 3-axis digital display work on?
Mild steels, alloy steels, cast iron, brass, and aluminum within the limits of cut indicated in the technical specifications.
For hardened or high-strength alloy steels, it is advisable to reduce cutting speed and depth of cut. The machine is sized for general mechanical production; for special alloys, verify the compatibility of the spindle and tailstock Morse taper.
What is included in the standard equipment?

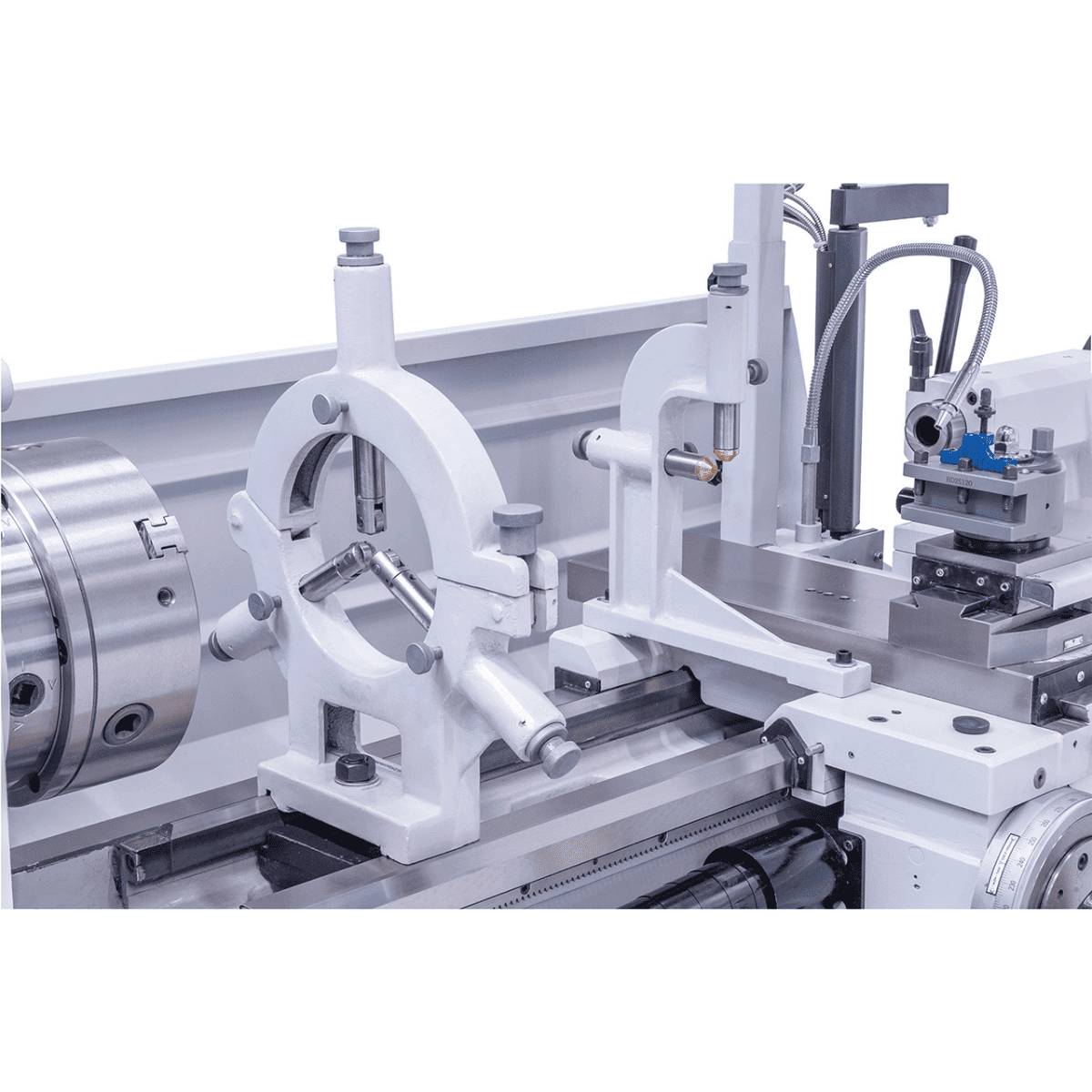

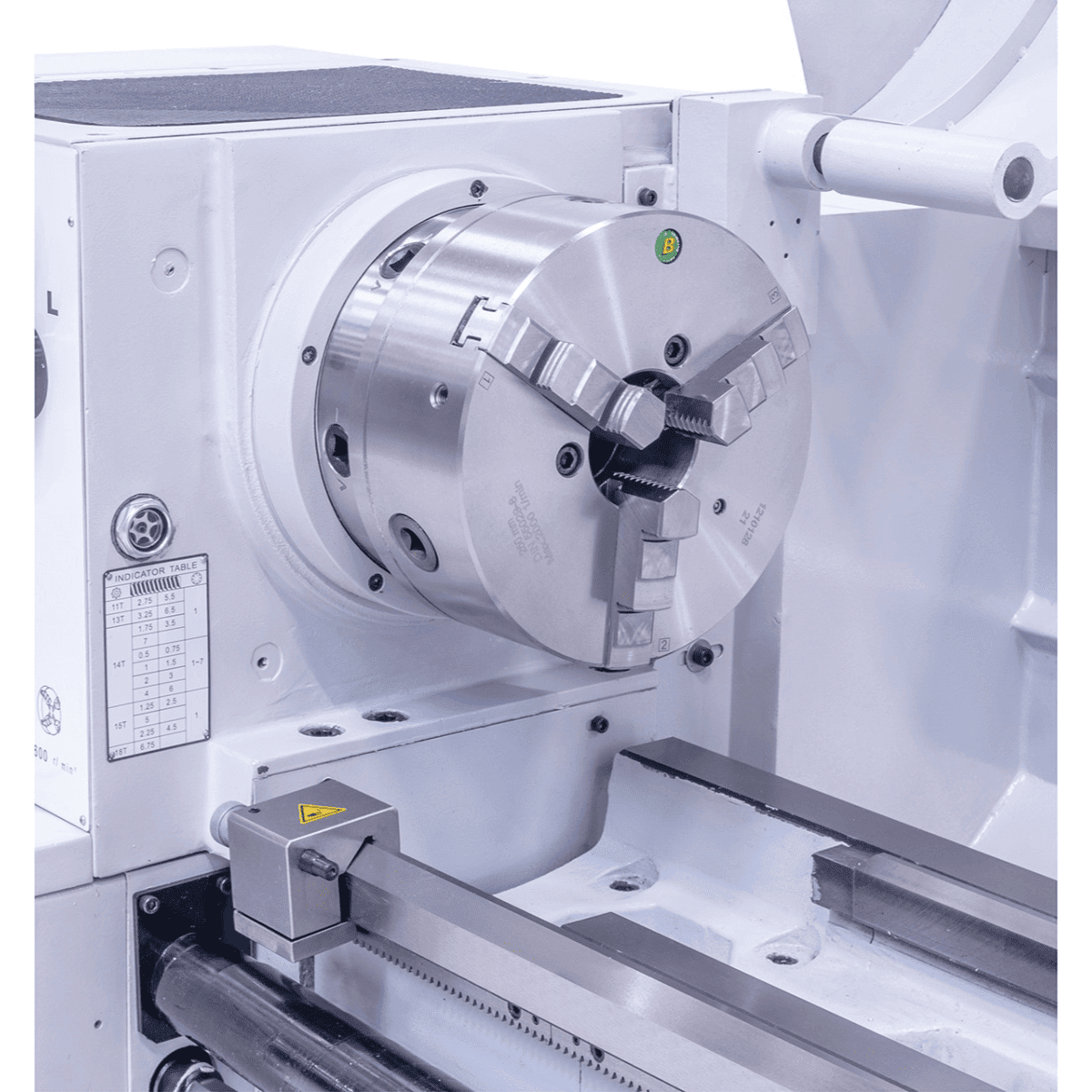

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a set of wrenches.
For the exact list of accessories and spare parts provided, consult the manufacturer's technical sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 working days.
What type of power supply does it require?
See the voltage data in the technical table. Compact benchtop machines are often 230 V single-phase, professional models 400 V three-phase.
For 400 V three-phase models, an industrial power line is required. Verify the availability of adequate power in the workshop before purchasing.
Is the machine suitable for series production?
It depends on the model class: professional Bernardo lathes handle continuous cycles, while benchtop models are suitable for medium use.
Profi and Apollo models are designed for intensive multi-shift use; Hobby and Goliath series for occasional use or small workshops.
How much does it weigh and what installation does it require?
The weight varies significantly by model: see the "Weight" entry in the technical table.
Machines above 500 kg require industrial flooring and fixing with anchor bolts. Benchtop models up to 100 kg are installed on a sturdy bench with an adequately sized top.
